display Seat Leon 5D 2010 MEDIA SYSTEM 2.2

Introduction
8Unit overview
D Rotary/push knob.
− Press to switch on and off ⇒page 10.
− Turn to adjust the base volume ⇒ page 10.
Press to activate a function area.
− : switch on the radio and change frequency band ⇒page 14.
− : change to Media mode ⇒page 29. −
: switch on the Telephone function ⇒ page 75.
− : open the Navigation main menu ⇒page 47.
− : display stored traffic news (TMC) ⇒page 71.
− : open a context-sensitive setup menu for the selected mode,
and switch on sound and system settings ⇒page 87.
Fig. 1 Overview of the controls.
A1A2
RADIOMEDIA
PHONENAVTRAFFICSETUP
MediaSystem2.1_EN.book Seite 8 Donnerstag, 29. April 2010 4:18 16

Introduction9
Arrow buttons and always affect the currently active audio source
irrespective of the menu displayed on the screen.
− In all radio modes , press briefly (please observe the respective
display
­
) to change station or channel ⇒page 14.
− In Media mode , press briefly to change title or chapter, and hold down
to fast forward or rewind ⇒page 29.
CD slot ⇒page 29.
Touch scre en ⇒page 10.
CD eject button ⇒page 29.
Press Info to display additional information relating to the menu:
− Display or hide the radio text in Radio mode ⇒ page 21.
− Display additional title information (stored position) in Media mode
⇒ page 29.
− While navigating , to display current position of vehicle or
programmed destination ⇒page 47.
Press the back button to close menus and pop-up windows.
AUX-IN multimedia socket for connecting external audio sources
⇒ page 29.
Setting knob : the function depends on which mode is activated.
− In all radio modes , turn to manually change the station or channel
⇒ page 14.
− In Media mode , turn to manually change the title and press to stop
and start the scan function ⇒page 29.
− Tu r n to modify the map scale ⇒ page 63.
− During the route guidance , press to repeat a navigation instruction
⇒ page 63.
Function buttons : the current function is displayed on the screen via the
corresponding function button. ⇒page 10.
Memory card slot ⇒page 29.
A3
ƒ
„
A4A5A6
š
A7
º
A8
E
A9A10A11A12
MediaSystem2.1_EN.book Seite 9 Donnerstag, 29. April 2010 4:18 16

Introduction11
Adjusting the base volumeChanges to the volume are indicated by a “bar” on the screen. During this
time the unit cannot be operated.
At “0” the unit is muted (display:
) and the current media source is
stopped.
It is possible to preset certain volume settings and adjustments ⇒ page 87.
WARNING
Your attention may be distracted from the traffic if you use the radio and
navigation system while driving, resulting in accident.•You should always drive with due care and attention.•Select volume settings that allow you to easily hear signals from
outside the vehicle at all times (e.g. emergency service sirens).•If the volume is too high, you could damage your hearing. Even if the
volume is too loud for a short period only.Caution
If the volume is too high or the sound is distorted, the vehicle speakers may
be damaged.
Note
If the base volume has been turned up high to play an audio source (e.g. due
to very quiet audio output from an external audio source), lower the volume
again before switching audio source.Additional information and display optionsThe text displayed on the screen may vary depending on the settings and may
not match the illustrations shown here.
All displays appear only after the radio-navigation system has completed
start-up.
Depending on the vehicle, the changes to the air conditioning settings or the
texts relating to driver assistance systems fitted at the factory are displayed.
These displays disappear automatically when they are no longer required.
Function
Action
Increase the vol-
ume.
Turn the sound control knob
D ⇒ page 8, fig. 1 to the
right, or press the button on the multifunction steer-
ing wheel ⇒Booklet “Owner's Manual”.
Lower the vol-
ume.
Turn the volume control
D anti-clockwise
or press the button on the multifunction steering
wheel.

MediaSystem2.1_EN.book Seite 11 Donnerstag, 29. April 2010 4:18 16

Introduction
12Function buttons and unit buttonsThe unit is equipped with a touchscreen.
The currently selected menu is displayed in the centre of the bottom line of
the screen.
Controls•Rotary/push knobs.•Labelled unit buttons .•Function buttons on the unit.•Function buttons displayed on the screen.
Rotary/push knobs
The left-hand rotary/push knob ⇒page 8, fig. 1 is referred to as the
volume control
D or the on/off switch.
The central rotary/push knob ⇒page 8, fig. 1 is referred to as the setting
knob. Unit buttons
This manual uses the word “unit button” and a symbol to refer to buttons
on the unit, e.g. the unit button.
There are two unlabelled unit buttons below the screen
⇒page 8, fig. 1 .
Each has the same function and is operated in the same way as the function
button displayed on the screen above it ⇒fig. 2 and .
Unit buttons are operated either by pressing or pressing and holding them.
Function buttons on the screen.
Active areas of the screen that call up a certain function are called “function
buttons”. These buttons are operated by briefly pressing the screen or by
pressing and holding . Function buttons are referred to in this manual with the
button symbol and the word “function button”.
If a function button on the screen has a grey background, it is disabled,
e.g. ⇒fig. 2 .
Pop-up window
A “pop-up window” is a small window that is temporarily displayed on top
of the current menu and contains additional function buttons.
Function buttons in pop-up windows can be selected by pressing them. This
closes the pop-up window.
Press the unit button to close the pop-up window without making any
changes.
Starting functions or enabling functions using “checkboxes”
Some functions are started and stopped by pressing a button, for example
the scan function ⇒ page 16.
Other functions and displays are permanently activated or deactivated and
are controlled via checkboxes.
A tick in the checkbox
’ indicates that the function is enabled, and an empty
checkbox
‰ means that it is disabled.
Fig. 2 RADIO main menu
with pop-up window.
A1
A10
...
RADIO
A11
AA
AC
...AC
AB
E
MediaSystem2.1_EN.book Seite 12 Donnerstag, 29. April 2010 4:18 16

Introduction13
Any functions enabled by checkbox can only be disabled by opening the pop-
up window again and pressing the respective checkbox.
Selecting function buttons with the setting knob
With the exception of the two function buttons ⇒page 12, fig. 2 and
at the bottom, function buttons displayed on the screen can also be marked
by turning the setting knob ⇒page 8, fig. 1 . Pressing the setting knob
then selects the marked function button ⇒page 13.Browsing lists and selecting itemsAvailable stations or tracks are displayed as items in lists. The currently
selected station or track is highlighted ⇒fig. 3 .
Like a function button, you can select a list item by pressing it.
Selecting and opening the list items (setting knob)•Selecting list items : Move the selection box by turning the setting knob
⇒ page 8, fig. 1 . When the selection box is moved to the end of the visible section of the list,
the next set of items in the list is displayed.
•Opening the marked list item
: Press the setting knob.
Scroll through lists quickly (scroll marker)
If there are more items available than can be displayed on the screen, a type
of “scroll bar” is displayed on the left of the screen.
The coloured semi-circle indicates the size of the overall list and the “scroll
marker” ⇒fig. 3 shows the position of the section of the list currently
displayed. The size of the scroll marker corresponds to the size of the current
section of the list relative to the list as a whole. The smaller the scroll marker,
the longer the list.•To browse by page in long lists : Briefly press the screen above or below
the scroll marker.•To browse rapidly through long lists : Move the scroll marker manually.
Place one finger on the scroll marker and without lifting it from the screen use
your finger to move the marker downwards. Lift your finger off the screen
when you reach the desired position.
Closing a submenu or a list view
AA
AC
A10
Fig. 3 Track list of an MP3
CD.
A10
Action: ResultPress the unit button.The open pop-up window will close.ALTERNATIVELY: skip to the next menu up until reaching the main menu
in question.ALTERNATIVELY: undo the navigation address entries in steps.
AA

MediaSystem2.1_EN.book Seite 13 Donnerstag, 29. April 2010 4:18 16

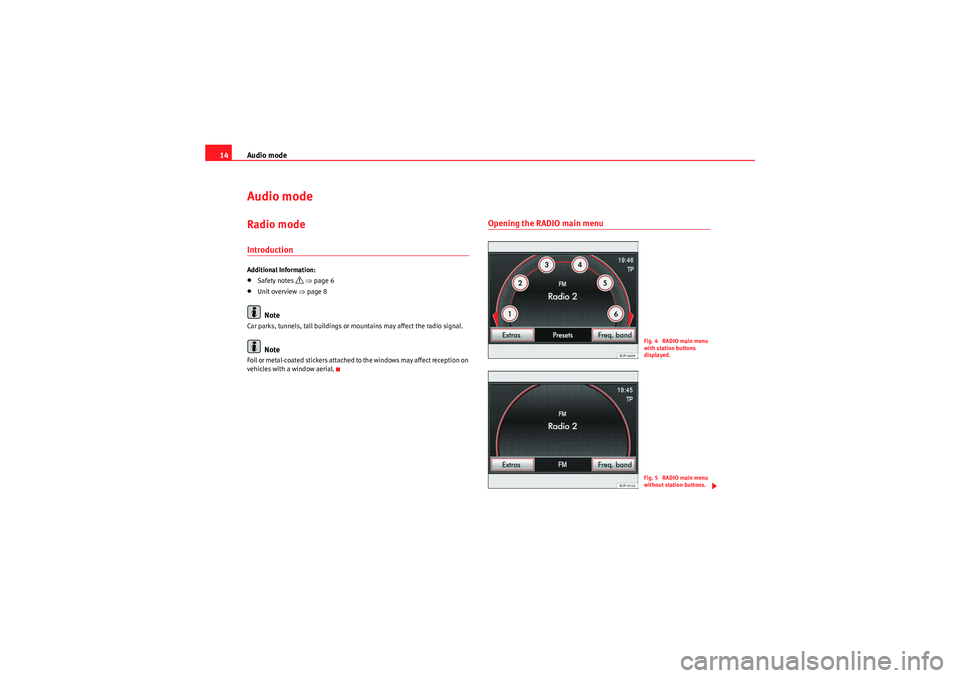

Audio mode
14Audio modeRadio modeIntroductionAdditional Information:•Safety notes
’ ⇒ page 6
•Unit overview ⇒page 8Note
Car parks, tunnels, tall buildings or mountains may affect the radio signal.
Note
Foil or metal-coated stickers attached to the windows may affect reception on
vehicles with a window aerial.
Opening the RADIO main menu
Fig. 4 RADIO main menu
with station buttons
displayed.Fig. 5 RADIO main menu
without station buttons.
MediaSystem2.1_EN.book Seite 14 Donnerstag, 29. April 2010 4:18 16

Audio mode15
•Press the unit button.
The station you are currently listening to is shown in the middle of the screen.
The “station buttons” in the main RADIO menu ⇒page 14, fig. 4 can be
displayed or hidden ⇒page 18.
Displaying station name (RDS)
If RDS is available and reception is good enough, the station name is
displayed (in page 14, fig. 5 : Radio 2 ).
The RDS (Radio Data System) is not compatible with all units and is not avail-
able everywhere or on all radio stations.
In addition, the RDS permits automatic tracking of stations, radio texts or
traffic programmes ⇒page 21.Changing frequency band
The currently selected frequency band is indicated above the station display
and in the bottom line of the screen.
Changing frequency band•In the RADIO main menu, press the unit button.•ALTERNATIVELY: Press the function button and select the range of
frequencies by pressing the corresponding button ⇒fig. 6.Changing radio station or selecting radio stations from the FM station listChange radio station by pressing the arrow buttons or .•Briefly press an arrow button or .
Depending on the arrow button settings ⇒page 19, it is only possible to
change between stored stations (display:
­
in ⇒page 19, fig. 13 ).
RADIO
Fig. 6 RADIO main menu:
Band function button.
RADIO
Band
Fig. 7 Station list: the
current station is high-
lighted.ƒ
„
ƒ
„
MediaSystem2.1_EN.book Seite 15 Donnerstag, 29. April 2010 4:18 16

Audio mode
16If the TP function is on (display: TP), it is only possible to change to stations
that accept this function ⇒page 21.
Opening the FM station list
The FM station list shows all the FM stations with good reception. You can
select a specific station from the FM station list.•Switch to the FM frequency band ⇒page 15.•Press the function button and press the function button in
the pop-up window ⇒page 15, fig. 6 .•Alternatively:if the display station buttons off is ⇒ page 18, by turning
the setting knob ⇒page 8, fig. 1 it is possible to change directly to the
station list.
The FM station list view closes after one minute of inactivity. The FM station
list is updated automatically.
No station list is available for the AM frequency band.
Selecting stations from the FM station list and saving them•Open the FM station list.•Mark a station by turning the setting knob and press the setting knob to
select the marked station ⇒page 10.•Alternatively: Drag the scroll marker to browse the list and select the
desired station by pressing it on the screen ⇒page 10.•After selecting a station button, press the function button
⇒ page 15, fig. 7 to store the marked station ⇒ page 18.•To close the FM station list press the unit button.
Scan function (Scan)When the scan function is running, all available stations on the current
frequency band are played in sequence for roughly 5 seconds each.
Band
FM/List
A10
Store

Fig. 8 RADIO main menu:
Extras function button.Fig. 9 RADIO main menu
during scan.
MediaSystem2.1_EN.book Seite 16 Donnerstag, 29. April 2010 4:18 16

Audio mode17
Starting and stopping the scan function•Open the RADIO main menu and select a frequency band ⇒ page 15.•Press the function button.•In the pop-up window, press the function button ⇒page 16, fig. 8 .•The scan function starts and the function button changes to
⇒ page 16, fig. 9.•Briefly press the function button or the setting knob ⇒page 8,
fig. 1 to stop the scan function at the station that is currently playing.
The scan function also stops when you manually select a station with the
arrow buttons or station buttons, or the scan is interrupted by a traffic
announcement (traffic news TP ⇒page 21).Tuning to a station frequency manually•Open the RADIO main menu and select a frequency band ⇒ page 15.•Press the function button.
•In the pop-up window, press the function button ⇒ page 16,
fig. 8 .•The frequency of the currently selected station is displayed and the
function button changes to ⇒fig. 10 .•Changing the frequency in steps: turn the setting knob ⇒page 8, fig. 1
.•Scanning rapidly through frequency bands: press and hold the arrow
button or . When you release the arrow button, the unit automatically
tunes to the next available radio station.•Press the function button to close manual frequency selection.
After approx. 10 seconds of inactivity, the manual frequency selection closes
automatically.
Manual frequency selection is also closed if you select a station with a station
button or switch to the FM station list view.
If the selected station is RDS-enabled, the station name is displayed below
the frequency ⇒ fig. 10(Radio 2).
Extras
ScanExtras
Scan
Scan
A10
Fig. 10 Tuning to a radio
station manually.
Extras
Manual
Extras
Manual
A10
ƒ
„Manual
MediaSystem2.1_EN.book Seite 17 Donnerstag, 29. April 2010 4:18 16

Audio mode
18Hiding and displaying station buttons and storing stationsIn the main RADIO menu, the radio stations can be saved in numbered func-
tion buttons ⇒ fig. 12. These function buttons are called “station buttons”.
Station buttons can be hidden or displayed. Displaying and hiding the station buttons
•In the
RADIO main menu, press the function button ⇒fig. 11 .•To hide or display the station buttons, clear or tick the checkbox in the
function button by briefly pressing it.•When the checkbox is ticked
’, six station buttons are displayed in the
RADIO main menu ⇒fig. 12 .
•Turn the setting knob ⇒page 8, fig. 1 to select a station button. If you
are selecting the first or last station button, when the setting knob is turned
either way, the next six station buttons are displayed.
If, even though the check box has been ticked, the station buttons are not
displayed, the “radio text” option may be activated ⇒page 21.
Saving stations in station button
If a station is saved to a station button, any station previously saved to the
button will be overwritten.•Display the station buttons and select a station.•Press and hold the desired station button until you hear a tone.•The currently selected station is saved to the station button ⇒page 19,
fig. 13.•ALTERNATIVELY: Select the station button by turning the setting knob and
press and hold the setting knob until you hear a tone.
The stations can also be saved with only the settings knob.•Press and hold the settings knob until the next free station button for the
currently selected station is automatically displayed.•Turn the setting knob to select another station button.•Briefly press the setting button to save the station.
The stations can also be selected by displaying the station list ⇒page 16.
If a station name has been sent by the RDS and saved incorrectly, it is
possible to change its name ⇒page 21.
Fig. 11 RADIO main
menu: Extras function
button.F i g . 1 2 R A D I O m a i n m e n u
with station buttons
displayed.
Extras
Presets
A10
MediaSystem2.1_EN.book Seite 18 Donnerstag, 29. April 2010 4:18 16
