89
Lights and visibility
Sun blind Introduction
WARNING
Folded sun blinds can reduce visibility.
● Always roll or fold sun blinds and visors away when not in use.

Sun visors
Fig. 58 Sun visor Options for adjusting driver and front passenger sun visors:
●
Lower by unfolding towards the windscreen.
● The sun visor can be pulled out of its mounting and turned towards the
door.
● Swing the sun visor towards the door, longitudinally backwards.
Vanity mirror*
There may be a vanity mirror in the folded sun visor on the passenger side
and a cardholder in the driver sun visor. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

90Lights and visibility
Heat-insulating glass windscreen
Fig. 59 Windscreen with reflective infrared and metal
coating and small window (red surface)
The heat-insulating windscreens include a reflective infrared coating. The
section above the rear vision mirror has been left uncoated (communication
window) to allow electric components from the accessories shop to operate
correctly ⇒ Fig. 59.
CAUTION
When the uncoated surface is covered or has a sticker on the interior or ex-
terior, malfunctions in the electronic components may occur. Never cover
the uncoated surface on the interior or exterior. 

91
Lights and visibility
Window wash/wipe system
Introduction
Additional information and warnings:
● Exterior detail ⇒ page 6
● Air recirculation mode ⇒ page 164
● Working in the engine compartment ⇒ page 180
● Caring for and cleaning the vehicle exterior ⇒ page 197
WARNING
Water from the windscreen washer water bottle may freeze on the wind-
screen if it does not contain enough anti-freeze, reducing forward visibili-
ty.
● In winter, ensure the windscreen washer contains enough anti-freeze.
● In cold conditions, you should not use the wash / wipe system unless
you have warmed the windscreen with the ventilation system. The anti-
freeze could freeze on the windscreen and reduce visibility.
WARNING
Worn or dirty wiper blades reduce visibility and increase the risk of acci-
dent and serious injury.
● Always replace damaged or worn blades or blades which do not clean
the windscreen correctly.
CAUTION
In icy conditions, always check that the wiper blades are not frozen to the
glass before using the windscreen wipers for the first time. In cold weather,
it may help to leave the vehicle parked with the windscreen wipers in serv-
ice position ⇒  page 93. Windscreen wiper lever
Fig. 60 Using the wind-
screen wipers
Fig. 61 Using the rear
window wipers

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

92Lights and visibility
Move the lever to the required position ⇒ :
0Windscreen wiper off.
1Windscreen interval wipe.
2Slow wipe.
3Continuous wipe.
4Brief wipe - short wipe. Hold the lever down for more time to
increase the wipe frequency.
5Automatic wipe for cleaning windscreens with the lever up.
6Interval wipe for rear window. The wiper will clean the win-
dow approximately every 6 seconds.
7Automatic wipe for cleaning rear windows with the lever
pressed.
CAUTION
If the ignition is switched off while the windscreen wipers are on, the wind-
screen wipers carry on wiping at the same level when the ignition is switch-
ed back on. Ice, snow and other obstacles may damage the windscreen wip-
er and the wiper motor.
● If necessary, remove snow and ice from the windscreen wipers before
starting your journey.
● Carefully lift the frozen windscreen wipers from the glass. SEAT recom-
mends a de-icer spray for this operation.
Note
The windscreen wipers will only work when the ignition is switched on.
Note
The interval wipe speed varies according to the vehicle speed. The faster
the vehicle is moving, the more often the windscreen is cleaned.
Note
The rear wiper is automatically switched on when the windscreen wiper is
connected and the vehicle is in reverse gear. 
Windscreen wiper functions
Windscreen wiper performance in different situations:If the vehicle is at a stand-
still:The activated position provisionally changes
to the previous position.
For the interval wipe:The intervals between wipes vary according
to the speed of the vehicle. The higher the
vehicle speed the shorter the intervals.
Note
The windscreen wiper will try to wipe away any obstacles that are on the
windscreen. The windscreen wiper will stop moving if the obstacle blocks its
path. Remove the obstacle and switch the windscreen wiper back on again. 

93
Lights and visibility
Windscreen wipers service position
Fig. 62 Windscreen wip-
ers in service position
The wiper arms can be raised when the wipers are in service position
⇒  Fig. 62. To place the windscreen wipers in the service position, proceed
as follows:
● The bonnet must be closed
⇒ page 180.
● Switch the ignition on and off.
● Press the windscreen wiper lever downwards briefly
⇒ Fig. 60 4
.
Before driving, always lower the wiper arms. When the ignition is switched
on, the windscreen wiper arms return to their initial position upon activating
the windscreen wiper lever.
Lifting and returning windscreen wiper arms
● Place the windscreen wiper arms in the service position
⇒ 
.
● Only hold the windscreen wiper arms at the point where the blade is
fixed.
CAUTION
● To prevent damage to the bonnet and the windscreen wiper arms, only
leave them in the service position.
● Before driving, always lower the windscreen wiper arms. 
Checking and topping up the windscreen washer bottle
with water
Fig. 63 In the engine
compartment: wind-
screen washer bottle top
Check the water level in the windscreen washer bottle regularly and top up
as required.
● Open the bonnet  ⇒ page 180.
● The washer bottle is marked with the symbol  on the lid ⇒ Fig. 63.
● Check there is enough water in the bottle. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

94Lights and visibility
● To top up, mix water with a window cleaner recommended by SEAT ⇒ 
.
Please follow the instructions for use found on the packaging.
● In cold weather, a special antifreeze should also be added to prevent
the water from freezing ⇒ 
.
Bottle capacity
The washer bottle capacity is approximately. 3 litres.
WARNING
Never mix an unsuitable antifreeze or other similar products with the
windscreen washer water. A greasy layer may be formed on the wind-
screen which will impair visibility.
● Use clean water with a window cleaner recommended by SEAT.
● If necessary, add a suitable antifreeze to the water bottle.
CAUTION
● Do not mix cleaning products recommended by SEAT with other prod-
ucts. This could lead to flocculation and may block the windscreen washer
jets.
● When topping up service fluids, make absolutely certain that you fill the
fluids into the correct reservoirs. Using the wrong fluids could cause serious
malfunctions and engine damage! 

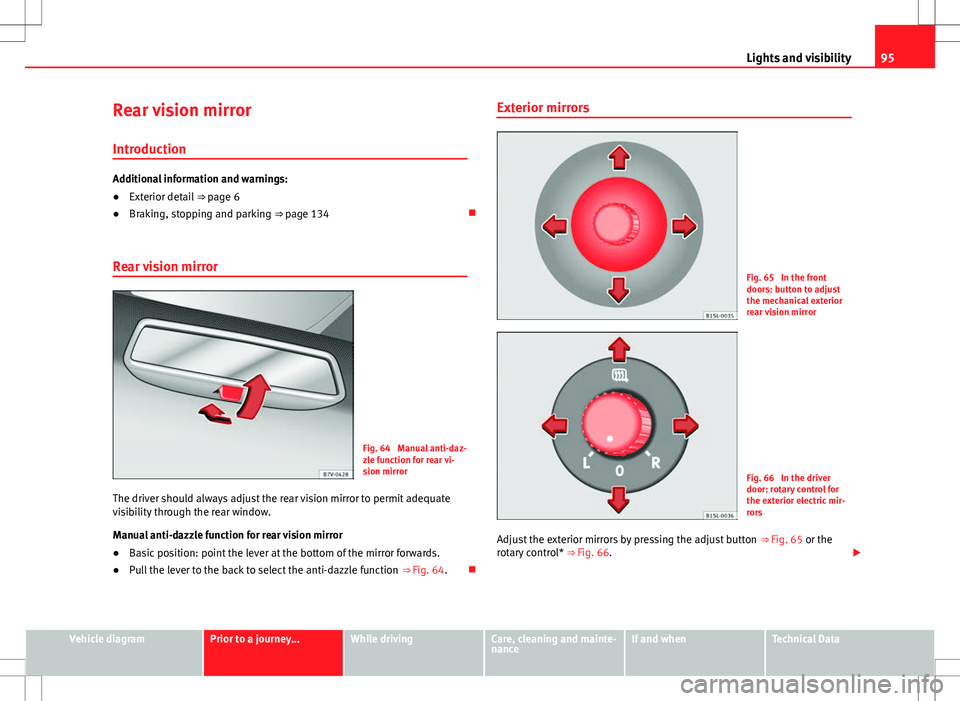

95
Lights and visibility
Rear vision mirror
Introduction
Additional information and warnings:
● Exterior detail ⇒ page 6
● Braking, stopping and parking ⇒ page 134 
Rear vision mirror
Fig. 64 Manual anti-daz-
zle function for rear vi-
sion mirror
The driver should always adjust the rear vision mirror to permit adequate
visibility through the rear window.
Manual anti-dazzle function for rear vision mirror
● Basic position: point the lever at the bottom of the mirror forwards.
● Pull the lever to the back to select the anti-dazzle function
⇒ Fig. 64. Exterior mirrors
Fig. 65 In the front
doors: button to adjust
the mechanical exterior
rear vision mirror
Fig. 66 In the driver
door: rotary control for
the exterior electric mir-
rors
Adjust the exterior mirrors by pressing the adjust button ⇒ Fig. 65 or the
rotary control* ⇒ Fig. 66.

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

96Lights and visibility
Turn the rotary control ⇒ Fig. 66 to the required position:
Switch on the exterior mirror heating.
Adjust the left-hand exterior rear vision mirror by turning the
knob forwards, backwards, to the left or to the right.
Zero position. Exterior mirror heating switched off, it is not
possible to adjust the exterior mirrors.
Adjust the right-hand exterior rear vision mirror by turning the
knob forwards, backwards, to the left or to the right.
Folding in the exterior mirrors and returning them to their original position
is possible through a mechanical system. Carefully fold the exterior rear vi-
sion mirror casing towards the side window or pull it away from the window
until it clicks into place.
WARNING
Fold and unfold the exterior rear vision mirror, taking care to avoid inju-
ries.
● Only fold or unfold the exterior rear vision mirror when there is no-
one in the way of the mirror.
● When moving the rear vision mirror, take care not to trap fingers be-
tween the mirror and the mirror bracket.
WARNING
Failure to correctly estimate the distance of the vehicle behind could lead
to serious accident.
● Rear-view convex or aspheric mirrors increase the field of vision, how-
ever objects appear smaller and further away in the mirrors.
● The use of these mirrors to estimate the distance to the next vehicle
when changing lane is imprecise and could result in serious accident.
WARNING (Continued)
● If possible, use the rear vision mirror to estimate distances to vehi-
cles behind you or in other circumstances.
● Make sure that the rear visibility is adequate.
For the sake of the environment
The exterior mirror heating should be switched off when it is no longer nee-
ded. Otherwise, it is an unnecessary fuel consumption.
Note
In the event of faults, the electric exterior mirrors can be adjusted manually
by pressing the edge of the mirror surface. 

97
Transporting
Transporting
Driving tips Introduction
Always transport heavy loads in the luggage compartment and place the
seat backs in a vertical position. Never overload the vehicle. Both the carry-
ing capacity as well as the distribution of the load in the vehicle have ef-
fects on the driving behaviour and braking ability ⇒ 
.
Additional information and warnings:
● Rear lid ⇒ page 40
● To lower the front passenger seat backrest ⇒ page 55
● Light ⇒ page 84
● Luggage compartment ⇒ page 100
● Roof carrier ⇒ page 104
● Wheels and tyres ⇒ page 210
WARNING
Unsecured or incorrectly secured objects can cause serious injury in case
of a sudden manoeuvring or breaking or in case of an accident. This is es-
pecially true when objects are struck by a detonating airbag and fired
through the vehicle interior. To reduce the risks, please note the follow-
ing:
● Secure all objects in the vehicle. Always keep equipment and heavy
objects in the luggage compartment.
WARNING (Continued)
● Always secure objects with suitable rope or slings so that they cannot
enter the deployment areas around the frontal or side airbags in case of
sudden braking or an accident.
● Always ensure that objects inside the vehicle cannot move into the
deployment area of the bags while driving.
● While driving, always keep object compartments closed.
● Remove all objects from the front passenger seat when this is fol-
lowed down. When the seat backrest is folded down, it presses on small
and light objects and these are detected by the weight sensor on the
seat; this sends false information to the airbag control unit.
● While the backrest of the front passenger seat is folded, the frontal
airbag must remain disconnected and the PASSENGER AIRBAG OFF 
light on.
● Objects secured in the vehicle should never be placed in such a way
as to make passengers sit in an incorrect position.
● If secured objects occupy a seat then this should not be occupied or
used by anybody.
WARNING
The driving behaviour and braking ability change when transporting
heavy and large objects.
● Adjust your speed and driving style to visibility, road, traffic and
weather conditions.
● Accelerate gently and carefully.
● Avoid sudden braking and manoeuvres.
● Brake early.

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

98Transporting
Transporting a load
Secure all objects in the vehicle
●Distribute the load throughout the vehicle and on the roof as uniformly
as possible.
● Transport heavy objects as far forward as possible in the luggage com-
partment and lock the seat backs in the vertical position.
● Check the headlight adjustment ⇒ page 84.
● Use the suitable tyre pressure according to the load being transported.
Read the tire pressure information label ⇒ page 210.
CAUTION
Objects on the shelf could chafe against the wires of the heating element in
the heated rear window and cause damage.
Note
Please refer to the notes on loading the roof carrier ⇒ page 104. 
Driving with the rear lid open
Driving with the rear lid open creates an additional risk. Secure all objects
and secure the rear lid correctly and take all measures possible to reduce
toxic gases from entering the vehicle.
WARNING
Driving with the rear lid unlocked or open could cause serious injuries.
● Always drive with the rear lid closed.
WARNING (Continued)
● Secure all objects in the vehicle. Loose items could fall out of the ve-
hicle and injure other road users or damage other vehicles.
● Drive particularly carefully and think ahead.
● Avoid sudden manoeuvres and braking given that this could cause an
uncontrolled movement of the open rear lid.
● When transporting objects that protrude out of the luggage compart-
ment, indicate them suitably. Observe legal requirements.
● If objects must project out of the luggage compartment, the rear lid
must never be used to “secure” or “attach” objects.
● If a baggage rack is fitted on the rear lid, it should be removed before
travelling with the rear lid open.
WARNING
Toxic gases may enter the vehicle interior when the rear lid is open. This
could cause loss of consciousness, carbon monoxide poisoning, serious
injury and accidents.
● To avoid toxic gases entering the vehicle always drive with the rear lid
closed.
● In exceptional circumstances, if you must drive with the rear lid open,
observe the following to reduce the entry of toxic gases inside the vehi-
cle:
–Close all windows.
– Disable air recirculation mode.
– Open all of the air outlets on the instrument panel.
– Switch on the blower to maximum.
CAUTION
An open rear lid changes the length and height of the vehicle. 
