Seat Mii 2014 Owner's manual

Technical featuresUrban
cycleMeasurement of the urban cycle starts with
an engine cold start. City driving is then si-
mulated at between 0 and 50 km/h (0 and
31 mph).
Road
cycle
In the road cycle simulation, the car under-
goes frequent acceleration and braking in all
gears, as in normal everyday driving. The
road speed ranges from 0 to 120 km/h (0
and 75 mph).
Com-
binedThe average combined consumption is calcu-
lated with a weighting of around 37 % for the
urban cycle and 63 % for the road cycle.
CO
2
emis-
sions of
the
combi-
nationThe exhaust gases are collected during both
driving cycles to calculate carbon dioxide
emissions (urban and road). The gas compo-
sition is analysed below to evaluate the CO 2
content and other emissions. Note
● The kerb weight may vary according to the
vehicle equipment. This could raise consump-
tion and the CO 2 emissions slightly.
● In practice, consumption values could be
different to the values calculated based on
the 715/2007/EC or 80/1268/EEC regula-
tions. Wheels
Tyre pressure, snow chains, wheel
bolts Tyre pressures
The sticker with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. The slightly raised pressures of
w
arm ty

res must not be reduced. ››› Snow chains
Snow chains may be fitted only to the
front
wheels .
C on

sult the section “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the
tightening torque
of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and alloy wheels is 140 Nm. WARNING
● Check the tyre pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds. ●
If the tightening torque of the wheel bolts
is too low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Service for information about appropriate
wheel, tyre and snow chain size. 199
Technical specifications
Advice
Operation
Safety

Technical specifications

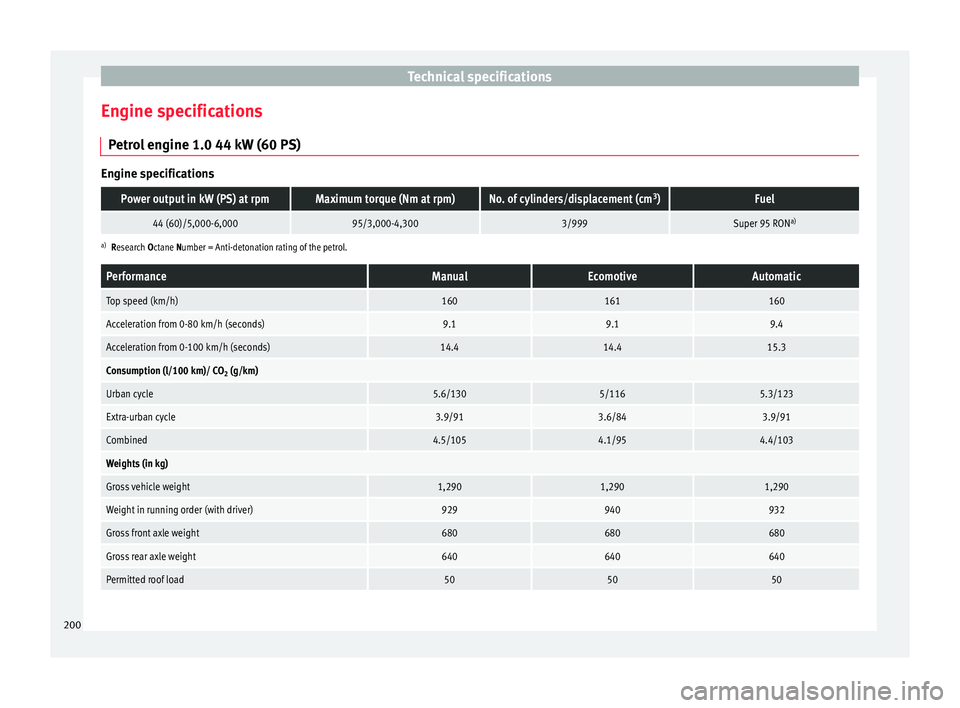

Engine specifications Petrol engine 1.0 44 kW (60 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
44 (60)/5,000-6,00095/3,000-4,3003/999Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceManualEcomotiveAutomatic
Top speed (km/h)160161160
Acceleration from 0-80 km/h (seconds)9.19.19.4
Acceleration from 0-100 km/h (seconds)14.414.415.3
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.6/1305/1165.3/123
Extra-urban cycle3.9/913.6/843.9/91
Combined4.5/1054.1/954.4/103
Weights (in kg)
Gross vehicle weight1,2901,2901,290
Weight in running order (with driver)929940932
Gross front axle weight680680680
Gross rear axle weight640640640
Permitted roof load505050 200

Technical features
Petrol engine 1.0 55 kW (75 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceManualStart-StopAutomatic
Top speed (km/h)171172171
Acceleration from 0-80 km/h (seconds)8.38.39.2
Acceleration from 0-100 km/h (seconds)13.213.213.9
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.9/1375.1/1185.5/127
Extra-urban cycle4/933.7/864/94
Combined4.7/1084.2/984.5/105
Weights (in kg)
Gross vehicle weight1,2901,2901,290
Weight in running order (with driver)929940932
Gross front axle weight680680680
Gross rear axle weight640640640
Permitted roof load505050 201
Technical specifications
Advice
Operation
Safety

Technical specifications

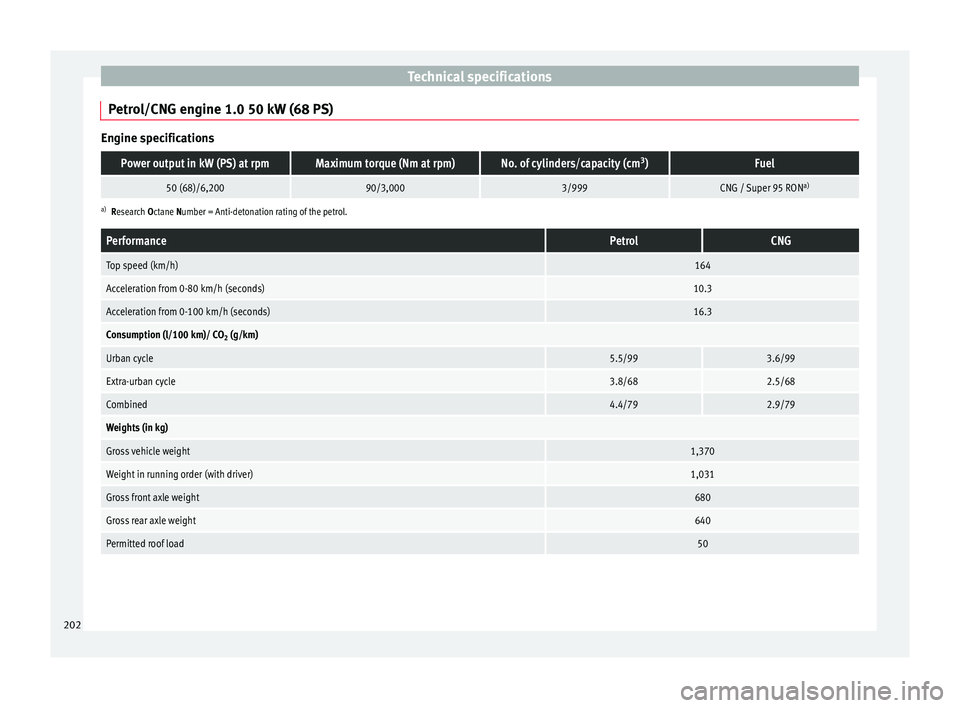

Petrol/CNG engine 1.0 50 kW (68 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm
3
)Fuel
50 (68)/6,20090/3,0003/999CNG / Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformancePetrolCNG
Top speed (km/h)164
Acceleration from 0-80 km/h (seconds)10.3
Acceleration from 0-100 km/h (seconds)16.3
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.5/993.6/99
Extra-urban cycle3.8/682.5/68
Combined4.4/792.9/79
Weights (in kg)
Gross vehicle weight1,370
Weight in running order (with driver)1,031
Gross front axle weight680
Gross rear axle weight640
Permitted roof load50 202

Technical features
DimensionsLongitude3,557 mm
Width1,641-1,645 mm
Height, unladen1,478-1,489 mm
Wheelbase2,420 mm
Turning circle diameter a)approx. 9.8 m
Front track widtha)1,412-1,428 mm
Rear track widtha)1,408-1,424 mm
Ground clearance with
maximum authorised load109 mm
a)
Depending on the dimensions of the wheel trims and tyres,
there may be variations. CAUTION
● Special care should be taken when parking
in areas with high kerbs or fixed barriers. Ob-
jects protruding from the ground may dam-
age the bumper or other parts of the vehicle
during manoeuvres.
● Special attention is required when driving
through entrances, over ramps, kerbs or oth-
er objects. The vehicle underbody, bumpers,
mudguards and running gear, and the engine
and exhaust system could be damaged as
you drive over these objects. Capacities
Fuel tank capacity
Petrol enginesAround 35.0 l
, of which approximately 4.0 are the reserve.
Natural gas en-
gineNatural gas: approx. 11 kg; of whichmax. 1.5 kg reserve
Petrol: approx. 10 l; of which approx. 5 l reserve 203Technical specifications
