Seat Mii 2016 User Guide

The essentials
Locking the passenger door manually Fig. 4
To the front of the passenger side door:
Emer g
ency
lock, hidden by a rubber cap. Fig. 5
Emergency locking of the vehicle using
the v
ehic

le key The passenger door can be manually locked.
● Open the door.
● Remove the rubber cap to the front of the
door .
The rubber c

ap is marked with a lock
symbol 
››› Fig. 4. ●
Unfol
d the key shaft if necessary
›››  page 92.
● Insert the key shaft horizontally into the
opening and mov
ed the coloured lever for-
ward ››› Fig. 5.
● Replace the rubber cap and close the door.
● Check if the door is locked.
● Have the vehicle checked by a specialised
workshop
. Note
The doors can be opened and unlocked indi-
vidua l

ly from the inside by pulling the inside
door handle. If necessary, pull the inner door
release lever twice ›››
 page 94. Rear lid
Fig. 6
Rear lid open: hand grip Opening
● Press the button  on the vehicle key
› ›
›

Fig. 1 for about one second to unlock the
boot hatch.
● Insert the vehicle key into the lock cylinder
of the driver door and t
urn the key in an anti-
clockwise direction ›››
 page 94.
Closing ● Grab the handgrip inside the rear lid
›››
Fig. 6 (arrow).
● Push the rear lid downwards until it locks
into pl
ace in the lock.
● Ensure that it is correctly closed by pulling
on it firmly
.

››› in Introduction on page 99
››› page 99
››› page 10 9

The essentials
Emergency unlocking the boot hatch Fig. 7
From the luggage compartment: Emer-
g ency
u
nlocking of the booth hatch. ●
If necessary, fold the rear seat bench back-
r e
s

t forward ››› page 12.
● Remove equipment to access the inside of
the rear lid.
● Unf

old the key shaft ›››

 page 92.
● Insert the key shaft into the rear lid open-
ing ››

› Fig. 7 and press the release lever in the
direction of the arrow to unlock the rear lid. Bonnet
Fig. 8
A: Release lever in the footwell on the
driv er side B: R

elease lever on the bonnet Fig. 9
C: Bonnet securing rod in the bonnet.
D: Bonnet s
up

ported by the bonnet securing
rod Opening the bonnet
● Before opening the bonnet, make sure that
the w ind
s

creen wiper arms are in place
against the windscreen ››› in Working in
the en gine c
omp

artment on page 188. 10

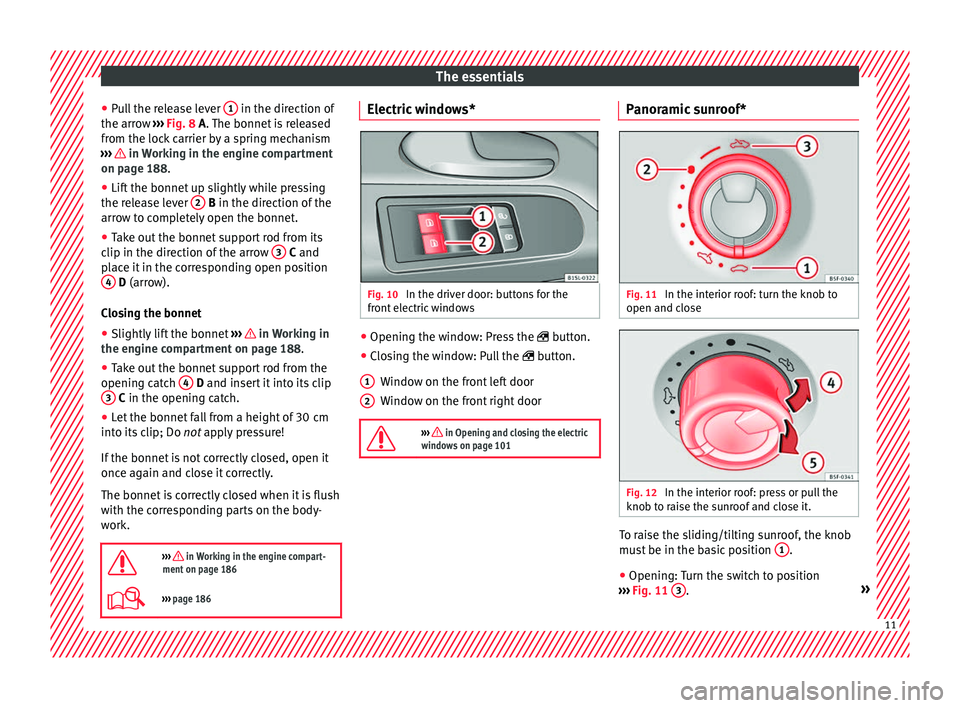

The essentials
● Pu
l
l the release lever 1 in the direction of
the arr o
w ›
›› Fig. 8 A. The bonnet is released
from the lock carrier by a spring mechanism
››› in Working in the engine compartment
on p ag
e 188

.
● Lift the bonnet up slightly while pressing
the rele
ase lever 2 B in the dir
ection of the
arr o
w to completely open the bonnet.
● Take out the bonnet support rod from its
clip in the direction of
the arrow 3 C and
p l
ac
e it in the corresponding open position
4 D (arr
ow).
C lo

sing the bonnet
● Slightly lift the bonnet ›››
in Working in
the en gine c
omp
artment on page 188.
● Take out the bonnet support rod from the
opening cat
ch 4 D and in
sert it into its clip
3 C in the openin
g c
at
ch.
● Let the bonnet fall from a height of 30 cm
into its c
lip; Do not apply pressure!
If the bonnet is not correctly closed, open it
once again and close it correctly.
The bonnet is correctly closed when it is flush
with the corresponding parts on the body-
work.

››› in Working in the engine compart-
ment on page 186
››› page 186 Electric windows*
Fig. 10
In the driver door: buttons for the
fr ont
el

ectric windows ●
Opening the window: Press the  butt
on.
● C

losing the window: Pull the  button.
W
indow on the front left door
Window on the front right door

››› in Opening and closing the electric
windows on page 101 1
2 Panoramic sunroof*
Fig. 11
In the interior roof: turn the knob to
open and c lo
se Fig. 12
In the interior roof: press or pull the
kno b t
o r

aise the sunroof and close it. To raise the sliding/tilting sunroof, the knob
mu
s
t

be in the basic position 1 .
● Opening: Turn the switch to position
› ›
›

Fig. 11 3 .
» 11

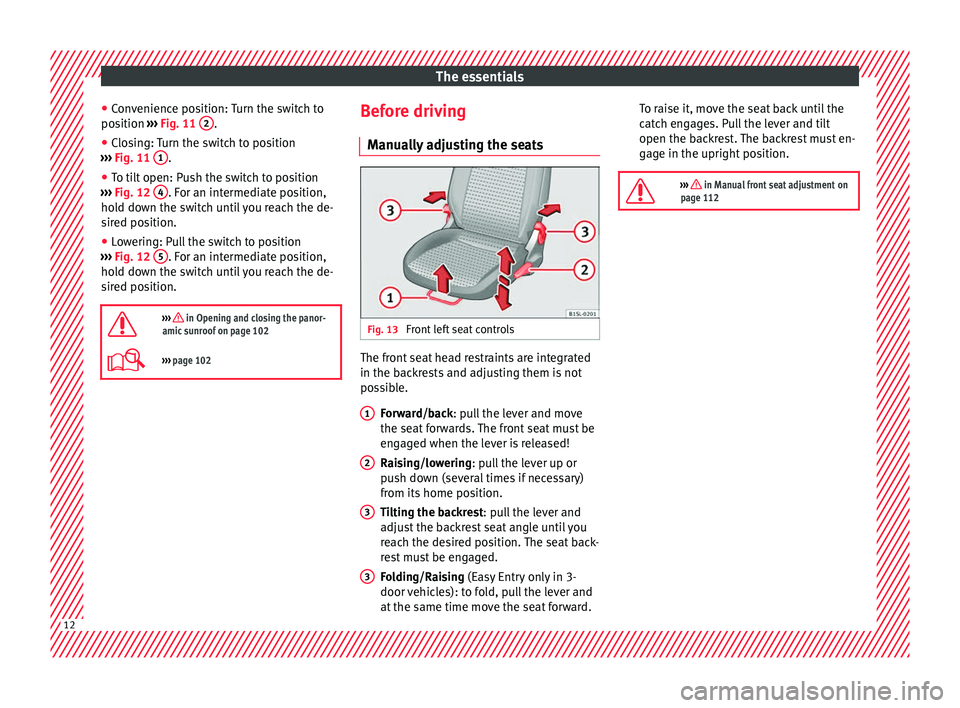

The essentials
● Con
v
enience position: Turn the switch to
position ››› Fig. 11 2 .
● Closing: Turn the switch to position
› ›
›

Fig. 11 1 .
● To tilt open: Push the switch to position
› ›
›

Fig. 12 4 . For an intermediate position,
ho l
d do
wn the switch until you reach the de-
sired position.
● Lowering: Pull the switch to position
›››
Fig. 12 5 . For an intermediate position,
ho l
d do
wn the switch until you reach the de-
sired position.

››› in Opening and closing the panor-
amic sunroof on page 102
››› page 102 Before driving
M anua
l

ly adjusting the seats Fig. 13
Front left seat controls The front seat head restraints are integrated
in the b
ac
k

rests and adjusting them is not
possible.
Forward/back: pull the lever and move
the seat forwards. The front seat must be
engaged when the lever is released!
Raising/lowering: pull the lever up or
push down (several times if necessary)
from its home position.
Tilting the backrest: pull the lever and
adjust the backrest seat angle until you
reach the desired position. The seat back-
rest must be engaged.
Folding/Raising (Easy Entry only in 3-
door vehicles): to fold, pull the lever and
at the same time move the seat forward.
1
2
3
3 To raise it, move the seat back until the
c
at
c

h engages. Pull the lever and tilt
open the backrest. The backrest must en-
gage in the upright position.

››› in Manual front seat adjustment on
page 112 12

The essentials
Adjust the seat belt Fig. 14
Positioning and removing the seat
belt b
uc
kle. Fig. 15
Correct seat belt and head restraint
pos ition

s, viewed from front and the side. To adjust the seat belt around your should-
er
s, a
dju

st the height of the seats.
The shoulder part of the seat belt should be
well centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

››› in Introduction on page 52
››› page 56 Seat belt tensioners
During a frontal collision, the seat belts on
the front
se

ats retract automatically.
The tensioner can be triggered only once.

››› in Service and disposal of belt ten-
sion devices on page 58
››› page 58 Adjusting the exterior mirrors
Fig. 16
In the driver door: rotary control for
the e xt
erior el

ectric mirrors Adjusting the exterior mirrors: Turn the knob
t
o the c
orr

esponding position:
Turning the knob to the desired posi-
tion, adjust the mirrors on the driver »
L/R 13

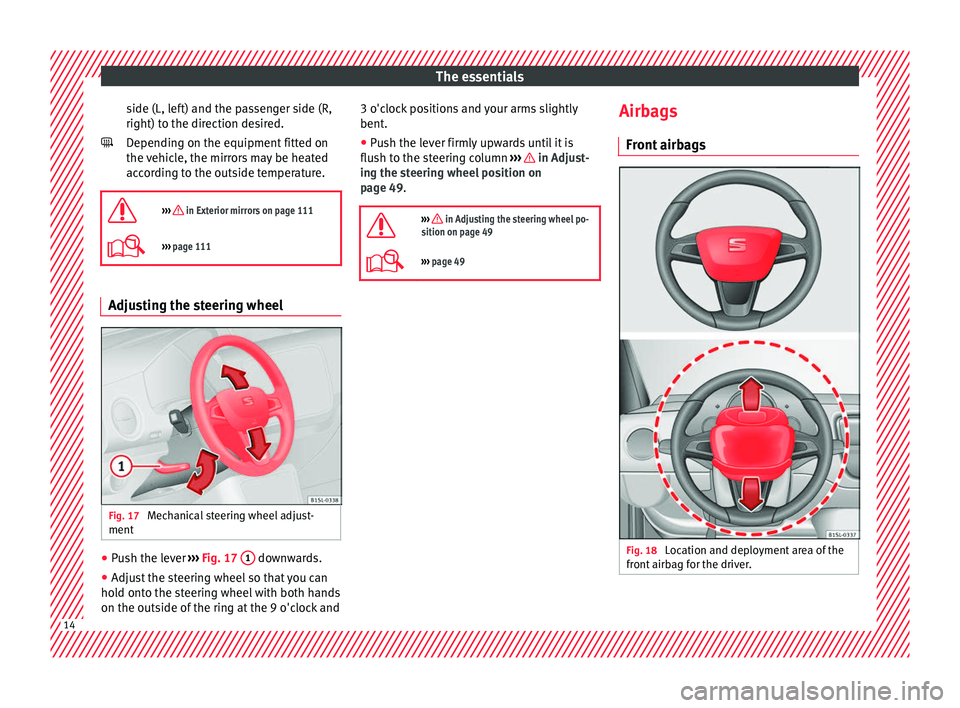

The essentials
side (L, left) and the passenger side (R,
right) t o the dir
ection de
sired.
Depending on the equipment fitted on
the vehicle, the mirrors may be heated
according to the outside temperature.

››› in Exterior mirrors on page 111
››› page 111 Adjusting the steering wheel
Fig. 17
Mechanical steering wheel adjust-
ment ●
Push the lever ››
›
Fig. 17 1 downwards.
● Adjust the steering wheel so that you can
ho ld ont

o the steering wheel with both hands
on the outside of the ring at the 9 o'clock and  3 o'clock positions and your arms slightly
bent.
●
Pu

sh the lever firmly upwards until it is
flush to the s
teering column ››› in Adjust-
in g the s
t
eering wheel position on
page 49.

››› in Adjusting the steering wheel po-
sition on page 49
››› page 49 Airbags
Fr ont
airb

ags Fig. 18
Location and deployment area of the
fr ont
airb

ag for the driver. 14

The essentials
Fig. 19
Location and deployment area of the
fr ont
airb
ag for the passenger. In conjunction with the seat belts, the front
airb
ag sy
s

tem gives the driver and the front
passenger additional protection for the head
and chest in the event of a severe frontal col-
lision. Always remain as far away as possible
from the front airbag ›››
 page 48. This
way, in the event of an accident, the front air- bags can deploy fully when triggered, provid-
ing max

imum protection.
The front airbag for the driver is located in
the steering wheel ››› Fig. 18 and the airbag
for the front passenger is located in the dash
panel ››› Fig. 19. Airbags are identified by the
word “AIRBAG”.
When the front airbags are triggered they fill
the zones marked in red ››› Fig. 18 and
››› Fig. 19 (radius of action). Therefore, ob-
jects should never be placed or mounted in
these areas ››› in Front airbags on
p ag
e 62

, Factory-fitted accessories are out-
side the range of the front airbag for the driv-
er and the front passenger, e.g. the base-
plate for the mobile phone support.
The airbag covers fold out of the steering
wheel ››› Fig. 18 and the dash panel
››› Fig. 19 when the driver and front passen-
ger airbags, respectively, are triggered.

››› in Front airbags on page 62 Disabling the front passenger front
airb
ag Fig. 20
On front passenger side: Key switch
f or en
ab

ling and disabling the front passen-
ger front airbag. The front passenger front airbag must be dis-
ab
l
ed when a r

ear-facing child seat is moun-
ted.
Disabling the front passenger front airbag
● Switch the ignition off.
● Open the door on the front passenger side.
● Unfold the vehicle key blade
›››
 page 92.
● Using the vehicle key, turn the key switch to
OFF ›››

Fig. 20.
● Close the door on the front passenger side.
● The   
  control lamp on
the dash panel will remain lit while the igni-
tion is switched on ›››
 page 63. » 15

The essentials
››› in Manual disabling and enabling of
the front passenger front airbag with the
key switch on page 64
››› page 63 Side airbags
Fig. 21
On the side of the front seat: location
of the s
ide airb

ag Fig. 22
On the left side of the vehicle: deploy-
ment ar e

a of side airbag The side airbags are located in the outer
c
u
shion of

the driver and front passenger
seat backrests ››› Fig. 21. Their position is in-
dicated by the word “AIRBAG”. The area
marked in red ››› Fig. 22 indicates the side
airbag deployment zone.
In the event of a side-on collision, the side
airbag will deploy in the side of the vehicle
affected ››› Fig. 22, thus reducing the risk of
injuries to passengers on the side of the
body and the head facing the accident side.

››› in Side airbags* on page 62 Child seats
Impor t
ant

information regarding the
front passenger's airbag Fig. 23
Passenger's side sun visor: airbag
s tic
k

er. Fig. 24
On the rear frame of the passenger
s ide door: airb
ag s

ticker.16

The essentials
A sticker with important information about
the p a
s
senger airbag is located on the pas- senger's sun visor and/or on the passenger
side door frame.

››› in Important information regarding
the front passenger's airbag on page 65
››› page 64 Mounting systems
Fig. 25
On the rear seats: Possible installations
for the c hi

ld seat. Always secure child seats properly and safely
in the
v
ehic

le according to the child seat
manufacturer's installation instructions.
Mounted child seats must rest correctly on
the vehicle's seat and must not move or rock
more than 2.5 cm.
Child seats equipped for a Top Tether strap
must also be secured using the Top Tether re- taining strap in the vehicle
››› page 19. At-
tach the retaining strap to the corresponding
retaining rings only. Not all rings can be used
with the Top Tether system. Always tighten
the Top Tether retaining strap so that the
child seat fits snugly against the correspond-
ing seat in the vehicle. Specific mounting systems for each country
Attachment
variants ››› Fig. 25:
Europe: ISOFIX retaining rings and upper
retaining strap ››› page 18 and
››› page 19.
Three-point seat belt and upper retaining
strap ››› page 18. »
A B
17

The essentials
The systems include the child restraint sys-
t em mou
ntin
g with an upper retaining strap
(Top Tether) and lower anchoring points on
the seat.
Securing child seats with the seat belt The seat belt may be used to secure child
seats
w

ith the universal marking (on the or-
ange label) to the vehicle seats marked with
a u in the table below.
CategoryFront passen- gera)Rear seats
Group 0
Up to 10 kguu
Category 0+ Up to 13 kguu
Group 1
9 to 18 kguu
Group 2
15 to 25 kguu
Group 3
22 to 36 kguu
a) Compliance with current national legislation and the manu-
facturer's instructions is required when using or installing child
seats.
Securing the child seat using the seat belt
● Please read and observe the child seat
manufact
urer's handling instructions.
● Move the front passenger seat, or the rear
seat benc
h back as far as possible and, in
the case of an adjustable backrest, set it in
the upright position ›››
 page 48.
● Positioning the child seat on the seat ac-
cordin
g to the manufacturer's instructions.
● Fasten the seat belt or pass it around the
chil
d seat structure in the manner described
in the manufacturer's instructions.
● Make sure the seat belt is not twisted.
● Insert the latch plate into the buckle for the
appropri
ate seat and push it down until it is
securely locked with an audible click.
● Ensure that the upper belt web lies tightly
on the chil
d seat.
● Pull the belt (it must be no longer possible
to pu
ll the lower belt webbing out).
Removing the child seat
The seat belt must not be unfastened until
the vehicle has come to a standstill.
● Press the red button on the buckle. The
latc
h plate is released from the buckle.
● Guide the belt back by hand so that it rolls
up eas
ily and the trim will not be damaged.
● Remove the child seat from the vehicle. 
››› in Safety instructions on page 66 Setting up a child seat with the ISO-
FIX sys

tem Fig. 26
On the vehicle seat: identification var-
i ants
of

the anchor points for the child seats Each seat of the rear seat bench has
two
r
e-
tainers named lower anchor points.
Synoptic display for the ISOFIX system in-
stallation
Installation options of the ISOFIX or i-Size
child seats on the ISOFIX anchor points of the
various vehicle seats. 18
