Fuse location Fig. 45
On the driver-side dash panel: fuse
bo x
c
over Fig. 46
In the engine compartment: fuse box
c o v
er Underneath the instrument panel
The f
use bo
x is located underneath the dash
panel on the driver side ››› Fig. 45.
In the engine compartment
Press the locking tabs to release the fuse box
cover ››› Fig. 46.
Identifying fuses situated below the dash
panel by colours
ColourAmp rating
Purple3
Light brown5
Brown7.5
Red10
Blue15
Yellow20
White or transparent25
Green30
Orange40
››› in Introduction on page 78
›››
page 78 Replacing a blown fuse
Fig. 47
Image of a blown fuse Preparation
● Switch off the ignition, lights and all elec-
tric al
equipment
.
● Open the corresponding fuse box
›››
page 79.
Identifying a blown fuse
A fuse is blown if its metal strip is ruptured
››› Fig. 47.
Point a lamp at the fuse to see if the fuse has
blown.
To replace a fuse
● Remove the fuse.
● Replace the blown fuse by one with an
identica
l amperage rating (same colour and
markings) and identical size. 34
Page 80 of 232
Emergencies
CAUTION
When opening and closing in an emergency,
car ef
ully disassemble components and then
reassemble them carefully to avoid damage
to the vehicle. Fuses and bulbs
F u
se
s
Introduction Due to the constant updating of vehicles,
fu
se a
ssignments based on equipment and
the use of the same fuse for various electrical
components, it is not possible to provide an
up-to-date summary of the fuse positions for
the electrical components at the time of
printing this manual. For detailed information
about the fuse positions, please consult a
technical service.
In general, a fuse can be assigned to various
electrical components. Likewise, an electrical
component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible. WARNING
The high voltages in the electrical system can
give seriou s
electrical shocks, causing burns
and even death!
● Never touch the electrical wiring of the igni-
tion syst
em. ●
Tak e c
are not to cause short circuits in the
electrical system. WARNING
Using unsuitable fuses, repairing fuses or
bridgin g a curr
ent circuit without fuses can
cause a fire and serious injury.
● Never use a fuse with a higher value. Only
repl
ace fuses with a fuse of the same amper-
age (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple
or simil
ar. CAUTION
● To pr ev
ent damage to the vehicle's electric
system, before replacing a fuse always turn
off the ignition, the lights and all electrical
elements and remove the key from the igni-
tion.
● If you replace a fuse with higher-rating
fuse,
you could cause damage to another part
of the electrical system.
● Protect the fuse boxes when open to pre-
vent the entr
y of dust or humidity as they can
damage the electrical system. Note
● One component m
ay have more than one
fuse. 78
Page 81 of 232
Fuses and bulbs
●
Sever a
l components may run on a single
fuse. Vehicle fuses
Fig. 82
Below the driver side dash panel:
f u
se bo
x cover Fig. 83
In the engine compartment: fuse box
c o
v
er Read the additional information carefully
› ›
›
page 34
Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.
Opening and closing the fuse box situated
below the dash panel
● Opening: Pres
s the unlock button
››› Fig. 82 1 until it is possible to open the
c o
v
er. Fold the cover down.
● Closing: Fold the cover up in the opposite
direction t
o the arrow until it clicks into the
locking lever 1 .
T o open the en
gine c
ompartment fuse box
● Open the bonnet ›››
page 186.
● Press the attachment tabs in the direction
indicated b
y the arrow (thin arrows) to re-
lease the fuse box cover ››› Fig. 83.
● Then lift the cover out.
● To fit the cover, place it on the fuse box.
Pu
sh the attachment tabs down, in the oppo-
site direction indicated by the arrow until
they click audibly into place. CAUTION
● Alw a
ys carefully remove the fuse box cov-
ers and refit them correctly to avoid problems
with your vehicle. ●
Prot ect
the fuse boxes when open to avoid
the entry of dust or humidity. Dirt and humid-
ity inside fuse boxes can cause damage to
the electrical system. Note
In the vehicle, there are more fuses than
tho se indic at
ed in this chapter. These should
only be changed by a specialised workshop. Changing bulbs
Intr oduction Changing bulbs requires a certain amount of
m
anual
sk
ill. If you are unsure, SEAT recom-
mends that you consult a technical service or
request assistance from a specialist. In gen-
eral a specialist is needed if, in addition to
the bulbs, other vehicle components require
removal.
You should store spare light bulbs in the ve-
hicle for safety-relevant lights. Spare bulbs
may be obtained from the technical services.
In some countries, it is a legal requirement to
carry spare bulbs in the vehicle.
Driving with faults and blown bulbs on the
vehicle exterior lighting is against the law. »
79
Technical data
Advice
Operation
Emergencies
Safety
Page 83 of 232

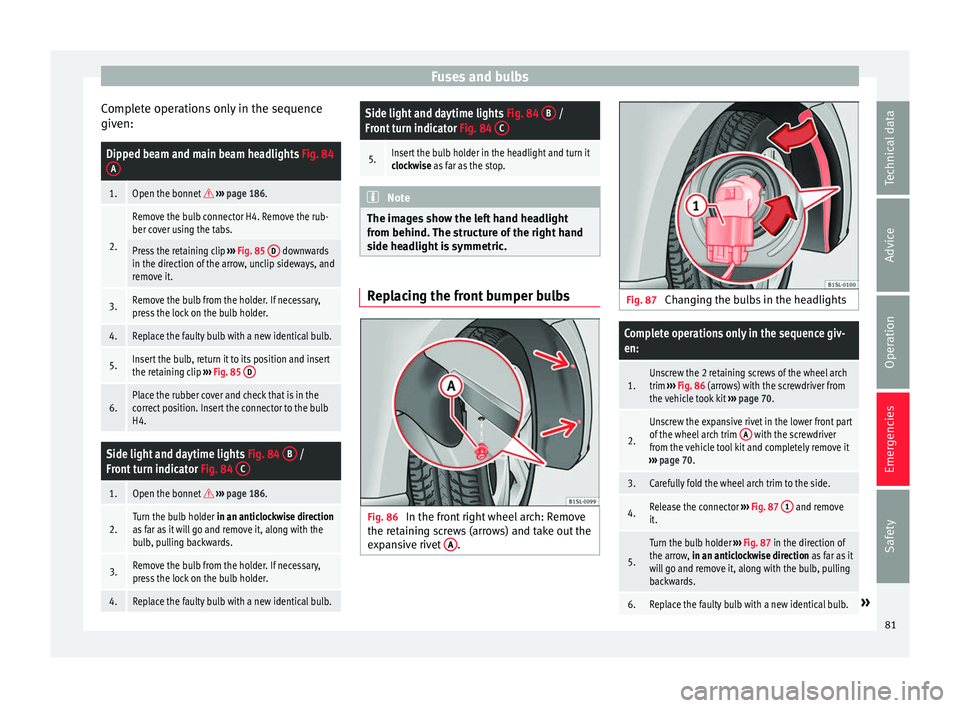

Fuses and bulbs
Complete operations only in the sequence
giv en:Dipped beam and main beam headlights
Fig. 84
A
1.Open the bonnet ››› page 186.
2.
Remove the bulb connector H4. Remove the rub-
ber cover using the tabs.
Press the retaining clip ››› Fig. 85 D downwards
in the direction of the arrow, unclip sideways, and
remove it.
3.Remove the bulb from the holder. If necessary,
press the lock on the bulb holder.
4.Replace the faulty bulb with a new identical bulb.
5.Insert the bulb, return it to its position and insert
the retaining clip ››› Fig. 85 D
6.Place the rubber cover and check that is in the
correct position. Insert the connector to the bulb
H4.
Side light and daytime lights
Fig. 84 B /
Front turn indicator Fig. 84 C
1.Open the bonnet
››› page 186.
2.Turn the bulb holder in an anticlockwise direction
as far as it will go and remove it, along with the
bulb, pulling backwards.
3.Remove the bulb from the holder. If necessary,
press the lock on the bulb holder.
4.Replace the faulty bulb with a new identical bulb.
Side light and daytime lights Fig. 84 B /
Front turn indicator Fig. 84 C
5.Insert the bulb holder in the headlight and turn it
clockwise as far as the stop. Note
The images show the left hand headlight
from behind. The s
tructure of the right hand
side headlight is symmetric. Replacing the front bumper bulbs
Fig. 86
In the front right wheel arch: Remove
the r et
ainin
g screws (arrows) and take out the
expansive rivet A . Fig. 87
Changing the bulbs in the headlights
Complete operations only in the sequence giv-
en:
1.Unscrew the 2 retaining screws of the wheel arch
trim ››› Fig. 86 (arrows) with the screwdriver from
the vehicle took kit ››› page 70.
2.
Unscrew the expansive rivet in the lower front part
of the wheel arch trim A with the screwdriver
from the vehicle tool kit and completely remove it
››› page 70.
3.Carefully fold the wheel arch trim to the side.
4.Release the connector ››› Fig. 87 1 and remove
it.
5.
Turn the bulb holder ››› Fig. 87 in the direction of
the arrow, in an anticlockwise direction as far as it
will go and remove it, along with the bulb, pulling
backwards.
6.Replace the faulty bulb with a new identical bulb.» 81
Technical data
Advice
Operation
Emergencies
Safety
Page 85 of 232

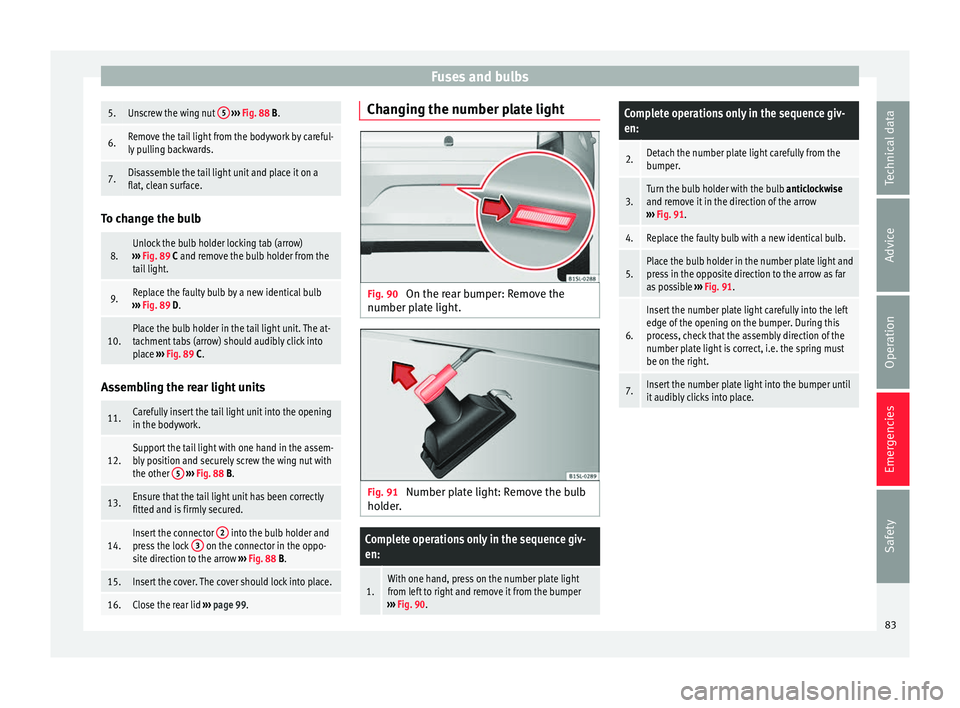

Fuses and bulbs5.Unscrew the wing nut
5
››› Fig. 88 B.
6.Remove the tail light from the bodywork by careful-
ly pulling backwards.
7.Disassemble the tail light unit and place it on a
flat, clean surface. To change the bulb
8.Unlock the bulb holder locking tab (arrow)
››› Fig. 89 C and remove the bulb holder from the
tail light.
9.Replace the faulty bulb by a new identical bulb
››› Fig. 89 D.
10.Place the bulb holder in the tail light unit. The at-
tachment tabs (arrow) should audibly click into
place ››› Fig. 89 C. Assembling the rear light units
11.Carefully insert the tail light unit into the opening
in the bodywork.
12.Support the tail light with one hand in the assem-
bly position and securely screw the wing nut with
the other
5
››› Fig. 88 B.
13.Ensure that the tail light unit has been correctly
fitted and is firmly secured.
14.Insert the connector 2 into the bulb holder and
press the lock 3 on the connector in the oppo-
site direction to the arrow ››› Fig. 88 B.
15.Insert the cover. The cover should lock into place.
16.Close the rear lid ››› page 99. Changing the number plate light
Fig. 90
On the rear bumper: Remove the
number p l
at
e light. Fig. 91
Number plate light: Remove the bulb
ho lder
.
Complete operations only in the sequence giv-
en:
1.With one hand, press on the number plate light
from left to right and remove it from the bumper
››› Fig. 90.
Complete operations only in the sequence giv-
en:
2.Detach the number plate light carefully from the
bumper.
3.Turn the bulb holder with the bulb anticlockwise
and remove it in the direction of the arrow
››› Fig. 91.
4.Replace the faulty bulb with a new identical bulb.
5.Place the bulb holder in the number plate light and
press in the opposite direction to the arrow as far
as possible ››› Fig. 91.
6.
Insert the number plate light carefully into the left
edge of the opening on the bumper. During this
process, check that the assembly direction of the
number plate light is correct, i.e. the spring must
be on the right.
7.Insert the number plate light into the bumper until
it audibly clicks into place. 83
Technical data
Advice
Operation
Emergencies
Safety
Page 222 of 232
Index
tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
w ind
s
creen washer bottle . . . . . . . . . . . . . . . . 173
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Driving through water . . . . . . . . . . . . . . . . . . . . . 153
Driving tips for a loaded vehicle . . . . . . . . . . . . . . . . . . . . . 114
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Dynamic headlight range control . . . . . . . . . . . . 107
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 181
EDL see Electronic differential lock . . . . . . . . . . . . . 139
EDS see "Brake assist systems" . . . . . . . . . . . . . . . 140
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical devices . . . . . . . . . . . . . . . . . . . . 121, 122
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . . . . . 139
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 137 operating fault . . . . . . . . . . . . . . . . . . . . . . . . . 135
Electronic Stability Control (ESC) . . . . . . . . . . . . 139
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 36
emergency towing of the vehicle . . . . . . . . . . . . 42
fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . . 70
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
hazard warning lights . . . . . . . . . . . . . . . . . . . 106 Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
punct
ure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 34
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 70
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . 70
Emergency closing or opening driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
passenger door . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Emergency locking and unlocking . . . . . . . . . . . . 77
Emergency unlocking boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emergency unlocking the boot hatch boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emission control system control and warning lamps . . . . . . . . . . . . . . . 151
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 43
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 161
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . 135 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . . . . 122
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
starting the engine . . . . . . . . . . . . . . . . . . . . . . 135
stopping the engine . . . . . . . . . . . . . . . . . . . . . 136
unauthorised vehicle key . . . . . . . . . . . . . . . . . 135
Engine compartment . . . . . . . . . . . . . . . . . . 10, 186 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 196
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 33, 194
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 191
engine oil . . . . . . . . . . . . . . . . . . . . . 31, 190, 191
windscreen washer reservoir . . . . . . . . . . 33, 195
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 checking the level . . . . . . . . . . . . . . . . . . . . . . . 191
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 32 G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
specific
ations . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
temperature display . . . . . . . . . . . . . . . . . . . . . 192
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Engine management . . . . . . . . . . . . . . . . . . . . . . 151 control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 188 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 190
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
control and warning lamps . . . . . . . . . . . . . . . 189
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 189
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Environment environmental compatibility . . . . . . . . . . . . . . 149
Environmental ecological driving . . . . . . . . . . . . . . . . . . . . . . . 149
Environmental tips refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
ESC electronic stability control . . . . . . . . . . . . . . . . 139
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . 167
Exhaust gas purification system . . . . . . . . . . . . . 151
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Exterior rear view mirrors control of the function . . . . . . . . . . . . . . . . . . . 112
electric exterior mirrors . . . . . . . . . . . . . . . . . . 112
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
220
Page 223 of 232
Index
F F abric
s: c
leaning . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Fault parking distance warning system . . . . . . . . . . 154
Fault memory connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 182, 185
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
First-aid kit storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 62
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
disabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
disconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . 112
manually adjusting . . . . . . . . . . . . . . . . . . . . . . . 12
Front wiper blades change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 181 natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
savings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Fuel gauge control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 31
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 31 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 78
fuse bo x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
identifying blown fuses . . . . . . . . . . . . . . . . . . . 34
identifying by colours . . . . . . . . . . . . . . . . . . . . . 34
preparation before replacing . . . . . . . . . . . . . . . 34
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
G
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 26
changing gears manually . . . . . . . . . . . . . . . . . 145
gear recommendation . . . . . . . . . . . . . . . . . . . 148
manual gear change . . . . . . . . . . . . . . . . . . . . . . 26
putting the vehicle in gear (manual gearbox) 145
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General instrument panel instrument panel . . . . . . . . . . . . . . . . . . . . . . . . 87
General view control and warning lamps . . . . . . . . . . . . . . . . 24
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Glove compartment . . . . . . . . . . . . . . . . . . 117, 118
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Hazard warning lights . . . . . . . . . . . . . . . . . 21, 106
Head-on collisions and the laws of physics . . . . . 55
Headlight range control . . . . . . . . . . . . . . . . . . . . 107
Headlights driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 107
Head rest adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Head restraints adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 51
Heating and fresh air controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Heating and fresh air system . . . . . . . . . . . . . . . . 130
Heating of
the rear window . . . . . . . . . . . . . . . 28, 30
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 160
Hill hold control and warning lamps . . . . . . . . . . . . . . . 161
start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 161
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . 43 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
I
Identifying letters on engine . . . . . . . . . . . . . . . . 210
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 see "Engine and ignition" . . . . . . . . . . . . . . . . 135
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 removal lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
unauthorised vehicle key . . . . . . . . . . . . . . . . . 135
In case of emergency . . . . . . . . . . . . . . . . . . . . . . . 70
Indications on the display . . . . . . . . . . . . . . . . . . . 89 odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
recommended gear . . . . . . . . . . . . . . . . . . . . . . 90
reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
seat belt status . . . . . . . . . . . . . . . . . . . . . . . . . . 90
selector lever positions . . . . . . . . . . . . . . . . . . . 90
start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . 88 control and warning lamps . . . . . . . . . . . . . . . . 24
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88, 89
general instrument panel . . . . . . . . . . . . . . . . . . 87
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 90
symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Instrument panel lighting . . . . . . . . . . . . . . . . . . 107
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
221
