check engine Seat Toledo 2005 Maintenance programme

Documents for vehicle delivery
2
Documents for vehicle deliveryDelivery of the vehicleDelivery by the Authorised Service Centre The stamp of the Authorised Service Centre is confirmation of the vehicle's delivery.Before delivery, we carry
out a complete check on the vehicle, in accordance
with the instructions from the manufacturer, so that you c
an enjoy driving
from the very first kilometre. On delivery, you will be given instructions and ex
planations on the following
subjects:•
Running in
•
Service intervals and any particulars referring to adve
rse service condi-
tions, see
Œpage 6
•
Brake fluid service
Caution
•
Vehicles bearing the sticker “NOT SUITABLE FOR BIOD
IESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable info
rmation on the
possibility of using biodiesel, in accordance with
DIN EN 14214 (FAME).
Note
•
The change of the notched drive belt wi
ll depend upon the type of engine
Œpage 12. Your Authorised Service Centre will inform you if
you need to
change the drive belt, and when.•
If you use biodiesel fuel
or fuel which does
not meet the DIN EN 590
standard, you will have to clean the fuel filter every 15,000 km, and
substitute
it at 30,000 km.
Inspection on delivery carried out: Date:
First Service:
• Oil change service, after 15,000 km
• SEAT Inspection service every 12 months, or at 30,000
km (maximum)
Stamp of
Authorised Service Centre
s11g.book Seite 2 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
7
Under
adverse circumstances
some jobs will be required between these inter-
vals. This is especially true of
changing the engine oil
, when the vehicle is
constantly used for short journeys or th
e temperatures are very low; similarly,
the cleaning or substitution of the cartridge of the air f
ilter, the pollen and
dust filter and the checking and changing of the
drive belt when the vehicle
is used in areas with a lot of dust.If you use biodiesel fuel or fuel which
does not meet the DIN EN 590 standard,
you will have to clean the fuel filt
er every 15,000 km, and substitute it at
30,000 km. Some countries use diesel fuel with a high sulphur
content In these cases, an
oil change will be required after 7,500 km The Author
ised Service Centre will
inform you which countries use fuel with a high sulphur c
ontent.
The person responsible for the Authorised Service C
entre will inform you of
the need to carry out these jobs between the normal servic
e interval, taking
the conditions of use of the vehicle into considerati
on.
On the following pages, we have compiled information on what
is necessary
in each programmed inspection service The jobs
that are listed are appro-
priate for the technical requirements at the time of printin
g. Therefore, they
may be modified hereafte
r for technical reasons.
Your Authorised Service Centre will inform you on
this point, as well as any
need for additional services, and any work required by la
w.
Your Authorised Service Centre will inform you of th
e cost (material and
labour) for each of the inspection and maintenanc
e services contained in this
plan.
Caution
•
Vehicles bearing the sticker “NOT SUITABLE FOR BIODIE
SEL” on the fuel
cap, cannot use biodiesel fuel.
•
Consult an Authorised Service Centre for reliable infor
mation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
s11g.book Seite 7 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
9
Caution
•
Vehicles bearing the sticker “NOT SUITABLE FOR BIODIE
SEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable info
rmation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Note
Besides the inspection service, further jobs will be requi
red depending on the
age and mileage of the vehicle
Œpage 11.
Range of servicesOil Change ServiceWork to be carried out•
Engine oil and oil filter: Change
•
Engine oil and oil filter: Change
every 7,500 km (only diesel vehicles
using fuel that does not comply with the DIN EN 590
standard)
1)
•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba a
nd Alhambra
biodiesel models, or using fuel that does not comply w
ith the DIN EN 590
standard)
1)
•
Front and rear brake pads: Check thickness
•
Service interval indicator: return to zero
•
Next service sticker: Note the next service and apply
sideways to the
dashboard, driver side, or the door pillar
Caution
•
Vehicles bearing the sticker “NOT
SUITABLE FOR BIODIESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable infor
mation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Inspection serviceWork to be carried out•
Engine oil and oil filter: Change
•
Engine oil and oil filter: Change
every 7,500 km (only diesel vehicles
using fuel that does not comply with the DIN EN 590 s
tandard)
2)
•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba and A
lhambra
biodiesel models, or using fuel that
does not comply with the DIN EN 590
standard)
2)
•
Exhaust system: check fittings and inspect for leaks a
nd damage
•
Engine compartment and engine: inspect for leaks and da
mage
•
Cooling system: Check concentration of coolant and to
p up if necessary
•
Fault memory in all self-diagnosis systems: consult
•
Brake linings: Check thickness in front and rear
•
Brake system: inspect for leaks and damage
•
Brake fluid: check level depending on brake lining we
ar
•
Gearbox, final drive and joint protections: inspect for l
eaks and damage
•
Axle joints cover: inspect for leaks and damage
•
Link rods: check fittings, check play and protections
•
Battery: check
1)Your Authorised Service Centre can inform you wh
ich countries use diesel fuel with a
high sulphur content
2)Your Authorised Service Centre can inform you whic
h countries use diesel fuel with a
high
sulphur
content
s11g.book Seite 9 Montag, 9. Mai 2005 8:41 08

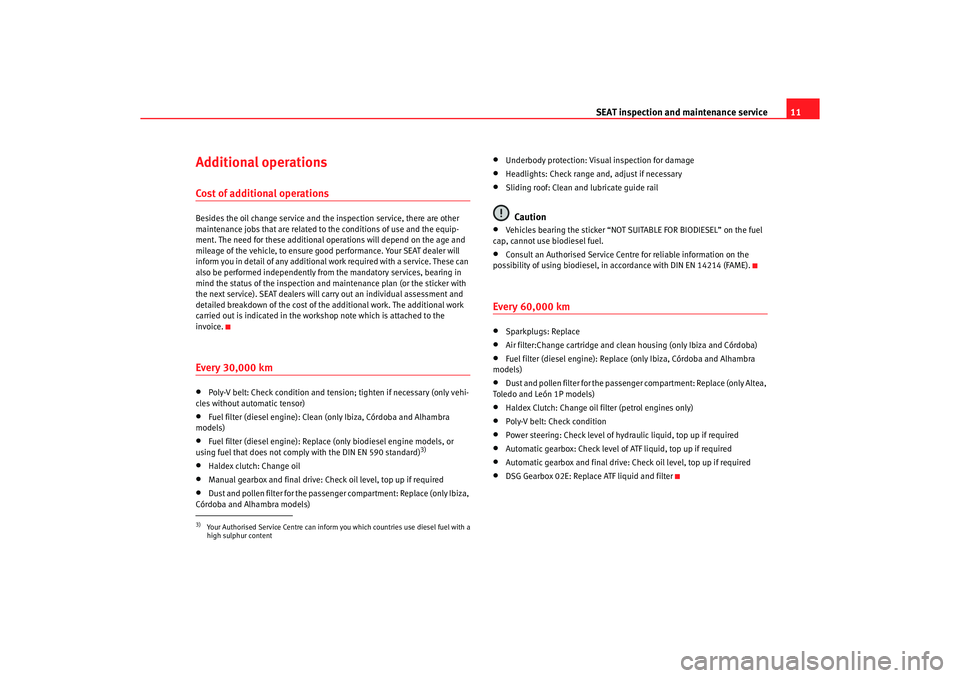

SEAT inspection and maintenance service
11
Additional operationsCost of additional operationsBesides the oil change service and the inspection ser
vice, there are other
maintenance jobs that are related to the condition
s of use and the equip-
ment. The need for these additional operations will de
pend on the age and
mileage of the vehicle, to ensure good performance. Y
our SEAT dealer will
inform you in detail of any additional work requir
ed with a service. These can
also be performed independently from the mandator
y services, bearing in
mind the status of the inspection and maintenanc
e plan (or the sticker with
the next service). SEAT dealers will carry out an individual
assessment and
detailed breakdown of the cost of the additional w
ork. The additional work
carried out is indicated in the workshop note which is attac
hed to the
invoice.Every 30,000 km•
Poly-V belt: Check condition and tens
ion; tighten if necessary (only vehi-
cles without automatic tensor)•
Fuel filter (diesel engine): Clean (only Ibiza, Córdoba a
nd Alhambra
models)•
Fuel filter (diesel engine): Replace (only biodiesel eng
ine models, or
using fuel that does not comply with the DIN EN 590
standard)
3)
•
Haldex clutch: Change oil
•
Manual gearbox and final drive: Check oil level, top up
if required
•
Dust and pollen filter for the passenger compartment:
Replace (only Ibiza,
Córdoba and Alhambra models)
•
Underbody protection: Visual inspection for damage
•
Headlights: Check range and, adjust if necessary
•
Sliding roof: Clean and lubricate guide railCaution
•
Vehicles bearing the sticker “NOT
SUITABLE FOR BIODIESEL” on the fuel
cap, cannot use biodiesel fuel.•
Consult an Authorised Service Centre for reliable infor
mation on the
possibility of using biodiesel, in
accordance with DIN EN 14214 (FAME).
Every 60,000 km•
Sparkplugs: Replace
•
Air filter:Change cartridge and clean housing (only Ibiz
a and Córdoba)
•
Fuel filter (diesel engine): Replac
e (only Ibiza, Córdoba and Alhambra
models)•
Dust and pollen filter for the passenger compartment:
Replace (only Altea,
Toledo and León 1P models)•
Haldex Clutch: Change oil
filter (petrol engines only)
•
Poly-V belt: Check condition
•
Power steering: Check level of hydraulic liquid, top up i
f required
•
Automatic gearbox: Check level of ATF liquid, top up i
f required
•
Automatic gearbox and final drive: Check oil level, top up
if required
•
DSG Gearbox 02E: Replace ATF liquid and filter
3)Your Authorised Service Centre can inform you wh
ich countries use diesel fuel with a
high sulphur content
s11g.book Seite 11 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
12
Every 90,000 km•
Notched belt for driving cam shaft:
Replace (only Alhambra TDI engines
with pump injection)•
Air filter: Replace cartridge and clean housing (only in A
lhambra, Altea,
Toledo and León 1P models)•
Fuel filter: Replace cartridge and clean housing (only i
n Altea, Toledo and
León 1P models)Every 90,000 km (the first ti
me), and every 30,000 km
afterwards•
Check notched drive belt for cam shaft: Check condition (o
nly petrol
engines)Every 100,000 km•
Haldex Clutch: Change oil
filter (diesel engines only)
Every 120,000 km•
Notched belt for driving
cam shaft: Replace (only TDI engines with pump
injection, except Alhambra)
Every 150,000 km•
Check notched drive belt for cam shaft: Replace (only T
DI and SDI
engines)Every 180,000 km•
Notched drive belt for cam shaft: Replace (only 5-valv
e cylinder 2.0 l FSI
petrol engines)•
Roller tensor for notched belt: Replace (only Alhambra
models with pump
injection TDI engines)Every 240,000 km•
Roller tensor for notched belt: Replac
e (only models with pump injection
TDI engines, except Alhambra)Every two years•
Brake fluid: Replace (coincide with inspection service
, if possible)
•
Dust and Pollen filter: Replace (all vehicles with under 30
,000 km on the
clock, or in the case of Altea, Toledo and León 1P, less t
han 60,000 km in two
years)
s11g.book Seite 12 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
13
Every four years•
Air filter: Replace and clean housing (all vehicles with
less than 60,000
km, or 90,000 km for the Alhambra, every four years)•
Haldex oil filter: Replace (only vehicles with petrol engi
nes that have less
than 60,000 km, or diesel engines with less than 100,000
km every four
years)•
Sparkplugs: Replace (only vehicles with under 60,000km
every four
years)•
Anti puncture kit: Check expiry date on sealant bottle, a
nd replace if
necessaryEvery six years•
Air filter: Replace and clea
n housing (all Altea, Toledo and León 1P models
with less than 90,000 km every 6 years.
If the seal of the filter housing is
broken, the period for replacement will be four years)
s11g.book Seite 13 Montag, 9. Mai 2005 8:41 08

SEAT inspection and maintenance service
14
Additional service offersLegal inspection service Legal inspections must be carried out in the stipulated periods.Many countries have legal requirements for regular vehic
le checks
concerning safety issues for road use and the comp
osition of exhaust gases.
These checks must be supervised by authorised
centres.
Your Authorised Service Centre can inform you of the m
andatory legal inspec-
tions and can check whether your vehicle meets th
e required standards. This
will save you time and money. Your Authorised Service Centre can carr
y out the required inspections, at the
clients request.Even if you decide not to use this service, and you wish
to take your car to be
checked in an authorised centre, it is advisable to inform th
e head of your
Authorised Service Centre. He will inform you of the aspects to consider, to av
oid problems and so the
obligation to repeat the inspection.Official Spare PartsAll the parts of the vehicle have been authorised by S
EAT, especially those
related to safety. For this reason, the spare parts used in
the programmed
inspection service and any repairs to the vehicle should m
atch the manufac-
turer's specifications exactly. The authorised spare p
arts have been designed
exclusively for your vehicle. We recommend
that you always use official spare
parts.
The SEAT authorised Service Centres ha
ve the most important official spare
parts. If for extraordinary circumstances a part is not av
ailable, in general it
can be supplied quickly in most cases.The SEAT Authorised Service Centres within the EU apply
a 24 month guar-
antee
4) to official spare parts from the moment of fitting or s
ale. For this
reason, the invoice from your Authorised Service Centre shoul
d be kept as
proof of the starting date of the guarantee. Ask your Authorised Servic
e Centre for more details.
Official ReplacementsOfficial replacements, in accordance with the manufa
cturer's instructions,
are another service at your disposal, offering the p
ossibility of replacing
complete sections, the most common be
ing: lighter engines, gearboxes,
cylinder heads, control units, electrical parts, etc.These parts are, naturally
Approved Parts
and, as such enjoy the same guar-
antee as the factory parts.However, their price is far lower, because the factory t
akes used parts and
reconditions them. Keep the invoice for the official repla
cements as proof of
the start of the guarantee period. Ask your Authorised Servic
e Centre for more details.
4)This guarantee does not apply to all export mark
ets. Ask your Authorised Service Cen-
tre for further information
s11g.book Seite 14 Montag, 9. Mai 2005 8:41 08
