Technical Data

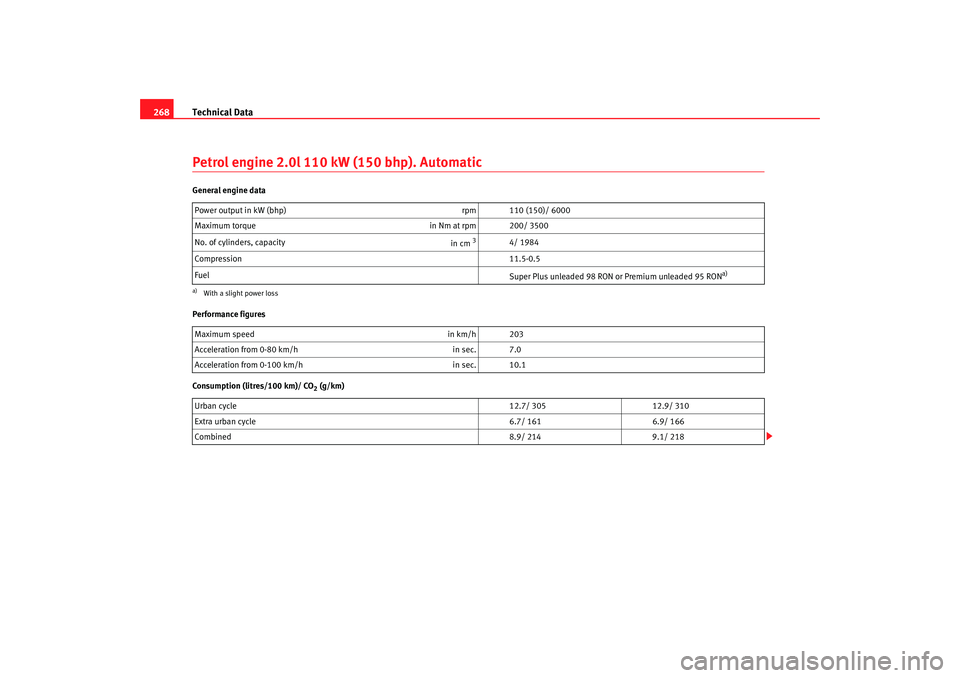

268Petrol engine 2.0l 110 kW (150 bhp). AutomaticGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compre ssion 11.5-0.5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power lossMaximum speed in km/h 203
Accelera tion from 0-80 km/h in sec. 7.0
Accelera tion from 0-100 km/h in sec. 10.1
Urban cycle 12.7/ 305 12.9/ 310
Extra urban cycle 6.7/ 161 6.9/ 166
Combined 8.9/ 214 9.1/ 218
Toledo angles Seite 268 Mittwoch, 5. Oktober 2005 9:43 09
Page 271 of 290

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Diesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Gross vehicle weight
in kg 2039
Weight in working order (with driver) in kg 1514/ 1586
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 1020
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity Engine oil capacity with oil filter change. 5.3 litres
Power output in kW (bhp) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0. 5
Fuel Mi
n 49 CZ
Toledo angles Seite 269 Mittwoch, 5. Oktober 2005 9:43 09
Page 273 of 290

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0l 103 kW (140 bhp) 16VGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18.5 ± 0.5
Fu el Mi
n 49 CZ
Maximum speed in km/h 201
Ac ce le ra tion from 0-80 km/h in
sec. 6.9
Ac ce le ration from 0-100 km/h in sec. 10.0
Urban cyc le 7.6
/ 205 7.7/ 208
Extra urban cyc le 4.7
/ 127 4.8/ 130
Combined 5.8/ 157 5
.9/ 160
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529/ 1602
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
Toledo angles Seite 271 Mittwoch, 5. Oktober 2005 9:43 09
Page 274 of 290

Technical Data

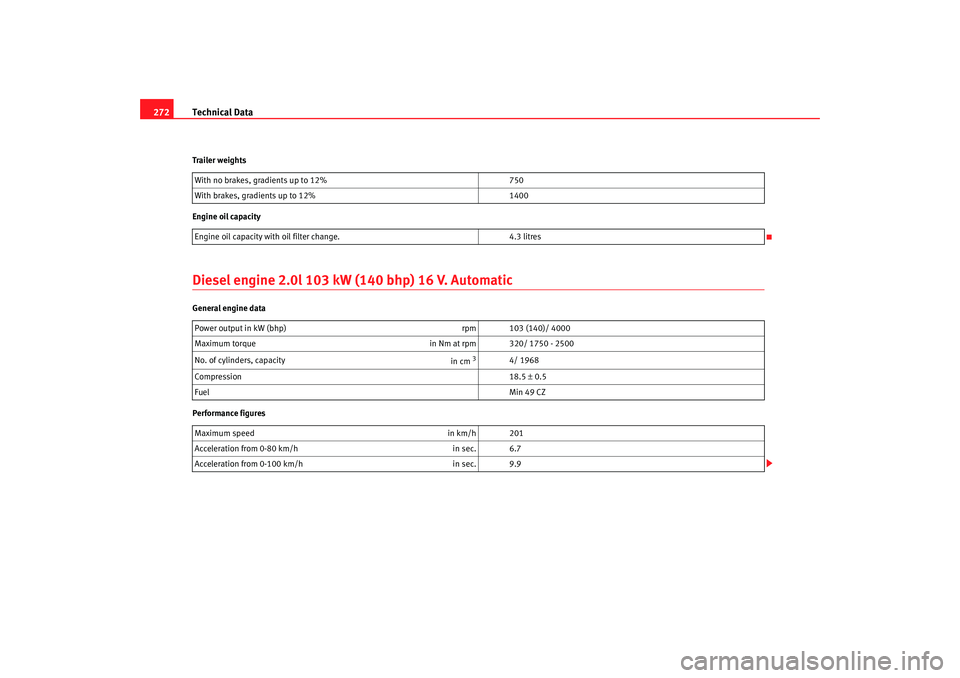

272Trailer weights
Engine oil capacityDiesel engine 2.0l 103 kW (140 bhp) 16 V. AutomaticGeneral engine data
Performance figures With no brakes, gradients up to 12%
750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compre ssion 18.5 ± 0.5
Fuel Min 49 CZ
Max
imum speed in km/h 201
Accelera tion from 0-80 km/h in sec. 6.7
Accelera tion from 0-100 km/h in sec. 9.9
Toledo angles Seite 272 Mittwoch, 5. Oktober 2005 9:43 09
Page 276 of 290

Technical Data
274Diesel engine 2.0l 100 kW (136 bhp) 16VGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compre ssion 18.5 ± 0.5
Fuel Min 49 CZ
Maximum speed in km/h
199
Ac celera tion from 0 -80
km/h in sec. 7
.0
Ac celera tion from 0 -100
km/h in sec. 10
.1
Urban cycle 7.
6/ 205
7.7/ 208
Ext ra urban cyc le 4.7/ 1
27 4.8/ 130
Combined 5.5/ 157 5.9/ 159
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529/ 1602
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
Toledo angles Seite 274 Mittwoch, 5. Oktober 2005 9:43 09
Page 277 of 290

Technical Data275
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 2.0l 100 kW (136 bhp) 16 V. AutomaticGeneral engine data
Performance figures
With no brakes, gradients up to 12%
750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18.5 ± 0.5
Fu el Mi
n 49 CZ
Maximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 6.8
Acceleration from 0-100 km/h in sec. 10.0
Toledo angles Seite 275 Mittwoch, 5. Oktober 2005 9:43 09
Page 287 of 290

Index285
Seat belt position
Pregnant women . . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Incorrectly fastened . . . . . . . . . . . . . . . . . . . . 28
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Seat belts protect . . . . . . . . . . . . . . . . . . . . . . . . 23
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 93
Selector lever locking . . . . . . . . . . . . . . . . . . . . 165
Selector lever positions . . . . . . . . . . . . . . . . . . . 164
Service interval display . . . . . . . . . . . . . . . . . . . . 60
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . . 15
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sitting position, occupants . . . . . . . . . . . . . . . . . 10
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 108 Snow chains . . . . . . . . . . . . . . . . . . . . . . . 225, 263
Soot accumulation in the di
esel engine particle fil-
ter *
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 161
Starting the engine . . . . . . . . . . . . . . . . . 160, 161 After the fuel tank has been run dry . . . . . . 162
Steam cleaners . . . . . . . . . . . . . . . . . . . . . . . . . 189
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 159
Steering wheel audio controls audio + telephone version . . . . . . . . . . . . . . 83
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 83
Steering wheel controls Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Steering wheel height adjustment . . . . . . . . . . 157
Stowage area Centre arm rest . . . . . . . . . . . . . . . . . . . . . . 134
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Other stowage areas . . . . . . . . . . . . . . . . . . 137
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . . 133
Stowage in the luggage compartment . . . . . . . 135
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Switch Hazard warning lights . . . . . . . . . . . . . . . . . 114 Switches
Electric windows . . . . . . . . . . . . . . . . . . . . . 106
Electrical exterior mirrors . . . . . . . . . . . . . . 125
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 108
Switching off the engine . . . . . . . . . . . . . . . . . . 162
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Emergency opening . . . . . . . . . . . . . . . . . . . 105
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 57
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 57
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bo lts . . . . . . . . . . . 263
Tire-Mobility-System (Tyre r epair kit) . . . . . . . . 233
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Towing a trailer . . . . . . . . . . . . . . . . . . . . 183, 262
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 184
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 198
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Toledo angles Seite 285 Mittwoch, 5. Oktober 2005 9:43 09
Page 288 of 290

Index
286Trailer turn signals
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 75
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 116
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Warning lamp . . . . . . . . . . . . . . . . . . . . 75, 116
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Tyre Mobility-System (Tyre repair kit) . . . . . . . 227
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 78
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 227, 233
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 221
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres with directional tread pattern . . . . . . . . . 220UUmbrella holder belt* . . . . . . . . . . . . . . . . . . . . 135
Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 192
Using the Tiptronic gear system . . . . . . . . . . . . 168VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 218
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Vehicle identification data . . . . . . . . . . . . . . . . 260 Vehicle identification number . . . . . . . . . . . . . 260
Vehicle paint
Car care products . . . . . . . . . . . . . . . . . . . . 187
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 133
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Deactivati
on . . . . . . . . . . . . . . . . . . . . . . . . 103
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warning reports Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning texts in the display . . . . . . . . . . . . . . . . 63
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 143
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 188
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 188
Washing with high pressure cleaners . . . . . . . 189
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Water in the windscreen washer tank . . . . . . . 213
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 222
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 230, 263 Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220, 262
Why assume the correct sitting position? . . . . . 30
Why should head restraints be correctly adjusted?
13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 21
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 30
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Windscreen washer fluid Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 120 Changing blades . . . . . . . . . . . . . . . . . . . . . 214
Changing the rear blade . . . . . . . . . . . . . . . 215
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 203
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Wiper/wash automatic function . . . . . . . . . . . 120
Working in the engine compartment . . . . . . . . 203
Toledo angles Seite 286 Mittwoch, 5. Oktober 2005 9:43 09
