Seat Toledo 2005 Owner's manual

If and when249
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

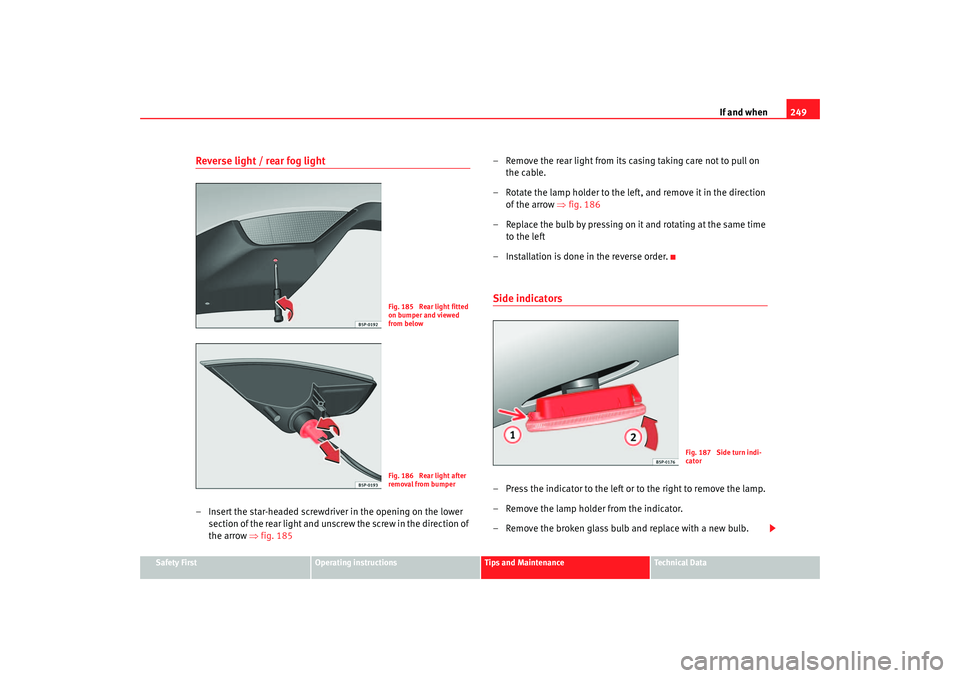

Reverse light / rear fog light– Insert the star-headed screwdrive r in the opening on the lower
section of the rear light and unsc rew the screw in the direction of
the arro w ⇒ fig. 185 – Remove the rear light from its casing taking care not to pull on
the cable.
– Rotate the lamp holder to the left, and remove it in the direction of the arrow ⇒ fig. 186
– Replace the bulb by pressing on it and rotating at the same time
to the left
– Installation is done in the reverse order.
Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the broken glass bulb and replace with a new bulb.
Fig. 185 Rear light fitted
on bumper and viewed
from belowFig. 186 Rear light after
removal from bumper
Fig. 187 Side turn indi-
cator
Toledo angles Seite 249 Mittwoch, 5. Oktober 2005 9:43 09

If and when
250

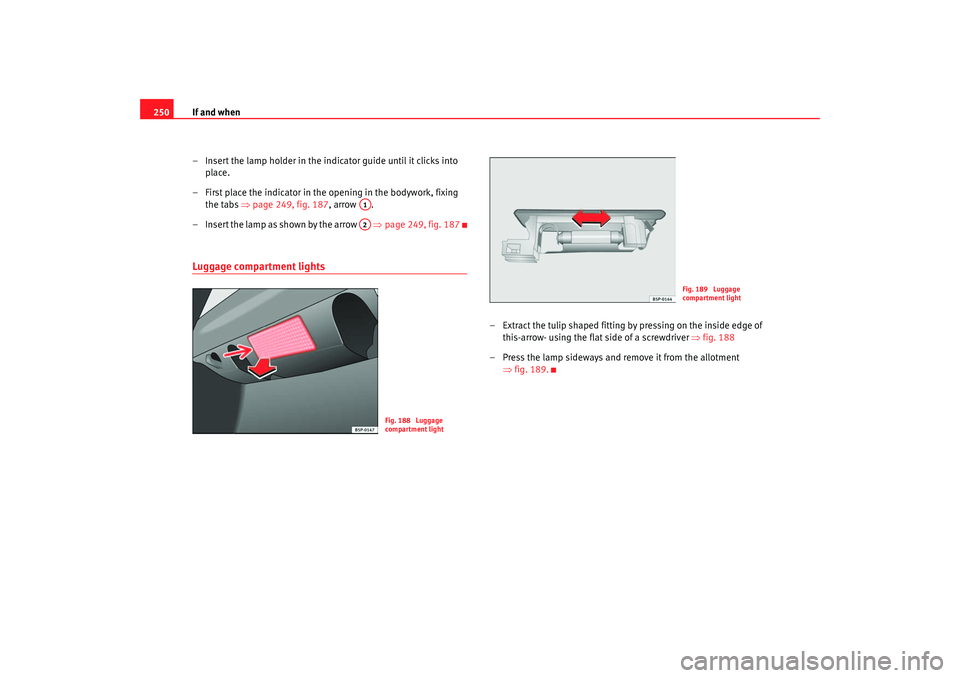

– Insert the lamp holder in the indicator guide until it clicks into place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒page 249, fig. 187 , arrow .
– Insert the lamp as shown by the arrow ⇒page 249, fig. 187Luggage compartment lights
– Extract the tulip shaped fitting by pressing on the inside edge of
this-a rrow- us
ing the flat side of a screwdriver ⇒ fig. 188
– Pr

e ss the lamp sidewa ys
and remo ve it from
the allotment
⇒

fig. 189

.
A1A2
Fig. 188 Luggage
compartment light
Fig. 189 Luggage
compartment light
Toledo angles Seite 250 Mittwoch, 5. Oktober 2005 9:43 09

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

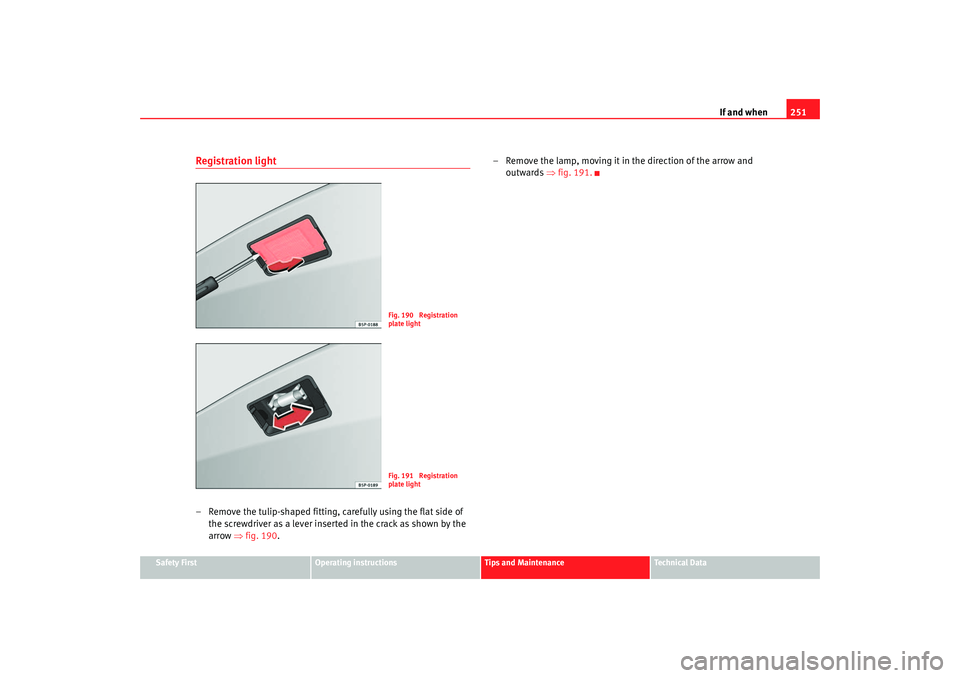

Registration light– Remove the tulip-shaped fitting, carefully using the flat side of
the screwdriver as a lever inserted in the crack as shown by the
arrow ⇒fig. 190 . – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒ fig. 191.
Fig. 190 Registration
plate lightFig. 191 Registration
plate light
Toledo angles Seite 251 Mittwoch, 5. Oktober 2005 9:43 09

If and when
252Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒ fig. 193. – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒ fig. 193.
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of anot her vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 192 Removing
sunroof lightFig. 193 Removing
sunroof light
Toledo angles Seite 252 Mittwoch, 5. Oktober 2005 9:43 09

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
How to jump startIn ⇒ fig. 194, the flat battery is A and the charged battery B.
Jump lead terminal connections
– Switch off the ignition on both vehicles ⇒.
1. Connect one end of the red jump lead to the positive ⇒fig. 194
terminal of the vehicle with the flat battery ⇒.
2. Connect the other end of the red jump lead to the positive terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal on the battery of the vehicle providing assistance. 4. Connect the other end of the black jump lead to a solid metal
component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery ⇒.
5. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let
it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
10. When the engine is running, disconnect the leads in reverse order to the details given above.
Connect the battery clamps so they ha ve good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
Fig. 194 How to connect
the jump leads
A+
A+
A-
AX
Toledo angles Seite 253 Mittwoch, 5. Oktober 2005 9:43 09

If and when
254
WARNING
•
Please note the safety warnings referring to working in the engine
compartment ⇒page 203, “Working in the engine compartment”.
•
The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•
Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•
Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•
Observe the instructions provided by the manufacturer of the jump
leads.
•
Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•
Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•
The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead atta ched to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•
Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•
Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
Toledo angles Seite 254 Mittwoch, 5. Oktober 2005 9:43 09

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Towing and tow-startingTo w - s t a r t i n g *
The use of jump leads is preferable to tow-starting.We recommend that you do not tow-start your vehicle. Jump-starting
is preferable ⇒page 252.
However, if your vehicle has to be tow-started:
–Engage the 2
nd or the 3
rd gear.
– Keep the c
lutch pressed down.
– Switch on the ignition.
– Once both vehicles are mo ving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
Towing eyesPlease observe the following points if you use a tow-rope:
Fig. 195 The front right
section of the vehicle:
Fitting the front towing
eyeFig. 196 Fitting the
towing eye to the rear of
the vehicle
Toledo angles Seite 255 Mittwoch, 5. Oktober 2005 9:43 09

If and when
256
Notes for the driver of the towing vehicle
– Drive slowly at first until the to w-rope is taut. Then accelerate
gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.
Fitting the towing eye
– Take the towing ring and the wheel spanner out of the vehicle tool kit.
– Pull the lower front cover down and leave the cover hanging on the vehicle.
– Remove the cover of the screw hole, insert a screwdriver into the lower slot and lever gently.
– Screw the towing eye as shown by arrow anti-clockwise to the
limit position in the front ⇒page 255, fig. 195 or rear
⇒ page 255, fig. 196 threaded hole.
– Use the wrench for leverage to tighten the towing eye.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar. A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, espec
ially when using a tow-rope. Both
drivers should be familiar with the te chnique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if the engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•
Put the selector lever into position “N”.
•
Do not drive faster than 50 km/h when towing a vehicle.
•
Do not tow further than 50 km.
•
If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•
Observe legal requirements when towing or tow-starting.
Toledo angles Seite 256 Mittwoch, 5. Oktober 2005 9:43 09

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
•
Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•
For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
•
If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.
•
If the vehicle has to be towed more than 50 km, the front wheels must be
raised during towing, and towing should be carried out by a qualified person.
•
The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.
