Fuel gauge

and reserve indicator
Details of the instrument panel: Fuel gauge
The fuel tank has a capacity of approx. 55 litres.
When the needle reaches the reserve zone ⇒fig. 34 (arrow), the warning
lamp w ill light and an ac oustic signal w ill sou
nd r
eminding the driv
er to
refuel . At this point there are still about 7 litres of fuel in the tank.
The following text appears in the instrument panel display
3) PLEASE
REFUEL *
Engine coolant temperature display


This gauge shows the engine coolant temperature.
Needle in cold zone
Avoid high engine speeds and heavy engine loads ⇒fig. 35.
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures. This is no cause for concern as long
as the warning lamp does not light up and no warning* text appears in the
combi-instrument display.
Needle in warning zone
The warning lamp* ⇒page 71, fig. 47 will light up if the needle is in the
warning zone. The following warning appears in the instrument panel
3)Depending on the model version
Fig. 34 Details of the
instrument panel: Fuel
gauge
Fig. 35 Details of the
instrument panel: Engine
coolant temperature
gauge
AAABAC
A2
Toledo angles Seite 57 Mittwoch, 5. Oktober 2005 9:43 09

General notes on the technical data
262WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•
Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehi cle's handling and lead to an acci-
dent. Always adjust your speed and dr iving style to suit road conditions
and requirements.
•
Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
To w i n g a t r a i l e rTrailer weightsTrailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in EU for maximum speeds of 80 km/h (in certain circum-
stances up to 100 km/h). The figures may be different in other countries. All
data in the official vehicle documents take precedence over these data ⇒. Drawbar load
The
maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if th e drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with an axle
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•
For safety reasons, you should not drive at speeds above 80 km/h when
towing a trailer. This also applies to countries where higher speeds are
permitted.
•
Never exceed the maximum trailer weights or the draw bar loading. If
the permissible axle load or the perm issible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
WheelsTyre pressure, snow chains, wheel boltsTyre pressures
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
ra ised p ressures of warm tyres must not be redu ced
⇒
.
Toledo angles Seite 262 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data
266Weights
Trailer weights

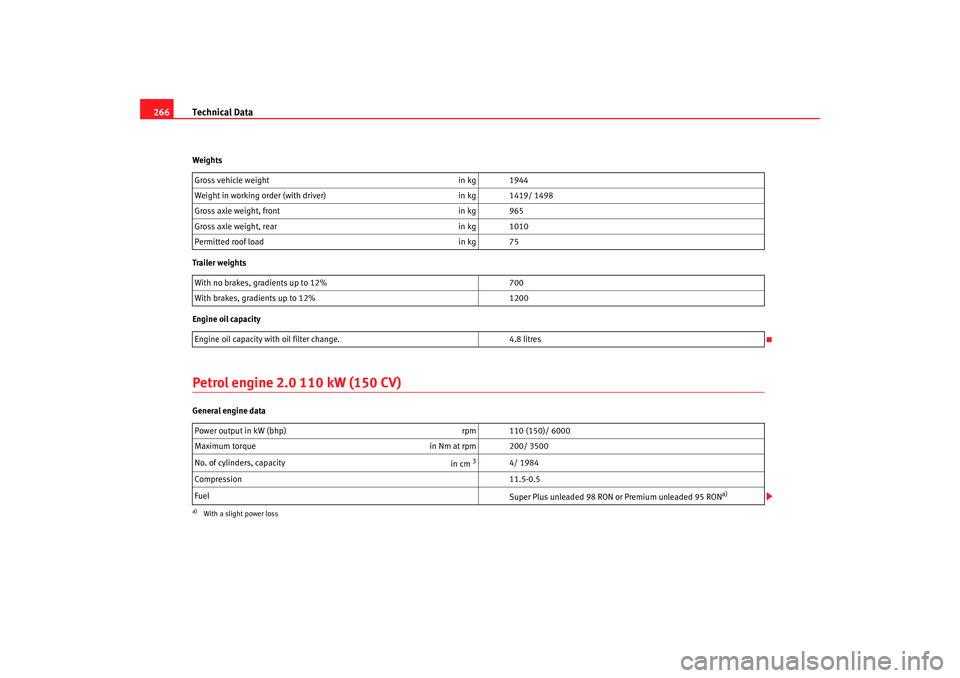

Engine oil capacityPetrol engine 2.0 110 kW (150 CV)General engine data Gross vehicle weight
in kg 1944
Weight in working order (with driver) in kg 1419/ 1498
Gross axle weight, front in kg 965
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.8 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compre ssion 11.5-0.5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power loss
Toledo angles Seite 266 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

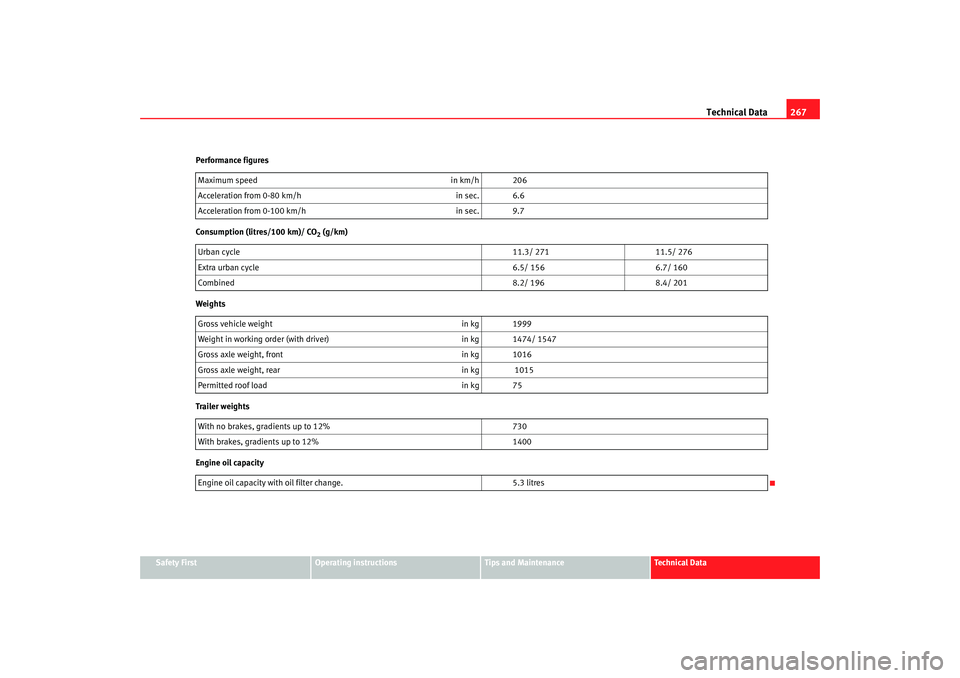

Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 206
Acceleration from 0-80 km/h in sec. 6.6
Acceleration from 0-100 km/h in sec. 9.7
Urban cycle 11.3/ 271 11.5/ 276
Extra urban cycle 6.5/ 156 6.7/ 160
Combined 8.2/ 196 8.4/ 201
Gross vehicle weight in kg 1999
Weight in working order (with driver) in kg 1474/ 1547
Gross axle weight, front in kg 1016
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 730
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 5.3 litres
Toledo angles Seite 267 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights

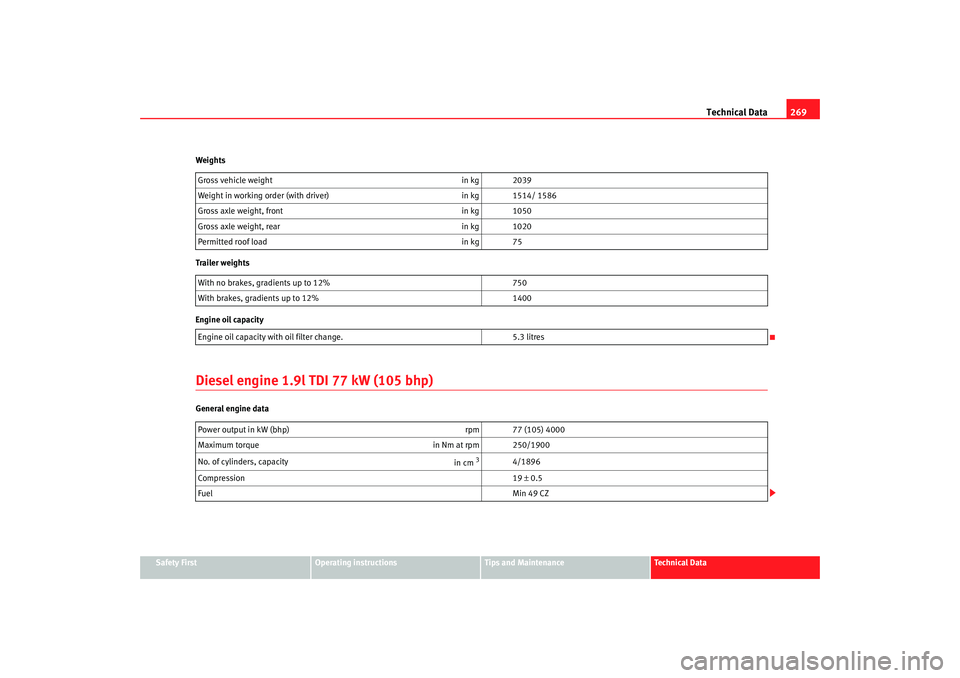

Diesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Gross vehicle weight
in kg 2039
Weight in working order (with driver) in kg 1514/ 1586
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 1020
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity Engine oil capacity with oil filter change. 5.3 litres
Power output in kW (bhp) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0. 5
Fuel Mi

n 49 CZ
Toledo angles Seite 269 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data

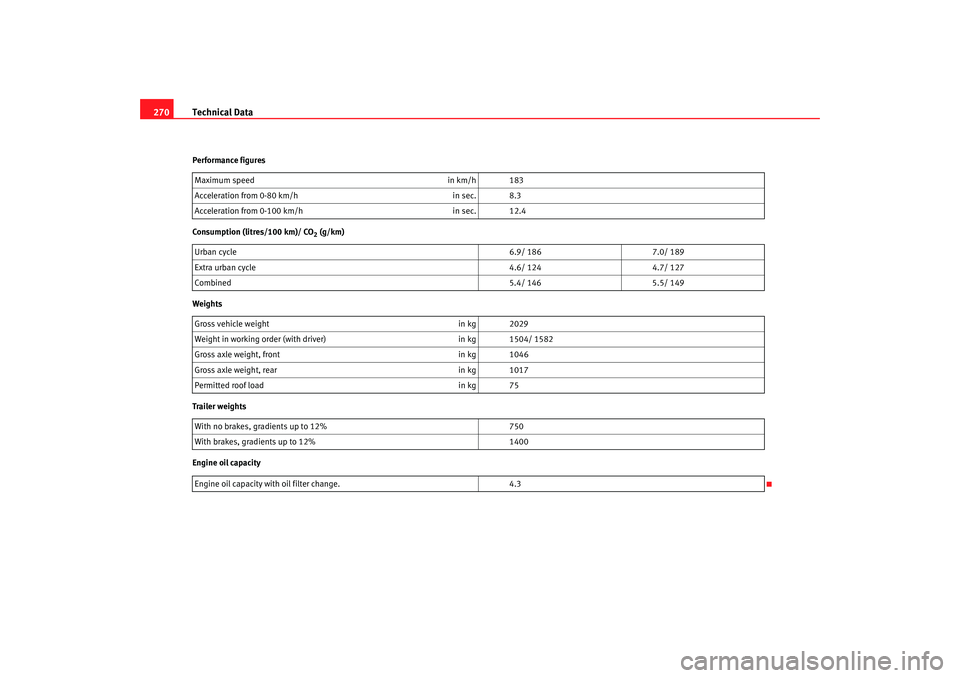

270Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 183
Accelera tion from 0-80 km/h in sec. 8.3
Accelera tion from 0-100 km/h in sec. 12.4
Urban cycle 6.9/ 186 7.0/ 189
Extra urban cycle 4.6/ 124 4.7/ 127
Combined 5.4/ 146 5.5/ 149
Gross vehicle weight in kg 2029
Weight in working order (with driver) in kg 1504/ 1582
Gross axle weight, front in kg 1046
Gross axle weight, rear in kg 1017
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3
Toledo angles Seite 270 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0l 103 kW (140 bhp) 16VGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18.5 ± 0.5
Fu el Mi

n 49 CZ
Maximum speed in km/h 201
Ac ce le ra tion from 0-80 km/h in
sec. 6.9
Ac ce le ration from 0-100 km/h in sec. 10.0
Urban cyc le 7.6
/ 205 7.7/ 208
Extra urban cyc le 4.7
/ 127 4.8/ 130
Combined 5.8/ 157 5
.9/ 160
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529/ 1602
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
Toledo angles Seite 271 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data273
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Urban cycle
7.5/ 203 7.7/ 208
Extra urban cycle 5.1/ 138 5.3/ 143
Combined 6.0/ 162 6.2/ 168
Gross vehicle weight in kg 2089
Weight in working order (with driver) in kg 1564/1637
Gross axle weight, front in kg 1106
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Toledo angles Seite 273 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data

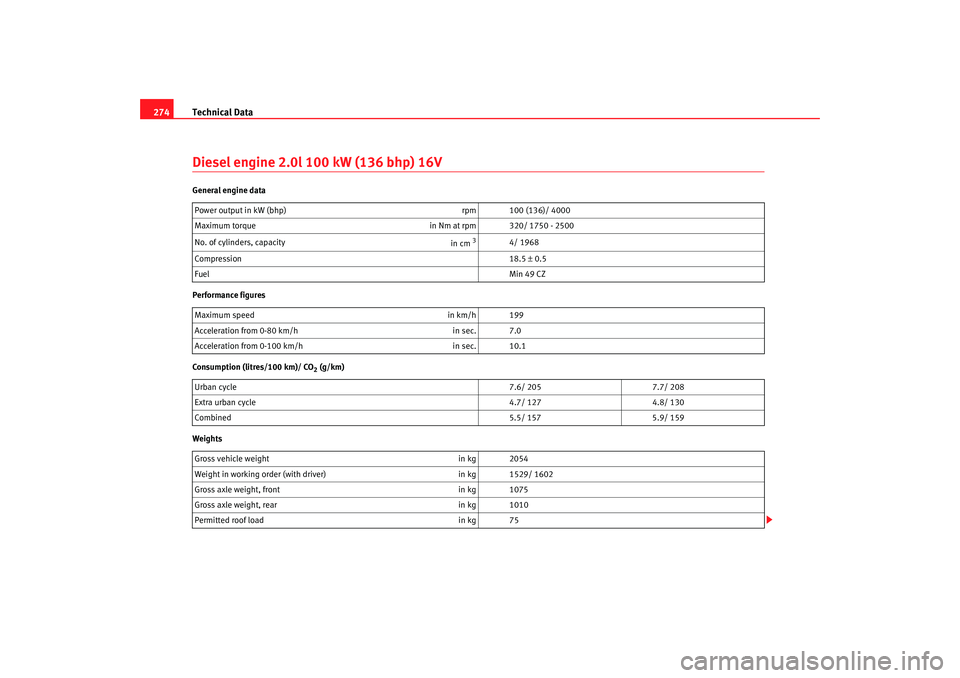

274Diesel engine 2.0l 100 kW (136 bhp) 16VGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compre ssion 18.5 ± 0.5
Fuel Min 49 CZ
Maximum speed in km/h

199
Ac celera tion from 0 -80
km/h in sec. 7
.0
Ac celera tion from 0 -100
km/h in sec. 10
.1
Urban cycle 7.

6/ 205
7.7/ 208
Ext ra urban cyc le 4.7/ 1
27 4.8/ 130
Combined 5.5/ 157 5.9/ 159
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529/ 1602
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
Toledo angles Seite 274 Mittwoch, 5. Oktober 2005 9:43 09

Technical Data

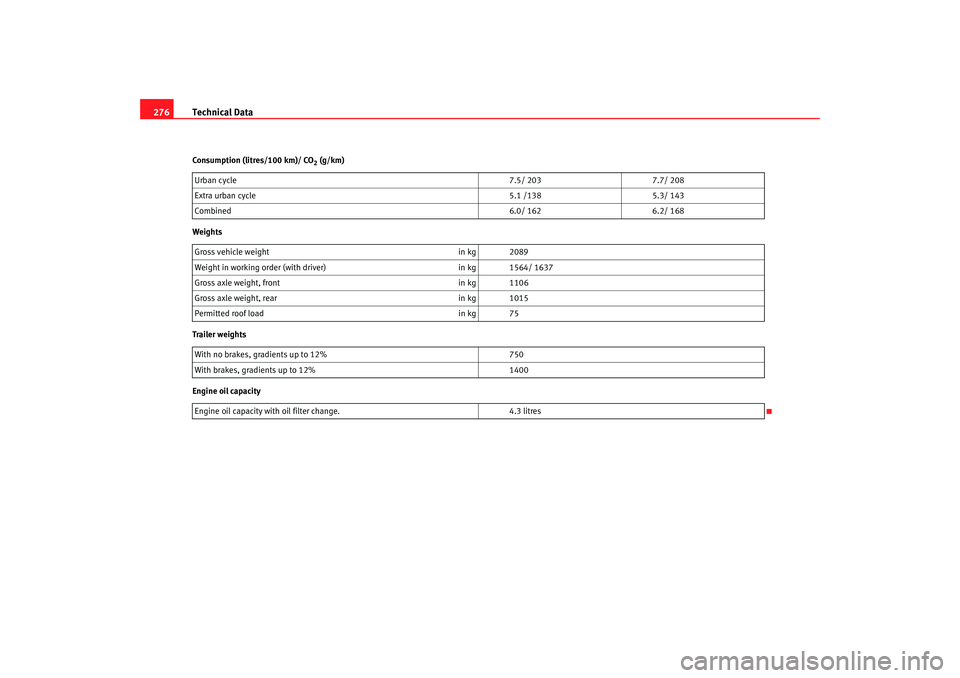

276Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Urban cycle
7.5/ 203 7.7/ 208
Extra urban cycle 5.1 /138 5.3/ 143
Combined 6.0/ 162 6.2/ 168
Gross vehicle weight in kg 2089
Weight in working order (with driver) in kg 1564/ 1637
Gross axle weight, front in kg 1106
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Toledo angles Seite 276 Mittwoch, 5. Oktober 2005 9:43 09
