engine Seat Toledo 2006 Owners Manual

Technical Data

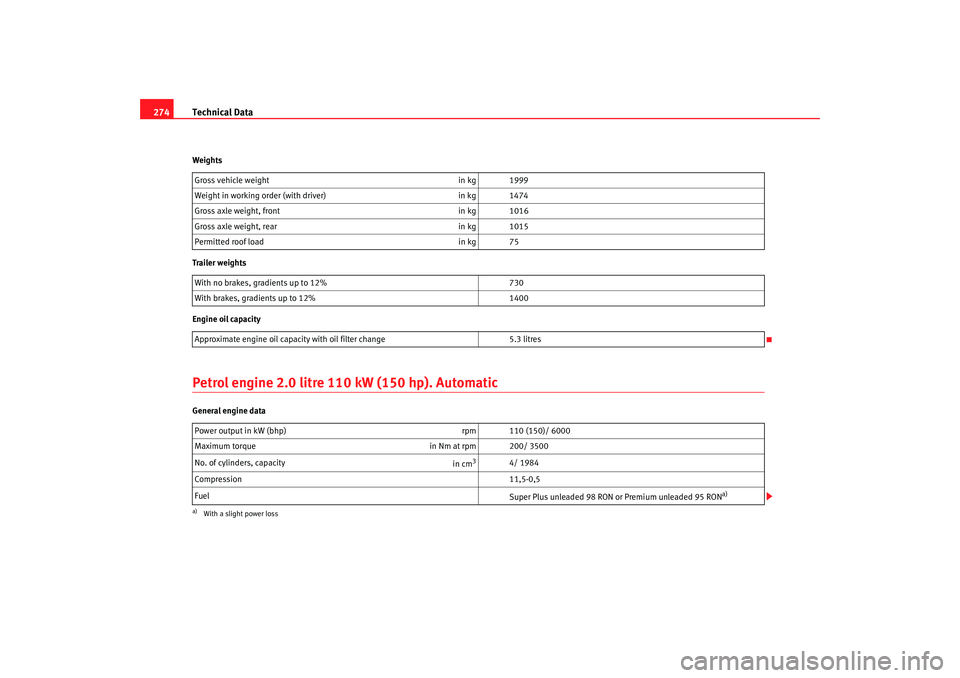

274Weights
Trailer weights
Engine oil capacityPetrol engine 2.0 litre 110 kW (150 hp). AutomaticGeneral engine data Gross vehicle weight
in kg 1999
Weight in working order (with driver) in kg 1474
Gross axle weight, front in kg 1016
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 730
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5-0,5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power loss
toledo_angles_0706 Seite 274 Dienstag, 5. September 2006 10:32 10

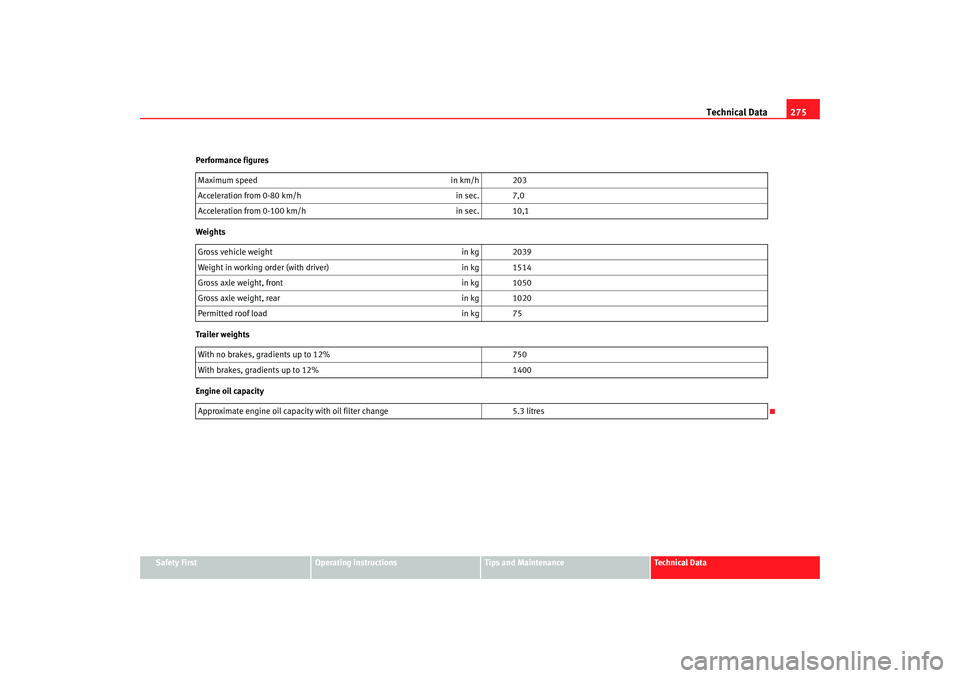

Technical Data275
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 203
Acceleration from 0-80 km/h in sec. 7,0
Acceleration from 0-100 km/h in sec. 10,1
Gross vehicle weight in kg 2039
Weight in working order (with driver) in kg 1514
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 1020
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
toledo_angles_0706 Seite 275 Dienstag, 5. September 2006 10:32 10

Technical Data
276Petrol engine 2.0 litre 147 kW (200 hp). ManualGeneral engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 147 (200)/5100- 6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3-0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 220
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,7
Gross vehicle weight in kg 1960
Weight in working order (with driver) in kg 1492
Gross axle weight, front in kg 1079
Gross axle weight, rear in kg 1001
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
toledo_angles_0706 Seite 276 Dienstag, 5. September 2006 10:32 10

Technical Data277
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity
Petrol engine 2.0 litre 147 kW (200 hp). AutomaticGeneral engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
5.3 litres
Power output in kW (bhp) rpm 147 (200)/5100- 6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3-0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 220
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,7
Gross vehicle weight in kg 2092
Weight in working order (with driver) in kg 1564
Gross axle weight, front in kg 1109
Gross axle weight, rear in kg 1026
Permitted roof load in kg 75
toledo_angles_0706 Seite 277 Dienstag, 5. September 2006 10:32 10

Technical Data
278Trailer weights
Engine oil capacityDiesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
780
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
Power output in kW (bhp) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0,5
Fuel Min 51 CZ
Maximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8,3
Acceleration from 0-100 km/h in sec. 12,4
toledo_angles_0706 Seite 278 Dienstag, 5. September 2006 10:32 10

Technical Data279
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0l 103
kW (140 bhp). ManualGeneral engine dataGross vehicle weight
in kg 2029
Weight in working order (with driver) in kg 1504
Gross axle weight, front in kg 1046
Gross axle weight, rear in kg 1017
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4,3
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 51 CZ
toledo_angles_0706 Seite 279 Dienstag, 5. September 2006 10:32 10

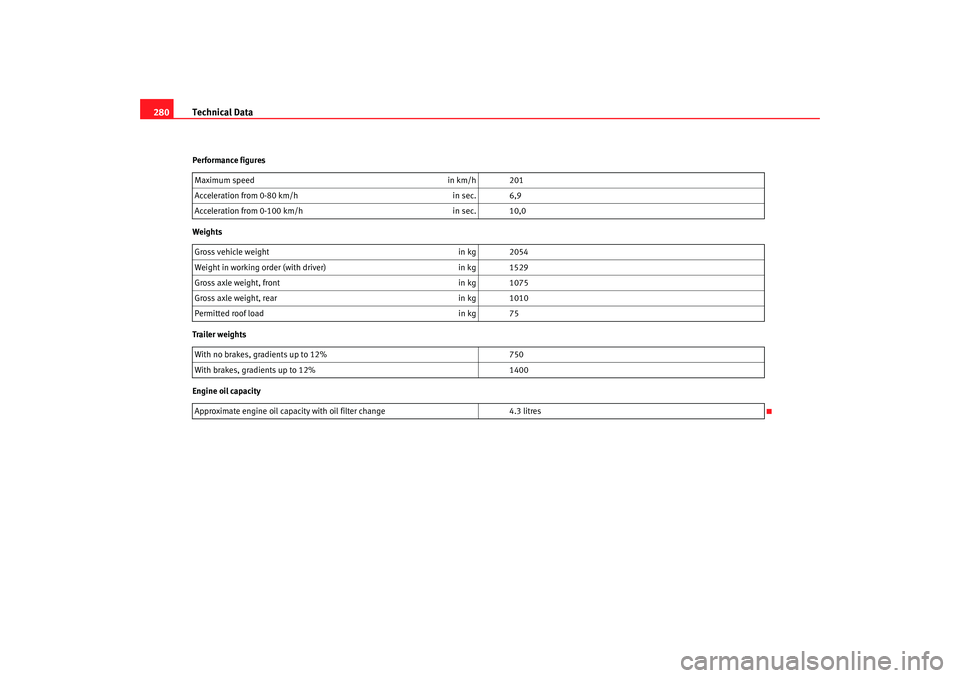

Technical Data
280Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 201
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,0
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
toledo_angles_0706 Seite 280 Dienstag, 5. September 2006 10:32 10

Technical Data281
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0 litre 1 03 kW (140 bhp). AutomaticGeneral engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 51 CZ
Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,7
Acceleration from 0-100 km/h in sec. 9,9
Gross vehicle weight in kg 2089
Weight in working order (with driver) in kg 1564
Gross axle weight, front in kg 1106
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
toledo_angles_0706 Seite 281 Dienstag, 5. September 2006 10:32 10

Technical Data
282Engine oil capacityDiesel engine 2.0l 100 kW (136 bhp). ManualGeneral engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 51 CZ
Maximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 7,0
Acceleration from 0-100 km/h in sec. 10,1
Gross vehicle weight in kg 2054
Weight in working order (with driver) in kg 1529
Gross axle weight, front in kg 1075
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
toledo_angles_0706 Seite 282 Dienstag, 5. September 2006 10:32 10

Technical Data283
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 2.0 litre 1
00 kW (136 bhp). AutomaticGeneral engine data
Performance figuresWith no brakes, gradients up to 12%
750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 51 CZ
Maximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 6,8
Acceleration from 0-100 km/h in sec. 10,0
toledo_angles_0706 Seite 283 Dienstag, 5. September 2006 10:32 10
