Position in engine compartment: side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations.Bulb changeGeneral notesBefore changing any bulb first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency. A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signals - PY21W
Number
Electrical equipment Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator > 500 W / Ventilator < 500 W 80/50
F1 PTCs (Supplementary electrical heating using air) 80
G1 PTCs (Supplementary electrical heating using air) 40
H1 Central locking control unit (4F8 with autolock)
toledo_angles_0706 Seite 249 Dienstag, 5. September 2006 10:32 10
Page 252 of 298

If and when
250Xenon headlights
22)/directional*
Dipped and full beam - D1S
23)
Light burst and additional full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Upper rear light
Stop/Position - P21W
24)
Turn signals - R10W
Lower rear light
Fog light - P21W
Reverse light - P21W
Indicator
Indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the lamps except for the fog lights* and interior lamps.
Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
22)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.23)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.24)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop position
Fig. 180 Main headlight
lamps
AAABACAD
toledo_angles_0706 Seite 250 Dienstag, 5. September 2006 10:32 10
Page 253 of 298

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

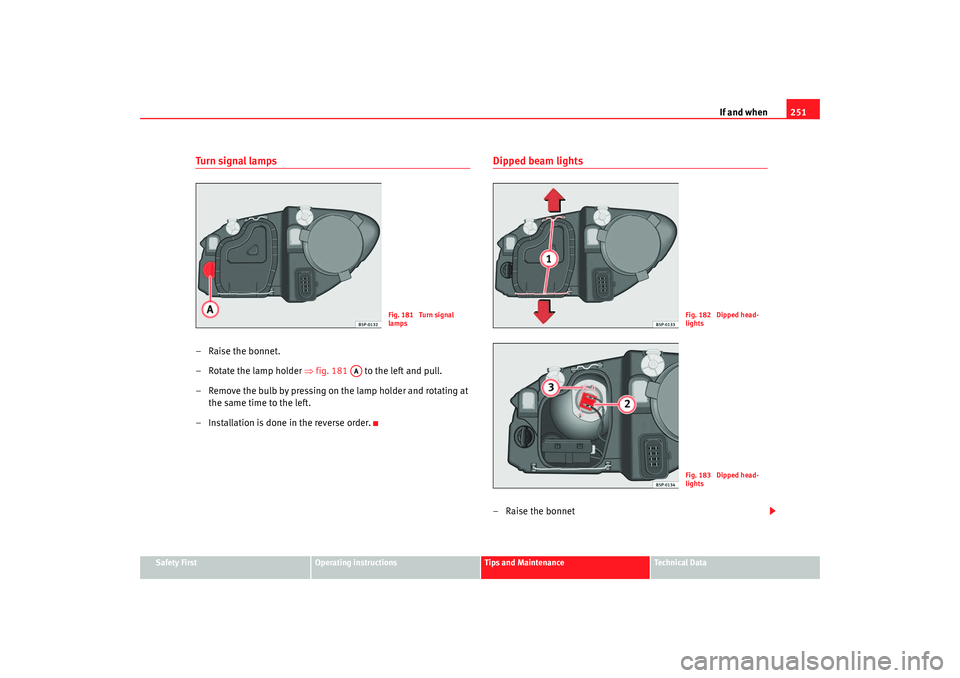

Turn signal lamps–Raise the bonnet.
– Rotate the lamp holder ⇒fig. 181 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights– Raise the bonnet
Fig. 181 Turn signal
lamps
AA
Fig. 182 Dipped head-
lightsFig. 183 Dipped head-
lights
toledo_angles_0706 Seite 251 Dienstag, 5. September 2006 10:32 10
Page 254 of 298

If and when
252

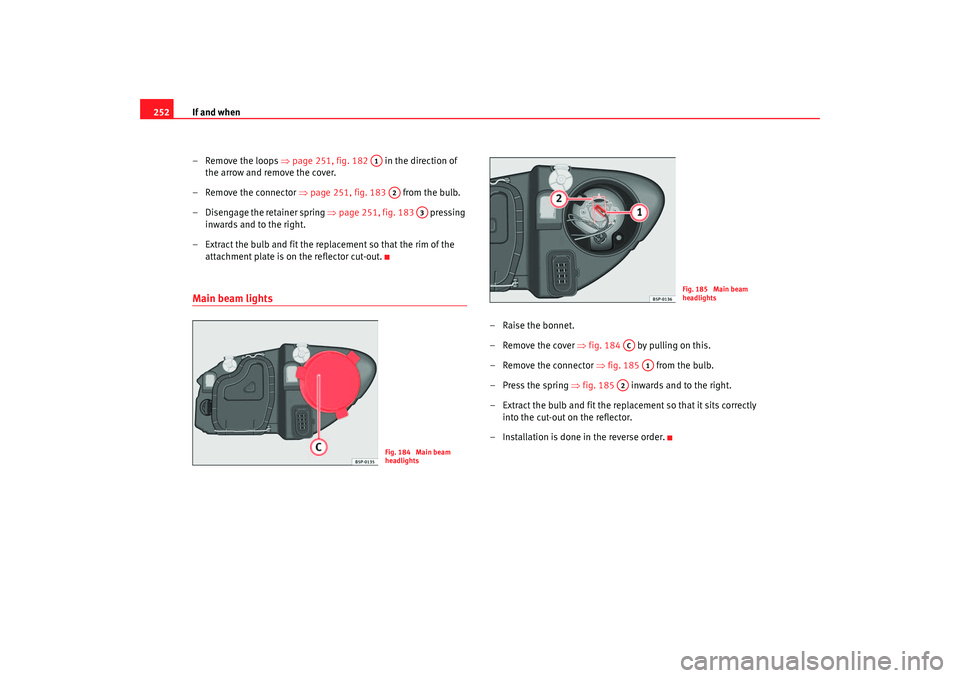

– Remove the loops ⇒page 251, fig. 182 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 251, fig. 183 from the bulb.
– Disengage the retainer spring ⇒ page 251, fig. 183 pressing
inwards and to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
–Raise the bonn et.
– R
emove the cover ⇒fig. 184 by pulling on this.
– Remove the connector ⇒fig. 185 from the bulb.
– Press the spring ⇒fig. 185 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 184 Main beam
headlights
Fig. 185 Main beam
headlights
AC
A1
A2
toledo_angles_0706 Seite 252 Dienstag, 5. September 2006 10:32 10
Page 255 of 298

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

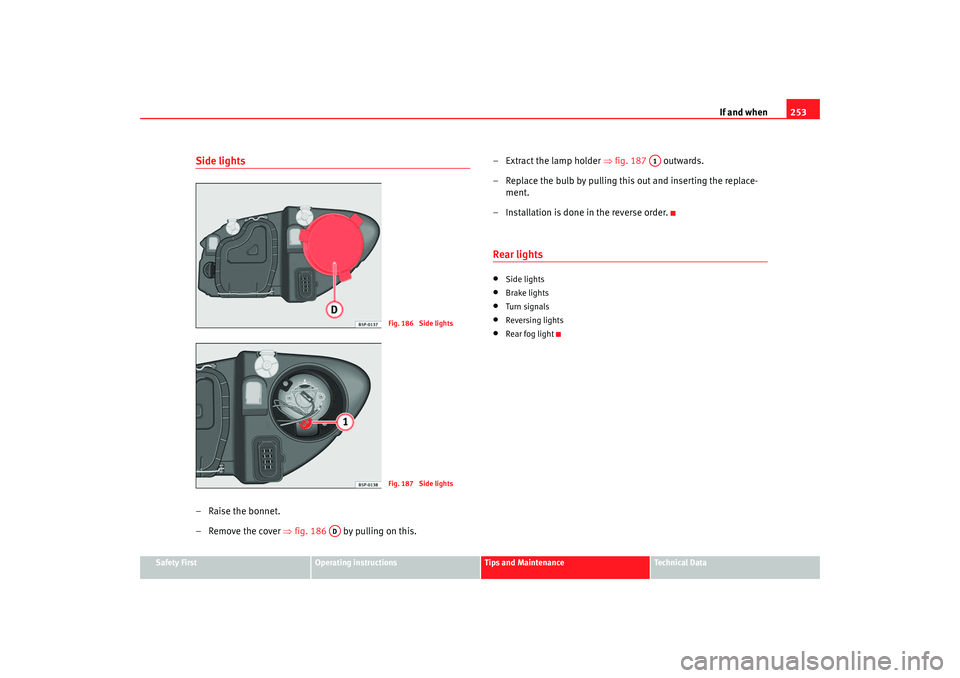

Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 186 by pulling on this. – Extract the lamp holder
⇒fig. 187 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
Side lights
•
Brake lights
•
Turn signals
•
Reversing lights
•
Rear fog light
Fig. 186 Side lightsFig. 187 Side lights
AD
A1
toledo_angles_0706 Seite 253 Dienstag, 5. September 2006 10:32 10
Page 256 of 298

If and when
254Side lights and brake lights– Open the tailgate.
–
Re
move the bolts ⇒fig. 188 – Remove the cover of the luggage compartment lateral panel.
– Unscrew the plastic fitting
⇒fig. 189 securing the rear light.
Inserting a screwdriver under the plastic fitting may help to
loosen it.
– Partially remove the rear light from its casing taking care not to pull on the cable.
– Remove the lamp holder connector.
– Unscrew the bolts ⇒page 255, fig. 190 from the lamp holder
and pull on this.
– Press on the lamp and rotate to the left then fit the replacement.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder. The metal contacts of the lamp holder
ends should be correctly fitted with respect to the rear light
contacts.
Fig. 188 Side lights and
brake lightsFig. 189 Side lights and
brake lights
AA
ABAC
toledo_angles_0706 Seite 254 Dienstag, 5. September 2006 10:32 10
.
Page 257 of 298

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

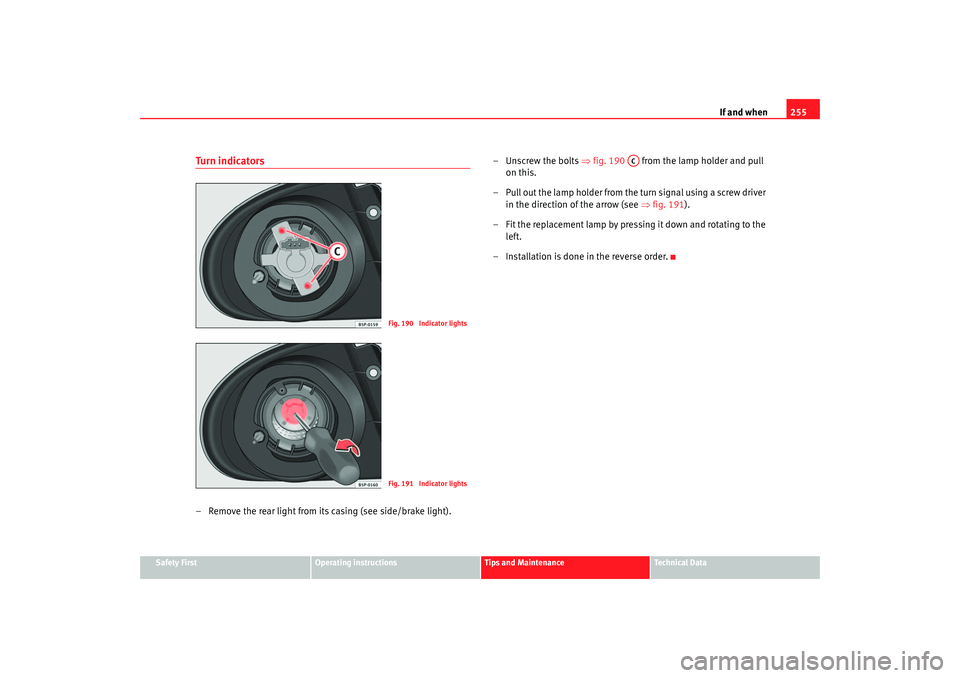

Turn indi cato rs– Remove the rear light from its casing (see side/brake light). – Unscrew the bolts
⇒fig. 190 from the lamp holder and pull
on this.
– Pull out the lamp holder from the turn signal using a screw driver in the direction of the arrow (see ⇒fig. 191 ).
– Fit the replacement lamp by pressing it down and rotating to the left.
– Installation is done in the reverse order.
Fig. 190 Indicator lightsFig. 191 Indicator lights
AC
toledo_angles_0706 Seite 255 Dienstag, 5. September 2006 10:32 10
Page 258 of 298

If and when

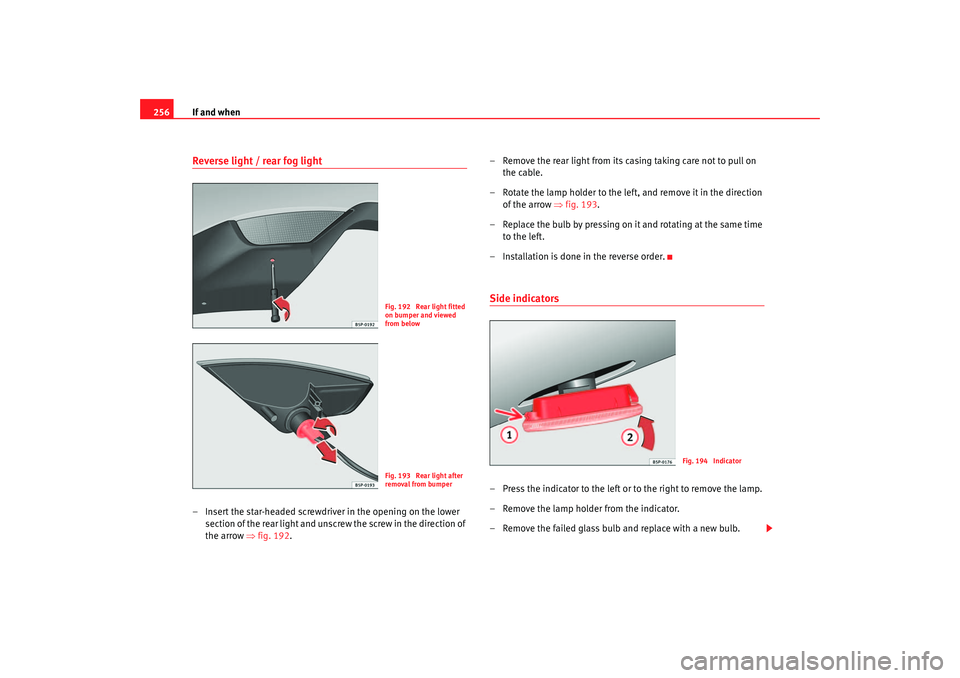

256Reverse light / rear fog light– Insert the star-headed screwdriver in the opening on the lower
section of the rear light and unsc rew the screw in the direction of
the arrow ⇒fig. 192. – Remove the rear light from its casing taking care not to pull on
the cable.
– Rotate the lamp holder to the left, and remove it in the direction of the arrow ⇒fig. 193.
– Replace the bulb by pressing on it and rotating at the same time to the left.
– Installation is done in the reverse order.
Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
Fig. 192 Rear light fitted
on bumper and viewed
from belowFig. 193 Rear light after
removal from bumper
Fig. 194 Indicator
toledo_angles_0706 Seite 256 Dienstag, 5. September 2006 10:32 10
Page 259 of 298

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒page 256, fig. 194 , arrow .
– Insert the lamp as shown by the arrow ⇒page 256,
fig. 194.Luggage compartment lights

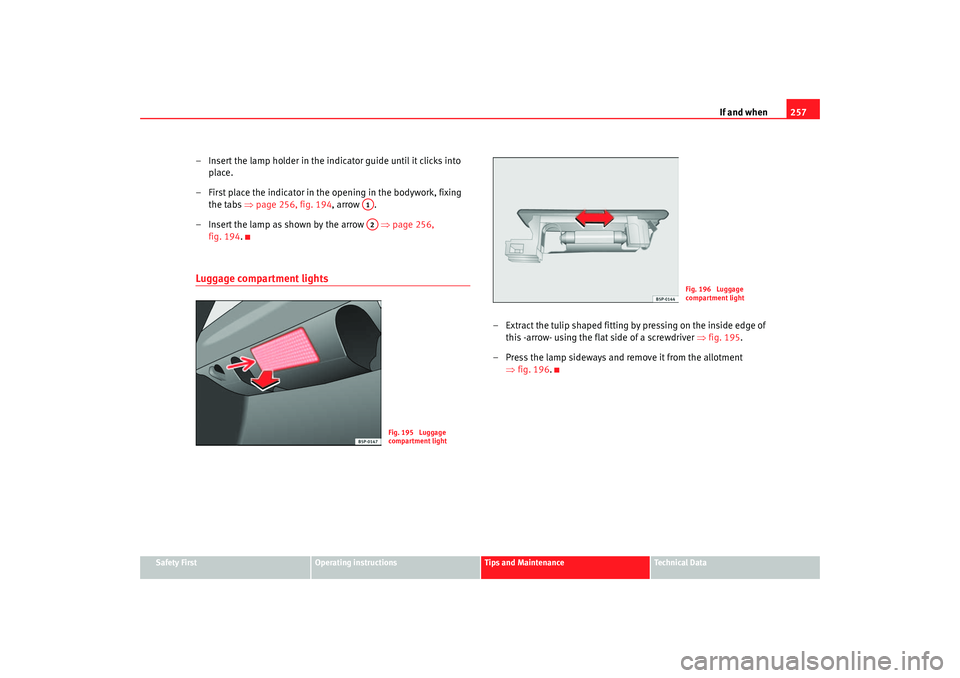

– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 195 .
– Press the lamp sideways and remove it from the allotment ⇒fig. 196.
A1A2
Fig. 195 Luggage
compartment light
Fig. 196 Luggage
compartment light
toledo_angles_0706 Seite 257 Dienstag, 5. September 2006 10:32 10
Page 260 of 298

If and when

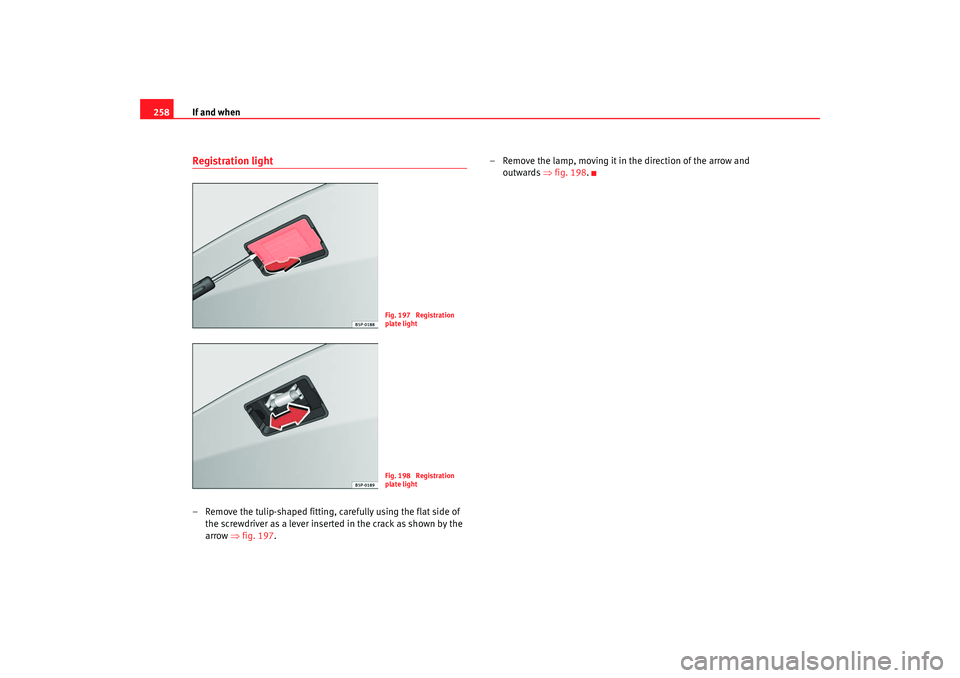

258Registration light– Remove the tulip-shaped fitting, carefully using the flat side of
the screwdriver as a lever inserted in the crack as shown by the
arrow ⇒fig. 197. – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 198 .
Fig. 197 Registration
plate lightFig. 198 Registration
plate light
