display Seat Toledo 2006 Owner's Guide

Heating, Ventilation and Air conditioning 155
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
The air conditioning system only works when the engine is running
and the blower is switched on.
– Press the temperature control buttons ⇒page 154, fig. 127
or in order to adjust the temperature on the left-hand side or
the right-hand side r espectively.
– The functions will be switched on when the buttons are pressed. When these func tions are activated, they are indicated in the
display. Also, the de-icing and re ar heated window functions will
turn on along with their corres ponding yellow symbol. Press the
button again to switch off the function.The temperature can be adjusted separately for the left and right sides of the
vehicle interior.
Display of the selected interior temperature for the left side.
Button – Manual air recirculation mode
Button – Central air distribution
Button – Downward air distribution
Button – Upward air distribution
Display of the selected interior temperature for the right side.
Button – defrost function for the windscreen. The air drawn in from
outside the vehicle is directed at the windscreen. The air recirculation
mode, if switched on, will be switched off as soon as the defrost function
is switched on. At temperatures over 3°C, the air conditioning system will
be switched on automatically and the blower speed will be increased by
one level in order to dry the air. The button lights up yellow and the
symbol appears in the display.
Button – Rear window heating. The heating will be switched off auto-
matically approximately 20 minutes after switching on. However, it may
be turned off by pushing the button. The button lights up yellow and the
symbol appears in the display.
Temperature selector for the left side ⇒page 155 Blower control
⇒page 156
Button – Switches the 2C-Climatronic on and off ⇒page 156
Button – Automatic temperature, ventilation and air distribution
control ⇒page 155
Button – Switches heating, ventilation and air-conditioning
system off
Temperature selector for the right side ⇒page 155
WARNING
For road safety all windows must be clear of ice, snow, and condensation.
This is essential to ensure good visibility. Please familiarise yourself with
the correct operation of the heating and ventilation system, including the
anti-fog/defrost functions for the windows.
Note
Please observe the general notes ⇒page 158.Automatic mode
In automatic mode air temperature, airflow and distribution
are automatically regulated so that a specified temperature is
attained as quickly as possible and then maintained.The temperature can be adjusted separately for the left and right
sides of the vehicle interior.
Switching on automatic mode
– Press the button ⇒page 154, fig. 127 . “AUTO” is shown
on the display.
A9
A14
A1A2

A3

A4

A5

A6A7

A8

A9
A10A11
OFF
A12
AUTO
A13
ECON
A14
AUTO
toledo_angles_0706 Seite 155 Dienstag, 5. September 2006 10:32 10

Heating, Ventilation and Air conditioning
156
– Press the temperature selectors to set the desired temperatures
for the left and right sides of the interior. We recommend 22°C
(72°F).A comfortable interior climate is quickly reached when a temperature of
+22°C (72°F) is set in automatic mode. It can be changed as necessary to suit
individual preferences or particular ci rcumstances. It is possible to select
interior temperatures from +16°C (61°F) to +29.5°C (86°F). These are approx-
imate temperatures and the actual temperature may be slightly higher or
lower depending on the ambient conditions. Climatronic automatically maintains a constant temperature. The tempera-
ture of the air supplied to the interior, the blower speed and the air distribu-
tion are regulated automatically. The system also allows for the effect of
strong sunlight, so there is no need
for manual adjustment. Therefore, auto-
matic mode provides the best comfort for the vehicle occupants in virtually all
conditions throughout the year.
Automatic mode is switched off whenever an adjustment is made using the
buttons for the air distribution, airflow or . The temperature will
continue to be regulated within the parameters manually selected by the
user.Manual mode
In manual mode you can adjust the air temper ature, airflow and distribution as required.Switching on manual mode
– To enter manual mode, press one of the buttons ⇒fig. 128 to , or press the airflow control . The symbol will
disappear from the display.
ECON
Fig. 128 On the dash panel: 2C Climatronic controls
A3
A5
ECON
A10
AUTO
toledo_angles_0706 Seite 156 Dienstag, 5. September 2006 10:32 10

Heating, Ventilation and Air conditioning 157
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Temperature
There are separate temperature selectors for the left and right sides of the
vehicle interior. The selected temperature is displayed above the selector. It
is possible to select interior tem
peratures from +16°C (61°F) to +29.5°C
(86°F). These are approximate temperat ures and the actual temperature may
be slightly higher or lower depending on the ambient conditions.
If a temperature below 16°C (61°F) is selected, the display switches to LO. In
this setting the system runs at maximum cooling output and the temperature
is not regulated.
If a temperature above 29.5°C (86°F) is selected the display switches to HI. In
this setting the system runs at maximum heating output and the temperature
is not regulated.
Blower
The airflow may be adjusted freely using the control . Always have the
blower running at a low setting to ensure a constant flow of fresh air into the
vehicle. Pushing the button
 to the minimum -1, tu rns the Climatronic off.
Air distribution
The air distribution is adjusted using the buttons , and . It is also
possible to open and close some of the air vents separately.
Switching the air conditioning system on and off
Pressing the button switches off the air conditioning system to save
fuel. The temperature continues to be regulated. The set temperature can
then only be reached if it is higher than the ambient temperature.
Air recirculation mode
Air recirculation mode prevents fumes or unpleasant smells
from entering the vehicle.– Press the button ⇒page 156, fig. 128 to switch air recir-
culation mode on or off. It is switched on if the following symbol
appears in the display

.
Air recirculation mode prevents strong odours in the ambient air from
entering the vehicle interior, for example when passing through a tunnel or in
queuing traffic.
With low outside temperatures, the air recirculation increases the effective-
ness of the heating system by warming the air inside the passenger compart-
ment rather than the ambient air.
With high ambient temperatures, the air recirculation increases the effective-
ness of the air conditioning system by cooling the air inside the passenger
compartment rather than the ambient air.
For reasons of safety, air recirculation is not possible when the control for air
distribution is set to the windscreen setting
.
WARNING
In air recirculation mode, no ambient air enters the vehicle interior. If the
air conditioning system is switched off, the windows can quickly mist over.
Therefore, you should never leave the air recirculation mode switched on
for longer periods, as this increases the risk of an accident.
A10


ECON

A2
toledo_angles_0706 Seite 157 Dienstag, 5. September 2006 10:32 10

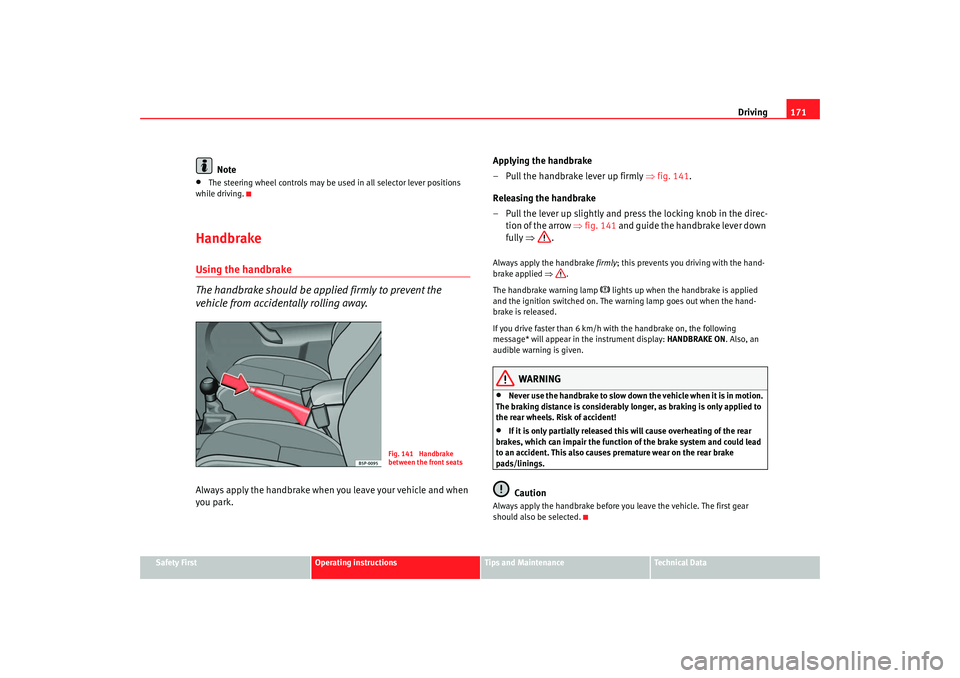

Driving171
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Note
•
The steering wheel controls may be used in all selector lever positions
while driving.
HandbrakeUsing the handbrake
The handbrake should be applied firmly to prevent the
vehicle from accidentally rolling away.Always apply the handbrake when you leave your vehicle and when
you park. Applying the handbrake
– Pull the handbrake lever up firmly
⇒fig. 141.
Releasing the handbrake
– Pull the lever up slightly and press the locking knob in the direc- tion of the arrow ⇒fig. 141 and guide the handbrake lever down
fully ⇒ .
Always apply the handbrake firmly; this prevents you driving with the hand-
brake applied ⇒.
The handbrake warning lamp
 lights up when the handbrake is applied
and the ignition switched on. The wa rning lamp goes out when the hand-
brake is released.
If you drive faster than 6 km/h with the handbrake on, the following
message* will appear in the instrument display: HANDBRAKE ON . Also, an
audible warning is given.
WARNING
•
Never use the handbrake to slow down the vehicle when it is in motion.
The braking distance is considerably longer, as braking is only applied to
the rear wheels. Ri sk of accident!
•
If it is only partially released this will cause overheating of the rear
brakes, which can impair the function of the brake system and could lead
to an accident. This also causes premature wear on the rear brake
pads/linings.Caution
Always apply the handbrake before you leave the vehicle. The first gear
should also be selected.
Fig. 141 Handbrake
between the front seats
toledo_angles_0706 Seite 171 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels211
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
•
Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 208.
Closing the bonnet– Raise the bonnet slightly.
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not pr ess downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•
After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•
If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oilEngine oil specifications
The engine oil used must conform with exact specifications.Specifications
The engine comes with a special, high quality, multi-grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of high quality oil is essential for the correct operation of the
engine and its long useful life, when topping up or replacement is necessary
use only those oils that conform to the requirements of the VW standards.
If it is not possible to find oil co nforming to the VW standards then oil
conforming to the ACEA or API standa rds with an appropriate viscosity at
atmospheric temperature should be used instead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
toledo_angles_0706 Seite 211 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels
222However, if the level goes down noticeably in a short time, or drops below the
“MIN” mark, there may be a leak in the brake system. A display on the instru-
ment panel will warn you if the brake fluid level is too low ⇒page 72.
WARNING
Before opening the bonnet to check the brake fluid level, read and observe
the warnings ⇒page 208.Changing the brake fluid
The brake fluid must be renewed every two years.We recommend that you have the brake fluid changed by an Authorised
Service Centre.
Before opening the bonnet, please read and follow the warnings ⇒ in
“Safety instructions on working in the engine compartment” on page 208 in
“Working in the engine compartment”.
Brake fluid absorbs moisture. In the cour se of time, it will absorb water from
the ambient air. If the water content in the brake fluid is too high, the brake
system could corrode. This also considerably reduces the boiling point of the
brake fluid. Heavy use of the brakes may then cause a vapour lock which
could impair the braking effect.
For this reason the brake fluid must be renewed every two years.
It is important that you use only use brake fluid compliant with the US
standard FMVSS 116 DOT 4. We recommend the use of Genuine SEAT brake
fluid.
WARNING
Brake fluid is poisonous. Old brake fluid impairs the braking effect.
•
Before opening the bonnet to check the brake fluid level, read and
observe the warnings ⇒page 208.
•
Brake fluid should be stored in the closed original container in a safe
place out of reach of children. There is a toxic risk.
•
Have the brake fluid changed every two years at the latest. Heavy use
of the brakes may cause a vapour lock if the brake fluid is left in the system
for too long. This would seriously affect the efficiency of the brakes and the
safety of the vehicle. This may cause an accident.Caution
Brake fluid could damage the paintwork. Wipe off any brake fluid from the
paintwork immediately.
For the sake of the environment
Brake fluid must be drained and disposed of in the proper manner observing
environmental regulations.
WARNING (continued)
toledo_angles_0706 Seite 222 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels
224•
If the vehicle is left standing in cold conditions for a long period, protect
the battery from frost. If it “freezes” it will be damaged.
Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries.– Open the bonnet and open the battery cover at the front ⇒ in
“Safety instructions on working in the engine compartment” on
page 208 ⇒ in “Warnings on handling the battery” on
page 223.
– Check the colour display in the "magic eye" on the top of the battery.
– If there are air bubbles in the window, tap the window gently until they disperse.The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒page 270.
The round window (“magic eye”) on the top of the battery changes colour,
depending on the charge level and electrolyte level of the battery.
If the colour in the window is colourless or bright yellow, the electrolyte level
of the battery is too low. Have the battery checked by a qualified workshop.
The colours green and black are used by the workshops for diagnostic
purposes.
Charging and changing the vehicle battery
The battery is maintenance-free and is checked during the
inspection service. All work on the vehicle battery requires
specialist knowledge.If you often drive short distances or if the vehicle is not driven for long
periods, the battery should be checked by a qualified workshop between the
scheduled services.
If the battery has discharged and you have problems starting the vehicle, the
battery might be damaged. If this happens, we recommend you have the
vehicle battery checked by an Authorised Service Centre where it will be re-
charged or replaced.
Charging the battery
The vehicle battery should be charged by a qualified workshop only, as
batteries using special technology have been installed and they must be
charged in a controlled environment.
Replacing a vehicle battery
The battery has been developed to suit the conditions of its location and has
special safety features.
Genuine SEAT batteries fulfil the maintenance, performance and safety spec-
ifications of your vehicle.
WARNING
•
We recommend you use only maintenance-free or cycle free leak-proof
batteries that comply with the standards T 825 06 and VW 7 50 73. This
standard applies as of 2001.
•
Before starting any work on the batteries, you must read and observe
the warnings ⇒ in “Warnings on handling the battery” on page 223.
toledo_angles_0706 Seite 224 Dienstag, 5. September 2006 10:32 10

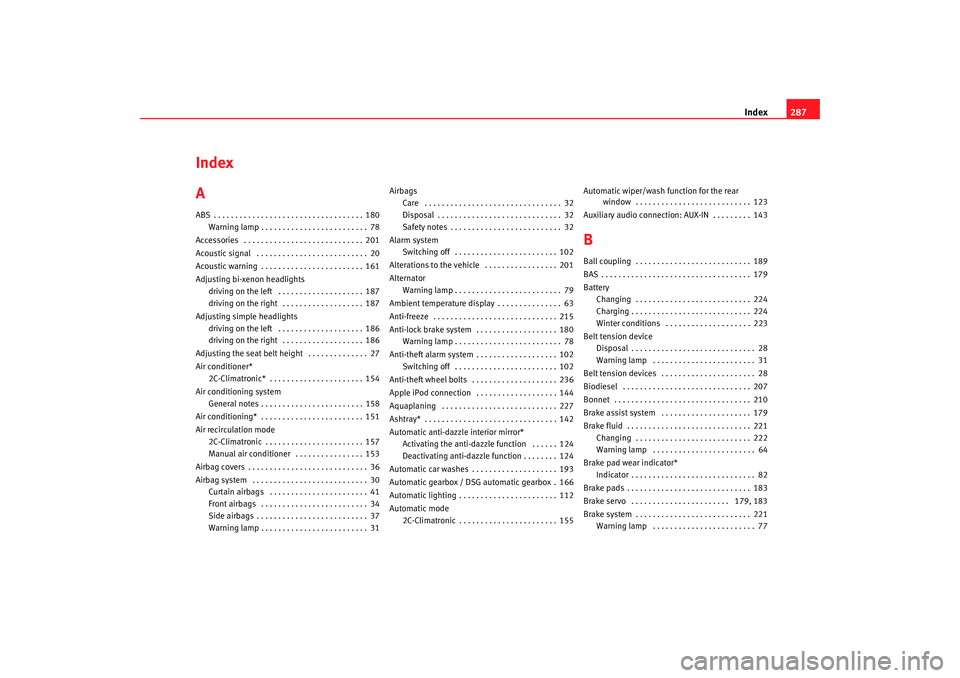

Index287
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 161
Adjusting bi-xenon headlights driving on the left . . . . . . . . . . . . . . . . . . . . 187
driving on the right . . . . . . . . . . . . . . . . . . . 187
Adjusting simp le headlights
driving on the left . . . . . . . . . . . . . . . . . . . . 186
driving on the right . . . . . . . . . . . . . . . . . . . 186
Adjusting the seat belt height . . . . . . . . . . . . . . 27
Air conditioner* 2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . . 154
Air conditioning system General notes . . . . . . . . . . . . . . . . . . . . . . . . 158
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 151
Air recirculation mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 157
Manual air conditioner . . . . . . . . . . . . . . . . 153
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 34
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 31 Airbags
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . 102
Alterations to the vehicle . . . . . . . . . . . . . . . . . 201
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Ambient temperature display . . . . . . . . . . . . . . . 63
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 180 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . 102 Switching off . . . . . . . . . . . . . . . . . . . . . . . . 102
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 236
Apple iPod connection . . . . . . . . . . . . . . . . . . . 144
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 124
Deactivating anti-dazzle function . . . . . . . . 124
Automatic car washes . . . . . . . . . . . . . . . . . . . . 193
Automatic gearbox / DS G automatic gearbox . 166
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . 112
Automatic mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 155 Automatic wiper/wash fu
nction for the rear
window . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Auxiliary audio connection: AUX-IN . . . . . . . . . 143
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Winter conditions . . . . . . . . . . . . . . . . . . . . 223
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 31
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 28
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Brake assist system . . . . . . . . . . . . . . . . . . . . . 179
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 64
Brake pad wear indicator* Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 179, 183
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
toledo_angles_0706 Seite 287 Dienstag, 5. September 2006 10:32 10

Index289
Convenience closing
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 215, 216 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Safety instructions . . . . . . . . . . . . . . . . . . . . . 76
Cruise control system . . . . . . . . . . . . . . . . . . . . 174 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cruise control* Turning off the cruise control system . . . . . 176
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 208
Diesel engine particulate filter* . . . . . . . . . . . . 185 Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 182
Differential lock fault (EDL)
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 111
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 44
Display (without warning or information texts) . 59
Displays in the Mult i-function display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 62
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 196
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 98
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Drinks holders at the front . . . . . . . . . . . . . . . . 138
Drive wheels traction control system . . . . . . . . 180
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 185
With a trailer . . . . . . . . . . . . . . . . . . . . 188, 190
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Driving economically . . . . . . . . . . . . . . . . . . . . . 190
Driving programmes . . . . . . . . . . . . . . . . . . . . . 167
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 168 Driving with respect for the environment . . . . 190
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Dynamic headlight range control . . . . . . . . . . . 113
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
EDS
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Electric steering system warning light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 143
Electronic differential lock . . . . . . . . . . . . . . . . 182 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Electronic immobiliser . . . . . . . . . . . . . . . . 83, 162 warning message . . . . . . . . . . . . . . . . . . . . . 64
Electronic stabilisation program . . . . . . . . . . . 181
Electronic stabilisation programme . . . . . . . . . . 81 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 161
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
emergency manual locking . . . . . . . . . . . . . . . . . 96
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . 183
toledo_angles_0706 Seite 289 Dienstag, 5. September 2006 10:32 10

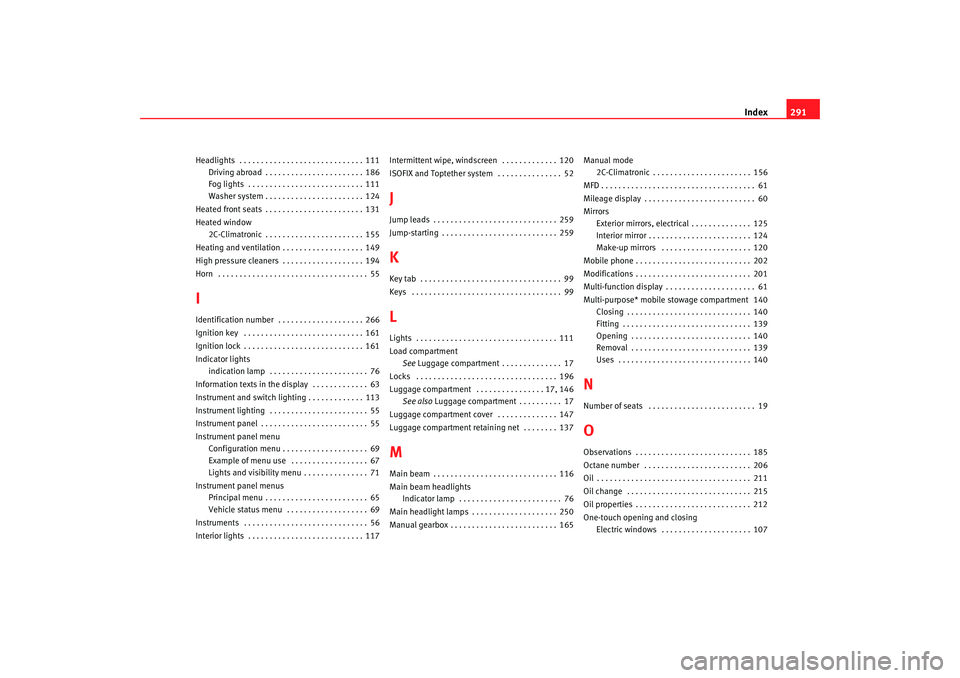

Index291
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 186
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Washer system . . . . . . . . . . . . . . . . . . . . . . . 124
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 131
Heated window 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 155
Heating and ventilation . . . . . . . . . . . . . . . . . . . 149
High pressure cleaners . . . . . . . . . . . . . . . . . . . 194
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55IIdentification number . . . . . . . . . . . . . . . . . . . . 266
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Indicator lights indication lamp . . . . . . . . . . . . . . . . . . . . . . . 76
Information texts in the display . . . . . . . . . . . . . 63
Instrument and switch lighting . . . . . . . . . . . . . 113
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 55
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 55
Instrument panel menu Configuration menu . . . . . . . . . . . . . . . . . . . . 69
Example of menu use . . . . . . . . . . . . . . . . . . 67
Lights and visibility menu . . . . . . . . . . . . . . . 71
Instrument panel menus Principal menu . . . . . . . . . . . . . . . . . . . . . . . . 65
Vehicle status menu . . . . . . . . . . . . . . . . . . . 69
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Intermittent wipe, windscreen . . . . . . . . . . . . . 120
ISOFIX and Toptether system . . . . . . . . . . . . . . . 52
JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 259KKey tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99LLights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Load compartment
See Luggage compartment . . . . . . . . . . . . . . 17
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Luggage compartment . . . . . . . . . . . . . . . . 17, 146 See also Luggage compartment . . . . . . . . . . 17
Luggage compartment cover . . . . . . . . . . . . . . 147
Luggage compartment retaining net . . . . . . . . 137MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Main headlight lamps . . . . . . . . . . . . . . . . . . . . 250
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 165 Manual mode
2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 156
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Mileage display . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Mirrors Exterior mirrors, electrical . . . . . . . . . . . . . . 125
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . 124
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 120
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Multi-function display . . . . . . . . . . . . . . . . . . . . . 61
Multi-purpose* mobile stowage compartment 140
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 19OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 206
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . 107
toledo_angles_0706 Seite 291 Dienstag, 5. September 2006 10:32 10
