lock Seat Toledo 2007 COMMUNICATION SYSTEM

Communication11
Controls and equipment

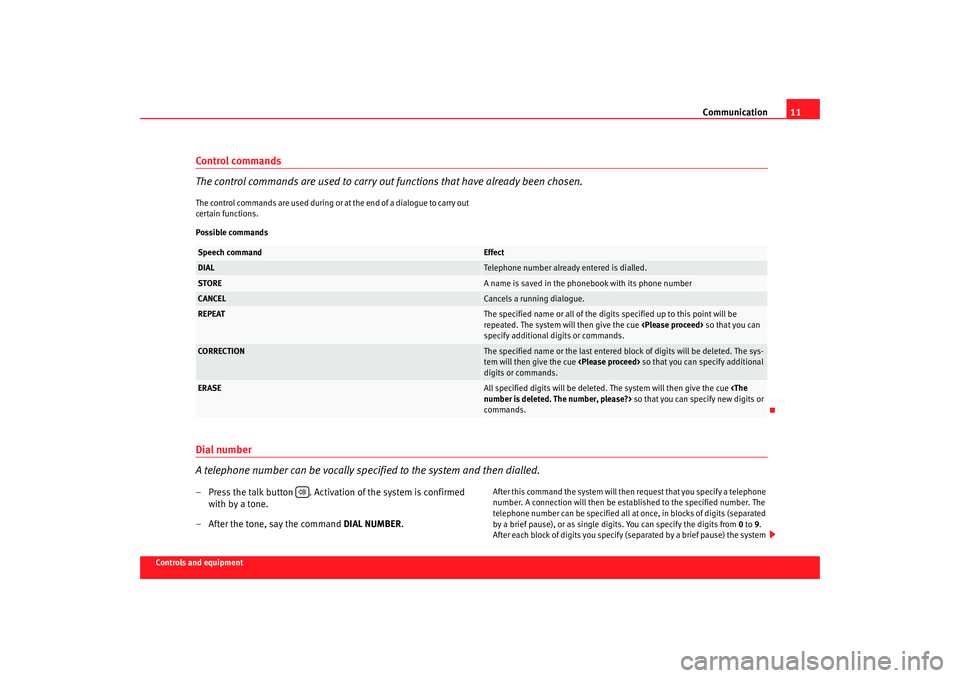

Control commands
The control commands are used to carry out functions that have already been chosen.The control commands are used during or at the end of a dialogue to carry out
certain functions.
Possible commandsDial number
A telephone number can be vocally specified to the system and then dialle d.– Press the talk button . Activation of the system is confirmed
with by a tone.
– After the tone, say the command DIAL NUMBER .
After this command the system will then request that y ou specify a telephone
number. A connection will then be estab lished to the specified number. The
telephone number can be specified all at once, in blocks of digits (separated
by a brief pause), or as single digi ts. You can specify the digits from 0 to 9.
After each block of digits you specify (separated by a brief pause) the system
Speech command
Effect
DIAL
Telephone number already entered is dialled.
STORE
A name is saved in the phonebook with its phone nu mber
CANCEL
Cancels a running dialogue.
REPEAT
The specified name or all of the digits specified up to this point will be
repeated. The system will then give the cue so that you can
specify additional digits or commands.
CORRECTION
The specified name or the last entered block of digits will be deleted. The sys-
tem will then give the cue so that you can specify additional
digits or commands.
ERASE
All specified digits will be deleted. The system will th en give the cue number is deleted. The number, please?> so that you can specify new digits or
commands.

Sist Comunicacion_ing Seite 11 Dienstag, 13. Mä rz 2007 5:30 17

Communication13
Controls and equipment

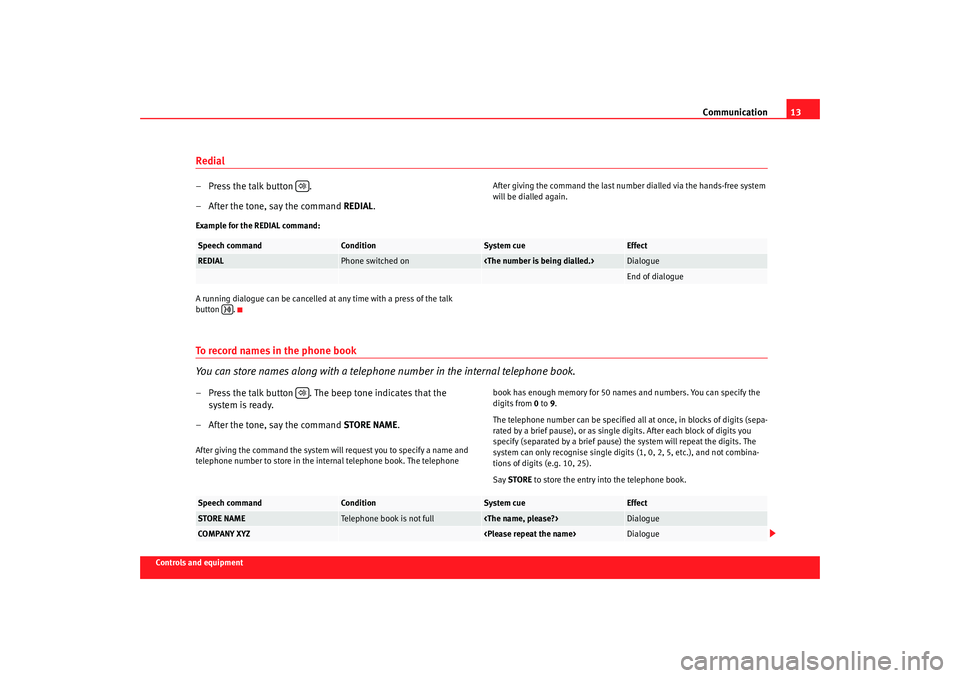

Redial– Press the talk button .
– After the tone, say the command REDIAL .
After giving the command the last number dialled via th e hands-free system
will be dialled again.
Example for the REDIAL command:
A running dialogue can be cancelled at any time wit h a press of the talk
button .
To record names in the phone book
You can store names along with a telephone number in the internal telephone book.– Press the talk button . The beep tone indicates that the
system is ready.
– After the tone, say the command STORE NAME .After giving the command the system will request you to specify a name and
telephone number to store in the in ternal telephone book. The telephone book has enough memory for 50 names and numbers. Y
ou can specify the
digits from 0 to 9.
The telephone number can be specified all at once, in bloc ks of digits (sepa-
rated by a brief pause), or as single di gits. After each block of digits you
specify (separated by a brief pause) the system will r epeat the digits. The
system can only recognise single digi ts (1, 0, 2, 5, etc.), and not combina-
tions of digits (e.g. 10, 25).
Say STORE to store the entry into the telephone book.

Speech command
Condition
System cue
Effect
REDIAL
Phone switched on

DialogueEnd of dialogue


Speech command
Condition
System cue
Effect
STORE NAME
Telephone book is not full

Dialogue
COMPANY XYZ

Dialogue
Sist Comunicacion_ing Seite 13 Dienstag, 13. Mä rz 2007 5:30 17

Communication

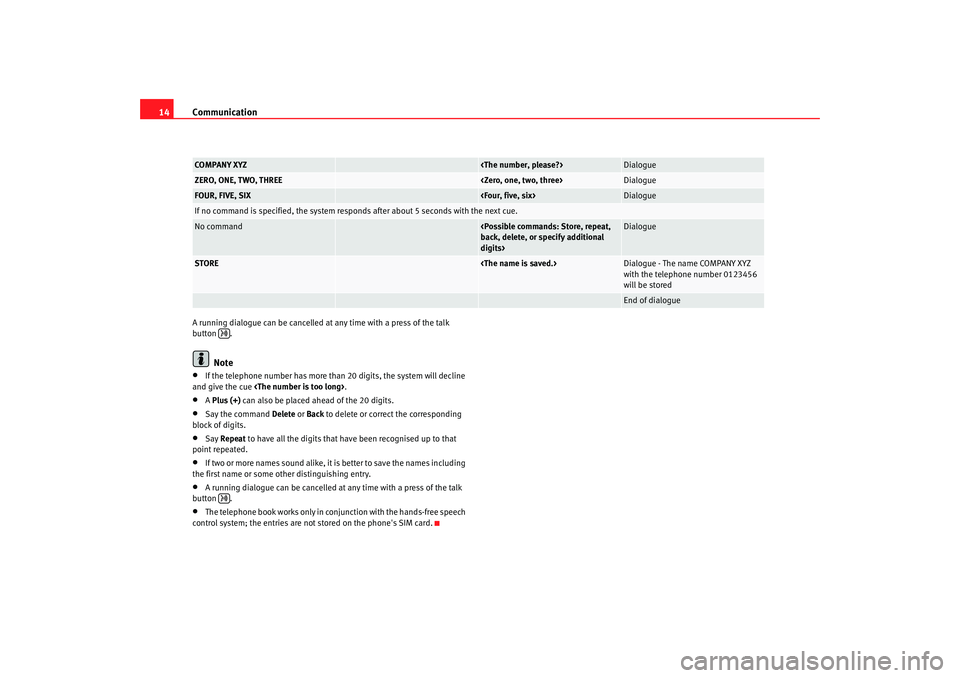

14A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•
If the telephone number has more than 20 digits, the s ystem will decline
and give the cue .
•
A Plus (+) can also be placed ahead of the 20 digits.
•
Say the command Delete or Back to delete or correct the corresponding
block of digits.
•
Say Repeat to have all the digits that have been recognised up to that
point repeated.
•
If two or more names sound alike, it is better to save the names including
the first name or some other distinguishing entry .
•
A running dialogue can be cancelled at any time with a press of the talk
button .
•
The telephone book works only in conjunction with the h ands-free speech
control system; the entries are not stored on the phone's SIM card.COMPANY XYZ

Dialogue
ZERO, ONE, TWO, THREE

Dialogue
FOUR, FIVE, SIX

Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.No command
back, delete, or specify additional
digits>
Dialogue
STORE

Dialogue - The name COMPANY XYZ
with the telephone number 0123456
will be storedEnd of dialogue

Sist Comunicacion_ing Seite 14 Dienstag, 13. März 2007 5:30 17
