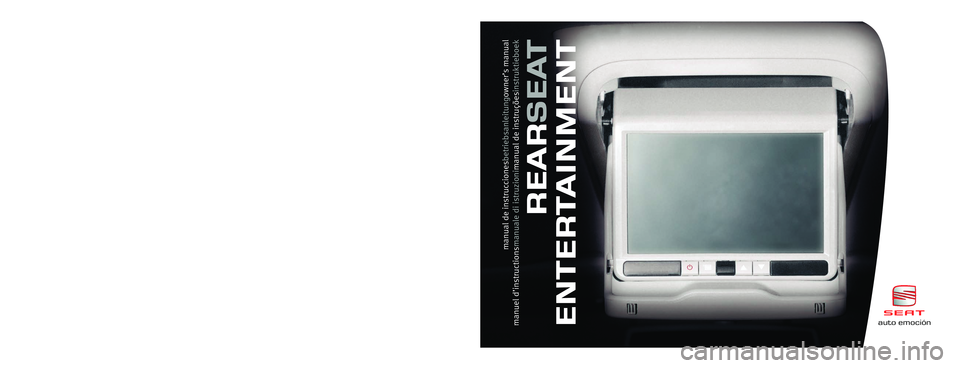

Seat Toledo 2007 REAR SEAT ENTERTAINMENT
Manufacturer: SEAT, Model Year: 2007, Model line: Toledo, Model: Seat Toledo 2007Pages: 9, PDF Size: 0.44 MB
Page 1 of 9

Español, Alemán, Inglés, Francés, Italiano
, Portugués, Holandés 6J0012006J (02.07) (GT9)
auto emociónauto emoción
REAR
SEAT
ENTERTAINMENT
manual de instrucciones
betriebsanleitung
owner’s manual
manuel d’instructions
manuale di istruzioni
manual de instruções
instruktieboek
Portada DVD 21/3/07 10:52 Página 1

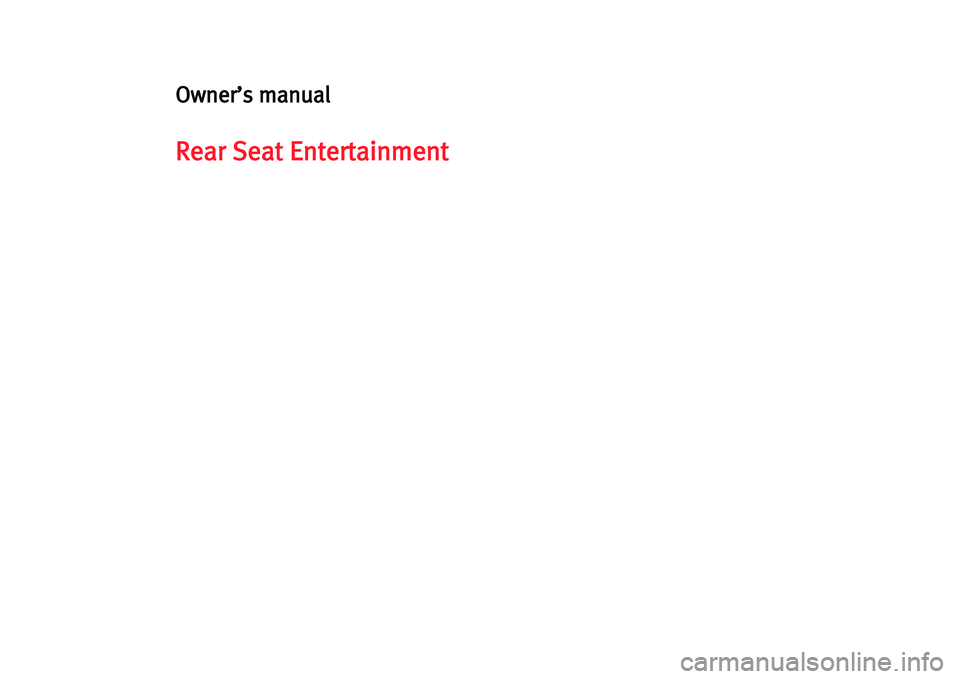

Page 2 of 9

O Ow
wn
ne
er
r’
’s
s
m
ma
an
nu
ua
al
l
R
Re
ea
ar
r
S
Se
ea
at
t
E
En
nt
te
er
rt
ta
ai
in
nm
me
en
nt
t

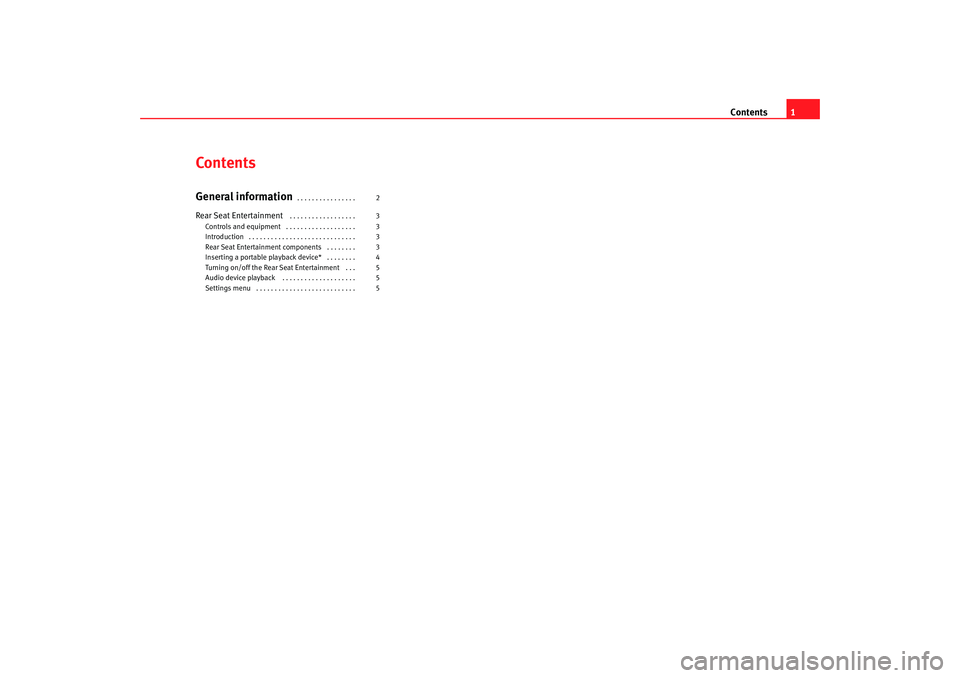

Page 3 of 9

Contents1
ContentsGeneral information
. . . . . . . . . . . . . . . .
Rear Seat Entertainment
. . . . . . . . . . . . . . . . . .
Controls and equipment . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Seat Entertainment components . . . . . . . .
Inserting a portable playback device* . . . . . . . .
Turning on/off the Rear Seat Entertainment . . .
Audio device playback . . . . . . . . . . . . . . . . . . . .
Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3
3
3
3
4
5
5
5
Rear Seat_ing Seite 1 Mittwoch, 14. März 2007 1
:19 13

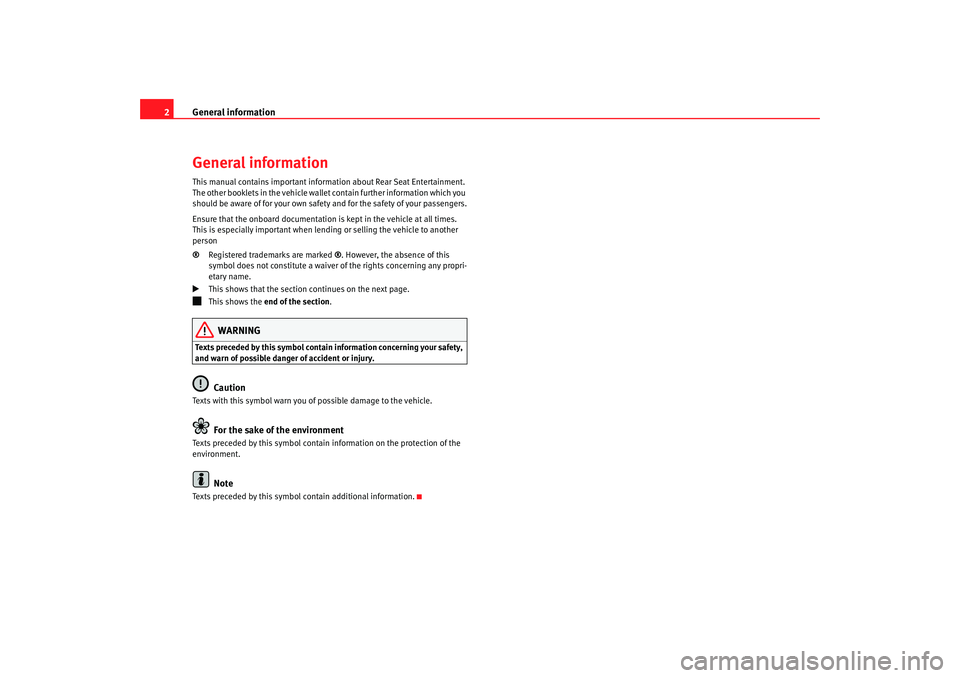

Page 4 of 9

General information
2General informationThis manual contains important inform ation about Rear Seat Entertainment.
The other booklets in the vehicle wallet contain furt her information which you
should be aware of for your own safety and for the safety of your passengers.
Ensure that the onboard documentation is kept in the vehicle at all times.
This is especially important when lending or selling the vehicle to another
person
® Registered trademarks are marked ®. However, the absence of this
symbol does not constitute a waiver of the rights concerning any propri-
etary name.
This shows that the section continues on the next pa ge.
This shows the end of the section .WARNING
Texts preceded by this symbol contain information co ncerning your safety,
and warn of possible danger of accident or injury.
Caution
Texts with this symbol warn you of possible damage to the vehicle.
For the sake of the environment
Texts preceded by this symbol contain information on the protection of the
environment.
Note
Texts preceded by this symbol contain additional info rmation.
Rear Seat_ing Seite 2 Mittwoch, 14. März 2007 1:19 13

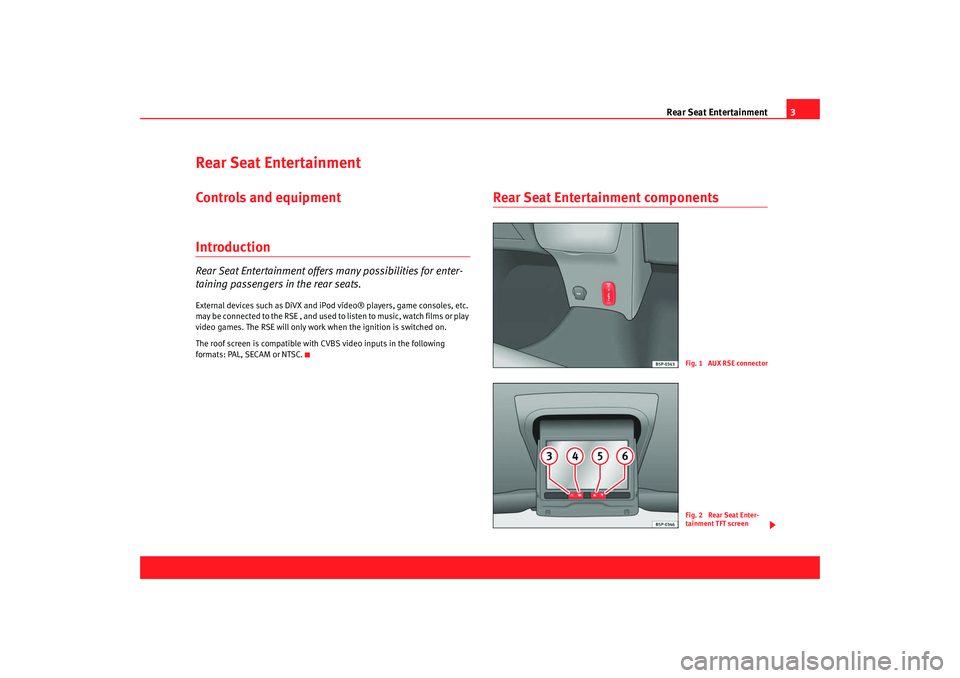

Page 5 of 9

Rear Seat Entertainment3
Rear Seat EntertainmentControls and equipmentIntroductionRear Seat Entertainment offers many possibilities for enter-
taining passengers in the rear seats.External devices such as DiVX and iPod vídeo® players , game consoles, etc.
may be connected to the RSE , and used to listen to music, watch films or play
video games. The RSE will only work when the ignition i s switched on.
The roof screen is compatible with CVBS video i nputs in the following
formats: PAL, SECAM or NTSC.
Rear Seat Entertainment components
Fig. 1 AUX RSE connecto
r
Fig. 2 Rear Seat Enter-
tainment TFT screen
Rear Seat_ing Seite 3 Mittwoch, 14. März 2007 1 :19 13

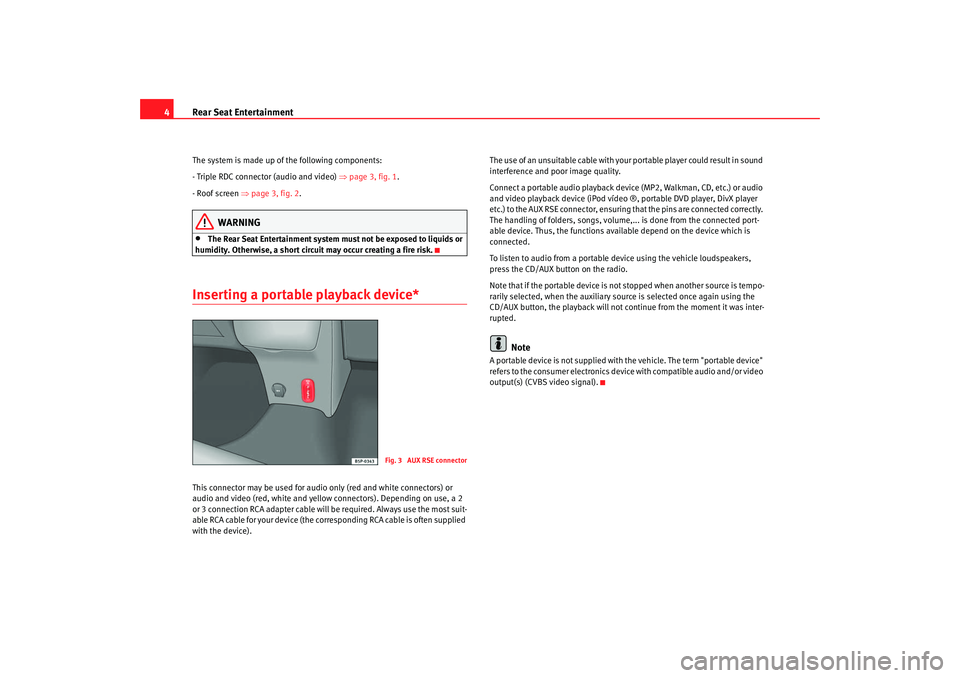

Page 6 of 9

Rear Seat Entertainment
4The system is made up of the following components:
- Triple RDC connector (audio and video) ⇒page 3, fig. 1.
- Roof screen ⇒page 3, fig. 2 .
WARNING
•
The Rear Seat Entertainment system must not be exposed to liquids or
humidity. Otherwise, a short circuit may occur c reating a fire risk.
Inserting a portable playback device*This connector may be used for audio only (red and wh ite connectors) or
audio and video (red, white and yellow connectors). Depe nding on use, a 2
or 3 connection RCA adapter cable will be required. Alw ays use the most suit-
able RCA cable for your device (the corresponding RCA cable is often supplied
with the device). The use of an unsuitable cable with your portable
player could result in sound
interference and poor image quality.
Connect a portable audio playback device (MP2, Walkm an, CD, etc.) or audio
and video playback device (iPod vídeo ®, portable DVD play er, DivX player
etc.) to the AUX RSE connector, ensuring that the pins are c onnected correctly.
The handling of folders, songs, volume,... is done from the c onnected port-
able device. Thus, the functions available depend on the device which is
connected.
To listen to audio from a portable device using t he vehicle loudspeakers,
press the CD/AUX button on the radio.
Note that if the portable device is not stopped when anot her source is tempo-
rarily selected, when the auxiliary source is selected once ag ain using the
CD/AUX button, the playback will not continue from the moment it was inter-
rupted.
Note
A portable device is not supplied with the vehicle. The t erm "portable device"
refers to the consumer electronics devi ce with compatible audio and/or video
output(s) (CVBS video signal).
Fig. 3 AUX RSE connecto
r
Rear Seat_ing Seite 4 Mittwoch, 14. März 2007 1 :19 13

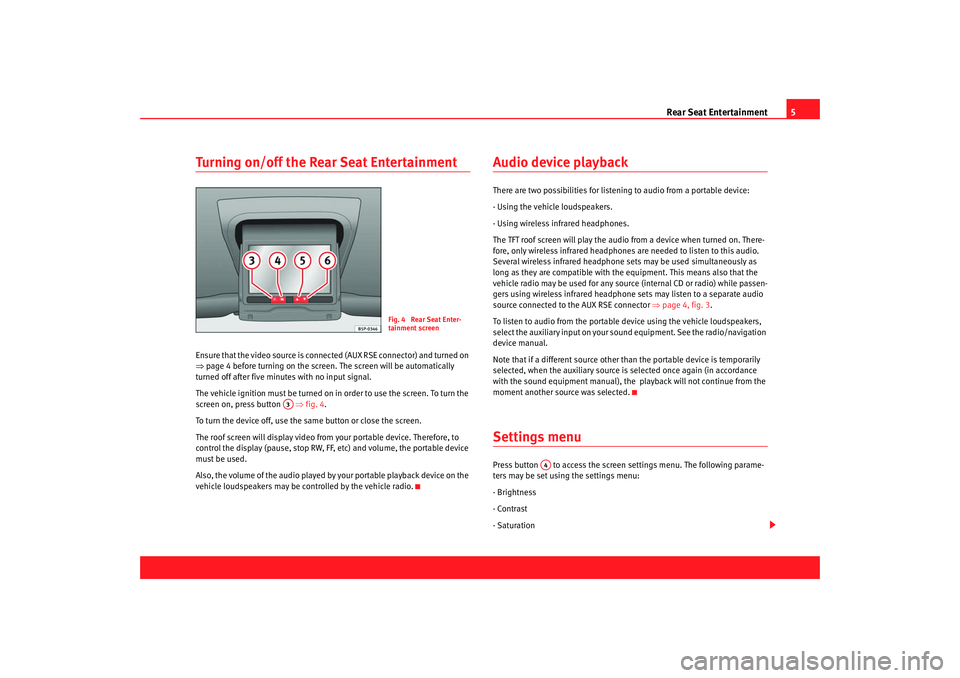

Page 7 of 9

Rear Seat Entertainment5
Turning on/off the Rear Seat EntertainmentEnsure that the video source is connect ed (AUX RSE connector) and turned on
⇒ page 4 before turning on the screen. The screen will be automatically
turned off after fi ve minutes with no input signal.
The vehicle ignition must be turned on in order to use the screen. To turn the
screen on, press button ⇒fig. 4 .
To turn the device off, use the same button or close the screen.
The roof screen will display video from your portab le device. Therefore, to
control the display (pause, stop RW, FF, etc) and volume, the portable device
must be used.
Also, the volume of the audio played by your portable playback device on the
vehicle loudspeakers may be controlled by the vehicle radio.
Audio device playbackThere are two possibilities for listening to audio from a portable device:
- Using the vehicle loudspeakers.
- Using wireless infrared headphones.
The TFT roof screen will play the audio from a device when t urned on. There-
fore, only wireless infrared headphones are needed to li sten to this audio.
Several wireless infrared headphone sets may be used simultaneously as
long as they are compatible with the equipment. This means also that the
vehicle radio may be used for any source (internal CD or radio) while passen-
gers using wireless infrared headphone sets may li sten to a separate audio
source connected to the AUX RSE connector ⇒page 4, fig. 3 .
To listen to audio from the portable device using the vehi cle loudspeakers,
select the auxiliary input on your sound equipment . See the radio/navigation
device manual.
Note that if a different source other than the portable device is temporarily
selected, when the auxiliary source is selected once again (in accordance
with the sound equipment manual), the playback will not c ontinue from the
moment another sour ce was selected.Settings menuPress button to access the screen settings menu. The following parame-
ters may be set usi ng the settings menu:
- Brightness
- Contrast
- Saturation
Fig. 4 Rear Seat Enter-
tainment screen
A3
A4
Rear Seat_ing Seite 5 Mittwoch, 14. März 2007 1 :19 13

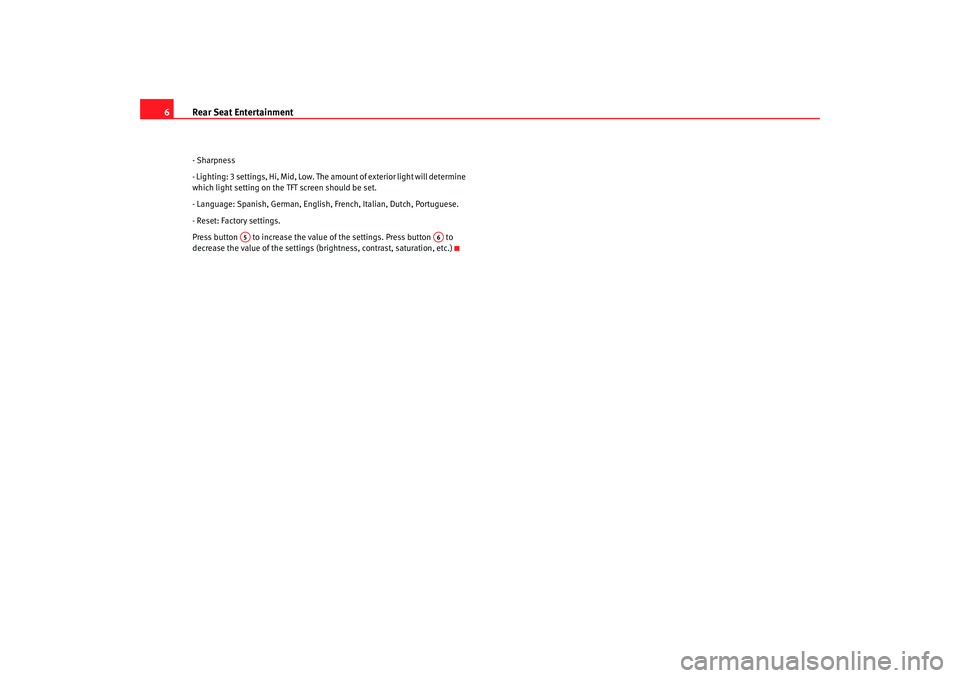

Page 8 of 9

Rear Seat Entertainment
6- Sharpness
- Lighting: 3 settings, Hi, Mid, Low. The amount of exterior light will determine
which light setting on the TFT screen should be set.
- Language: Spanish, German, English, French, Itali an, Dutch, Portuguese.
- Reset: Factory settings.
Press button to increase the value of the sett ings. Press button to
decrease the value of the settings (bri ghtness, contrast, saturation, etc.)
A5
A6
Rear Seat_ing Seite 6 Mittwoch, 14. März 2007 1 :19 13
