engine Seat Toledo 2007 Maintenance programme

[x] Cancel search | Manufacturer: SEAT, Model Year: 2007, Model line: Toledo, Model: Seat Toledo 2007
Pages: 43, PDF Size: 1.91 MB

Page 2 of 43

Seat Toledo 2007 Maintenance programme V
Ve
eh
hi
ic
cl
le
e
d
da
at
ta
a
1
1.
.
2
2.
.
3
3.
.
4
4.
.
5
5.
.
1
1.
.Vehicle identification number
2
2.
.Identification numbers
Type/Model/Engine
Gearbox/Finishes
3
3.
.Identification letters

Page 13 of 43

Seat Toledo 2007 Maintenance programme General programme for Inspection Services11
Example of maintenance according to time
However, there are different specific “additional job s” depending on the
distance covered or the time passed

Page 14 of 43

Seat Toledo 2007 Maintenance programme General programme for Inspection Services
12•
Front/rear lights, luggage compartment lighting, indic ators and hazard
lights: Check operation.
•
Windscreen wiper and headlight wiper system: Check

General programme for Inspection Services
12•
Front/rear lights, luggage compartment lighting, indic ators and hazard
lights: Check operation.
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Exhaust installation: Check attachments and check fo r leaks and damage.
•
Battery: Check
•
Self-diagnosis: Check fault memory in all systems.
•
Poly-V belt: Check condition.
Inspection Service every 60,000 km (40,000 miles) or every 4 yearsOperations to be performed on your vehicle:•
Exhaust installation: Check attachments and check for leaks and damage.
•
Steering system ball joints: Check attachments and c heck for leaks and
damage. Check for play.
•
“Next service” label: Write the date and mileage, and att ach it to the door
frame.
•
Automatic gearbox (differential): Check the oil level, top up if necessary.
•
Automatic gearbox: Check ATF level.
•
Manual gearbox: Check the oil level (only in the case of permeability).
•
Battery: Check
•
Brake system: Check for leaks and damage.
•
Front and rear brake pads: check
•
Brake fluid level, according to brake pad wear: Check.
•
Self-diagnosis: Check fault memory in all systems.
•
Front/rear lights, luggage compartment lighting, indicators and hazard
lights: Check operation.
•
Poly-V belt: Check condition.
•
Poly-V belt: Check tension (only engines without automatic tension
roller).
•
Cooling system: Check the levels of the coolant and anti-freeze.
•
Engine and engine compartment components: Check f or leaks and
damage (from above).
•
Engine and components in engine compartment, gearbox and steering
knuckles: Check for leaks and damage (from above).
•
Engine oil and oil filter: Replace.
•
Haldex clutch: Replace oil.
•
Test drive: Check brake operation, handbrake, gearbo x operation,
steering system operation, kick-down (for automatic gearbox), air condi-
tioning and sliding roof.
•
Interior and glove compartment lighting, cigarette lighter, warning lights
and horn: Check operation.
•
Tyres, including the spare wheel: Check surface, tread and tyre pressure.
•
Headlights: Check adjustment.
•
Windscreen wiper and headlight wiper system: Check oper ation and look
for possible damage, fill if necessary.
•
Sliding roof: Check operation, clean guttering and lubricate guides.
•
Service interval indicator on the instrument panel: Reset.
•
Door and tailgate hinges: Lubricate.

Page 15 of 43

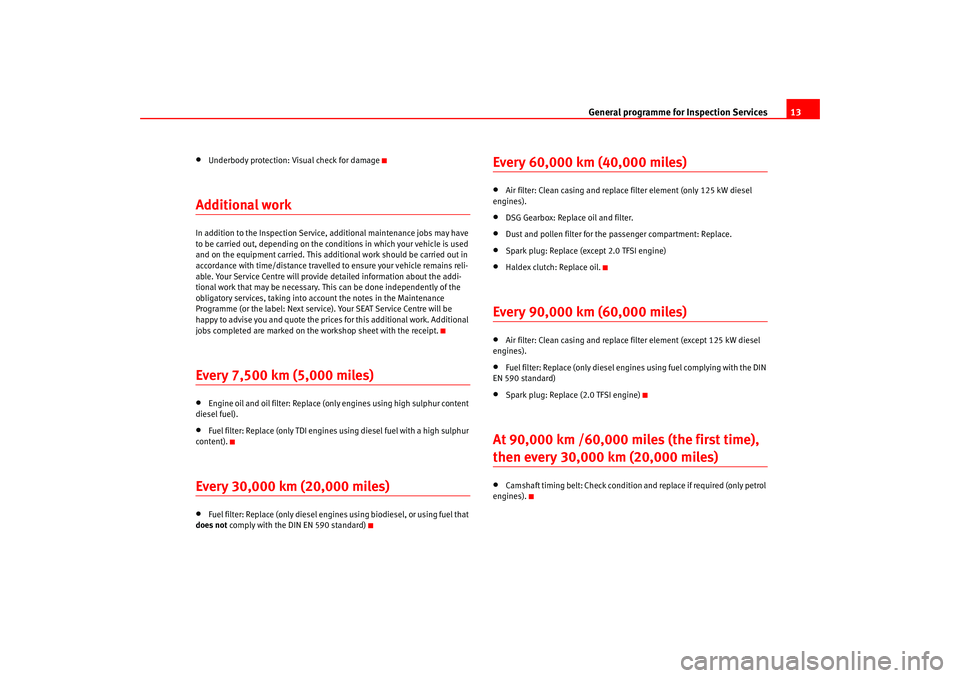

Seat Toledo 2007 Maintenance programme General programme for Inspection Services13
•
Underbody protection: Visual check for damage
Additional workIn addition to the Inspection Service, additional main tenance jobs may have
to be carried

Page 16 of 43

Seat Toledo 2007 Maintenance programme General programme for Inspection Services
14Every 120,000 km (80,000 miles)•
Particulate filter: Check (only 125 kW diesel engine)
•
Camshaft timing belt: Replace (only diesel engine with injecto

Page 17 of 43

Seat Toledo 2007 Maintenance programme Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owner

Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owner s to have their vehicle
tested at specified intervals for safety for the user an d for other traffic, as well
as ensuring that vehicle exhaust emissions meet the co untries' regulations.
These revisions must be overseen by officially certified c entres.
Your Authorised Service Centre can inform you about th e inspections required
by law, and can check your vehicle in the course of an Inspection Service. This
will save you both time and money.
The Authorised Service Centre can also carry out the in spections required by
law at the client's request.
Even if you do not wish to take advantage of this service and dec ide to take
your car to an officially certified centre for this check, we re commend that you
speak to the person in charge of your Authorised Ser vice Centre first.
This person will be able to inform you of any points that require attention so
that your car does not fail the test and have to be re-tested.Approved spare partsAll parts of your vehicle have been approved by SEAT , especially those parts
on which your safety depends. For this reason, the parts used in the
Programmed Inspection Services or in any vehicle repair must correspond
exactly to the manufacturer-defined r equirements. The approved SEAT spare parts have been designed especially for your ve
hicle. For this reason, we
recommend that Genuine approved SEAT spares are always u sed.
In the Authorised SEAT Service Centres you will find the most important
approved spare parts. If in an exceptional case, the nec essary parts are not in
stock, they can, in general, be obtained swiftly.
The SEAT Service Centres in the EU provide a 24 mont h warranty
1) for
Approved Spare parts from the date they are fitted or sold. It is therefore
advisable to retain the original invoice from the Autho rised Service Centre as
proof of the existing warranty.
More information about this may be obtained from your Au thorised Service
Centre.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to th e manufacturer’s
requirements, constitute an additional service at your di sposal, offering you
the possibility to update entire assemblies, the mos t common being: the
short engine block, gearboxes, cylinder heads, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approved s pare parts warranty.
However, these parts are considerably cheaper as they are f actory-recondi-
tioned used parts. Keep the invoice for the approved S EAT exchange parts as
proof of the start of the existing warranty.1)The warranty is not available for all export mark ets. For more information, please ask
your Authorised SEAT Service Centre.

Page 19 of 43

Seat Toledo 2007 Maintenance programme Warranty17
WarrantyFault-free operation warrantyAccording to the clauses of the warranty applied to SE AT vehicles in the sales
contract, A fault-free operation warranty of 2 years in acc ordance wi

Warranty17
WarrantyFault-free operation warrantyAccording to the clauses of the warranty applied to SE AT vehicles in the sales
contract, A fault-free operation warranty of 2 years in acc ordance with legal
requirements
2) 3)
is provided from the date of delivery.
We hope that it is understood that natural wear as well as damage caused by
the abuse of vehicle performance through inappropri ate use or by unaccept-
able modifications are excluded from the warranty. The warranty is also
invalid when the vehicle is damaged by the use of part s and accessories that
are not SEAT approved or damage due to ignoring the maintenance and repair
requirements.
Paintwork and body warrantyAuthorised Service Centres provide a warranty on bodywork
and paintwork for vehicles sold in the EU.In addition to the warranty conditions for brand new S EAT vehicles (as
detailed in the purchase contract), a defined period warranty i s also provided
covering paintwork and bodywork rusting:•
3 year paintwork warranty following delivery date (ex cept the Alhambra
model).
•
12 years from the date of delivery against bodywork through-rusting (6
years for the Alhambra).
If, however, this type of damage should occur, it w ill be repaired free of charge
including parts and labour by any SEAT Authorised Service C entre in Europe.
Warranty claims will not be accepted in the following c ircumstances:
•
if damage is caused by external influence or carelessness , or
•
if damage to the body is not repaired promptly and appropriately in
accordance with the manufacturer's in structions using genuine, approved
spare parts and materials, or
•
if perforation rusting is caused by the use of non-genuine p arts and mate-
rials for body repairs and if these repairs were not c arried out in accordance
with the manufacturer's instructions.
If the bodywork is repaired or painted, your Authorised Service Centre will
certify your warranty against through-rusting for the r epaired sections.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your dis posal, offering you
the possibility to update entire assemblies, the most co mmon being: the
short engine block, gearboxes, cylinder heads, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approved s pare parts warranty.
2)The warranty is not available for all export markets. For more information, please ask
your Authorised SEAT Service Centre.3)As well as the legally required warranty, SEAT o ffers an extended warranty to their cli-
ents in some European countries. The specific co nditions of this extended warranty
are detailed in the vehicle sales contract.
