Seat Toledo 2007 RADIO-NAVIGATION 300 MP3
Manufacturer: SEAT, Model Year: 2007, Model line: Toledo, Model: Seat Toledo 2007Pages: 64, PDF Size: 2.62 MB
Page 41 of 64
Navigation
38

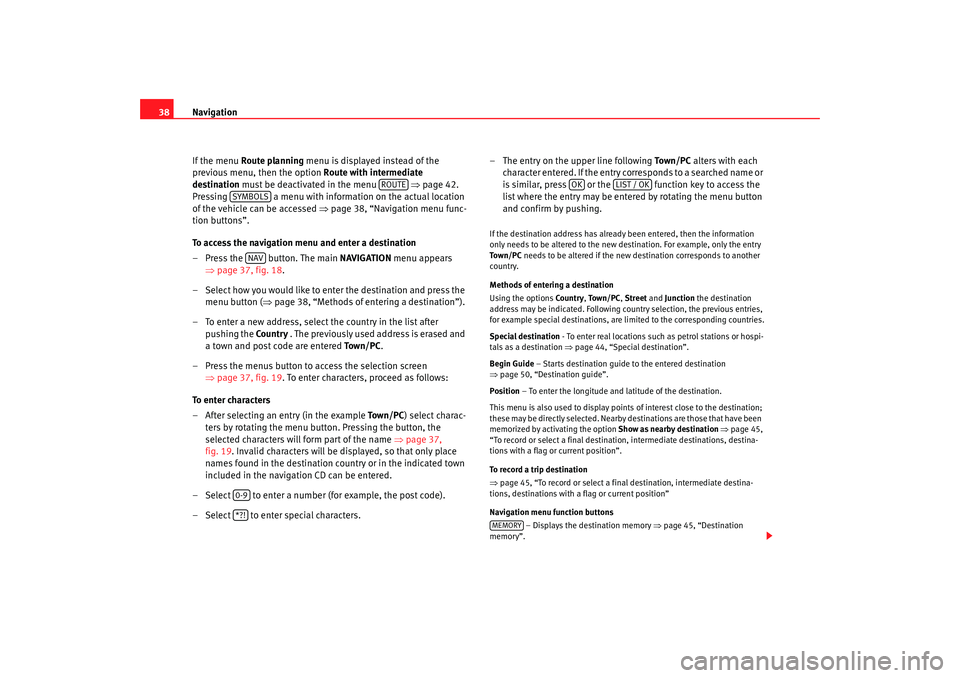

If the menu Route planning menu is displayed instead of the
previous menu, then the option Route with intermediate
destination must be deactivated in the menu ⇒page 42.
Pressing a menu with information on the actual location
of the vehicle can be accessed ⇒page 38, “Navigation menu func-
tion buttons”.
To access the navigation menu and enter a destination
– Press the button. The main NAVIGATION menu appears
⇒ page 37, fig. 18 .
– Select how you would like to enter the destination and press the menu button ( ⇒page 38, “Methods of entering a destination”).
– To enter a new address, select the country in the list after pushing the Countr y . The previously used address is erased and
a town and post code are entered To w n / P C.
– Press the menus button to access the selection screen ⇒page 37, fig. 19 . To enter characters, proceed as follows:
To enter characters
– After selecting an entry (in the example To w n / P C) select charac-
ters by rotating the menu button. Pressing the button, the
selected characters will form part of the name ⇒page 37,
fig. 19. Invalid characters will be displayed, so that only place
names found in the destination country or in the indicated town
included in the navigation CD can be entered.
– Select to enter a number (for example, the post code).
– Select to enter special characters. – The entry on the upper line following
To w n / P C alters with each
character entered. If the entry co rresponds to a searched name or
is similar, press or the function key to access the
list where the entry may be entered by rotating the menu button
and confirm by pushing.
If the destination address has already been entered, then the information
only needs to be altered to the new destination. For example, only the entry
To w n / P C needs to be altered if the new destination corresponds to another
country.
Methods of entering a destination
Using the options Countr y, To w n / P C , Street and Junction the destination
address may be indicated. Following country selection, the previous entries,
for example special destinations, are limited to the corresponding countries.

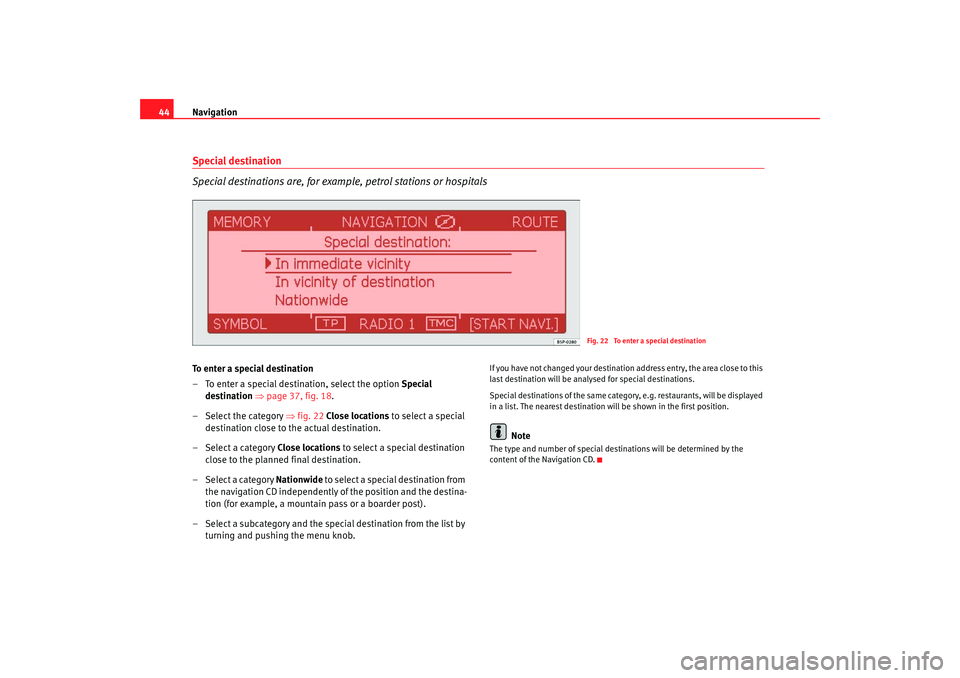

Special destination - To enter real locations such as petrol stations or hospi-
tals as a destination ⇒page 44, “Special destination”.
Begin Guide – Starts destination guide to the entered destination
⇒ page 50, “Destination guide”.
Position – To enter the longitude and latitude of the destination.
This menu is also used to display points of interest close to the destination;
these may be directly selected. Nearby destinations are those that have been
memorized by activating the option Show as nearby destination ⇒ page 45,
“To record or select a final destination, intermediate destinations, destina-
tions with a flag or current position”.
To record a trip destination
⇒ page 45, “To record or select a final destination, intermediate destina-
tions, destinations with a flag or current position”
Navigation menu function buttons

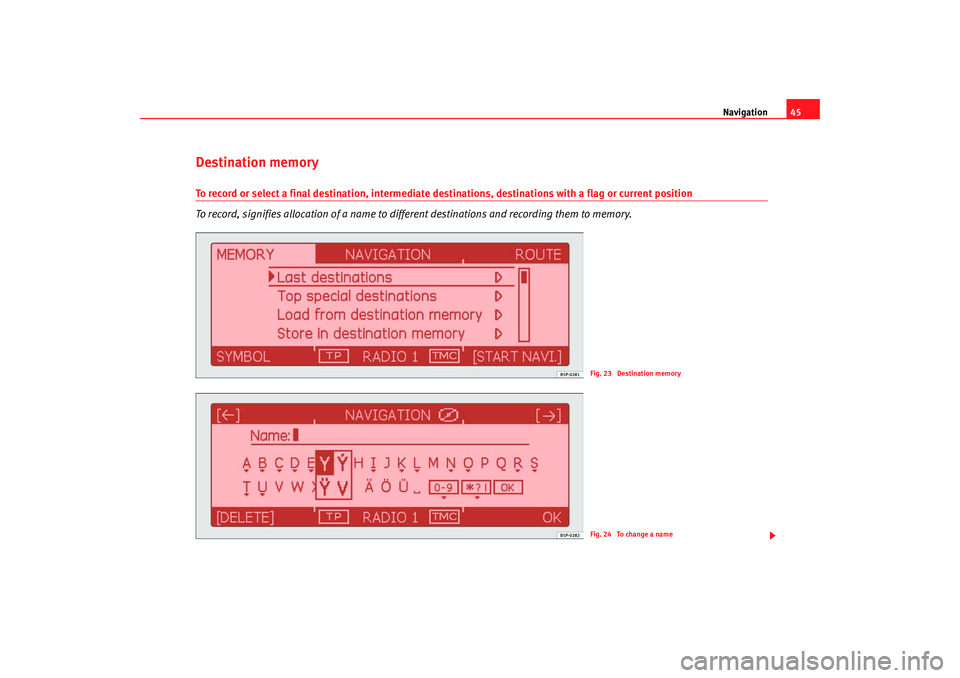

– Displays the destination memory ⇒ page 45, “Destination
memory”.
ROUTE
SYMBOLS
NAV
0-9*?!
OK
LIST / OK
MEMORY
RNS MP3_ingles Seite 38 Mittwoch, 10. Mai 2006 7:52 19
Page 42 of 64
Navigation39
– To enter stages, route lists, route options and blocked sections
⇒ page 42, “Route options”
– Displays the vehicle position. The actual vehicle position is
displayed as an address (if the location is on the navigation CD) and coordi-
nates. The direction of travel is indicated using a compass on the left hand
side of the screen. The SETUP menu may be used to manually enter the
vehicle position ⇒page 48. While the destination guide is working, visual
indications will be given using symbols ⇒page 53.
– Starts destination guide to the indicated destination. The
guide may be stopped using the function ⇒page 50, “Destina-
tion guide”.
Function buttons used to enter numbers and figures
– To erase the character to the right hand side of the screen (only acti-
vated after entering characters).
– Shows a list from which the destination may be selected.
button on the NAVIGATION menu
More options are available in the Navigation setup menu ⇒page 48.Note
•
If the destination is changed while the guide is being used, you will be
asked if you wish to substitute the actual destination or to indicate a stage. If
a stage is added, route planning is automatically selected ⇒ page 40.
•
A mark may be displayed under certain letters. If these letters are marked
then, after a few seconds, special related symbols will appear (see also
⇒ page 45, fig. 24 ).
•
The entries between square brackets [ ... ] can neither be selected or
edited; insufficient data may have been entered. In the case of address, for
example, the country must first be entered followed by the town then finally
the address.ROUTESYMBOLSSTART GUIDE
END GUIDE
ERASELIST / OKSETUP
RNS MP3_ingles Seite 39 Mittwoch, 10. Mai 2006 7:52 19
Page 43 of 64
Navigation

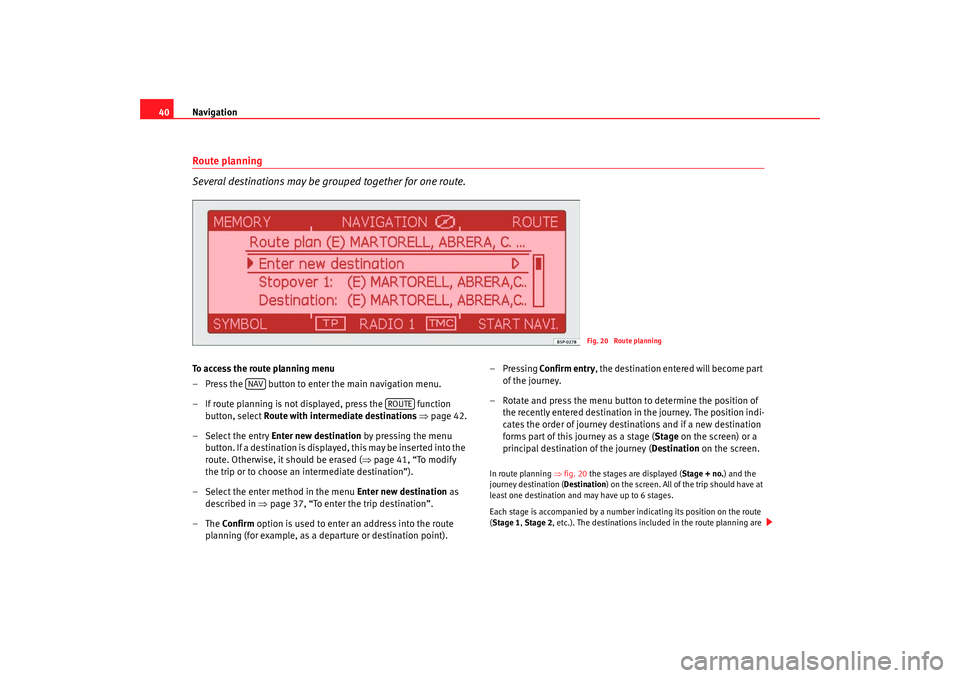

40Route planning
Several destinations may be grouped together for one route.To access the route planning menu
– Press the button to enter the main navigation menu.
– If route planning is not displayed, press the function
button, select Route with intermediate destinations ⇒ page 42.
– Select the entry Enter new destination by pressing the menu button. If a destination is displayed, this may be inserted into the
route. Otherwise, it should be erased ( ⇒page 41, “To modify
the trip or to choose an intermediate destination”).
– Select the enter method in the menu Enter new destination as
described in ⇒page 37, “To enter the trip destination”.
–The Confirm option is used to enter an address into the route
planning (for example, as a departure or destination point). –Pressing
Confirm entry , the destination entered will become part
of the journey.
– Rotate and press the menu button to determine the position of the recently entered destination in the journey. The position indi-
cates the order of journey destinations and if a new destination
forms part of this journey as a stage ( Stage on the screen) or a
principal destination of the journey ( Destination on the screen.
In route planning ⇒fig. 20 the stages are displayed ( Stage + no.) and the
journey destination ( Destination) on the screen. All of the trip should have at
least one destination and may have up to 6 stages.
Each stage is accompanied by a number indicating its position on the route
( Stage 1, Stage 2, etc.). The destinations included in the route planning are
Fig. 20 Route planning
NAV
ROUTE
RNS MP3_ingles Seite 40 Mittwoch, 10. Mai 2006 7:52 19
Page 44 of 64
Navigation41

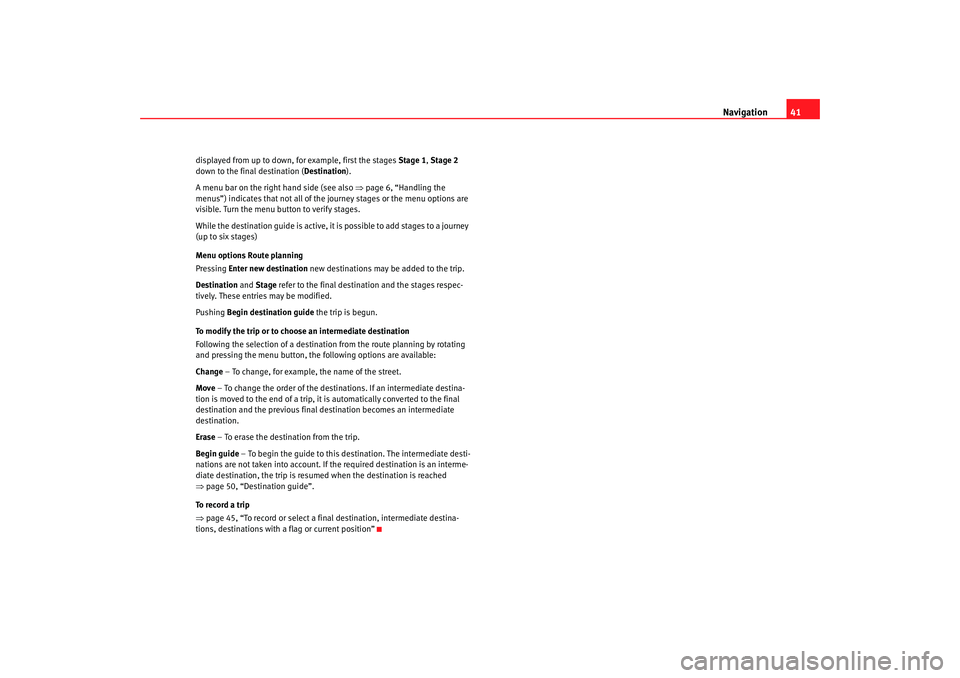

displayed from up to down, for example, first the stages Stage 1, Stage 2
down to the final destination ( Destination).
A menu bar on the right hand side (see also ⇒page 6, “Handling the
menus”) indicates that not all of the journey stages or the menu options are
visible. Turn the menu button to verify stages.
While the destination guide is active, it is possible to add stages to a journey
(up to six stages)
Menu options Route planning
Pressing Enter new destination new destinations may be added to the trip.
Destination and Stage refer to the final destination and the stages respec-
tively. These entries may be modified.
Pushing Begin destination guide the trip is begun.
To modify the trip or to choose an intermediate destination
Following the selection of a destination from the route planning by rotating
and pressing the menu button, the following options are available:
Change – To change, for example, the name of the street.
Move – To change the order of the destinations. If an intermediate destina-
tion is moved to the end of a trip, it is automatically converted to the final
destination and the previous final destination becomes an intermediate
destination.
Erase – To erase the destination from the trip.
Begin guide – To begin the guide to this destination. The intermediate desti-
nations are not taken into account. If the required destination is an interme-
diate destination, the trip is resumed when the destination is reached
⇒ page 50, “Destination guide”.
To record a trip
⇒ page 45, “To record or select a final destination, intermediate destina-
tions, destinations with a flag or current position”
RNS MP3_ingles Seite 41 Mittwoch, 10. Mai 2006 7:52 19
Page 45 of 64
Navigation
42Route options– Press the button and then the function button to
access the route settings.
– Select the options from the list by turning and pushing the menu knob.Route with intermediate destinations
If this function is active (black box), various destinations may be entered
(⇒ page 40, “Route planning”).
Route list
Selecting this option with the destination guide active, all of the journey
sections may be consulted up to the following destination or stage
⇒ page 55, “To block sections and consult information from a route”. Route options
The route options may be accessed by pressing and the function
button
on the following menu.
Dynamic navigation : The dynamic navigation takes the traffic reports from a
TMC station into account ( TMC = Traffic Message Channel). If necessary,
another route will automatically be selected if the planned route is blocked or
if there are traffic jams. For this, a TMC station must be available (see
⇒ page 51, “Dynamic destination guide with TMC (Traffic Message
Channel)”. To consult the latest reports, press the button .
Route opt.:
•
Short: The shortest route is calculated even if it implies a longer trip time.
•
Fast : This option calculates the fastest route to a destination, even
though deviations may be selected.
•
Optimal : This function searches for a balance between minimum time and
trip distance.
Fig. 21 Route settings
NAV
ROUTE
TRAFFIC
ROUTE OPTIONS
TRAFFIC
RNS MP3_ingles Seite 42 Mittwoch, 10. Mai 2006 7:52 19
Page 46 of 64
Navigation43

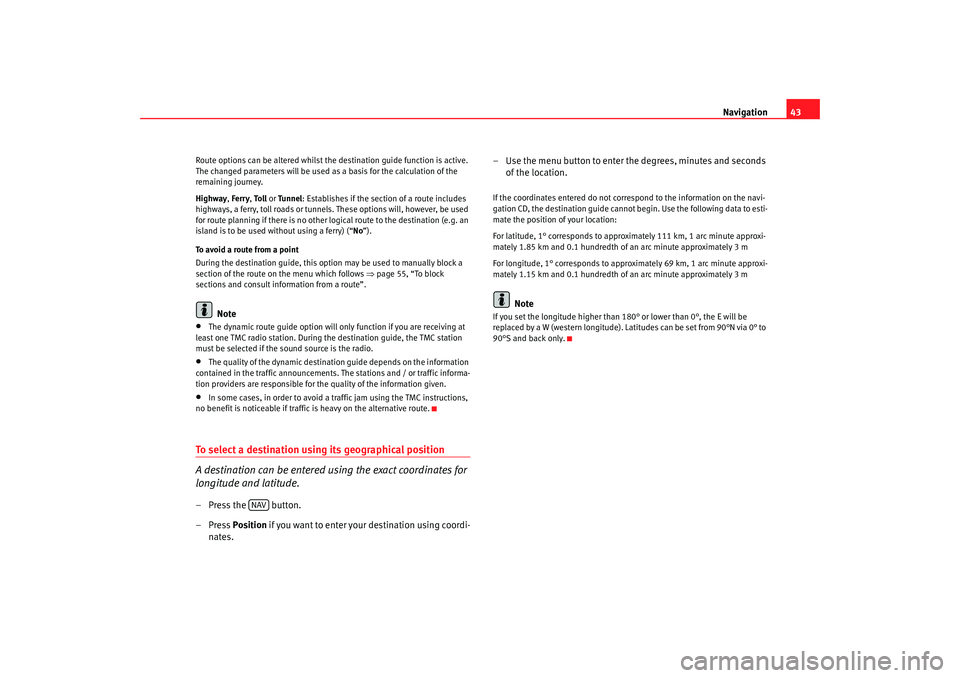

Route options can be altered whilst the destination guide function is active.
The changed parameters will be used as a basis for the calculation of the
remaining journey.
Highway , Ferry , To l l or Tunnel : Establishes if the sect ion of a route includes
highways, a ferry, toll roads or tunnels. These options will, however, be used
for route planning if there is no other logical route to the destination (e.g. an
island is to be used without using a ferry) (“ No”).
To avoid a route from a point
During the destination guide, this option may be used to manually block a
section of the route on the menu which follows ⇒page 55, “To block
sections and consult information from a route”.
Note
•
The dynamic route guide option will only function if you are receiving at
least one TMC radio station. During the destination guide, the TMC station
must be selected if the sound source is the radio.
•
The quality of the dynamic destinatio n guide depends on the information
contained in the traffic announcements. The stations and / or traffic informa-
tion providers are responsible for the quality of the information given.
•
In some cases, in order to avoid a traffic jam using the TMC instructions,
no benefit is noticeable if traffic is heavy on the alternative route.
To select a destination using its geographical position
A destination can be entered using the exact coordinates for
longitude and latitude.– Press the button.
–Press Position if you want to enter your destination using coordi-
nates. – Use the menu button to enter
the degrees, minutes and seconds
of the location.
If the coordinates entered do not correspond to the information on the navi-
gation CD, the destination guide cannot begin. Use the following data to esti-
mate the position of your location:
For latitude, 1° corresponds to approximately 111 km, 1 arc minute approxi-
mately 1.85 km and 0.1 hundredth of an arc minute approximately 3 m
For longitude, 1° corresponds to approximately 69 km, 1 arc minute approxi-
mately 1.15 km and 0.1 hundredth of an arc minute approximately 3 m
Note
If you set the longitude higher than 180° or lower than 0°, the E will be
replaced by a W (western longitude). Latitudes can be set from 90°N via 0° to
90°S and back only.
NAV
RNS MP3_ingles Seite 43 Mittwoch, 10. Mai 2006 7:52 19
Page 47 of 64
Navigation
44Special destination
Special destinations are, for example, petrol stations or hospitalsTo enter a special destination
– To enter a special destination, select the option Special
destination ⇒page 37, fig. 18 .
– Select the category ⇒fig. 22 Close locations to select a special
destination close to the actual destination.
– Select a category Close locations to select a special destination
close to the planned final destination.
–Select a category Nationwide to select a special destination from the navigation CD independently of the position and the destina-
tion (for example, a mountain pass or a boarder post).
– Select a subcategory and the special destination from the list by turning and pushing the menu knob.
If you have not changed your destination address entry, the area close to this
last destination will be analysed for special destinations.
Special destinations of th e same category, e.g. restaurants, will be displayed
in a list. The nearest destination will be shown in the first position.
Note
The type and number of special destinations will be determined by the
content of the Navigation CD.
Fig. 22 To enter a special destination
RNS MP3_ingles Seite 44 Mittwoch, 10. Mai 2006 7:52 19
Page 48 of 64
Navigation45
Destination memoryTo record or select a final destination, intermediate destinations, destinations with a flag or current position
To record, signifies allocation of a name to different destinations and recording them to memory.
Fig. 23 Destination memoryFig. 24 To change a name
RNS MP3_ingles Seite 45 Mittwoch, 10. Mai 2006 7:52 19
Page 49 of 64

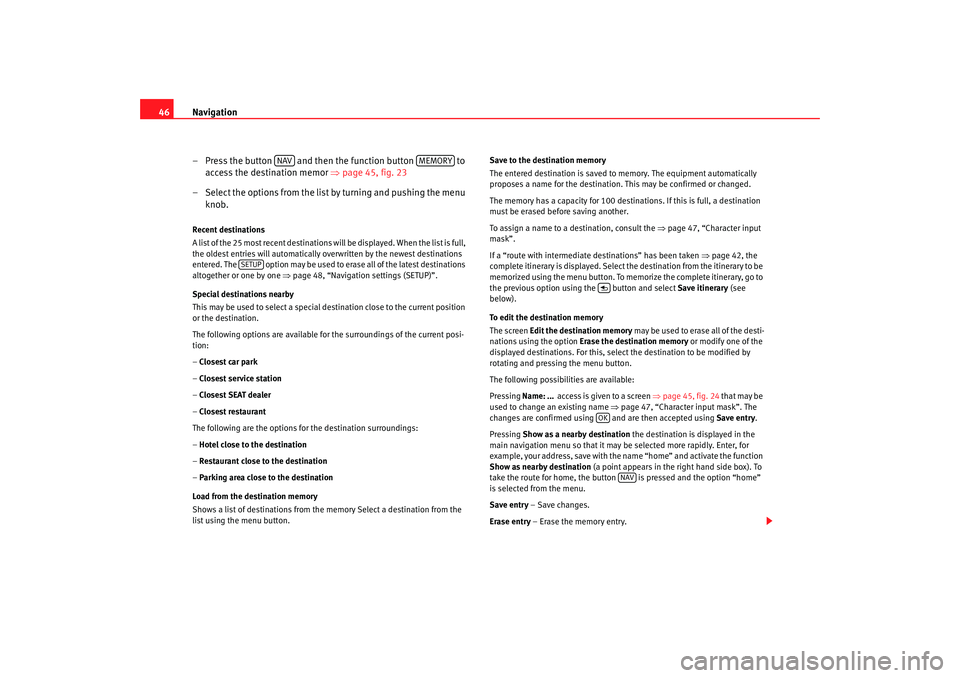

Navigation
46
– Press the button and then the function button to access the destination memor ⇒page 45, fig. 23
– Select the options from the list by turning and pushing the menu knob.Recent destinations
A list of the 25 most recent destinations will be displayed. When the list is full,
the oldest entries will automatically overwritten by the newest destinations
entered. The option may be used to erase all of the latest destinations
altogether or one by one ⇒page 48, “Navigation settings (SETUP)”.
Special destinations nearby
This may be used to select a special destination close to the current position
or the destination.
The following options are available for the surroundings of the current posi-
tion:
– Closest car park
– Closest service station
– Closest SEAT dealer
– Closest restaurant
The following are the options for the destination surroundings:
– Hotel close to the destination
– Restaurant close to the destination
– Parking area close to the destination
Load from the destination memory
Shows a list of destinations from the memory Select a destination from the
list using the menu button. Save to the destination memory
The entered destination is saved to memory. The equipment automatically
proposes a name for the destination.
This may be confirmed or changed.
The memory has a capacity for 100 destinations. If this is full, a destination
must be erased be fore saving another.
To assign a name to a destination, consult the ⇒page 47, “Character input
mask”.
If a “route with intermediate destinations” has been taken ⇒page 42, the
complete itinerary is displayed. Select the destination from the itinerary to be
memorized using the menu button. To memo rize the complete itinerary, go to
the previous option using the button and select Save itinerary (see
below).
To edit the destination memory
The screen Edit the destination memory may be used to erase all of the desti-
nations using the option Erase the destination memory or modify one of the
displayed destinations. For this, select the destination to be modified by
rotating and pressing the menu button.
The following possibilities are available:
Pressing Name: ... access is given to a screen ⇒page 45, fig. 24 that may be
used to change an existing name ⇒page 47, “Character input mask”. The
changes are confirmed using and are then accepted using Save entry.
Pressing Show as a nearby destination the destination is displayed in the
main navigation menu so that it may be selected more rapidly. Enter, for
example, your address, save with the na me “home” and activate the function
Show as nearby destination (a point appears in the right hand side box). To
take the route for home, the button is pressed and the option “home”
is selected from the menu.
Save entry – Save changes.
Erase entry – Erase the memory entry.
NAV
MEMORY
SETUP
OK
NAV
RNS MP3_ingles Seite 46 Mittwoch, 10. Mai 2006 7:52 19
Page 50 of 64

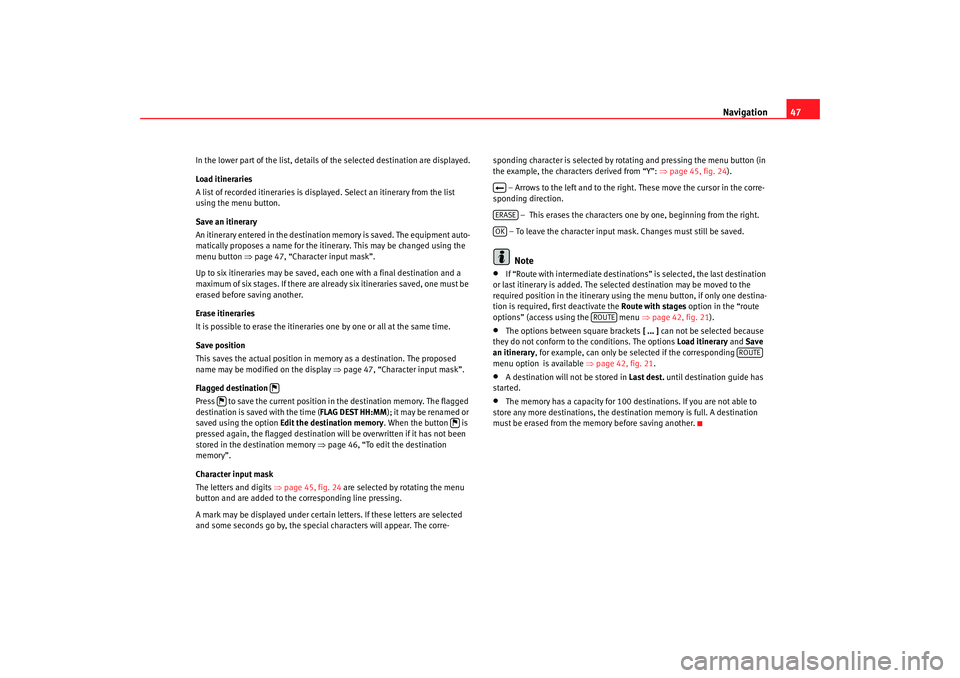

Navigation47
In the lower part of the list, details of the selected destination are displayed.
Load itineraries
A list of recorded itineraries is displayed. Select an itinerary from the list
using the menu button.
Save an itinerary
An itinerary entered in the destination memory is saved. The equipment auto-
matically proposes a name for the itinerary. This may be changed using the
menu button ⇒ page 47, “Charac ter input mask”.
Up to six itineraries may be saved, each one with a final destination and a
maximum of six stages. If there are already six itineraries saved, one must be
erased before saving another.
Erase itineraries
It is possible to erase the itineraries one by one or all at the same time.
Save position
This saves the actual position in me mory as a destination. The proposed
name may be modified on the display ⇒page 47, “Character input mask”.
Flagged destination
Press to save the current position in the destination memory. The flagged
destination is saved with the time ( FLAG DEST HH:MM); it may be renamed or
saved using the option Edit the destination memory. When the button is
pressed again, the flagged destination will be overwritten if it has not been
stored in the destination memory ⇒ page 46, “To edit the destination
memory”.
Character input mask
The letters and digits ⇒page 45, fig. 24 are selected by rotating the menu
button and are added to the corresponding line pressing.
A mark may be displayed under certain letters. If these letters are selected
and some seconds go by, the special characters will appear. The corre- sponding character is selected by ro
tating and pressing the menu button (in
the example, the characters derived from “Y”: ⇒page 45, fig. 24 ).
– Arrows to the left and to the right. These move the cursor in the corre-
sponding direction.
– This erases the characters one by one, beginning from the right.
– To leave the character input mask. Changes must still be saved.
Note
•
If “Route with intermediate destinations” is selected, the last destination
or last itinerary is added. The selected destination may be moved to the
required position in the itinerary usin g the menu button, if only one destina-
tion is required, first deactivate the Route with stages option in the “route
options” (access using the menu ⇒page 42, fig. 21 ).
•
The options between square brackets [ ... ] can not be selected because
they do not conform to the conditions. The options Load itinerary and Save
an itinerary, for example, can only be selected if the corresponding
menu option is available ⇒page 42, fig. 21.
•
A destination will not be stored in Last dest. until destination guide has
started.
•
The memory has a capacity for 100 destinations. If you are not able to
store any more destinations, the destination memory is full. A destination
must be erased from the me mory before saving another.
ERASEOK
ROUTE
ROUTE
RNS MP3_ingles Seite 47 Mittwoch, 10. Mai 2006 7:52 19
