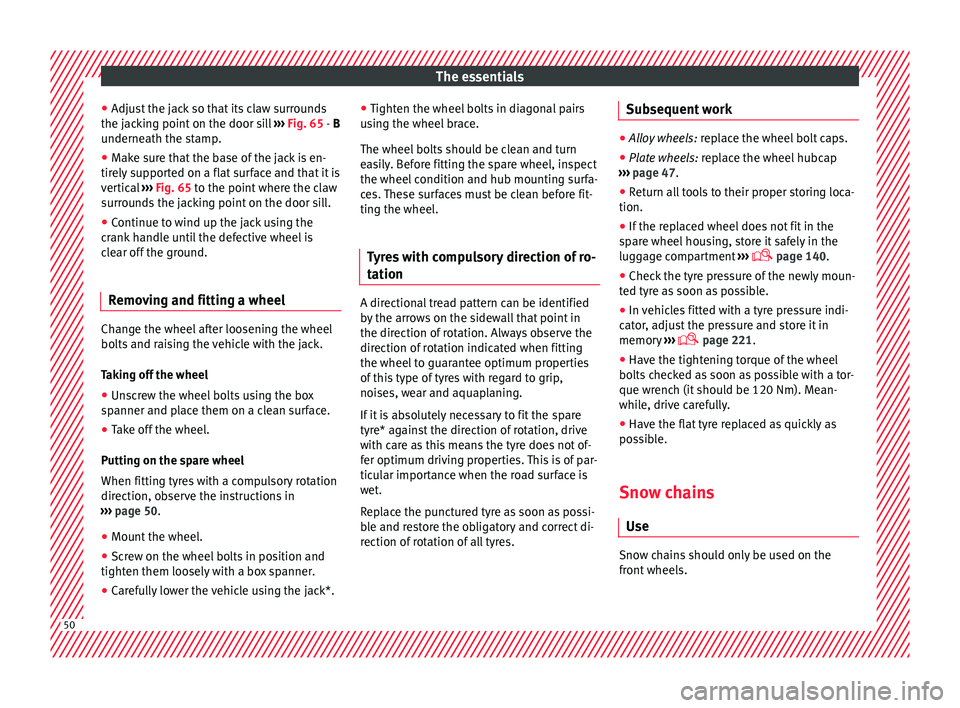

The essentials
● Adju s
t
the jack so that its claw surrounds
the jacking point on the door sill ››› Fig. 65 - B
underneath the stamp.
● Make sure that the base of the jack is en-
tirely s
upported on a flat surface and that it is
vertical ››› Fig. 65 to the point where the claw
surrounds the jacking point on the door sill.
● Continue to wind up the jack using the
crank
handle until the defective wheel is
clear off the ground.
Removing and fitting a wheel Change the wheel after loosening the wheel
bo
lts
and r

aising the vehicle with the jack.
Taking off the wheel
● Unscrew the wheel bolts using the box
spanner and p
lace them on a clean surface.
● Take off the wheel.
Putting on the s
pare wheel
When fitting tyres with a compulsory rotation
direction, observe the instructions in
››› page 50.
● Mount the wheel.
● Screw on the wheel bolts in position and
tighten them loosely
with a box spanner.
● Carefully lower the vehicle using the jack*. ●
Tighten the wheel bo
lts in diagonal pairs
using the wheel brace.
The wheel bolts should be clean and turn
easily. Before fitting the spare wheel, inspect
the wheel condition and hub mounting surfa-
ces. These surfaces must be clean before fit-
ting the wheel.
Tyres with compulsory direction of ro-
tation A directional tread pattern can be identified
b
y
the arr

ows on the sidewall that point in
the direction of rotation. Always observe the
direction of rotation indicated when fitting
the wheel to guarantee optimum properties
of this type of tyres with regard to grip,
noises, wear and aquaplaning.
If it is absolutely necessary to fit the spare
tyre* against the direction of rotation, drive
with care as this means the tyre does not of-
fer optimum driving properties. This is of par-
ticular importance when the road surface is
wet.
Replace the punctured tyre as soon as possi-
ble and restore the obligatory and correct di-
rection of rotation of all tyres. Subsequent work ●
Alloy wheels: repl
ace the wheel bolt caps.
● Plate wheels: repl
ace the wheel hubcap
››› page 47.
● Return all tools to their proper storing loca-
tion.
● If the replaced wheel does not fit in the
spar
e wheel housing, store it safely in the
luggage compartment ›››
 page 140.
● Check the tyre pressure of the newly moun-
ted tyr
e as soon as possible.
● In vehicles fitted with a tyre pressure indi-
cat or

, adjust the pressure and store it in
memory ›››
 page 221.
● Have the tightening torque of the wheel
bolts c
hecked as soon as possible with a tor-
que wrench (it should be 120 Nm). Mean-
while, drive carefully.
● Have the flat tyre replaced as quickly as
poss
ible.
Snow chains Use Snow chains should only be used on the
fr
ont
wheel

s.50

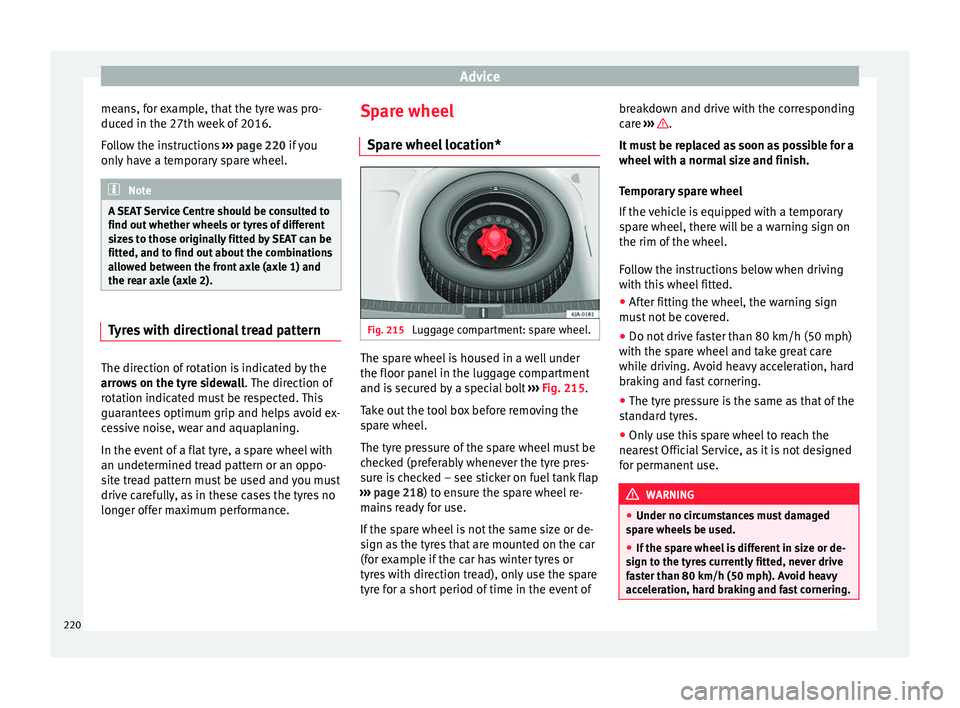

Advice
means, for example, that the tyre was pro-
duc ed in the 27th w
eek
of 2016.
Follow the instructions ››› page 220 if you
only have a temporary spare wheel. Note
A SEAT Service Centre should be consulted to
find out whether wheel s

or tyres of different
sizes to those originally fitted by SEAT can be
fitted, and to find out about the combinations
allowed between the front axle (axle 1) and
the rear axle (axle 2). Tyres with directional tread pattern
The direction of rotation is indicated by the
arr
o
w

s on the tyre sidewall . The direction of
rotation indicated must be respected. This
guarantees optimum grip and helps avoid ex-
cessive noise, wear and aquaplaning.
In the event of a flat tyre, a spare wheel with
an undetermined tread pattern or an oppo-
site tread pattern must be used and you must
drive carefully, as in these cases the tyres no
longer offer maximum performance. Spare wheel
Spar
e wheel location* Fig. 215
Luggage compartment: spare wheel. The spare wheel is housed in a well under
the floor p
anel
in the lug

gage compartment
and is secured by a special bolt ››› Fig. 215.
Take out the tool box before removing the
spare wheel.
The tyre pressure of the spare wheel must be
checked (preferably whenever the tyre pres-
sure is checked – see sticker on fuel tank flap
››› page 218) to ensure the spare wheel re-
mains ready for use.
If the spare wheel is not the same size or de-
sign as the tyres that are mounted on the car
(for example if the car has winter tyres or
tyres with direction tread), only use the spare
tyre for a short period of time in the event of breakdown and drive with the corresponding
care
›

›› .
It mu
s
t be replaced as soon as possible for a
wheel with a normal size and finish.
Temporary spare wheel
If the vehicle is equipped with a temporary
spare wheel, there will be a warning sign on
the rim of the wheel.
Follow the instructions below when driving
with this wheel fitted.
● After fitting the wheel, the warning sign
must
not be covered.
● Do not drive faster than 80 km/h (50 mph)
with the sp
are wheel and take great care
while driving. Avoid heavy acceleration, hard
braking and fast cornering.
● The tyre pressure is the same as that of the
stand
ard tyres.
● Only use this spare wheel to reach the
neare
st Official Service, as it is not designed
for permanent use. WARNING
● Under no cir c

umstances must damaged
spare wheels be used.
● If the spare wheel is different in size or de-
sign to the ty
res currently fitted, never drive
faster than 80 km/h (50 mph). Avoid heavy
acceleration, hard braking and fast cornering. 220

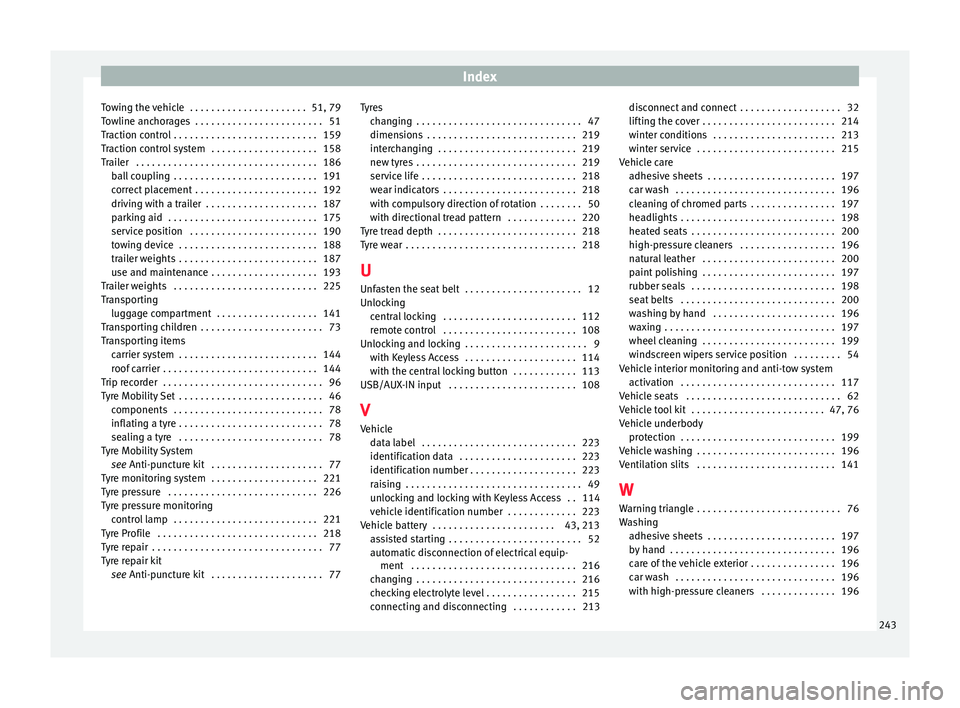

Index
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . 51, 79
T o
wline anc
horages . . . . . . . . . . . . . . . . . . . . . . . . 51
Traction control . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Traction control system . . . . . . . . . . . . . . . . . . . . 158
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
correct placement . . . . . . . . . . . . . . . . . . . . . . . 192
driving with a trailer . . . . . . . . . . . . . . . . . . . . . 187
parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
service position . . . . . . . . . . . . . . . . . . . . . . . . 190
towing device . . . . . . . . . . . . . . . . . . . . . . . . . . 188
trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 187
use and maintenance . . . . . . . . . . . . . . . . . . . . 193
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Transporting luggage compartment . . . . . . . . . . . . . . . . . . . 141
Transporting children . . . . . . . . . . . . . . . . . . . . . . . 73
Transporting items carrier system . . . . . . . . . . . . . . . . . . . . . . . . . . 144
roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Tyre Mobility Set . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
inflating a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Tyre Mobility System see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 77
Tyre monitoring system . . . . . . . . . . . . . . . . . . . . 221
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyre pressure monitoring control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Tyre Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Tyre repair kit see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 77 Tyres
chan ging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
interchanging . . . . . . . . . . . . . . . . . . . . . . . . . . 219
new tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
service life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 218
with compulsory direction of rotation . . . . . . . . 50
with directional tread pattern . . . . . . . . . . . . . 220
Tyre tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
U Unfasten the seat belt . . . . . . . . . . . . . . . . . . . . . . 12
Unlocking central locking . . . . . . . . . . . . . . . . . . . . . . . . . 112
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 108
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . 9 with Keyless Access . . . . . . . . . . . . . . . . . . . . . 114
with the central locking button . . . . . . . . . . . . 113
USB/AUX-IN input . . . . . . . . . . . . . . . . . . . . . . . . 108
V Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
identification data . . . . . . . . . . . . . . . . . . . . . . 223
identification number . . . . . . . . . . . . . . . . . . . . 223
raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
unlocking and locking with Keyless Access . . 114
vehicle identification number . . . . . . . . . . . . . 223
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 43, 213 assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 52
automatic disconnection of electrical equip-ment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
checking electrolyte level . . . . . . . . . . . . . . . . . 215
connecting and disconnecting . . . . . . . . . . . . 213 disconnect and connect . . . . . . . . . . . . . . . . . . . 32
lifting the c
over . . . . . . . . . . . . . . . . . . . . . . . . . 214
winter conditions . . . . . . . . . . . . . . . . . . . . . . . 213
winter service . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Vehicle care adhesive sheets . . . . . . . . . . . . . . . . . . . . . . . . 197
car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
cleaning of chromed parts . . . . . . . . . . . . . . . . 197
headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
high-pressure cleaners . . . . . . . . . . . . . . . . . . 196
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 200
paint polishing . . . . . . . . . . . . . . . . . . . . . . . . . 197
rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
washing by hand . . . . . . . . . . . . . . . . . . . . . . . 196
waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
wheel cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 199
windscreen wipers service position . . . . . . . . . 54
Vehicle interior monitoring and anti-tow system activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Vehicle seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 47, 76
Vehicle underbody protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 141
W Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Washing adhesive sheets . . . . . . . . . . . . . . . . . . . . . . . . 197
by hand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
care of the vehicle exterior . . . . . . . . . . . . . . . . 196
car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
with high-pressure cleaners . . . . . . . . . . . . . . 196
243
