Frequently Asked Ques-
tion
sBefore driving
How do you adjust the seat?
››› page 11
How do you adjust the steering wheel? ››› page 13
How do you adjust the exterior mirrors? ››› page 13
How do you turn on the exterior lights? ››› page 18
How does the automatic gearbox selector lever work?
››› page 36
How do you refuel? ››› page 40
How do you activate the windscreen wipers and wind-
screen washer system? ››› page 20
Emergency situations
A warning lamp lights up or flashes. What does this
mean? ››› page 33
Where are the first-aid kit and the warning triangle in
the vehicle? ››› page 76
How do you open the bonnet? ››› page 11
How do you perform a jump start? ››› page 52
Where is the vehicle tool kit located? ››› page 47
How do you repair a tyre with the anti-puncture kit?
››› page 46
How do you change a wheel? ››› page 47
How do you change a fuse? ››› page 44
How do you change a light? ››› page 45
How do you tow a vehicle? ››› page 51
Useful tips
How do you set the time? ››› page 97
When should the vehicle inspection should be per-
formed? ››› page 31
What functions do the buttons/thumbwheels on the
steering wheel perform? ››› page 103
How do you drive in an economical and environmental-
ly-friendly way? ››› page 166
How do you check and top up the engine oil?
››› page 41
How do you check and top up the engine coolant?
››› page 42
How do you top up the windscreen washer fluid?
››› page 43
How do you check and top up the brake fluid?
››› page 43
How do you check and adjust tyre pressure values?
››› page 218
Vehicle washing tips ››› page 196
Functions of interest
Easy Connect, CAR menu ››› page 21
How does the START-STOP system work? ››› page 183
What parking assistants are available? ››› page 170
How does the rear assist work? ››› page 175
How does tyre pressure monitoring work? ››› page 221
How do you open the vehicle without a key (Keyless Ac-
cess)? ››› page 114
Interior lighting and ambient light ››› page 126

Table of Contents
Engine management and emission control sys-
t em
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Driv
ing tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Driver assistance systems . . . . . . . . . . . . . . . . . 170
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Rear Assist “Rear View Camera”* . . . . . . . . . . . 175
Cruise speed (Cruise Control)* . . . . . . . . . . . . . 178
Emergency brake assist system (Front As-
sis
t)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Start-Stop System* . . . . . . . . . . . . . . . . . . . . . . . 183
Fatigue detection (break recommendation)* . . 185
Towing bracket device . . . . . . . . . . . . . . . . . . . . 186
Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . 186
Towing bracket device . . . . . . . . . . . . . . . . . . . . 188
Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Care and maintenance . . . . . . . . . . . . . . . . . . . . 194
Accessories and modifications to the vehi-
cle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . 195
Checking and refilling levels . . . . . . . . . . . . . . . 201
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Engine compartment . . . . . . . . . . . . . . . . . . . . . 204
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Window washer system . . . . . . . . . . . . . . . . . . . 212
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . 217
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Tyre monitoring systems . . . . . . . . . . . . . . . . . . 221
Winter service . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 223
Technical specifications . . . . . . . . . . . . . . . . . . 223
Important information . . . . . . . . . . . . . . . . . . . . 223
Information on fuel consumption . . . . . . . . . . . 224 Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . 225
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
4

The essentials
Fault in the battery.›››
page 214 
Driving light totally or partially
faulty.›››
page 84
Fault in the cornering light
system.››› page 120 
Diesel particulate filter
blocked›››
page 168 
Level of windscreen washer
fluid too low.›››
page 212 
Flashing: Fault in the oil level
detection. Control manually.
›››
page 207Ignition: Insufficient engine
oil. 
Fault in the gearbox.›››
page 164 
Immobiliser active.›››
page 154 
Service interval display›››
page 31 
Mobile telephone is connec-
ted via Bluetooth to the origi-
nal telephone device.
›››
Booklet
Radio or
››› Booklet
Navigation
system 
Mobile telephone battery
charge meter. Available only
for devices pre-installed in
factory.

Freezing warning. The outside
temperature is lower than
+4°C (+39°F).›››
page 29 
Start-Stop system activated.
›››
page 183 Start-Stop system unavaila-
ble.

Low consumption driving sta-
tus›››
page 97 
›››
page 97 On the instrument panel


Front passenger front airbag is
disabled (  
 ).
››› page
67 
››› in Front passenger front airbag
switch on page 73
››› page 14 Gearbox lever
M anua
l

gearbox Fig. 43
Gear shift pattern of a 5 or 6-speed
m anual
g

earbox. The position of the gears is indicated on the
g
e
arbo

x lever ››› Fig. 43.
● Press the clutch pedal and keep your foot
right down.
● Mo

ve the gearbox lever to the required po-
sition.
● Rel

ease the clutch.
Selecting r
everse gear
● Press the clutch pedal and keep your foot
right down.
● W

ith the gearbox lever in neutral, push it
downw
ards, move it to the left as far as it will
go and then forwards to select reverse
››› Fig. 43 R .
» 35

The essentials
››› in General notes on page 146

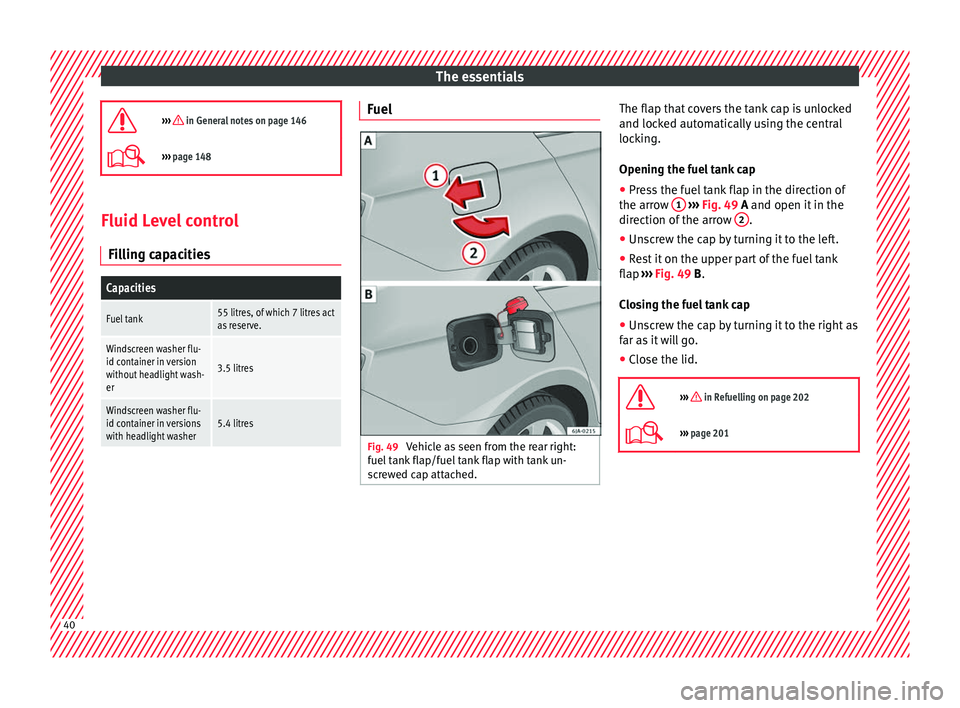

››› page 148 Fluid Level control
Fi l
lin

g capacities
Capacities
Fuel tank55 litres, of which 7 litres act
as reserve.
Windscreen washer flu-
id container in version
without headlight wash-
er
3.5 litres
Windscreen washer flu-
id container in versions
with headlight washer5.4 litres Fuel
Fig. 49
Vehicle as seen from the rear right:
f uel
t

ank flap/fuel tank flap with tank un-
screwed cap attached. The flap that covers the tank cap is unlocked
and loc
k
ed aut

omatically using the central
locking.
Opening the fuel tank cap
● Press the fuel tank flap in the direction of
the arrow 1
› ››
Fig. 49

A and open it in the
direction of the arrow 2 .
● Unscrew the cap by turning it to the left.
● Rest it on the upper part of the fuel tank
fl ap
›
›

› Fig. 49 B.
Closing the fuel tank cap
● Unscrew the cap by turning it to the right as
far as
it will go.
● Close the lid.

››› in Refuelling on page 202
››› page 201 40

The essentials
››› in Topping up the coolant level on
page 211

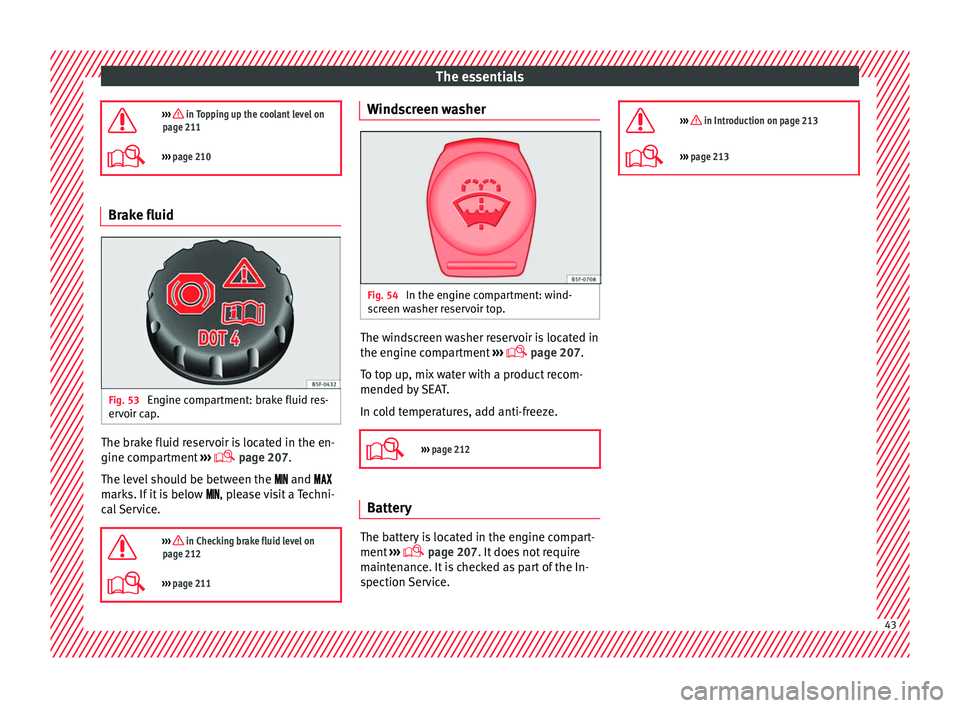

››› page 210 Brake fluid
Fig. 53
Engine compartment: brake fluid res-
er v
oir c

ap. The brake fluid reservoir is located in the en-
gine c
omp
ar

tment ›››
 page 207
.
The level should be between the  and 
marks. If it is below , please visit a Techni-
cal Service.

››› in Checking brake fluid level on
page 212
››› page 211 Windscreen washer
Fig. 54
In the engine compartment: wind-
s c
r

een washer reservoir top. The windscreen washer reservoir is located in
the en
gine c
omp

artment ›››
 page 207.
To top up, mix water with a product recom-
mended by SEAT.
In cold temperatures, add anti-freeze.

››› page 212 Battery
The battery is located in the engine compart-
ment

›
›

›  page 207. It does not require
maintenance. It is checked as part of the In-
spection Service. 
››› in Introduction on page 213
›››
page 213 43

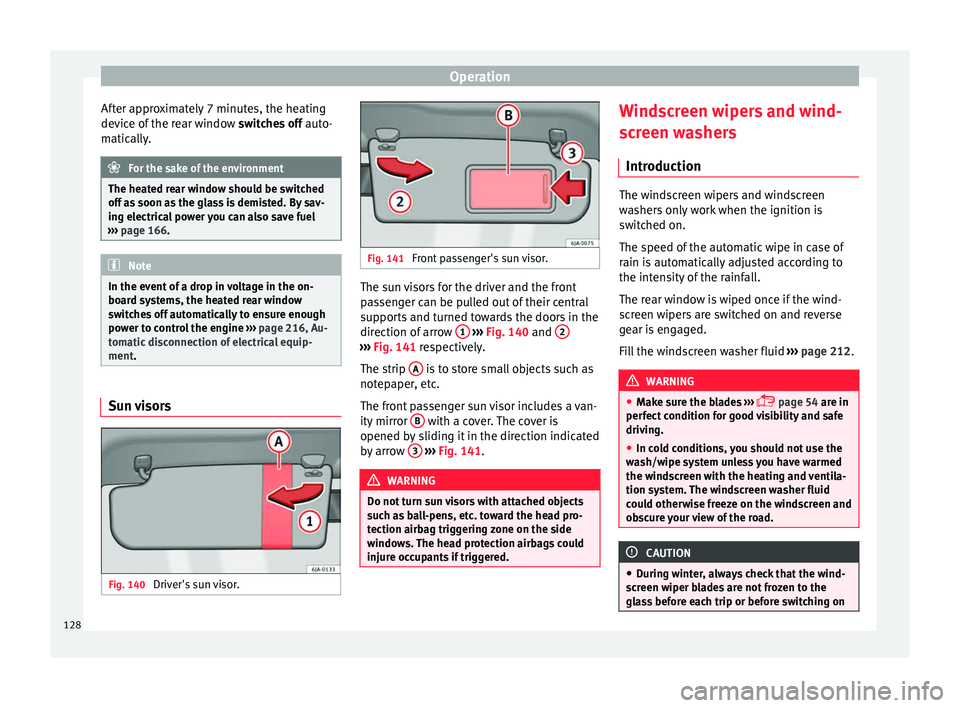

Operation
After approximately 7 minutes, the heating
dev ic
e of
the rear window switches off auto-
matically. For the sake of the environment
The heated rear window should be switched
off a s

soon as the glass is demisted. By sav-
ing electrical power you can also save fuel
››› page 166. Note
In the event of a drop in voltage in the on-
boar d sy

stems, the heated rear window
switches off automatically to ensure enough
power to control the engine ››› page 216, Au-
tomatic disconnection of electrical equip-
ment. Sun visors
Fig. 140
Driver's sun visor. Fig. 141
Front passenger's sun visor. The sun visors for the driver and the front
p
a
s
senger can be pulled out of their central
supports and turned towards the doors in the
direction of arrow 1
› ›
› Fig. 140
and 2 ›››
Fig. 141 re s pectively.
The strip A is to store small objects such as
not ep
aper

, etc.
The front passenger sun visor includes a van-
ity mirror B with a cover. The cover is
opened b y
s

liding it in the direction indicated
by arrow 3
› ›
› Fig. 141
. WARNING
Do not turn sun visors with attached objects
suc h a

s ball-pens, etc. toward the head pro-
tection airbag triggering zone on the side
windows. The head protection airbags could
injure occupants if triggered. Windscreen wipers and wind-
s
c
r

een washers
Introduction The windscreen wipers and windscreen
wa
sher

s only work when the ignition is
switched on.
The speed of the automatic wipe in case of
rain is automatically adjusted according to
the intensity of the rainfall.
The rear window is wiped once if the wind-
screen wipers are switched on and reverse
gear is engaged.
Fill the windscreen washer fluid ›››
page 212. WARNING
● Mak e s

ure the blades ›››
 page 54 are in
perfect condition for good visibility and safe
driving.
● In cold conditions, you should not use the
wash/w
ipe system unless you have warmed
the windscreen with the heating and ventila-
tion system. The windscreen washer fluid
could otherwise freeze on the windscreen and
obscure your view of the road. CAUTION
● Durin g w

inter, always check that the wind-
screen wiper blades are not frozen to the
glass before each trip or before switching on 128

Checking and refilling levels
Checking levels Fig. 205
Diagram for the location of the various elements. From time to time, the levels of the different
fluid
s
in the
vehicle must be checked. Never
fill with incorrect fluids, otherwise serious
damage to the engine may be caused.
Coolant expansion tank . . . . . . . . . . .210
Window washer water tank . . . . . . . .212
Engine oil filler cap . . . . . . . . . . . . . . .209
Engine oil level dipstick . . . . . . . . . . .209
Brake fluid reservoir . . . . . . . . . . . . . .211
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
The checking and replenishment of the serv-
ice fluids
are carried out on the components
mentioned above. These operations are de-
scribed in the ››› page 204.
1 2
3
4
5
6 Overview
Y
ou w
i

ll find further explanations, instruc-
tions and restrictions on the technical speci-
fications as of ››› page 223. Note
The layout of the engine compartment is very
simi l

ar to all petrol and diesel engines. Radiator fan
The radiator is driven by an electric motor
and c
ontr
o

lled according to the temperature
of the coolant.
After the engine has been stopped and the
ignition switched off, the radiator fan may
continue running for around 10 minutes. Engine oil
General
notes The engine comes with a special, multi-grade
oil
th

at can be used all year round.
Because the use of high-quality oil is essen-
tial for the correct operation of the engine
and its long useful life, when topping up or
changing oil, use only those oils that comply
with VW standards.
The specifications (VW standards) set out in
the following page should appear on the con-
tainer of the service oil; when the container
displays the specific standards for petrol and
diesel engines together, it means that the oil
can be used for both types of engines.
We recommend that the oil change indicated
in the Maintenance Programme, be »
207
Technical data
Advice
Operation
Emergencies
Safety

Advice
The brake fluid reservoir is located in the en-
gine c omp
ar
tment of the vehicle.
– Switch the ignition off.
– Open the bonnet ›››
page 204.
– Check the brake fluid level in the reservoir
›››
Fig. 208. It should be between the “MIN”
and “MAX” marks.
The fluid level drops slightly after a period of
time due to automatic compensation for
brake pad wear. This is quite normal.
However, if the level goes down noticeably in
a short time, or drops below the “MIN” mark,
there may be a leak in the brake system. If
the brake fluid level in the reservoir is too
low, this will be indicated by the warning
lamp illuminating on the instrument panel 
››› page 157, Control lamp .WARNING
● If the fluid l ev

el has dropped below the MIN
mark,  do not continue driving. Risk of acci-
dent! Go to a technical service.
● Heavy use of the brakes may cause a va-
pour lock if
the brake fluid is left in the brake
system for too long. This would seriously af-
fect the efficiency of the brakes and the safe-
ty of the vehicle. Changing the brake fluid
Brake fluid absorbs moisture. Therefore, it
gra
dual

ly absorbs moisture from the atmos-
phere. If the water content in the brake fluid
is too high, the brake system could corrode.
The water content also reduces the boiling
point of the brake fluid.
The brake fluid must comply with one of the
following standards or specifications:
● VW 50114
● FMVSS 116 DOT4 CAUTION
Brake fluid damages the vehicle paintwork. Window washer system
Top
pin

g up windscreen washer fluid Fig. 209
Engine compartment: windscreen
w a
sher r

eservoir. Read the additional information carefully
› ›
›

 page 43
The container for the windscreen washer con-
tains the cleaning fluid for the windscreen or
rear window and the headlight washer sys-
tem. The container is located in the engine
compartment.
The capacity of the reservoir is approximately
3.5 litres; in vehicles with a headlight washer
system, it is approximately 5.4 litres 1)
.
Plain water on its own is not enough to clean
the glass and the headlights properly. We 1)
Valid only for certain countries. 5.4 litres for both
ver s

ions.
212

Checking and refilling levels

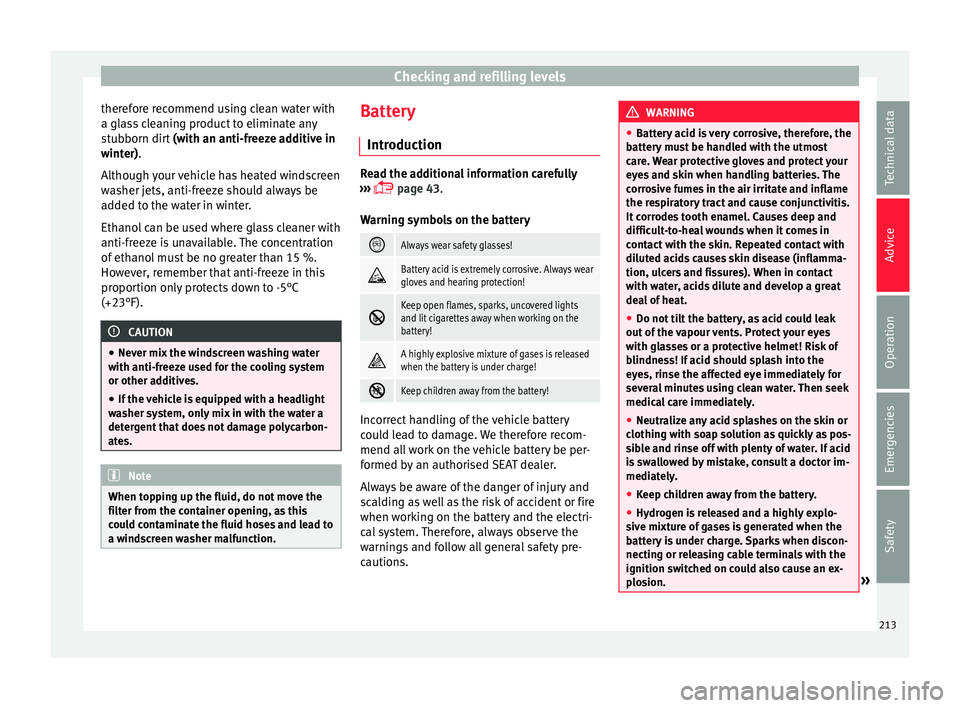

therefore recommend using clean water with
a gl a
s
s cleaning product to eliminate any
stubborn dirt (with an anti-freeze additive in
winter).
Although your vehicle has heated windscreen
washer jets, anti-freeze should always be
added to the water in winter.
Ethanol can be used where glass cleaner with
anti-freeze is unavailable. The concentration
of ethanol must be no greater than 15 %.
However, remember that anti-freeze in this
proportion only protects down to -5°C
(+23°F). CAUTION
● Never mi x

the windscreen washing water
with anti-freeze used for the cooling system
or other additives.
● If the vehicle is equipped with a headlight
washer sy
stem, only mix in with the water a
detergent that does not damage polycarbon-
ates. Note
When topping up the fluid, do not move the
filt er fr

om the container opening, as this
could contaminate the fluid hoses and lead to
a windscreen washer malfunction. Battery
Intr oduction Read the additional information carefully
›› ›

 page 43.
Warning symbols on the battery 
Always wear safety glasses!

Battery acid is extremely corrosive. Always wear
gloves and hearing protection!

Keep open flames, sparks, uncovered lights
and lit cigarettes away when working on the
battery!

A highly explosive mixture of gases is released
when the battery is under charge!

Keep children away from the battery!
Incorrect handling of the vehicle battery
c
ou
l

d lead to damage. We therefore recom-
mend all work on the vehicle battery be per-
formed by an authorised SEAT dealer.
Always be aware of the danger of injury and
scalding as well as the risk of accident or fire
when working on the battery and the electri-
cal system. Therefore, always observe the
warnings and follow all general safety pre-
cautions. WARNING
● Batt er

y acid is very corrosive, therefore, the
battery must be handled with the utmost
care. Wear protective gloves and protect your
eyes and skin when handling batteries. The
corrosive fumes in the air irritate and inflame
the respiratory tract and cause conjunctivitis.
It corrodes tooth enamel. Causes deep and
difficult-to-heal wounds when it comes in
contact with the skin. Repeated contact with
diluted acids causes skin disease (inflamma-
tion, ulcers and fissures). When in contact
with water, acids dilute and develop a great
deal of heat.
● Do not tilt the battery, as acid could leak
out of the
vapour vents. Protect your eyes
with glasses or a protective helmet! Risk of
blindness! If acid should splash into the
eyes, rinse the affected eye immediately for
several minutes using clean water. Then seek
medical care immediately.
● Neutralize any acid splashes on the skin or
clothing w
ith soap solution as quickly as pos-
sible and rinse off with plenty of water. If acid
is swallowed by mistake, consult a doctor im-
mediately.
● Keep children away from the battery.
● Hydrogen is released and a highly explo-
sive mi
xture of gases is generated when the
battery is under charge. Sparks when discon-
necting or releasing cable terminals with the
ignition switched on could also cause an ex-
plosion. » 213
Technical data
Advice
Operation
Emergencies
Safety

Index
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
p u
nct
ure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 44
Emergency fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Emergency brake assist system indications on the display . . . . . . . . . . . . . . . . 179
Emergency braking assistance system malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
switching off temporarily . . . . . . . . . . . . . . . . . 182
system limitations . . . . . . . . . . . . . . . . . . . . . . 183
Emergency operation front passenger door . . . . . . . . . . . . . . . . . . . . . 10
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emission control system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 168
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
diesel particulate filter . . . . . . . . . . . . . . . . . . . 168
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 52
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
run-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 183
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
starting the engine . . . . . . . . . . . . . . . . . . . . . . 156
switching off the engine . . . . . . . . . . . . . . . . . 156
Engine and ignition starting the engine with Keyless Access . . . . . 155
Engine compartment . . . . . . . . . . . . . . 11, 204, 207 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
engine oil
. . . . . . . . . . . . . . . . . . . . . . . . 207, 209
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 205
windscreen washer fluid . . . . . . . . . . . . . . . . . 212
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 210
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine management . . . . . . . . . . . . . . . . . . . . . . 167 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 207 changing . . . . . . . . . . . . . . . . . . . . . . . . . 207, 210
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 209
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
inspection service . . . . . . . . . . . . . . . . . . . . . . 207
maintenance intervals . . . . . . . . . . . . . . . . . . . 207
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 207
temperature display . . . . . . . . . . . . . . . . . . . . . . 29
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . 166
environmental compatibility . . . . . . . . . . . . . . 165
Environmental tips refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 138, 194
ESC electronic stability control . . . . . . . . . . . . . . . . 158
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Extending
the luggag e compartment . . . . . . . . . . . . . . . . 134
Exterior lighting changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 84
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 185
Filling up the tank . . . . . . . . . . . . . . . . . . . . . . . . 201
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 40
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 70
Front Assist indications on the display . . . . . . . . . . . . . . . . 179
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
manual adjustment . . . . . . . . . . . . . . . . . . . . . . 11
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
fuel level gauge . . . . . . . . . . . . . . . . . . . . . . . . 100
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . 201, 202
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
238
