technical specifications SKODA CITIGO 2012 1.G Owner's Manual

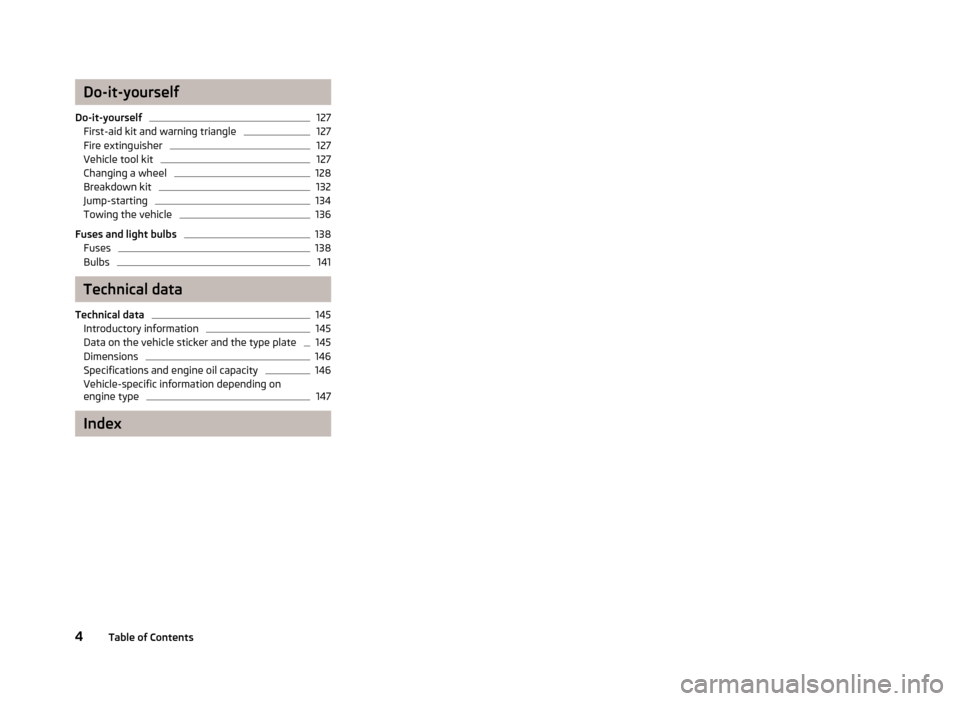

Do-it-yourself
Do-it-yourself 127
First-aid kit and warning triangle 127
Fire extinguisher 127
Vehicle tool kit 127
Changing a wheel 128
Breakdown kit 132
Jump-starting 134
Towing the vehicle 136
Fuses and light bulbs 138
Fuses 138
Bulbs 141
Technical data
Technical data 145
Introductory information 145
Data on the vehicle sticker and the type plate 145
Dimensions 146
Specifications and engine oil capacity 146
Vehicle-specific information depending on
engine type 147
Index
4 Table of Contents

In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about
37
% for the intra-urban cycle and 63 % for the extra-urban cycle. WARNING
Do not exceed the specified maximum permissible weights - risk of accident
and damage. Note
■ If required, you can find out the precise weight of your vehicle by contacting a
ŠKODA

Service Partner.
■ Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values. ÐDimensions

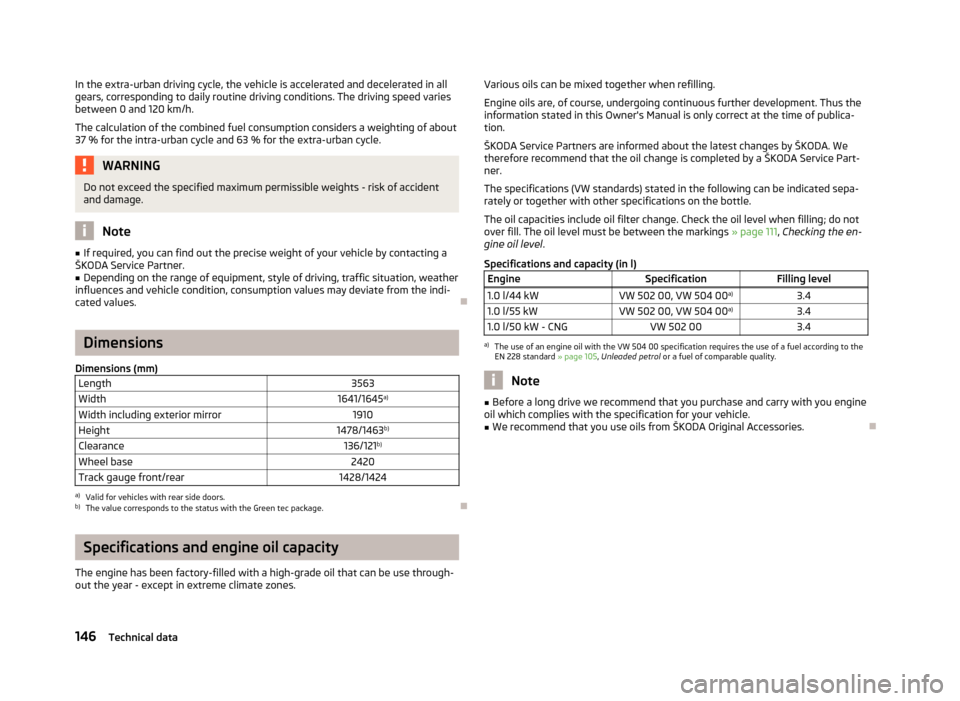

Dimensions (mm) Length 3563
Width 1641/1645a)
Width including exterior mirror 1910
Height 1478/1463b)
Clearance 136/121b)
Wheel base 2420
Track gauge front/rear 1428/1424a)
Valid for vehicles with rear side doors.
b) The value corresponds to the status with the Green tec package. ÐSpecifications and engine oil capacity
The engine has been factory-filled with a high-grade oil that can be use through-
out the year - except in extreme climate zones. Various oils can be mixed together when refilling.
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publica-
tion.
ŠKODA Service Partners are informed about the latest changes by

ŠKODA. We
therefore recommend that the oil change is completed by a ŠKODA Service Part-
ner.
The specifications (VW standards) stated in the following can be indicated sepa-
rately or together with other specifications on the bottle.
The oil capacities include oil filter change. Check the oil level when filling; do not
over fill. The oil level must be between the markings » page 111, Checking the en-
gine oil level .
Specifications and capacity (in l) Engine SpecificationFilling level
1.0 l/44 kW VW 502 00, VW 504 00a)
3.4
1.0 l/55 kW VW 502 00, VW 504 00a)
3.4
1.0 l/50 kW - CNG VW 502 003.4 a)
The use of an engine oil with the VW 504 00 specification requires the use of a fuel according to the
EN 228 standard » page 105, Unleaded petrol or a fuel of comparable quality. Note
■ Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. ■ We recommend that you use oils from ŠKODA Original Accessories. Ð146
Technical data
