SKODA CITIGO 2019 Owners Manual

The specified running direction must be strictly adhered to, otherwise the fol-
lowing tyre characteristics may be degraded.

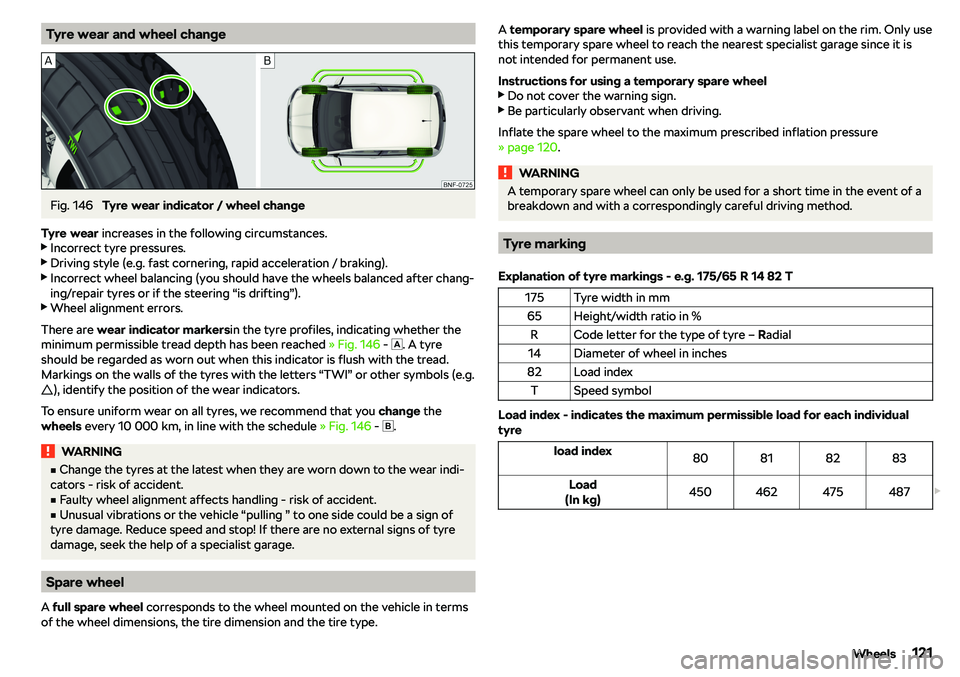

Tyre wear and wheel changeFig. 146
Tyre wear indicator / wheel change
Tyre wear increases in the following circumstances.

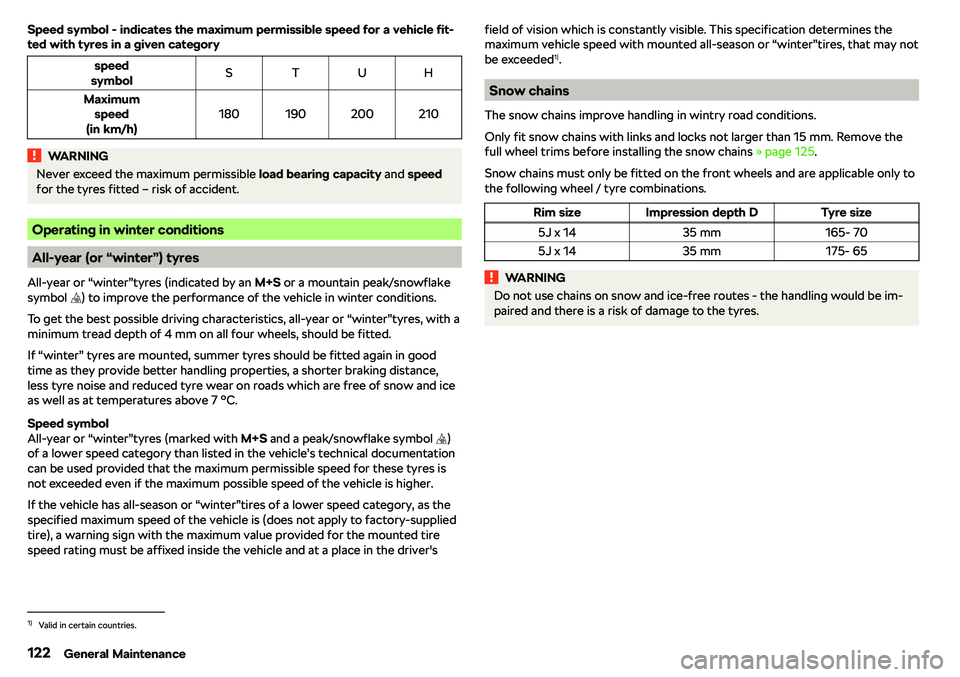

Speed symbol - indicates the maximum permissible speed for a vehicle fit-
ted with tyres in a given categoryspeed
symbolSTUHMaximum speed
(in km/h)180190200210
WARNINGNever exceed the maximum permissible load bearing capacity and speed
for the tyres fitted

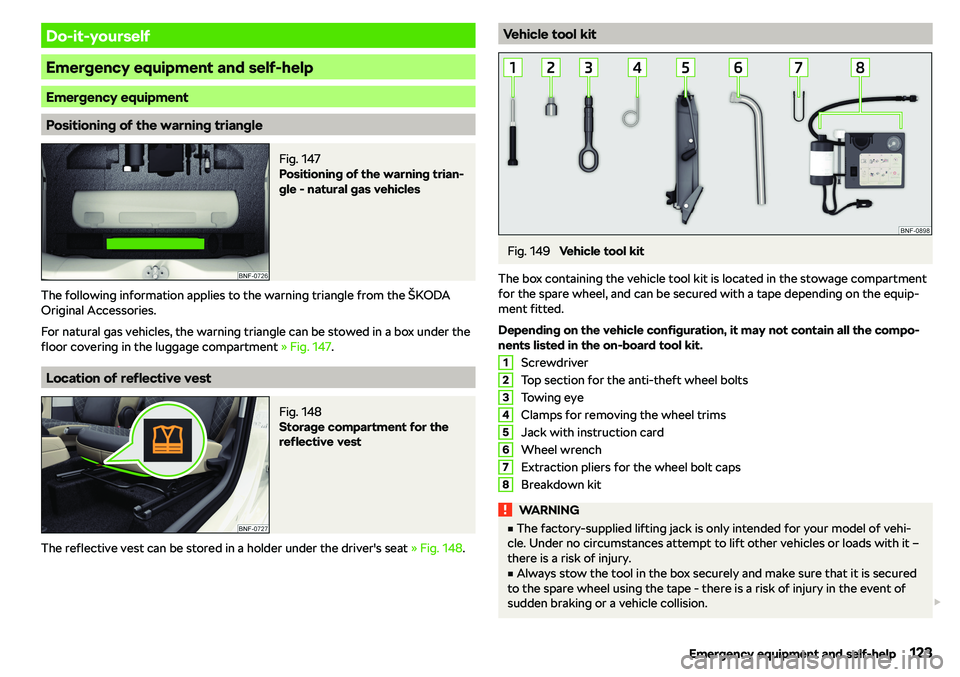

Do-it-yourself
Emergency equipment and self-help
Emergency equipment
Positioning of the warning triangle
Fig. 147
Positioning of the warning trian-
gle - natural gas vehicles
The following information applies to the warning triangle from the

CAUTIONScrew the jack back to its starting position prior to putting it back in its box -
otherwise, there is a risk of damage to the box.
Note
The declaration of conformity is included with the jack or the log folder.
Changing a wheel
Preliminary work
For safety

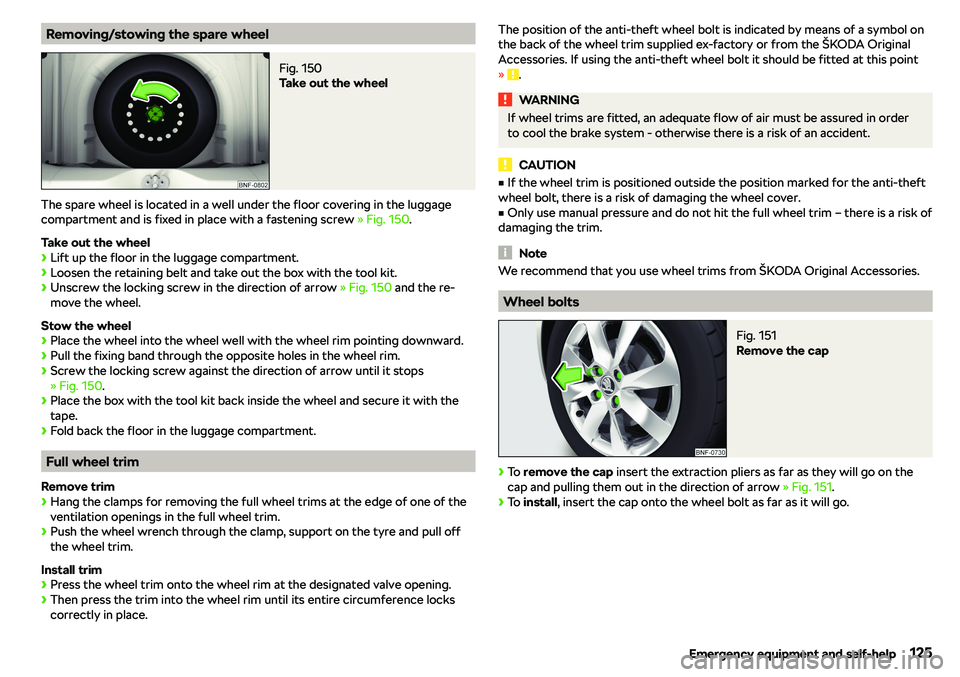

Removing/stowing the spare wheelFig. 150
Take out the wheel
The spare wheel is located in a well under the floor covering in the luggage
compartment and is fixed in place with a fastening screw

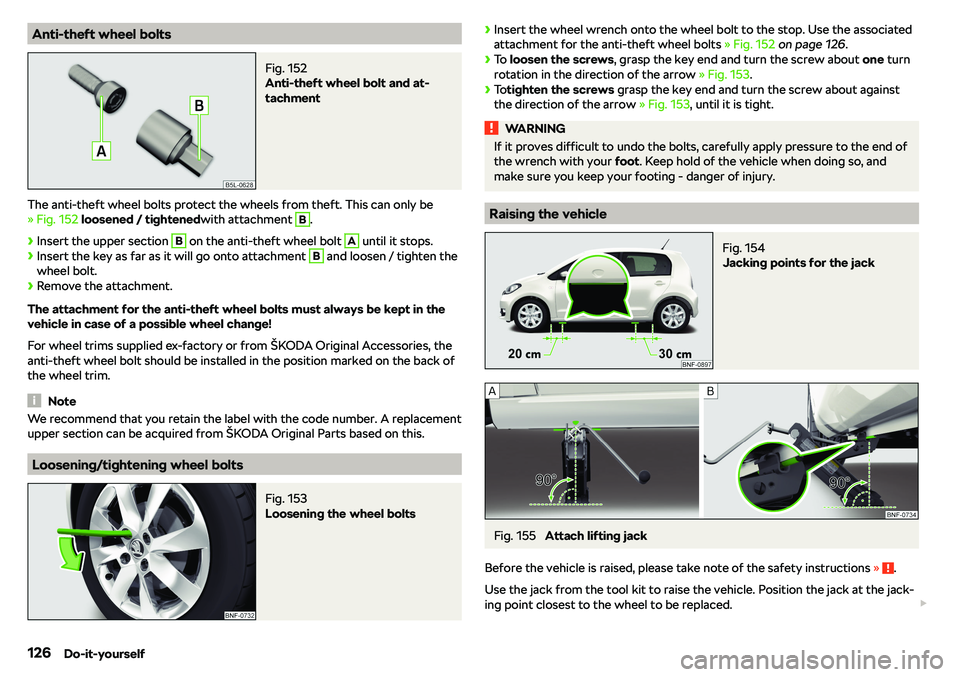

Anti-theft wheel boltsFig. 152
Anti-theft wheel bolt and at-
tachment
The anti-theft wheel bolts protect the wheels from theft. This can only be

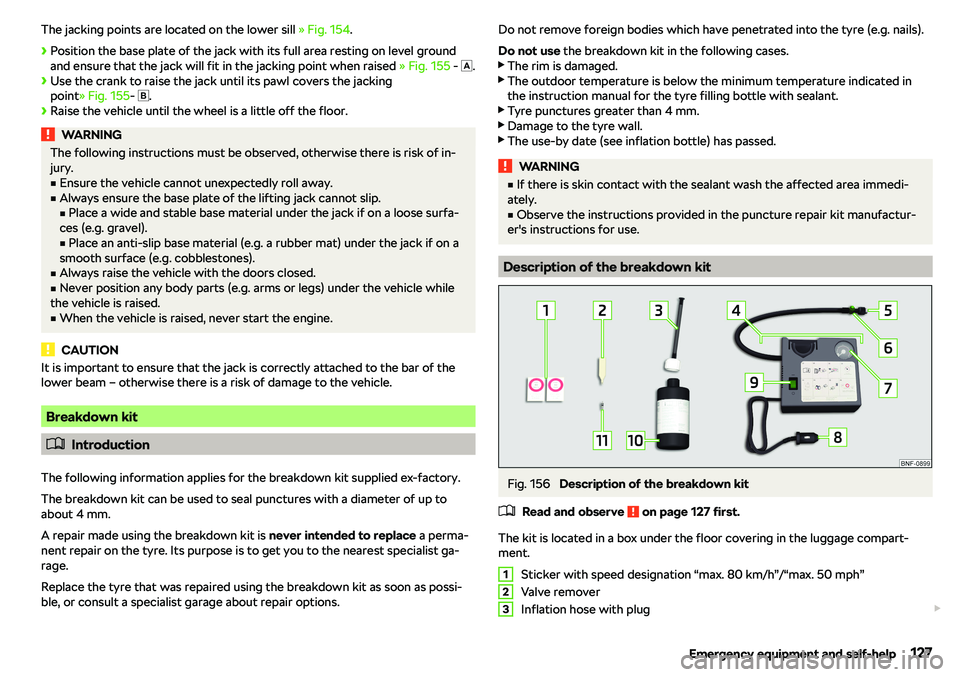

The jacking points are located on the lower sill

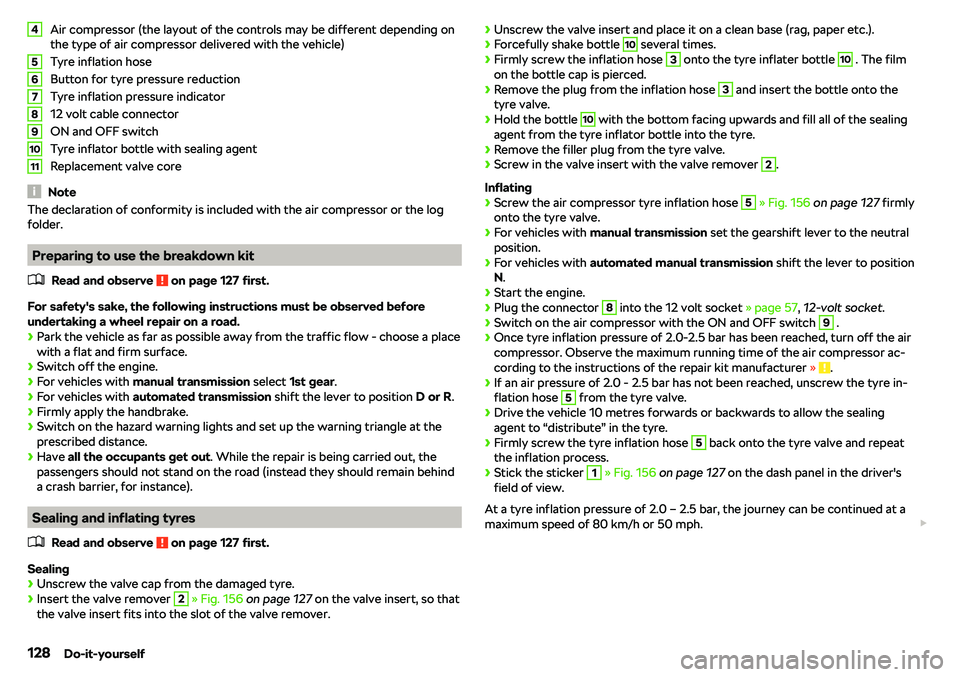

Air compressor (the layout of the controls may be different depending on
the type of air compressor delivered with the vehicle)
Tyre inflation hose
Button for tyre pressure reduction
Tyre inflation pressure indicator
12 volt cable connector
ON and OFF switch
Tyre inflator bottle with sealing agent
Replacement valve core
Note
The declaration of conformity is included with the air compressor or the log
folder.
Preparing to use the breakdown kit
