SKODA CITIGO 2019 Owners Manual

WARNING

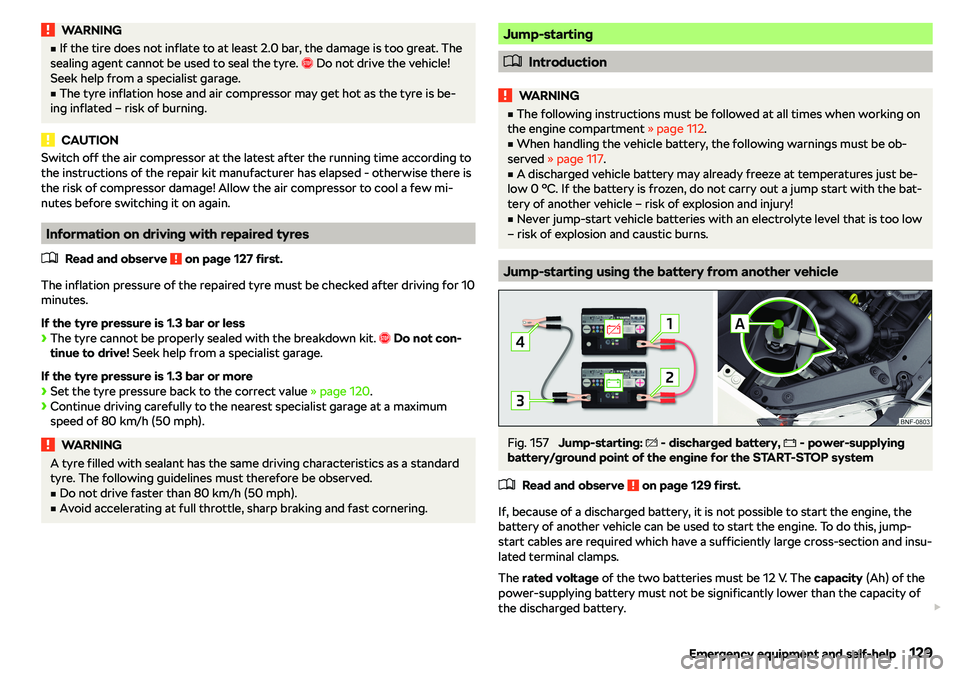

vIf the tire does not inflate to at least 2.0 bar, the damage is too great. The
sealing agent cannot be used to seal the tyre.

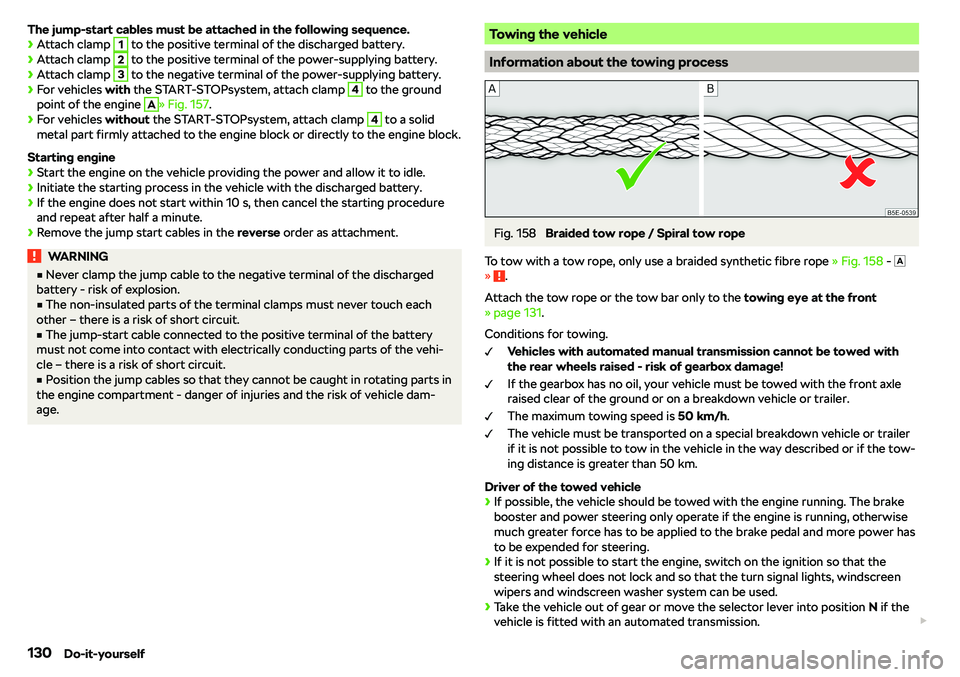

The jump-start cables must be attached in the following sequence.

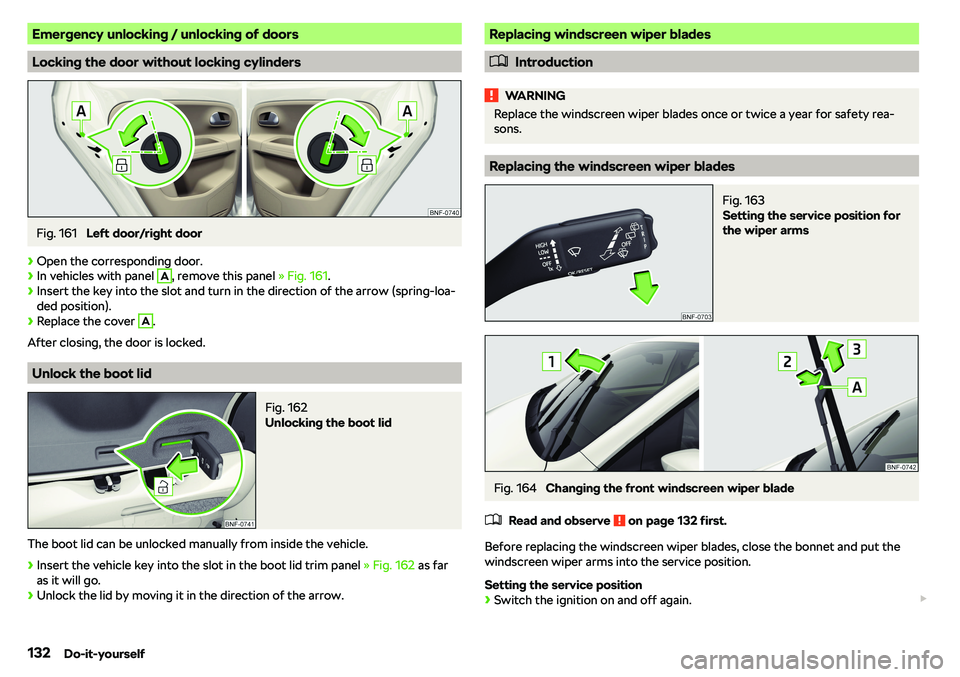

Emergency unlocking / unlocking of doors
Locking the door without locking cylinders
Fig. 161
Left door/right door

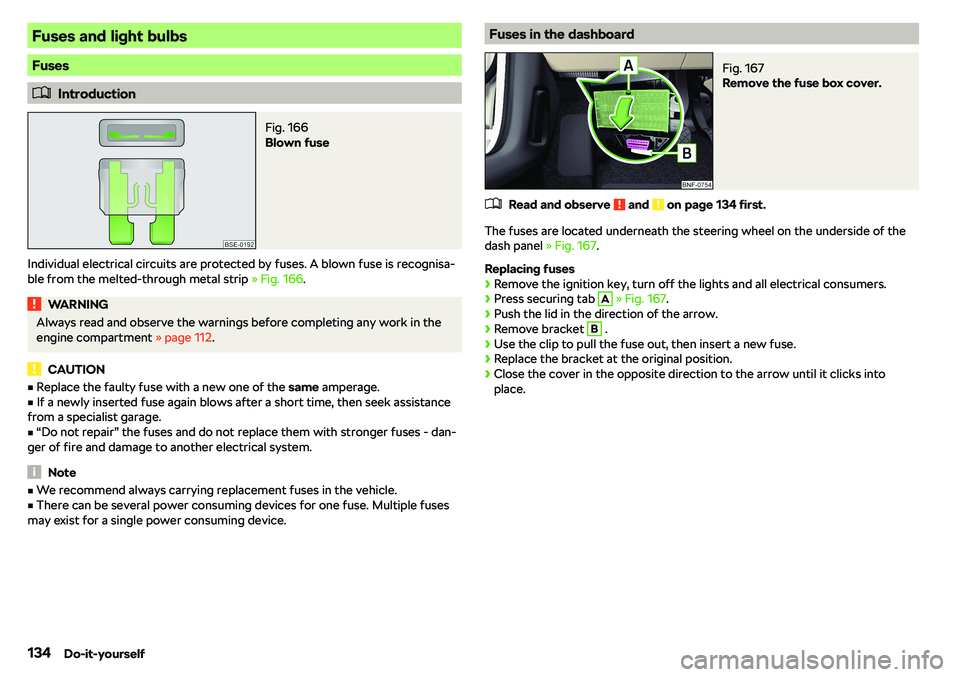

Fuses and light bulbs
Fuses

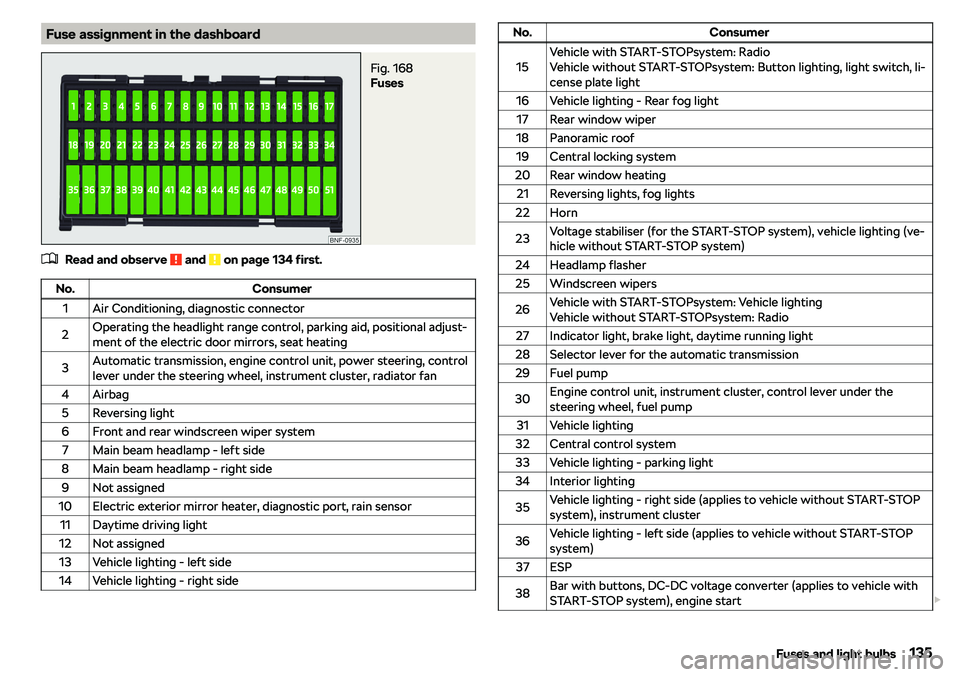

Fuse assignment in the dashboardFig. 168
Fuses

No.Consumer39Control lever under the steering wheel, front and rear window wash-
er40Lambda probe, radiator fan, gas valve, oil pressure valve, valve for ac-
tivated charcoal filter, engine components41Brake pedal switch, clutch pedal switch, engine components42Engine control system43Vacuum pump for brake system, air conditioning44Injection valves, engine components, fuel pump45Ignition coils, engine components4612-Volt power socket47Air blower for air conditioning/heating48Seat heaters49Electric power windows50Vehicle lighting - daytime running lights, high beam51Electric power windows
Fuses in the engine compartment
Fig. 169
Remove the fuse box cover.

WARNING
vAlways read and observe the warnings before completing any work in the
engine compartment

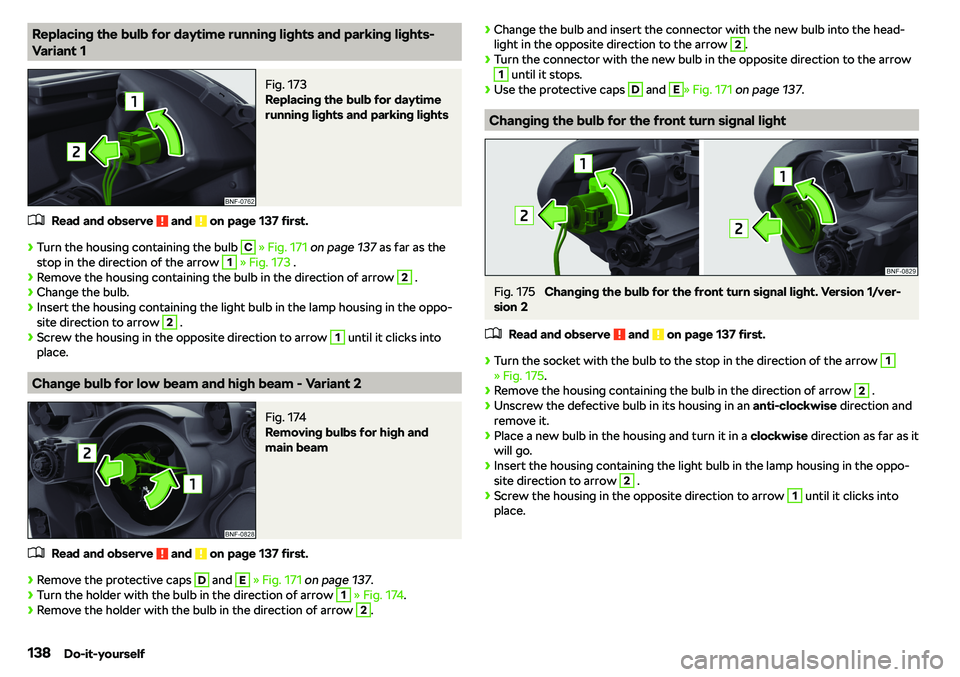

Replacing the bulb for daytime running lights and parking lights-
Variant 1Fig. 173
Replacing the bulb for daytime
running lights and parking lights
