technical data SKODA FABIA 2005 1.G / 6Y Service Manual

Seats and Stowage83
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
•Please note that the handling properties of your vehicle change
when you transport heavy or bulky items on the roof bar system as
a result of the displacement of the centre of gravity and the
increased wind attack area - risk of accident! You must absolutely
adapt your style of driving and the speed of the vehicle to the
specific circumstances.
Drinks can holder*
The drinks can holder is designed to place 0.33 litre drinks cans
in.
– Press on the symbol in the direction of
 ⇒ fig. 67, the drinks
can holder slides out and opens up.
WARNING
•For reasons of occupant safety the drinks can holder drawer
should always be closed when driving.
•Do not place any hot beverages into the cup holder. If the
vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle mate-
rial (e.g. glass, porcelain). You might be injured by them in the
event of an accident.
Rear drinks can holder *
The drinks can holder is designed to place 0.33 litre drinks cans
in.
WARNING (continued)
Fig. 67 Dash panel:
Drinks can holderFig. 68 Centre
console: Drinks can
holder
sqc.1.book Seite 83 Mittwoch, 13. April 2005 1:09 13

Seats and Stowage85
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Ashtray at the rear*
Removing the ashtray insert
– Fold out the ashtray cover and pull out the ashtray insert in the
direction of arrow ⇒fig. 71 .
Replacing the ashtray insert
– Insert the ashtray insert in the guide, insert and slide in and fold down the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter* and power socket*
Cigarette lighter
You can also use the socket on the cigarette lighter for
other electrical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒ fig. 72.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
Fig. 71 Centre
console: Ashtray at the
rear
Fig. 72 Centre
console: Cigarette
lighter
sqc.1.book Seite 85 Mittwoch, 13. April 2005 1:09 13

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Storage compartments
An overview
You will find the following storage facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such
objects might slide or fall down when driving (when accelerating or
cornering) and may distract you from concentrating on the traffic
situation - risk of accident!
•Ensure that when driving no objects from the centre console of
from other storage possibilities may get into the footwell of the
driver. You would then no longer be able to apply the brakes,
operate the clutch or accelerator - risk of accident!
Storage compartment on the front passenger side*
There a further storage compartment in the inner room of the
storage compartment located under the tiltable partition wall*
⇒ fig. 75 .
Storage compartment on the front passenger
side*⇒page 87
Storage compartments on the driver's side⇒page 89
Storage drawer*⇒page 89
Storage compartment in the front seat*⇒page 90
Storage compartment in the front doors⇒page 90
Storage compartment in the luggage compart-
ment (estate car, sedan)*⇒page 91
Rear armrest with stowage compartment*⇒page 91
Clothes hooks*⇒page 92
Fig. 74 Dash panel:
Storage compartment
on the front passenger
side
Fig. 75 Storage
compartment: tiltable
partition wall
sqc.1.book Seite 87 Mittwoch, 13. April 2005 1:09 13

Seats and Stowage89
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Storage compartments on the driver's side
- storage compartment below steering wheel
The lockable storage compartment is opened by folding down the
cover in the direction of arrow ⇒fig. 77 .
Storage compartment is for vehicles fitted with an air conditioning
system with a closable inlet for thermally prepared air.
The air supply in the storage compartment is regulated through the pull
out cap . Pulling out the end cover in the direction of travel causes the
air inlet to open while pushing it in causes the air inlet to close.
At open air supply, air flows into the storage with a temperature which is
as high as the one out of the air outlet nozzles, depending on temperature
setting.
The air inlet in the storage compartment is connected to position

through adjustment of the control dial for air distribution. This position
causes the maximum amount of air to flow into the storage compartment
(depending on the rotary regulator position for the fan). You can use the storage compartment, for example, to temper drinks
cans, etc.
If you do not use the air inlet in the storage compartment, the end
cover should always be kept closed.
There is a holder for a pen on the outside of the storage compartment
.
Storage drawer*
– Press in the middle of the storage compartment ⇒fig. 78 and
the storage compartment will come out.
WARNING
•The storage compartment is not a substitute for the ashtray and
must also not be used for such purposes - risk of fire!
Fig. 77 Dash panel:
Storage compartments
on the driver's side
AA
AB
AB
AC
AB
Fig. 78 Dash panel:
Storage drawer
sqc.1.book Seite 89 Mittwoch, 13. April 2005 1:09 13

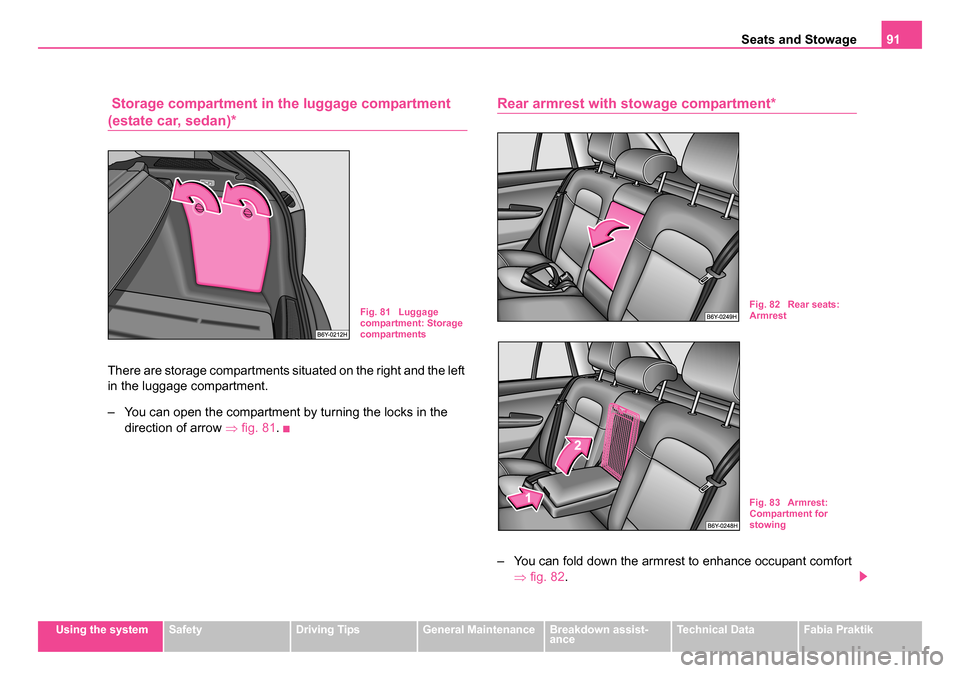

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Storage compartment in the luggage compartment
(estate car, sedan)*
There are storage compartments situated on the right and the left
in the luggage compartment.
– You can open the compartment by turning the locks in the
direction of arrow ⇒fig. 81 .
Rear armrest with stowage compartment*
– You can fold down the armrest to enhance occupant comfort
⇒fig. 82 .
Fig. 81 Luggage
compartment: Storage
compartmentsFig. 82 Rear seats:
Armrest
Fig. 83 Armrest:
Compartment for
stowing
sqc.1.book Seite 91 Mittwoch, 13. April 2005 1:09 13

Heating and air conditioning system 93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Heating and air conditioning system
Heating
Using the system
The heating system delivers air into the interior of the
vehicle and warms it as required.
Setting temperature
– Turn the control dial ⇒fig. 85 to the right in order to
increase the temperature.
– Turn the control dial to the left in order to increase the temperature. Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in
order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off.
– Pressing switch causes the recirculating air system to be switched on - recirculated air mode ⇒.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 95
using air distribution regulator .
The air inlet in front of the windscreen must be free of ice, snow or leaves
in order to ensure that the heating and ventilation systems operate prop-
erly.
All controls apart from the control dial can be set to any desired inter-
mediate position.
The heating effect is dependent upon the coolant temperature, thus full
heat output only occurs when the engine has reached its operating
temperature.
The blower should aways be on to prevent the windows from misting up.
Fig. 85 Heating:
Controls
AA
AA
AB
AB
AD
AC
AB
sqc.1.book Seite 93 Mittwoch, 13. April 2005 1:09 13

Heating and air conditioning system 95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
•Blower switch in the desired position,
•Turn the air distribution control into the position ,
•Open air outlet vents 3 and 4 ⇒ page 95, fig. 86
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of
the vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle
from getting into the vehicle, for example when driving through a
tunnel or when standing in a traffic jam.
Switching recirculated air mode on
– Press button , the button symbol
 lights up ⇒page 93,
fig. 85.
Switching recirculated air mode off
– Press button again, the button symbol
 goes out.
The recirculated air mode is switched off automatically if the air distribu-
tion control is in position  ⇒ page 93, fig. 85 .
WARNING
You should not leave recirculated air mode on over a longer period
of time. “Stale air” may result in fatigue in the driver and passen-
gers, reduce attention levels and also cause the windows to mist
up. The risk of having an accident increases. Switch recirculated
air mode off as soon as the windows begin misting up.
Air outlet vents
Fig. 86 Air outlet vents
Open air outlet vents
– Turn the vertical thumbwheel (not when in the end position).
Close air outlet vents
– Turn the vertical thumbwheel into the end position.
Redirecting air flow
– Swivel upward or downward the gr ille of the vents in order to
change the direction of the air flow using the vertically
arranged thumbwheel.
– Turn the horizontal thumbwheel on the vent to the right or left in order to change the air flow to the appropriate side.
AB
AC
AC


AC
sqc.1.book Seite 95 Mittwoch, 13. April 2005 1:09 13

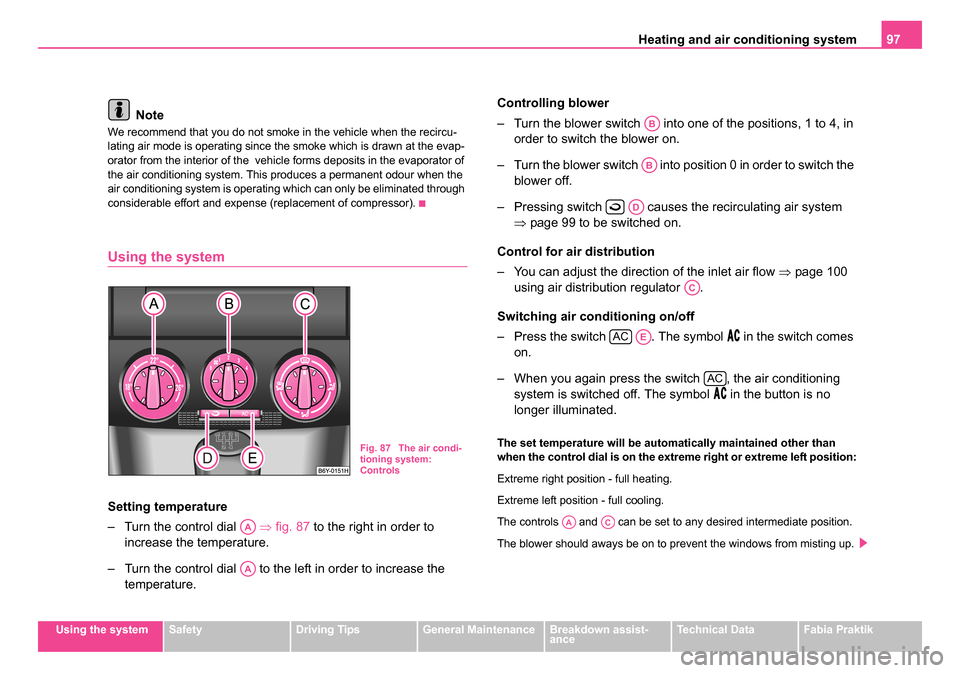

Heating and air conditioning system 97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Note
We recommend that you do not smoke in the vehicle when the recircu-
lating air mode is operating since the smoke which is drawn at the evap-
orator from the interior of the vehicle forms deposits in the evaporator of
the air conditioning system. This produces a permanent odour when the
air conditioning system is operating which can only be eliminated through
considerable effort and expense (replacement of compressor).
Using the system
Setting temperature
– Turn the control dial ⇒fig. 87 to the right in order to
increase the temperature.
– Turn the control dial to the left in order to increase the temperature. Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in
order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off.
– Pressing switch causes the recirculating air system ⇒page 99 to be switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 100
using air distribution regulator .
Switching air conditioning on/off
– Press the switch . The symbol
 in the switch comes
on.
– When you again press the switch , the air conditioning system is switched off. The symbol
 in the button is no
longer illuminated.
The set temperature will be automatically maintained other than
when the control dial is on the extreme right or extreme left position:
Extreme right position - full heating.
Extreme left position - full cooling.
The controls and can be set to any desired intermediate position.
The blower should aways be on to prevent the windows from misting up.Fig. 87 The air condi-
tioning system:
Controls
AA
AA
AB
AB
AD
AC
ACAE
AC
AAAC
sqc.1.book Seite 97 Mittwoch, 13. April 2005 1:09 13

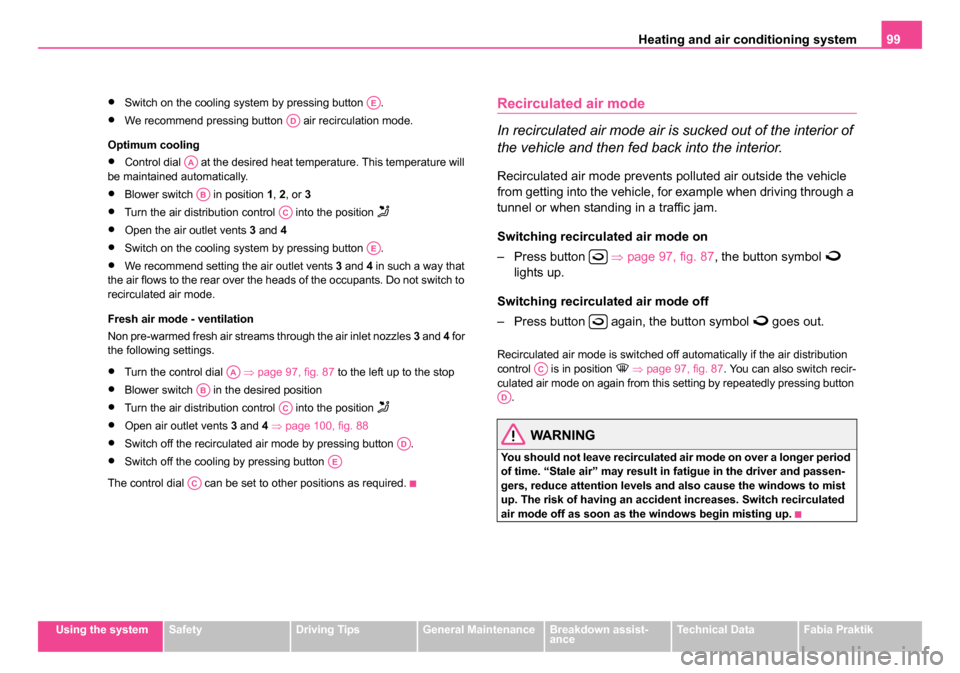

Heating and air conditioning system 99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
•Switch on the cooling system by pressing button .
•We recommend pressing button air recirculation mode.
Optimum cooling
•Control dial at the desired heat temperature. This temperature will
be maintained automatically.
•Blower switch in position 1, 2 , or 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•Switch on the cooling system by pressing button .
•We recommend setting the air outlet vents 3 and 4 in such a way that
the air flows to the rear over the heads of the occupants. Do not switch to
recirculated air mode.
Fresh air mode - ventilation
Non pre-warmed fresh air streams through the air inlet nozzles 3 and 4 for
the following settings.
•Turn the control dial ⇒page 97, fig. 87 to the left up to the stop
•Blower switch in the desired position
•Turn the air distribution control into the position 
•Open air outlet vents 3 and 4 ⇒ page 100, fig. 88
•Switch off the recirculated air mode by pressing button .
•Switch off the cooling by pressing button
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of
the vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle
from getting into the vehicle, for example when driving through a
tunnel or when standing in a traffic jam.
Switching recircul ated air mode on
– Press button ⇒page 97, fig. 87 , the button symbol

lights up.
Switching recirculated air mode off
– Press button again, the button symbol
 goes out.
Recirculated air mode is switched off automatically if the air distribution
control is in position  ⇒ page 97, fig. 87 . You can also switch recir-
culated air mode on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period
of time. “Stale air” may result in fatigue in the driver and passen-
gers, reduce attention levels and also cause the windows to mist
up. The risk of having an accident increases. Switch recirculated
air mode off as soon as the windows begin misting up.
AE
AD
AA
AB
AC
AE
AA
AB
AC
AD
AE
AC


AC
AD
sqc.1.book Seite 99 Mittwoch, 13. April 2005 1:09 13

Heating and air conditioning system 101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
•The cooling system has switched off automatically for a short time
because the coolant temperature of the engine is too hot ⇒page 14.
If you are not able to rectify the operational problem yourself, or if the
cooling capacity decreases, switch the air conditioning system off.
Contact a specialist garage.
sqc.1.book Seite 101 Mittwoch, 13. April 2005 1:09 13
