Seats and Stowage90

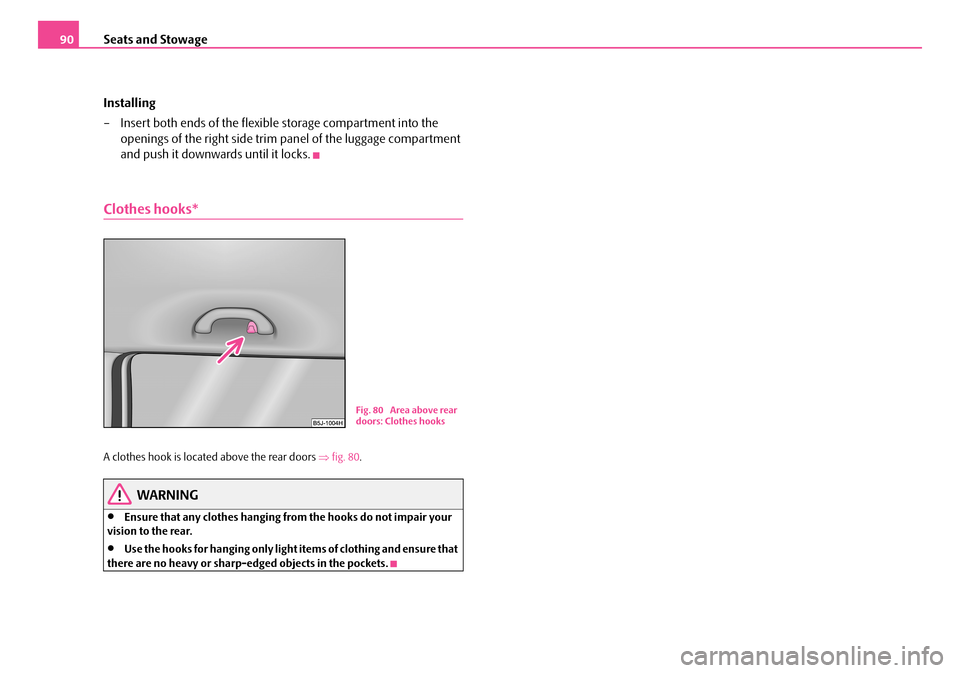

Installing
– Insert both ends of the flexible storage compartment into the
openings of the right side trim panel of the luggage compartment
and push it downwards until it locks.
Clothes hooks*
A clothes hook is located above the rear doors ⇒fig. 80.
WARNING
•Ensure that any clothes hanging from the hooks do not impair your vision to the rear.
•Use the hooks for hanging only light items of clothing and ensure that there are no heavy or sharp- edged objects in the pockets.
Fig. 80 Area above rear doors: Clothes hooks
NKO A05Fabia 20.book Page 90 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Heating and air conditioning system
Heating
Using the system
The heating system delivers air into the interior of the vehicle
and warms it as required.
Setting temperature
– Turn the control dial ⇒fig. 81 to the right in order to increase
the temperature.
– Turn the control dial to the left in order to increase the temper-
ature.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order
to switch the blower on.
– Turn the blower switch into position 0 in order to switch the
blower off.
– Pressing button causes the recirculating air system ⇒ to be
switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 93 using
air distribution regulator .
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and ventilation systems operate properly.
All controls apart from the control dial can be set to any desired interme- diate position.
The heating effect is dependent upon th e coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature.
The blower should aways be on to prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Fig. 81 Heating: Control elements
AA
AA
AB
AB
A1
AC
AB
NKO A05Fabia 20.book Page 91 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system92
Note
•If the air distribution is positioned towards the windows, the total amount of air is used to defrost the windows and thus no air will be fed to the footwell. This can lead to restriction of the heating comfort.
•The used air streams out through the air removal openings in the luggage compartment.
•Have the air conditioning system cleaned by a specialist workshop.

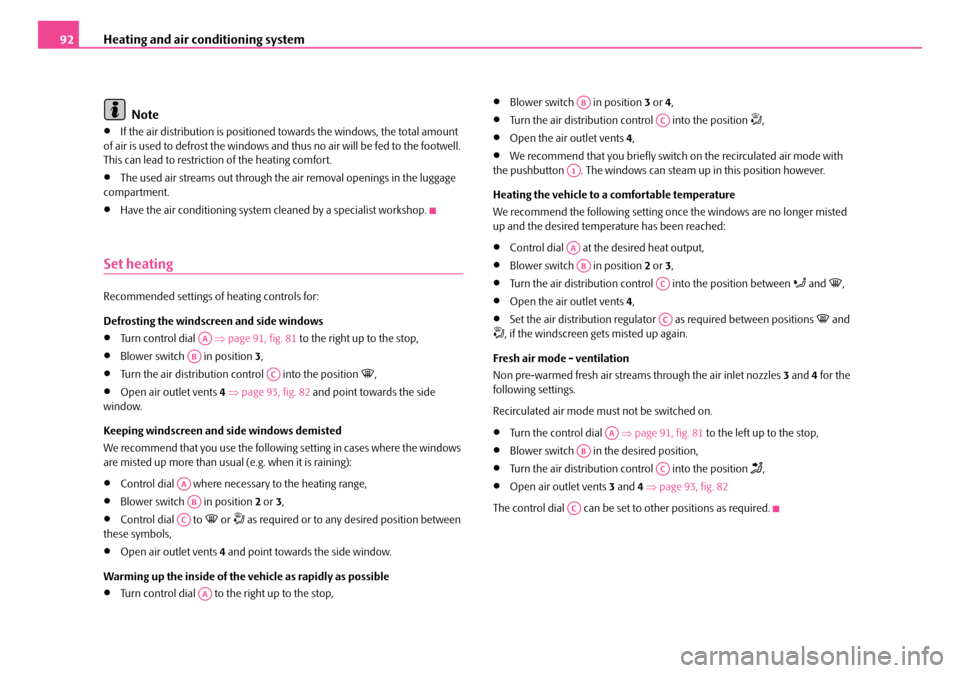

Set heating
Recommended settings of heating controls for:
Defrosting the windscreen and side windows
•Tu r n c o n t r o l d i a l ⇒page 91, fig. 81 to the right up to the stop,
•Blower switch in position 3,
•Turn the air distribution control into the position ,
•Open air outlet vents 4 ⇒page 93, fig. 82 and point towards the side window.
Keeping windscreen and side windows demisted
We recommend that you use the following setting in cases where the windows are misted up more than usual (e.g. when it is raining):
•Control dial where necess ary to the heating range,
•Blower switch in position 2 or 3,
•Control dial to  or  as required or to any desired position between these symbols,
•Open air outlet vents 4 and point towards the side window.
Warming up the inside of the vehicle as rapidly as possible
•Turn control dial to the right up to the stop,
•Blower switch in position 3 or 4,
•Turn the air distribution control into the position ,
•Open the air outlet vents 4,
•We recommend that you briefly switch on the recirculated air mode with the pushbutton . The windows can stea m up in this position however.
Heating the vehicle to a comfortable temperature
We recommend the following setting once the windows are no longer misted up and the desired temperature has been reached:
•Control dial at the desired heat output,
•Blower switch in position 2 or 3,
•Turn the air distribution control into the position between  and ,
•Open the air outlet vents 4,
•Set the air distribution regulator as required between positions  and , if the windscreen gets misted up again.
Fresh air mode - ventilation
Non pre-warmed fresh air stream s through the air inlet nozzles 3 and 4 for the following settings.
Recirculated air mode must not be switched on.
•Turn the control dial ⇒page 91, fig. 81 to the left up to the stop,
•Blower switch in the desired position,
•Turn the air distribution control into the position ,
•Open air outlet vents 3 and 4 ⇒page 93, fig. 82
The control dial can be set to other positions as required.
AA
AB
AC
AA
AB
AC
AA
AB
AC
A1
AA
AB
AC
AC
AA
AB
AC
AC
NKO A05Fabia 20.book Page 92 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the
vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press button , the button symbol  lights up ⇒page 91,
fig. 81 .
Switching recirculated air mode off
– Press button again, the button symbol  goes out.
The recirculated air mode is switched of f automatically if the air distribution control is in position  ⇒page 91, fig. 81. You can also switch recirculated air mode on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Air outlet vents
Fig. 82 Air outlet vents
Open air outlet vents
– Turn the rotary knob into the upper position.
Close air outlet vents
– Turn the rotary knob into the lower position.
Redirecting air flow
– The horizontal as well as the vertic al direction of the air flow is set
with the handle in the middle of the air outlet vents.
You can set the air supply to the individual vents with the air distribution control ⇒page 91, fig. 81. Air outlet vents 3 and 4 can also be opened or closed individually.
Unwarmed or cooled air will flow out of the opened air outlet vents according to the setting of the control dial ⇒page 91, fig. 81 and according to atmos- pheric conditions.


AC
AC
AA
NKO A05Fabia 20.book Page 93 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system94

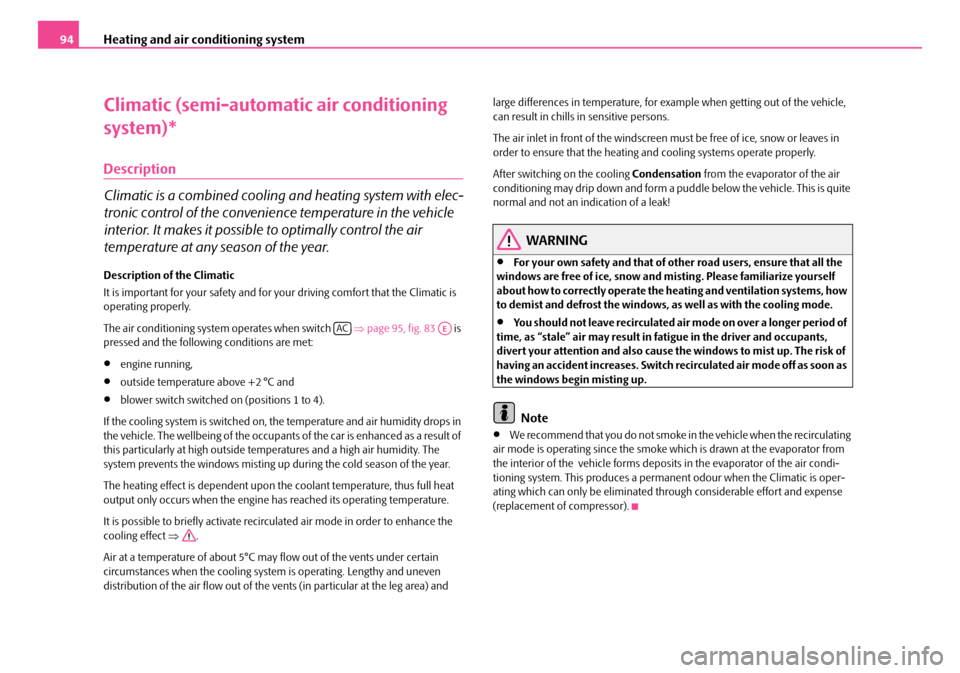

Climatic (semi-automatic air conditioning
system)*
Description
Climatic is a combined cooling and heating system with elec-
tronic control of the convenience temperature in the vehicle
interior. It makes it possible to optimally control the air
temperature at any season of the year.
Description of the Climatic
It is important for your safety and for your driving comfort that the Climatic is operating properly.
The air conditioning system operates when switch ⇒page 95, fig. 83 is pressed and the following conditions are met:
•engine running,
•outside temperature above +2 °C and
•blower switch switched on (positions 1 to 4).
If the cooling system is switched on, the temperature and air humidity drops in the vehicle. The wellbeing of the occupants of the car is enhanced as a result of this particularly at high outside temp eratures and a high air humidity. The system prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon th e coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirc ulated air mode in order to enhance the cooling effect ⇒.
Air at a temperature of about 5°C may flow out of the vents under certain circumstances when the cooling system is operating. Lengthy and uneven distribution of the air flow out of the vents (in particular at the leg area) and
large differences in temperature, for example when getting out of the vehicle, can result in chills in sensitive persons.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating an d cooling systems operate properly.
After switching on the cooling Condensation from the evaporator of the air conditioning may drip down and form a pu ddle below the vehicle. This is quite normal and not an indication of a leak!
WARNING
•For your own safety and that of other road users, ensure that all the windows are free of ice, snow and mi sting. Please familiarize yourself about how to correctly operate the he ating and ventilation systems, how to demist and defrost the windows, as well as with the cooling mode.
•You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•We recommend that you do not smoke in the vehicle when the recirculating air mode is operating since the smoke which is drawn at the evaporator from the interior of the vehicle forms deposi ts in the evaporator of the air condi- tioning system. This produces a permanent odour when the Climatic is oper- ating which can only be eliminated th rough considerable effort and expense (replacement of compressor).
ACAE
NKO A05Fabia 20.book Page 94 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Using the system
Setting temperature
– Turn the control dial ⇒fig. 83 to the right in order to increase
the temperature.
– Turn the control dial to the left in order to increase the temper-
ature.
Controlling blower
– Tur n the blo wer switch into o ne of the po sitio ns, 1 to 4, in order
to switch the blower on.
– Turn the blower switch into position 0 in order to switch the
blower off.
– Pressing button causes th e recirculating air system ⇒page 97
to be switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 97 using
air distribution regulator .
switching cooling on and off
– Press the button . The symbol  in the switch comes on.
– When you again press the swit ch , the cooling system is
switched off. The symbol  in the button is no longer illuminated.
The set temperature will be automatically maintained other than when the control dial is on the extrem e right or extreme left position:
Extreme right position - full heating.
Extreme left position - full cooling.
The controls and can be set to any desired intermediate position.
The blower should aways be on to prevent the windows from misting up.
Note
•The whole heat output will be needed to unfrost the windscreen and side windows. No warm air will be fed to the footwell. This can lead to restriction of the heating comfort.
•The used air streams out through the air removal openings in the luggage compartment.
•If the cooling system has not been switched on for a lengthy period, odours may be produced at the evaporator beca use of deposits. Switch the air condi- tioning system on at least once a month for approximately 5 minutes at the highest blower stage - also during the co ld season of the year - in order to remove such odours. Also open a window for a short time.
•Please refer to the information regarding recirculated air mode ⇒page 97.
•Have the air conditioning system cleaned by a specialist workshop.
Fig. 83 Climatic: Controls
AA
AA
AB
AB

AC
AC
AC
AAAC
NKO A05Fabia 20.book Page 95 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system96

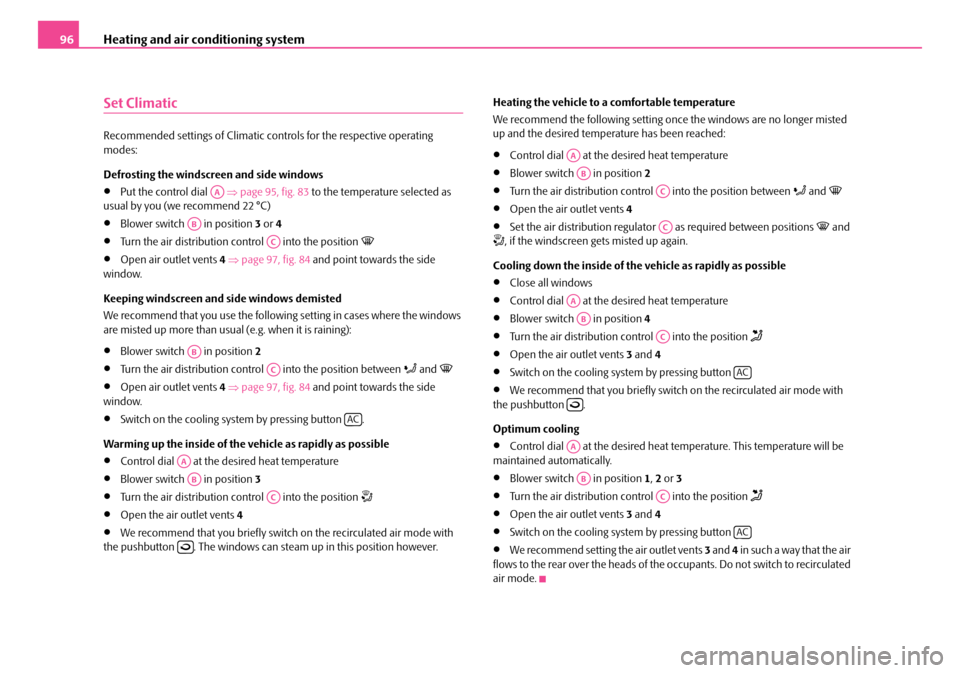

Set Climatic
Recommended settings of Climatic controls for the respective operating modes:
Defrosting the windscreen and side windows
•Put the control dial ⇒page 95, fig. 83 to the temperature selected as usual by you (we recommend 22 °C)
•Blower switch in position 3 or 4
•Turn the air distribution control into the position 
•Open air outlet vents 4 ⇒page 97, fig. 84 and point towards the side window.
Keeping windscreen and side windows demisted
We recommend that you use the following setting in cases where the windows are misted up more than usual (e.g. when it is raining):
•Blower switch in position 2
•Turn the air distribution control into the position between  and 
•Open air outlet vents 4 ⇒page 97, fig. 84 and point towards the side window.
•Switch on the cooling system by pressing button .
Warming up the inside of the vehicle as rapidly as possible
•Control dial at the desired heat temperature
•Blower switch in position 3
•Turn the air distribution control into the position 
•Open the air outlet vents 4
•We recommend that you briefly switch on the recirculated air mode with the pushbutton . The windows can stea m up in this position however.
Heating the vehicle to a comfortable temperature
We recommend the following setting once the windows are no longer misted up and the desired temperature has been reached:
•Control dial at the desired heat temperature
•Blower switch in position 2
•Turn the air distribution control into the position between  and 
•Open the air outlet vents 4
•Set the air distribution regulator as required between positions  and , if the windscreen gets misted up again.
Cooling down the inside of the vehicle as rapidly as possible
•Close all windows
•Control dial at the desired heat temperature
•Blower switch in position 4
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•Switch on the cooling system by pressing button
•We recommend that you briefly switch on the recirculated air mode with the pushbutton .
Optimum cooling
•Control dial at the desired heat te mperature. This temperature will be maintained automatically.
•Blower switch in position 1, 2 or 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•Switch on the cooling system by pressing button
•We recommend setting the air outlet vents 3 and 4 in such a way that the air flows to the rear over the heads of the oc cupants. Do not switch to recirculated air mode.
AA
AB
AC
AB
AC
AC
AA
AB
AC

AA
AB
AC
AC
AA
AB
AC
AC

AA
AB
AC
AC
NKO A05Fabia 20.book Page 96 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the
vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press switch ⇒page 95, fig. 83 the switch symbol  lights up.
Switching recirculated air mode off
– Press button again, the button symbol  goes out.
The recirculated air mode is switched of f automatically if the air distribution control is in position  ⇒page 95, fig. 83. You can also switch recirculated air mode on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Air outlet vents
Fig. 84 Air outlet vents
Open air outlet vents
– Turn the rotary knob into the upper position.
Close air outlet vents
– Turn the rotary knob into the lower position.
Redirecting air flow
– The horizontal as well as the vertic al direction of the air flow is set
with the handle in the middle of the air outlet vents.
You can set the air supply to the individual vents with the air distribution control ⇒page 95, fig. 83. Air outlet vents 3 and 4 can also be opened or closed individually:
Unwarmed or cooled air will flow out of the air outlet vents according to the setting of control dial ⇒page 95, fig. 83 and the atmospheric conditions.


AC
AC
AA
NKO A05Fabia 20.book Page 97 Tuesday, September 26, 2006 8:38 AM

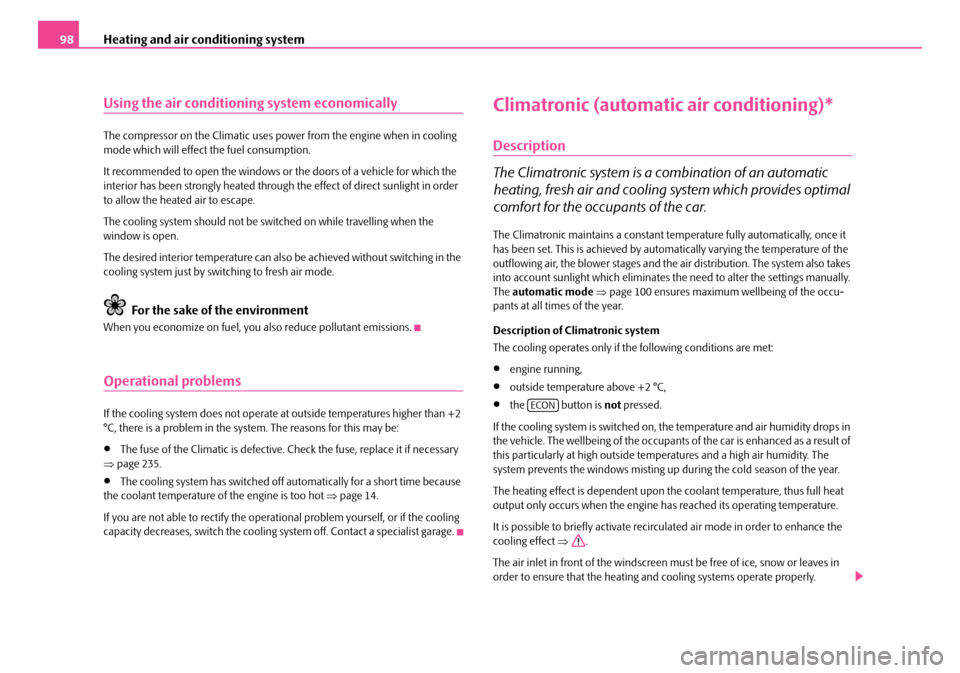

Heating and air conditioning system98
Using the air conditioning system economically
The compressor on the Climatic uses power from the engine when in cooling mode which will effect the fuel consumption.
It recommended to open the windows or the doors of a vehicle for which the interior has been strongly heated through the effect of direct sunlight in order to allow the heated air to escape.
The cooling system should not be switched on while travelling when the window is open.
The desired interior temperature can also be achieved without switching in the cooling system just by switching to fresh air mode.
For the sake of the environment
When you economize on fuel, you also reduce pollutant emissions.
Operational problems
If the cooling system does not operate at outside temperatures higher than +2 °C, there is a problem in the system. The reasons for this may be:
•The fuse of the Climatic is defective. Check the fuse, replace it if necessary ⇒ page 235.
•The cooling system has switched off automatically for a short time because the coolant temperature of the engine is too hot ⇒page 14.
If you are not able to rectify the operat ional problem yourself, or if the cooling capacity decreases, switch the cooling system off. Contact a specialist garage.
Climatronic (automatic air conditioning)*
Description
The Climatronic system is a combination of an automatic
heating, fresh air and cooling system which provides optimal
comfort for the occupants of the car.
The Climatronic maintains a constant temperature fully automatically, once it has been set. This is achieved by auto matically varying the temperature of the outflowing air, the blower stages and the air distribution. The system also takes into account sunlight which eliminates the need to alter the settings manually. The automatic mode ⇒page 100 ensures maximum wellbeing of the occu- pants at all times of the year.
Description of Climatronic system
The cooling operates only if the following conditions are met:
•engine running,
•outside temperature above +2 °C,
•the button is not pressed.
If the cooling system is switched on, the temperature and air humidity drops in the vehicle. The wellbeing of the occupants of the car is enhanced as a result of this particularly at high outside temp eratures and a high air humidity. The system prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon th e coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirculated air mode in order to enhance the cooling effect ⇒.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating an d cooling systems operate properly.
ECON
NKO A05Fabia 20.book Page 98 Tuesday, September 26, 2006 8:38 AM

Heating and air conditioning system99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The AC compressor is switched off at a high coolant temperature in order to provide cooling at a high load of the engine.
After switching on the cooling Condensation from the evaporator of the air conditioning may drip down and form a puddle below the vehicle. This is quite normal and not an indication of a leak!
Recommended setting for al l periods of the year:
•Set the temperature to 22 °C.
•Press the button ⇒fig. 85.
•Move the air outlet vents 3 and 4 so that the air flow is directed slightly upwards ⇒page 102, fig. 86.
Switching over between degrees Celsius and degrees Fahrenheit
Press and hold the buttons and ⇒fig. 85. The information in the desired temperature measuring unit appears in the display.
WARNING
•For your own safety and that of other road users, ensure that all the windows are free of ice, snow and mi sting. Please familiarize yourself about how to correctly operate the he ating and ventilation systems, how to demist and defrost the windows, as well as with the cooling mode.
•You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•If the cooling system has not been switched on for a lengthy period, odours may be produced at the evaporator be cause of deposits. Switch the cooling system on at least once a month for approximately 5 minutes at the highest
blower stage - also during the cold season of the year - in order to remove such odours. Also open a window for a short time.
•We recommend that you do not smoke in the vehicle when the recirculating air mode is operating since the smoke wh ich is drawn at the evaporator from the interior of the vehicle forms deposi ts in the evaporator of the air condi- tioning system. This produces a perman ent odour when the air conditioning system is operating which can only be eliminated through considerable effort and expense (replaceme nt of compressor).
•The used air streams out through the air removal openings in the luggage compartment.
•Using the cooling economically ⇒page 98.
•Operational problems ⇒page 98.
Overview of the control elements
Fig. 85 Climatronic: Control elements
Buttons / control dial
Setting the blower speed
AUTO
ECONAUTO
A1
NKO A05Fabia 20.book Page 99 Tuesday, September 26, 2006 8:38 AM
