Attachment points
Fitting
– Insert the attachment points of th e roof rack into the mounts of the
body so that the pins of the attachment points grasp into the holes
of the body.
Note
•Pay attention to the information regarding assembly and disassembly in the attached instructions.
•If you have any questions, plea se contact a specialist garage.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum permissible roof load (inclu ding roof rack system) of 75 kg and the maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissibl e roof load if you use a roof luggage rack system with a lower load carrying capacity. The load transported on the roof luggage rack system must not exceed the weight limit which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be reli-ably attached - risk of accident!
•You must on no account exceed the permissible roof load, the permissible axle loads and the permissi ble gross weight of your vehicle - risk of accident!
•Please note that the handling prop erties of your vehicle change when you transport heavy or bulky items on the roof bar system as a result of the displacement of the centre of gravity and the increased wind attack area - risk of accident! You must absolutely adapt your style of driving and the speed of the vehicle to the specific circumstances.

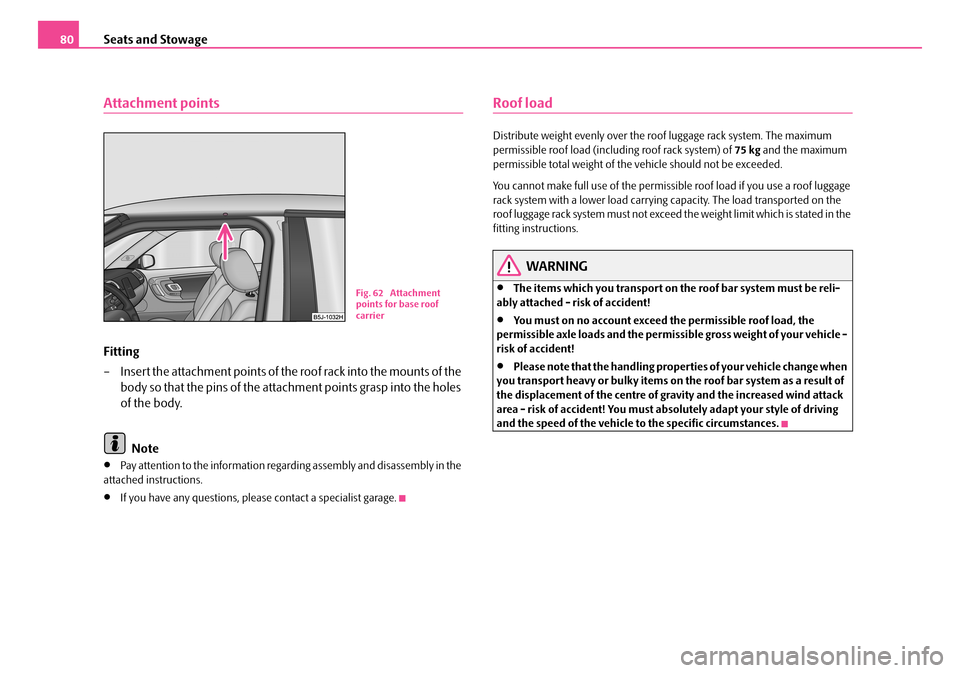

Fig. 62 Attachment points for base roof carrier
NKO A05Fabia 20.book Page 80 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage81
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Front cup holder
You can place two cups or beverage cans into the recesses ⇒fig. 63.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Rear cup holder*
You can place one cup or beverage can into the recess ⇒fig. 64.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers wh ich are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup hold er while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Fig. 63 Front centre console: Cup holderFig. 64 Centre console: Cup holder
NKO A05Fabia 20.book Page 81 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage82
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict the driver's vision.
Ashtray*

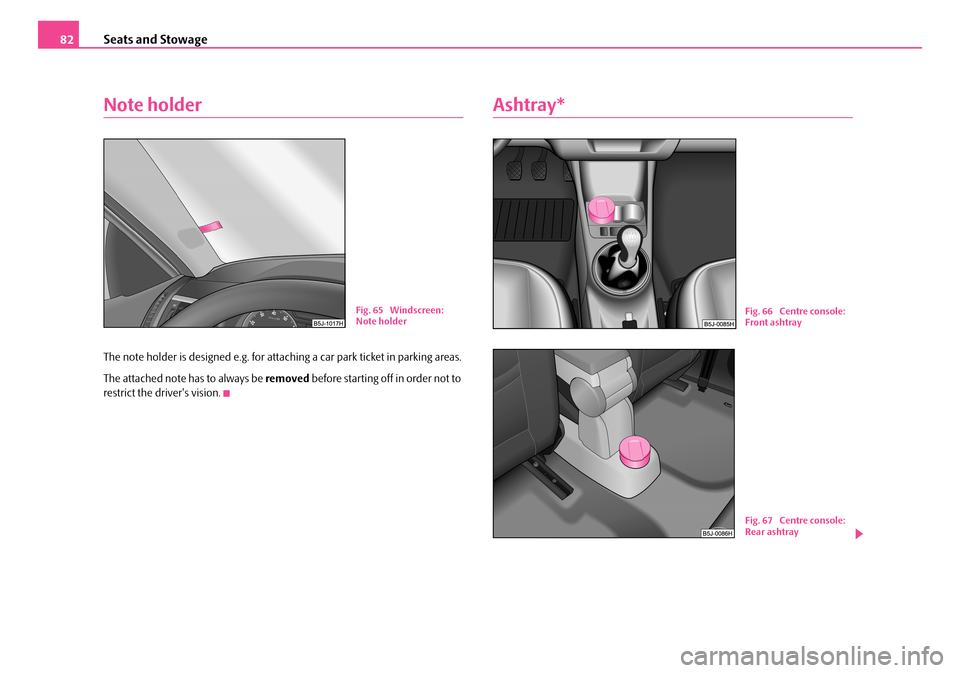

Fig. 65 Windscreen: Note holderFig. 66 Centre console: Front ashtray
Fig. 67 Centre console: Rear ashtray
NKO A05Fabia 20.book Page 82 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage83
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Removing ashtray
– Remove the ashtray ⇒fig. 66 upwards. When removing do not
hold the ashtray at the cover - risk of breakage.
Replacing ashtray
– Insert the ashtray vertically.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter* and power sockets*
Cigarette lighter
You can also use the socket on the cigarette lighter for other
electrical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 68.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
Fig. 68 Centre console: Cigarette lighter
NKO A05Fabia 20.book Page 83 Tuesday, September 26, 2006 8:38 AM

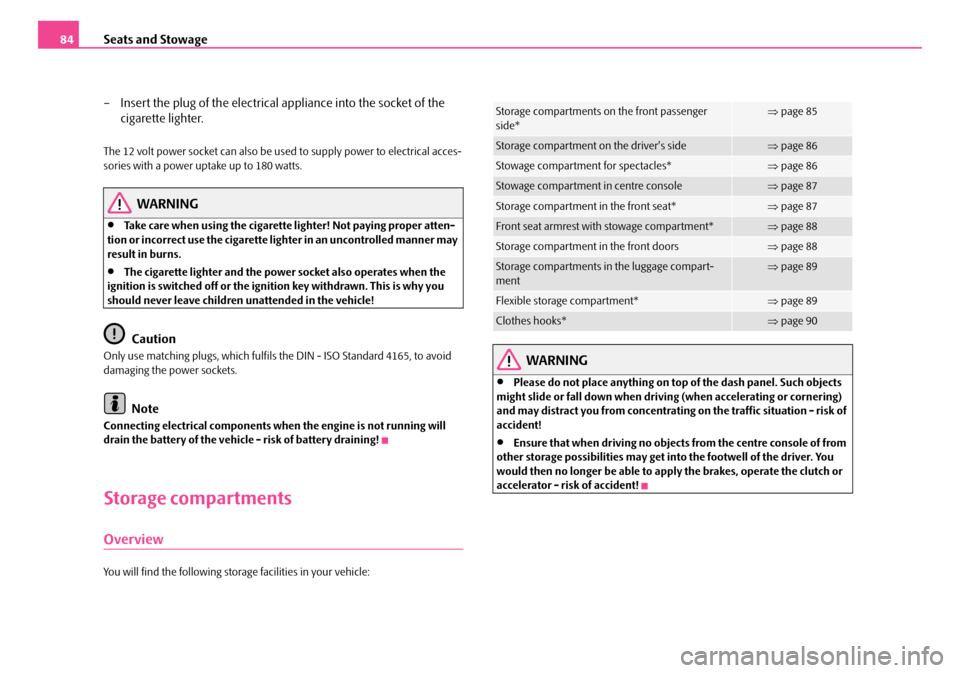

Seats and Stowage84
– Insert the plug of the electrical appliance into the socket of the
cigarette lighter.
The 12 volt power socket can also be us ed to supply power to electrical acces- sories with a power uptake up to 180 watts.
WARNING
•Take care when using the cigarette lighter! Not paying proper atten- tion or incorrect use the cigarette li ghter in an uncontrolled manner may result in burns.
•The cigarette lighter and the power socket also operates when the ignition is switched off or the ignition key withdrawn. This is why you should never leave children unattended in the vehicle!
Caution
Only use matching plugs, which fulfils the DIN - ISO Standard 4165, to avoid damaging the power sockets.
Note
Connecting electrical co mponents when the engine is not running will drain the battery of the vehicle - risk of battery draining!
Storage compartments
Overview
You will find the following stor age facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such objects might slide or fall down when driving (when accelerating or cornering) and may distract you from concentrating on the traffic situation - risk of accident!
•Ensure that when driving no objects from the centre console of from other storage possibilities may get into the footwell of the driver. You would then no longer be able to appl y the brakes, operate the clutch or accelerator - risk of accident!
Storage compartments on the front passenger side*⇒ page 85
Storage compartment on the driver's side⇒page 86
Stowage compartment for spectacles*⇒page 86
Stowage compartment in centre console⇒page 87
Storage compartment in the front seat*⇒page 87
Front seat armrest with stowage compartment*⇒page 88
Storage compartment in the front doors⇒page 88
Storage compartments in the luggage compart- ment⇒ page 89
Flexible storage compartment*⇒page 89
Clothes hooks*⇒page 90
NKO A05Fabia 20.book Page 84 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage85
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Storage compartments on the front passenger side*
Certain model versions are equipped without lid for the storage
compartments.
Opening and closing the storage compartments on the front
passenger side
– Pull or press the handle of the lid in the direction of arrow ⇒fig. 69
and fold open the lid.
– Raise the lid until it is heard to engage.
A pin holder is loca ted inside the lid.
WARNING
The storage compartment must always be closed when driving for safety reasons.
Cooling of storage compartment on front passenger side*
The storage compartment can be fitted for vehicles with an
air-conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control dial
⇒ fig. 70.
Opening the air inlet when the air conditioning system is on causes fresh or interior air to flow into the storage compartment.
The storage compartment is only cooled in the cooling mode. We recommend that you switch off the cooling (opening concealed) if it is operating in the heating mode or if you are not using the cooling system for the storage compartment.
Fig. 69 Dash panel: Storage compartments on the front passenger side
Fig. 70 Storage compartment: Using cooling system
NKO A05Fabia 20.book Page 85 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage86
Storage compartment on the driver's side
Unlockable compartment below the steering wheel on the left.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage
compartment opens downwards ⇒fig. 72.
WARNING
The storage compartment must always be closed when driving for safety reasons - risk of head injury.

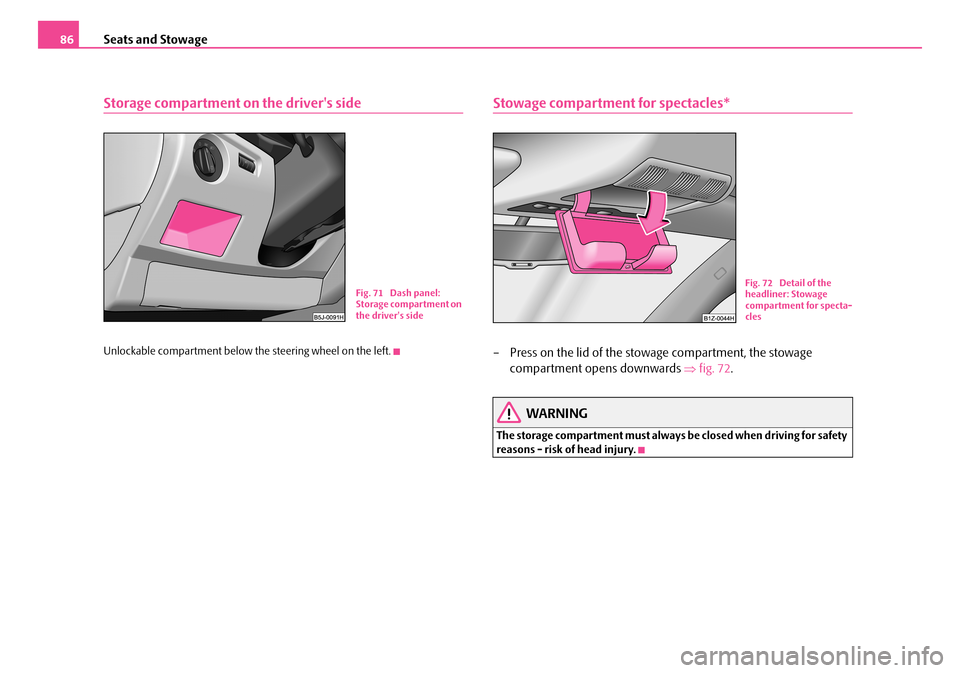

Fig. 71 Dash panel: Storage compartment on the driver's side
Fig. 72 Detail of the headliner: Stowage compartment for specta-cles
NKO A05Fabia 20.book Page 86 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Stowage compartment in centre console
Unlocable compartment in the centre console.
Storage compartment in the front seat*
The storage compartment is foreseen for storing small objects of up to
1 kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 74.
– Tilt the lock to close the flap and press flap close.
Fig. 73 Centre console: Storage compartmentFig. 74 Front seat: Storage compartment
NKO A05Fabia 20.book Page 87 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage88
Front seat armrest with storage compartment*Fold the armrest
– Press the lower button on the end face of the armrest ⇒page 88,
fig. 75 in order to fold the armrest. Fold the armrest forwards and
release the button.
Opening stowage compartment
– The armrest includes a stow age compartment. The storage
compartment is unlocked by pressing the upper button and then
can be opened to the top.
Note
The moving space of the arms can be restricted if the armrest is folded down. In city traffic the armrest sh ould not be folded down.
Storage compartment in the front doors

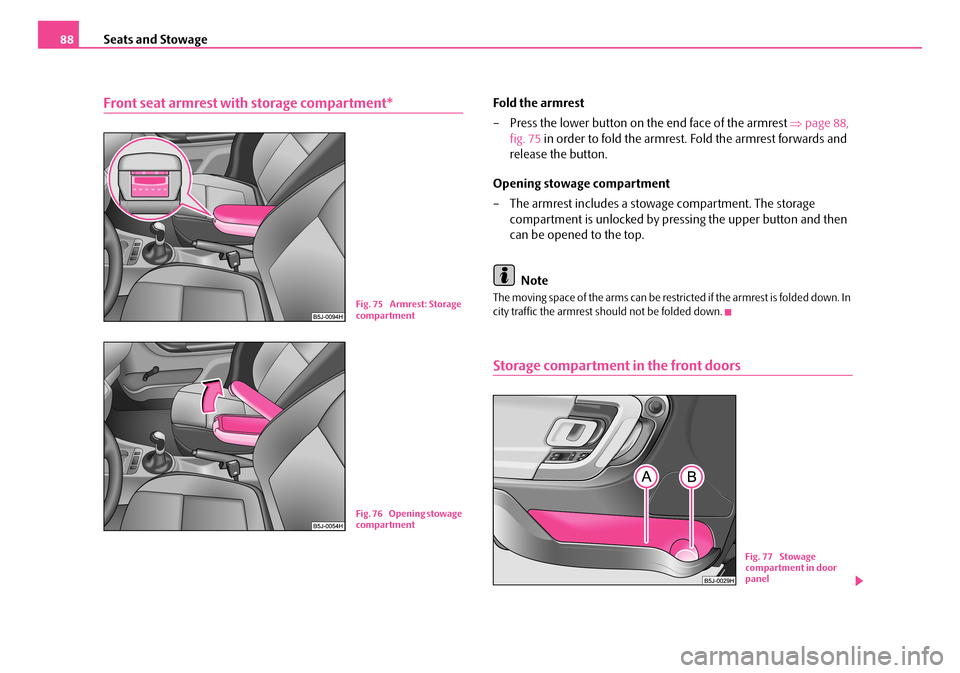

Fig. 75 Armrest: Storage compartment
