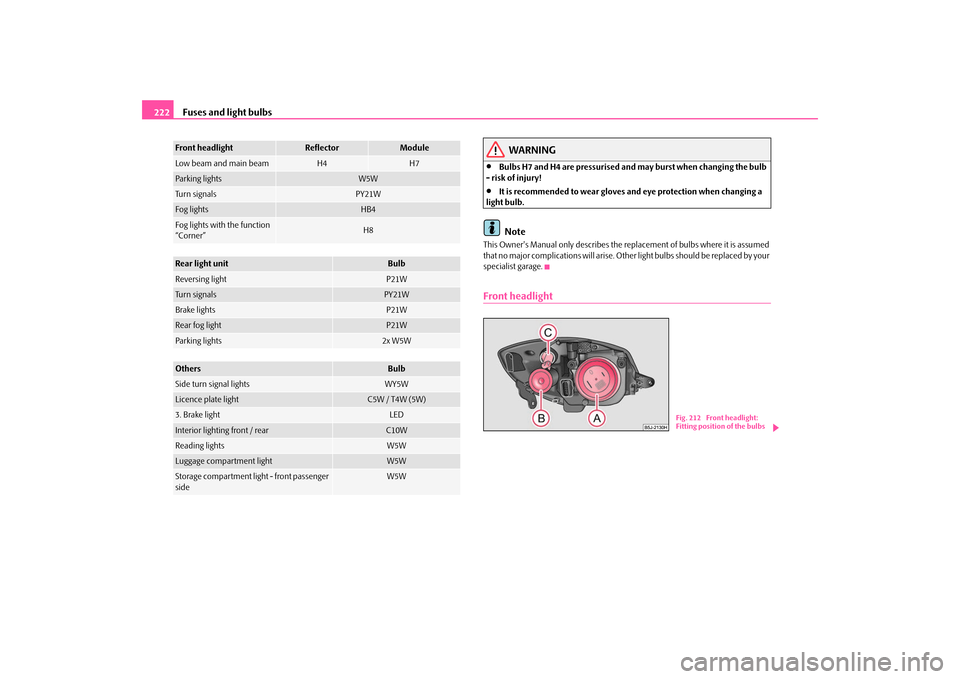

Fuses and light bulbs 222
WARNING
•
Bulbs H7 and H4 are pressurised and may burst when changing the bulb
- risk of injury!
•
It is recommended to wear gloves and eye protection when changing a
light bulb.Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be replaced by your
specialist garage.Front headlight
Front headlight
Reflector
Module
Low beam and main beam
H4
H7
Parking lights
W5W
Turn signals
PY21W
Fog lights
HB4
Fog lights with the function
“Corner”
H8
Rear light unit
Bulb
Reversing light
P21W
Turn signals
PY21W
Brake lights
P21W
Rear fog light
P21W
Parking lights
2x W5W
Others
Bulb
Side turn signal lights
WY5W
Licence plate light
C5W / T4W (5W)
3. Brake light
LED
Interior lighting front / rear
C10W
Reading lights
W5W
Luggage compartment light
W5W
Storage compartment light - front passenger
side
W5W
Fig. 212 Front headlight:
Fitting position of the bulbs
s3f4.1.book Page 222 Thursday, June 18, 2009 11:07 AM

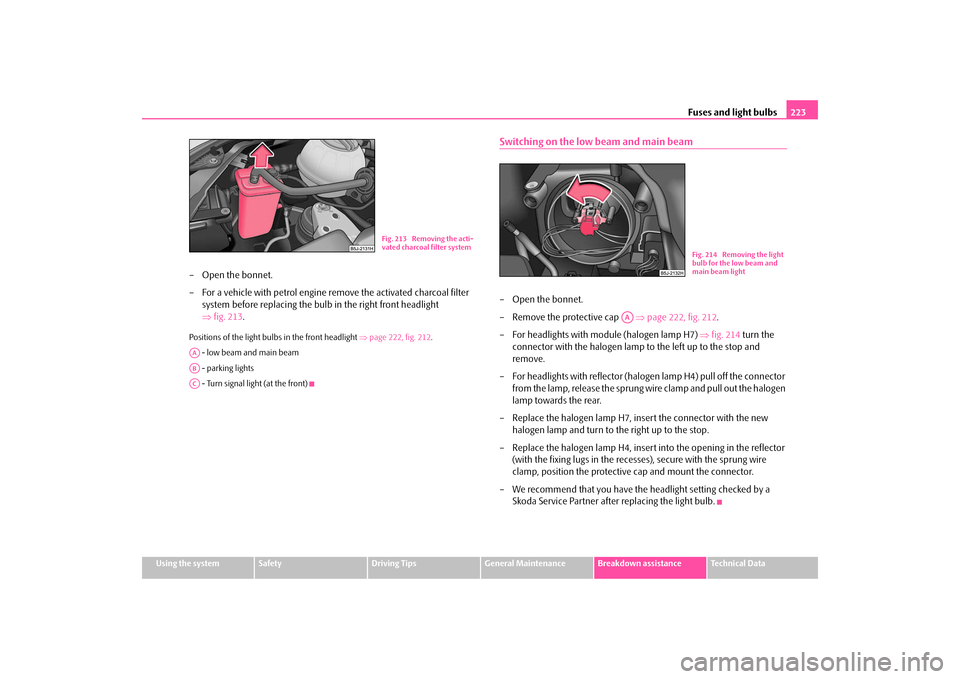

Fuses and light bulbs223
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Open the bonnet.
– For a vehicle with petrol engine remove the activated charcoal filter
system before replacing the bulb in the right front headlight
⇒fig. 213.Positions of the light bulbs in the front headlight ⇒page 222, fig. 212.
- low beam and main beam
- parking lights
- Turn signal light (at the front)
Switching on the low beam and main beam– Open the bonnet.
– Remove the protective cap ⇒page 222, fig. 212.
– For headlights with module (halogen lamp H7) ⇒fig. 214 turn the
connector with the halogen lamp to the left up to the stop and
remove.
– For headlights with reflector (halogen lamp H4) pull off the connector
from the lamp, release the sprung wire clamp and pull out the halogen
lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new
halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the reflector
(with the fixing lugs in the recesses), secure with the sprung wire
clamp, position the protective cap and mount the connector.
– We recommend that you have the headlight setting checked by a
Skoda Service Partner after replacing the light bulb.
Fig. 213 Removing the acti-
vated charcoal filter system
AAABAC
Fig. 214 Removing the light
bulb for the low beam and
main beam light
AA
s3f4.1.book Page 223 Thursday, June 18, 2009 11:07 AM

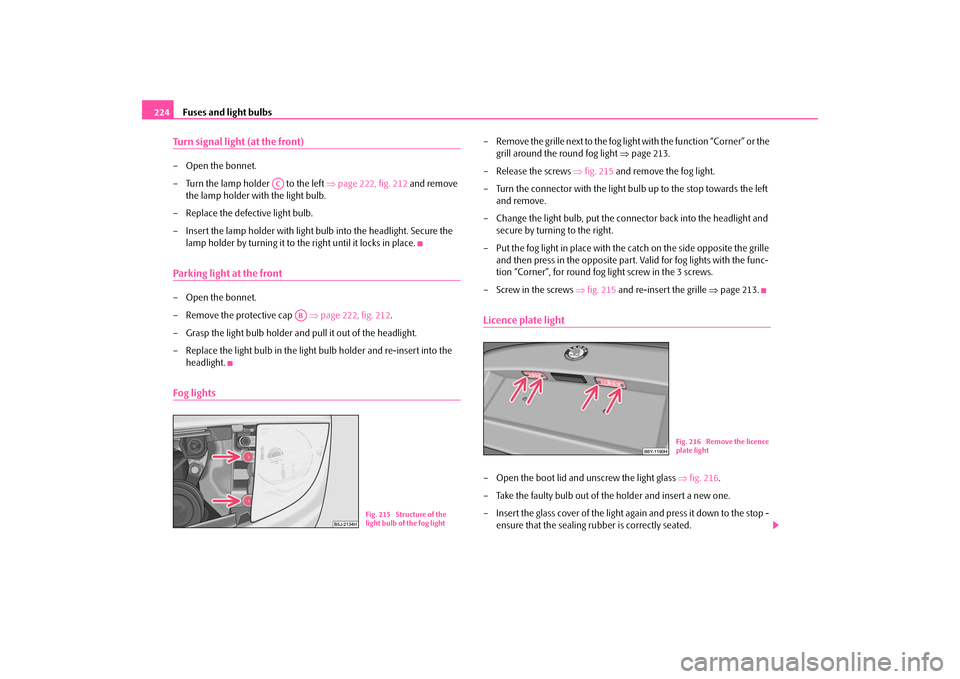

Fuses and light bulbs 224Turn signal light (at the front)– Open the bonnet.
– Turn the lamp holder to the left ⇒page 222, fig. 212 and remove
the lamp holder with the light bulb.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the
lamp holder by turning it to the right until it locks in place.Parking light at the front– Open the bonnet.
– Remove the protective cap ⇒page 222, fig. 212.
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the
headlight.Fog lights
– Remove the grille next to the fog light with the function “Corner” or the
grill around the round fog light ⇒page 213.
– Release the screws ⇒fig. 215 and remove the fog light.
– Turn the connector with the light bulb up to the stop towards the left
and remove.
– Change the light bulb, put the connector back into the headlight and
secure by turning to the right.
– Put the fog light in place with the catch on the side opposite the grille
and then press in the opposite part. Valid for fog lights with the func-
tion “Corner”, for round fog light screw in the 3 screws.
– Screw in the screws ⇒fig. 215 and re-insert the grille ⇒page 213.Licence plate light– Open the boot lid and unscrew the light glass ⇒fig. 216.
– Take the faulty bulb out of the holder and insert a new one.
– Insert the glass cover of the light again and press it down to the stop -
ensure that the sealing rubber is correctly seated.
AC
AB
Fig. 215 Structure of the
light bulb of the fog light
Fig. 216 Remove the licence
plate light
s3f4.1.book Page 224 Thursday, June 18, 2009 11:07 AM

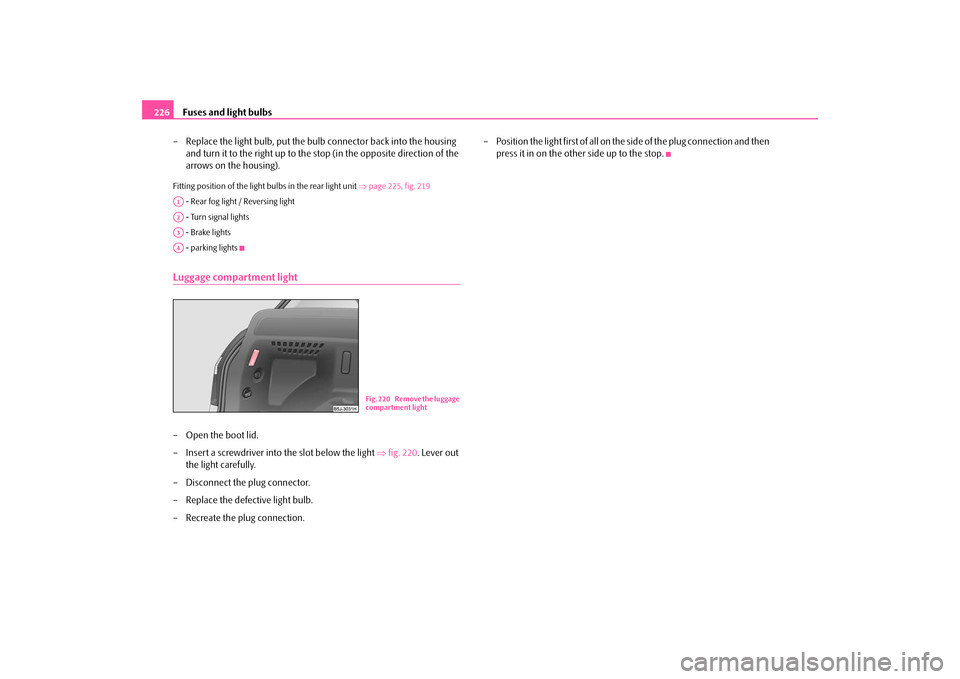

Fuses and light bulbs 226
– Replace the light bulb, put the bulb connector back into the housing
and turn it to the right up to the stop (in the opposite direction of the
arrows on the housing).Fitting position of the light bulbs in the rear light unit ⇒page 225, fig. 219
- Rear fog light / Reversing light
- Turn signal lights
- Brake lights
- parking lightsLuggage compartment light– Open the boot lid.
– Insert a screwdriver into the slot below the light ⇒fig. 220. Lever out
the light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
– Recreate the plug connection.– Position the light first of all on the side of the plug connection and then
press it in on the other side up to the stop.A1A2A3A4
Fig. 220 Remove the luggage
compartment light
s3f4.1.book Page 226 Thursday, June 18, 2009 11:07 AM

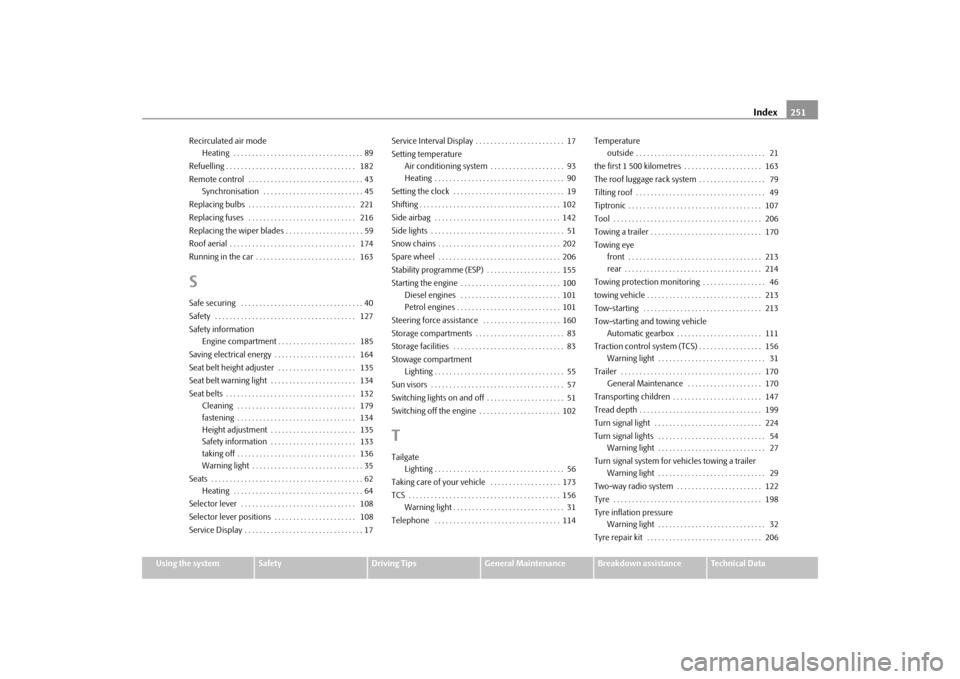

Index251
