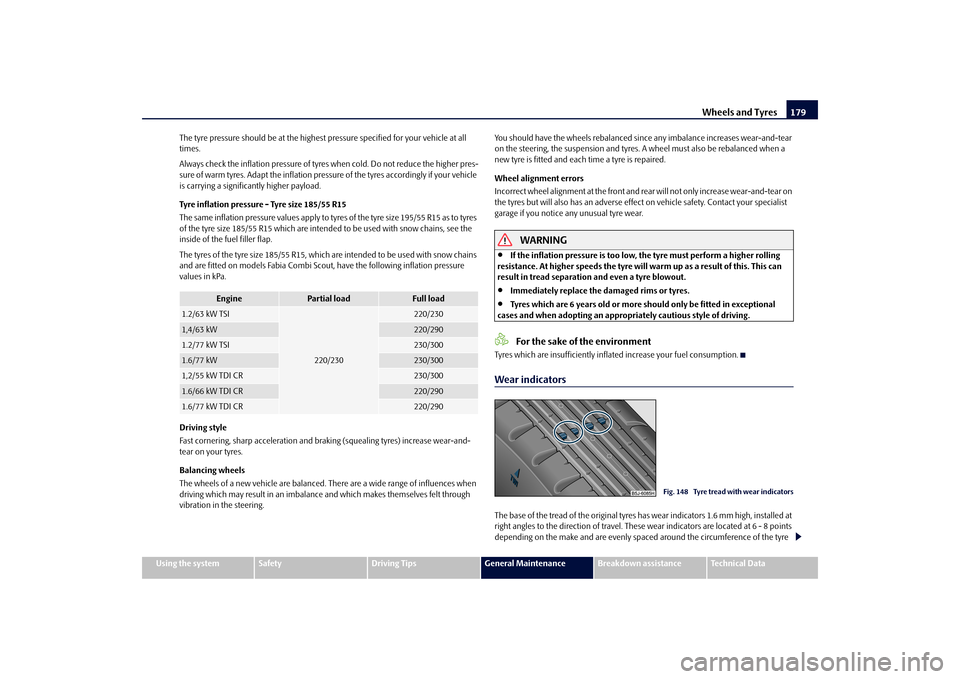

technical data SKODA FABIA 2010 2.G / 5J Owners Manual

Wheels and Tyres
179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The tyre pressure should be
at the highest pressure specified for your vehicle at all
times. Always check the inflation pressure of tyres
when cold. Do not reduce the higher pres-
sure of warm tyres. Adapt the inflation pressure of the tyres accordingly if your vehicle is carrying a significantly higher payload. Tyre inflation pressure - Tyre size 185/55 R15 The same inflation pressure values apply to ty
res of the tyre size 195/55 R15 as to tyres
of the tyre size 185/55 R15 which are intended to be used with snow chains, see the inside of the fuel filler flap. The tyres of the tyre size 185/55 R15, which are intended to be used with snow chains and are fitted on models Fabia Combi Scout, have the following inflation pressure values in kPa. Driving style Fast cornering, sharp acceleration and brak
ing (squealing tyres) increase wear-and-
tear on your tyres. Balancing wheels The wheels of a new vehicle are balanced. There are a wide range of influences when driving which may result in an imbalance
and which makes themselves felt through
vibration in the steering.
You should have the wheels rebalanced si
nce any imbalance increases wear-and-tear
on the steering, the suspension and tyres. A wheel must also be rebalanced when a new tyre is fitted and each time a tyre is repaired. Wheel alignment errors Incorrect wheel alignment at the front and rear
will not only increase wear-and-tear on
the tyres but will also has an adverse effect on vehicle safety. Contact your specialist garage if you notice any unusual tyre wear.
WARNING

If the inflation pressure is too low,
the tyre must perform a higher rolling
resistance. At higher speeds the tyre will warm up as a result of this. This can result in tread separation and even a tyre blowout.
Immediately replace the damaged rims or tyres.

Tyres which are 6 years old or more should only be fitted in exceptional
cases and when adopting an approp
riately cautious style of driving.
For the sake of the environment
Tyres which are insufficiently inflated increase your fuel consumption.Wear indicatorsThe base of the tread of the original tyres has wear indicators 1.6 mm high, installed at right angles to the direction of travel. These
wear indicators are lo
cated at 6 - 8 points
depending on the make and are evenly spaced around the circumference of the tyre
Engine
Partial load
Full load
1.2/63 kW TSI
220/230
220/230
1,4/63 kW
220/290
1.2/77 kW TSI
230/300
1.6/77 kW
230/300
1,2/55 kW TDI CR
230/300
1.6/66 kW TDI CR
220/290
1.6/77 kW TDI CR
220/290
Fig. 148 Tyre tread with wear indicators
s3j8.a.book Page 179 Tuesday, April 20, 2010 1:10 PM

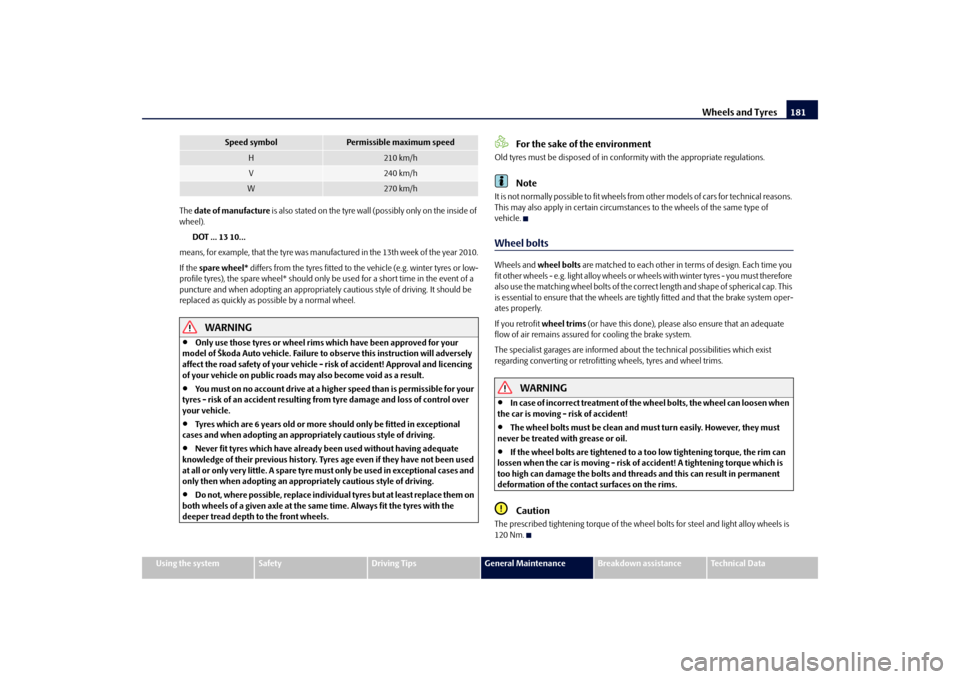

Wheels and Tyres
181
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The
date of manufacture
is also stated on the tyre wall
(possibly only on the inside of
wheel).
DOT ... 13 10...
means, for example, that the tyre was ma
nufactured in the 13th week of the year 2010.
If the
spare wheel*
differs from the tyres fitted to the vehicle (e.g. winter tyres or low-
profile tyres), the spare wheel* should only be used for a short time in the event of a puncture and when adopting an appropriately
cautious style of driving. It should be
replaced as quickly as po
ssible by a normal wheel.
WARNING

Only use those tyres or wheel rims which have been approved for your
model of Škoda Auto vehicle. Failure to observe this instruction will adversely affect the road safety of your vehicle - risk of accident! Approval and licencing of your vehicle on public roads may also become void as a result.
You must on no account drive at a high
er speed than is permissible for your
tyres - risk of an accident resulting from tyre damage and loss of control over your vehicle.
Tyres which are 6 years old or more should only be fitted in exceptional
cases and when adopting an approp
riately cautious style of driving.

Never fit tyres which have already b
een used without having adequate
knowledge of their previous history. Tyre
s age even if they have not been used
at all or only very little. A spare tyre must only be used in exceptional cases and only then when adopting an appropriately cautious style of driving.
Do not, where possible, replace individu
al tyres but at least replace them on
both wheels of a given axle at the same time. Always fit the tyres with the deeper tread depth to the front wheels.
For the sake of the environment
Old tyres must be disposed
of in conformity with
the appropriate regulations.
Note
It is not normally possible to fit wheels from
other models of cars for technical reasons.
This may also apply in certain circumstances to the wheels of the same type of vehicle.Wheel boltsWheels and
wheel bolts
are matched to each other in terms of design. Each time you
fit other wheels - e.g. light alloy wheels or wheels with winter tyres - you must therefore also use the matching wheel bolts of the corr
ect length and shape of spherical cap. This
is essential to ensure that the wheels are tightly fitted and that the brake system oper- ates properly. If you retrofit
wheel trims
(or have this done), please
also ensure that an adequate
flow of air remains assured for cooling the brake system. The specialist garages are informed about the technical possibilities which exist regarding converting or retrofitting wheels, tyres and wheel trims.
WARNING

In case of incorrect treatment of the
wheel bolts, the wheel
can loosen when
the car is moving - risk of accident!
The wheel bolts must be clean and must
turn easily. However, they must
never be treated with grease or oil.
If the wheel bolts are tightened to a too low tightening torque, the rim can
lossen when the car is moving - risk of accident! A tightening torque which is too high can damage the bolts and threads and this can result in permanent deformation of the contac
t surfaces on the rims.
Caution
The prescribed tightening torque of the wh
eel bolts for steel and light alloy wheels is
120 Nm.
H
210 km/h
V
240 km/h
W
270 km/h
Speed symbol
Permissible maximum speed
s3j8.a.book Page 181 Tuesday, April 20, 2010 1:10 PM

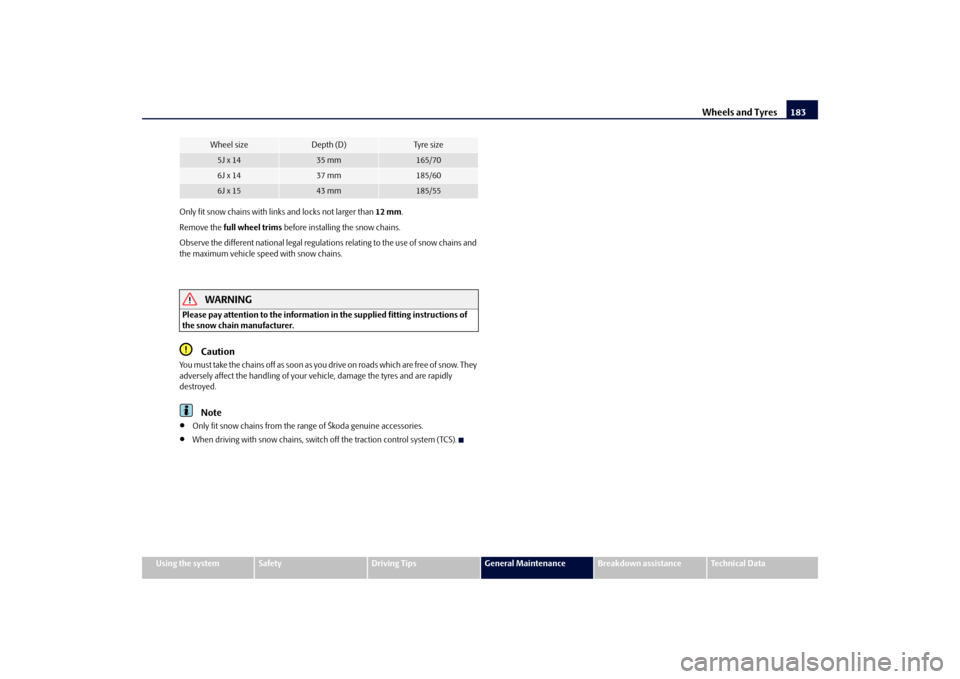

Wheels and Tyres
183
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Only fit snow chains with links and locks not larger than
12 mm
.
Remove the
full wheel trims
before installing the snow chains.
Observe the different national legal regulation
s relating to the use of snow chains and
the maximum vehicle spee
d with snow chains.
WARNING
Please pay attention to the information in the supplied fitting instructions of the snow chain manufacturer.
Caution
You must take the chains off as soon as you drive on roads which are free of snow. They adversely affect the handling of your ve
hicle, damage the tyres and are rapidly
destroyed.
Note

Only fit snow chains from the ra
nge of Škoda genui
ne accessories.

When driving with snow chains, switch off the traction control system (TCS).
Wheel size
Depth (D)
Ty re s i z e
5J x 14
35 mm
165/70
6J x 14
37 mm
185/60
6J x 15
43 mm
185/55
s3j8.a.book Page 183 Tuesday, April 20, 2010 1:10 PM

Breakdown assistance
185
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Breakdown assistanceBreakdown assistanceFirst-aid box* and Warning triangle*The first-aid box must be stored in such a
way that it is immediately ready to hand.
A warning triangle with the maximum di
mensions 39 x 68 x 450 mm
can be attached
to the trim panel of the rear wall with rubber straps
fig. 149
.
If you wish to equip your ve
hicle additionally with a warning triangle, please contact a
specialist garage.
WARNING
The first-aid box must be stored in such a way that the occupants do no suffer any injuries in the event of an emergency
braking or a collision of the vehicle.
Note
Pay attention to the use-by-date of the contents of the first-aid box.Fire extinguisher*The fire extinguisher is attached
with straps under the driver seat.
Please read carefully the instructions whic
h are attached to the fire extinguisher.
The fire extinguisher must be checked by
an authorised person or company annually
(please observe the various differing national legal requirements).
WARNING
If the fire extinguisher is
not correctly attached, in
case of sudden manoeuvres
or an accident it can be “thrown” through the interior compartment and cause injuries.
Note

The fire extinguisher must comply with
the relevant and valid legal requirements.

Pay attention to the expiration date of the fire extinguisher. If the fire extinguisher
is used after the expiration date, its
proper function is no longer assured.

The fire extinguisher is only supplied in
certain countries within the scope of
delivery.Vehicle tool kit
Fig. 149 Placing of the warning triangle
Fig. 150 Luggage compartment: storage compartment for vehicle tool kit
s3j8.a.book Page 185 Tuesday, April 20, 2010 1:10 PM

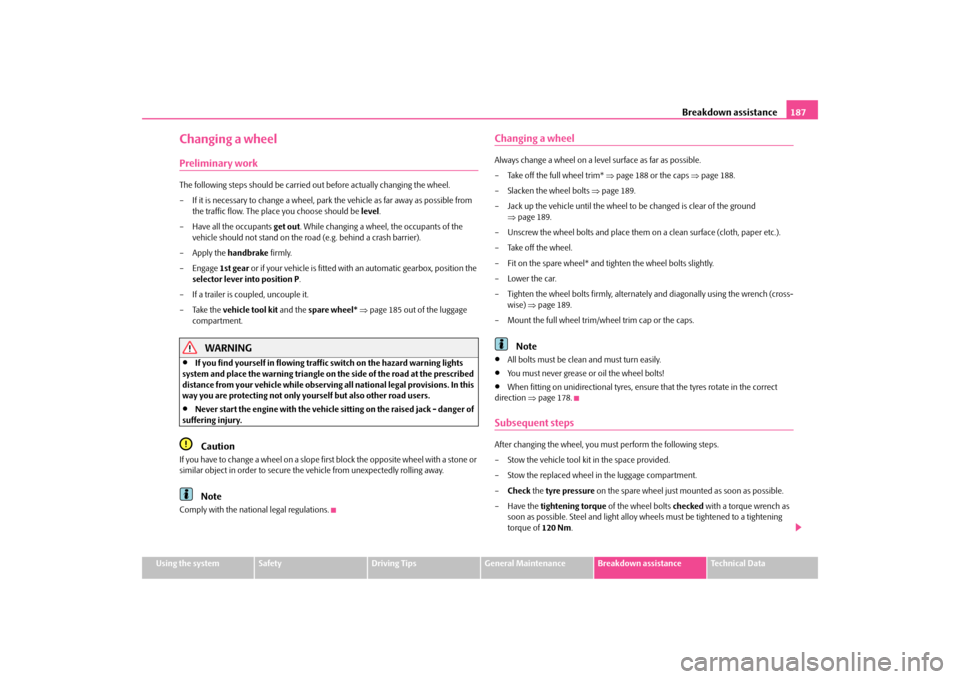

Breakdown assistance
187
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Changing a wheelPreliminary workThe following steps should be carried ou
t before actually changing the wheel.
– If it is necessary to change a wheel, park
the vehicle as far aw
ay as possible from
the traffic flow. The place you choose should be
level
.
– Have all the occupants
get out
. While changing a wheel, the occupants of the
vehicle should not stand on the ro
ad (e.g. behind a crash barrier).
– Apply the
handbrake
firmly.
–Engage
1st gear
or if your vehicle is fitted with
an automatic gearbox, position the
selector lever into position P
.
– If a trailer is coupled, uncouple it.– Take the
vehicle tool kit
and the
spare wheel*
page 185 out of the luggage
compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on
the side of the road at the prescribed
distance from your vehicle while observing all national legal provisions. In this way you are protecting not only yourself but also other road users.
Never start the engine with the vehicle si
tting on the raised
jack - danger of
suffering injury.
Caution
If you have to change a wheel on a slope first block the opposite wheel with a stone or similar object in order to secure the
vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.
Changing a wheelAlways change a wheel on a level surface as far as possible. – Take off the full wheel trim*
page 188 or the caps
page 188.
– Slacken the wheel bolts
page 189.
– Jack up the vehicle until the wheel to
be changed is clear of the ground
 page 189.
– Unscrew the wheel bolts and place them
on a clean surface (cloth, paper etc.).
– Take off the wheel.– Fit on the spare wheel* and tighten the wheel bolts slightly.– Lower the car.– Tighten the wheel bolts firmly, alternatel
y and diagonally using the wrench (cross-
wise)
page 189.
– Mount the full wheel trim/wheel trim cap or the caps.
Note

All bolts must be clean and must turn easily.

You must never grease or oil the wheel bolts!

When fitting on unidirectiona
l tyres, ensure that the tyres rotate in the correct
direction
page 178.
Subsequent stepsAfter changing the wheel, you mu
st perform the following steps.
– Stow the vehicle tool kit in the space provided.– Stow the replaced wheel in the luggage compartment.–
Check
the
tyre pressure
on the spare wheel just mounted as soon as possible.
– Have the
tightening torque
of the wheel bolts
checked
with a torque wrench as
soon as possible. Steel and light alloy wheels must be tightened to a tightening torque of
120 Nm
.
s3j8.a.book Page 187 Tuesday, April 20, 2010 1:10 PM

Breakdown assistance
189
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Slackening and tightening wheel bolts Slacken the wheel bolts befo
re jacking up the vehicle.
Slackening wheel bolts– Insert the wheel wrench fully onto the wheel bolt
13).
– Grasp the end of the wrench and turn the bolt about
one
turn to the left
fig. 154
.
Tightening wheel bolts– Insert the wheel wrench fully onto the wheel bolt
13).
– Grasp the end of the wrench and turn the bolt to the right until it is tight.
WARNING
Slacken the wheel bolts only a little (abo
ut one turn) as long as the vehicle has
not yet been jacked up - risk of an accident!
Note

Apply pressure carefully with your
foot
to the e nd of the wrench if it prove s d iff icult
to slacken the bolts. Hold tight on the vehicl
e when doing this and ensure that you have
a steady position.
Raise vehicle You have to raise the vehicle with a lifting jack in order to be able to take off the wheel.– Position the lifting jack by selecting the ja
cking point - engraving in the lower sill -
which is closest to the wheel to be removed
fig. 155
.
– Position the lifting jack below the jacking
point and move it up until its claw is posi-
tioned directly below the vertical web of the lower sill.
– Align the lifting jack so that its claw grasps the vertical web on the engraving of the
lower sill and the bottom ba
se plate of the lifting jack is resting flat with its
complete surface against firm ground.
– Turn the lifting jack up further until
the wheel is just clear of the ground.
Ground below the lifting jack which is soft and slippery
can cause the vehicle to slip
off the jack. It is therefore always necessary
to place the lifting jack on a solid surface
or use a wide and stable base. Use a non-sl
ip base (e.g. a rubber foot mat) if the
surface is smooth
, such as cobbled stones, a tiled floor, etc.
WARNING

Always raise the vehicle with the doors closed - risk of injury.

Take suitable measures to prevent the ba
se of the lifting jack from slipping
off - risk of injury!
Place the lifting ja
ck only on a soli
d and even surface.
13)Use the appropriate adapter for slackening and tightening the safety wheel bolts
page 190.
Fig. 154 Changing a wheel: Slackening wheel bolts
Fig. 155 Changing a wheel: Jacking points for positioning lifting jack
AA
AB
s3j8.a.book Page 189 Tuesday, April 20, 2010 1:10 PM

Breakdown assistance
191
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

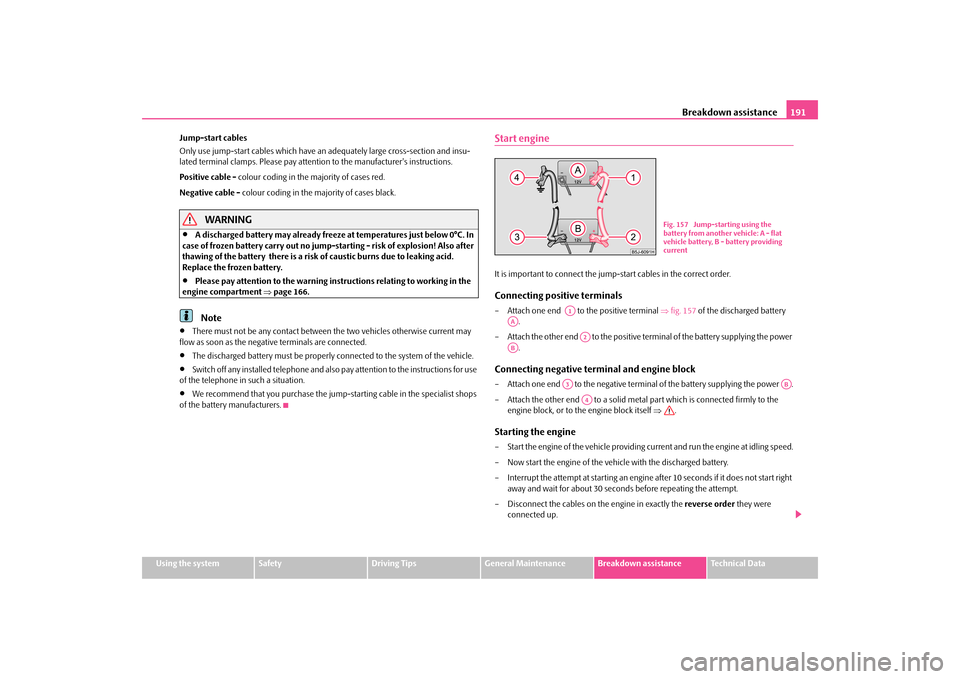

Jump-start cables Only use jump-start cables which have an
adequately large cross-section and insu-
lated terminal clamps. Plea
se pay attention to the manufacturer's instructions.
Positive cable -
colour coding in the
majority of cases red.
Negative cable -
colour coding in the
majority of cases black.
WARNING

A discharged battery may already freeze
at temperatures just below 0°C. In
case of frozen battery carry out no jump-starting - risk of explosion! Also after thawing of the battery there is a risk
of caustic burns due to leaking acid.
Replace the frozen battery.
Please pay attention to the warning instructions relating to working in the
engine compartment
page 166.
Note

There must not be any contact between
the two vehicles otherwise current may
flow as soon as the negati
ve terminals are connected.

The discharged battery must be properly
connected to the system of the vehicle.

Switch off any installed telephone and also pay attention to the instructions for use
of the telephone in such a situation.
We recommend that you purchase the jump-starting cable in the specialist shops
of the battery manufacturers.
Start engineIt is important to connect the jump-start cables in the correct order.Connecting positive terminals– Attach one end to the positive terminal
fig. 157
of the discharged battery
.
– Attach the other end to the positive te
rminal of the battery supplying the power
.
Connecting negative term
inal and engine block
– Attach one end to the negative termin
al of the battery supplying the power .
– Attach the other end to a solid metal
part which is connected firmly to the
engine block, or to the engine block itself

.
Starting the engine– Start the engine of the vehicle providing
current and run the engine at idling speed.
– Now start the engine of the vehicle with the discharged battery. – Interrupt the attempt at starting an engine after 10 seconds if it does not start right
away and wait for about 30 seconds before repeating the attempt.
– Disconnect the cables on the engine in exactly the
reverse order
they were
connected up.
Fig. 157 Jump-starting using the battery from another vehicle: A - flat vehicle battery, B - battery providing current
A1
AA
A2
AB
A3
AB
A4
s3j8.a.book Page 191 Tuesday, April 20, 2010 1:10 PM

Breakdown assistance
193
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

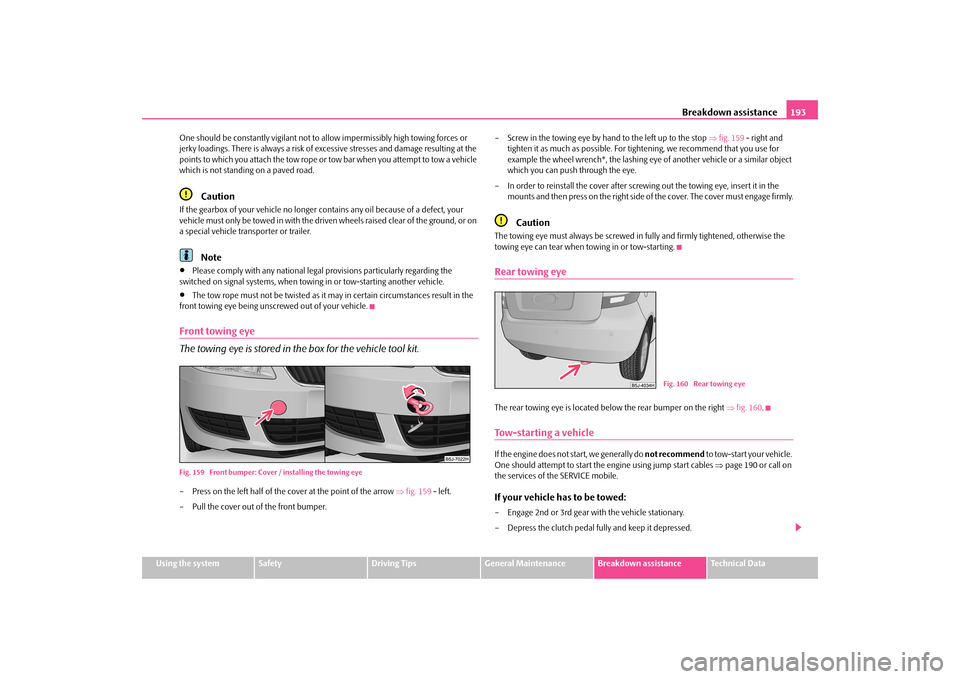

One should be constantly vigi
lant not to allow impermissi
bly high towing forces or
jerky loadings. There is always a risk of excessive stresses and damage resulting at the points to which you attach the tow rope or
tow bar when you attempt to tow a vehicle
which is not standing on a paved road.
Caution
If the gearbox of your vehicle no longer
contains any oil because of a defect, your
vehicle must only be towed in with the driven wheels raised clear of the ground, or on a special vehicle transporter or trailer.
Note

Please comply with any national legal provisions particularly regarding the
switched on signal systems, when towi
ng in or tow-starting another vehicle.

The tow rope must not be twisted as it ma
y in certain circumstances result in the
front towing eye being unscrewed out of your vehicle.Front towing eye The towing eye is stored in the box for the vehicle tool kit.Fig. 159 Front bumper: Cover
/ installing the towing eye
– Press on the left half of the cover at the point of the arrow
fig. 159
- left.
– Pull the cover out of the front bumper.
– Screw in the towing eye by hand to the left up to the stop
fig. 159
- right and
tighten it as much as po
ssible. For tightening, we
recommend that you use for
example the wheel wrench*, the lashing eye of another vehicle or a similar object which you can push through the eye.
– In order to reinstall the cover after screwing out the towing eye, insert it in the
mounts and then press on the right side of the cover. The cover must engage firmly.Caution
The towing eye must always be screwed in
fully and firmly tightened, otherwise the
towing eye can tear when towing in or tow-starting.Rear towing eyeThe rear towing eye is located below the rear bumper on the right
fig. 160
.
Tow-starting a vehicleIf the engine does not start, we generally do
not
recommend
to tow-start your vehicle.
One should attempt to start the engine using jump start cables
page 190 or call on
the services of the SERVICE mobile.If your vehicle has to be towed:– Engage 2nd or 3rd gear with the vehicle stationary. – Depress the clutch pedal fu
lly and keep it depressed.
Fig. 160 Rear towing eye
s3j8.a.book Page 193 Tuesday, April 20, 2010 1:10 PM

Fuses and light bulbs
195
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuses and light bulbsElectric fusesReplacing fuses in the dash panel Defect fuses must be replaced.Individual electrical circuits are protected by
fuses. The fuses are located on the left
side of the dash panel behind the safety cover. – Switch the ignition off and also the electrical component affected.– Carefully swivel the cover in the direction of arrow and pull it out
fig. 161
.
– Find out which fuse belongs to th
e component which is not operating
page 196,
“Fuse assignment in
the dash panel”.
– Take the plastic clip out of it
s fixture in the fuse cover, insert it onto the respective
fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse
by a new fuse of the
same
ampere number.
– Insert the fuse cover into the dash pane
l in such a way that the guide lugs are
guided into the openings of the dash
panel and then lock them by pressing.
We recommend that you always have repl
acement fuses in your vehicle. You can
obtain replacement fuses from the range of
Škoda original parts or from a specialist
garage
14).
Colour coding of fuses
Caution

Never attempt to “repair” fuses and also do
not replace them with a fuse of a higher
amperage - risk of fire! This may also caus
e damage at another part of the electrical
system.
Have the electrical system checked as quickly as possible by a specialist garage if a
newly inserted fuse blows again after a short time.
Note
We recommend that you have these fuse
s replaced by a specialist garage.
Fig. 161 Bottom side of the dash panel: Fuse cover
14)The small box with replacement fuses is part of
the basic equipping of th
e vehicle in some coun-
tries.
Colour
Maximum amperage
light brown
5
brown
7,5
red
10
blue
15
yellow
20
white
25
green
30
s3j8.a.book Page 195 Tuesday, April 20, 2010 1:10 PM

Fuses and light bulbs
197
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

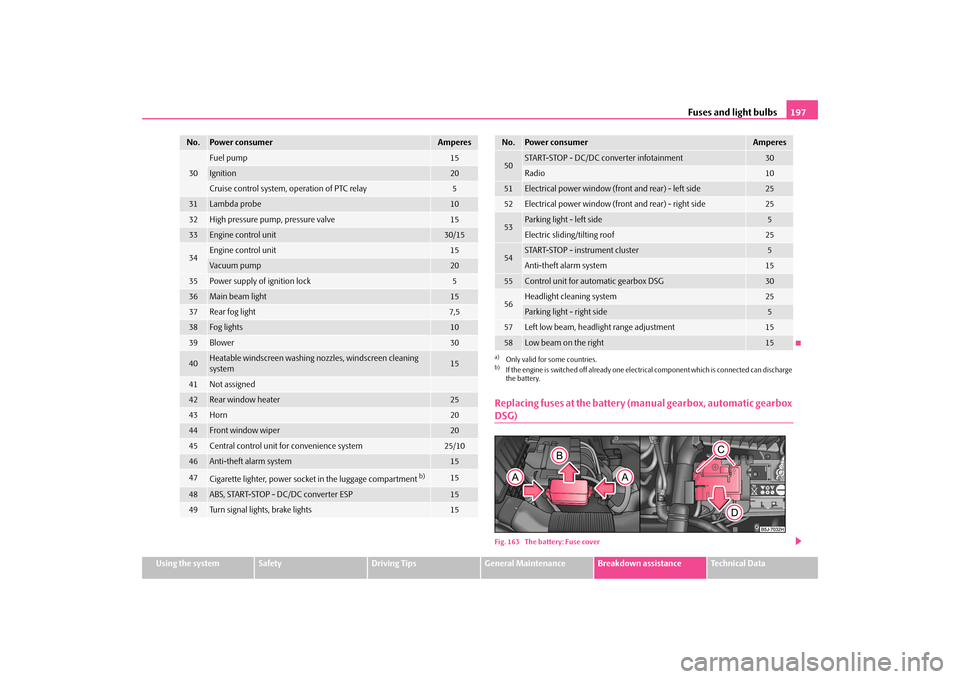

Replacing fuses at the battery (manual gearbox, automatic gearbox DSG)Fig. 163 The battery: Fuse cover
30
Fuel pump
15
Ignition
20
Cruise control system, operation of PTC relay
5
31
Lambda probe
10
32
High pressure pump, pressure valve
15
33
Engine control unit
30/15
34
Engine control unit
15
Vacuum pump
20
35
Power supply of ignition lock
5
36
Main beam light
15
37
Rear fog light
7,5
38
Fog lights
10
39
Blower
30
40
Heatable windscreen washing no
zzles, windscreen cleaning
system
15
41
Not assigned
42
Rear window heater
25
43
Horn
20
44
Front window wiper
20
45
Central control unit fo
r convenience system
25/10
46
Anti-theft alarm system
15
47
Cigarette lighter, power socket in the luggage compartment
b)
15
48
ABS, START-STOP - DC/DC converter ESP
15
49
Turn signal lights, brake lights
15
No.
Power consumer
Amperes
50
START-STOP - DC/DC converter infotainment
30
Radio
10
51
Electrical power window (front and rear) - left side
25
52
Electrical power window (front and rear) - right side
25
53
Parking light - left side
5
Electric sliding/tilting roof
25
54
START-STOP - instrument cluster
5
Anti-theft alarm system
15
55
Control unit for automatic gearbox DSG
30
56
Headlight cleaning system
25
Parking light - right side
5
57
Left low beam, headlight range adjustment
15
58
Low beam on the right
15
a)Only valid for some countries.b)If the engine is switched off already one electr
ical component which is
connected can discharge
the battery.No.
Power consumer
Amperes
s3j8.a.book Page 197 Tuesday, April 20, 2010 1:10 PM
