technical data SKODA FABIA 2010 2.G / 5J Owner's Manual

Fuses and light bulbs
199
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

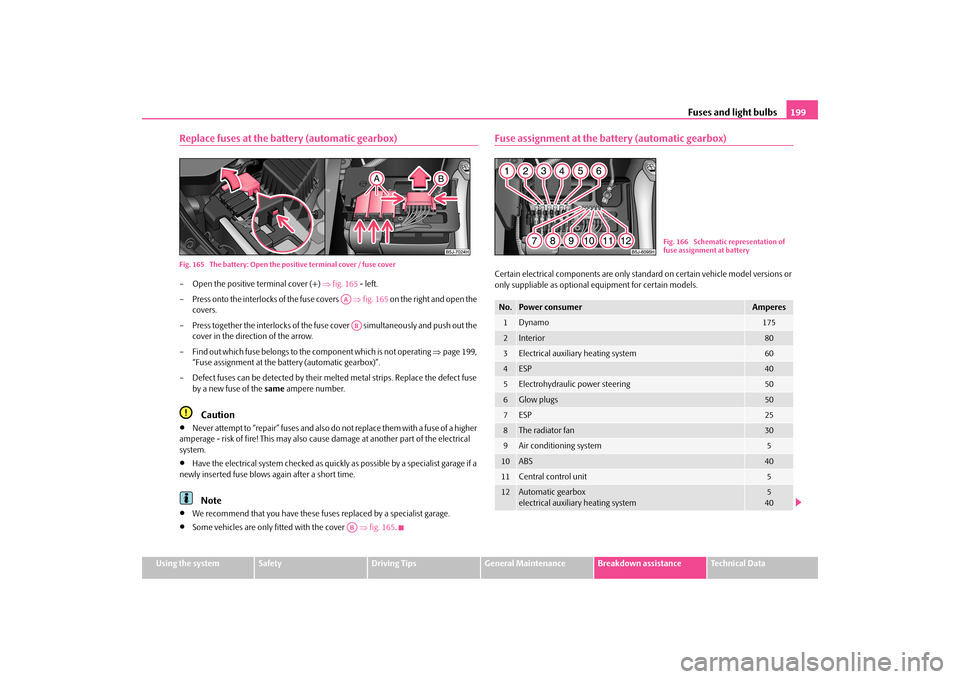

Replace fuses at the battery (automatic gearbox)Fig. 165 The battery: Open the posi
tive terminal cover / fuse cover
– Open the positive terminal cover (+)
fig. 165
- left.
– Press onto the interlocks of the fuse covers
fig. 165
on the right and open the
covers.
– Press together the interlocks of the fuse
cover simultaneously and push out the
cover in the direction of the arrow.
– Find out which fuse belongs to th
e component which is not operating
page 199,
“Fuse assignment at the ba
ttery (automatic gearbox)”.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse
by a new fuse of the
same
ampere number.
Caution

Never attempt to “repair” fuses and also do
not replace them with a fuse of a higher
amperage - risk of fire! This
may also cause damage at an
other part of the electrical
system.
Have the electrical system checked as quickl
y as possible by a specialist garage if a
newly inserted fuse blows again after a short time.
Note

We recommend that you have these fuse
s replaced by a specialist garage.

Some vehicles are only fitted with the cover
fig. 165
.
Fuse assignment at the battery (automatic gearbox)Certain electrical components are only stan
dard on certain vehicl
e model versions or
only suppliable as optional
equipment for certain models.
AAABAB
No.
Power consumer
Amperes
1
Dynamo
175
2
Interior
80
3
Electrical auxiliary heating system
60
4
ESP
40
5
Electrohydraulic power steering
50
6
Glow plugs
50
7
ESP
25
8
The radiator fan
30
9
Air conditioning system
5
10
ABS
40
11
Central control unit
5
12
Automatic gearbox electrical auxiliary heating system
540
Fig. 166 Schematic representation of fuse assignment at battery
s3j8.a.book Page 199 Tuesday, April 20, 2010 1:10 PM

Fuses and light bulbs
201
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

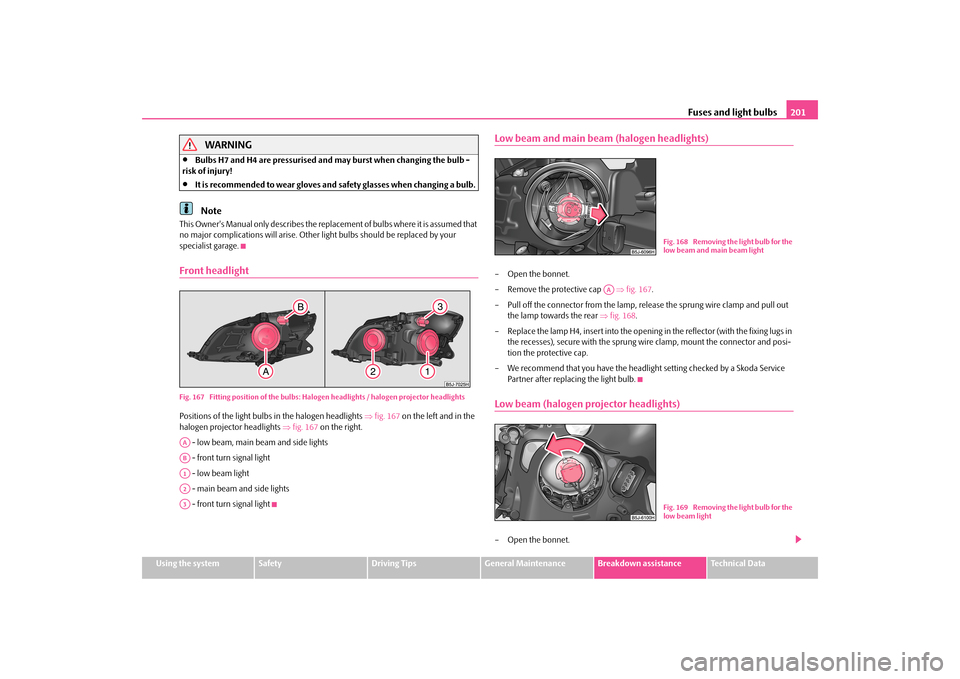

WARNING

Bulbs H7 and H4 are pressurised and
may burst when changing the bulb -
risk of injury!
It is recommended to wear gloves and
safety glasses when changing a bulb.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed that no major complications will
arise. Other light bulbs should be replaced by your
specialist garage.Front headlightFig. 167 Fitting position of the bulbs: Halo
gen headlights / halogen projector headlights
Positions of the light bulbs in the halogen headlights
fig. 167
on the left and in the
halogen projector headlights
fig. 167
on the right.
- low beam, main beam and side lights - front turn signal light - low beam light - main beam and side lights - front turn signal light
Low beam and main beam (halogen headlights)– Open the bonnet.– Remove the protective cap
fig. 167
.
– Pull off the connector from the lamp, rele
ase the sprung wire clamp and pull out
the lamp towards the rear
fig. 168
.
– Replace the lamp H4, insert into the opening in the reflector (with the fixing lugs in
the recesses), secure with the sprung wi
re clamp, mount the connector and posi-
tion the protective cap.
– We recommend that you have the headli
ght setting checked by a Skoda Service
Partner after replacing the light bulb.
Low beam (halogen projector headlights)– Open the bonnet.
AAABA1A2A3
Fig. 168 Removing the light bulb for the low beam and main beam light
AA
Fig. 169 Removing the light bulb for the low beam light
s3j8.a.book Page 201 Tuesday, April 20, 2010 1:10 PM

Fuses and light bulbs
203
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

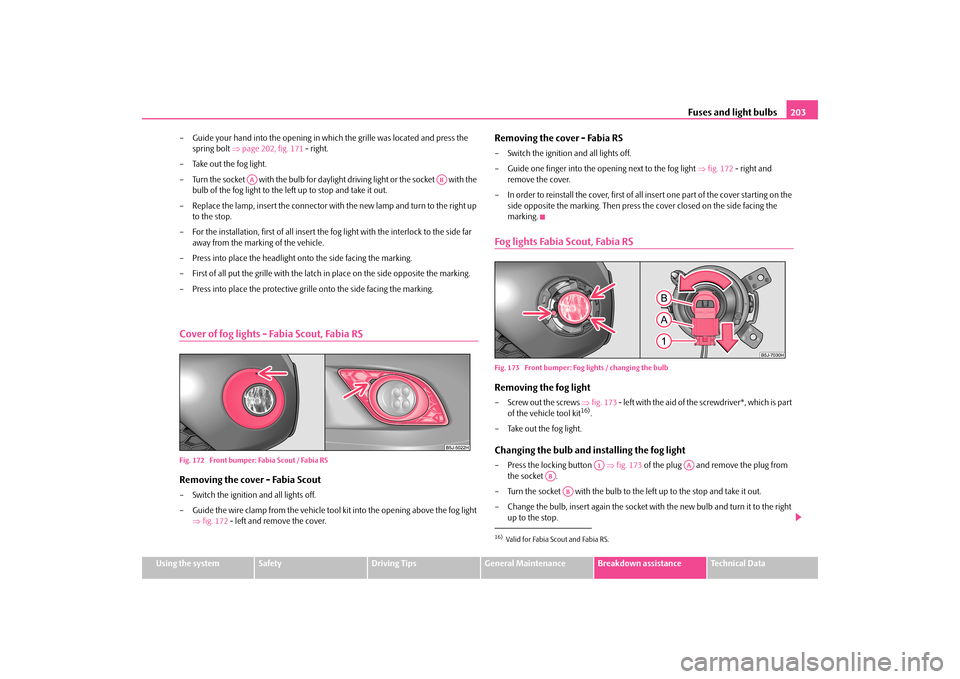

– Guide your hand into the opening in wh
ich the grille was located and press the
spring bolt
page 202, fig. 171
- right.
– Take out the fog light.– Turn the socket with the bulb for daylight driving light or the socket with the
bulb of the fog light to the left up to stop and take it out.
– Replace the lamp, insert the connector with
the new lamp and turn to the right up
to the stop.
– For the installation, first of all insert the
fog light with the interlock to the side far
away from the marking of the vehicle.
– Press into place the headlight onto the side facing the marking.– First of all put the grille with the latch
in place on the side opposite the marking.
– Press into place the protective grille onto the side facing the marking.Cover of fog lights - Fabia Scout, Fabia RSFig. 172 Front bumper: Fabia Scout / Fabia RSRemoving the cover - Fabia Scout– Switch the ignition and all lights off.– Guide the wire clamp from the vehicle tool
kit into the opening above the fog light
 fig. 172
- left and remove the cover.
Removing the cover - Fabia RS– Switch the ignition and all lights off. – Guide one finger into the opening next to the fog light
fig. 172
- right and
remove the cover.
– In order to reinstall the cover, first of all insert one part of the cover starting on the
side opposite the marking. Then press th
e cover closed on the side facing the
marking.
Fog lights Fabia Scout, Fabia RSFig. 173 Front bumper: Fog
lights / changing the bulb
Removing the fog light–Screw out the screws
fig. 173
- left with the aid of the screwdriver*, which is part
of the vehicle tool kit
16).
– Take out the fog light.Changing the bulb and installing the fog light– Press the locking button
fig. 173
of the plug and remove the plug from
the socket .
– Turn the socket with the bulb to the left up to the stop and take it out.– Change the bulb, insert again the socket wi
th the new bulb and turn it to the right
up to the stop.
AA
AB
16)Valid for Fabia Scout and Fabia RS.
A1
AA
AB
AB
s3j8.a.book Page 203 Tuesday, April 20, 2010 1:10 PM

Fuses and light bulbs
205
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

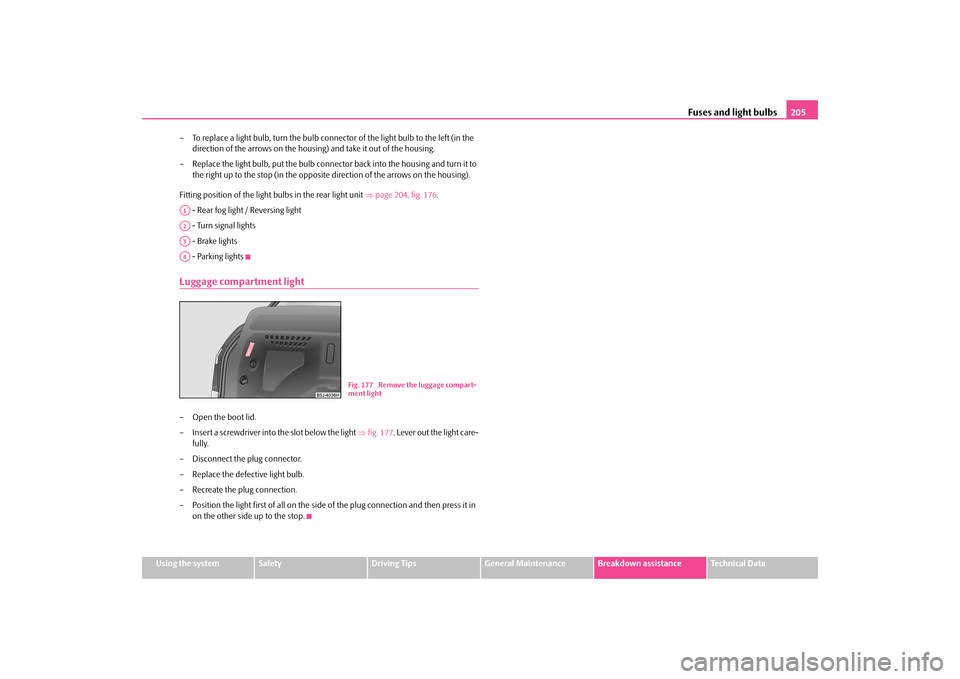

– To replace a light bulb, turn the bulb connector of the light bulb to the left (in the
direction of the arrows on the hous
ing) and take it out of the housing.
– Replace the light bulb, put the bulb connect
or back into the housing and turn it to
the right up to the stop (in the opposite
direction of the arrows on the housing).
Fitting position of the light
bulbs in the rear light unit
page 204, fig. 176
.
- Rear fog light / Reversing light - Turn signal lights - Brake lights - Parking lightsLuggage compartment light– Open the boot lid.– Insert a screwdriver into the slot below the light
fig. 177
. Lever out the light care-
fully.
– Disconnect the plug connector. – Replace the defective light bulb.– Recreate the plug connection.– Position the light first of all on the side
of the plug connection and then press it in
on the other side up to the stop.
A1A2A3A4
Fig. 177 Remove the luggage compart- ment light
s3j8.a.book Page 205 Tuesday, April 20, 2010 1:10 PM

Technical Data
207
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Te c h n i c a l D a t aTechnical DataGeneral informationThe details given in the official vehicle regi
stration documents always take precedence
over the details in the Owner's Manual. Please refer to the official vehicle registration documents or consult a specialist garage
concerning the engine with which your
vehicle is equipped.Used abbreviations
PerformancesThe listed performance values were de
termined without performance-reducing
equipment, e.g. air
conditioning system.
WeightThe loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fuel tank topped up to 90%. The listed value and the value of the loading capacity
also include a weight of 75 kg for the driver.
Identification detailsVehicle data sticker The vehicle data sticker
fig. 178
is located on the floor of the luggage compartment
and is also stated in the Service schedule. The vehicle data sticker co
ntains the following data:
Vehicle identification number (VIN) Vehicle type
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring
unit for the engine torque
g/km
discharged quantity of carbon dioxide in grams per driven kilometer
TSI
Petrol engine with a turbocharger and a direct fuel injection system
TDI CR
Diesel engine with turbocharger and injection system Com- mon Rail
M5
5-speed manual gearbox
AQ6
6-speed automatic gearbox
DQ7
7-speed automatic gearbox DSG
DPF
Diesel particle filter
Fig. 178 Vehicle data sticker
A1A2
s3j8.a.book Page 207 Tuesday, April 20, 2010 1:10 PM

Technical Data
208

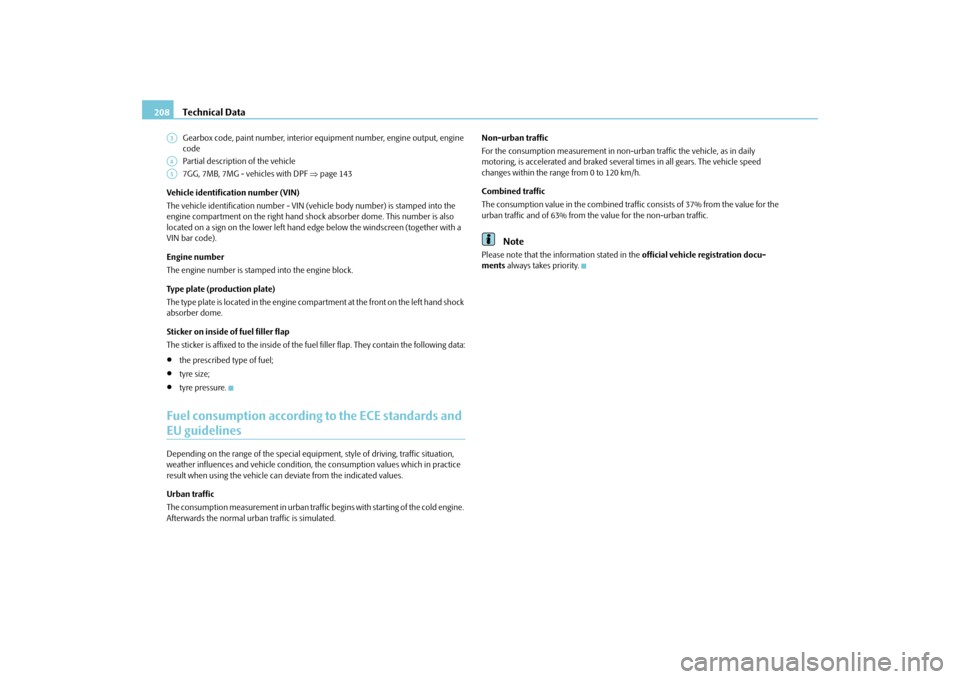

Gearbox code, paint number, interior eq
uipment number, engine output, engine
code Partial description of the vehicle 7GG, 7MB, 7MG - vehicles with DPF
page 143
Vehicle identification number (VIN) The vehicle identification number - VIN (veh
icle body number) is stamped into the
engine compartment on the right hand sh
ock absorber dome. This number is also
located on a sign on the lowe
r left hand edge below the windscreen (together with a
VIN bar code). Engine number The engine number is stam
ped into the engine block.
Type plate (production plate) The type plate is located in
the engine compartment at the front on the left hand shock
absorber dome. Sticker on inside of fuel filler flap The sticker is affixed to the inside of the fuel filler flap. They contain the following data:
the prescribed type of fuel;

tyre size;

tyre pressure.
Fuel consumption according to the ECE standards and EU guidelinesDepending on the range of the special equipment, style of driving, traffic situation, weather influences and vehicl
e condition, the consumption
values which in practice
result when using the vehicle can deviate from the indicated values. Urban traffic The consumption measurement in urban traffic
begins with starting of the cold engine.
Afterwards the normal ur
ban traffic is simulated.
Non-urban traffic For the consumption measurement in non-ur
ban traffic the vehicle, as in daily
motoring, is accelerated and braked severa
l times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h. Combined traffic The consumption value in the combined traffic consists of 37% from the value for the urban traffic and of 63% from th
e value for the non-urban traffic.
Note
Please note that the information stated in the
official vehicle r
egistration docu-
ments
always takes priority.
A3A4A5s3j8.a.book Page 208 Tuesday, April 20, 2010 1:10 PM

Technical Data
209
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

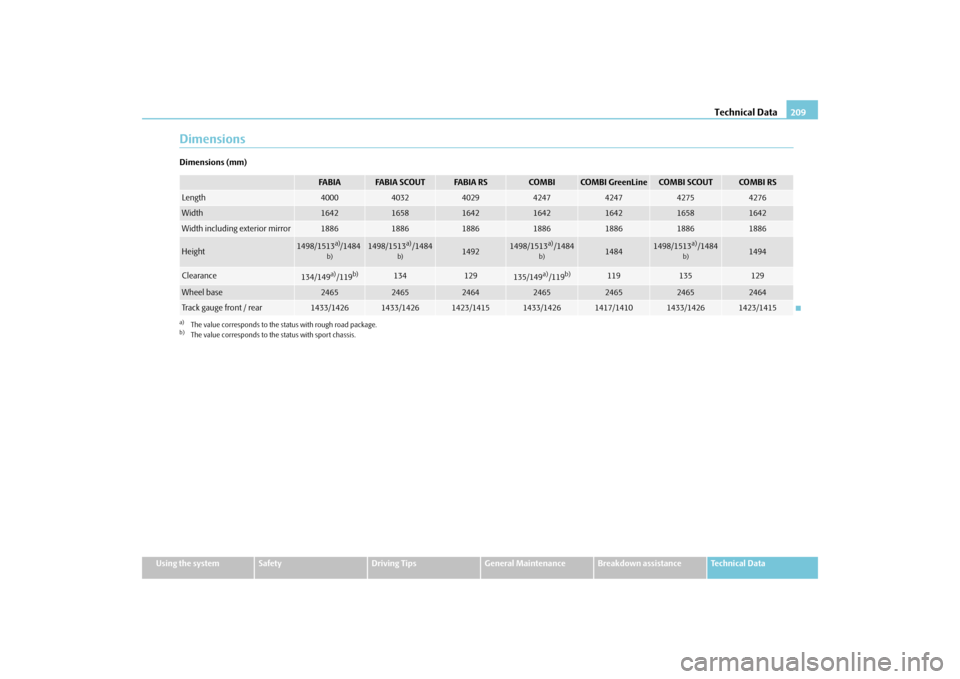

DimensionsDimensions (mm)
FA B I A
FA B I A S CO U T
FA B I A R S
COMBI
COMBI GreenLine
COMBI SCOUT
CO M B I R S
Length
4000
4032
4029
4247
4247
4275
4276
Width
1642
1658
1642
1642
1642
1658
1642
Width including exterior mirror
1886
1886
1886
1886
1886
1886
1886
Height
1498/1513
a)/1484
b)
a)The value corresponds to the status with rough road package.b)The value corresponds to the status with sport chassis.
1498/1513
a)/1484
b)
1492
1498/1513
a)/1484
b)
1484
1498/1513
a)/1484
b)
1494
Clearance
134/149
a)/119
b)
134
129
135/149
a)/119
b)
119
135
129
Wheel base
2465
2465
2464
2465
2465
2465
2464
Track gauge front / rear
1433/1426
1433/1426
1423/1415
1433/1426
1417/1410
1433/1426
1423/1415
s3j8.a.book Page 209 Tuesday, April 20, 2010 1:10 PM

Technical Data
210

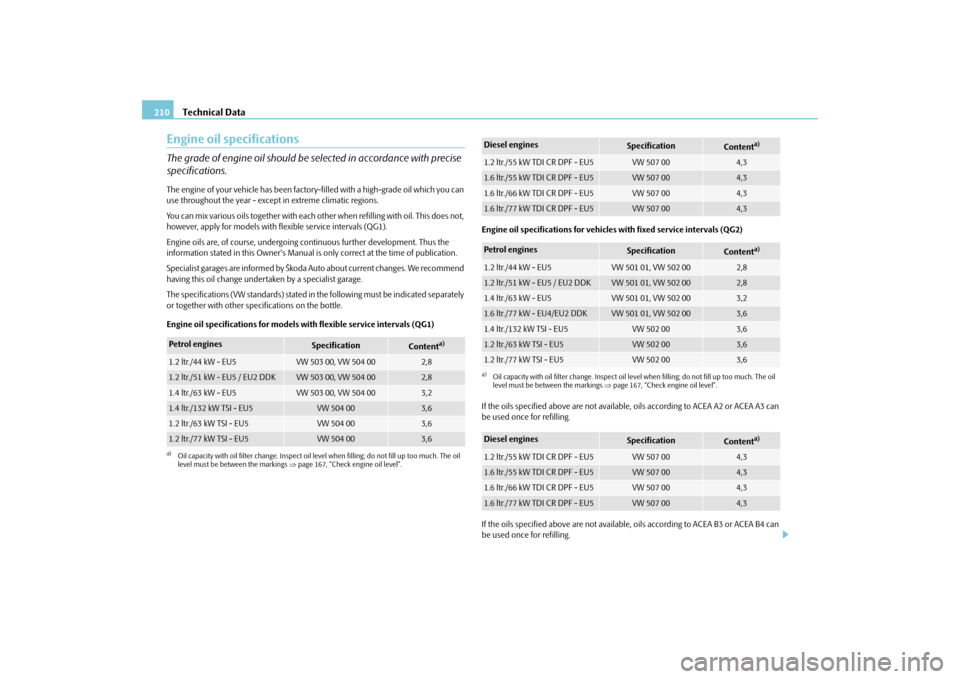

Engine oil specificationsThe grade of engine oil should be se
lected in accordance with precise
specifications.The engine of your vehicle has been factory-
filled with a high-grade oil which you can
use throughout the year - except in extreme climatic regions. You can mix various oils together with each other when refilling with oil. This does not, however, apply for models with flexible service intervals (QG1). Engine oils are, of course, undergoing co
ntinuous further deve
lopment. Thus the
information stated in this Owner's Manual is
only correct at the time of publication.
Specialist garages are informed by Škoda
Auto about current changes. We recommend
having this oil change undertaken by a specialist garage. The specifications (VW standards) stated in the following must be indicated separately or together with other specifications on the bottle. Engine oil specifications for models
with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2) If the oils specified above are not available, oils according to ACEA A2 or ACEA A3 can be used once for refilling. If the oils specified above are not available,
oils according to ACEA B3 or ACEA B4 can
be used once for refilling.
Petrol engines
Specification
Content
a)
a)Oil capacity with oil filter change. Inspect oil leve
l when filling; do not fill up too much. The oil
level must be between the markings
page 167, “Check engine oil level”.
1.2 ltr./44 kW - EU5
VW 503 00, VW 504 00
2,8
1.2 ltr./51 kW - EU5 / EU2 DDK
VW 503 00, VW 504 00
2,8
1.4 ltr./63 kW - EU5
VW 503 00, VW 504 00
3,2
1.4 ltr./132 kW TSI - EU5
VW 504 00
3,6
1.2 ltr./63 kW TSI - EU5
VW 504 00
3,6
1.2 ltr./77 kW TSI - EU5
VW 504 00
3,6
Diesel engines
Specification
Content
a)
1.2 ltr./55 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./55 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./66 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./77 kW TDI CR DPF - EU5
VW 507 00
4,3
Petrol engines
Specification
Content
a)
a)Oil capacity with oil filter change. Inspect oil le
vel when filling; do not fill up too much. The oil
level must be between the markings
page 167, “Check engine oil level”.
1.2 ltr./44 kW - EU5
VW 501 01, VW 502 00
2,8
1.2 ltr./51 kW - EU5 / EU2 DDK
VW 501 01, VW 502 00
2,8
1.4 ltr./63 kW - EU5
VW 501 01, VW 502 00
3,2
1.6 ltr./77 kW - EU4/EU2 DDK
VW 501 01, VW 502 00
3,6
1.4 ltr./132 kW TSI - EU5
VW 502 00
3,6
1.2 ltr./63 kW TSI - EU5
VW 502 00
3,6
1.2 ltr./77 kW TSI - EU5
VW 502 00
3,6
Diesel engines
Specification
Content
a)
1.2 ltr./55 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./55 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./66 kW TDI CR DPF - EU5
VW 507 00
4,3
1.6 ltr./77 kW TDI CR DPF - EU5
VW 507 00
4,3
s3j8.a.book Page 210 Tuesday, April 20, 2010 1:10 PM

Technical Data
211
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

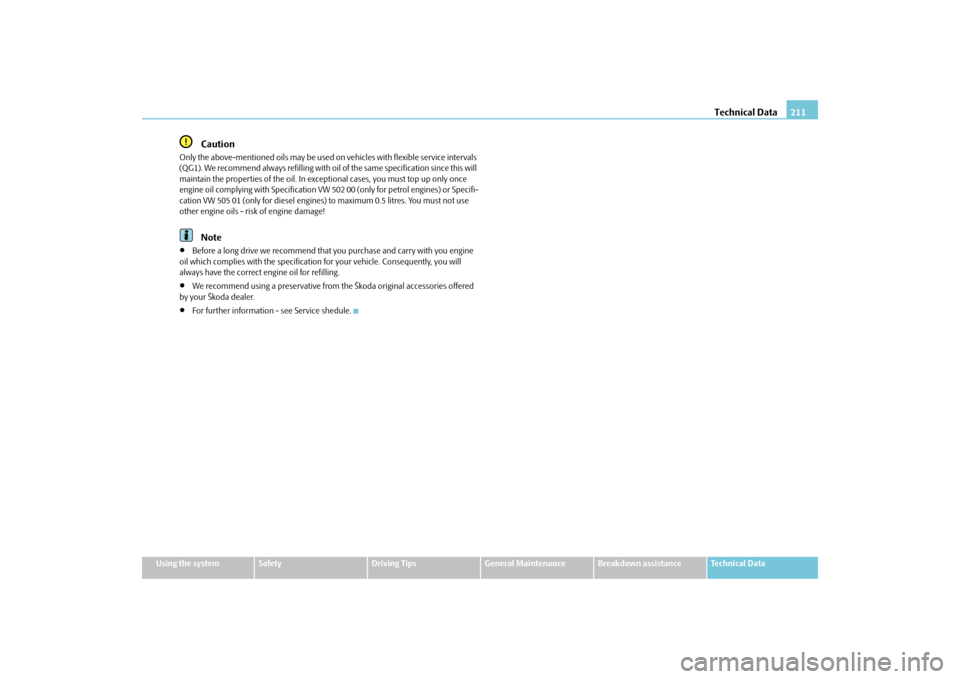

Caution
Only the above-mentioned oils may be used on vehicles with flexible service intervals (QG1). We recommend always refilling with oil of the same specification since this will maintain the properties of the oil. In exce
ptional cases, you must top up only once
engine oil complying with Specification VW
502 00 (only for petrol engines) or Specifi-
cation VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use other engine oils - risk of engine damage!
Note

Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification
for your vehicle. Co
nsequently, you will
always have the correct engine oil for refilling.
We recommend using a preservative from the Škoda original accessories offered
by your Škoda dealer.
For further information - see Service shedule.
s3j8.a.book Page 211 Tuesday, April 20, 2010 1:10 PM

Technical Data
212

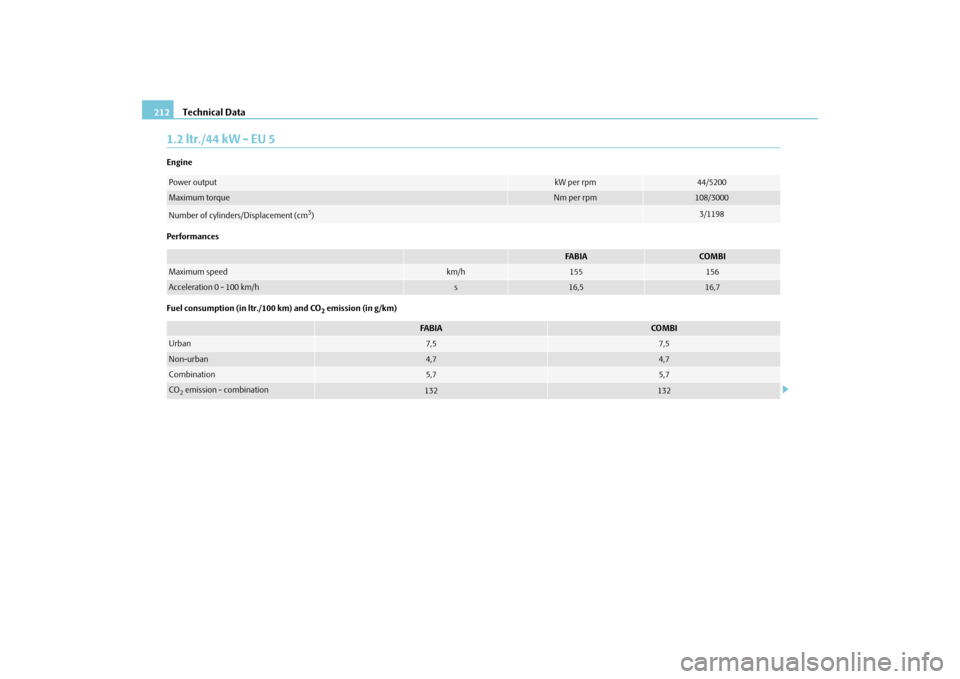

1.2 ltr./44 kW - EU 5Engine Performances Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
44/5200
Maximum torque
Nm per rpm
108/3000
Number of cylinders/Displacement (cm
3)
3/1198
FA B I A
COMBI
Maximum speed
km/h
155
156
Acceleration 0 - 100 km/h
s
16,5
16,7
FA B I A
COMBI
Urban
7,5
7,5
Non-urban
4,7
4,7
Combination
5,7
5,7
CO2 emission - combination
132
132
s3j8.a.book Page 212 Tuesday, April 20, 2010 1:10 PM
