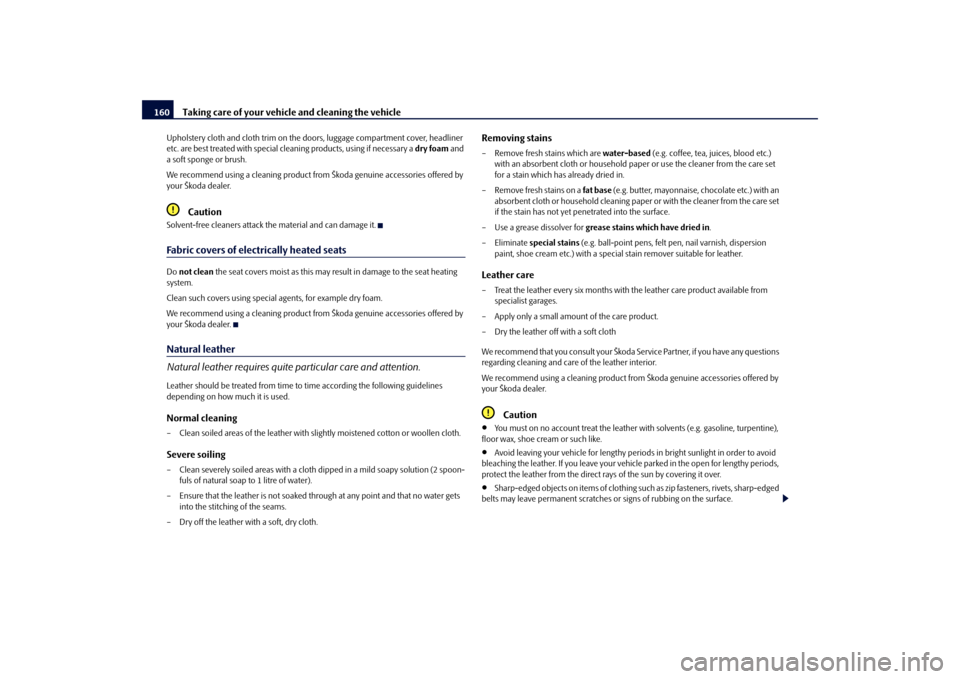

Upholstery cloth and cloth trim on the d
oors, luggage compartment cover, headliner
etc. are best treated with special cleaning products, using if necessary a
dry foam
and
a soft sponge or brush. We recommend using a cleaning product from Škoda genuine accessories offered by your Škoda dealer.
Caution
Solvent-free cleaners attack th
e material and can damage it.
Fabric covers of elec
trically heated seats
Do
not clean
the seat covers moist as this may re
sult in damage to the seat heating
system. Clean such covers using specia
l agents, for example dry foam.
We recommend using a cleaning product from Škoda genuine accessories offered by your Škoda dealer.Natural leather Natural leather requires quite particular care and attention.Leather should be treated from time to time according the following guidelines depending on how much it is used.Normal cleaning– Clean soiled areas of the leather with
slightly moistened co
tton or woollen cloth.
Severe soiling– Clean severely soiled areas with a cloth
dipped in a mild soap
y solution (2 spoon-
fuls of natural soap to 1 litre of water).
– Ensure that the leather is not soaked through at any point and that no water gets
into the stitching of the seams.
– Dry off the leather with a soft, dry cloth.
Removing stains– Remove fresh stains which are
water-based
(e.g. coffee, tea, juices, blood etc.)
with an absorbent cloth or household pape
r or use the cleaner from the care set
for a stain which has already dried in.
– Remove fresh stains on a
fat base
(e.g. butter, mayonnaise, chocolate etc.) with an
absorbent cloth or household
cleaning paper or with the
cleaner from the care set
if the stain has not yet pe
netrated into the surface.
– Use a grease dissolver for
grease stains which have dried in
.
–Eliminate
special stains
(e.g. ball-point pens, felt pe
n, nail varnish, dispersion
paint, shoe cream etc.) with a special stain remover suitable for leather.
Leather care– Treat the leather every six months with
the leather care product available from
specialist garages.
– Apply only a small amount of the care product.– Dry the leather off with a soft cloth We recommend that you consult your Škoda Se
rvice Partner, if you have any questions
regarding cleaning and care of the leather interior. We recommend using a cleaning product fr
om Škoda genuine accessories offered by
your Škoda dealer.
Caution

You must on no account treat the leather wi
th solvents (e.g. gasoline, turpentine),
floor wax, shoe cream or such like.
Avoid leaving your vehicle for lengthy period
s in bright sunlight in order to avoid
bleaching the leather. If you
leave your vehicle parked in the open for lengthy periods,
protect the leather from the direct ra
ys of the sun by covering it over.

Sharp-edged objects on items of clothing su
ch as zip fasteners, rivets, sharp-edged
belts may leave permanent scratches or signs of rubbing on the surface.
s3j8.a.book Page 160 Tuesday, April 20, 2010 1:10 PM

Taking care of your vehicle and cleaning the vehicle
161
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note

Use a care cream with light blocker and impregnation effect regularly and each
time after cleaning th
e leather. The cream nourishes the
leather, allows it to breathe
and keeps it supple and also provides moisture. It also creates surface protection.
Clean the leather every 2 to 3 months, remove fresh soiling each time this occurs.

Remove fresh stains such as those from
ball-point pens, ink, lipstick, shoe cream
etc., as quickly as possible.
Care also for the leather dye. Refreshen ar
eas which have lost their colour with a
special coloured leather cream as required.
The leather is a natural material with specific properties. During the use of the
vehicle, minor optical changes can occur on
the leather parts of the covers (e. g wrin-
kles or creases as a result
of the stress of the covers).
Seat belts– Keep the seat belts clean! – Wash seat belts which have become
soiled using a mild soapy solution.
– Inspect the seat belts regularly to
ensure they are in good condition.
Belt webbing which has become severely so
iled may prevent the inertia reel from
reeling up the belt properly.
WARNING

The seat belts must not be removed for cleaning.

Never clean the seat belts chemically as
dry cleaning may destroy the fabric.
The seat belts must also not be allowed to come into contact with corrosive liquids (such as acids etc.).
Seat belts which have damage to the
webbing, the connections, the inertia
reel or the lock should be re
placed by a specialist garage.

Inertia reel belts
must be completely dried before being reeled up.
s3j8.a.book Page 161 Tuesday, April 20, 2010 1:10 PM

Fuel
162

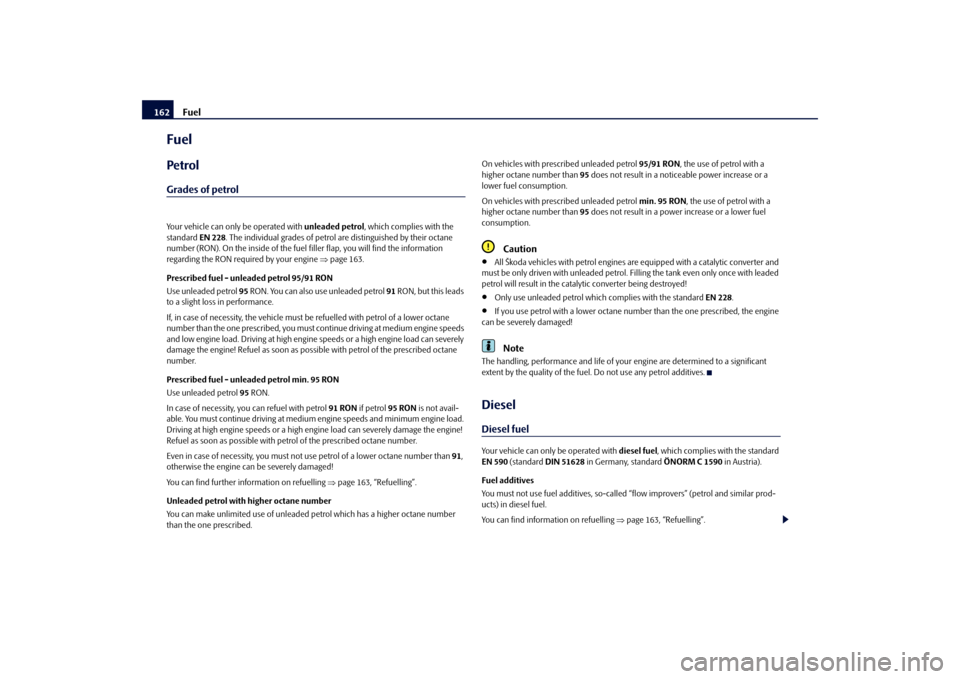

FuelPetrolGrades of petrolYour vehicle can only be operated with
unleaded petrol
, which complies with the
standard
EN 228
. The individual grades of petrol
are distinguished by their octane
number (RON). On the inside of the fuel
filler flap, you will find the information
regarding the RON required by your engine
page 163.
Prescribed fuel - unleaded petrol 95/91 RON Use unleaded petrol
95 RON. You can also use unleaded petrol
91 RON, but this leads
to a slight loss in performance. If, in case of necessity, the vehicle must
be refuelled with petrol of a lower octane
number than the one prescribed, you must co
ntinue driving at me
dium engine speeds
and low engine load. Driving at high engine speeds or a high engine load can severely damage the engine! Refuel as soon as possib
le with petrol of the prescribed octane
number. Prescribed fuel - unleaded petrol min. 95 RON Use unleaded petrol
95 RON.
In case of necessity, you can refuel with petrol
91 RON
if petrol
95 RON
is not avail-
able. You must continue driving at medium
engine speeds and minimum engine load.
Driving at high engine speeds or a high engine load can severely damage the engine! Refuel as soon as possib
le with petrol of the prescribed octane number.
Even in case of necessity, you must not
use petrol of a lower octane number than
91,
otherwise the engine can be severely damaged! You can find further information on refuelling
page 163, “Refuelling”.
Unleaded petrol with higher octane number You can make unlimited use of unleaded pe
trol which has a higher octane number
than the one prescribed.
On vehicles with prescribed unleaded petrol
95/91 RON
, the use of petrol with a
higher octane number than
95 does not result in a noticeable power increase or a
lower fuel consumption. On vehicles with prescribed unleaded petrol
min. 95 RON
, the use of petrol with a
higher octane number than
95 does not result in a power increase or a lower fuel
consumption.
Caution

All Škoda vehicles with petrol engines are equipped with a catalytic converter and
must be only driven with unleaded petrol. Fi
lling the tank even only once with leaded
petrol will result in the cata
lytic converter being destroyed!

Only use unleaded petrol which
complies with the standard
EN 228
.

If you use petrol with a lower octane num
ber than the one prescribed, the engine
can be severely damaged!
Note
The handling, performance and life of your
engine are determined to a significant
extent by the quality of the fuel. Do not use any petrol additives.DieselDiesel fuelYour vehicle can only be operated with
diesel fuel
, which complies with the standard
EN 590
(standard
DIN 51628
in Germany, standard
ÖNORM C 1590
in Austria).
Fuel additives You must not use fuel additives, so-called “flow improvers” (petrol and similar prod- ucts) in diesel fuel. You can find information on refuelling
page 163, “Refuelling”.
s3j8.a.book Page 162 Tuesday, April 20, 2010 1:10 PM

Fuel
163
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution

Therefore, your vehicle can only be operated with diesel fuel which complies with
the standard
EN 590
(standard
DIN 51628
in Germany, standard
ÖNORM C 1590
in
Austria). Filling the tank even only once wi
th diesel fuel which does not comply with
the standard, can result in damage to the engine parts, the lubrication system, the fuel and exhaust system.
If by mistake you have refuelled with a different fuel other than the diesel fuel
which complies to the above mentioned standards (e.g. petrol), do not start the engine or switch on the ignition! This can result in
severe engine damage! Contact a specialist
garage and have the fuel sy
stem of the engine cleaned.

Water which has collected in the fuel fi
lter can result in engine problems.

Your vehicle is not adapted for use of biofue
l (RME), therefore this fuel must not be
refuelled and driven. The use of biofuel (RME) can lead to damage to the engine or the fuel system.Operation in winterWinter-grade diesel fuel A different grade of diesel fuel is available at
filling stations in winter than during the
summer. Using “summer-grade diesel fuel” at temperatures below 0°C can result in operational problems because th
e diesel becomes viscous as a result of paraffin sepa-
ration. It is therefore the case that the standard
EN 590
(standard
DIN 51628
in Germany,
standard
ÖNORM C 1590
in Austria) is the diesel fuel class prescribed for certain
periods of the year which can also be purc
hased at the correspond
ing time during the
year. “Winter-grade diesel fuel” will still operate properly even at a temperature of - 20°C. It is often the case in countries with different climatic conditions that diesel fuels avail- able have a different temperature characte
ristic. The authorised Škoda Service Part-
ners and filling stations in the country concer
ned will be able to provide you with infor-
mation regarding the diesel fuels available. Prewarming fuel The vehicle is fitted with a fuel filter prewarming system. This secures operation of a vehicle using diesel fuel down to an environmental temperature of -25°C.
Caution
It is not permitted to add the various fuel
additives on the market, including petrol, to

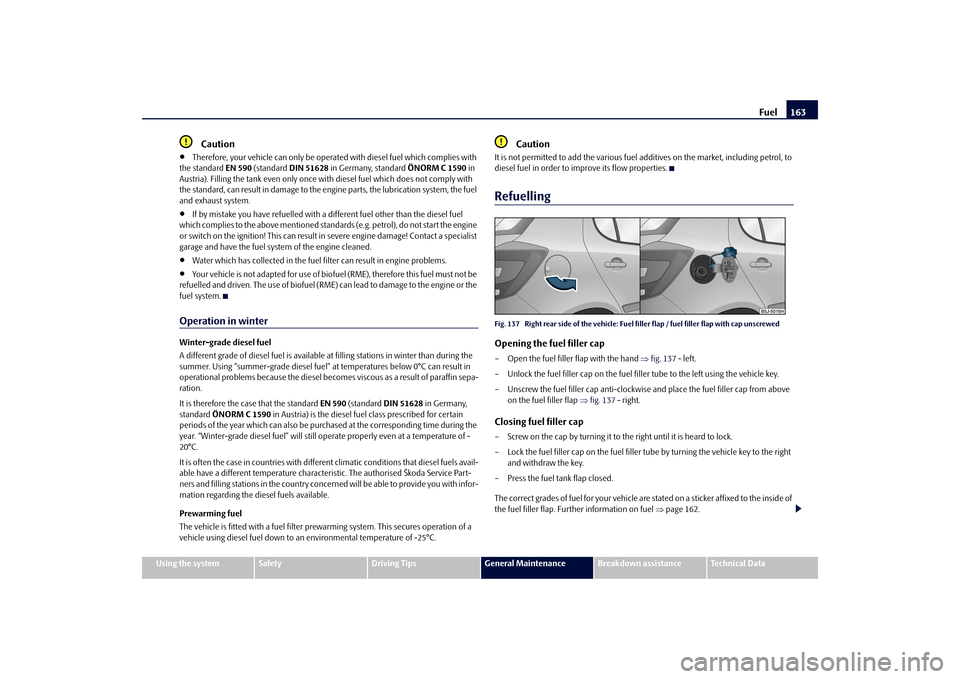

diesel fuel in order to improve its flow properties.RefuellingFig. 137 Right rear side of the vehicle: Fuel
filler flap / fuel filler
flap with cap unscrewed
Opening the fuel filler cap– Open the fuel filler flap with the hand
fig. 137
- left.
– Unlock the fuel filler cap on the fuel fi
ller tube to the left using the vehicle key.
– Unscrew the fuel filler ca
p anti-clockwise and place the fuel filler cap from above
on the fuel filler flap
fig. 137
- right.
Closing fuel filler cap– Screw on the cap by turning it to the right until it is heard to lock. – Lock the fuel filler cap on the fuel filler tube by turning the vehicle key to the right
and withdraw the key.
– Press the fuel tank flap closed. The correct grades of fuel for your vehicle are stated on a sticker affixed to the inside of the fuel filler flap. Further information on fuel
page 162.
s3j8.a.book Page 163 Tuesday, April 20, 2010 1:10 PM

Fuel
164
WARNING
Pay attention to any legal requirements if you do carry a spare canister in the vehicle. We do not recommend carrying any fuel canisters in your vehicle for safety reasons. The canister can be damaged
in the event of an accident and fuel
may leak out.
Caution

Remove any fuel which has spilled onto th
e paintwork of your vehicle immediately
- risk of paint damage!
On vehicles fitted with a catalytic converte
r, never let the fuel tank run completely
empty. An irregular supply of fuel to the engine can result in misfiring and unburnt fuel may get into the exhaust system, which may
result in overheating and damage to the
catalytic converter.
Make sure that the valve is not pressed into the filler tube when inserting the pump
nozzle into the filler tube.
Otherwise you are unintentiona
lly filling up the volume,
which in case of heat can caus
e an expansion of the fuel. This can lead to an overflow
of fuel or damage to parts of the fuel reservoir.
The fuel tank is full just as soon as th
e pump nozzle switches off for the first time,
provided the nozzle has been operated prop
erly. Do not continue refuelling - other-
wise the expansion volume is filled up.
Note
The fuel tank has a
capacity of about
45 litres
, containing a reserve of
7litres
.
s3j8.a.book Page 164 Tuesday, April 20, 2010 1:10 PM

Inspecting and replenishing
165
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

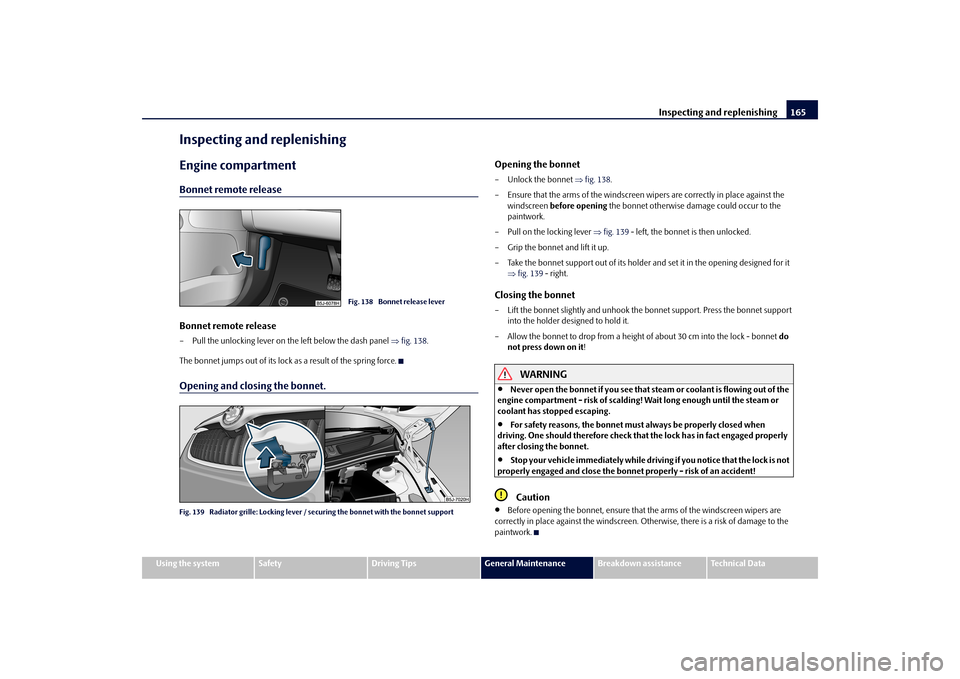

Inspecting and replenishingEngine compartmentBonnet remote releaseBonnet remote release– Pull the unlocking lever on the left below the dash panel
fig. 138
.
The bonnet jumps out of its lock as a result of the spring force.Opening and closing the bonnet.Fig. 139 Radiator grille: Locking lever / se
curing the bonnet with the bonnet support
Opening the bonnet– Unlock the bonnet
fig. 138
.
– Ensure that the arms of the windscreen wipers are correctly in place against the
windscreen
before opening
the bonnet otherwise damage could occur to the
paintwork.
– Pull on the locking lever
fig. 139
- left, the bonnet is then unlocked.
– Grip the bonnet and lift it up.– Take the bonnet support out of its holder and set it in the opening designed for it
 fig. 139
- right.
Closing the bonnet– Lift the bonnet slightly and unhook the bonnet support. Press the bonnet support
into the holder designed to hold it.
– Allow the bonnet to drop from a height
of about 30 cm into the lock - bonnet
do
not press down on it
!
WARNING

Never open the bonnet if you see that steam or coolant is flowing out of the
engine compartment - risk of scalding!
Wait long enough until the steam or
coolant has stopped escaping.
For safety reasons, the bonnet must always be properly closed when
driving. One should therefore check that
the lock has in fact engaged properly
after closing the bonnet.
Stop your vehicle immediately while driving if you notice that the lock is not
properly engaged and close the bonnet
properly - risk of an accident!
Caution

Before opening the bonnet, ensure that the arms of the windscreen wipers are
correctly in place against the windscreen. Othe
rwise, there is a risk of damage to the
paintwork.
Fig. 138 Bonnet release lever
s3j8.a.book Page 165 Tuesday, April 20, 2010 1:10 PM

Inspecting and replenishing
166
Working in the engine compartment Particular care is required when carrying out any work in the engine compartment!There is a risk of injuries, scalding, acci
dents and fire when working in the engine
compartment, e.g. inspecting and replenishing oil and other fluids. For this reason, it is essential to comply with the warning instructions stated below and with the general applicable rules of safe
ty. The engine compartment of your car
is a hazardous area

.
WARNING

Never open the bonnet if
you see that steam or coolant is flowing out of the
engine compartment - risk of scalding!
Wait long enough until the steam or
coolant has stopped escaping.
Switch off the engine and pull out the ignition key.

Apply the handbrake firmly.

If your vehicle is fitted with a manual
gearbox, move the gearshift lever into
Neutral, or if it is fitted with automatic gearbox, move the selector lever into position P.
Allow the engine to cool down.

Keep children clear of the engine compartment.

Do not touch any hot engine parts - risk of burns!

Never spill oil and other fluids over the hot engine. Such fluids (e.g. the anti-
freeze contained in the wash liquid) may ignite!
Avoid short circuits in the electrical system - particularly on the battery.

Never place your hand into the radiator fan as long as the engine is still
warm. The fan might suddenly start running!
Never open the cap of the coolant expans
ion bottle as long as the engine is
still warm. The cooling
system is pressurized!

Cover over the cap of the coolant expansion reservoir with a large cloth
when opening it as protection for your
face, hands and arms from hot steam or
hot coolant.

Do not let objects, such as e.g cleaning cloth or tools lie in the engine
compartment.
If you wish to work under the vehicl
e, you must secure the vehicle from
rolling away and support it with suitable supporting blocks: the car jack is not sufficient for this - risk of injury!
In cases where it be necessary to carry out inspection work when the engine
is running there is an additional risk fr
om rotating parts (e.g. the V-ribbed belt,
alternator, radiator fan) and from the high-voltage ignition system. Please observe in addition the following:
 Never touch the electrical cabl
es of the ignition system.
 Absolutely avoid any jewellery, loose it
ems of clothing or long hair from
getting into the rotating parts of the
engine - Hazard! Therefore remove any
jewellery beforehand, tie up your hair and wear tight fitting clothing.

Please also comply with the warnin
g instructions st
ated below when
carrying out any essential work on the fu
el system or on th
e electrical system:
 Always separate the car battery from the electrical system.  Do not smoke.  Never carry out any work close to naked flames.  Always keep a working fire
extinguisher at hand.
Caution
When replenishing fluids in the engine, always
ensure that the fluids are on no account
mixed up. This may result in major oper
ating problems and also vehicle damage!
WARNING (continued)
s3j8.a.book Page 166 Tuesday, April 20, 2010 1:10 PM

Inspecting and replenishing
167
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Overview of the engine compartment The main inspection points.Fig. 140 Diesel engine 1.6 ltr./77 kW
Coolant expansion bottle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Windshield washer fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Engine oil filler opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Brake fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Battery (below a cover) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Note
The location of the inspection points in th
e engine compartment of petrol and diesel
engines is practically identical.
Engine oilCheck engine oil level The dipstick indicates the le
vel of oil in the engine.
Checking the oil level– Ensure that the vehicle is po
sitioned on a level surface.
– Switch the engine off.– Open the bonnet

in “Working in the engine compartment” on page 166.
– Wait a few minutes and pull out the oil dipstick

.
– Wipe off the dipstick with a clea
n cloth and insert it again fully.
– Then withdraw the dipstick again and read off the oil level.Oil level within range –You must
not
top up the oil.
Oil level within range –You
may
top up the oil. It is possible that the oil level may then be within range
after doing this.
Oil level within range –You
must
top up the oil. It is ideal, once this
is done, to keep the oil level within
range .
A1
170
A2
176
A3
168
A4
167
A5
171
A6
172
Fig. 141 Dipstick
AaAb
Aa
Ac
Ab
s3j8.a.book Page 167 Tuesday, April 20, 2010 1:10 PM

Inspecting and replenishing
168
It is normal for the engine to consume oil.
The oil consumption may be as much as 0.5
l/1 000 km depending on your style of driving and the conditions under which you operate your vehicle. The oil
consumption may be slightly hi
gher than this during the
first 5 000 kilometres. One should therefore check the oil level at regular intervals, preferably every time after the fuel tank is filled or after driving for long stretches. We recommend maintaining the oil level within the range if the engine has been operating at high loads, for example duri
ng a lengthy motorway trip during the
summer months, towing a trailer or
negotiating a high mountain pass,
but not above
this
.
The warning light in the instrument cluster* will indicate
page 29 whether the oil
level is too low. In this case, check the oil
level as soon as possible. Top up with an
appropriate quantity of oil.
WARNING
Read and observe the warning notes
page 166, “Working in the engine
compartment” before working in the engine compartment.
Caution

Always check the oil level on vehicles with engine 1.2 ltr./44 kW when the engine is
cold, on other vehicles when the engine is warm. Otherwise the measuring result is incorrect und oil could be incorrectly
replenished - risk of engine damage!

The oil level must on no account extend
beyond the range . Danger of damaging
the catalytic converter.
Do not continue your journey
if for some reason it is not possible under the
conditions prevailing to top up with oil.
Switch the engine off
and obtain professional
assistance from a specialist garage, otherwise it could lead to severe engine damage.Replenishing engine oil– Inspect the oil level
page 167.
– Unscrew the cap of the engine oil filler opening.
– Wipe off the oil from the sealing surface of the cover and on the counterpart using
a clean cloth.
– Pour in a suitable grade of oi
l in portions of 0.5 litres
page 210.
– Inspect the oil level
page 167.
– Carefully screw on the cap of the filler opening and push the dipstick in fully.
WARNING

Avoid dripping oil onto hot parts of the engine when topping up will oil - a
risk of fire!
Read and observe the warning notes
page 166, “Working in the engine
compartment” before working in the engine compartment.
For the sake of the environment
The oil level must on no account be above the range
page 167. Oil will otherwise
be drawn in through the cr
ankcase ventilation and may
pass through the exhaust
system to atmosphere. The oil may combust
in the catalytic conv
erter and damage it.
Changing engine oilThe engine oil must be changed at the intervals stated in the Service schedule or according to the service interval indicator
page 17.
WARNING

Only carry out the engine oil change, if you have the required professional
knowledge!
Read and observe the warning notes
page 166, “Working in the engine
compartment” before working in the engine compartment.
First of all, let the engine cool down, we
ar an eye protection and gloves - risk
of caustic burns due to hot oil.
AaAa
Aa
s3j8.a.book Page 168 Tuesday, April 20, 2010 1:10 PM

Inspecting and replenishing
169
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution
You must not pour any additives into the en
gine oil - risk of engine damage! Damage,
which results from such product,
are excluded from the warranty.
For the sake of the environment

You must on no account pour oil into
the ground or into the sewage system.

In view of the problems involved in prop
erly disposing of old oil, the necessary
special tools and the knowledge required for such work, we recommend that you have the oil and oil filter change carried out
by an authorised Škoda Service Partner.
Note
After your skin has come in contact with th
e oil, you must thoroughly wash your skin.
Cooling systemCoolant The job of the coolant is to cool the engine.The cooling system does not require any maintenance under normal operating condi- tions. The coolant consists of water with a
concentration of coolant additive of 40 %.
This mixture not only provides
antifreeze protection down to -25°C but also protects
the cooling and heating system from corrosion.
It also prevents the formation of scale
and significantly increases the boiling point of the coolant. You must therefore not reduce the concentration of antifreeze agent in the coolant by adding water, also not during the summer mo
nths or in countries with a warm climate.
The concentration of coolant additive in the coolant must be at least 40%. You can increase the amount of antifreeze in the coolant if a higher concentration of antifreeze is necessary for climatic reasons
but only up to 60% (antifreeze protection
down to approx. -40°C). The antifreeze prot
ection tails off above that concentration.
Vehicles exported to countries with a cold
climate (e.g. Sweden, Norway, Finland) are
already factory-filled with a coolant which offers antifreeze protection down to about -35°C. In these countries the concentration of coolant additive should be at least 50%.
Coolant The cooling system is factory-
filled with coolant (purple in colour), which complies
with the specification TL-VW 774 G. We recommend that you use the coolant addi
tive G13 (purple in colour) for topping
up the system. We recommend that you contact your Škoda
Service Partner if yo
u have any questions
regarding the coolant or if you wish
to fill up with a different coolant.
A specialist garage can also supply
you with the correct coolant additives.
Coolant capacity
Caution

Other coolant additives may cause operational problems which, in particular,
involves significantly reduci
ng the anticorrosion effect.
Petrol engines
Content
1.2 ltr./44 kW - EU5
5,5
1.2 ltr./51 kW - EU5 / EU2 DDK
5,5
1.4 ltr./63 kW - EU5
5,5
1,6 ltr./77 kW - EU4 / EU2 DDK
5,5
1.4 ltr./132 kW TSI - EU5
6,6
1.2 ltr./63 kW TSI - EU5
7,7
1.2 ltr./77 kW TSI - EU5
7,7
Diesel engines
Content
1.2 ltr./55 kW TDI CR DPF - EU5
6,6
1.6 ltr./55 kW TDI CR DPF - EU5
8,4
1.6 ltr./66 kW TDI CR DPF - EU5
8,4
1.6 ltr./77 kW TDI CR DPF - EU5
8,4
s3j8.a.book Page 169 Tuesday, April 20, 2010 1:10 PM
