Note
If the battery has been disconnected and reconnected, it is possible that the slid-
ing/tilting roof does not close fully. Here you have to set the control dial to the
switch position A and press it forward for about 10 seconds.

Opening and tilting Comfort position
–
Turn the switch to position C ⇒ fig. 20
.
Opening fully
– Turn the switch to position B and hold it in this position (spring-tensioned
position).
Tilting roof
– Turn the switch to position D .
When the sliding/tilting roof is in the comfort position, the intensity of the wind
noise is much less.
The sun screen is also opened automatically when the roof slides open. You can
slide the sun screen into the opened or closed position by hand when the sliding/
tilting roof is closed. CAUTION
It may be necessary during winter to remove any ice and snow in the area of the
sliding/tilting roof before opening it in order to prevent damaging the opening
mechanism and the seal. 
Closing Sliding closed/closing the sliding/tilting roof
–
Turn the switch to position A ⇒ fig. 20
.
Safety closing
The sliding/tilting roof is fitted with a force limiter. If an obstacle (e.g. ice) pre-
vents closing, the sliding/tilting roof stops and opens completely. You can close
the sliding/tilting roof completely without force limiter by pressing the switch to
the A position
⇒ fig. 20 at the front for as long as it takes for the sliding/tilting
roof to close completely ⇒
  . WARNING
Close the sliding/tilting roof carefully - risk of injury! 
Convenience operation You can also close an open sliding/tilting roof from the outside.
–
Hold the key in the locking cylinder of the driver's door in the lock position or
press the lock button of the remote control until the sliding/tilting roof is
closed ⇒  .
The closing operation stops when one releases the key or the lock button. WARNING
Close the sliding/tilting roof carefully - risk of injury! The force limiter does not
operate with the convenience closing. 
Emergency operation Fig. 21 Detail of the headliner: Points for positioning screwdriver/opening for positioning the
key
You can close and/or open the sliding/tilting roof by hand if the system is defect.
– Position the flat blade of a screwdriver carefully against the rear edge of the
cover for the electrical drive at the points of the arrows 1 ⇒ fig. 21 on the left.
– Pull the cover down.
– Insert an Allen key, Group 4, up to the stop into the opening at the point of the
arrow 2 and close and/or open the sliding/tilting roof
⇒ fig. 21 on the right. £ 39
Unlocking and locking Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

–

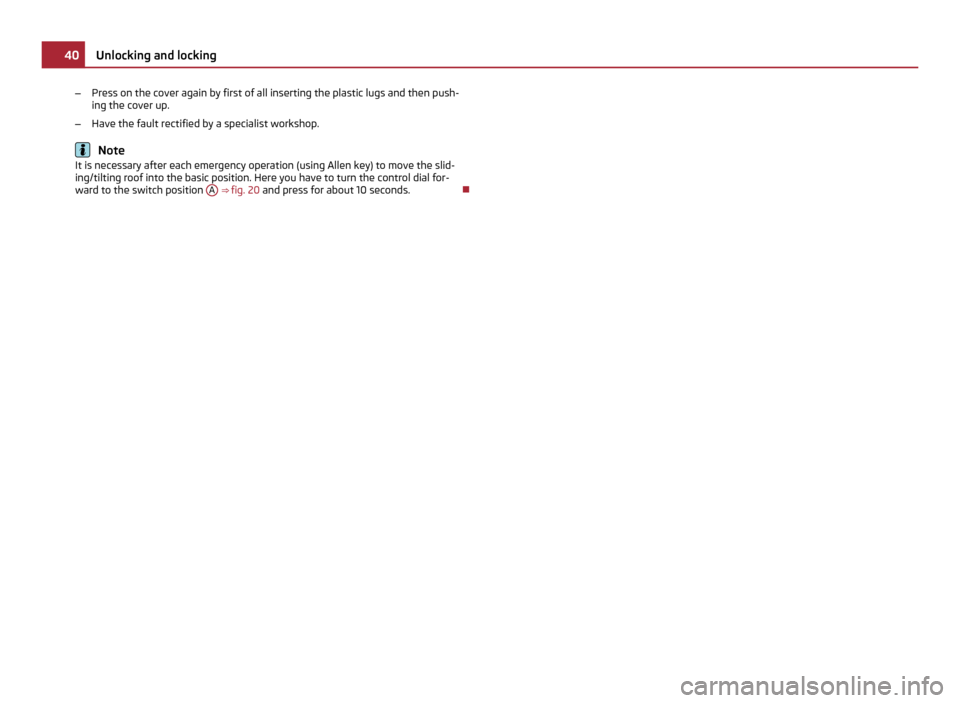

Press on the cover again by first of all inserting the plastic lugs and then push-
ing the cover up.
– Have the fault rectified by a specialist workshop. Note
It is necessary after each emergency operation (using Allen key) to move the slid-
ing/tilting roof into the basic position. Here you have to turn the control dial for-
ward to the switch position A ⇒
 fig. 20 and press for about 10 seconds. 40
Unlocking and locking

Lights and Visibility
Lights
Switching lights on and off Fig. 22 Dash panel: Light switch/fuse box: Switch for daylight driving lights
Switching on side lights
– Turn the light switch ⇒ fig. 22 - left into position
.
Switching on the low beam and main beam
– Turn the light switch into position .
– Press the main beam lever forward in order to switch on the main beam
⇒ fig. 26 .
Switching off lights (except daylight driving lights)
– Turn the light switch into position O.
During the engine start, the low beam lights are switched off automatically.
On vehicles fitted with right-hand steering the position of the switches differs to
some extent from the position shown on ⇒ fig. 22. The symbols which mark the
switch positions are identical, however. WARNING
Never drive with side lights on - risk of accident! The side lights are not bright
enough to light up the road sufficiently in front of you or to be seen by other
oncoming traffic. In this case, always switch on the low beam when it is dark
or if visibility is poor. Note
● In vehicles with separate lights for daylight driving lights (in the bumper below
the main headlights) these lights also serve as side lights.
● An audible warning will sound if you withdraw the ignition key and open the
driver's door when the vehicle lights are still on.
● The acoustic warning signal is switched off over the door contact when the
driver's door is closed (ignition off). The vehicle can be parked with the side lights
on.
● If the car is parked for a lengthy period, we recommend switching off all lights,
or leaving only the parking lights switched on.
● The switching on of the described lights should only be undertaken in accord-
ance with the legal requirements.
● In the event of cool or humid weather conditions, the headlights can be misted
up from inside.
–The temperature difference between interior and external area of the head-
light lenses is decisive.
– When the driving lights are switched on, the light outlet surfaces are free
from mist after a short period. The headlight lenses can possibly mist up at the
border areas.
– It also concerns reverse light and turn signal lights.
– This mist has no influence on the life of the lighting system. 
“DAY LIGHT” In some countries, the national legal provisions require that the vehicles are
equipped with the function daylight driving lights.
£ 41
Lights and Visibility Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

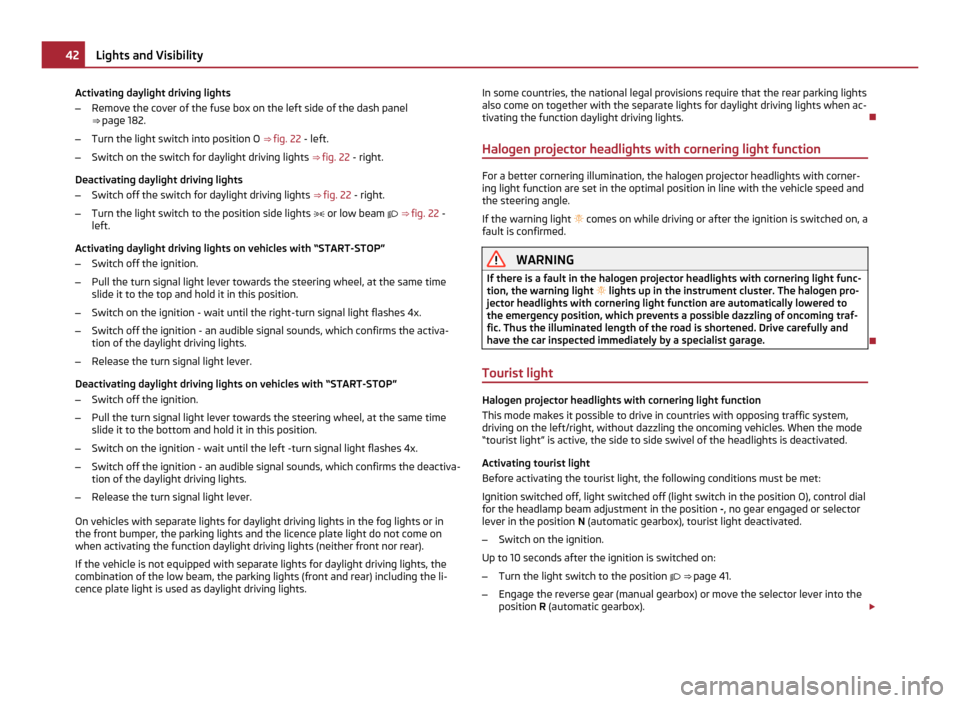

Activating daylight driving lights
–
Remove the cover of the fuse box on the left side of the dash panel
⇒ page 182.
– Turn the light switch into position O ⇒ fig. 22 - left.
– Switch on the switch for daylight driving lights ⇒ fig. 22 - right.
Deactivating daylight driving lights
– Switch off the switch for daylight driving lights ⇒ fig. 22 - right.
– Turn the light switch to the position side lights  or low beam  ⇒ fig. 22
-
left.
Activating daylight driving lights on vehicles with “START-STOP”
– Switch off the ignition.
– Pull the turn signal light lever towards the steering wheel, at the same time
slide it to the top and hold it in this position.
– Switch on the ignition - wait until the right-turn signal light flashes 4x.
– Switch off the ignition - an audible signal sounds, which confirms the activa-
tion of the daylight driving lights.
– Release the turn signal light lever.
Deactivating daylight driving lights on vehicles with “START-STOP”
– Switch off the ignition.
– Pull the turn signal light lever towards the steering wheel, at the same time
slide it to the bottom and hold it in this position.
– Switch on the ignition - wait until the left -turn signal light flashes 4x.
– Switch off the ignition - an audible signal sounds, which confirms the deactiva-
tion of the daylight driving lights.
– Release the turn signal light lever.
On vehicles with separate lights for daylight driving lights in the fog lights or in
the front bumper, the parking lights and the licence plate light do not come on
when activating the function daylight driving lights (neither front nor rear).
If the vehicle is not equipped with separate lights for daylight driving lights, the
combination of the low beam, the parking lights (front and rear) including the li-
cence plate light is used as daylight driving lights. In some countries, the national legal provisions require that the rear parking lights
also come on together with the separate lights for daylight driving lights when ac-
tivating the function daylight driving lights.

Halogen projector headlights with cornering light function For a better cornering illumination, the halogen projector headlights with corner-
ing light function are set in the optimal position in line with the vehicle speed and
the steering angle.
If the warning light
 comes on while driving or after the ignition is switched on, a
fault is confirmed. WARNING
If there is a fault in the halogen projector headlights with cornering light func-
tion, the warning light  lights up in the instrument cluster. The halogen pro-
jector headlights with cornering light function are automatically lowered to
the emergency position, which prevents a possible dazzling of oncoming traf-
fic. Thus the illuminated length of the road is shortened. Drive carefully and
have the car inspected immediately by a specialist garage. 
Tourist light Halogen projector headlights with cornering light function
This mode makes it possible to drive in countries with opposing traffic system,
driving on the left/right, without dazzling the oncoming vehicles. When the mode
“tourist light
”

is active, the side to side swivel of the headlights is deactivated.
Activating tourist light
Before activating the tourist light, the following conditions must be met:
Ignition switched off, light switched off (light switch in the position O), control dial
for the headlamp beam adjustment in the position -, no gear engaged or selector
lever in the position N (automatic gearbox), tourist light deactivated.
– Switch on the ignition.
Up to 10 seconds after the ignition is switched on:
– Turn the light switch to the position  ⇒ page 41.
– Engage the reverse gear (manual gearbox) or move the selector lever into the
position R (automatic gearbox). £42
Lights and Visibility

–
Turn the control dial for headlamp beam adjustment from the position - to the
position 3 ⇒ page 44.
Deactivating tourist light
Before deactivating the tourist light, the following conditions must be met:
Ignition switched off, light switched off (light switch in the position O), control dial
for the headlamp beam adjustment in the position 3, no gear engaged or selector
lever in the position N (automatic gearbox), tourist light activated.
– Switch on the ignition.
Up to 10 seconds after the ignition is switched on:
– Turn the light switch to the position  ⇒ page 41.
– Engage the reverse gear (manual gearbox) or move the selector lever into the
position R (automatic gearbox).
– Turn the control dial for headlamp beam adjustment from the position 3 to the
position
- ⇒ page 44.
The adaptation of the halogen projector headlights must be performed as follows
⇒ page 140. Note
When the “tourist light” mode is active, the warning light  flashes for about 10
seconds each time the ignition is switched on. 
Fog lights  Fig. 23 Dash panel: Light switchSwitch on the front fog lamp
–
First of all turn the light switch into position  or  ⇒ 

fig. 23.
– Pull the light switch out to the first detent 1 .
The warning light  lights up in the instrument cluster when the fog lights are
switched on ⇒ page 20. 
Fog lights with the function

“CORNER” The fog lights with the function “CORNER” are designed for a bet-
ter illumination of the surrounding area near the vehicle when
corning, parking etc.
The fog lights with the function “CORNER

” are adjusted according to the steering
angle or after switching on the turn signal light 1)
in the following circumstances:
● the vehicle is stationary and the engine is running or it moves with a speed of
maximum 40 km/h;
● the daylight driving lights are not switched on;
● Low beam switched on.
A fault in the system of the fog lights with the function “CORNER”

is confirmed by
the warning light  lighting up. Note
If the fog lights are switched on, the function “CORNER” is not active. 
Rear fog light  Switching on the rear fog light
–
First of all turn the light switch into position  or  ⇒ fig. 23
.
– Pull the light switch into position 2 . The fog lights light up at the same time.
If the vehicle is not fitted with fog lights, the rear fog light is switched on by turn-
ing the light switch to the position  and is pulled out directly to the position 2 .
This switch does not have two positions, but only one position. £1)
If both switch on versions are conflicting, for example if the steering wheel is turned to the left and
the right turn signal light is switched on, the turn signal light has the higher priority. 43
Lights and Visibility Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

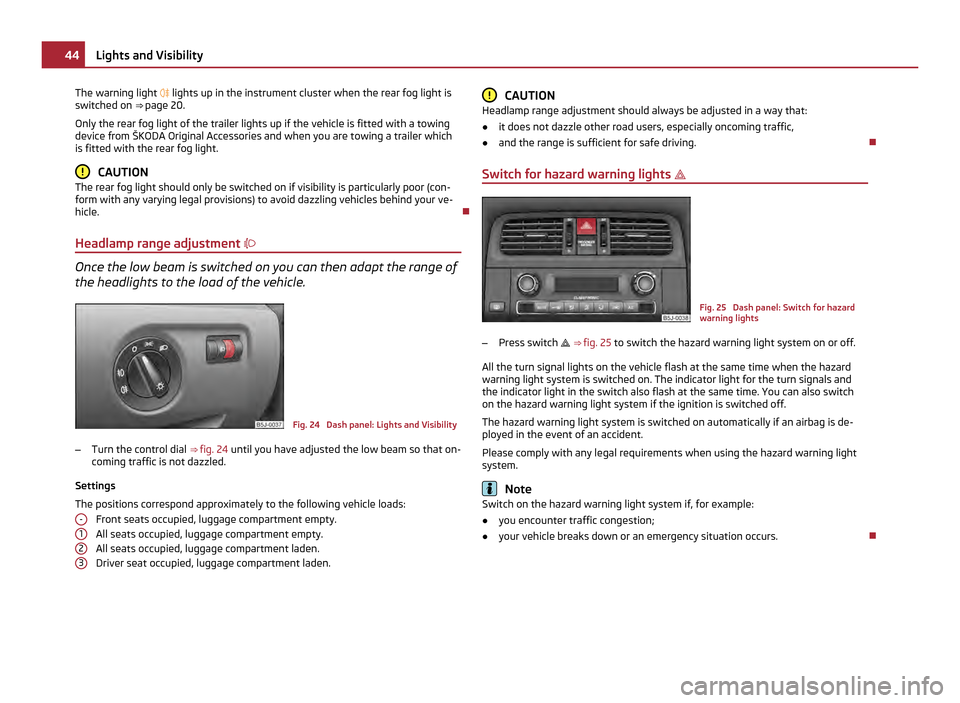

The warning light
 lights up in the instrument cluster when the rear fog light is
switched on ⇒
 page 20.
Only the rear fog light of the trailer lights up if the vehicle is fitted with a towing
device from ŠKODA Original Accessories and when you are towing a trailer which
is fitted with the rear fog light. CAUTION
The rear fog light should only be switched on if visibility is particularly poor (con-
form with any varying legal provisions) to avoid dazzling vehicles behind your ve-
hicle. 
Headlamp range adjustment Once the low beam is switched on you can then adapt the range of
the headlights to the load of the vehicle.
Fig. 24 Dash panel: Lights and Visibility
– Turn the control dial ⇒ 
fig. 24
until you have adjusted the low beam so that on-
coming traffic is not dazzled.
Settings
The positions correspond approximately to the following vehicle loads: Front seats occupied, luggage compartment empty.
All seats occupied, luggage compartment empty.
All seats occupied, luggage compartment laden.
Driver seat occupied, luggage compartment laden.
- 1
2
3 CAUTION
Headlamp range adjustment should always be adjusted in a way that:
● it does not dazzle other road users, especially oncoming traffic,
● and the range is sufficient for safe driving. 
Switch for hazard warning lights  Fig. 25 Dash panel: Switch for hazard
warning lights
– Press switch  ⇒ fig. 25 to switch the hazard warning light system on or off.
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The indicator light for the turn signals and
the indicator light in the switch also flash at the same time. You can also switch
on the hazard warning light system if the ignition is switched off.
The hazard warning light system is switched on automatically if an airbag is de-
ployed in the event of an accident.
Please comply with any legal requirements when using the hazard warning light
system. Note
Switch on the hazard warning light system if, for example:
● you encounter traffic congestion;
● your vehicle breaks down or an emergency situation occurs. 44
Lights and Visibility

The turn signal
  and main beam lever The parking lights and headlight flasher are also switched on and
off using the turn signal and main beam lever.
Fig. 26 Turn signal and main beam lever
The turn signal and main beam lever perform the following functions:
Right  and left  turn signal light
– Push the lever upwards A or downwards
B ⇒
 fig. 26 .
– If you only wish to flash three times (the so-called convenience turn signal),
push the lever briefly up to the upper or lower pressure point and release it.
– Turn signal for changing lanes - in order to only flash briefly, move the lever up
or down to the pressure point and hold it in this position.
Main beam 
– Switch on the low beam.
– Push the lever forwards in direction of arrow C .
– If you push the lever into the initial position in the direction of arrow D the
main beam is switched off.
Headlight flasher 
– Pull the lever towards the steering wheel (spring-tensioned position) - the
main beam and warning light  in the instrument cluster come on.
Parking light 
– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switch-
ed on. Information concerning the function of the lights.
●
The turn signal system only operates when the ignition is switched on. The
corresponding warning light  or  in the instrument cluster also flashes.
● The turn signal is automatically cancelled after negotiating a curve.
● The side light and rear light on the appropriate side of the vehicle are switched
on when the parking light is selected. The parking light function only operates if
the ignition is switched off.
● An acoustic warning signal will sound when the driver's door is opened if the
lever is not in the middle position after removing the ignition key from the ignition
lock. The acoustic warning signal will stop just as soon as the driver's door is
closed. CAUTION
Use main beam or the headlight flasher only if this does not risk dazzling other
road users. Note
● If you have switched on the right or left turn signal light and you switch off the
ignition, the parking light is not automatically switched on.
● Use only in accordance with the legal requirements the described lighting and
signal systems. 
Interior lighting Interior vehicle lighting - version 1 Fig. 27 Interior lighting - version 1
£ 45
Lights and Visibility Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

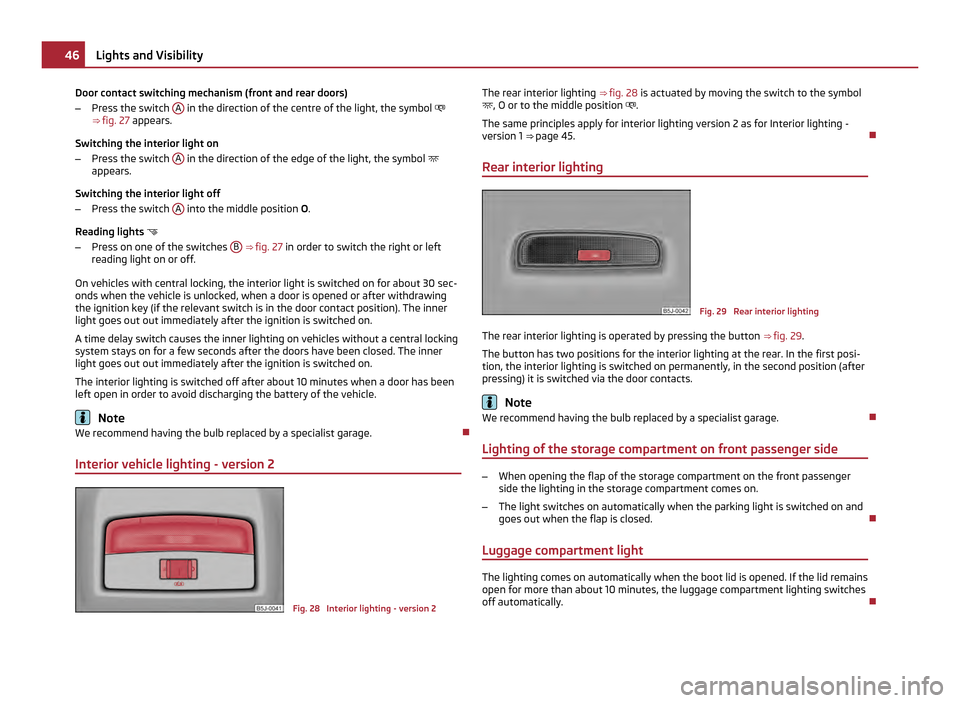

Door contact switching mechanism (front and rear doors)
–
Press the switch A in the direction of the centre of the light, the symbol

⇒ fig. 27 appears.
Switching the interior light on
– Press the switch A in the direction of the edge of the light, the symbol

appears.
Switching the interior light off
– Press the switch A into the middle position
O.
Reading lights 
– Press on one of the switches B ⇒
 fig. 27 in order to switch the right or left
reading light on or off.
On vehicles with central locking, the interior light is switched on for about 30 sec-
onds when the vehicle is unlocked, when a door is opened or after withdrawing
the ignition key (if the relevant switch is in the door contact position). The inner
light goes out out immediately after the ignition is switched on.
A time delay switch causes the inner lighting on vehicles without a central locking
system stays on for a few seconds after the doors have been closed. The inner
light goes out out immediately after the ignition is switched on.
The interior lighting is switched off after about 10 minutes when a door has been
left open in order to avoid discharging the battery of the vehicle. Note
We recommend having the bulb replaced by a specialist garage. 
Interior vehicle lighting - version 2 Fig. 28 Interior lighting - version 2The rear interior lighting
⇒ fig. 28 is actuated by moving the switch to the symbol
, O or to the middle position .
The same principles apply for interior lighting version 2 as for Interior lighting -
version 1 ⇒  
page 45. 
Rear interior lighting Fig. 29 Rear interior lighting
The rear interior lighting is operated by pressing the button ⇒ 
fig. 29 .
The button has two positions for the interior lighting at the rear. In the first posi-
tion, the interior lighting is switched on permanently, in the second position (after
pressing) it is switched via the door contacts. Note
We recommend having the bulb replaced by a specialist garage. 
Lighting of the storage compartment on front passenger side –
When opening the flap of the storage compartment on the front passenger
side the lighting in the storage compartment comes on.
– The light switches on automatically when the parking light is switched on and
goes out when the flap is closed. 
Luggage compartment light The lighting comes on automatically when the boot lid is opened. If the lid remains
open for more than about 10 minutes, the luggage compartment lighting switches
off automatically.
46
Lights and Visibility

Visibility
Rear window heater Fig. 30 Switch for rear window heater
– You can switch the rear window heater on or off by pressing the switch ⇒ 
fig. 30 - the indicator light in the switch comes on or goes out.
The rear window heater only operates when the engine is running.
The rear window heater switches off automatically after 7 minutes.
If the on-board voltage drops, the rear window heater is switched off automatical-
ly, the warning light flashes in the button. For the sake of the environment
As soon as the window is de-iced or free from mist, the heating should be switch-
ed off. The reduced current consumption will have a favourable effect on fuel
economy ⇒ page 139, Saving electricity. Sun visors Fig. 31 Sun visor: swivelling out
You can pull the sun visor for the driver or front passenger out of the fixture and
swivel it toward the door in the direction of the arrow 1 ⇒
 fig. 31 .
The vanity mirrors in the sun visors are provided with covers. Push the cover in di-
rection of arrow 2 .
WARNING
The sun visors must not be swivelled to the side windows into the deploy-
ment area of the head airbags if any objects, such as ball-point pens etc. are
attached to them. This might result in injuries to the occupants if the head air-
bag is deployed. 47
Lights and Visibility Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

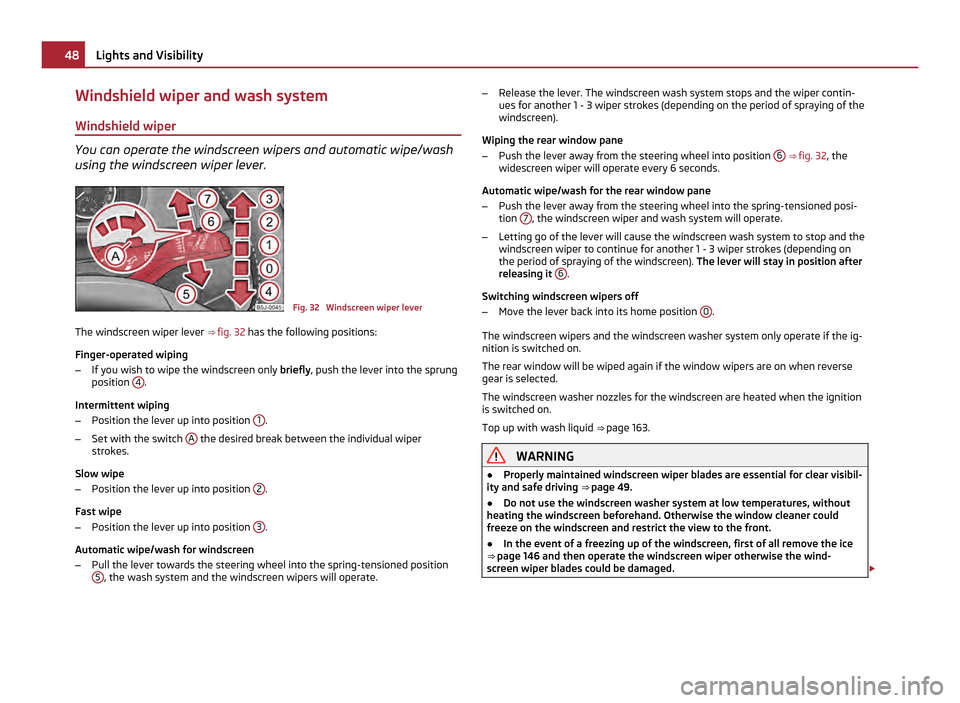

Windshield wiper and wash system
Windshield wiper You can operate the windscreen wipers and automatic wipe/wash
using the windscreen wiper lever.
Fig. 32 Windscreen wiper lever
The windscreen wiper lever ⇒ 
fig. 32 has the following positions:
Finger-operated wiping
– If you wish to wipe the windscreen only briefly, push the lever into the sprung
position 4 .
Intermittent wiping
– Position the lever up into position 1 .
– Set with the switch A the desired break between the individual wiper
strokes.
Slow wipe
– Position the lever up into position 2 .
Fast wipe
– Position the lever up into position 3 .
Automatic wipe/wash for windscreen
– Pull the lever towards the steering wheel into the spring-tensioned position
5 , the wash system and the windscreen wipers will operate. –
Release the lever. The windscreen wash system stops and the wiper contin-
ues for another 1 - 3 wiper strokes (depending on the period of spraying of the
windscreen).
Wiping the rear window pane
– Push the lever away from the steering wheel into position 6 ⇒ fig. 32, the
widescreen wiper will operate every 6 seconds.
Automatic wipe/wash for the rear window pane
– Push the lever away from the steering wheel into the spring-tensioned posi-
tion 7 , the windscreen wiper and wash system will operate.
– Letting go of the lever will cause the windscreen wash system to stop and the
windscreen wiper to continue for another 1 - 3 wiper strokes (depending on
the period of spraying of the windscreen). The lever will stay in position after
releasing it 6 .
Switching windscreen wipers off
– Move the lever back into its home position 0 .
The windscreen wipers and the windscreen washer system only operate if the ig-
nition is switched on.
The rear window will be wiped again if the window wipers are on when reverse
gear is selected.
The windscreen washer nozzles for the windscreen are heated when the ignition
is switched on.
Top up with wash liquid ⇒ page

163. WARNING
● Properly maintained windscreen wiper blades are essential for clear visibil-
ity and safe driving ⇒ 

page 49.
● Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. Otherwise the window cleaner could
freeze on the windscreen and restrict the view to the front.
● In the event of a freezing up of the windscreen, first of all remove the ice
⇒ 

page 146 and then operate the windscreen wiper otherwise the wind-
screen wiper blades could be damaged. £48
Lights and Visibility
