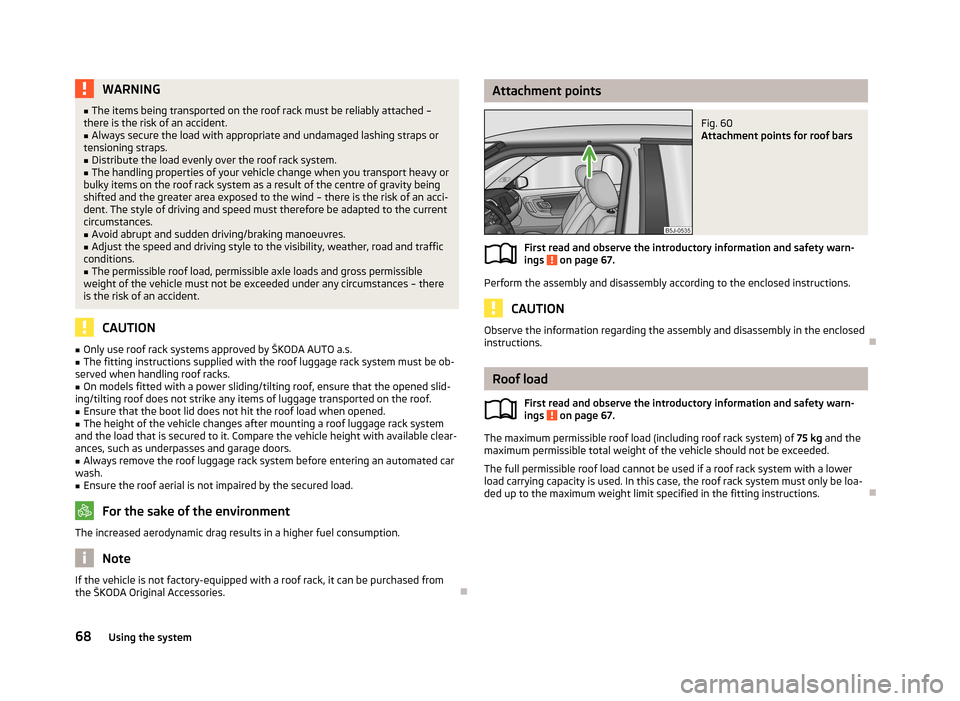

WARNING■The items being transported on the roof rack must be reliably attached –
there is the risk of an accident.■
Always secure the load with appropriate and undamaged lashing straps or
tensioning straps.
■
Distribute the load evenly over the roof rack system.
■
The handling properties of your vehicle change when you transport heavy or
bulky items on the roof rack system as a result of the centre of gravity being
shifted and the greater area exposed to the wind – there is the risk of an acci-
dent. The style of driving and speed must therefore be adapted to the current
circumstances.
■
Avoid abrupt and sudden driving/braking manoeuvres.
■
Adjust the speed and driving style to the visibility, weather, road and traffic
conditions.
■
The permissible roof load, permissible axle loads and gross permissible
weight of the vehicle must not be exceeded under any circumstances – there is the risk of an accident.
CAUTION
■ Only use roof rack systems approved by ŠKODA AUTO a.s.■The fitting instructions supplied with the roof luggage rack system must be ob-
served when handling roof racks.■
On models fitted with a power sliding/tilting roof, ensure that the opened slid-
ing/tilting roof does not strike any items of luggage transported on the roof.
■
Ensure that the boot lid does not hit the roof load when opened.
■
The height of the vehicle changes after mounting a roof luggage rack system
and the load that is secured to it. Compare the vehicle height with available clear-
ances, such as underpasses and garage doors.
■
Always remove the roof luggage rack system before entering an automated car
wash.
■
Ensure the roof aerial is not impaired by the secured load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
Note
If the vehicle is not factory-equipped with a roof rack, it can be purchased from
the ŠKODA Original Accessories.
Attachment pointsFig. 60
Attachment points for roof bars
First read and observe the introductory information and safety warn-
ings on page 67.
Perform the assembly and disassembly according to the enclosed instructions.
CAUTION
Observe the information regarding the assembly and disassembly in the enclosed
instructions.
Roof load
First read and observe the introductory information and safety warn-
ings
on page 67.
The maximum permissible roof load (including roof rack system) of 75 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
The full permissible roof load cannot be used if a roof rack system with a lower
load carrying capacity is used. In this case, the roof rack system must only be loa-
ded up to the maximum weight limit specified in the fitting instructions.
68Using the system
Page 72 of 223
Useful equipment
Introduction
This chapter contains information on the following subjects:
Cupholders
69
Ashtray
69
Cigarette lighter
70
12-volt power outlet
70
Clothes hook
71
Car park ticket holder
71WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down while you are driving (under acceleration or when cornering) and could
distract you from the traffic - there is a risk of an accident.■
Make sure that no objects from the centre console or from other storage
compartments can get into the driver's footwell while you are driving. You
would then no longer be able to apply the brakes or operate the clutch or ac-
celerator pedal – there is a risk of an accident.
■
Ash and cigarette or cigar stubs must only be discarded in ashtrays.
Cupholders
Fig. 61
Cup holder
First read and observe the introductory information and safety warn-
ings on page 69.
Two beverage containers can be placed into the recesses
A
» Fig. 61 .
One beverage container can be placed into the recess
B
.
WARNING■ Never put hot cups in the cup holder. They may spill as the vehicle moves –
there is a risk of scalding.■
No objects should be placed in the holders that might endanger the vehi-
cle's occupants if the vehicle brakes suddenly or the vehicle is in collision.
■
Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). This could lead to injuries in the event of an accident.
CAUTION
Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the elec-
trical components or seat upholstery.
Ashtray
Fig. 62
Centre console: Ashtray at the front/rear
First read and observe the introductory information and safety warn-
ings
on page 69.
The ashtray can be used for discarding ash, cigarettes, cigars and the like » .
69Seats and storage
Page 73 of 223

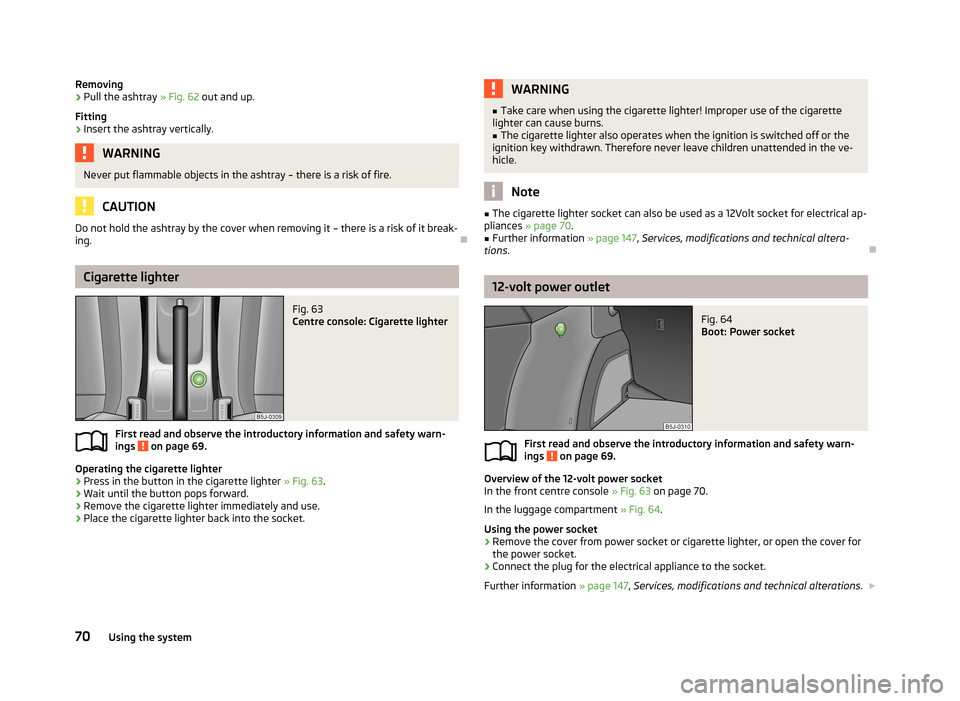

Removing›Pull the ashtray » Fig. 62 out and up.
Fitting›
Insert the ashtray vertically.
WARNINGNever put flammable objects in the ashtray – there is a risk of fire.
CAUTION
Do not hold the ashtray by the cover when removing it – there is a risk of it break- ing.
Cigarette lighter
Fig. 63
Centre console: Cigarette lighter
First read and observe the introductory information and safety warn-
ings on page 69.
Operating the cigarette lighter
›
Press in the button in the cigarette lighter » Fig. 63.
›
Wait until the button pops forward.
›
Remove the cigarette lighter immediately and use.
›
Place the cigarette lighter back into the socket.
WARNING■
Take care when using the cigarette lighter! Improper use of the cigarette
lighter can cause burns.■
The cigarette lighter also operates when the ignition is switched off or the
ignition key withdrawn. Therefore never leave children unattended in the ve-
hicle.
Note
■ The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 70 .■
Further information » page 147, Services, modifications and technical altera-
tions .
12-volt power outlet
Fig. 64
Boot: Power socket
First read and observe the introductory information and safety warn-
ings on page 69.
Overview of the 12-volt power socket
In the front centre console » Fig. 63 on page 70.
In the luggage compartment » Fig. 64.
Using the power socket
›
Remove the cover from power socket or cigarette lighter, or open the cover for
the power socket.
›
Connect the plug for the electrical appliance to the socket.
Further information » page 147, Services, modifications and technical alterations .
70Using the system
Page 74 of 223

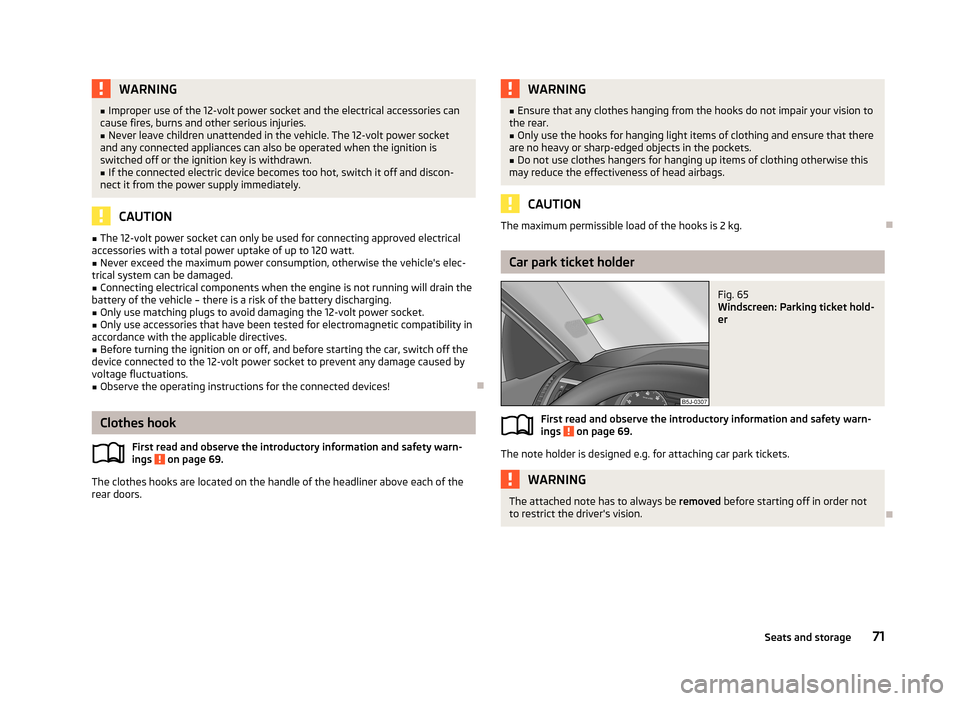

WARNING■Improper use of the 12-volt power socket and the electrical accessories can
cause fires, burns and other serious injuries.■
Never leave children unattended in the vehicle. The 12-volt power socket
and any connected appliances can also be operated when the ignition is switched off or the ignition key is withdrawn.
■
If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately.
CAUTION
■ The 12-volt power socket can only be used for connecting approved electrical
accessories with a total power uptake of up to 120 watt.■
Never exceed the maximum power consumption, otherwise the vehicle's elec-
trical system can be damaged.
■
Connecting electrical components when the engine is not running will drain the
battery of the vehicle – there is a risk of the battery discharging.
■
Only use matching plugs to avoid damaging the 12-volt power socket.
■
Only use accessories that have been tested for electromagnetic compatibility in
accordance with the applicable directives.
■
Before turning the ignition on or off, and before starting the car, switch off the
device connected to the 12-volt power socket to prevent any damage caused by
voltage fluctuations.
■
Observe the operating instructions for the connected devices!
Clothes hook
First read and observe the introductory information and safety warn-ings
on page 69.
The clothes hooks are located on the handle of the headliner above each of the
rear doors.
WARNING■ Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.■
Only use the hooks for hanging light items of clothing and ensure that there
are no heavy or sharp-edged objects in the pockets.
■
Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of head airbags.
CAUTION
The maximum permissible load of the hooks is 2 kg.
Car park ticket holder
Fig. 65
Windscreen: Parking ticket hold-
er
First read and observe the introductory information and safety warn-
ings on page 69.
The note holder is designed e.g. for attaching car park tickets.
WARNINGThe attached note has to always be removed before starting off in order not
to restrict the driver's vision.
71Seats and storage
Page 75 of 223
Storage compartments
Introduction
This chapter contains information on the following subjects:
Storage compartments on the front passenger side
72
Cooling the storage compartment on the front passenger side
73
Storage compartment on the driver's side
73
Map pockets in the front seats
73
Glasses storage box
74
Stowage compartment in centre console
74
Stowage compartment underneath the front passenger seat
74
Front armrest with storage compartment
75
Storage compartments in the doors
75
Storage compartments in the boot
75
Flexible storage compartment
76WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down while you are driving (under acceleration or when cornering) and could
distract you from the traffic - there is a risk of an accident.■
Make sure that no objects from the centre console or from other storage
compartments can get into the driver's footwell while you are driving. You
would then no longer be able to apply the brakes or operate the clutch or ac-
celerator pedal – there is a risk of an accident.

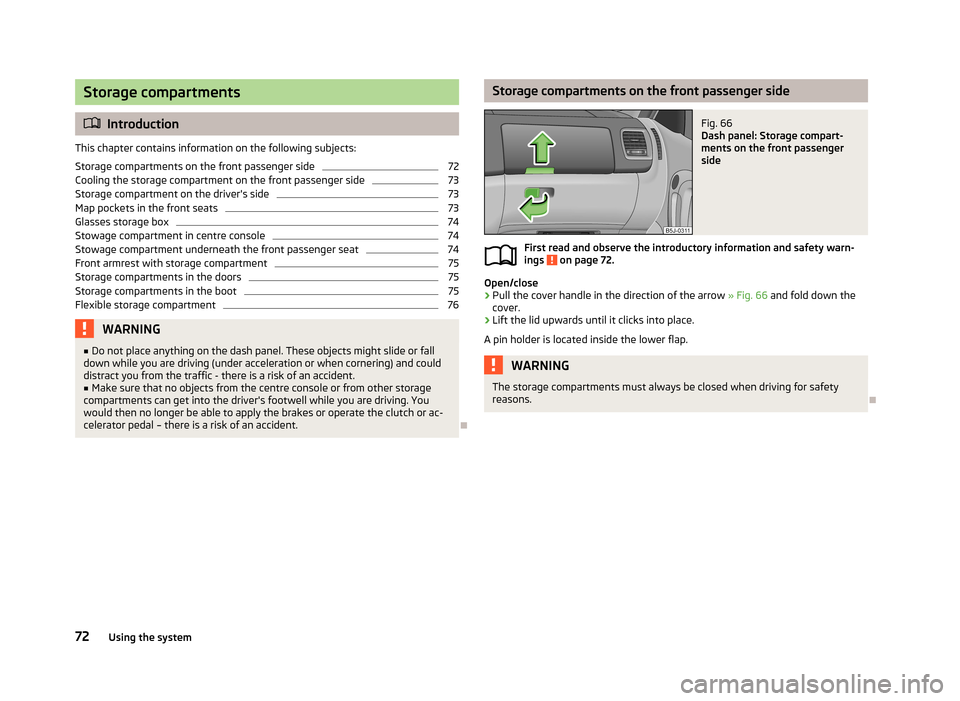

Storage compartments on the front passenger sideFig. 66
Dash panel: Storage compart-
ments on the front passenger
side
First read and observe the introductory information and safety warn-
ings on page 72.
Open/close
›
Pull the cover handle in the direction of the arrow » Fig. 66 and fold down the
cover.
›
Lift the lid upwards until it clicks into place.
A pin holder is located inside the lower flap.
WARNINGThe storage compartments must always be closed when driving for safety
reasons.
72Using the system
Page 76 of 223

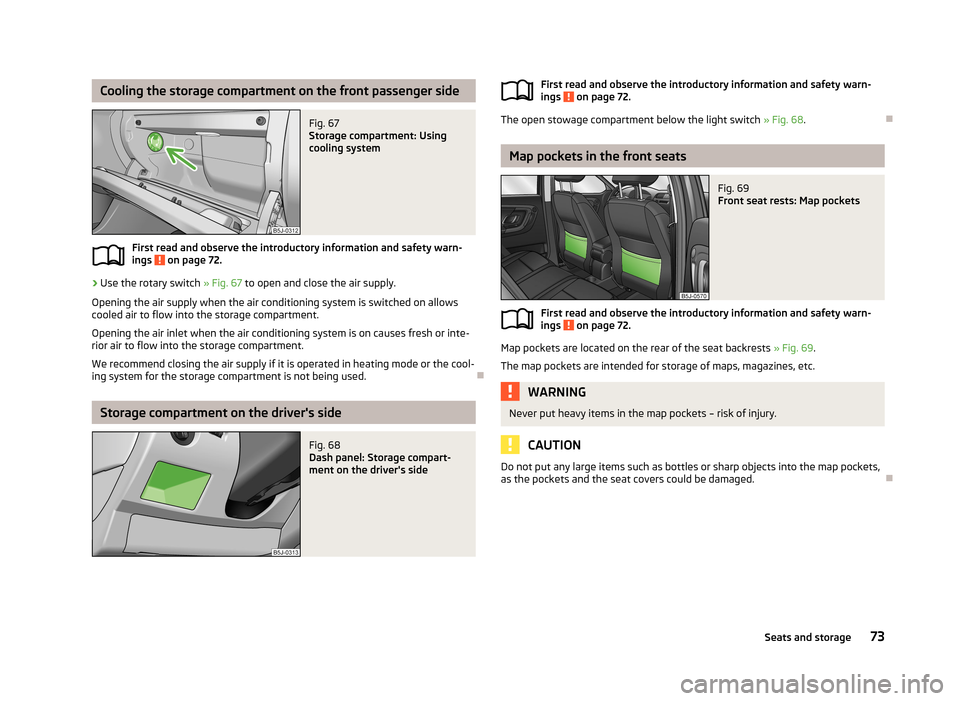

Cooling the storage compartment on the front passenger sideFig. 67
Storage compartment: Using
cooling system
First read and observe the introductory information and safety warn-
ings on page 72.
›
Use the rotary switch » Fig. 67 to open and close the air supply.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or inte-rior air to flow into the storage compartment.
We recommend closing the air supply if it is operated in heating mode or the cool-ing system for the storage compartment is not being used.
Storage compartment on the driver's side
Fig. 68
Dash panel: Storage compart-
ment on the driver's sideFirst read and observe the introductory information and safety warn-
ings on page 72.
The open stowage compartment below the light switch » Fig. 68.
Map pockets in the front seats
Fig. 69
Front seat rests: Map pockets
First read and observe the introductory information and safety warn-
ings on page 72.
Map pockets are located on the rear of the seat backrests » Fig. 69.
The map pockets are intended for storage of maps, magazines, etc.
WARNINGNever put heavy items in the map pockets – risk of injury.
CAUTION
Do not put any large items such as bottles or sharp objects into the map pockets,
as the pockets and the seat covers could be damaged.
73Seats and storage
Page 77 of 223
Glasses storage boxFig. 70
Detail of the headliner: Glasses
storage box
First read and observe the introductory information and safety warn-
ings on page 72.
›
Press on the bar in the cover of the glasses storage. The compartment folds down » Fig. 70 .

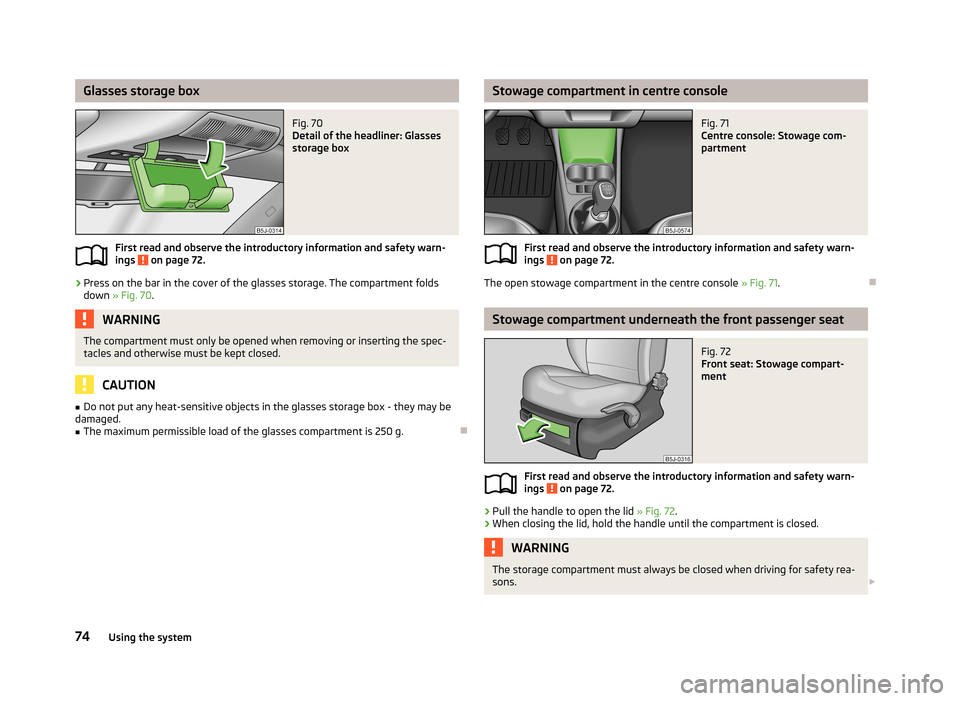

WARNINGThe compartment must only be opened when removing or inserting the spec-
tacles and otherwise must be kept closed.
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box - they may be
damaged.■
The maximum permissible load of the glasses compartment is 250 g.
Stowage compartment in centre consoleFig. 71
Centre console: Stowage com-
partment
First read and observe the introductory information and safety warn-
ings on page 72.
The open stowage compartment in the centre console » Fig. 71.
Stowage compartment underneath the front passenger seat
Fig. 72
Front seat: Stowage compart-
ment
First read and observe the introductory information and safety warn-
ings on page 72.
›
Pull the handle to open the lid » Fig. 72.
›
When closing the lid, hold the handle until the compartment is closed.
WARNINGThe storage compartment must always be closed when driving for safety rea-
sons. 74Using the system
Page 78 of 223
CAUTIONThe storage compartment is designed for storing small objects of up to 1 kg. in
weight.

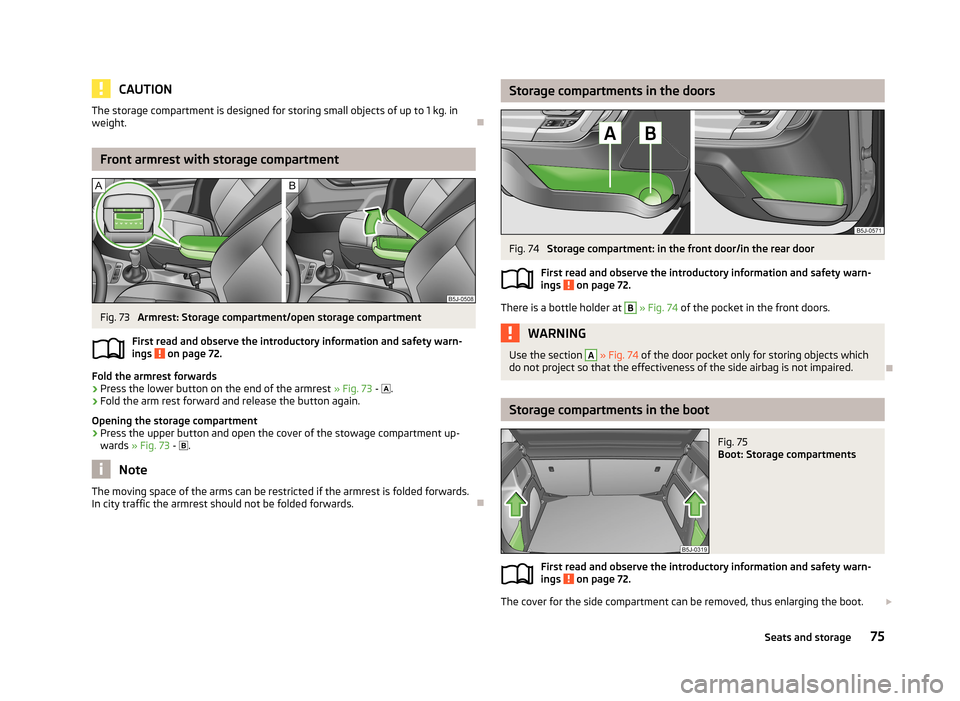

Front armrest with storage compartment
Fig. 73
Armrest: Storage compartment/open storage compartment
First read and observe the introductory information and safety warn- ings
on page 72.
Fold the armrest forwards
›
Press the lower button on the end of the armrest » Fig. 73 -
.
›
Fold the arm rest forward and release the button again.
Opening the storage compartment
›
Press the upper button and open the cover of the stowage compartment up- wards » Fig. 73 -
.
Note
The moving space of the arms can be restricted if the armrest is folded forwards.
In city traffic the armrest should not be folded forwards.
Storage compartments in the doorsFig. 74
Storage compartment: in the front door/in the rear door
First read and observe the introductory information and safety warn- ings
on page 72.
There is a bottle holder at
B
» Fig. 74 of the pocket in the front doors.
WARNINGUse the section A » Fig. 74 of the door pocket only for storing objects which
do not project so that the effectiveness of the side airbag is not impaired.
Storage compartments in the boot
Fig. 75
Boot: Storage compartments
First read and observe the introductory information and safety warn-
ings on page 72.
The cover for the side compartment can be removed, thus enlarging the boot.
75Seats and storage
Page 79 of 223

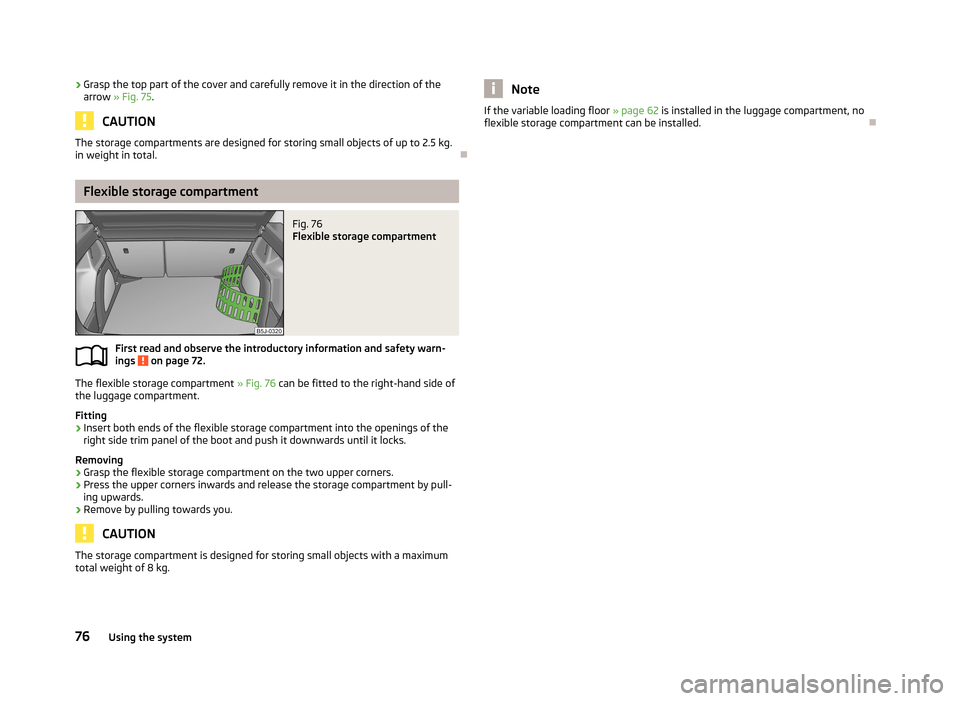

›Grasp the top part of the cover and carefully remove it in the direction of the
arrow » Fig. 75 .
CAUTION
The storage compartments are designed for storing small objects of up to 2.5 kg.
in weight in total.
Flexible storage compartment
Fig. 76
Flexible storage compartment
First read and observe the introductory information and safety warn-
ings on page 72.
The flexible storage compartment » Fig. 76 can be fitted to the right-hand side of
the luggage compartment.
Fitting
›
Insert both ends of the flexible storage compartment into the openings of the right side trim panel of the boot and push it downwards until it locks.
Removing
›
Grasp the flexible storage compartment on the two upper corners.
›
Press the upper corners inwards and release the storage compartment by pull-
ing upwards.
›
Remove by pulling towards you.
CAUTION
The storage compartment is designed for storing small objects with a maximum
total weight of 8 kg.NoteIf the variable loading floor » page 62 is installed in the luggage compartment, no
flexible storage compartment can be installed.
76Using the system
Page 80 of 223

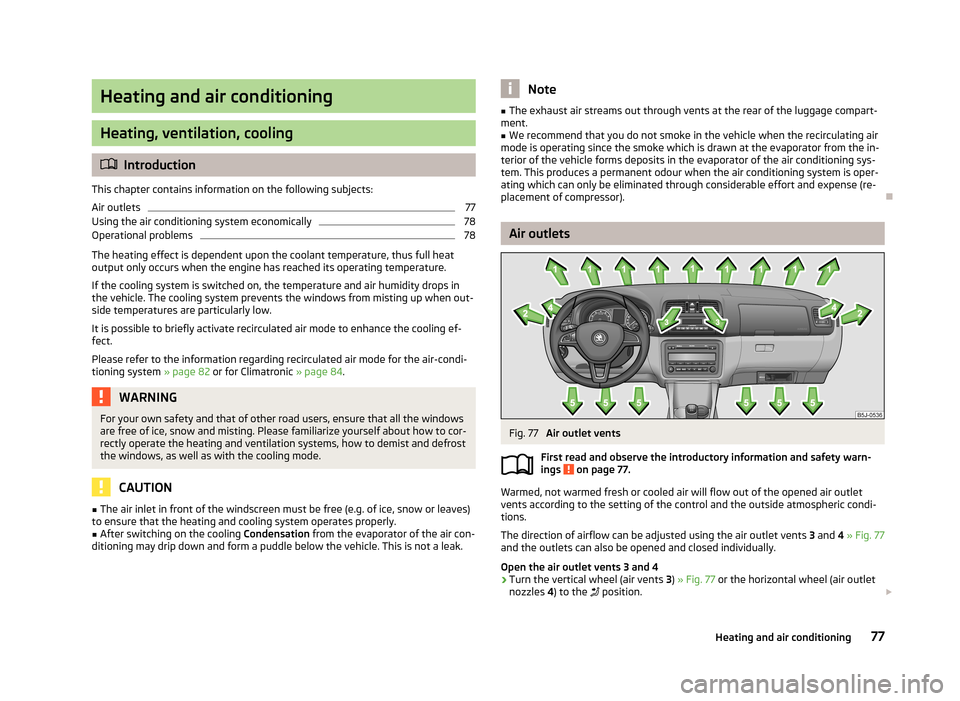

Heating and air conditioning
Heating, ventilation, cooling
Introduction
This chapter contains information on the following subjects:
Air outlets
77
Using the air conditioning system economically
78
Operational problems
78
The heating effect is dependent upon the coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
If the cooling system is switched on, the temperature and air humidity drops in
the vehicle. The cooling system prevents the windows from misting up when out- side temperatures are particularly low.
It is possible to briefly activate recirculated air mode to enhance the cooling ef- fect.
Please refer to the information regarding recirculated air mode for the air-condi- tioning system » page 82 or for Climatronic » page 84.
WARNINGFor your own safety and that of other road users, ensure that all the windows
are free of ice, snow and misting. Please familiarize yourself about how to cor- rectly operate the heating and ventilation systems, how to demist and defrost
the windows, as well as with the cooling mode.
CAUTION
■ The air inlet in front of the windscreen must be free (e.g. of ice, snow or leaves)
to ensure that the heating and cooling system operates properly.■
After switching on the cooling Condensation from the evaporator of the air con-
ditioning may drip down and form a puddle below the vehicle. This is not a leak.
Note■ The exhaust air streams out through vents at the rear of the luggage compart-
ment.■
We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the in- terior of the vehicle forms deposits in the evaporator of the air conditioning sys-tem. This produces a permanent odour when the air conditioning system is oper-ating which can only be eliminated through considerable effort and expense (re-
placement of compressor).
Air outlets
Fig. 77
Air outlet vents
First read and observe the introductory information and safety warn- ings
on page 77.
Warmed, not warmed fresh or cooled air will flow out of the opened air outlet
vents according to the setting of the control and the outside atmospheric condi-
tions.
The direction of airflow can be adjusted using the air outlet vents 3 and 4 » Fig. 77
and the outlets can also be opened and closed individually.
Open the air outlet vents 3 and 4
›
Turn the vertical wheel (air vents 3) » Fig. 77 or the horizontal wheel (air outlet
nozzles 4) to the
position.
77Heating and air conditioning
