53Rear Body



 Edition 03.97

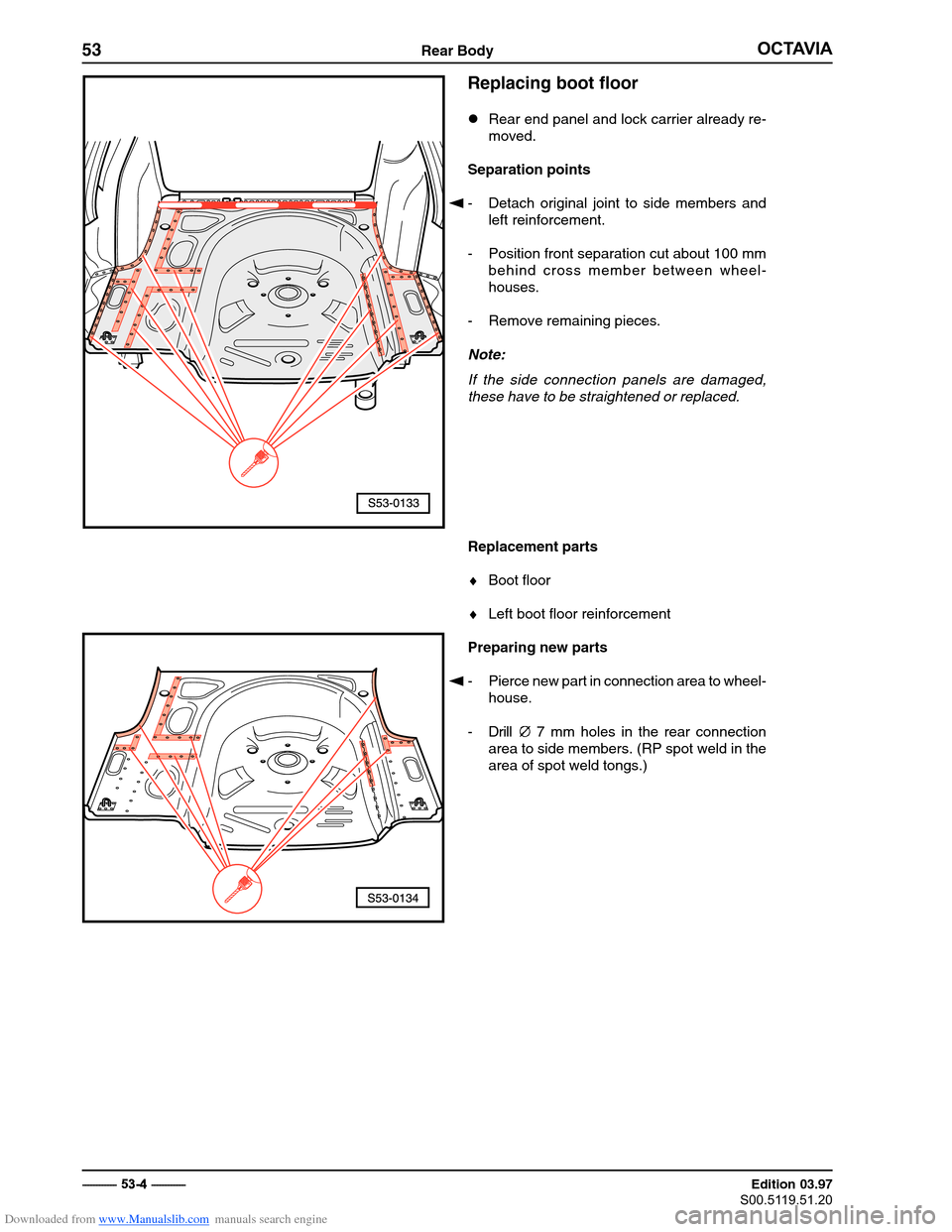

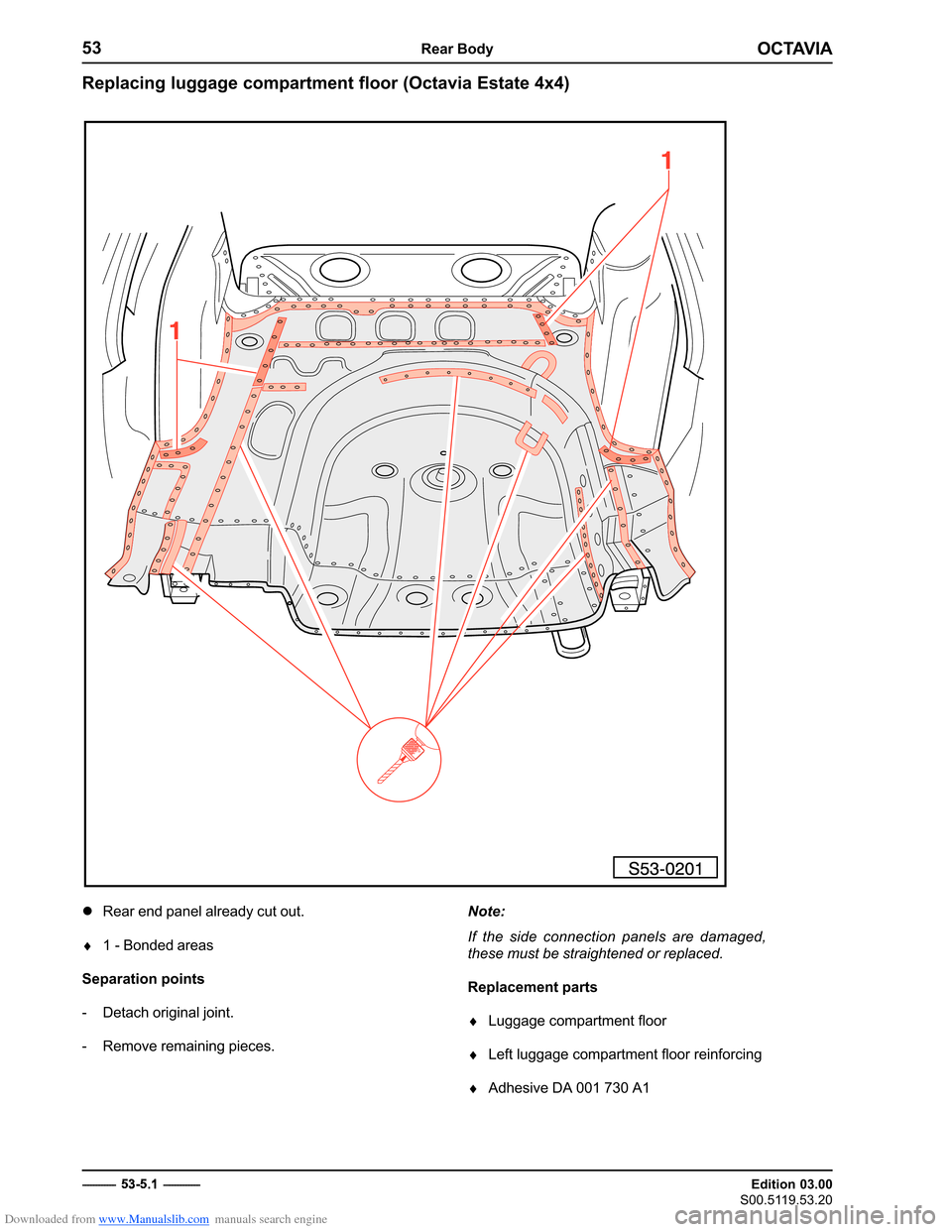

Replacing boot floor

Rear end panel and lock carrier already re- moved.
Separation points
- Detach original joint to side members and
left reinforcement.
- Position front separation cut about 100 mm behind cross member between wheel-houses.
- Remove remaining pieces.
Note: If the side connection panels are damaged,these have to be straightened or replaced.
Replacement parts Boot floor
Left boot floor reinforcement

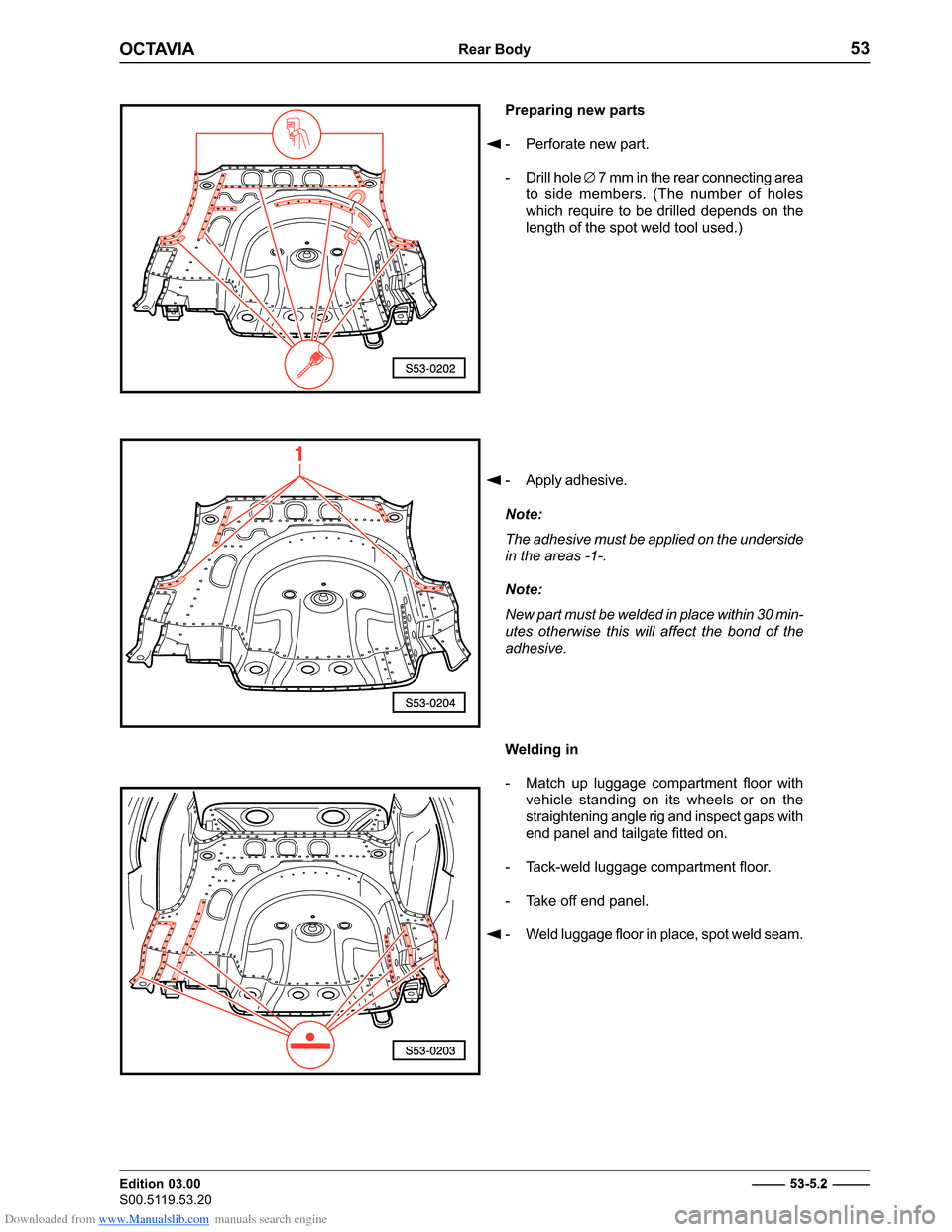

Preparing new parts
- Pierce new part in connection area to wheel-
house.
- Drill
∅ 7 mm holes in the rear connection
area to side members. (RP spot weld in the area of spot weld tongs.)

Downloaded from www.Manualslib.com manuals search engine Rear Body53
Edition 03.97

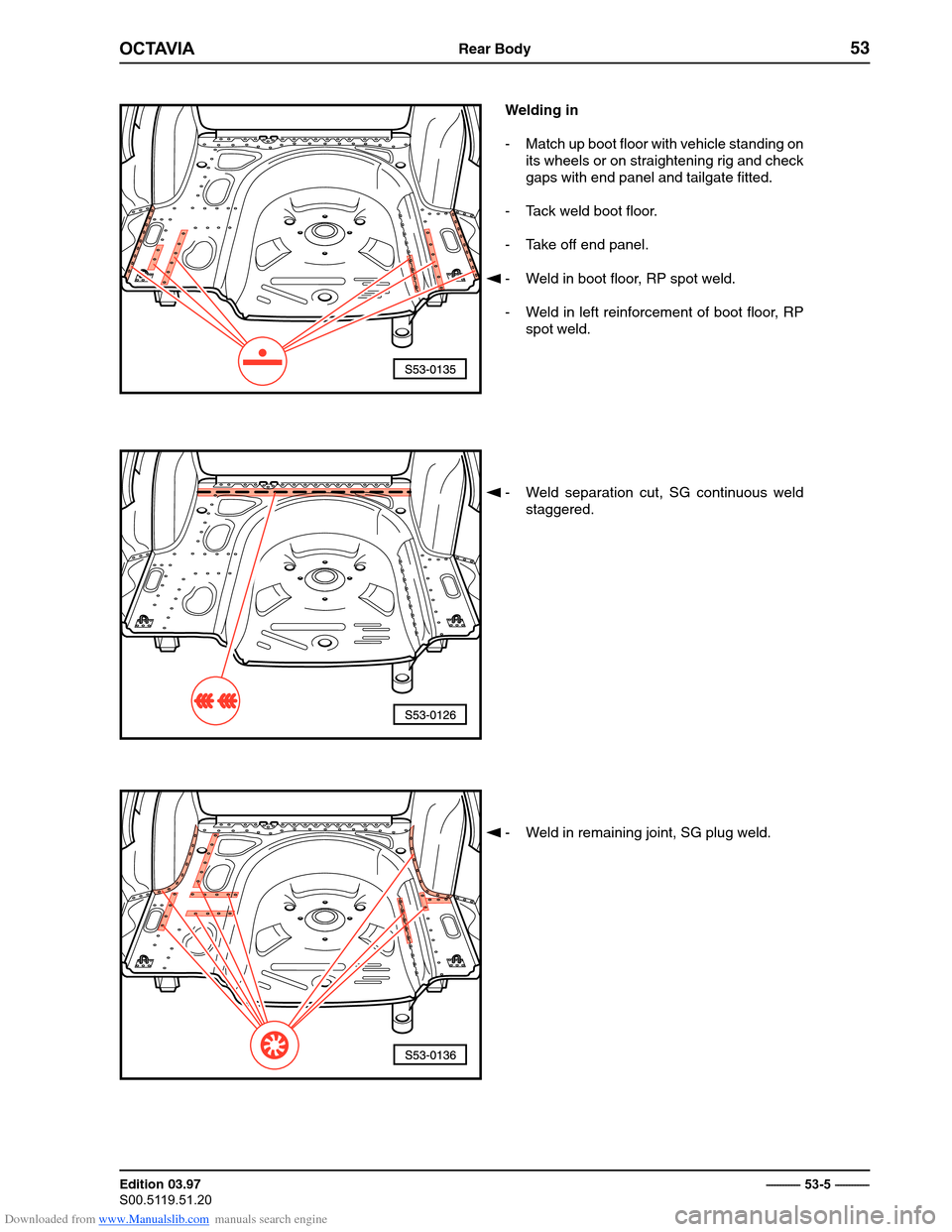

Welding in
- Match up boot floor with vehicle standing on
its wheels or on straightening rig and check gaps with end panel and tailgate fitted.
- Tack weld boot floor.
- Take off end panel.
- Weld in boot floor, RP spot weld.
- Weld in left reinforcement of boot floor, RP
spot weld.
- Weld separation cut, SG continuous weld
staggered.

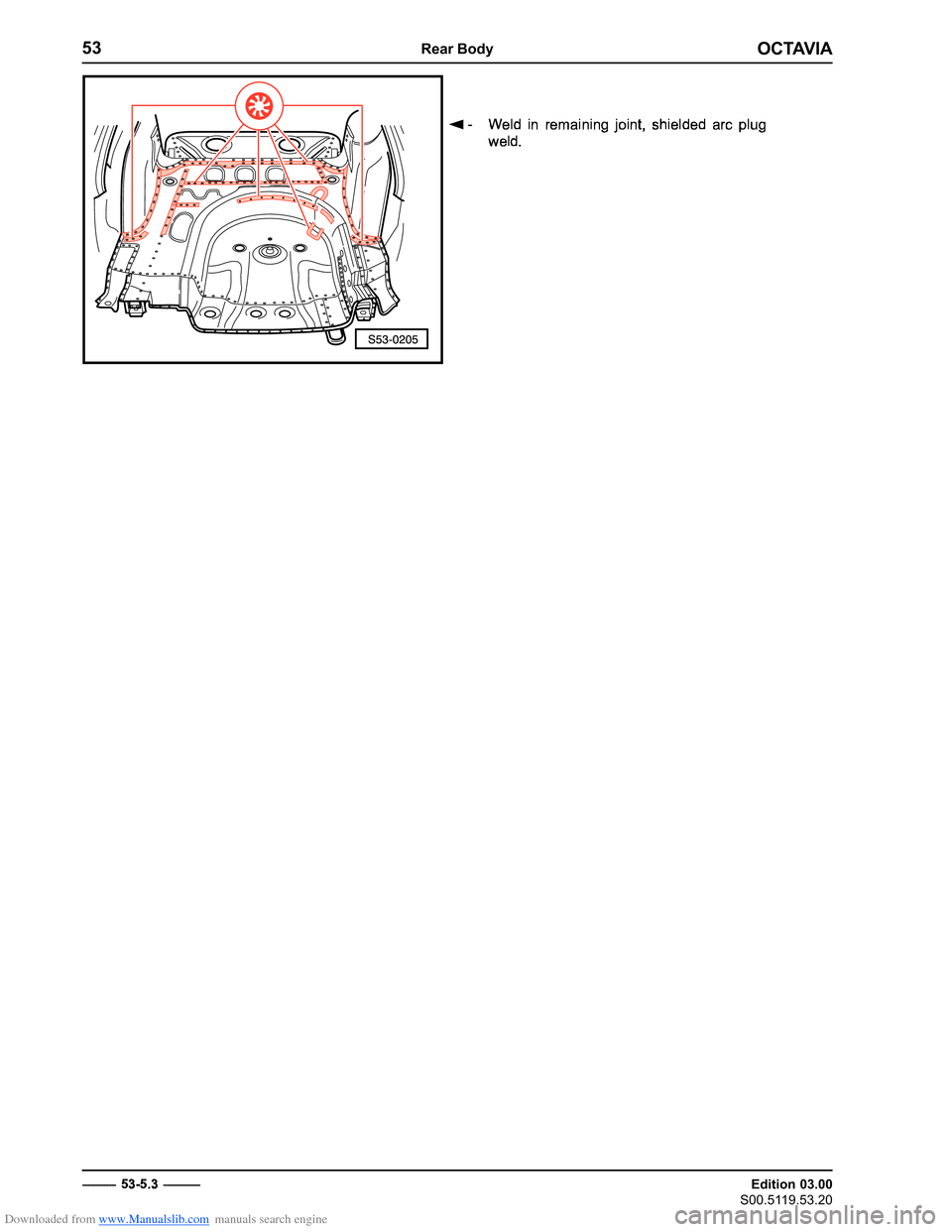

- Weld in remaining joint, SG plug weld.

Downloaded from www.Manualslib.com manuals search engine










Downloaded from www.Manualslib.com manuals search engine








Downloaded from www.Manualslib.com manuals search engine













  














Downloaded from www.Manualslib.com manuals search engine








Downloaded from www.Manualslib.com manuals search engine
53Rear Body



 Edition 03.97

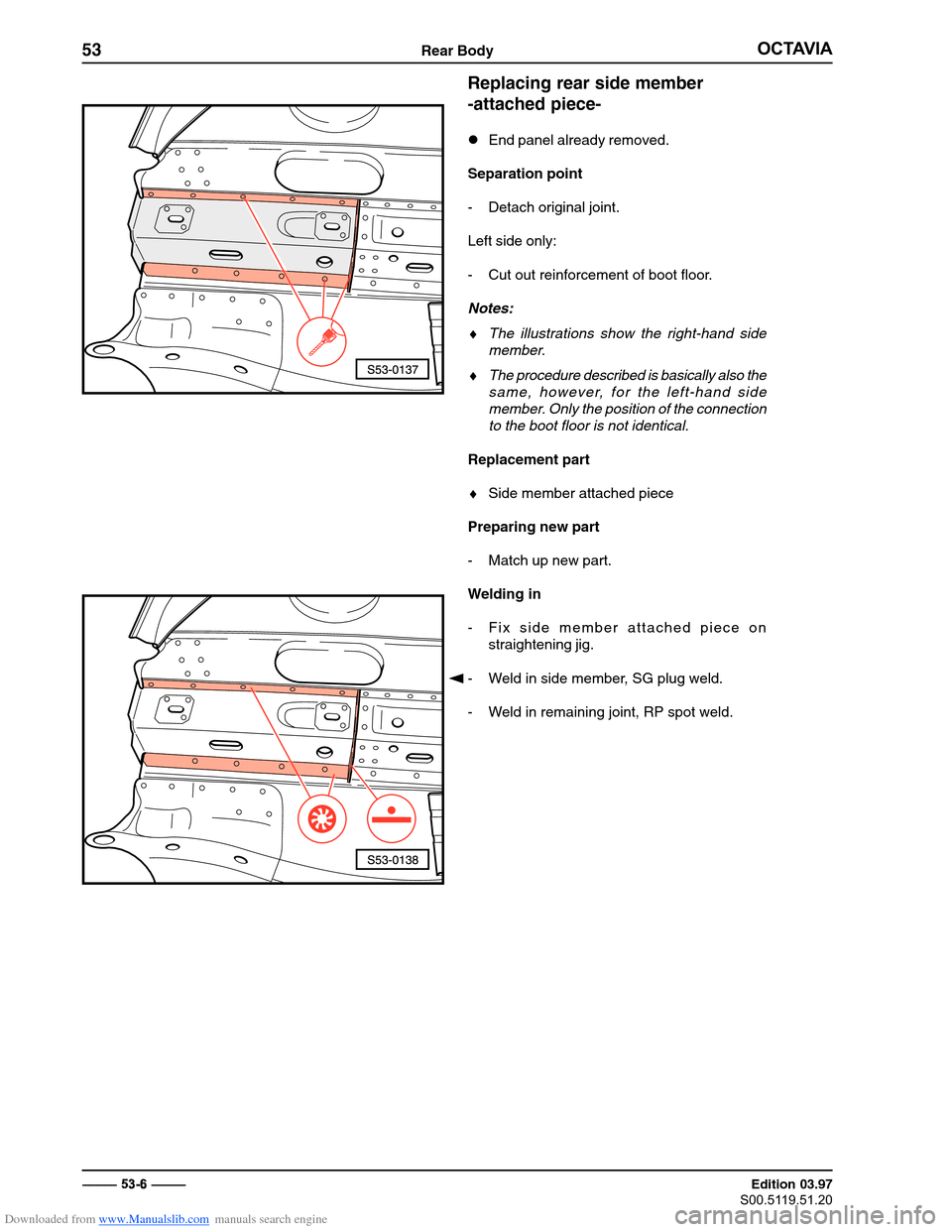

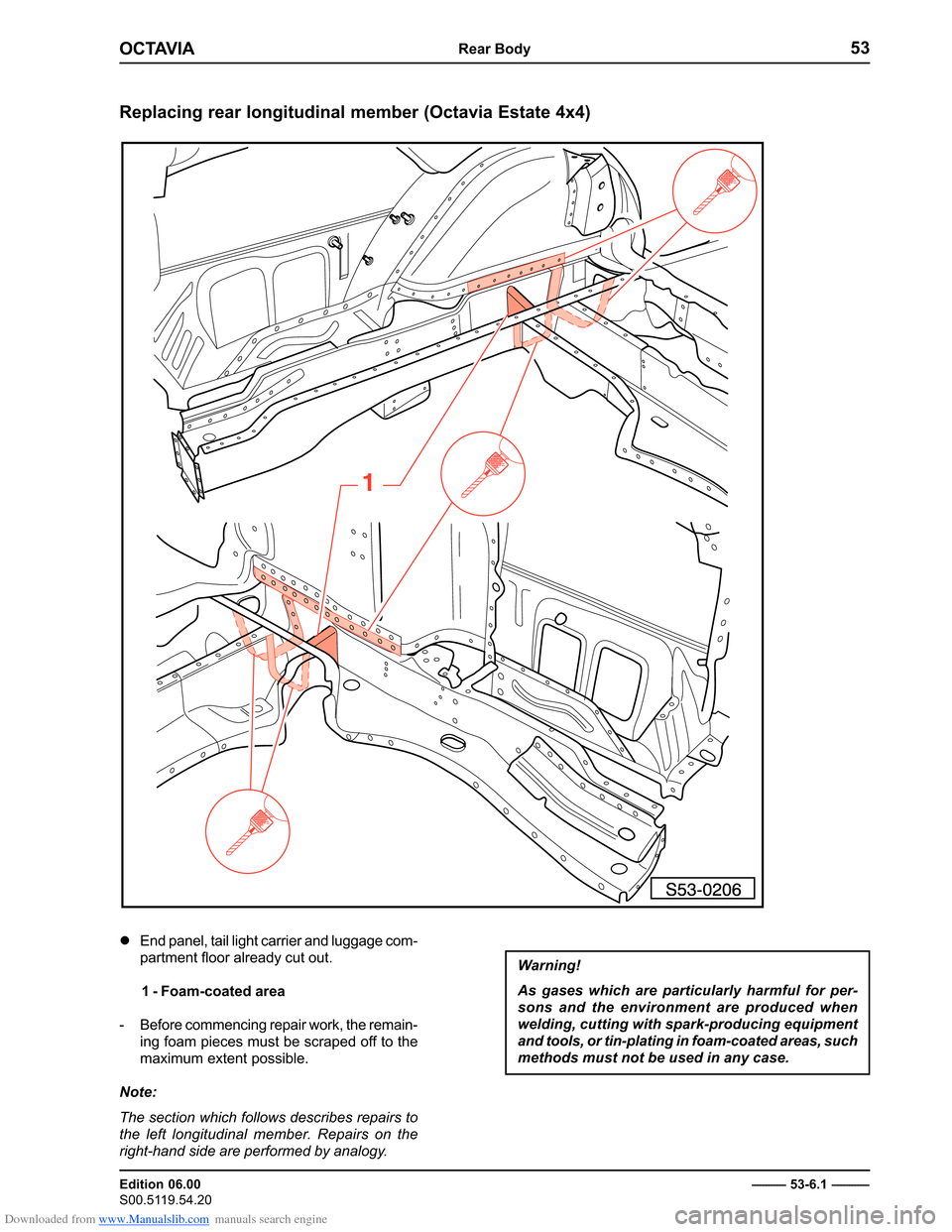

Replacing rear side member -attached piece-

End panel already removed.
Separation point
- Detach original joint. Left side only:
- Cut out reinforcement of boot floor.
Notes:
The illustrations show the right-hand side member.
The procedure described is basically also thesame, however, for the left-hand sidemember. Only the position of the connection
to the boot floor is not identical.
Replacement part Side member attached piece
Preparing new part
- Match up new part.
Welding in
- Fix side member attached piece on straightening jig.
- Weld in side member, SG plug weld.
- Weld in remaining joint, RP spot weld.
