SKODA OCTAVIA 1997 1.G / (1U) Body Repairs Owners Manual

Downloaded from www.Manualslib.com manuals search engine



























∅

Downloaded from www.Manualslib.com manuals search engine

















Downloaded from www.Manualslib.com manuals search engine







Downloaded from www.Manualslib.com manuals search engine OCTAVIA
51Middle Body
Edition 02.03
S00.5119.56.20
------------ 5
1
8 - ------------

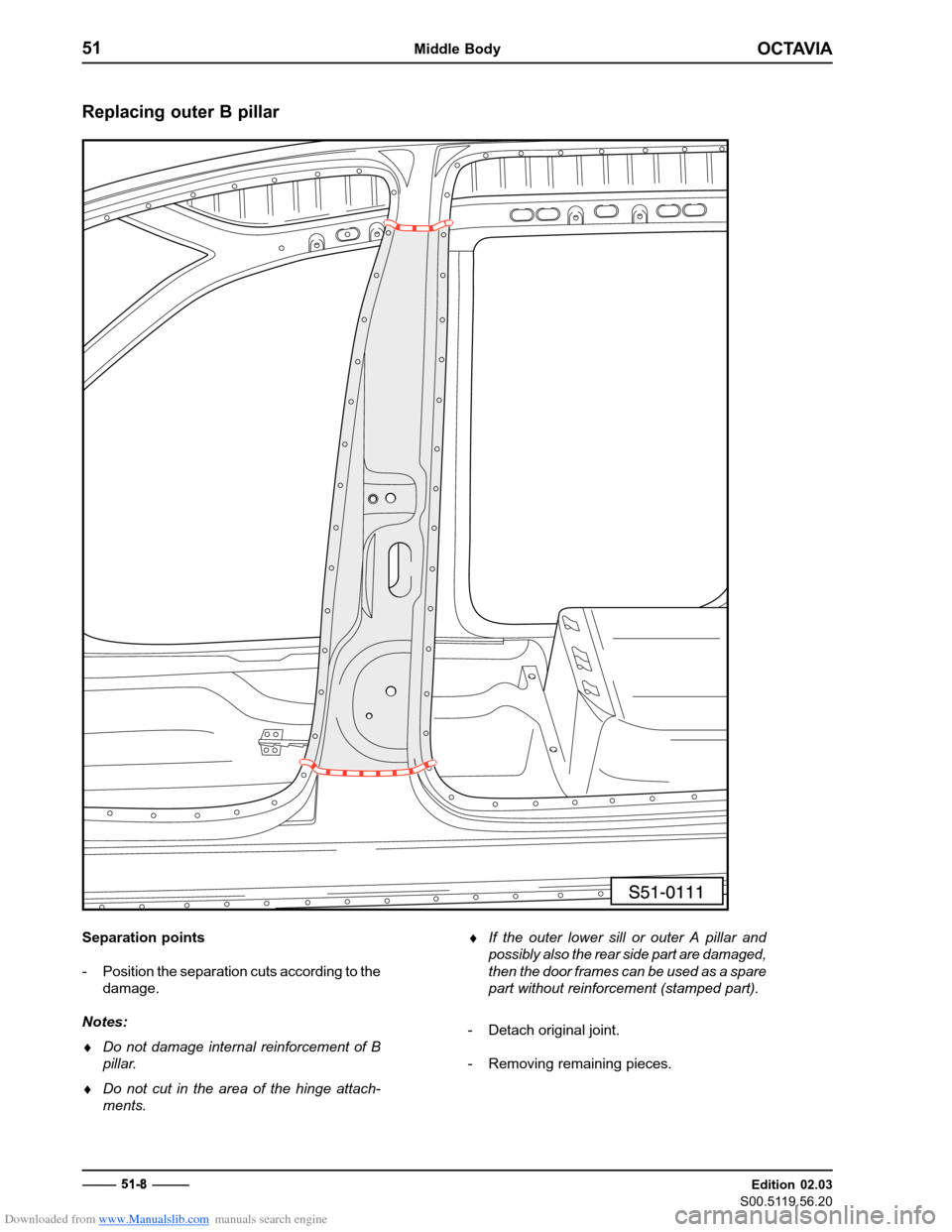

Replacing outer B pillar
Separation points
- Position the separation cuts according to the
damage.
Notes: Do not damage internal reinforcement of B
pillar.
Do not cut in the area of the hinge attach- ments.
If the outer lower sill or outer A pillar and possibly also the rear side part are damaged,
then the door frames can be used as a spare part without reinforcement (stamped part).
- Detach original joint.
- Removing remaining pieces.

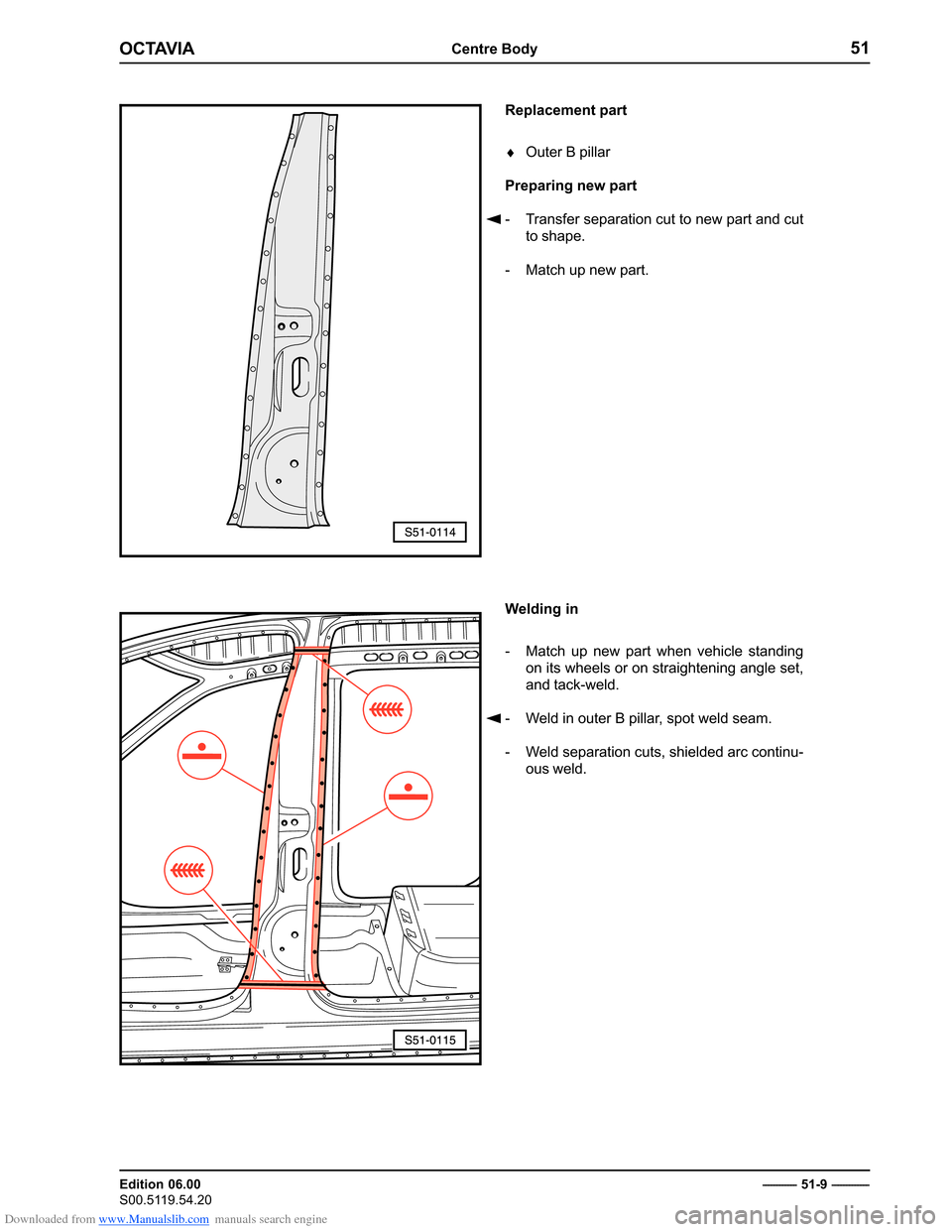

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine OCTAVIA
51Middle Body
Edition 02.03
S00.5119.56.20
------------ 5
1
9 .
1 - ------------

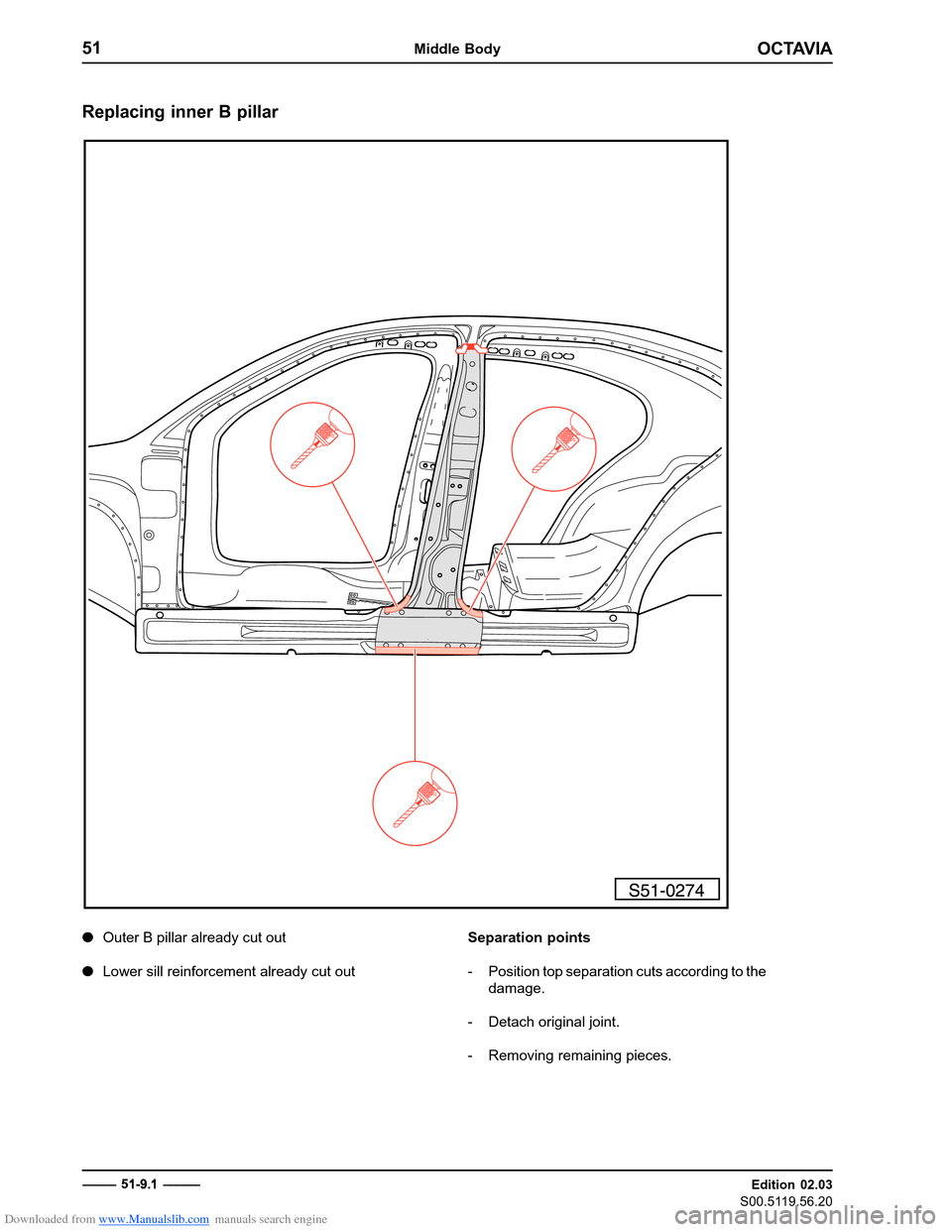

Replacing inner B pillar

Outer B pillar already cut out
Lower sill reinforcement already cut out Separation points
- Position top separation cuts according to the
damage.
- Detach original joint.
- Removing remaining pieces.

Downloaded from www.Manualslib.com manuals search engine OCTAVIAMiddle Body51
Edition 02.03
S00.5119.56.20------------ 5
1
9 .
2 - ------------

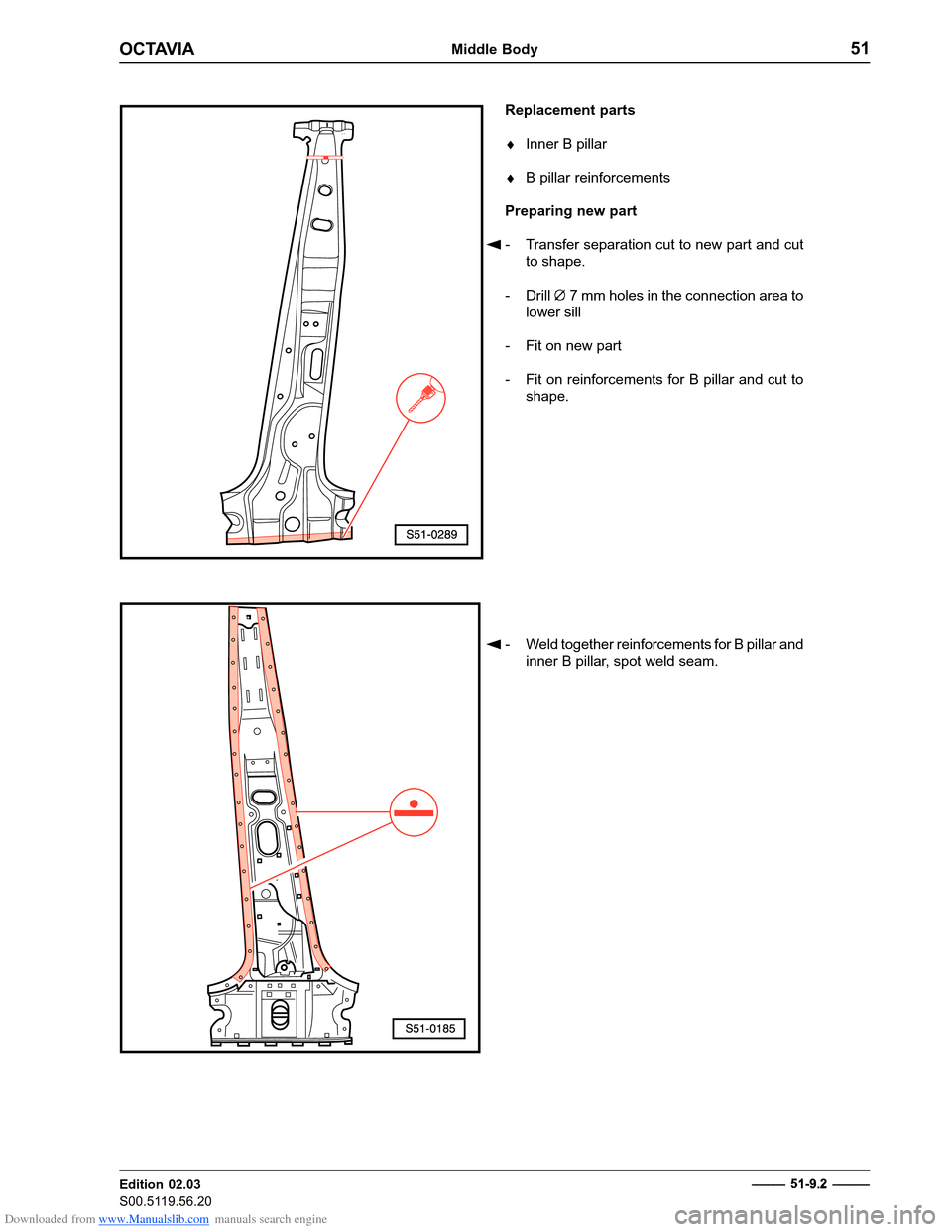

Replacement parts Inner B pillar
B pillar reinforcements
Preparing new part
- Transfer separation cut to new part and cut
to shape.
- Drill
∅ 7 mm holes in the connection area to
lower sill
- Fit on new part
- Fit on reinforcements for B pillar and cut to shape.
- Weld together reinforcements for B pillar and
inner B pillar, spot weld seam.

Downloaded from www.Manualslib.com manuals search engine OCTAVIA
51Middle Body
Edition 02.03
S00.5119.56.20

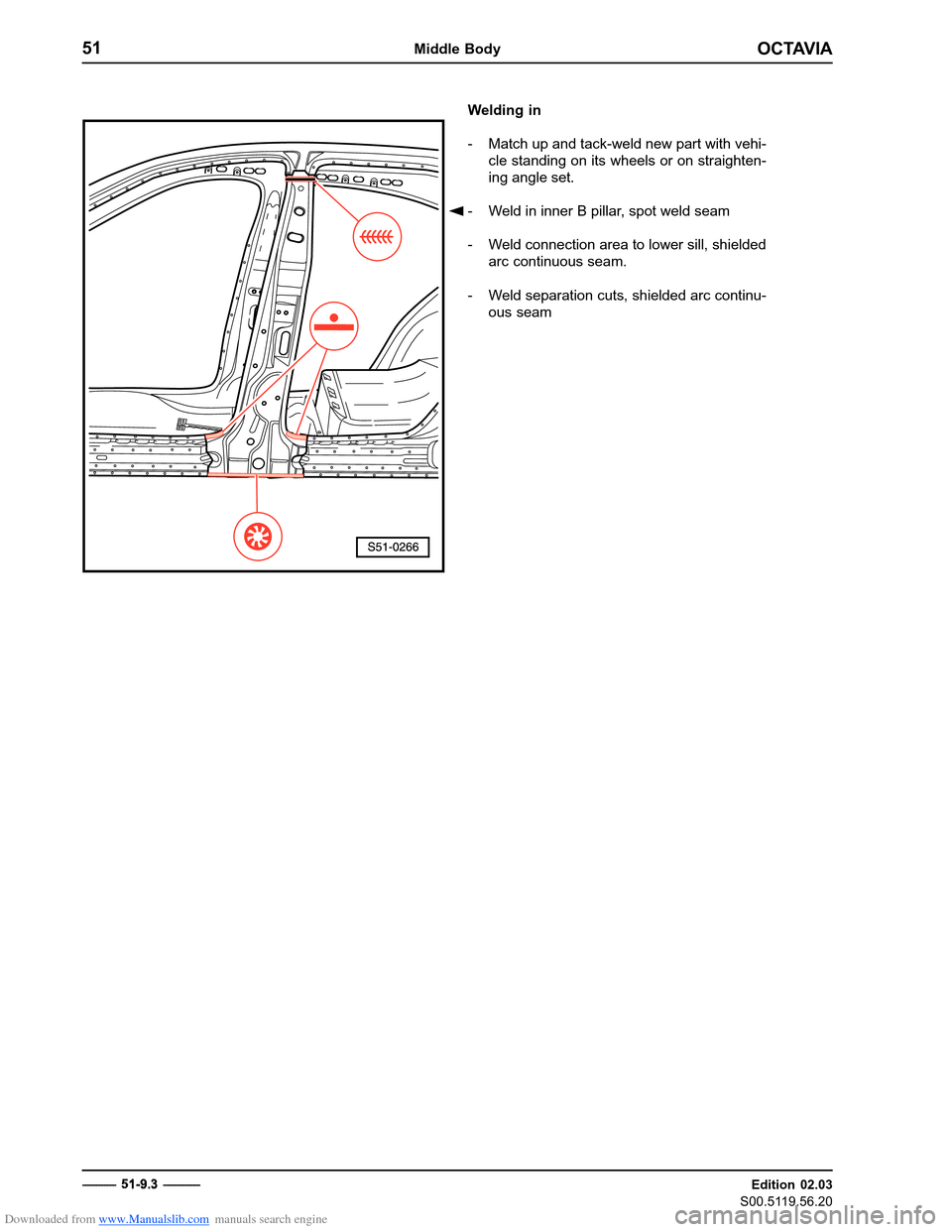

Welding in
- Match up and tack-weld new part with vehi- cle standing on its wheels or on straighten-
ing angle set.
- Weld in inner B pillar, spot weld seam
- Weld connection area to lower sill, shielded
arc continuous seam.
- Weld separation cuts, shielded arc continu- ous seam
------------ 5
1
9 .
3 - ------------

Downloaded from www.Manualslib.com manuals search engine OCTAVIAMiddle Body51
Edition 02.03
S00.5119.56.20------------ 5
1
9 .
4 - ------------
Replacing inner B pillar (Octavia RS)
The procedure is basically identical to that for the Octavia page 51-9.1
Carry out additional operations: The B pillar is additionally shielded arc-welded in the connection area to the roof reinforcement.
Welding in
- Make two shielded arc continuous seams
each 25 mm long in the connection area.

Downloaded from www.Manualslib.com manuals search engine OCTAVIA
51Middle Body
Edition 02.03
S00.5119.56.20

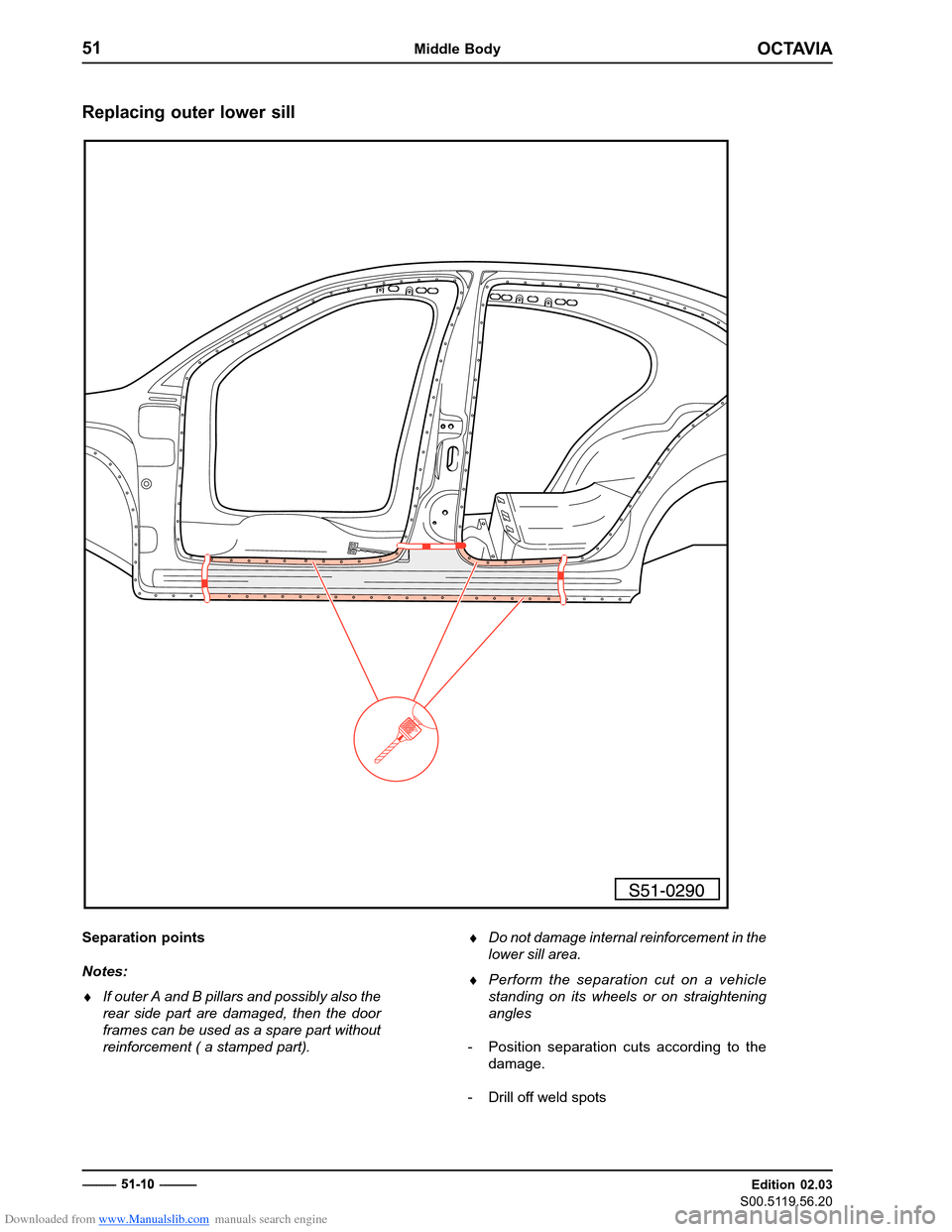

Replacing outer lower sill
Separation points Notes:
If outer A and B pillars and possibly also the
rear side part are damaged, then the door frames can be used as a spare part without reinforcement ( a stamped part).
Do not damage internal reinforcement in the lower sill area.
Perform the separation cut on a vehicle standing on its wheels or on straightening angles
- Position separation cuts according to the damage.
- Drill off weld spots
------------ 5
1
1 0 - ------------
