Breakdown assistance
280
WARNING
Slacken the wheel bolts only a little (about one turn) as long as the
vehicle has not yet been jacked up - risk of an accident!.
Note
apply pressure carefully with your foot to the end of the wheel wrench if it
proves difficult to slacken the wheel bolts. Hold tight on the vehicle when
doing this and ensure that you have a steady position.
Raise vehicle
You have to raise the vehicle with a lifting jack in order to
be able to take off the wheel.
Position the lifting jack by selecting the jacking point which is
closest to the wheel to be removed ⇒fig. 210 . The jacking point is located directly below the engraving in the lower sill. The
engraving is only visible after opening the door.
– Position the lifting jack below the jacking point and move it up
until its claw is positioned directly below the vertical web of the
lower sill.
– Align the car jack so that its claw grasps the web of the lower sill and the base plate is resting flat on the floor.
– Turn the lifting jack up further until the wheel is just clear of the ground.
Ground below the lifting jack which is soft and slippery can cause the
vehicle to slip off the jack. It is therefore always necessary to place the
lifting jack on a solid surface or use a wide and stable base. Use a non-
slip base (e.g. a rubber foot mat) if the surface is smooth, such as
cobbled stones, a tiled floor,etc.
WARNING
•Always raise the vehicle with the doors closed - risk of injury!
•Take suitable measures to prevent the base of the lifting jack
from slipping off - risk of injury!
•Not positioning the lifting jack at the specified points can result
in damage to the vehicle. The jack can also slip off if it does not
have sufficient grip - risk of injury!
•It is important to support the ve hicle with suitable supporting

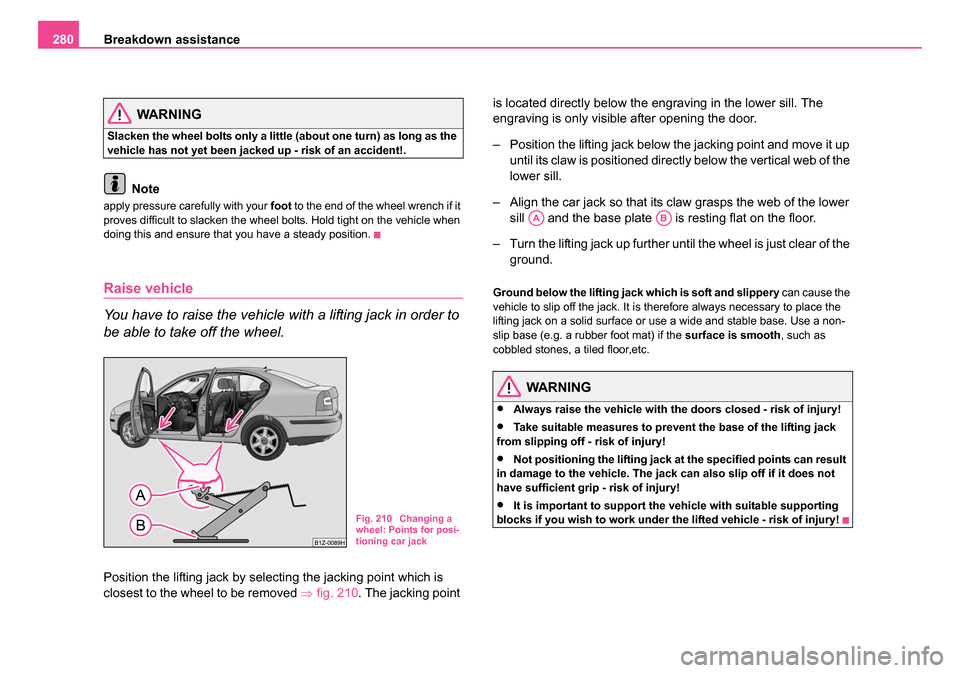

blocks if you wish to work under the lifted vehicle - risk of injury!Fig. 210 Changing a
wheel: Points for posi-
tioning car jack
AAAB
s24s.book Page 280 Thursday, November 24, 2005 12:27 PM
Page 309 of 315
Index
308
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . 280
Jump-starting . . . . . . . . . . . . . . . . . . . 281, 282
K
Keeping windows demisted
The air conditioning system . . . . . . . . . 125
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
L
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . 93
Leather care . . . . . . . . . . . . . . . . . . . . . . . . 239
light Changing bulbs . . . . . . . . . . . . . . . . . . . 294
Lighting of the interior of the vehicle . . . . . . . 70
Lights Automatic . . . . . . . . . . . . . . . . . . . . . . . . 64
Converting/masking over . . . . . . . . . . . 228
Range adjustment . . . . . . . . . . . . . . . . . . 67
switching them on and off . . . . . . . . . . . . 63
Warning lights . . . . . . . . . . . . . . . . . . . . . 30
Lights and Visibility . . . . . . . . . . . . . . . . . . . . 67
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . 36
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Central locking system . . . . . . . . . . . . . . 48
Remote control . . . . . . . . . . . . . . . . . . . . 52 locking
Central locking system . . . . . . . . . . . . . . 47
Locking and unlocking from inside . . . . . . . . 48
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Luggage compartment . . . . . . . . . . . . . . 50, 92 Folding double hooks . . . . . . . . . . . . . . . 95
Folding hooks . . . . . . . . . . . . . . . . . . . . . 96
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . 93
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . 102M
Main beam . . . . . . . . . . . . . . . . . . . . . . . 63, 68 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 142
Manual shifting of gears . . . . . . . . . . . . . . . 142
Memory for the on-board computer . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . 165, 175 Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . 173
Motoring abroad . . . . . . . . . . . . . . . . . . . . . 228
Multifunction steering wheel . . . . . . . . . . . . 163
Multi-functional indicator . . . . . . . . . . . . . . . . 18
N
Navigation system . . . . . . . . . . . . . . . . . . . . . 26
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . 104
O
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Onboard computer . . . . . . . . . . . . . . . . . . . . 18
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Opening a single door . . . . . . . . . . . . . . . . . . 46
Opening for skis . . . . . . . . . . . . . . . . . . . . . 114
Operation in winter De-icing windows . . . . . . . . . . . . . . . . . . 236
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . 244
The battery . . . . . . . . . . . . . . . . . . . . . . . 260
Overview of the engine compartment . . . . . 250
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Paint damage . . . . . . . . . . . . . . . . . . . . . . . 236
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Parking aid at the rear . . . . . . . . . . . . . . . . . . . . . . . . 144
front and rear . . . . . . . . . . . . . . . . . . . . . 145
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 63
Parking the vehicle . . . . . . . . . . . . . . . . . . . 144
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . 177
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Petrol engines Starting engine . . . . . . . . . . . . . . . . . . . . 141
