SKODA OCTAVIA 2007 1.G / (1U) Owner's Manual

Heating and air conditioning system
100
Heating and air conditioning system
Heating
Using the system
The heating system delivers air into the interior of the vehicle and
warms it as required.
Fig. 119 Heating: Control elements
Setting temperature
– Turn the control dial ⇒fig. 119 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera- ture.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order to switch the blower on. – Turn the blower switch into positi
on 0 in order to switch the blower
off.
– Pressing button causes the recirculating air system ⇒ to be
switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 102 using air
distribution regulator .
Rear window heater
– Press button . Further information ⇒page 59, “Rear window
heater”.
Auxiliary heating (auxiliary heating)
– Press the button in order to directly switch on/off the auxiliary heating (auxiliary heating and ve ntilation). Further information
⇒ page 113, “Auxiliary heating system (auxiliary heating and ventila-
tion)*”.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and ventilation systems operate properly.
The heating effect is dependent upon th e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
The blower should aways be on to prevent the windows from misting up.
AA
AA
AB
AB
A1
AC
A2
A3
NKO A5 20 MR08.book Page 100 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci-
dent increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Note
•The whole heat output will be needed to unfrost the windscreen and side
windows. No warm air will be fed to the f ootwell. This can lead to restriction of the
heating comfort.
•The used air streams out through the air removal openings in the luggage
compartment.
Set heating
Recommended settings of heating controls for:
Defrosting the windscreen and side windows
•Tu r n c o n t ro l d i a l ⇒page 100, fig. 119 to the right up to the stop
•Blower switch in position 3
•Turn the air distribution control into the position 
•Open air outlet vents 3 ⇒ page 102, fig. 120 and point towards the side
window.
•Close the air outlet vents 4
Keeping windscreen and side windows demisted
We recommend that you use the following setting in cases where the windows are
misted up more than usual (e.g. when it is raining):
•Control dial where necessary to the heating range
•Blower switch in position 2 or 3
•Control dial to  or  as required or to any desired position between
these symbols
•Open air outlet vents 3 and point towards the side window
•Close the air outlet vents 4
Warming up the inside of the vehicle as rapidly as possible
•Turn control dial to the right up to the stop
•Blower switch in position 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•We recommend that you briefly switch on the recirculated air mode with the
pushbutton . The windows can steam up in this position however.
Heating the vehicle to a comfortable temperature
We recommend the following setting once the windows are no longer misted up
and the desired temperature has been reached:
•Control dial at the desired heat output
•Blower switch in position 2 or 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3
•Close the air outlet vents 4
•Set the air distribution regulator as required between positions  and ,
if the windscreen gets misted up again.
Fresh air mode - ventilation
Non pre-warmed fresh air stream s through the air inlet nozzles 3 and 4 for the
following settings.
Recirculated air mode must not be switched on.
•Turn the control dial ⇒page 100, fig. 119 to the left up to the stop
•Blower switch in the desired position
•Turn the air distribution control into the position 
•Open air outlet vents 3 and 4 ⇒ page 102, fig. 120
AA
AB
AC
AA
AB
AC
AA
AB
AC
A1
AA
AB
AC
AC
AA
AB
AC
NKO A5 20 MR08.book Page 101 Wednesday, April 11, 2007 2:54 PM

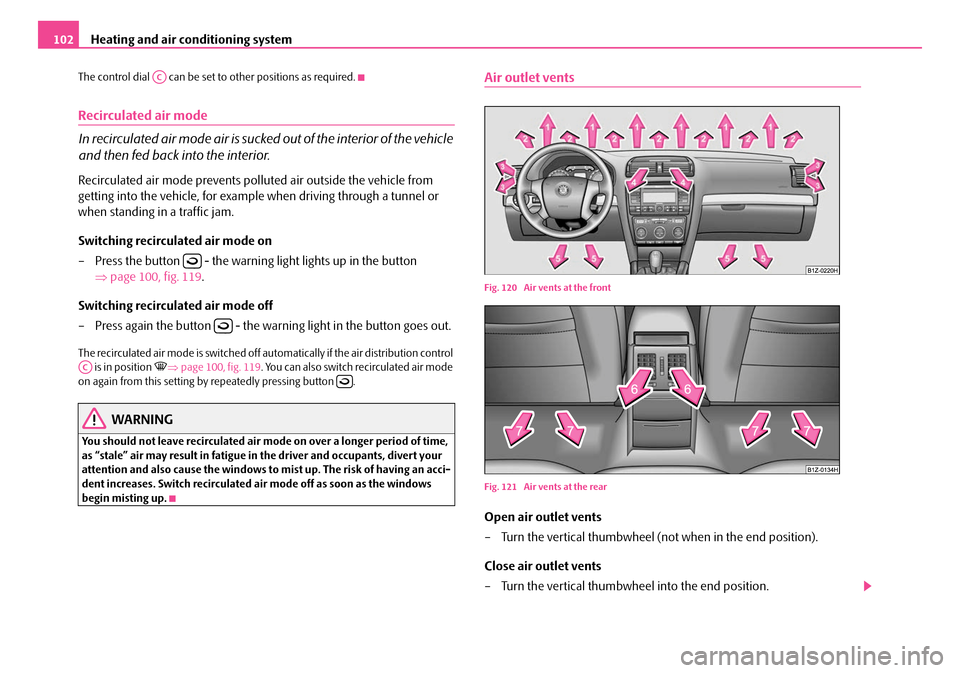

Heating and air conditioning system
102
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press the button - the warning light lights up in the button
⇒page 100, fig. 119 .
Switching recirculated air mode off
– Press again the button - the warning light in the button goes out.
The recirculated air mode is switched off au tomatically if the air distribution control
is in position ⇒ page 100, fig. 119 . You can also switch recirculated air mode
on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci-
dent increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Air outlet vents
Fig. 120 Air vents at the front
Fig. 121 Air vents at the rear
Open air outlet vents
– Turn the vertical thumbwheel (not when in the end position).
Close air outlet vents
– Turn the vertical thumbwheel into the end position.
AC


AC
NKO A5 20 MR08.book Page 102 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system103
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Redirecting air flow
– Swivel upward or downward the grille of the vents in order to change
the direction of the air flow using the vertically arranged thumbwheel.
– Turn the horizontal thumbwheel on the v e n t t o t h e r i g h t o r l e f t i n o rd e r
to change the air flow to the appropriate side.
You can set the air supply to the individual air outlet vents using the control dial
⇒ page 100, fig. 119 . Air outlet vents 3, 4 ⇒ page 102, fig. 120 and 6 ⇒ page 102,
fig. 121 can also be opened or closed individually.
The air outlet vents 6 are only fitted on vehicles with higher centre console.
Unwarmed or cooled air will flow out of the opened air outlet vents according to
the setting of the control dial ⇒page 100, fig. 119 and according to outer
atmospheric conditions.
Note
The air outlet vents 2 ensure in the ventilation mode for a comfortable (no-draught)
ventilation of the interior of the vehicle, also if the air outlet vents 4 are closed.
Climatic* (semi-automatic air conditioning system)
Description
The Climatic is a combined coolin g and heating system. It makes it
possible to optimally control the air temperature at any season of the
year.
Description of the Climatic
It is important for your safety and for your driving comfort that the Climatic is oper-
ating properly.
The cooling only operates if button ⇒page 104, fig. 122 is pressed, and the
following conditions are met:
•engine running,
•outside temperature above +2 °C and
•blower switch switched on (positions 1 to 4).
If the cooling system is switched on, th e temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this
particularly at high outside temperatur es and a high air humidity. The system
prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon th e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirc ulated air mode in order to enhance the
cooling effect ⇒.
Air at a temperature of about 5°C may flow out of the vents under certain circum-
stances when the cooling system is operating. Lengthy and uneven distribution of
the air flow out of the vents (in particular at the leg area) and large differences in
temperature, for example when getting out of the vehicle, can result in chills in
sensitive persons.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and cooling systems operate properly.
After switching on the cooling Condensation from the evaporator of the air condi-
tioning may drip down and form a puddle below the vehicle. This is quite normal
and not an indication of a leak!
WARNING
•For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mistin g. Please familiarize yourself about
how to correctly operate th e heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.
•You should not leave recirculated air mode on over a longer period of
time, as “stale” air may result in fatigue in the driver and occupants, divert
your attention and also cause the windows to mist up. The risk of having an
accident increases. Switch recirculated air mode off as soon as the windows
begin misting up.
AC
AA
ACA1
NKO A5 20 MR08.book Page 103 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system
104
Note
•We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the inte-
rior of the vehicle forms deposits in the evaporator of the air conditioning system.
This produces a permanent odour when the air conditioning system is operating
which can only be eliminated through co nsiderable effort and expense (replace-
ment of compressor).
Using the system
Fig. 122 Climatic: Controls
Setting temperature
– Turn the control dial ⇒fig. 122 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera- ture. Controlling blower
– Turn the blower switch into one of
the positions, 1 to 4, in order to
switch the blower on.
– Turn the blower switch into positi on 0 in order to switch the blower
off.
– Pressing button - causes the recirculating air system ⇒page 106 to be switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 107 using air
distribution regulator .
Switching cooling on and off
– Press the button ⇒fig. 122 . The warning light lights up in the
button.
– When you again press the switch , the cooling system is switched off. The warning light in the button goes out.
Rear window heater
– Press button . Further information ⇒page 59.
Auxiliary heating (auxiliary heating)
– Press the button in order to directly switch on/off the auxiliary heating (auxiliary heating and ve ntilation. Further information
⇒ page 113, “Auxiliary heating system (auxiliary heating and ventila-
tion)*”.
The set temperature will be automatically maintained other than when the
control dial is on the extreme right or extreme left position:
•Extreme right position - full heating.
•Extreme left position - full cooling.
•The blower should aways be on to prevent the windows from misting up.
AA
AA
AB
AB
A3
AC
ACA1
AC
A2
A4
NKO A5 20 MR08.book Page 104 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system105
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•The whole heat output will be needed to unfrost the windscreen and side
windows. No warm air will be fed to the f ootwell. This can lead to restriction of the
heating comfort.
•The used air streams out through the air removal openings in the luggage
compartment.
•If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of deposits. Switch the cooling system on
at least once a month for approximately 5 minutes at the highest blower stage - also
during the cold season of the year - in order to remove such odours. Also open a
window for a short time.
•Please refer to the information regarding recirculated air mode ⇒page 106.
Set Climatic
Recommended settings of Climatic controls for the respective operating modes:
Defrosting the windscreen and side windows
•Put the control dial ⇒page 104, fig. 122 to the temperature selected as
usual by you (we recommend 22 °C); Climat ic puts automatically the heating to
maximum power, until the temperatur e selected by you is achieved.
•Blower switch in position 3
•Turn the air distribution control into the position 
•Open air outlet vents 3 ⇒ page 107, fig. 123 and point towards the side
window.
•Close the air outlet vents 4
Keeping winscreen demisted
We recommend that you use the following setting in cases where the windows are
misted up more than usual (e.g. when it is raining):
Blower switch in position 2
Turn the air distribution control into the position

Open air outlet vents 3 and point towards the side window
Close the air outlet vents 4
Switch on the cooling system by pressing button
Warming up the inside of the vehicle as rapidly as possible
•Put the control dial to the temperatur e selected as usual by you (we recom-
mend 22 °C); Climatic puts automatically the heating to maximum power, until the
temperature selected by you is achieved.
•Blower switch in position 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•We recommend that you briefly switch on the recirculated air mode with the
pushbutton . The windows can steam up in this position however.
Heating the vehicle to a comfortable temperature
We recommend the following setting once the windows are no longer misted up
and the desired temperature has been reached:
•Control dial at the desired heat temperature
•Blower switch in position 2 or 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3
•Close the air outlet vents 4
•Set the air distribution regulator as required between positions  and ,
if the windscreen gets misted up again.
Cooling down the inside of the vehicle as rapidly as possible
•close all windows and the sliding/tilting roof
•Put the control dial to the temperatur e selected as usual by you (we recom-
mend 22 °C); Climatic puts automatically the heating to maximum power, until the
temperature selected by you is achieved.
•Control dial in the position 4, supplies the interior of the car with fresh air.
•after brief airing, turn the co ntrol dial to the position 2 or 3
•Turn the air distribution control into the position 
AA
AB
AC
AB
AC
A1
AA
AB
AC
A3
AA
AB
AC
AC
AA
AB
AB
AC
NKO A5 20 MR08.book Page 105 Wednesday, April 11, 2007 2:54 PM

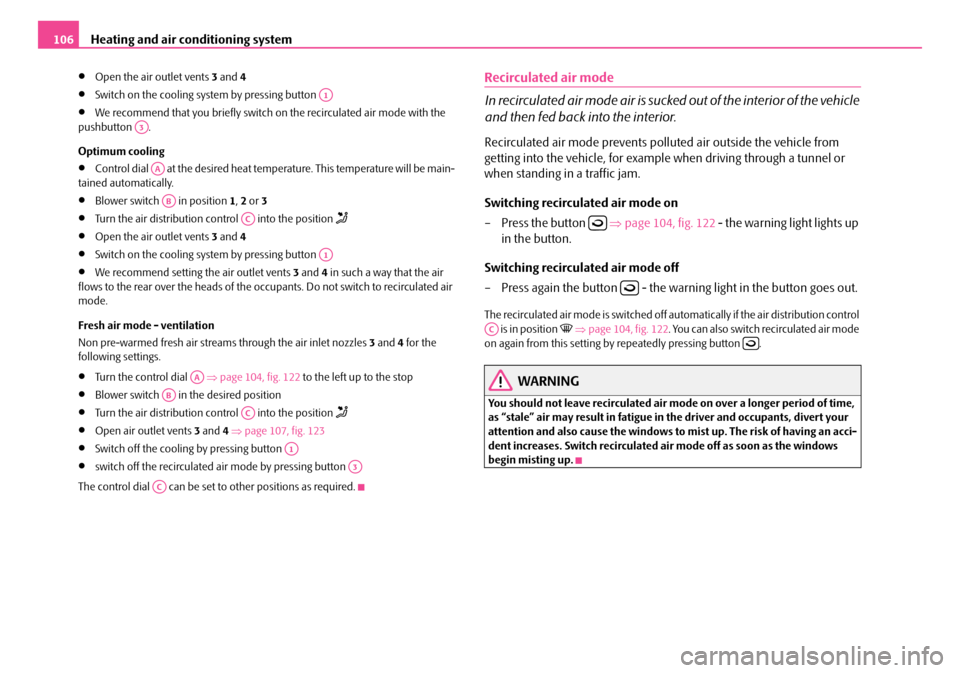

Heating and air conditioning system
106
•Open the air outlet vents 3 and 4
•Switch on the cooling system by pressing button
•We recommend that you briefly switch on the recirculated air mode with the
pushbutton .
Optimum cooling
•Control dial at the desired heat temp erature. This temperature will be main-
tained automatically.
•Blower switch in position 1, 2 or 3
•Turn the air distribution control into the position 
•Open the air outlet vents 3 and 4
•Switch on the cooling system by pressing button
•We recommend setting the air outlet vents 3 and 4 in such a way that the air
flows to the rear over the heads of the occupants. Do not switch to recirculated air
mode.
Fresh air mode - ventilation
Non pre-warmed fresh air stream s through the air inlet nozzles 3 and 4 for the
following settings.
•Turn the control dial ⇒page 104, fig. 122 to the left up to the stop
•Blower switch in the desired position
•Turn the air distribution control into the position 
•Open air outlet vents 3 and 4 ⇒ page 107, fig. 123
•Switch off the cooling by pressing button
•switch off the recirculated air mode by pressing button
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press the button ⇒page 104, fig. 122 - the warning light lights up
in the button.
Switching recirculated air mode off
– Press again the button - the warning light in the button goes out.
The recirculated air mode is switched off au tomatically if the air distribution control
is in position  ⇒ page 104, fig. 122 . You can also switch recirculated air mode
on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci-
dent increases. Switch recirculated air mode off as soon as the windows
begin misting up.
A1
A3
AA
AB
AC
A1
AA
AB
AC
A1
A3
AC


AC
NKO A5 20 MR08.book Page 106 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system107
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Air outlet vents
Fig. 123 Air vents at the front
Fig. 124 Air vents at the rear
Open air outlet vents
– Turn the vertical thumbwheel (not when in the end position).
Close air outlet vents
– Turn the vertical thumbwheel into the end position. Redirecting air flow
– Swivel upward or downward the grille of the vents in order to change
the direction of the air flow using the vertically arranged thumbwheel.
– Turn the horizontal thumbwheel on the vent to the right or left in order to change the air flow to the appropriate side.
You can set the air supply to the individual air outlet vents using the control dial .
Air outlet vents 3, 4 ⇒ fig. 123 and 6 ⇒ fig. 124 can also be opened or closed indi-
vidually.
The air outlet vents 6 are only fitted on vehicles with higher centre console.
Unwarmed or cooled air will flow out of the air outlet vents according to the setting
of control dial ⇒page 104, fig. 122 and the atmosphe ric conditions.
Note
The air outlet vents 2 ensure in the ventilation and cooling mode for a comfortable
(no-draught) ventilation of the interior of the vehicle, also if the air outlet vents 4
are closed.
Using the air conditioning system economically
The compressor on the air conditioning sy stem uses power from the engine when
in cooling mode which will effect the fuel consumption.
It recommended to open the windows or the doors of a vehicle for which the inte-
rior has been strongly heated through the effect of di rect sunlight in order to allow
the heated air to escape.
The cooling system should not be switched on while travelling when the window is
open.
The desired interior temperature can also be achieved without switching in the
cooling system just by sw itching to fresh air mode.
AC
AA
NKO A5 20 MR08.book Page 107 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system
108
For the sake of the environment
When you economize on fuel, you also reduce pollutant emissions.
Operational problems
If the cooling system does not operate at outside temperatures higher than +5 °C,
there is a problem in the system. The reasons for this may be:
•The fuse on the air conditioning system has blown. Check the fuse, replace it if
necessary ⇒page 243.
•The cooling system has switched off auto matically for a short time because the
coolant temperature of the engine is too hot ⇒ page 11.
If you are not able to rectify the operat ional problem yourself, or if the cooling
capacity decreases, switch the cooling system off. Contact a specialist garage.
Climatronic* (automatic air conditioning)
Description
The Climatronic system is a combin ation of an automatic heating,
fresh air and cooling system which provides optimal comfort for the
occupants of the car.
The Climatronic maintains a constant temperature fully automatically, once it has
been set. This is achieved by automa tically varying the temperature of the
outflowing air, the blower stages and the air distribution. The system also takes into
account bright sunlight which eliminates the need to alter the settings manually.
The automatic mode ⇒ page 110 ensures maximum wellbeing of the occupants
at all times of the year.
Description of Climatronic system
The cooling operates only if the following conditions are met:
•engine running,
•outside temperature above +2 °C,
•the button is not pressed.
If the cooling system is switched on, the temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this
particularly at high outside temperatures and a high air humidity. The system
prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon th e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirculated air mode in order to enhance the
cooling effect ⇒.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and cooling systems operate properly.
The AC compressor is switched off at a high coolant temperature in order to provide
cooling at a high load of the engine.
After switching on the cooling Condensation from the evaporator of the air condi-
tioning may drip down and form a puddle below the vehicle. This is quite normal
and not an indication of a leak!
Recommended setting for al l periods of the year:
•Set the temperature to 22 °C (72 °F).
•Press the button ⇒page 109, fig. 125 .
•Move the air outlet vents 3 and 4 so that the air flow is directed slightly upwards
⇒ page 112, fig. 126 .
Switching over between degrees Celsius and degrees Fahrenheit
Press and hold the buttons and ⇒page 109, fig. 125 . The informa-
tion in the desired temperature measuring unit appears in the display.
WARNING
•For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mist ing. Please familiarize yourself about
how to correctly operate the heating an d ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.
ECON
AUTO
ECONAUTO
NKO A5 20 MR08.book Page 108 Wednesday, April 11, 2007 2:54 PM

Heating and air conditioning system109
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•You should not leave recirculated air mode on over a longer period of
time, as “stale” air may result in fatigue in the driver and occupants, divert
your attention and also cause the windows to mist up. The risk of having an
accident increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Note
•If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of deposits. Switch the cooling system on
at least once a month for approximately 5 minutes at the highest blower stage - also
during the cold season of the year - in order to remove such odours. Also open a
window for a short time.
•We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the inte-
rior of the vehicle forms deposits in the evaporator of the air conditioning system.
This produces a permanent odour when the air conditioning system is operating
which can only be eliminated through co nsiderable effort and expense (replace-
ment of compressor).
•The used air streams out through the air removal openings in the luggage
compartment.
•The Information of the Climatronic is displayed on the display of the radio*. You
can also switch off this function - see operating instructions for radio
•Using the cooling economically ⇒page 107.
•Operational problems ⇒page 108.
Overview of the control elements
The controls enable a separate sett ing of the temperature for the left
and right side.
Fig. 125 Climatroni c: Control elements
The displays
The selected interior temperature for the left side, here: +21 °C
The buttons Air flow to head

Recirculated air mode 
Air flow to the windows 
Air flow in the footwell 
The displaysThe selected interior temperature for the right side, here: +23 °C
Buttons / control dial Setting of the temperature for the left side.
Rear window heater ⇒page 59
Defrosting the windscreen

WARNING (continued)
A1
A2
A3
A4
A5
A6
A7
A8
A9
NKO A5 20 MR08.book Page 109 Wednesday, April 11, 2007 2:54 PM
