Communication
140
Note
The operation of the mobile phone fitted wi th multifunction steering wheel is only
possible on certain models of mobile phone. More detailed information is available
from your Škoda Service Partner.
Universal telephone preinstallation with voice
control*
Description
The voice control is activated according to equipment installed on the vehicle by
pressing the button PTT (push to talk)  on the adapter ⇒fig. 151 or the button  on the multifunction steering wheel ⇒page 139, fig. 150 .
A phone phonebook is part of the mobile phone preinstallation with voice control.
In the phone phonebook there are 1500 free memory locations available. This
phone phonebook is independent of the ap pliance used for the mobile telephone.
Fo r v e h i c l e s f i t t e d w i t h m u l t ifunction steering wheel, the operation is performed via
the function buttons on the steering wheel ⇒page 139.
Furthermore the volume can be changed indi vidually at any time with the button
for setting the radio or on vehicles fitted with multifunction steering wheel* with
function buttons on the steering wheel. If the system answers with the voice response “
Telephone is not ready”, please
check the operating state of the telephone as follows:
•Is the telephone switched on?
•Is the PIN code entered?
Dialogue
The period, in which the telephone system is ready to receive voice commands and
carry out the voice commands, is called DIALOGUE. The system gives audible feed-
back and guides you if necessary through the relevant functions. You can start or
end the dialogue at any time by pressi ng the PTT button. You can also end the
dialogue with the voice command CANCEL.
The dialogue is always automatically ended after carrying out an operation, e.g.
after erasing the name from the phonebook.
The dialogue of the incoming call is i mmediately interrupted and you can accept
the call by pressing the button
.
If a voice command is not detected, the system answers with “ Sorry?” and a new
entry can be performed. After the 3rd error the answer “ Cancel” is given and the
dialogue is ended.
Optimum understanding of the voice commands depends on the following
factors:
•Speak with a normal tone of voice wi thout intonation and excessive voice
pauses.
•Avoid insufficient articulation.
•Close the doors, windows and sliding roof, in order to reduce or stop disturbing
exterior noise.
•It is recommended to speak louder at higher speeds, so that the tone of your
voice is louder than the increased surrounding noise.
•During the dialogue avoid additional nois e in the vehicle, e.g. simultaneously
talking occupants.
•Do not speak, if the system makes an announcement.
•The microphone for voice control is directed to the driver and front passenger.
Therefore the driver and the front passenger can operate the equipment.
Fig. 151 Button for
switching on the voice
control
NKO A5 20 MR08.book Page 140 Wednesday, April 11, 2007 2:54 PM

Communication141
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully
responsible for the traffic safety. Use the telephone system only to such an
extent, so that you are in full control of your vehicle at any time.
Caution
Taking the mobile phone out of the adapter during the call can lead to interruption
of the connection. When taking out the mobile phone, the connection to the
factory-fitted antenna is interrupted, this reduces the quality of the transmitting
and receiving signal. This might result additionally in harmful radiation from the
mobile phone in the interior of the ve hicle and the charging of the telephone
battery is interrupted.
Note
•Please also refer to the additional instructions ⇒page 149, “Mobile phones
and two-way radio systems”.
•Please contact your Škoda Service Partner if there are any points which are not
clear.
•The voice control of the telephone is only possible for adapters with PTT button.
Suitable adapters are available at a Škoda Service Partner.
Inserting the mobile phone and adapter
Only one telephone mount is factory-fitted. An adapter for the mobile
phone can be purchased from Škoda original accessories.
Inserting the mobile phone and adapter
– First of all push the adapter in the direction of arrow ⇒fig. 152 up
to the stop into the mount. Press the adapter slightly downwards, until
it locks securely into position.
– Insert the mobile phone into the adapter (as specified in manufac- turer's instructions).
Removing the mobile phone and adapter
– Press simultaneouly the side locks of the mount and remove the mobile phone and adapter ⇒fig. 152 .
This enables you to make full use of the advantages of a normal carphone (“hands-
free system” using a microphone integrated in the vehicle, optimal transmission of
signals using an external aerial etc.). The battery of the mobile phone is also
constantly charged.
Fig. 152 Universal prep-
aration for the mobile
phone
AA
AA
NKO A5 20 MR08.book Page 141 Wednesday, April 11, 2007 2:54 PM

Communication
142
Mobile phone operation
If you select the menu Phone in the information display and the phone is not in the
adapter, Insert phone is shown on the display.
After inserting the phone in the adapter, the system begins to load the phone book
from the phone and the SIM card into the information display.
When inserting the mobile phone the next ti me only perform an update of the rele-
vant phone book. The updating takes a few minutes, first of all the last read phone-
book appears on the information displa y. Newly stored telephone numbers are
only shown after the updating has ended.
The telephone numbers are loaded from the mobile phone depending on the
memory date, beginning with the oldest entry. If the number of telephone numbers
exceed 1 500, the newly stored telephone numbers are not loaded from the mobile
phone. If several telephon e numbers in the phonebook are under one name, all the
telephone numbers with the same name are loaded separately.
If a telephone event (e.g. incoming or outg oing call, dialogue of the voice control)
occurs during the updating procedure, the updating is interrupted. After the tele-
phone event has ended, the updating starts anew. The following is shown one after the other on the display:
Please wait
Loading... last calls xxx
Loading... last calls xxx
Loading... missed calls xxx
Loading... phone book xxx
During the reading, the number of read telephone numbers is displayed in the
information display.
After loading is completed, phone book, last calls, accepted calls and missed calls
appear in the display.
Using the system•You can scroll through the telephone me mory for individual names or menus
by briefly pressing the rocker switch ⇒fig. 153 .
•You can scroll for letters alphabetically within the telephone memory by
pressing the rocker switch at the bottom for a lengthy period.
•You can return to the main menu of th e information display by pressing the
rocker switch at the top for a lengthy period.
•The selected menu is displayed by briefly pressing the button .
Overview of the possible functions and read outs:
Fig. 153 Information
display: Control
elements
ActivityRead out in display
Selected call numberCalling... Name Number
accepted call
incoming call... Name
or
incoming call... Number
or
incoming call...
Accept
Refuse
Call terminatedTe r m i n a t e d
AA
AA
AA
AB
NKO A5 20 MR08.book Page 142 Wednesday, April 11, 2007 2:54 PM

Communication143
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
You can operate the mobile phone via the voice control
⇒page 140 or via the
buttons of the multifunction steering wheel ⇒page 139.
Voice commands
Voice commands for mobile phone operation Voice commands for operating the phone phone book
Other possible commands
Number
engagedLine Busy
No service foundNo Service
Enter PIN codeEnter PIN
Voice commandActivity
ENTER PIN/PIN CODEAfter this command the PIN code of the mobile
phone can be entered ⇒page 144.
DIAL NUMBERAfter this command a telephone number can be
entered which establishes a connection to the
requested partner ⇒page 144.
REDIALAfter this command the last selected telephone
number is selected again ⇒page 145.
ActivityRead out in display
Voice commandActivity
SAVE/STORE
NAMES/NAME/NUMB ERAfter this command a name with its telephone
number can be stored in the phone phone book
⇒page 145.
SELECT NAMES/NAMEAfter this command a telephone number which
was stored under its given name in the phone
phone book can be selected ⇒ page 146.
DELETE NAMES/NAMEAfter this command a name in the phone phone
book can be erased ⇒page 146.
LISTEN TO/PLAY
PHONEBOOKAfter this command you ca n listen-in to the phone
phone book ⇒page 146.
DELETE PHONEBOOKAfter this command the complete phone book or a
name can be erased ⇒page 147.
Voice commandActivity
DIALThe telephone number is selected.
STOREThe name and the telephone number are stored in
the phone phonebook or the entered PIN code is
stored.
REPEATThe entered name or the digits are repeated. Then
the system requests with voice response “ please
proceed ” the entry of further digits or commands.
NKO A5 20 MR08.book Page 143 Wednesday, April 11, 2007 2:54 PM

Communication
144
Enter PIN code
A PIN code must be entered before operating the system.
– Press the PTT button.
– Give the command ENTER PIN/PIN CODE after the signal tone.
After this command the PIN code can be entered.
The entry of the PIN code is only possible if:
•the ignition and
•the mobile phone is in the mount;
•the mobile phone are switched on.
The digits zero to nine are permitted. The system detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three).
After each order of digits (separation thro ugh brief voice pause) the detected digits
are repeated.
Notes for entering the PIN code
•When entering a PIN code with more than 8 digits, the system indicates “The
PIN is too long ”.
•When entering an incorrect PIN code, the system indicates “ The PIN is incor-
rect ”.
•If the incorrect PIN code has been entered three times consecutively, the card
is blocked. With the aid of the personal unblocking code PUK (Personal Unblock
Key), the SIM card can be unblocked. The unblocking code can only be entered
via the phone keypad and not through the voice control.
Example for entering the PIN code
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL .
Select number
– Press the PTT button.
– Give the command DIAL NUMBER after the signal tone.
After giving this command, the system requests the entry of a telephone number.
The telephone number can be entered as an interconnected spoken row of digits
(complete number), in the form of order of digits (separation through a brief voice
pause) or through individually spoken digits. After each order of digits (separation
through brief voice pause) the detected digits are repeated.
The digits zero to nine are permitted. The system detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three).
BACK
The entered name or the last entered order of digits
is erased. Previously entered groups of digits are
repeated. Then the system requests with voice
response “ please proceed ” the entry of further
digits or commands.
DELETE
All entered digits are erased. Then the system
requests with voice response “ The number is
deleted. The number please ” the entry of further
digits or commands.
CANCELThe dialogue is ended.
Voice commandActivity
Voice commandAnnouncement
ENTER PIN/PIN CODE“ The PIN please ”
e.g. ZERO ONE TWO THREE“Zero One Two Three ”
If no entry is put in, the following a nnouncement is made after about 5 sec-
onds.
“ Possible commands are: store, repeat,
back, delete or more digits ”
STORE“The PIN is saved ”
(end of dialogue)
NKO A5 20 MR08.book Page 144 Wednesday, April 11, 2007 2:54 PM

Communication145
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
When entering more than 20 digits, the system answers with voice response “
The
number is too long ”.
Additionally for international calls a Plus (+) has to be entered in front of the 20
digits.
Example when entering a telephone number
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.
Repeat last call
– Press the PTT button.
– Give the command REDIAL after the signal tone.
After giving this command, the last number selected via voice input is selected
again.
Example of redial You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
Phone voice phonebook*
Store name
– Press the PTT button.
– Give the command SAVE/STORE NAMES/NAME/NUMBER after the
signal tone.
After giving this command, the system re quests the entry of a name and a tele-
phone number which should be stored in the phone voice phonebook. In the
phone voice phonebook up to 50 entries can be stored.
The telephone number can be entered as an interconnected spoken row of digits
(complete number), in the form of order of digits (separation through a brief voice
pause) or through individually spoken digits. After each order of digits (separation
through brief voice pa use) the detected digits are repeated.
The digits zero to nine are permitted. The system detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three).
When entering more than 20 digits, th e system answers with voice response “The
number is too long ”.
Additionally a Plus (+) has to be entered in front of the 20 digits.
The stored entry is displayed on the information display* with an arrow in front of
the name.
For similar names additional information (e.g. first names) should be stored.
Voice commandAnnouncement
DIAL NUMBER“ The number please ”
e.g. ZERO SIX ZERO THREE“Zero Six Zero Three ”
If no entry is put in, the following announcement is made after about 5 sec-
onds.
“Possible commands are: dial, repeat,
back, delete or more digits ”
FIVE SEVEN TWO“Five Seven Two ”
DIAL“The number is being dialed ”
Voice commandAnnouncement
REDIAL“The number is being dialed ”
NKO A5 20 MR08.book Page 145 Wednesday, April 11, 2007 2:54 PM

Communication
146

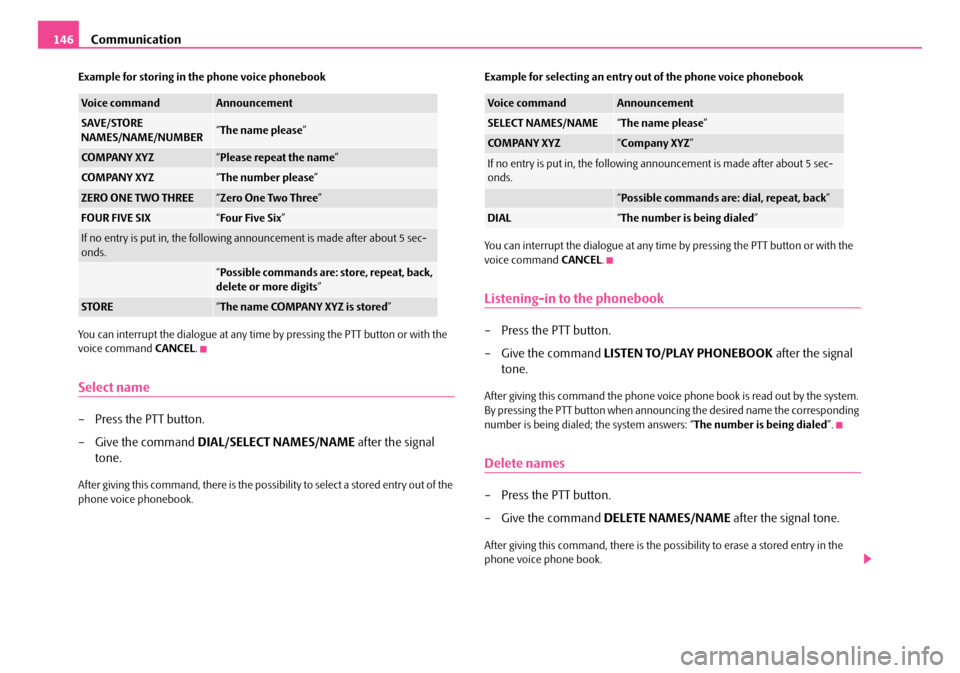

Example for storing in the phone voice phonebook
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.
Select name
– Press the PTT button.
– Give the command DIAL/SELECT NAMES/NAME after the signal
tone.
After giving this command, there is the possibility to select a stored entry out of the
phone voice phonebook. Example for selecting an entry ou
t of the phone voice phonebook
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL .
Listening-in to the phonebook
– Press the PTT button.
– Give the command LISTEN TO/PLAY PHONEBOOK after the signal
tone.
After giving this command the phone voic e phone book is read out by the system.
By pressing the PTT button when announcing the desired name the corresponding
number is being dialed; the system answers: “ The number is being dialed”.
Delete names
– Press the PTT button.
– Give the command DELETE NAMES/NAME after the signal tone.
After giving this command, there is the possibility to erase a stored entry in the
phone voice phone book.
Voice commandAnnouncement
SAVE/STORE
NAMES/NAME/NUMBER“The name please ”
COMPANY XYZ“Please repeat the name ”
COMPANY XYZ“The number please ”
ZERO ONE TWO THREE“Zero One Two Three ”
FOUR FIVE SIX“Four Five Six ”
If no entry is put in, the following announcement is made after about 5 sec-
onds.
“ Possible commands are: store, repeat, back,
delete or more digits ”
STORE“The name COMPANY XYZ is stored ”
Voice commandAnnouncement
SELECT NAMES/NAME“The name please ”
COMPANY XYZ“Company XYZ ”
If no entry is put in, the following a nnouncement is made after about 5 sec-
onds.
“ Possible commands are: dial, repeat, back ”
DIAL“The number is being dialed ”
NKO A5 20 MR08.book Page 146 Wednesday, April 11, 2007 2:54 PM

Communication147
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Example for erasing an entry out of the phone phonebook
You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
If the user answers with NO, the system answers with “ Cancel” and the dialogue is
ended.
Delete voice phonebook
– Press the PTT button.
– Give the command DELETE PHONEBOOK after the signal tone.
After giving this command there is the possibility to erase the complete phone
voice phone book or the individually st ored names out of the phone phone book. Example for erasing the complete phonebook
You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
Example for erasing individual names out of the phone phonebook
Voice commandAnnouncement
DELETE NAMES/NAME“ The name please ”
CO M PA N Y X Y Z“Do you want to delete the entry Company
XYZ? ”
YES“Delete? ”
If no entry is put in, the following announcement is made after about 5 sec-
onds.
“Possible commands are: yes, no, repeat, cor-
rect ”
YES“The name is deleted ”
Voice commandAnnouncement
DELETE PHONEBOOK“Do you want to delete the whole
phonebook? ”
If no entry is put in, the following a nnouncement is made after about 5 sec-
onds.
“ Possible commands are: yes, no,
repeat ”
YES“Are you sure? ”
YES“The phonebook is deleted ”
Voice commandAnnouncement
DELETE PHONEBOOK“Do you want to delete the whole
phonebook? ”
If no entry is put in, the following a nnouncement is made after about 5 sec-
onds.
“ Possible commands are: yes, no,
repeat ”
NOThe phonebook is read out.
When announcing the entry to be
erased, press the PTT button.“Do you want to delete (name)? ”
If no entry is put in, the following a nnouncement is made after about 5 sec-
onds.
NKO A5 20 MR08.book Page 147 Wednesday, April 11, 2007 2:54 PM

Communication
148
As long as the phonebook is read out, ot her entries can be erased by pressing the
PTT button.
You can end the dialogue at an y time with the voice command CANCEL.
Bluetooth™*
The Bluetooth technology serves as cableless connection of a mobile
phone to a hands-free system of your vehicle.
In order to connect a mobile phone with Bluetooth to the hands-free
system, it is necessary to adapt th e phone and the hands-free system to
each other. Detailed information on this is provided in the operating
instructions of your mobile phone. The following essential steps for
connecting the mobile phone must be carried out:
– Switch on the ignition.
– If necessary switch on the mobile phone.
– Select the corresponding menu option on the mobile phone, which searches for suitable Bluetooth devices (hands-free system).
– If the hands-free system on the display of the mobile telephone announces Skoda UHV , enter the PIN 1234 within 30 seconds and
wait, until the connect ion is established.
9)
In the modern business world as well as within the private sector the mobile
communication gains increasi ngly on importance. Mobile phones from different
manufacturers can be connected with the hands-free system by means of Blue-
tooth. During the connecting procedure, no other mobile phone may be connected
via Bluetooth with the hands-free system.
Up to four mobile phones can be connected to the hands-free system by means of
Bluetooth, whereby only one mobile ph one can communicate via Bluetooth with
the hands-free system. If a fifth mobile phone is connected to the handsfree-
system, then the telephone, which has not been used together with the handsfree
system for the longest period, is disconnected.
Establishing the Bluetooth connection
After switching on the ignition, the Blue tooth connection is automatically estab-
lished for the already adapted mobile phone
9). You can hear an increasing tone
sequence from the loudspeakers of the vehicle.
Disconnecting the Bluetooth connection
After withdrawing the ignition key, the Bluetooth connection is disonnected. You
can hear an increasing tone sequence from the loudspeakers of the vehicle.
WARNING
•Pay attention primarily to the traffic situation! As the driver you are fully
responsible for the traffic safety. Use the telephone system only to such an
extent, so that you are in full control of your vehicle at any time - risk of acci-
dent!
•In the event of air transport, the Bluetooth function of the handsfree-
system must be switched off by a specialist garage.
Caution
Taking the mobile phone out of the adapter during the call can lead to interruption
of the connection. When taking out th e mobile phone, the connection to the
factory-fitted antenna is interrupted, this reduces the quality of the transmitting
and receiving signal. This might result additionally in harmful radiation from the
mobile phone in the interior of the ve hicle and the charging of the telephone
battery is interrupted.
“ Possible commands are: yes, no ”
YES“The name is deleted ”
Continue reading out the phone
book.
9)Some mobile phones have a menu, in which the authorization for establishing a Bluetooth
connection is performed via the input of a code. If the input for the authorization is neces-
sary, it must always be performed when re-establishing the Bluetooth connection.
Voice commandAnnouncement
NKO A5 20 MR08.book Page 148 Wednesday, April 11, 2007 2:54 PM

Communication149
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•Not valid for all mobile phones which enable a communication via Bluetooth.
•Please operate your mobile phone exclusively with a suitable adapter, in order
to keep a low radiation in the vehicle.
•Inserting the mobile phone into the adapter ensures an optimal sending and
receiving power and offers at the same ti me the advantage of the battery charging.
•If you insert the mobile telephone into the adapter, the connection is estab-
lished via the interface in the adapter set and the Bluetooth connection is discon-
nected. You can hear an increasing tone sequence from the loudspeakers of the
vehicle.
•Note that the range of the Bluetooth connection to the handsfree-system is
limited to the vehicle interior. The range is dependent on local factors, e.g. obstacles
between the devices and interferences with other devices. If your mobile phone is
e.g. in a jacket pocket, this can lead to difficulties wh en establishing the Bluetooth
connection with the handsfree-system or the data transfer.
•If you have set the Portugue se language in the information display, it is used
automatically for the mobile phone operatio n, as this is the language, which was
entered during coding of the handsfree-system.
•On certain mobile phones with operating system, it is necessary to install on the
mobile phone an application of the mobile phone manufacturer, which enables the
take-over of the phone phonebook via Bluetooth.
Mobile phones and two-way radio systems
The installation of a mobile phone and tw o-way radio system in a vehicle should
only be carried out by a Škoda Dealer.
Škoda Auto a.s. permits the operation of mobile phones and two-way radio
systems with a professionally installed external aerial and a maximum transmission
power of up to 10 watts.
Our specialist garage is also happy to inform you about the possibilities available
for installing and operating mobile teleph ones and radio transmitters which have
an output greater than 10 watts. The Šk oda Service Partners can provide you with details about the technical possibilities for retrofitting of mobile telephones and
radio transmitters.
Operation of mobile phones or two-way
radio systems may interfere with func-
tioning of the electronic systems of your vehicle. The reasons for this may be:
•no external aerial
•external aerial incorrectly installed
•transmission power gr eater than 10 watts.
You should therefore not operate a mobile phone or two-way radio system
inside the vehicle without the use of an external aerial, or with an external aerial
which has been incorrectly installed.
You should also be aware of the fact that only an external aerial makes it possible
to achieve the optimal range of such equipment.
WARNING
•If a mobile phone or two-way radio sy stem is operated inside the vehicle
without using an external aerial, or wi th an external aerial which has been
incorrectly installed, the result can be excessive electromagnetic fields
which may cause harm to your health.
•Please always pay full attention to the traffic situation around you!
•You must not install two-way radio systems, mobile phones or mounts
on the covers of the airbags or within the immediate deployment range of
airbags. This might result in injuries to the occupants in the event of an acci-
dent.
Note
Please also refer to the operating instructions of the mobile phones and two-way
radio systems.
NKO A5 20 MR08.book Page 149 Wednesday, April 11, 2007 2:54 PM
