SKODA OCTAVIA 2008 2.G / (1Z) Blues Car Radio Manual

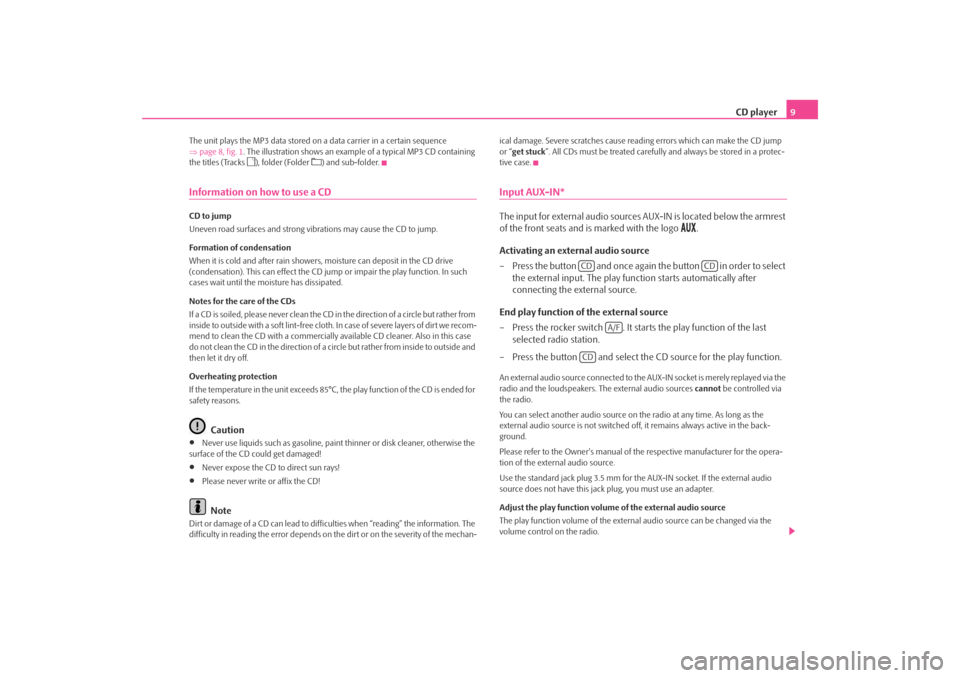

CD player9
The unit plays the MP3 data stored on a data carrier in a certain sequence
⇒ page 8, fig. 1 . The illustration shows an exampl e of a typical MP3 CD containing
the titles (Tracks
), folder (Folder
) and sub-folder.
Information on how to use a CDCD to jump
Uneven road surfaces and strong vibrations may cause the CD to jump.
Formation of condensation
When it is cold and after rain showers, moisture can deposit in the CD drive
(condensation). This can effect the CD ju mp or impair the play function. In such
cases wait until the moisture has dissipated.
Notes for the care of the CDs
If a CD is soiled, please never clean the CD in the direction of a circle but rather from
inside to outside with a soft lint-free cloth. In case of severe layers of dir t we recom-
mend to clean the CD with a commercially av ailable CD cleaner. Also in this case
do not clean the CD in the direction of a circle but rather from inside to outside and
then let it dry off.
Overheating protection
If the temperature in the unit exceeds 85°C, the play function of the CD is ended for
safety reasons.
Caution
•
Never use liquids such as gasoline, paint thinner or disk cleaner, otherwise the
surface of the CD could get damaged!
•
Never expose the CD to direct sun rays!
•
Please never write or affix the CD!Note
Dirt or damage of a CD can lead to difficulties when “reading” the information. The
difficulty in reading the error depends on th e dirt or on the severity of the mechan- ical damage. Severe scratches cause reading errors which can make the CD jump
or “
get stuck ”. All CDs must be treated carefully and always be stored in a protec-
tive case.
Input AUX-IN*The input for external audio sources AUX-IN is located below the armrest
of the front seats and is marked with the logo

.
Activating an external audio source
– Press the button and once again the button in order to select the external input. The play function starts automatically after
connecting the external source.
End play function of the external source
– Press the rocker switch . It starts the play function of the last selected radio station.
– Press the button and select the CD source for the play function.
An external audio source connected to the AUX-IN socket is merely replayed via the
radio and the loudspeakers. The external audio sources cannot be controlled via
the radio.
You can select another audio source on the radio at any time. As long as the
external audio source is no t switched off, it remains always active in the back-
ground.
Please refer to the Owner's manual of the respective manufacturer for the opera-
tion of the external audio source.
Use the standard jack plug 3.5 mm for the AUX-IN socket. If the external audio
source does not have this jack plug, you must use an adapter.
Adjust the play function volume of the external audio source
The play function volume of the external audio source can be changed via the
volume control on the radio.
CD
CD
A/F
CD
s220.book Page 9 Tuesday, August 5, 2008 6:46 AM

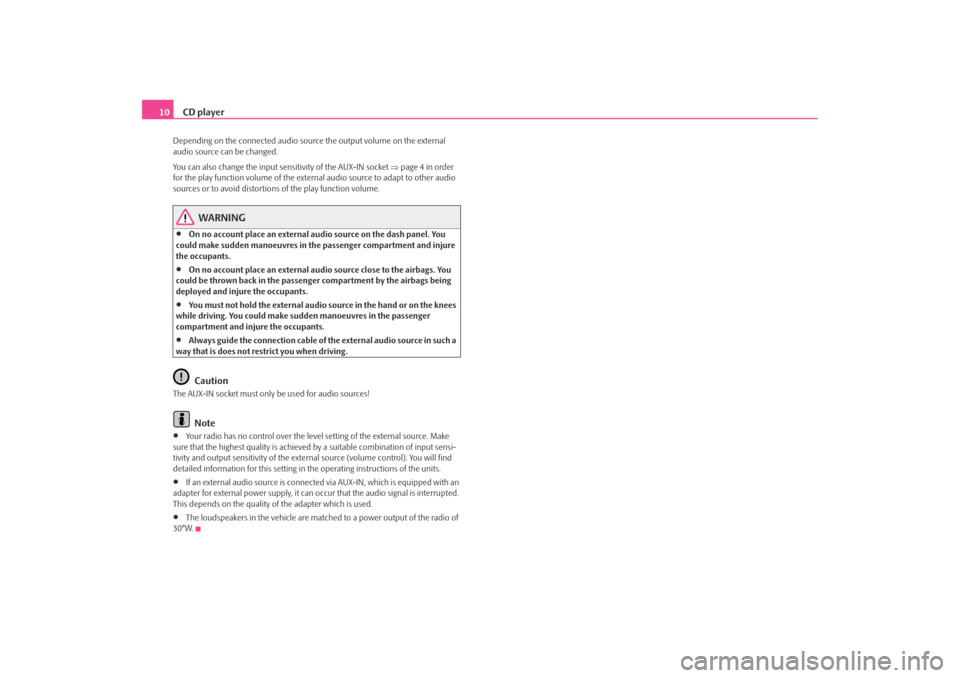

CD player
10Depending on the connected audio source the output volume on the external
audio source can be changed.
You can also change the input sensitivity of the AUX-IN socket ⇒page 4 in order
for the play function volume of the extern al audio source to adapt to other audio
sources or to avoid distortions of the play function volume.
WARNING
•
On no account place an external audio source on the dash panel. You
could make sudden manoeuvres in th e passenger compartment and injure
the occupants.
•
On no account place an external audio source close to the airbags. You
could be thrown back in the passen ger compartment by the airbags being
deployed and injure the occupants.
•
You must not hold the external audio source in the hand or on the knees
while driving. You could make sudden manoeuvres in the passenger
compartment and injure the occupants.
•
Always guide the connection cable of the external audio source in such a
way that is does not re strict you when driving.Caution
The AUX-IN socket must only be used for audio sources!
Note
•
Your radio has no control over the leve l setting of the external source. Make
sure that the highest quality is achieved by a suitable combination of input sensi-
tivity and output sensitivity of the extern al source (volume control). You will find
detailed information for this setting in the operating instructions of the units.
•
If an external audio source is connected via AUX-IN, which is equipped with an
adapter for external power supply, it can occur that the audio signal is interrupted.
This depends on the quality of the adapter which is used.
•
The loudspeakers in the vehicle are matched to a power output of the radio of
30°W.
s220.book Page 10 Tuesday, August 5, 2008 6:46 AM

\b
 \f



\f


\f


  \f







\f


\f
\f




\f\f


\f





\

\f


\f\



\


 \f!
"
#\f
\f\f
\
\f
\f


\
\f\f\
\f


\f

\



\f

\


\f\b
\
\b
$\f

\f\

\f
\f
\f

\
\f


\f
\f
\f







%
& '\b\b()

Blues.indd 2
Blues.indd 2 9.9.2008 12:35:21
9.9.2008 12:35:21
© ŠKODA AUTO a.s. 2008

SIMPLY CLEVER

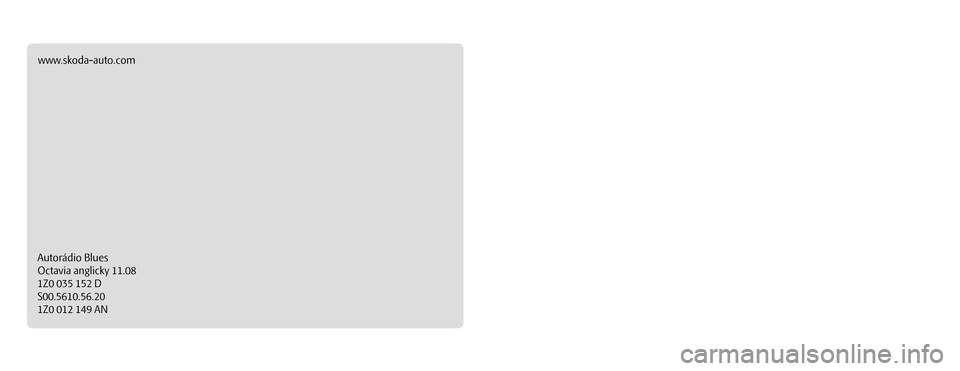

www.skoda-auto.com
