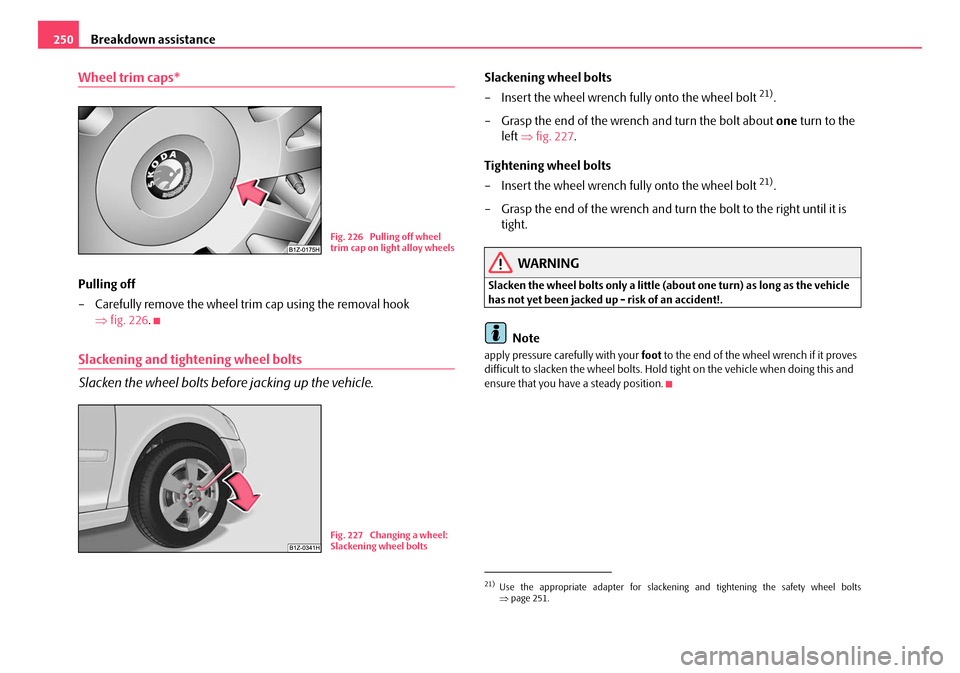

Breakdown assistance
250
Wheel trim caps*
Pulling off
– Carefully remove the wheel tr im cap using the removal hook
⇒ fig. 226 .
Slackening and tightening wheel bolts
Slacken the wheel bolts before jacking up the vehicle.
Slackening wheel bolts
– Insert the wheel wrench fully onto the wheel bolt
21).
– Grasp the end of the wrench and turn the bolt about one turn to the
left ⇒fig. 227 .
Tightening wheel bolts
– Insert the wheel wrench fully onto the wheel bolt
21).
– Grasp the end of the wrench and turn the bolt to the right until it is tight.
WARNING
Slacken the wheel bolts only a little (about one turn) as long as the vehicle
has not yet been jacked up - risk of an accident!.
Note
apply pressure carefully with your foot to the end of the wheel wrench if it proves
difficult to slacken the wheel bolts. Hold tight on the vehicle when doing this and
ensure that you have a steady position.
Fig. 226 Pulling off wheel
trim cap on light alloy wheels
Fig. 227 Changing a wheel:
Slackening wheel bolts
21)Use the appropriate adapter for slackening and tightening the safety wheel bolts
⇒ page 251.
20A5Facelift.book Page 250 Saturday, September 6, 2008 2:13 PM

Breakdown assistance251
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Raise vehicle
You have to raise the vehicle with a lifting jack in order to be able to
take off the wheel.
Position the lifting jack by selecting the jacking point which is closest to
the wheel to be removed ⇒fig. 228 . The jacking point is located directly
below the engraving in the lower sill. The engraving is only visible after
opening the door.
– Position the lifting jack below the jacking point and move it up until its claw is positioned directly below the vertical web of the lower sill.
– Align the car jack so that its claw grasps the web of the lower sill and the base plate is resting flat on the floor.
– Turn the lifting jack up further until the wheel is just clear of the ground.
Ground below the lifting jack which is soft and slippery can cause the vehicle to
slip off the jack. It is therefore always ne cessary to place the lifting jack on a solid
surface or use a wide and stable base. Use a non-slip base (e.g. a rubber foot mat)
if the surface is smooth , such as cobbled stones, a tiled floor, etc.
WARNING
•Always raise the vehicle with the doors closed - risk of injury!
•Take suitable measures to prevent the base of the lifting jack from slip-
ping off - risk of injury!
•Not positioning the lifting jack at the specified points can result in
damage to the vehicle. The jack can also sl ip off if it does not have sufficient
grip - risk of injury!
•It is important to support the vehicle with suitable supporting blocks if
you wish to work under the lifted vehicle - risk of injury!
Securing wheels against being stolen*
You need a special adapter for slackening the safety wheel bolts.
– Pull off the full wheel trim/cap from the wheel hub or cap from the safety wheel bolt.
– Insert the adapter with its toothed side fully into the inner toothing of the safety wheel bolt right down in such a way that only the
outer hexagon is jutting out ⇒fig. 229 .
– Insert the wheel wrench fully onto the adapter .
– Slacken the wheel bolt, or tighten it firmly ⇒page 250.
Fig. 228 Changing a wheel:
Points for positioning car jack
AA
ABFig. 229 Safety wheel bolt
with adapter
AB
AA
AB
20A5Facelift.book Page 251 Saturday, September 6, 2008 2:13 PM

Index297
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 18
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Environmental compatibility . . . . . . . . . . . . . 202, 206
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . . 73
F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Fog lights with the function Corner . . . . . . . . . . . . . 63
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
G
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143, 152
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Hazard warning light system . . . . . . . . . . . . . . . . . . . 64 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 71
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Headlights
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Headlight cleaning system . . . . . . . . . . . . . . . . . 71
Heated windscreen washer nozzles . . . . . . . . . . . . 69
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Auxiliary heating (auxiliary heating) . . . . . . . . 119
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 110
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 111
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . 67
Interior lighting front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
