Contents3
ContentsLayout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The brief instruction
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic functions and important information . . . . .
Instruments and Indicator/Warning Lights
. . .
General view of the instrument cluster . . . . . . . . .
Engine revolutions counter . . . . . . . . . . . . . . . . . . . .
Coolant temperature gauge . . . . . . . . . . . . . . . . . . .
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counter for distance driven . . . . . . . . . . . . . . . . . . .
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . .
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-functional indicator (onboard computer)*
Information display* . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . . . . . .
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the battery of the radio remote control
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . .
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking system* . . . . . . . . . . . . . . . . . . . . . . .
Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Synchonisation of the remote control . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . . Power windows* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric sliding/tilting roof* . . . . . . . . . . . . . . . . . . . .
Lights and Visibility
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and wash system . . . . . . . . . . . .
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Storage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting front seats electrically* . . . . . . . . . . . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . .
Net partition (Combi)* . . . . . . . . . . . . . . . . . . . . . . . .
The roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter*, power sockets . . . . . . . . . . . . . . .
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning system
. . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system* . . . . . . . . . . . . . . . . . . . . . .
Climatronic* (automatic air conditioning) . . . . . .
Starting-off and Driving
. . . . . . . . . . . . . . . . . . . . . . .
Setting steering wheel position . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . .
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Communication
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multifunction steering wheel* . . . . . . . . . . . . . . . . .
Mobile phone, handsfree-system* . . . . . . . . . . . . .
Mobile phones and two-way radio systems . . . . .
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passive Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Correct seated position . . . . . . . . . . . . . . . . . . . . . . .
Seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The physical principle of a frontal collision . . . . .
Important safety information regarding the use of
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How are seat belts correctly fastened? . . . . . . . . .
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Airbag system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description of the airbag system . . . . . . . . . . . . . . .
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . .
Transporting children safely
. . . . . . . . . . . . . . . . . .
What you should know about transporting
children! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a child seat using the “ISOFIX” system
6
7
9
9
10
10
16
16
16
16
17
17
18
18
19
19
23
25
27
35
35
36
36
37
37
38
41
42
43 44
46
49
49
53
54
55
58
60
60
61
64
65
67
68
73
75
77
77
78
79
83
83
83
85
89
94
94
95
95
97
97
9898
99
102
102
103
104
105
105
105
106
110
110
111
111
112
115
117
117
118
121
122
125
125
128
131
s2ig.book Page 3 Monday, November 10, 2008 11:20 AM

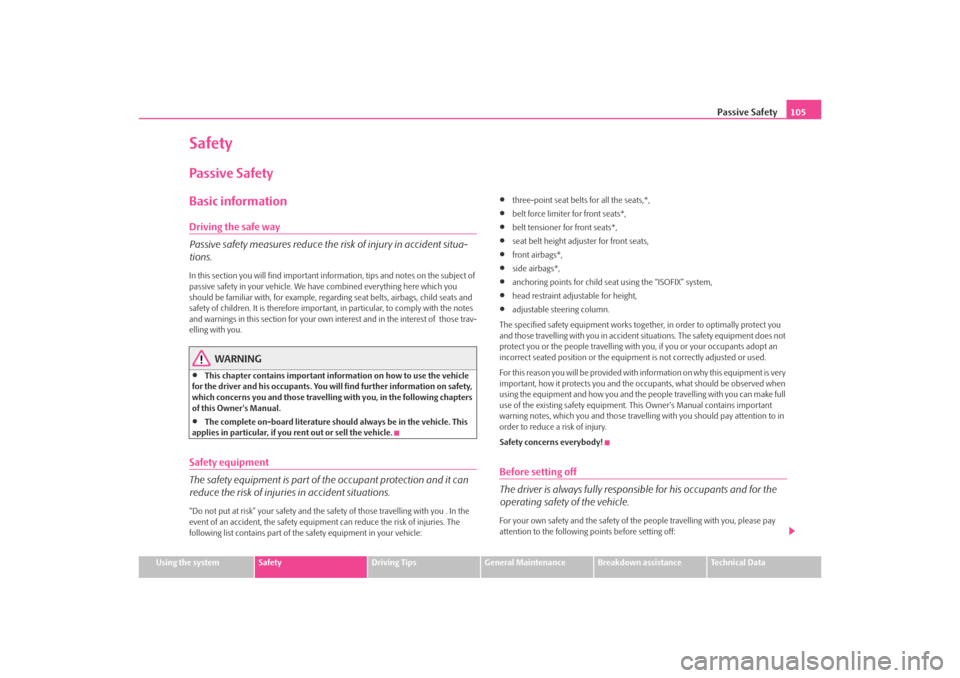

Passive Safety105
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
SafetyPassive SafetyBasic informationDriving the safe way
Passive safety measures reduce the risk of injury in accident situa-
tions.In this section you will find important inform ation, tips and notes on the subject of
passive safety in your vehicle. We ha ve combined everything here which you
should be familiar with, for example, regarding seat belts, airbags, child seats and
safety of children. It is therefore importan t, in particular, to comply with the notes
and warnings in this section for your own interest and in the interest of those trav-
elling with you.
WARNING
•
This chapter contains important information on how to use the vehicle
for the driver and his occupants. You will find further information on safety,
which concerns you and those travelling with you, in the following chapters
of this Owner's Manual.
•
The complete on-board literature should always be in the vehicle. This
applies in particular, if you rent out or sell the vehicle.
Safety equipment
The safety equipment is part of the occupant protection and it can
reduce the risk of injuries in accident situations.“Do not put at risk” your safety and the safety of those travelling with you . In the
event of an accident, the safety equipmen t can reduce the risk of injuries. The
following list contains part of th e safety equipment in your vehicle:
•
three-point seat belts for all the seats,*,
•
belt force limiter for front seats*,
•
belt tensioner for front seats*,
•
seat belt height adjuster for front seats,
•
front airbags*,
•
side airbags*,
•
anchoring points for child seat using the “ISOFIX” system,
•
head restraint adjustable for height,
•
adjustable steering column.
The specified safety equipment works toge ther, in order to optimally protect you
and those travelling with you in accident situations. The safety equipment does not
protect you or the people travelling with you, if you or your occupants adopt an
incorrect seated position or the equipmen t is not correctly adjusted or used.
Fo r t h i s re a s o n y o u w i l l b e p ro v i d e d w i th i n fo rm a ti o n o n w hy t h i s e q u i p m e nt i s v e r y
important, how it protects you and the o ccupants, what should be observed when
using the equipment and how you and the pe ople travelling with you can make full
use of the existing safety equipment. This Owner's Manual contains important
warning notes, which you and those travelli ng with you should pay attention to in
order to reduce a risk of injury.
Safety concerns everybody!
Before setting off
The driver is always fully responsible for his occupants and for the
operating safety of the vehicle.For your own safety and the safety of the people travelling with you, please pay
attention to the following points before setting off:
s2ig.book Page 105 Monday, November 10, 2008 11:20 AM

Transporting children safely
128This applies particularly to children if they are not transported in accordance
with legal requirements.
The child is protected when seated in a child safety seat matching its age. Adequate
room is available between th e child and the deployment area of the side airbag and
head airbag. The airbag offers optimal protection.
WARNING
•
It is essential to always switch off the front passenger airbag or the side
passenger airbag* as well when attach ing a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel)
⇒ page 122. If this is not done, there is a risk of the child suffering severe or
even fatal injuries if the front passen ger airbag is deployed. In certain coun-
tries national legal provisions also re quire that the side airbags be deacti-
vated. When transporting a child on the front passenger seat, please comply
with the appropriate national regulations regarding the use of child safety
seats.
•
When transporting a child on the fr ont passenger seat, please comply
with the appropriate national regulations regarding the use of child safety
seats.
•
Children must never be seated with their head in the deployment area of
the side airbag - risk of injury!
•
Do not place any objects within the deployment area of the side airbag -
risk of injury!
Child seatClassification of child seats into groups
Only child safety seats which have an official approval and are suit-
able for the child, may be used.ECE-R 44 standard applies to child safety seats. ECE-R means: Economic Commis-
sion of Europe - Regulation. Child safety seats which have been tested for conformity with ECE-R 44 have a non-
detachable test seal (a large E within a circle and below this the test number)
attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height may use the seat belts fitted to the vehicle
without a seat bolster.
Use of child safety seatsAn overview of the usefulness of child se
ats on each of the seats according to the
EG guidelines 77/541 and ECE 44 standard:
Universal category - seat is suitable for all approved types of child safety seats.
The seat can be fitted with fixing eyes for the “ISOFIX*”system.
Group
Weight
0
0 - 10 kg
⇒page 129
0+
up to 13 kg
⇒page 129
1
9 - 18 kg
⇒page 129
2
15 - 25 kg
⇒page 130
3
22 - 36 kg
⇒page 130
Child seat
groups
Front passenger seat
Rear seat outside
Rear seat middle
0


0+


1


2 and 3
AUA+
AUA+
AU
AUA+
AUA+
AU
AUA+
AUA+
AU
AU
AU
AU
AUA+
s2ig.book Page 128 Monday, November 10, 2008 11:20 AM

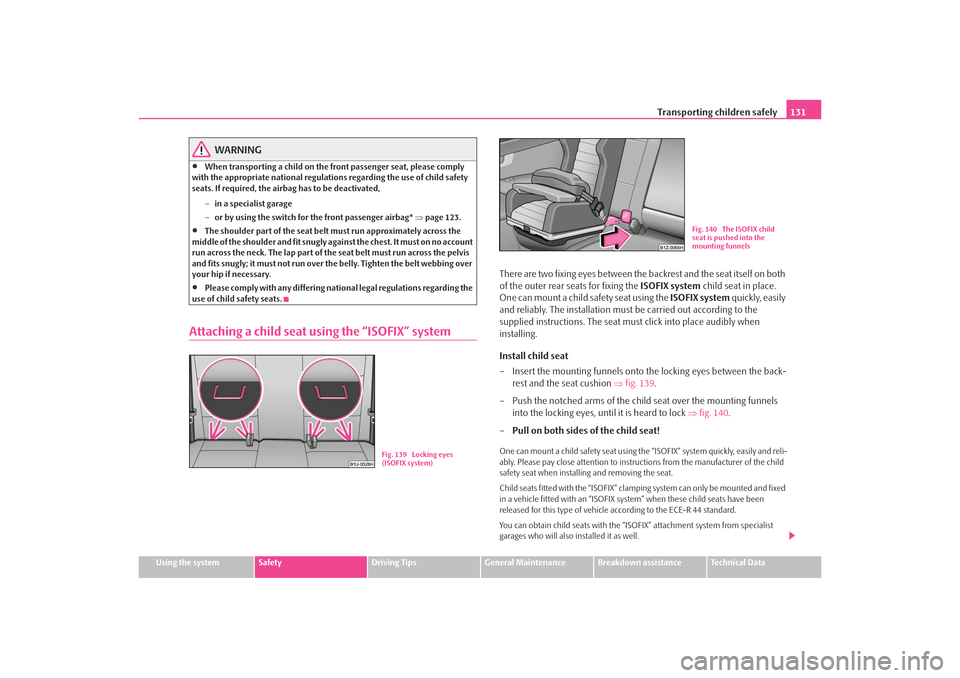

Transporting children safely131
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
•
When transporting a child on the front passenger seat, please comply
with the appropriate national regulations regarding the use of child safety
seats. If required, the airb ag has to be deactivated,
− in a specialist garage
− or by using the switch for the front passenger airbag* ⇒page 123.
•
The shoulder part of the seat belt must run approximately across the
middle of the shoulder and fit snugly against the chest. It must on no account
run across the neck. The lap part of the seat belt must run across the pelvis
and fits snugly; it must not run over th e belly. Tighten the belt webbing over
your hip if necessary.
•
Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Attaching a child seat using the “ISOFIX” system
There are two fixing eyes between the backrest and the seat itself on both
of the outer rear seats for fixing the ISOFIX system child seat in place.
One can mount a child safety seat using the ISOFIX system quickly, easily
and reliably. The installation must be carried out according to the
supplied instructions. The seat must click into place audibly when
installing.
Install child seat
– Insert the mounting funnels onto the locking eyes between the back- rest and the seat cushion ⇒fig. 139 .
– Push the notched arms of the chil d seat over the mounting funnels
into the locking eyes, until it is heard to lock ⇒fig. 140 .
– Pull on both sides of the child seat!One can mount a child safety seat using the “ISOFIX” system quickly, easily and reli-
ably. Please pay close attention to instruct ions from the manufacturer of the child
safety seat when installing and removing the seat.
Child seats fitted with the “ISOFIX” clamping system can only be mounted and fixed
in a vehicle fitted with an “ISOFIX system” when these child seats have been
released for this type of vehicle ac cording to the ECE-R 44 standard.
You can obtain child seats with the “ISOFIX” attachment system from specialist
garages who will also installed it as well.
Fig. 139 Locking eyes
(ISOFIX system)
Fig. 140 The ISOFIX child
seat is pushed into the
mounting funnels
s2ig.book Page 131 Monday, November 10, 2008 11:20 AM

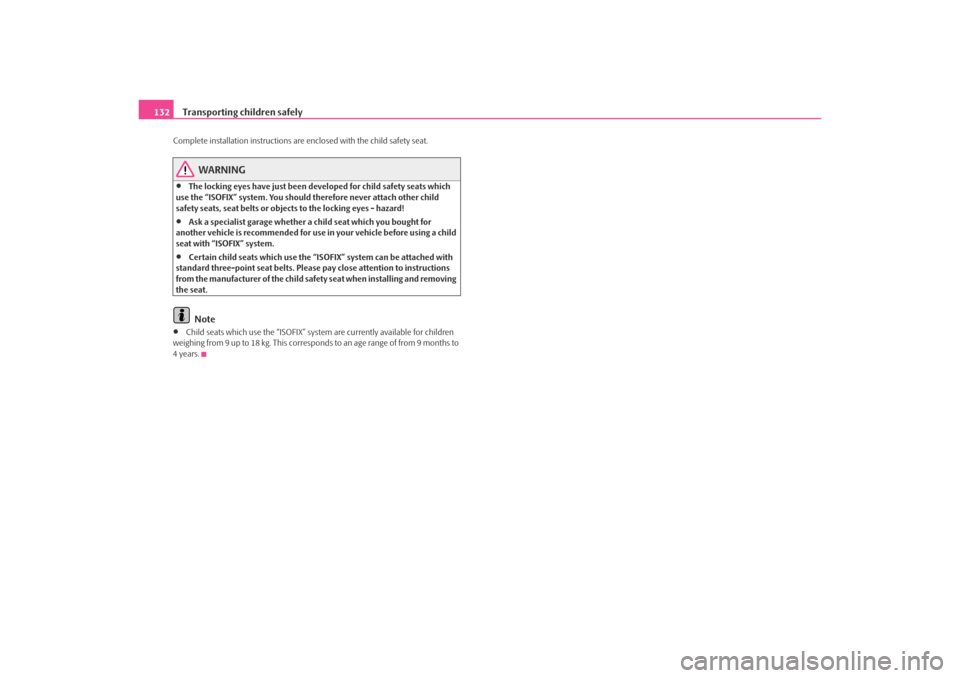

Transporting children safely
132Complete installation instructions are enclosed with the child safety seat.
WARNING
•
The locking eyes have just been developed for child safety seats which
use the “ISOFIX” system. You should therefore never attach other child
safety seats, seat belts or obje cts to the locking eyes - hazard!
•
Ask a specialist garage whether a child seat which you bought for
another vehicle is recommended for use in your vehicle before using a child
seat with “ISOFIX” system.
•
Certain child seats which use the “ISOFIX” system can be attached with
standard three-point seat belts. Please pay close attention to instructions
from the manufacturer of the child safety seat when installing and removing
the seat.Note
•
Child seats which use the “ISOFIX” system are currently available for children
weighing from 9 up to 18 kg. This correspo nds to an age range of from 9 months to
4 years.
s2ig.book Page 132 Monday, November 10, 2008 11:20 AM

Index
218Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Classification into groups . . . . . . . . . . . . . . . . . 128
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Use of child safety seats . . . . . . . . . . . . . . . . . . 128
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 91
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 92
Setting temperature . . . . . . . . . . . . . . . . . . . . . . . 92
Climatronic (automatic air conditioning) . . . . . . . 89
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . 45
Converting/masking over headlights . . . . . . . . . . 144
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . 16
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 106 Counter for distance driven . . . . . . . . . . . . . . . . . . . . 18
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Cup holder
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
DDeactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 122
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . . 54
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . 152
Detachable towing device . . . . . . . . . . . . . . . . . . . 147
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . 96
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 140EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Electric power-operated window Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 46
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . 46
Electrically adjustable exterior mirror . . . . . . . . . . . 58
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 134 Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 29, 36
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electronic stability programme . . . . . . . . . . . . . . . . 133
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . 162
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 16
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Environmental compatibility . . . . . . . . . . . . . 140, 143
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 58
s2ig.book Page 218 Monday, November 10, 2008 11:20 AM

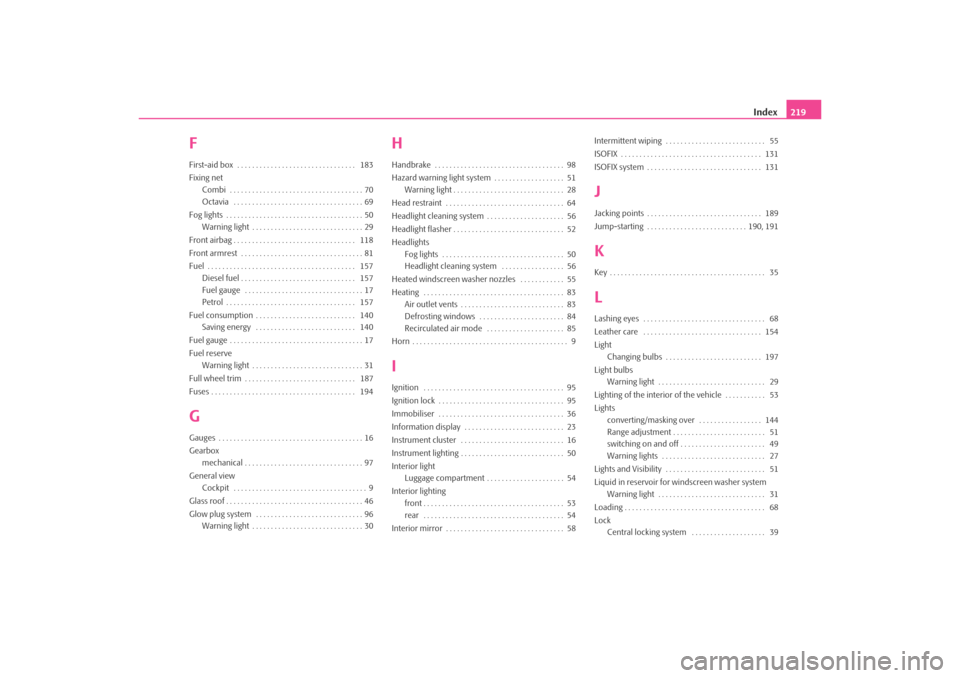

Index219
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Fixing net
Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194GGauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Hazard warning light system . . . . . . . . . . . . . . . . . . . 51Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 56
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Headlight cleaning system . . . . . . . . . . . . . . . . . 56
Heated windscreen washer nozzles . . . . . . . . . . . . 55
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 84
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 85
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 54
Interior lighting front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 190, 191KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Light
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Light bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Lighting of the interior of the vehicle . . . . . . . . . . . 53
Lights converting/masking over . . . . . . . . . . . . . . . . . 144
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 51
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 49
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Lock Central locking system . . . . . . . . . . . . . . . . . . . . 39
s2ig.book Page 219 Monday, November 10, 2008 11:20 AM
