SKODA OCTAVIA TOUR 2010 2.G / (1Z) Owner's Manual

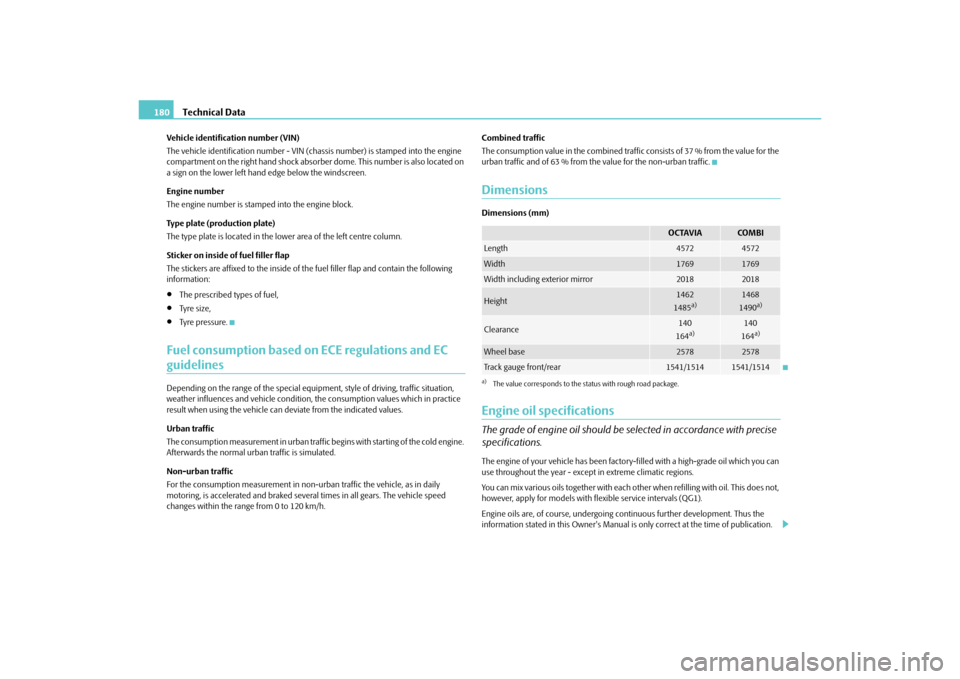

Technical Data
180
Vehicle identification number (VIN)
The vehicle identification num ber - VIN (chassis number) is stamped into the engine
compartment on the right hand shock absorb er dome. This number is also located on
a sign on the lower left hand edge below the windscreen.
Engine number
The engine number is stam ped into the engine block.
Type plate (production plate)
The type plate is located in the lowe r area of the left centre column.
Sticker on inside of fuel filler flap
The stickers are affixed to the inside of the fuel filler flap and contain the following
information:
The prescribed types of fuel,

Ty re s i z e ,

Tyre pressure.
Fuel consumption based on ECE regulations and EC guidelinesDepending on the range of the special equipment, style of driving, traffic situation,
weather influences and vehicl e condition, the consumption values which in practice
result when using the vehicle can deviate from the indicated values.
Urban traffic
The consumption measurement in urban traffic begins with starting of the cold engine.
Afterwards the normal ur ban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-ur ban traffic the vehicle, as in daily
motoring, is accelerated and braked severa l times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h. Combined traffic
The consumption value in the combined traffic consists of 37 % from the value for the
urban traffic and of 63 % from th
e value for the non-urban traffic.
DimensionsDimensions (mm)Engine oil specificationsThe grade of engine oil should be selected in accordance with precise
specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you can
use throughout the year - except in extreme climatic regions.
You can mix various oils together with each ot her when refilling with oil. This does not,
however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
OCTAVIA
COMBI
Length
4572
4572
Width
1769
1769
Width including exterior mirror
2018
2018
Height
1462
1485
a)
a)The value corresponds to the status with rough road package.
1468
1490
a)
Clearance
140
164a)
140
164a)
Wheel base
2578
2578
Tr a c k g a u g e f r o n t / r e a r
1541/1514
1541/1514
s2bs.2.book Page 180 Monday, September 27, 2010 9:53 AM

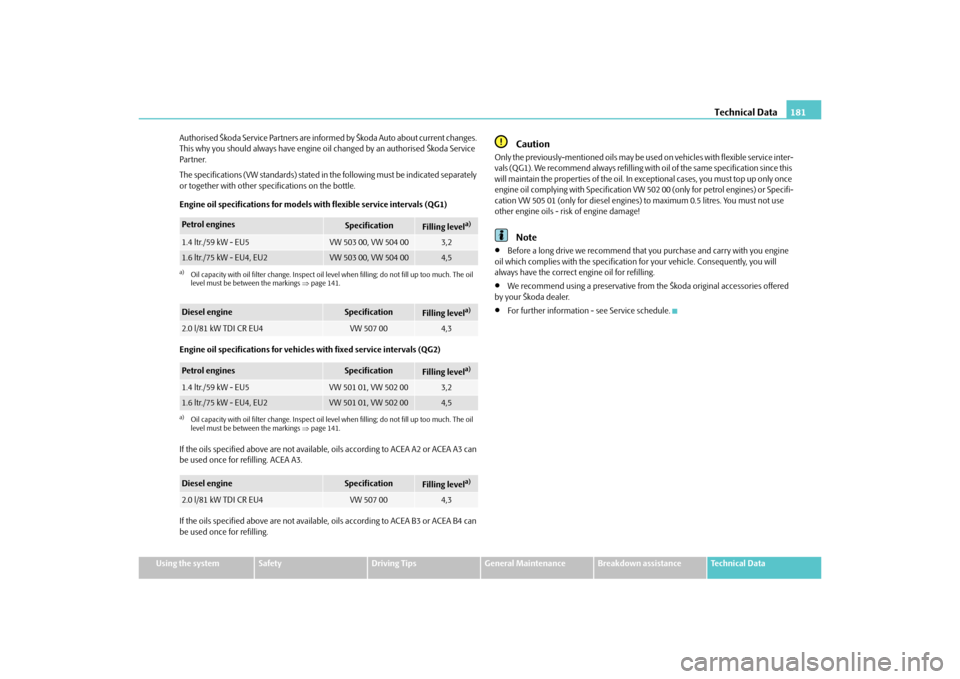

Technical Data181
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Authorised Škoda Service Partners are inform
ed by Škoda Auto about current changes.
This why you should always have engine oi l changed by an authorised Škoda Service
Par tner.
The specifications (VW standards) stated in the following must be indicated separately
or together with other specifications on the bottle.
Engine oil specifications for models with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2)
If the oils specified above are not available, oils according to ACEA A2 or ACEA A3 can
be used once for refilling. ACEA A3.
If the oils specified above are not available, oils according to ACEA B3 or ACEA B4 can
be used once for refilling.
Caution
Only the previously-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since this
will maintain the properties of the oil. In ex ceptional cases, you must top up only once
engine oil complying with Specification VW 502 00 (only for petrol engines) or Specifi-
cation VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use
other engine oils - risk of engine damage!
Note

Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. Consequently, you will
always have the correct engine oil for refilling.

We recommend using a preser vative from the Škoda original accessories offered
by your Škoda dealer.

For further information - see Service schedule.
Petrol engines
Specification
Filling level
a)
a)Oil capacity with oil filter change. Inspect oil leve l when filling; do not fill up too much. The oil
level must be between the markings page 141.1.4 ltr./59 kW - EU5
VW 503 00, VW 504 00
3,2
1.6 ltr./75 kW - EU4, EU2
VW 503 00, VW 504 00
4,5
Diesel engine
Specification
Filling level
a)
2.0 l/81 kW TDI CR EU4
VW 507 00
4,3
Petrol engines
Specification
Filling level
a)
a)Oil capacity with oil filter change. Inspect oil leve l when filling; do not fill up too much. The oil
level must be between the markings page 141.1.4 ltr./59 kW - EU5
VW 501 01, VW 502 00
3,2
1.6 ltr./75 kW - EU4, EU2
VW 501 01, VW 502 00
4,5
Diesel engine
Specification
Filling level
a)
2.0 l/81 kW TDI CR EU4
VW 507 00
4,3
s2bs.2.book Page 181 Monday, September 27, 2010 9:53 AM

Technical Data
182

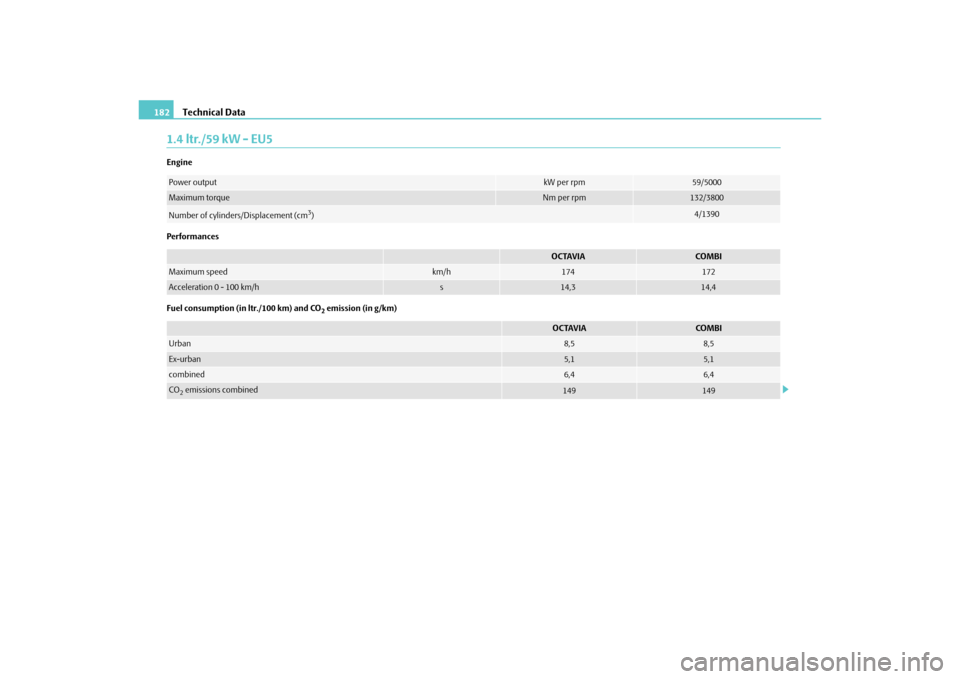

1.4 ltr./59 kW - EU5Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
OCTAVIA
CO M B I
Maximum speed
km/h
174
172
Acceleration 0 - 100 km/h
s
14,3
14,4
OCTAVIA
COMBI
Urban
8,5
8,5
Ex-urban
5,1
5,1
combined
6,4
6,4
CO2 emissions combined
149
149
s2bs.2.book Page 182 Monday, September 27, 2010 9:53 AM

Technical Data183
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

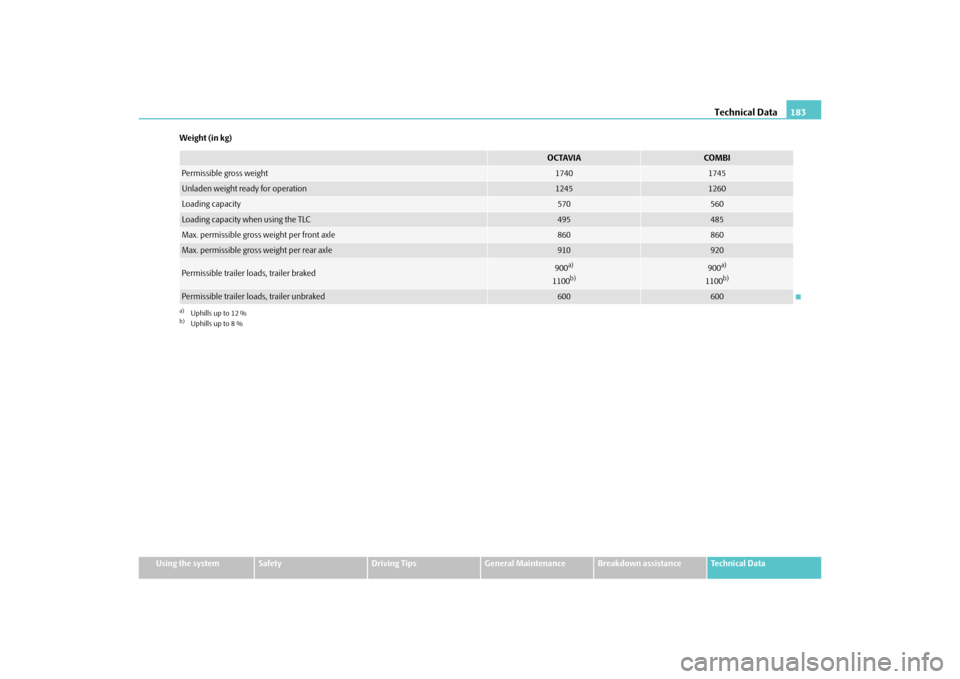

Weight (in kg)
OCTAVIA
COMBI
Permissible gross weight
1740
1745
Unladen weight ready for operation
1245
1260
Loading capacity
570
560
Loading capacity when using the TLC
495
485
Max. permissible gross weight per front axle
860
860
Max. permissible gross weight per rear axle
910
920
Permissible trailer loads, trailer braked
900
a)
1100
b)
a)Uphills up to 12 %b)Uphills up to 8 %
900
a)
1100
b)
Permissible trailer loads, trailer unbraked
600
600
s2bs.2.book Page 183 Monday,
September 27, 2010 9:53 AM

Technical Data
184

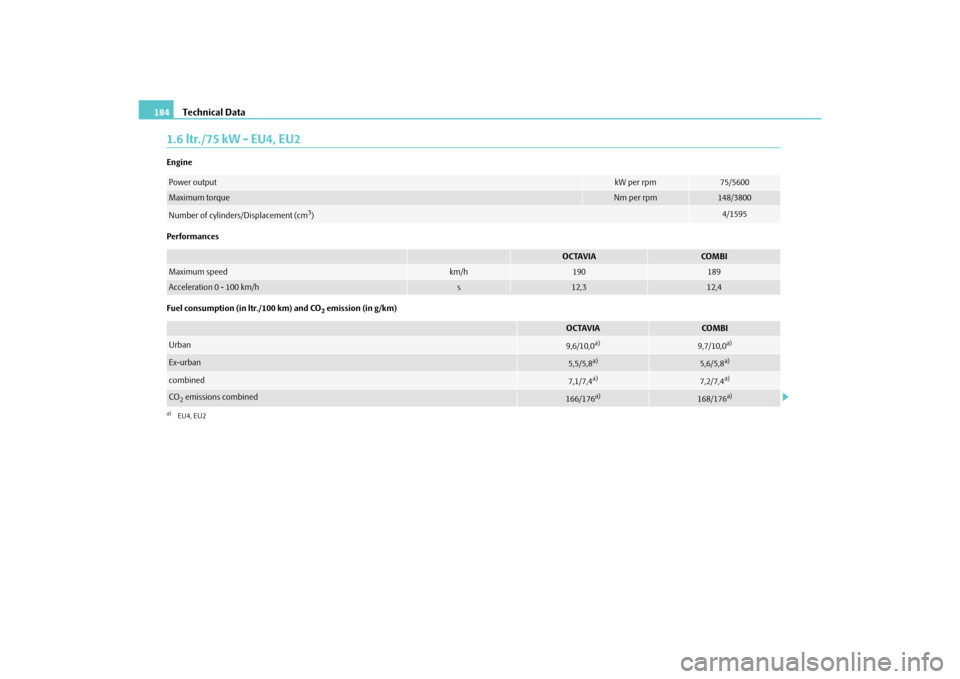

1.6ltr./75kW - EU4, EU2Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
75/5600
Maximum torque
Nm per rpm
148/3800
Number of cylinders/Displacement (cm
3)
4/1595
OCTAVIA
COMBI
Maximum speed
km/h
190
189
Acceleration 0 - 100 km/h
s
12,3
12,4
OCTAVIA
COMBI
Urban
9,6/10,0
a)
a)EU4, EU2
9,7/10,0
a)
Ex-urban
5,5/5,8
a)
5,6/5,8
a)
combined
7,1/7,4
a)
7,2/7,4
a)
CO2 emissions combined
166/176
a)
168/176
a)
s2bs.2.book Page 184 Monday, September 27, 2010 9:53 AM

Technical Data185
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

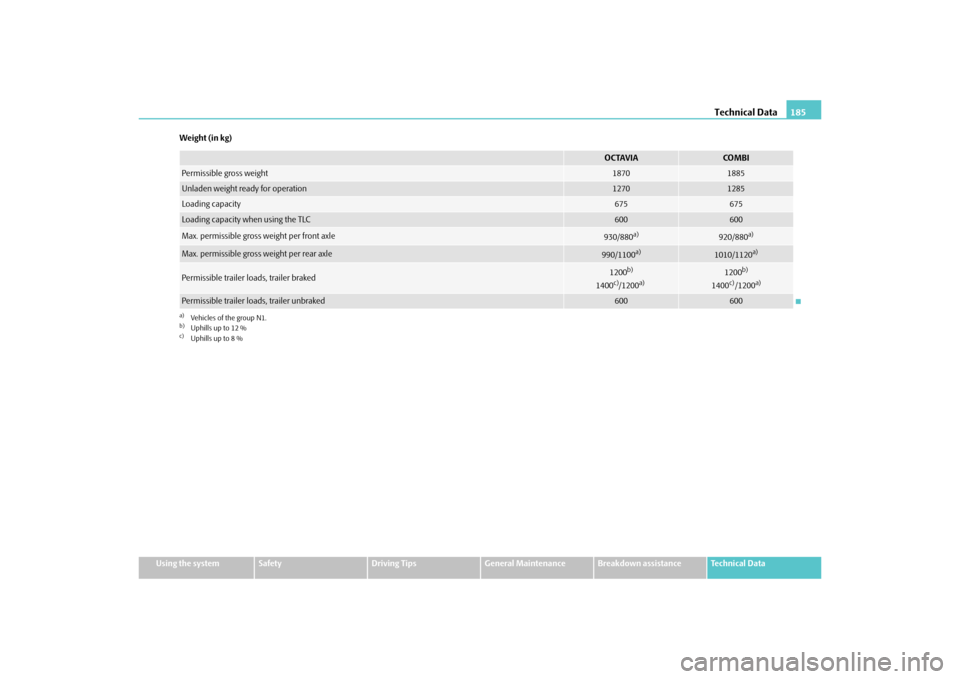

Weight (in kg)
OCTAVIA
COMBI
Permissible gross weight
1870
1885
Unladen weight ready for operation
1270
1285
Loading capacity
675
675
Loading capacity when using the TLC
600
600
Max. permissible gross weight per front axle
930/880
a)
a)Vehicles of the group N1.
920/880
a)
Max. permissible gross weight per rear axle
990/1100
a)
1010/1120
a)
Permissible trailer loads, trailer braked
1200
b)
1400
c)/1200
a)
b)Uphills up to 12 %c)Uphills up to 8 %
1200
b)
1400
c)/1200
a)
Permissible trailer loads, trailer unbraked
600
600
s2bs.2.book Page 185 Monday,
September 27, 2010 9:53 AM

Technical Data
186
2.0 l/81 kW TDI CR EU4Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
81/4200
Maximum torque
Nm per rpm
250/1500-2500
Number of cylinders/Displacement (cm
3)
4/1968
OCTAVIA
COMBI
Maximum speed
km/h
195
194
Acceleration 0 - 100 km/h
s
11,0
11,1
Urban
6,5
Ex-urban
4,3
combined
5,0
CO2 emissions combined
132
s2bs.2.book Page 186 Monday, September 27, 2010 9:53 AM

Technical Data187
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Weight (in kg)
OCTAVIA
COMBI
Permissible gross weight
1960
1975
Unladen weight ready for operation
1360
1375
Loading capacity
675
675
Loading capacity when using the TLC
600
600
Max. permissible gross weight per front axle
1020/980
a)
a)Vehicles of the group N1.
1020/970
a)
Max. permissible gross weight per rear axle
980/1100
a)
1000/1110
a)
Permissible trailer loads, trailer braked
1400
b)
1600
c)/1400
a)
b)Uphills up to 12 %c)Uphills up to 8 %
1400
b)
1600
c)/1400
a)
Permissible trailer loads, trailer unbraked
650
650
s2bs.2.book Page 187 Monday,
September 27, 2010 9:53 AM

Technical Data
188
s2bs.2.book Page 188 Monday, September 27, 2010 9:53 AM

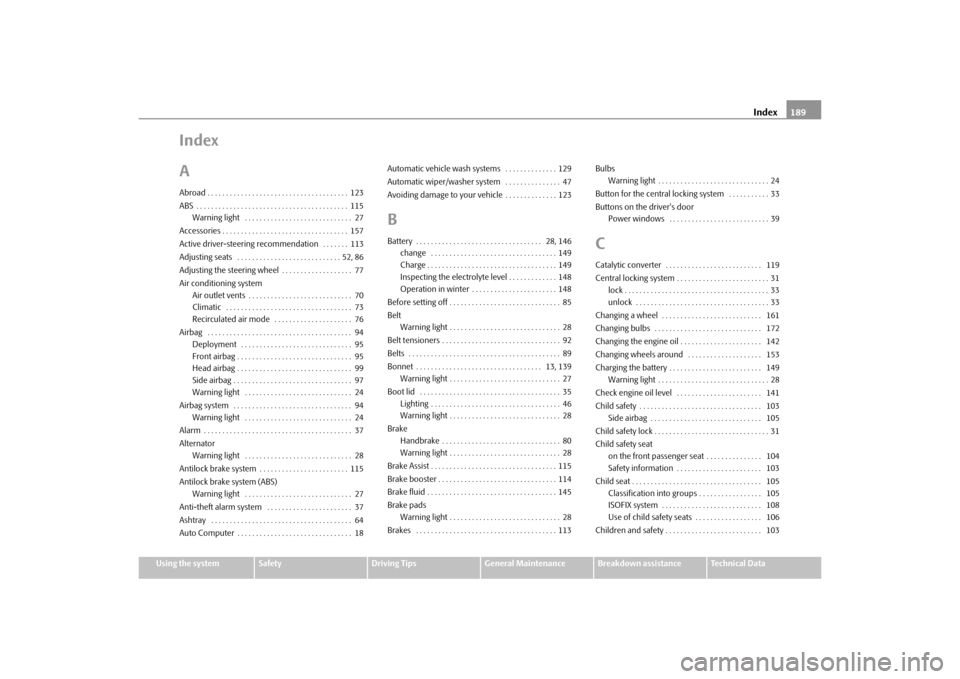

Index189
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Active driver-steering recommendation . . . . . . . 113
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 86
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . . 77
Air conditioning system Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 76
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 115
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 37
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Automatic vehicle wash systems . . . . . . . . . . . . . . 129
Automatic wiper/washer system . . . . . . . . . . . . . . . 47
Avoiding damage to your vehicle . . . . . . . . . . . . . . 123
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 146
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Inspecting the electrolyte level . . . . . . . . . . . . . 148
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 148
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 139 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Bulbs
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Button for the central locking system . . . . . . . . . . . 33
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CCatalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 31lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 142
Changing wheels around . . . . . . . . . . . . . . . . . . . . 153
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 149 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . 141
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 104
Safety information . . . . . . . . . . . . . . . . . . . . . . . 103
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Classification into groups . . . . . . . . . . . . . . . . . 105
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Use of child safety seats . . . . . . . . . . . . . . . . . . 106
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 103
s2bs.2.book Page 189 Monday, September 27, 2010 9:53 AM
