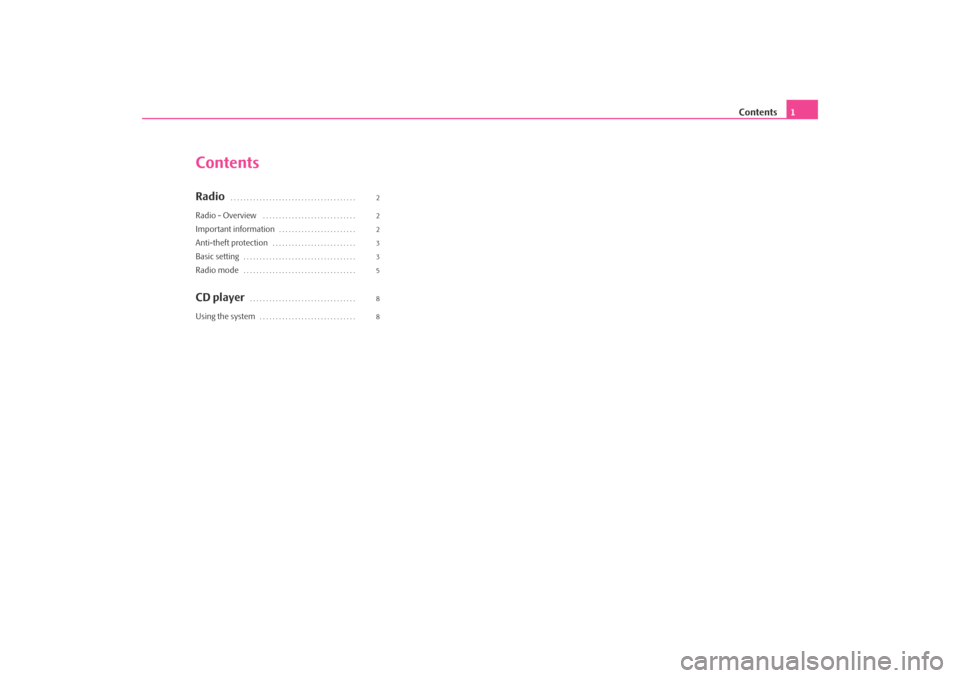

Contents1
ContentsRadio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio - Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information
. . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft protection
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic setting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
2
3
3
5
8
8
s1tk.book Page 1 Thursday, March 20, 2008 1:56 PM
Page 4 of 13

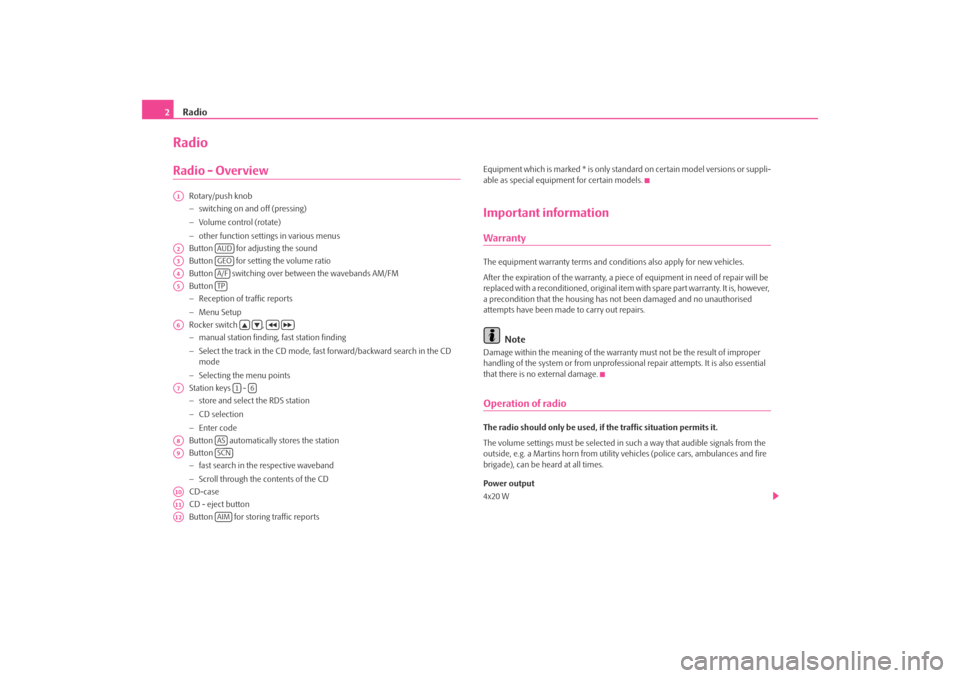

Radio

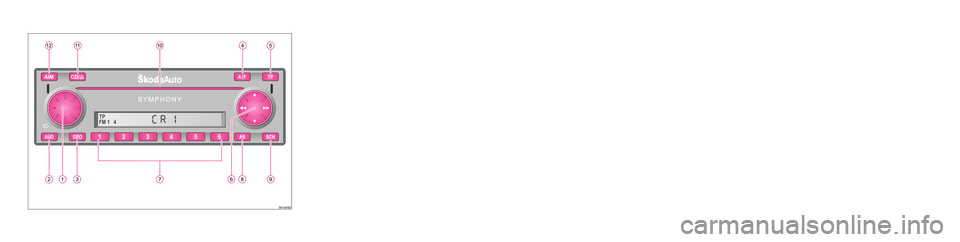

2RadioRadio - Overview
Rotary/push knob
− switching on and off (pressing)
− Volume control (rotate)
− other function settin gs in various menus
Button for adjusting the sound
Button for setting the volume ratio
Button switching over between the wavebands AM/FM
Button
− Reception of traffic reports
− Menu Setup
Rocker switch ,
− manual station finding, fast station finding
− Select the track in the CD mode, fast forward/backward search in the CD
mode
− Selecting the menu points
Station keys -
− store and select the RDS station
− CD selection
− Enter code
Button automatically stores the station
Button
− fast search in the respective waveband
− Scroll through the contents of the CD
CD-case
CD - eject button
Button for storing traffic reports Equipment which is marked * is only stan
dard on certain model versions or suppli-
able as special equipment for certain models.
Important informationWarrantyThe equipment warranty terms and conditions also apply for new vehicles.
After the expiration of the warranty, a piec e of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is, however,
a precondition that the housing has not been damaged and no unauthorised
attempts have been made to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper
handling of the system or from unprofession al repair attempts. It is also essential
that there is no external damage.Operation of radioThe radio should only be used, if the traffic situation permits it.
The volume settings must be selected in such a way that audible signals from the
outside, e.g. a Martins horn from utility vehicles (police cars, ambulances and fire
brigade), can be heard at all times.
Power output
4x20 W
A1A2
AUD
A3
GEO
A4
A/F
A5
TP
A6
A7
1
6
A8
AS
A9
SCN
A10A11A12
AIM
s1tk.book Page 2 Thursday, March 20, 2008 1:56 PM
Page 5 of 13

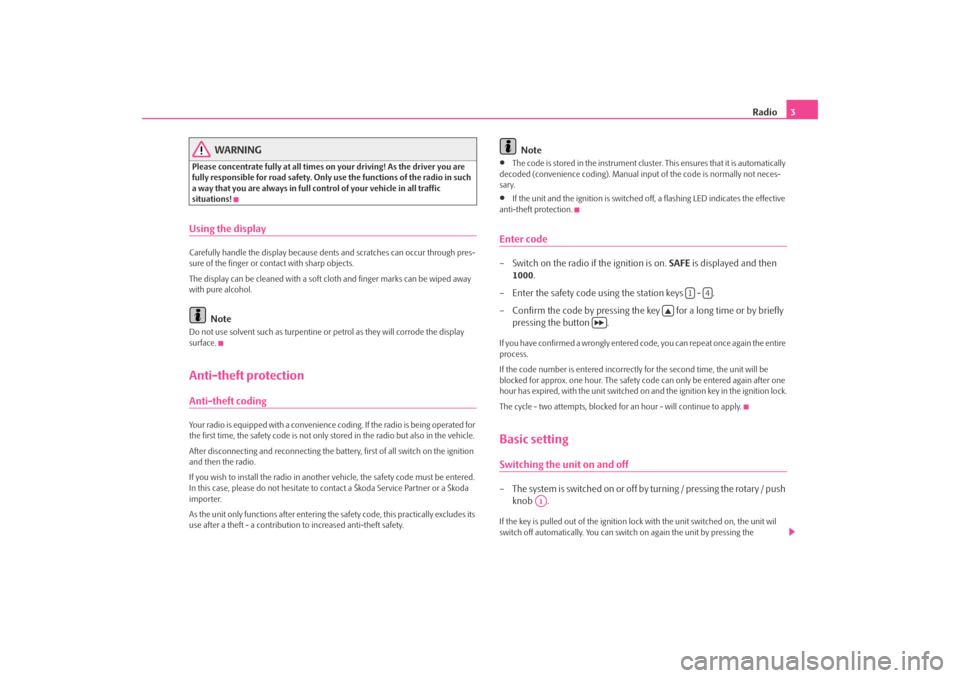

Radio3
WARNING
Please concentrate fully at all times on your driving! As the driver you are
fully responsible for road safety. Only use the functions of the radio in such
a way that you are always in full co ntrol of your vehicle in all traffic
situations!Using the displayCarefully handle the display because dent s and scratches can occur through pres-
sure of the finger or contact with sharp objects.
The display can be cleaned with a soft cl oth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or petrol as they will corrode the display
surface.Anti-theft protectionAnti-theft codingYour radio is equipped with a convenience co ding. If the radio is being operated for
the first time, the safety code is not only stored in the radio but also in the vehicle.
After disconnecting and reconnecting the batte ry, first of all switch on the ignition
and then the radio.
If you wish to install the radio in another vehicle, the safety code must be entered.
In this case, please do not hesitate to contact a Škoda Service Partner or a Škoda
importer.
As the unit only functions after entering the safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
•
The code is stored in the instrument cluster. This ensures that it is automatically
decoded (convenience coding). Manual inpu t of the code is normally not neces-
sary.
•
If the unit and the ignition is switched of f, a flashing LED indicates the effective
anti-theft protection.
Enter code– Switch on the radio if the ignition is on. SAFE is displayed and then
1000.
– Enter the safety code using the station keys - .
– Confirm the code by pressing the ke y for a long time or by briefly
pressing the button .If you have confirmed a wrongly entered co de, you can repeat once again the entire
process.
If the code number is entered incorrectl y for the second time, the unit will be
blocked for approx. one hour. The safety co de can only be entered again after one
hour has expired, with the uni t switched on and the ignition key in the ignition lock.
The cycle - two attempts, blocked for an hour - will continue to apply.Basic settingSwitching the unit on and off– The system is switched on or off by turning / pressing the rotary / push knob .If the key is pulled out of the ignition lo ck with the unit switched on, the unit wil
switch off automatically. You can switch on again the unit by pressing the
1
4
A1
s1tk.book Page 3 Thursday, March 20, 2008 1:56 PM
Page 6 of 13
Radio
4rotary/push knob . If the engine is switch ed off, the unit (protection of the vehicle
battery before discharging) switches of f automatically after approx. one hour.
If you have switched off the radio by withdrawing the ignition key, the radio

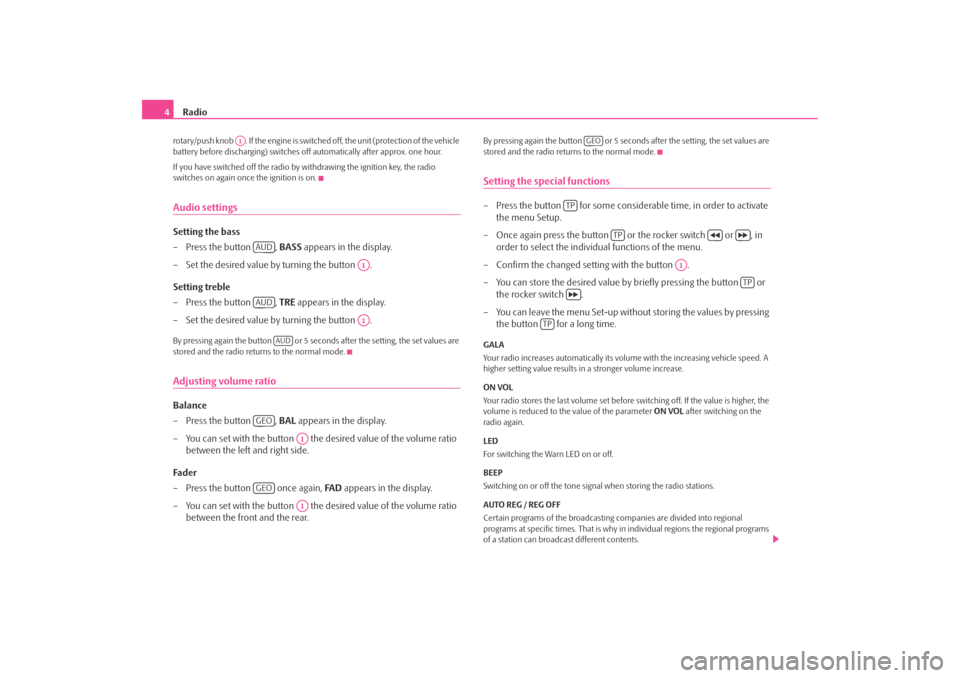

switches on again once the ignition is on.Audio settingsSetting the bass
– Press the button , BASS appears in the display.
– Set the desired value by turning the button .
Setting treble
– Press the button , TRE appears in the display.
– Set the desired value by turning the button .By pressing again the button or 5 seconds after the setting, the set values are
stored and the radio returns to the normal mode.Adjusting volume ratioBalance
– Press the button , BAL appears in the display.
– You can set with the button the desired value of the volume ratio between the left and right side.
Fa d er
– Press the button once again, FA D appears in the display.
– You can set with the button the desired value of the volume ratio between the front and the rear.
By pressing again the button or 5 seconds after the setting, the set values are
stored and the radio returns to the normal mode.Setting the special functions– Press the button for some considerable time, in order to activate the menu Setup.
– Once again press the button or the rocker switch or , in order to select the individual functions of the menu.
– Confirm the changed setting with the button .
– You can store the desired value by briefly pressing the button or the rocker switch .
– You can leave the menu Set-up without storing the values by pressing the button for a long time.GALA
Your radio increases automatically its volume with the increasing vehicle speed. A
higher setting value results in a stronger volume increase.
ON VOL
Your radio stores the last volume set before switching off. If the value is higher, the
volume is reduced to the value of the parameter ON VOL after switching on the
radio again.
LED
For switching the Warn LED on or off.
BEEP
Switching on or off the tone signal when storing the radio stations.
AUTO REG / REG OFF
Certain programs of the broadcasting companies are divided into regional
programs at specific times. That is why in individual regions the regional programs
of a station can broadcast different contents.
A1
AUD
A1
AUD
A1
AUD
GEO
A1
GEO
A1
GEO
TP
TP
A1
TP
TP
s1tk.book Page 4 Thursday, March 20, 2008 1:56 PM
Page 7 of 13
Radio5

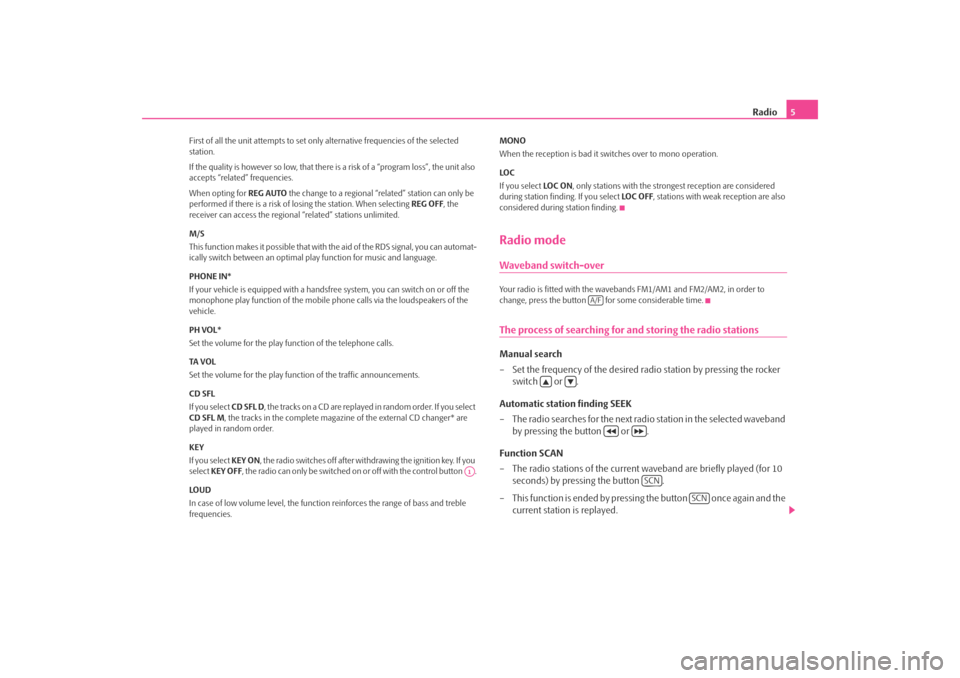

First of all the unit attempts to set only alternative frequencies of the selected
station.
If the quality is however so low, that there is a risk of a “program loss”, the unit also
accepts “related” frequencies.
When opting for REG AUTO the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting REG OFF, the
receiver can access the regional “related” stations unlimited.
M/S
This function makes it possible that with the aid of the RDS signal, you can automat-
ically switch between an optimal pl ay function for music and language.
PHONE IN*
If your vehicle is equipped with a handsfree system, you can switch on or off the
monophone play function of the mobile phone calls via the loudspeakers of the
vehicle.
PH VOL*
Set the volume for the play function of the telephone calls.
TA VOL
Set the volume for the play functi on of the traffic announcements.
CD SFL
If you select CD SFL D, the tracks on a CD are replayed in random order. If you select
CD SFL M , the tracks in the complete magazine of the external CD changer* are
played in random order.
KEY
If you select KEY ON, the radio switches off after withdrawing the ignition key. If you
select KEY OFF , the radio can only be switched on or off with the control button .
LO U D
In case of low volume level, the function reinforces the range of bass and treble
frequencies. MONO
When the reception is bad it switches over to mono operation.
LO C
If you select
LO C O N, only stations with the stro ngest reception are considered
during station finding. If you select LO C O F F, stations with weak reception are also
considered during station finding.
Radio modeWaveband switch-overYour radio is fitted with the wavebands FM1/AM1 and FM2/AM2, in order to
change, press the button for some considerable time.The process of searching for and storing the radio stationsManual search
– Set the frequency of the desired radio station by pressing the rocker switch or .
Automatic station finding SEEK
– The radio searches for the next radi o station in the selected waveband
by pressing the button or .
Function SCAN
– The radio stations of the current waveband are briefly played (for 10
seconds) by pressing the button .
– This function is ended by pressing the button once again and the current station is replayed.
A1
A/F
SCN
SCN
s1tk.book Page 5 Thursday, March 20, 2008 1:56 PM
Page 8 of 13
Radio
6

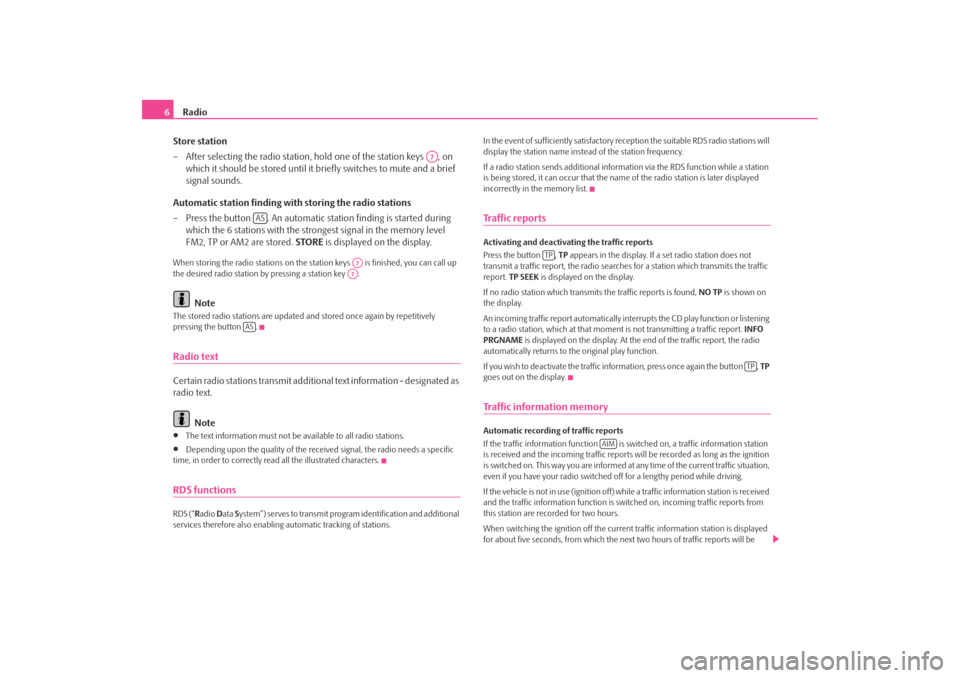

Store station
– After selecting the radio station, hold one of the station keys , on
which it should be stored until it briefly switches to mute and a brief
signal sounds.
Automatic station finding with storing the radio stations
– Press the button . An automatic station finding is started during which the 6 stations with the strongest signal in the memory level
FM2, TP or AM2 are stored. STORE is displayed on the display.When storing the radio stations on the st ation keys is finished, you can call up
the desired radio station by pressing a station key .
Note
The stored radio stations are updated and stored once again by repetitively
pressing the button .Radio textCertain radio stations transmit addition al text information - designated as
radio text.
Note•
The text information must not be available to all radio stations.
•
Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.
RDS functionsRDS (“ Radio Data System”) serves to transmit program identification and additional
services therefore also enabling automatic tracking of stations. In the event of sufficiently satisfactory reception the suitable RDS radio stations will
display the station name instead of the station frequency.
If a radio station sends additional inform
ation via the RDS function while a station
is being stored, it can occur that the name of the radio station is later displayed
incorrectly in the memory list.
Tr a f f i c r e p o r t sActivating and deactivating the traffic reports
Press the button , TP appears in the display. If a set radio station does not
transmit a traffic report, the radio searches for a station which transmits the traffic
report. TP SEEK is displayed on the display.
If no radio station which transmits the traffic reports is found, NO TP is shown on
the display.
An incoming traffic report automatically inte rrupts the CD play function or listening
to a radio station, which at that moment is not transmitting a traffic report. INFO
PRGNAME is displayed on the display. At th e end of the traffic report, the radio
automatically returns to the original play function.
If you wish to deactivate the traffic information, press once again the button , TP
goes out on the display.Traffic information memory Automatic recording of traffic reports

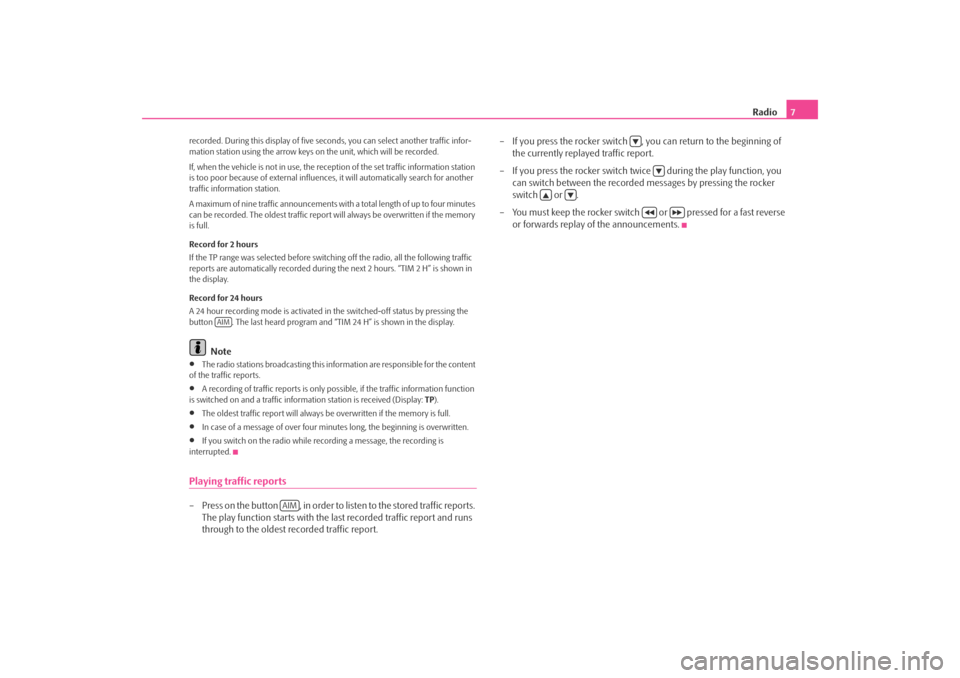

If the traffic information function is switched on, a traffic information station
is received and the incoming traffic reports will be recorded as long as the ignition
is switched on. This way you are informed at any time of the current traffic situation,
even if you have your radio switched off for a lengthy period while driving.
If the vehicle is not in use (ignition off) while a traffic information station is received
and the traffic information function is sw itched on, incoming traffic reports from
this station are recorded for two hours.
When switching the ignition off the current traffic information station is displayed
for about five seconds, from which the ne xt two hours of traffic reports will be
A7
AS
A7A7
AS
TP
TP
AIM
s1tk.book Page 6 Thursday, March 20, 2008 1:56 PM
Page 9 of 13
Radio7
recorded. During this display of five seco nds, you can select another traffic infor-
mation station using the arrow keys on the unit, which will be recorded.
If, when the vehicle is not in use, the reception of the set traffic information station
is too poor because of external influences , it will automatically search for another
traffic information station.
A maximum of nine traffic announcements with a total length of up to four minutes
can be recorded. The oldest traffic report will always be overwritten if the memory
is full.
Record for 2 hours
If the TP range was selected before switch ing off the radio, all the following traffic
reports are automatically recorded during th e next 2 hours. “TIM 2 H” is shown in
the display.
Record for 24 hours
A 24 hour recording mode is activated in the switched-off status by pressing the
button . The last heard program and “TIM 24 H” is shown in the display.
Note
•
The radio stations broadcasting this information are responsible for the content
of the traffic reports.
•
A recording of traffic reports is only poss ible, if the traffic information function
is switched on and a traffic information station is received (Display: TP).
•
The oldest traffic report will always be overwritten if the memory is full.
•
In case of a message of over four minut es long, the beginning is overwritten.
•
If you switch on the radio while recording a message, the recording is
interrupted.
Playing traffic reports– Press on the button , in order to listen to the stored traffic reports. The play function starts with the last recorded traffic report and runs
through to the oldest recorded traffic report. – If you press the rocker switch , you can return to the beginning of
the currently replayed traffic report.
– If you press the rocker switch twic e during the play function, you
can switch between the recorded messages by pressing the rocker
switch or .
– You must keep the rocker switch or pressed for a fast reverse or forwards replay of the announcements.
AIM
AIM
s1tk.book Page 7 Thursday, March 20, 2008 1:56 PM
Page 10 of 13

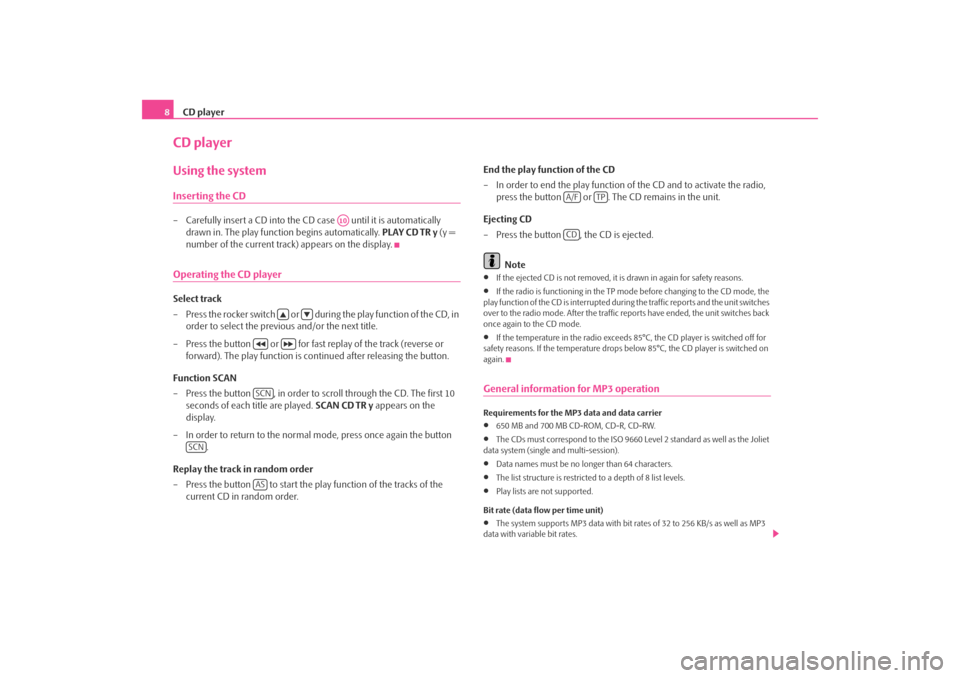

CD player
8CD playerUsing the systemInserting the CD– Carefully insert a CD into the CD case until it is automatically
drawn in. The play function begins automatically. PLAY CD TR y (y =
number of the current track) appears on the display.Operating the CD playerSelect track
– Press the rocker switch or during the play function of the CD, in order to select the previous and/or the next title.
– Press the button or for fast replay of the track (reverse or forward). The play function is co ntinued after releasing the button.
Function SCAN
– Press the button , in order to scroll through the CD. The first 10 seconds of each title are played. SCAN CD TR y appears on the
display.
– In order to return to the normal mode, press once again the button .
Replay the track in random order
– Press the button to start the play function of the tracks of the current CD in random order. End the play function of the CD
– In order to end the play function of the CD and to activate the radio,
press the button or . The CD remains in the unit.
Ejecting CD
– Press the button , the CD is ejected.
Note
•
If the ejected CD is not removed, it is drawn in again for safety reasons.
•
If the radio is functioning in the TP mode before changing to the CD mode, the
play function of the CD is interrupted during the traffic reports and the unit switches
over to the radio mode. After the traffic reports have ended, the unit switches back
once again to the CD mode.
•
If the temperature in the radio exceeds 85°C, the CD player is switched off for
safety reasons. If the temperature drops be low 85°C, the CD player is switched on
again.
General information for MP3 operationRequirements for the MP3 data and data carrier •
650 MB and 700 MB CD-ROM, CD-R, CD-RW.
•
The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
•
Data names must be no longer than 64 characters.
•
The list structure is restricted to a depth of 8 list levels.
•
Play lists are not supported.
Bit rate (data flow per time unit)
•
The system supports MP3 data with bit rates of 32 to 256 KB/s as well as MP3
data with variable bit rates.
A10
SCN
SCN
AS
A/F
TP
CD
s1tk.book Page 8 Thursday, March 20, 2008 1:56 PM
