Fuses and light bulbs
250
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
We recommend that you have these fuses replaced by a specialist
garage.
Fuse assignment in the dash panel
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
yellow20
white25
green30
ColourMaximum amperage
No.Power consumerAmperes
1Power steering5
2Instrument cluster, headlight range adjustment5
3Engine control unit - Petrol engine5
4ABS control unit5
5Petrol engine: Brake light switch, cruise control sys-
tem5
6Not assigned
7Engine control unit 1.2 ltr. engine15
8Injection valves - 1.4 ltr.; 1.6 ltr.10

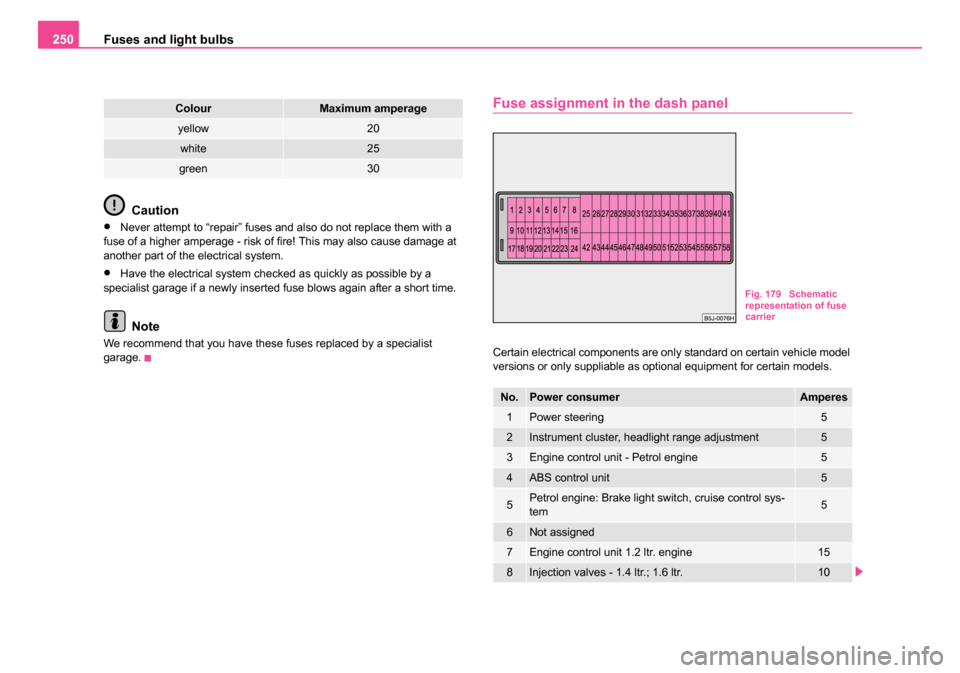

Fig. 179 Schematic
representation of fuse
carrier
NKO 20 A05.book Page 250 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs251
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
9Operating controls for the heating, control unit for air
conditioning system, parking aid, control unit for cor-
nering lights5
10PCV valve7,5
11Electrically adjustable rear mirror, power windows7,5
12Reversing light10
13Engine control unit (for vehicles with automatic gear-
box)10
14Motor for cornering lights10
15Navigation PDA5
16Not assigned
17Left parking light, licence plate light5
18Right parking light5
19Radio, central control unit5
20Instrument cluster, steering angle sender, ESP5
21Brake lights10
22Operating controls for the heating, control unit for air
conditioning system, parking aid, mobile phone7,5
23Lighting interior, storage compartment and luggage
compartment10
24Tailgate lock10
25Seat heaters20
26Heatable windscreen washing nozzles, windscreen
cleaning system15
27Not assigned

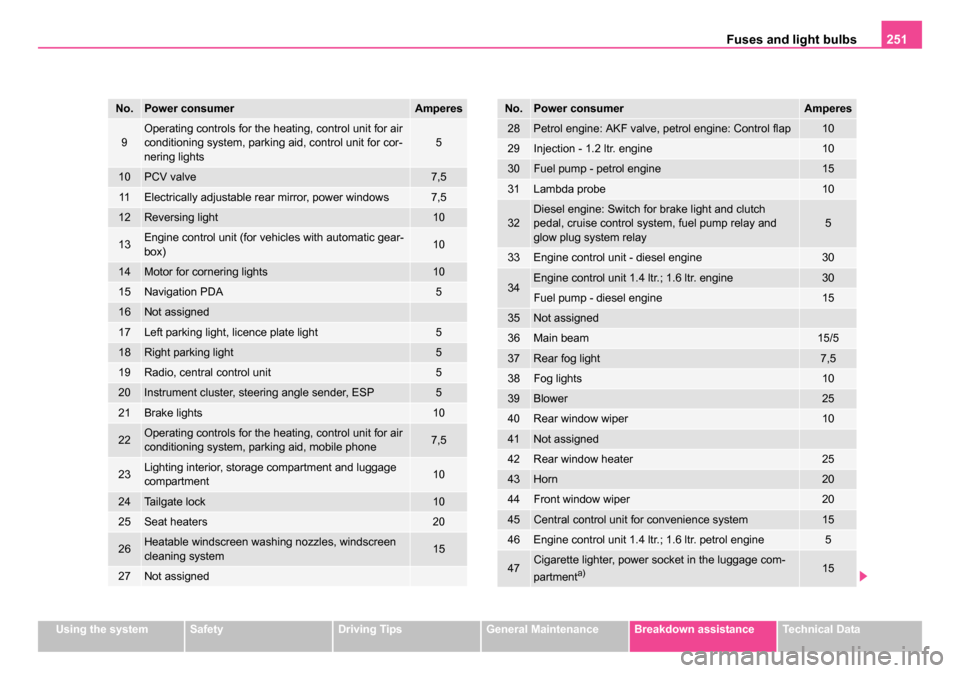

No.Power consumerAmperes
28Petrol engine: AKF valve, petrol engine: Control flap10
29Injection - 1.2 ltr. engine10
30Fuel pump - petrol engine15
31Lambda probe10
32Diesel engine: Switch for brake light and clutch
pedal, cruise control system, fuel pump relay and
glow plug system relay5
33Engine control unit - diesel engine30
34Engine control unit 1.4 ltr.; 1.6 ltr. engine30
Fuel pump - diesel engine15
35Not assigned
36Main beam15/5
37Rear fog light7,5
38Fog lights10
39Blower25
40Rear window wiper10
41Not assigned
42Rear window heater25
43Horn20
44Front window wiper20
45Central control unit for convenience system15
46Engine control unit 1.4 ltr.; 1.6 ltr. petrol engine5
47Cigarette lighter, power socket in the luggage com-
partmenta)15
No.Power consumerAmperes
NKO 20 A05.book Page 251 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
252
Replaces fuses at the battery
– Open the positive terminal cover (+) ⇒fig. 180 .
48Vehicle voltage control unit5
49Turn signals15
50Radio, Telephone preinstallation, Multi-functional
module10
51Electrical power window (at the front and rear on the
left)25
52Electrical power window (at the front and rear on the
right)25
53Not assigned
54Anti-theft alarm system15
55Not assigned
56Headlight cleaning system25
57Low beam on the left15
58Low beam on the right15
a)If the engine is switched off already one electrical component which is connected
can discharge the battery.
No.Power consumerAmperes

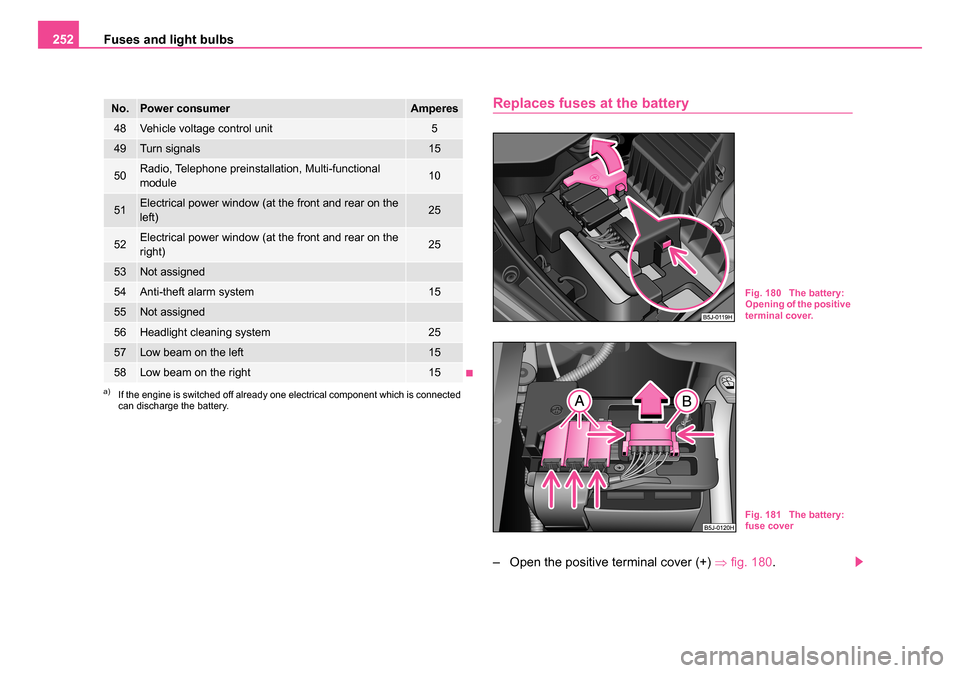

Fig. 180 The battery:
Opening of the positive
terminal cover.
Fig. 181 The battery:
fuse cover
NKO 20 A05.book Page 252 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs253
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Press the interlocks of the fuse covers ⇒page 252,
fig. 181 and open the covers.
– Press simultaneouly the interlocks of the fuse cover and push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating ⇒page 253, “Fuse assignment at battery”.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere
number.
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
•We recommend that you have these fuses replaced by a specialist
garage.
•Some vehicles are only fitted with the cover ⇒page 252,
fig. 181 .

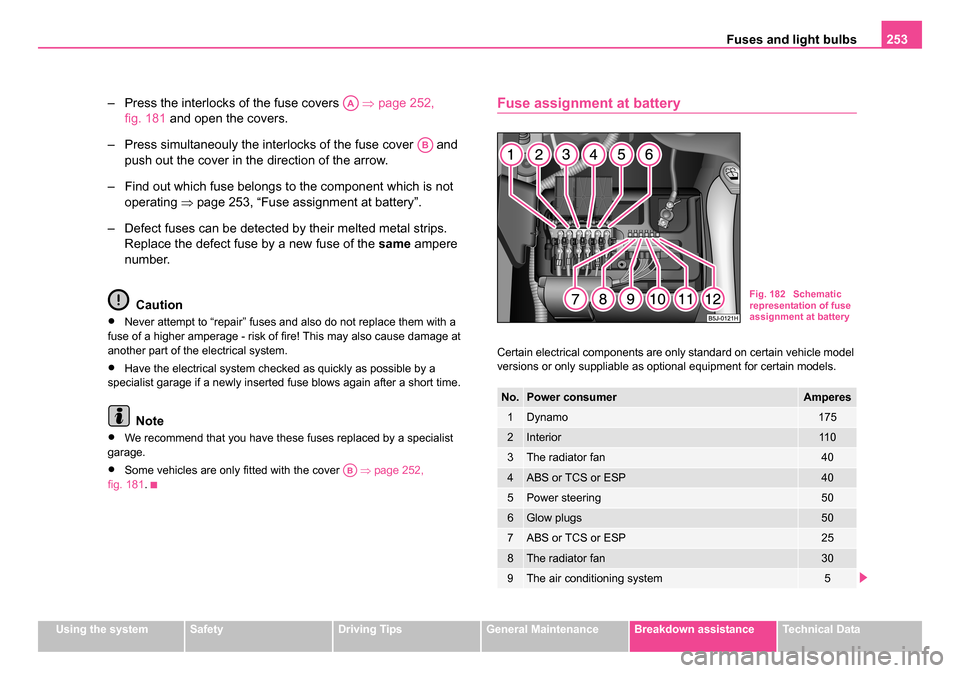

Fuse assignment at battery
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
AA
AB
AB
No.Power consumerAmperes
1Dynamo175
2Interior11 0
3The radiator fan40
4ABS or TCS or ESP40
5Power steering50
6Glow plugs50
7ABS or TCS or ESP25
8The radiator fan30
9The air conditioning system5
Fig. 182 Schematic
representation of fuse
assignment at battery
NKO 20 A05.book Page 253 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
254
Bulbs
Replacing bulbs
The relevant lamp must always be switched off before a light bulb is
replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
serviette or something similar.
Defect light bulbs should only be replaced with light bulbs of the same
type. The designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but
requires to be done by a specialist. Other parts of the vehicle must be
removed in order to change the light bulbs. This applies, in particular, to
bulbs which can only be reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a Škoda
Service Partner or, in exceptional cases, by calling on other professional
assistance.
Please note that the engine compartment is a hazardous area
⇒ page 210, “Working in the engine compartment”. We recommend that you carry the set of light bulbs with you which was
delivered in your vehicle. Replacement light bulbs
8) are available at a
Škoda Service Partner.
The set of light bulbs can be stowed in the locable box in the spare wheel.
Overview of bulbs10Engine control unit15
11Central control unit5
12Automatic gearbox5
No.Power consumerAmperes
8)Replacement light bulbs are, on the other hand, part of the basic equipping of the
vehicle in some countries.

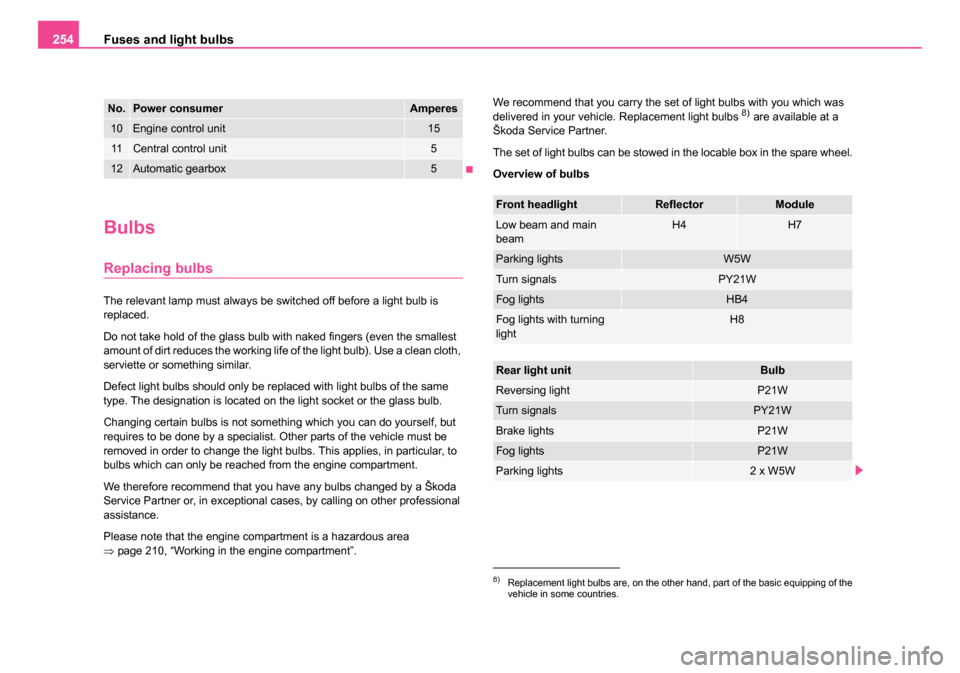

Front headlightReflectorModule
Low beam and main
beamH4H7
Parking lightsW5W
Turn signalsPY21W
Fog lightsHB4
Fog lights with turning
lightH8
Rear light unitBulb
Reversing lightP21W
Turn signalsPY21W
Brake lightsP21W
Fog lightsP21W
Parking lights2 x W5W
NKO 20 A05.book Page 254 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs255
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Bulbs H7 and H4 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.

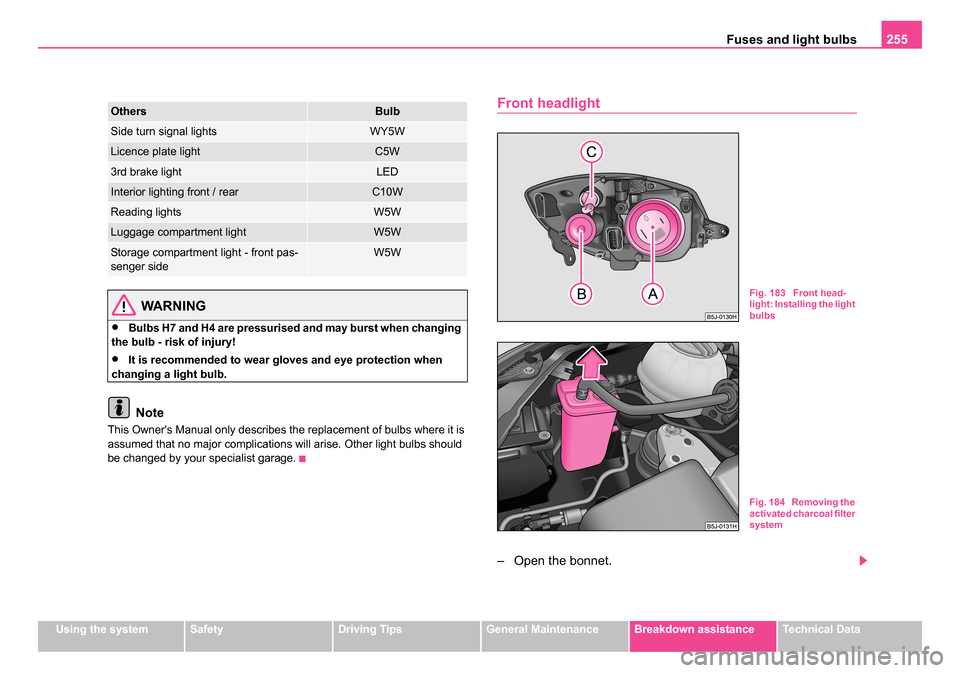

Front headlight
– Open the bonnet.
OthersBulb
Side turn signal lightsWY5W
Licence plate lightC5W
3rd brake lightLED
Interior lighting front / rearC10W
Reading lightsW5W
Luggage compartment lightW5W
Storage compartment light - front pas-
senger sideW5W
Fig. 183 Front head-
light: Installing the light
bulbs
Fig. 184 Removing the
activated charcoal filter
system
NKO 20 A05.book Page 255 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
256
– For vehicles with petrol engines remove the activated char-coal filter system before replacing the bulb in the right front
headlight ⇒page 255, fig. 184 .
Positions of the light bulbs in the front headlight ⇒page 255, fig. 183 .
- low beam and main beam
- parking lights
- Turn signal light (at the front)

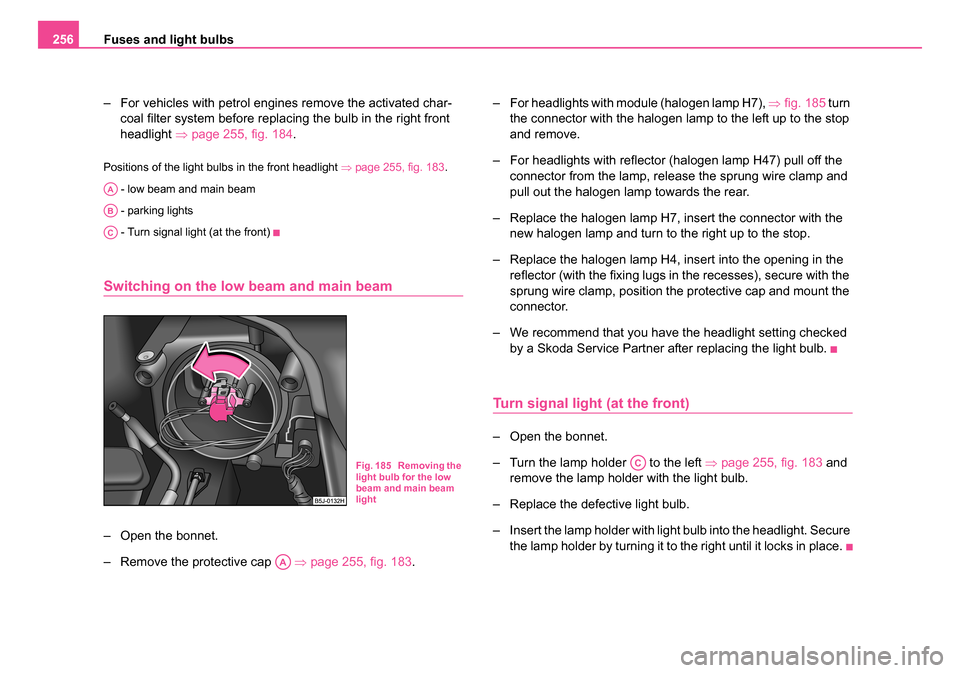

Switching on the low beam and main beam
– Open the bonnet.
– Remove the protective cap ⇒page 255, fig. 183 .– For headlights with module (halogen lamp H7),
⇒fig. 185 turn
the connector with the halogen lamp to the left up to the stop
and remove.
– For headlights with reflector (halogen lamp H47) pull off the connector from the lamp, release the sprung wire clamp and
pull out the halogen lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the reflector (with the fixing lugs in the recesses), secure with the
sprung wire clamp, position the protective cap and mount the
connector.
– We recommend that you have the headlight setting checked by a Skoda Service Partner after replacing the light bulb.
Turn signal light (at the front)
– Open the bonnet.
– Turn the lamp holder to the left ⇒page 255, fig. 183 and
remove the lamp holder with the light bulb.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the lamp holder by turning it to the right until it locks in place.
AA
AB
AC
Fig. 185 Removing the
light bulb for the low
beam and main beam
light
AA
AC
NKO 20 A05.book Page 256 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs257
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Parking light at the front
– Open the bonnet.
– Remove the protective cap ⇒page 255, fig. 183 .
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the headlight.

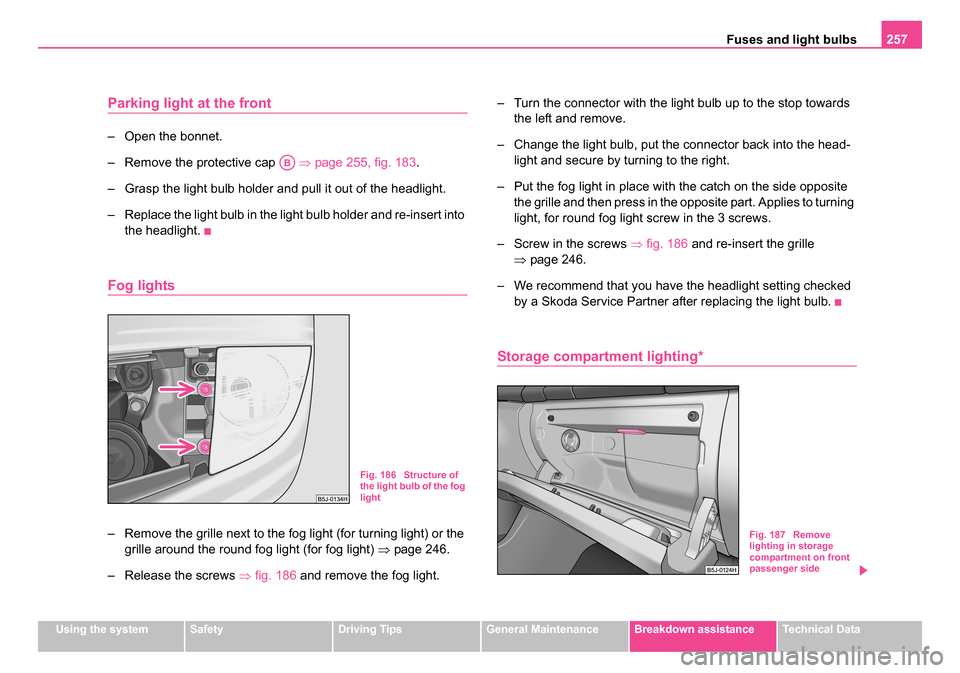

Fog lights
– Remove the grille next to the fog light (for turning light) or the grille around the round fog light (for fog light) ⇒page 246.
– Release the screws ⇒fig. 186 and remove the fog light. – Turn the connector with the light bulb up to the stop towards
the left and remove.
– Change the light bulb, put the connector back into the head- light and secure by turning to the right.
– Put the fog light in place with the catch on the side opposite the grille and then press in the opposite part. Applies to turning
light, for round fog light screw in the 3 screws.
– Screw in the screws ⇒fig. 186 and re-insert the grille
⇒ page 246.
– We recommend that you have the headlight setting checked by a Skoda Service Partner after replacing the light bulb.
Storage compartment lighting*
AB
Fig. 186 Structure of
the light bulb of the fog
light
Fig. 187 Remove
lighting in storage
compartment on front
passenger side
NKO 20 A05.book Page 257 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
258
We recommend having the light bulb replaced by a Škoda
Service Partner.
– Push in a knife or similar from the side between the light and the glove compartment ⇒page 257, fig. 187 . Lever out the
light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
– Recreate the plug connection.
– Press the light into the glove compartment from below.

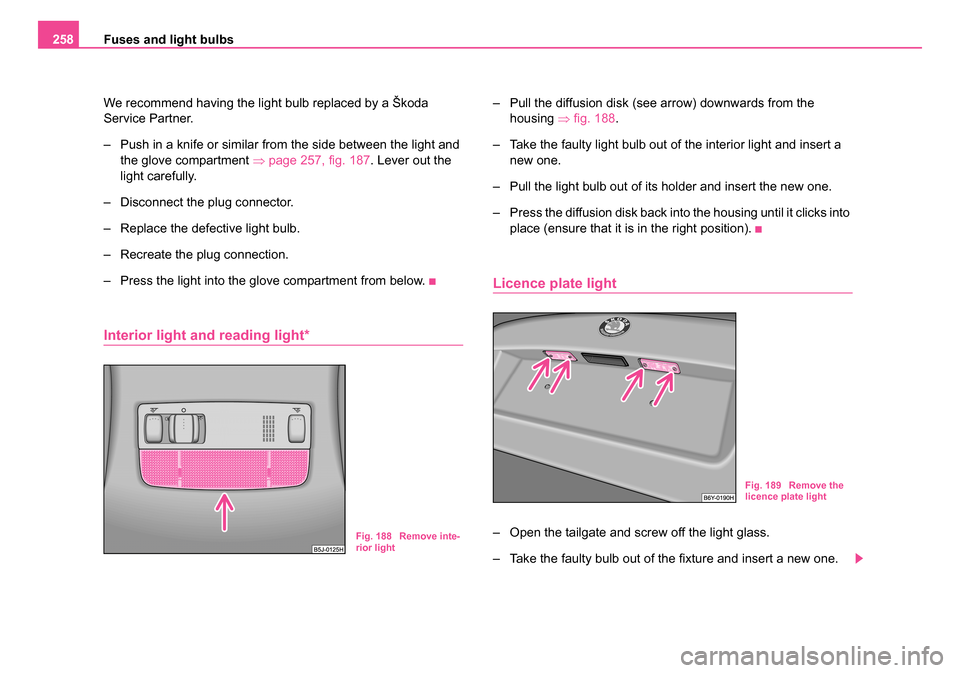

Interior light and reading light*
– Pull the diffusion disk (see arrow) downwards from the housing ⇒fig. 188 .
– Take the faulty light bulb out of the interior light and insert a new one.
– Pull the light bulb out of its holder and insert the new one.
– Press the diffusion disk back into the housing until it clicks into place (ensure that it is in the right position).
Licence plate light
– Open the tailgate and screw off the light glass.
– Take the faulty bulb out of the fixture and insert a new one.Fig. 188 Remove inte-
rior light
Fig. 189 Remove the
licence plate light
NKO 20 A05.book Page 258 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs259
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Re-insert the light glass. Press the light glass in up to the stop
- check for correct seating of the sealing rubber.
– Screw on the light glass but not too tightly.
Rear light unit
– Open the tailgate.
– Unscrew the rear light unit ⇒fig. 190 .
– Grasp the rear light unit at the top and bottom part and pull it to the rear.
– Disconnect the plug connector. ⇒fig. 191 .

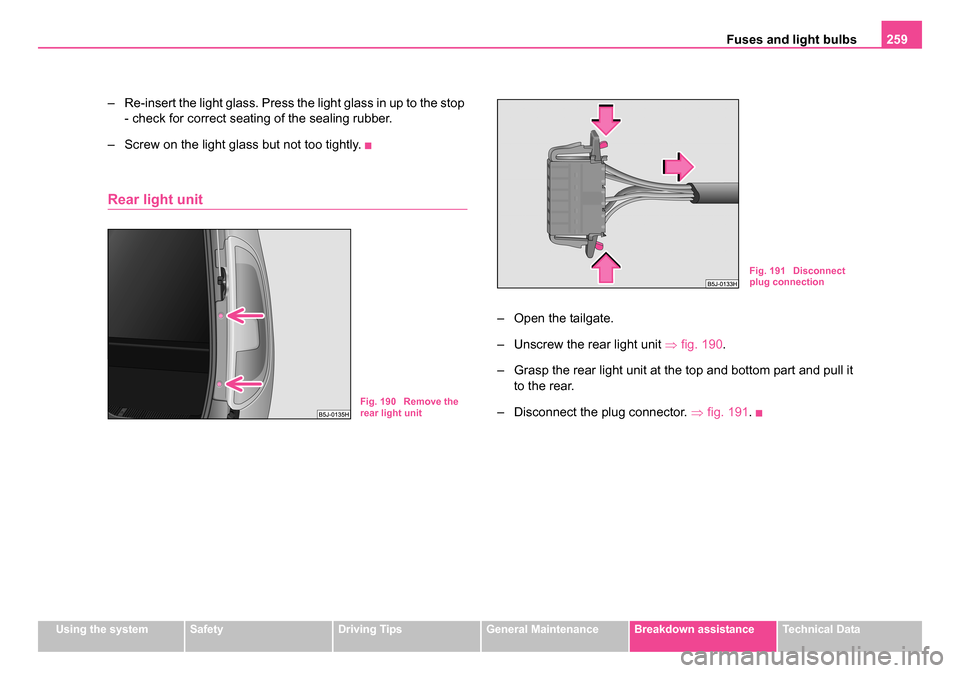

Fig. 190 Remove the
rear light unit
Fig. 191 Disconnect
plug connection
NKO 20 A05.book Page 259 Wednesday, June 21, 2006 1:42 PM
