SKODA ROOMSTER 2009 1.G Owner's Manual

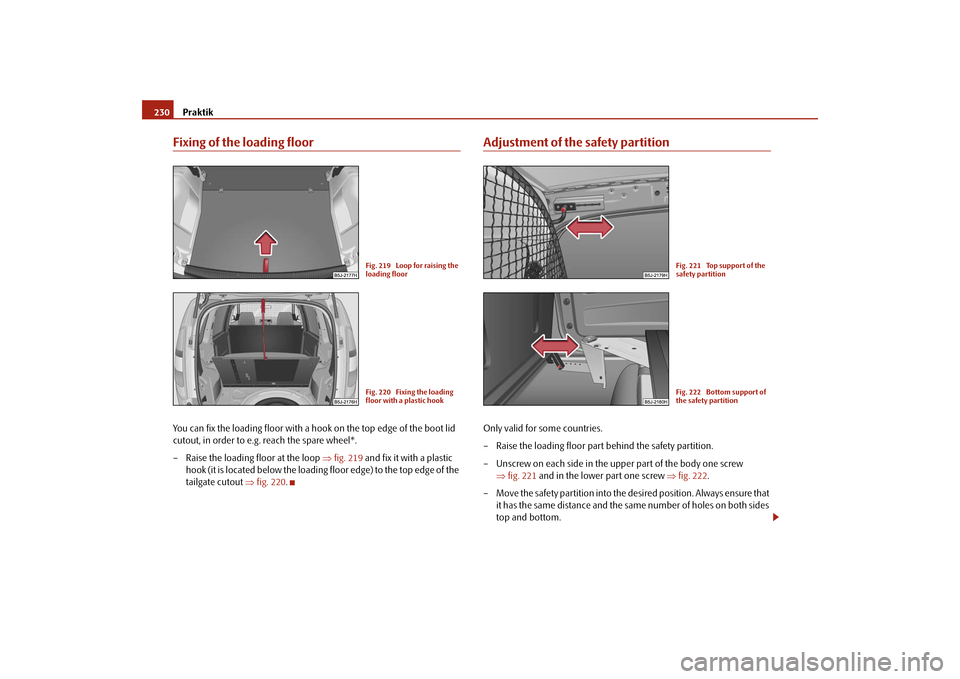

Praktik 230Fixing of the loading floorYou can fix the loading floor with a hook on the top edge of the boot lid
cutout, in order to e.g. reach the spare wheel*.
– Raise the loading floor at the loop ⇒fig. 219 and fix it with a plastic
hook (it is located below the loading floor edge) to the top edge of the
tailgate cutout ⇒fig. 220.
Adjustment of the safety partitionOnly valid for some countries.
– Raise the loading floor part behind the safety partition.
– Unscrew on each side in the upper part of the body one screw
⇒fig. 221 and in the lower part one screw ⇒fig. 222.
– Move the safety partition into the desired position. Always ensure that
it has the same distance and the same number of holes on both sides
top and bottom.
Fig. 219 Loop for raising the
loading floorFig. 220 Fixing the loading
floor with a plastic hook
Fig. 221 Top support of the
safety partitionFig. 222 Bottom support of
the safety partition
s29g.4.book Page 230 Wednesday, June 17, 2009 9:54 AM

Praktik231
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

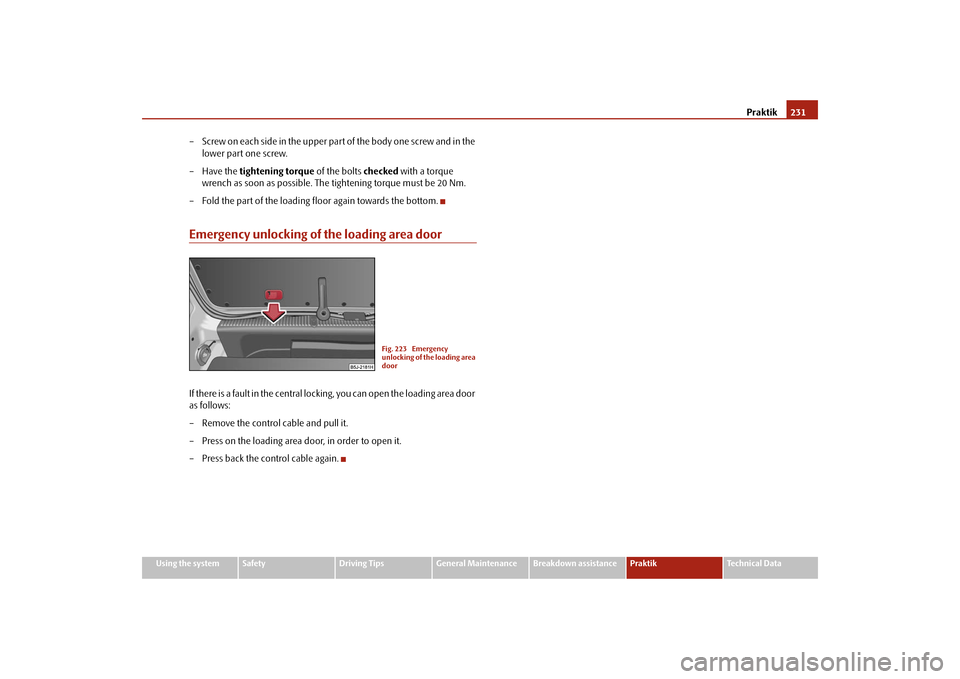

– Screw on each side in the upper part of the body one screw and in the
lower part one screw.
–Have the tightening torque of the bolts checked with a torque
wrench as soon as possible. The tightening torque must be 20 Nm.
– Fold the part of the loading floor again towards the bottom.Emergency unlocking of the loading area doorIf there is a fault in the central locking, you can open the loading area door
as follows:
– Remove the control cable and pull it.
– Press on the loading area door, in order to open it.
– Press back the control cable again.
Fig. 223 Emergency
unlocking of the loading area
door
s29g.4.book Page 231 Wednesday, June 17, 2009 9:54 AM

Praktik 232
s29g.4.book Page 232 Wednesday, June 17, 2009 9:54 AM

Technical Data233
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle registration documents always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a specialist garage concerning the engine with
which your vehicle is equipped.Used abbreviationsPerformancesThe listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
WeightThe loading capacity is reduced in line with the range of the special equipment. The
unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of
75 kg is also included in the value.Identification detailsVehicle data sticker
The vehicle data sticker ⇒fig. 224 is located on the floor of the luggage compart-
ment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output,
engine code
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
CO2 in g/km
discharged quantity of carbon dioxide in grams per driven kilom-
eter
RON
Research octane number, measuring unit for the knocking resist-
ance of petrol
DPF
Diesel particle filter
M5
5-speed manual gearbox
AG6
6-speed automatic gearbox
Fig. 224 Vehicle data sticker
A1A2A3
s29g.4.book Page 233 Wednesday, June 17, 2009 9:54 AM

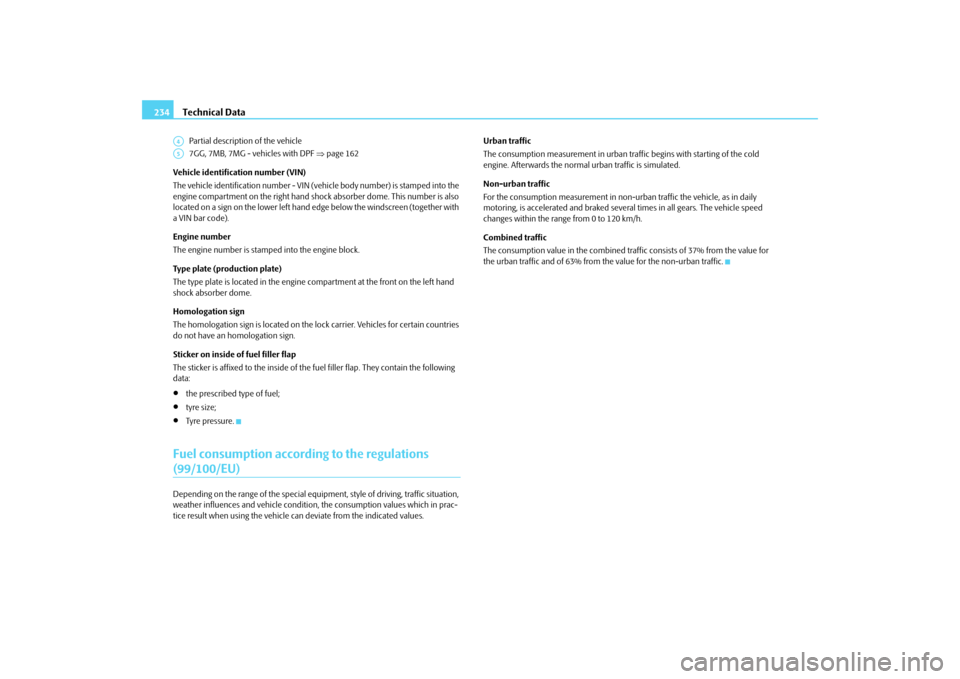

Technical Data 234Partial description of the vehicle
7GG, 7MB, 7MG - vehicles with DPF ⇒page 162
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shock absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen (together with
a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Type plate (production plate)
The type plate is located in the engine compartment at the front on the left hand
shock absorber dome.
Homologation sign
The homologation sign is located on the lock carrier. Vehicles for certain countries
do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. They contain the following
data:
•
the prescribed type of fuel;
•
tyre size;
•
Tyre pressure.
Fuel consumption according to the regulations (99/100/EU)Depending on the range of the special equipment, style of driving, traffic situation,
weather influences and vehicle condition, the consumption values which in prac-
tice result when using the vehicle can deviate from the indicated values.Urban traffic
The consumption measurement in urban traffic begins with starting of the cold
engine. Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-urban traffic the vehicle, as in daily
motoring, is accelerated and braked several times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traffic consists of 37% from the value for
the urban traffic and of 63% from the value for the non-urban traffic.A4A5s29g.4.book Page 234 Wednesday, June 17, 2009 9:54 AM

Technical Data235
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

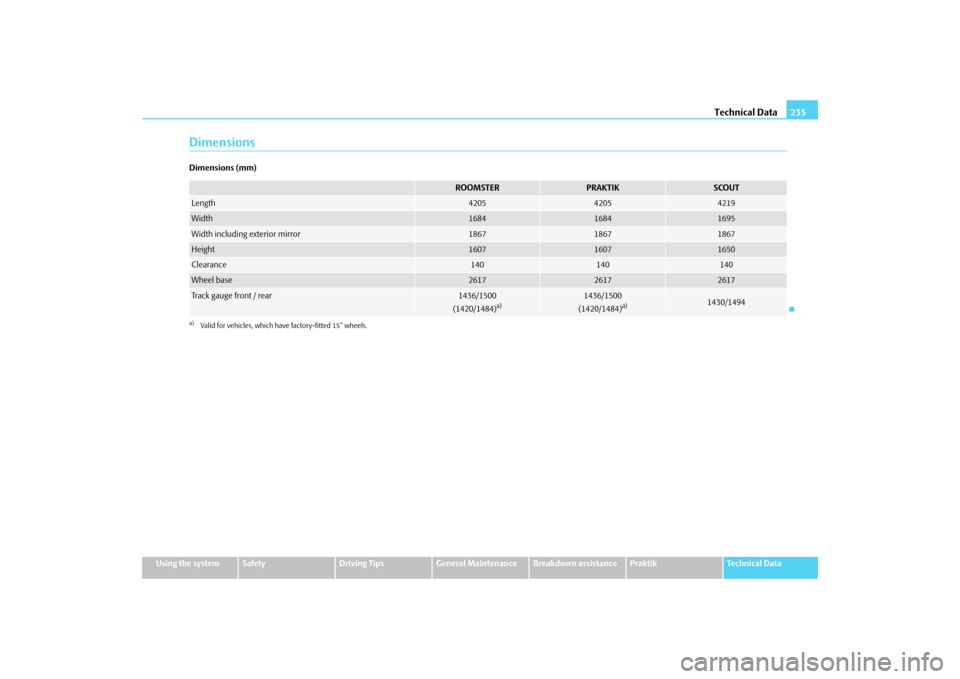

DimensionsDimensions (mm)
ROOMSTER
PRAKTIK
SCOUT
Length
4205
4205
4219
Width
1684
1684
1695
Width including exterior mirror
1867
1867
1867
Height
1607
1607
1650
Clearance
140
140
140
Wheel base
2617
2617
2617
Tr a c k g a u g e f r o n t / r e a r
1436/1500
(1420/1484)
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.
1436/1500
(1420/1484)
a)
1430/1494
s29g.4.book Page 235 Wednesday, June 17, 2009 9:54 AM

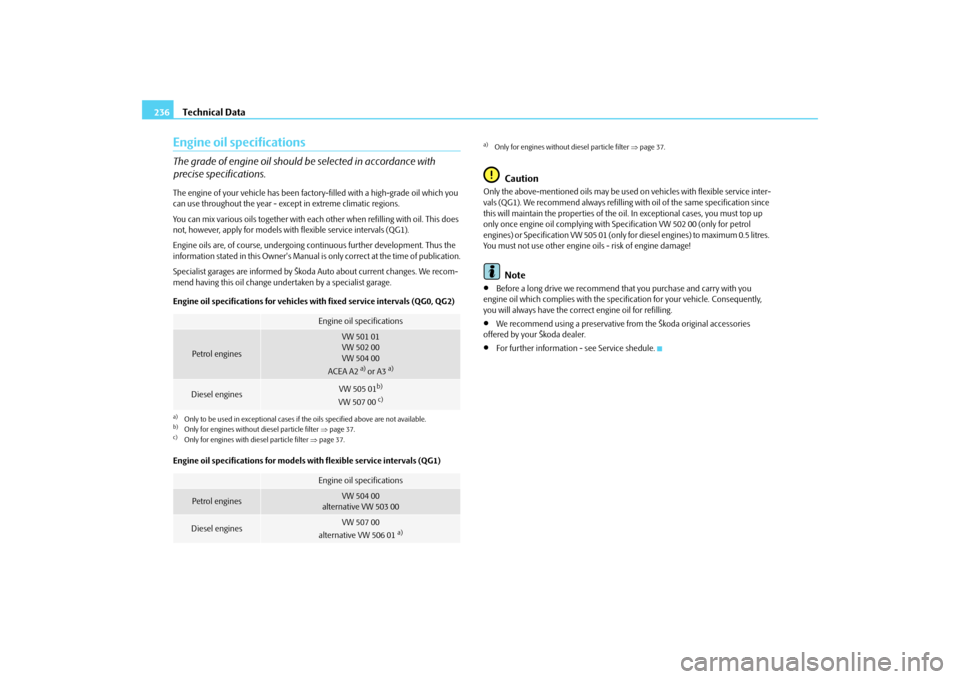

Technical Data 236Engine oil specificationsThe grade of engine oil should be selected in accordance with
precise specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you
can use throughout the year - except in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does
not, however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
Specialist garages are informed by Škoda Auto about current changes. We recom-
mend having this oil change undertaken by a specialist garage.
Engine oil specifications for vehicles with fixed service intervals (QG0, QG2)
Engine oil specifications for models with flexible service intervals (QG1)
Caution
Only the above-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since
this will maintain the properties of the oil. In exceptional cases, you must top up
only once engine oil complying with Specification VW 502 00 (only for petrol
engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres.
You must not use other engine oils - risk of engine damage!
Note
•
Before a long drive we recommend that you purchase and carry with you
engine oil which complies with the specification for your vehicle. Consequently,
you will always have the correct engine oil for refilling.
•
We recommend using a preservative from the Škoda original accessories
offered by your Škoda dealer.
•
For further information - see Service shedule.
Engine oil specifications
Petrol engines
VW 501 01
VW 502 00
VW 504 00
ACEA A2
a) or A3
a)
a)Only to be used in exceptional cases if the oils specified above are not available.Diesel engines
VW 505 01
b)
VW 507 00
c)
b)Only for engines without diesel particle filter ⇒page 37.c)Only for engines with diesel particle filter ⇒page 37.
Engine oil specifications
Petrol engines
VW 504 00
alternative VW 503 00
Diesel engines
VW 507 00
alternative VW 506 01
a)
a)Only for engines without diesel particle filter ⇒page 37.
s29g.4.book Page 236 Wednesday, June 17, 2009 9:54 AM

Technical Data237
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

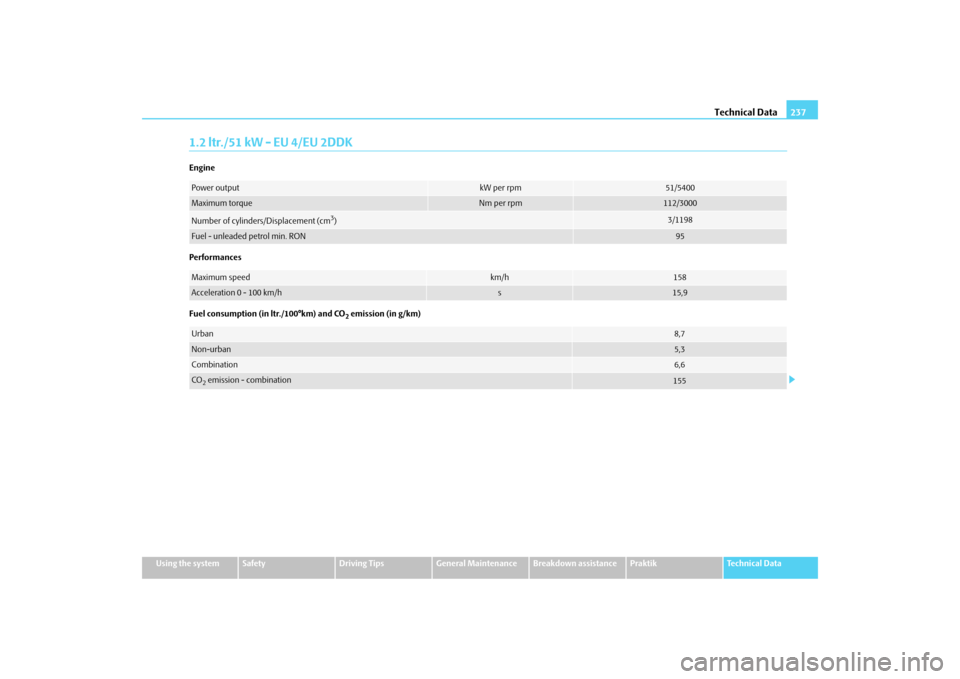

1.2 ltr./51 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
51/5400
Maximum torque
Nm per rpm
112/3000
Number of cylinders/Displacement (cm
3)
3/1198
Fuel - unleaded petrol min. RON
95
Maximum speed
km/h
158
Acceleration 0 - 100 km/h
s
15,9
Urban
8,7
Non-urban
5,3
Combination
6,6
CO2 emission - combination
155
s29g.4.book Page 237 Wednesday, June 17, 2009 9:54 AM

Technical Data 238Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
2,9
Cooling system of the vehicle
5,5
ROOMSTER
PRAKTIK
Permissible gross weight
1665
1655/1755
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.Unloaden weight ready for work
1210
1180/1190
a)
Loading capacity
455
475/565
a)
Loading capacity when using the TLC
405
390
Permissible front axle load
920
920
Permissible rear axle load
900
900/1000
a)
Permissible trailer load, trailer braked/unbraked
(700/450)
b)
(900/450)c)
b)Uphills up to 12%c)Uphills up to 8%
(700/450)
b)
(900/450)
c)
s29g.4.book Page 238 Wednesday, June 17, 2009 9:54 AM

Technical Data239
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

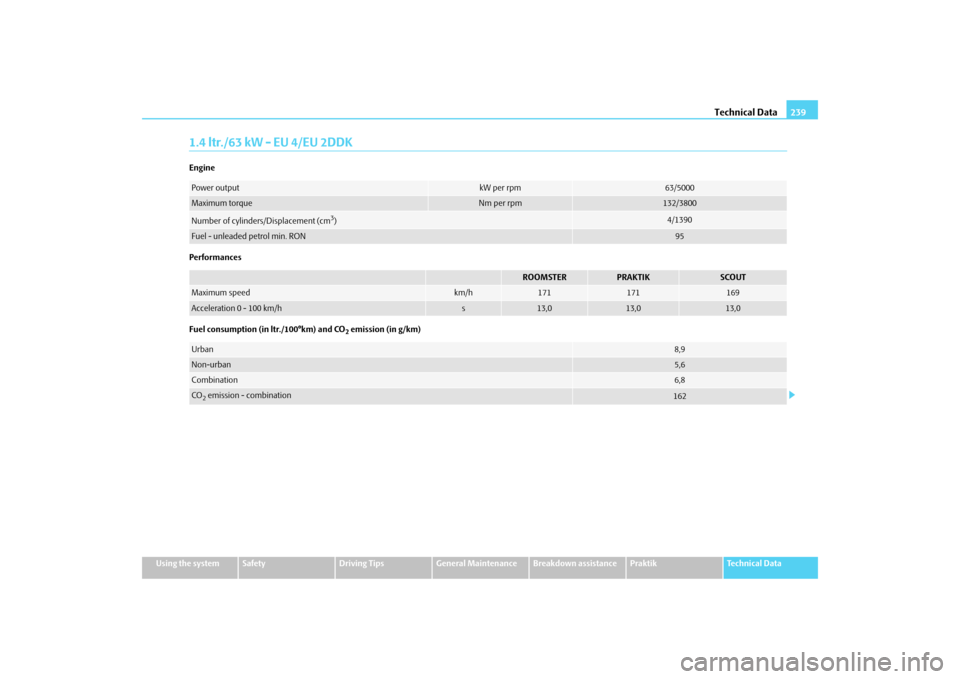

1.4 ltr./63 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
63/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
ROOMSTER
PRAKTIK
SCOUT
Maximum speed
km/h
171
171
169
Acceleration 0 - 100 km/h
s
13,0
13,0
13,0
Urban
8,9
Non-urban
5,6
Combination
6,8
CO2 emission - combination
162
s29g.4.book Page 239 Wednesday, June 17, 2009 9:54 AM
