SKODA ROOMSTER 2009 1.G Owner's Manual

Technical Data 240Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,2
Cooling system of the vehicle
5,5
ROOMSTER
PRAKTIK
SCOUT
Permissible gross weight
1670
1660/1760
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.
1675
Unloaden weight ready for work
1215
1185/1195
a)
1220
Loading capacity
b)
b)Depending on special equipment.
455
475/565
a)
455
Loading capacity when using the TLC
b)
405
390
405
Permissible front axle load
920
920/920
a)
920
Permissible rear axle load
900
900/1000
a)
900
Permissible trailer load, trailer braked/unbraked
(900/450)
c)
(1100/450)
d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)
c)
(1100/450)
d)
(900/450)
c)
(1100/450)
d)
s29g.4.book Page 240 Wednesday, June 17, 2009 9:54 AM

Technical Data241
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

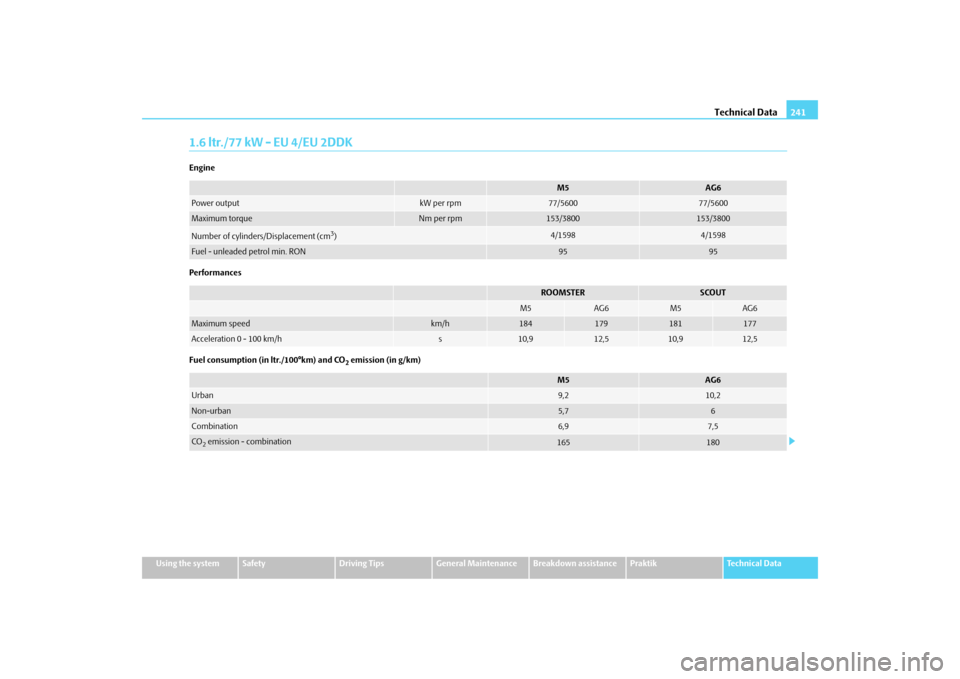

1.6 ltr./77 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
M5
AG6
Power output
kW per rpm
77/5600
77/5600
Maximum torque
Nm per rpm
153/3800
153/3800
Number of cylinders/Displacement (cm
3)
4/1598
4/1598
Fuel - unleaded petrol min. RON
95
95
ROOMSTER
SCOUT
M5
AG6
M5
AG6
Maximum speed
km/h
184
179
181
177
Acceleration 0 - 100 km/h
s
10,9
12,5
10,9
12,5
M5
AG6
Urban
9,2
10,2
Non-urban
5,7
6
Combination
6,9
7,5
CO2 emission - combination
165
180
s29g.4.book Page 241 Wednesday, June 17, 2009 9:54 AM

Technical Data 242Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle
5,5
ROOMSTER
SCOUT
M5
AG6
M5
AG6
Permissible gross weight
1690
1725
1695
1730
Unloaden weight ready for work
1235
1270
1240
1275
Loading capacity
a)
a)Depending on special equipment.
455
455
455
455
Loading capacity when using the TLC
a)
405
405
405
405
Permissible front axle load
960
960
960
960
Permissible rear axle load
900
900
900
900
Permissible trailer load, trailer braked/unbraked
(1000/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
s29g.4.book Page 242 Wednesday, June 17, 2009 9:54 AM

Technical Data243
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

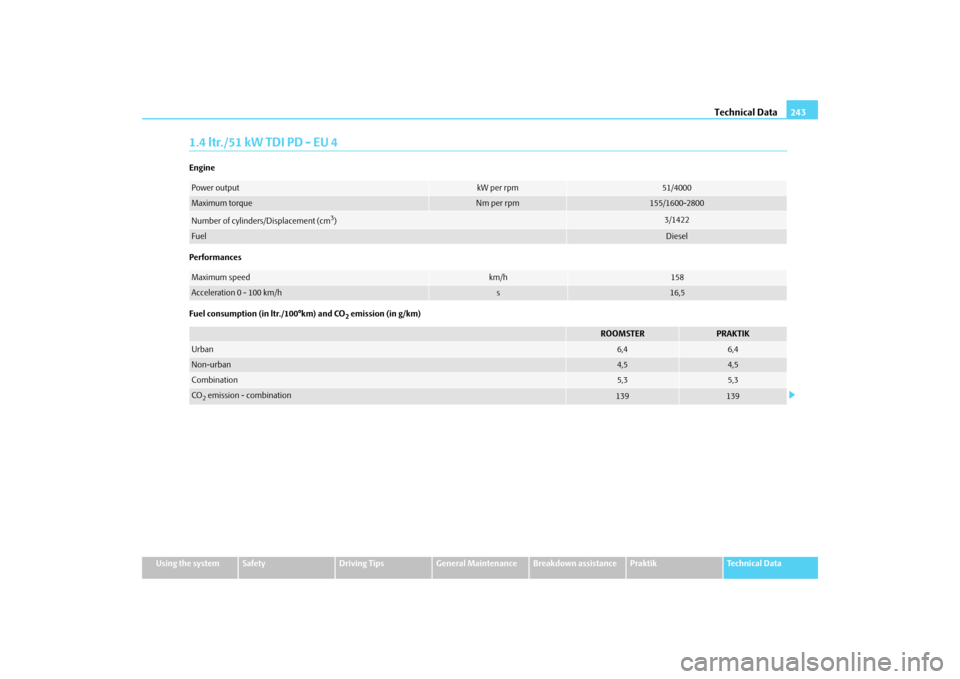

1.4 ltr./51 kW TDI PD - EU 4Engine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
51/4000
Maximum torque
Nm per rpm
155/1600-2800
Number of cylinders/Displacement (cm
3)
3/1422
Fuel
Diesel
Maximum speed
km/h
158
Acceleration 0 - 100 km/h
s
16,5
ROOMSTER
PRAKTIK
Urban
6,4
6,4
Non-urban
4,5
4,5
Combination
5,3
5,3
CO2 emission - combination
139
139
s29g.4.book Page 243 Wednesday, June 17, 2009 9:54 AM

Technical Data 244Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,8
Cooling system of the vehicle
6,2
ROOMSTER
PRAKTIK
Permissible gross weight
1735/1750
a)
a)Valid for vehicles, which have factory-fitted 15" wheels.
1730/1835
a)
Unloaden weight ready for work
1280/1295
a)
1255/1270
a)
Loading capacity
b)
b)Depending on special equipment.
455
475/565
a)
Loading capacity when using the TLC
b)
405
390
Permissible front axle load
920/960
a)
920/960
a)
Permissible rear axle load
900
900/1000
a)
Permissible trailer load, trailer braked/unbraked
(900/450)
c)
(1100/450)d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)
c)
(1100/450)
d)
s29g.4.book Page 244 Wednesday, June 17, 2009 9:54 AM

Technical Data245
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

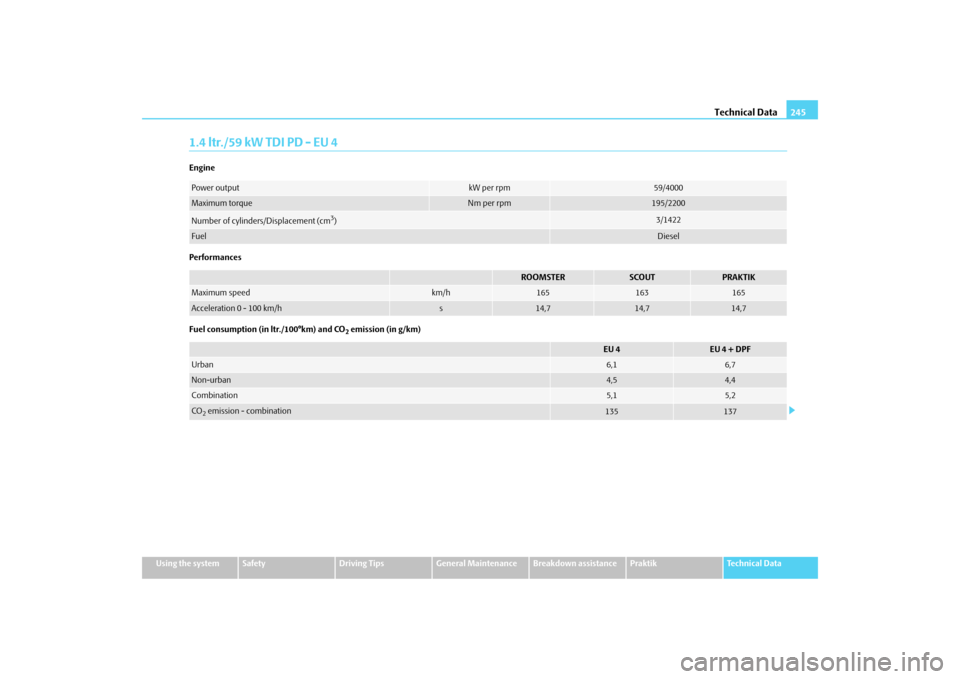

1.4 ltr./59 kW TDI PD - EU 4Engine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/4000
Maximum torque
Nm per rpm
195/2200
Number of cylinders/Displacement (cm
3)
3/1422
Fuel
Diesel
ROOMSTER
SCOUT
PRAKTIK
Maximum speed
km/h
165
163
165
Acceleration 0 - 100 km/h
s
14,7
14,7
14,7
EU 4
EU 4 + DPF
Urban
6,1
6,7
Non-urban
4,5
4,4
Combination
5,1
5,2
CO2 emission - combination
135
137
s29g.4.book Page 245 Wednesday, June 17, 2009 9:54 AM

Technical Data 246Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
4,2
Cooling system of the vehicle
6,2
ROOMSTER
SCOUT
PRAKTIK
Permissible gross weight
1760
1765
1840
Unloaden weight ready for work
1305
1310
1275
Loading capacity
a)
a)Depending on special equipment.
455
455
565
Loading capacity when using the TLC
a)
405
405
390
Permissible front axle load
960
960
960
Permissible rear axle load
900
900
1000
Permissible trailer load, trailer braked/unbraked
(1000/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1000/450)
b)
(1200/450)
c)
(1000/450)
b)
(1200/450)
c)
s29g.4.book Page 246 Wednesday, June 17, 2009 9:54 AM

Technical Data247
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

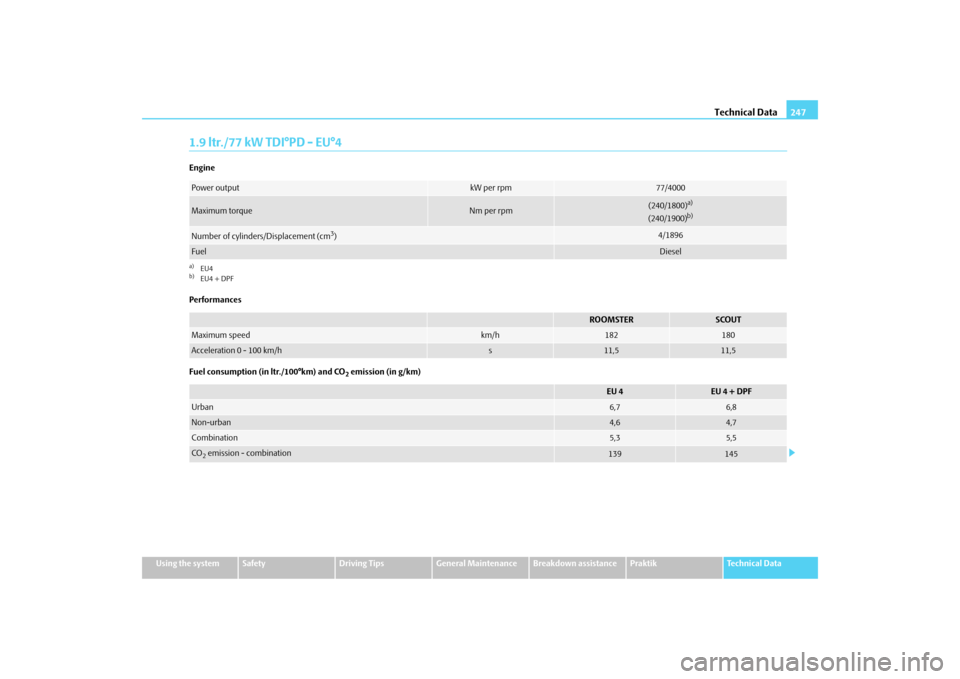

1.9 ltr./77 kW TDI°PD - EU°4Engine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
77/4000
Maximum torque
Nm per rpm
(240/1800)
a)
(240/1900)
b)
a)EU4b)EU4 + DPFNumber of cylinders/Displacement (cm
3)
4/1896
Fuel
Diesel
ROOMSTER
SCOUT
Maximum speed
km/h
182
180
Acceleration 0 - 100 km/h
s
11,5
11,5
EU 4
EU 4 + DPF
Urban
6,7
6,8
Non-urban
4,6
4,7
Combination
5,3
5,5
CO2 emission - combination
139
145
s29g.4.book Page 247 Wednesday, June 17, 2009 9:54 AM

Technical Data 248Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
55/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
4,3
Cooling system of the vehicle
6,8
ROOMSTER
SCOUT
Permissible gross weight
1775
1780
Unloaden weight ready for work
1320
1325
Loading capacity
a)
a)Depending on special equipment.
455
455
Loading capacity when using the TLC
a)
405
405
Permissible front axle load
960
960
Permissible rear axle load
900
900
Permissible trailer load, trailer braked/unbraked
(1200/450)
b)
(1200/450)
c)
b)Uphills up to 12%c)Uphills up to 8%
(1200/450)
b)
(1200/450)
c)
s29g.4.book Page 248 Wednesday, June 17, 2009 9:54 AM

Technical Data249
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

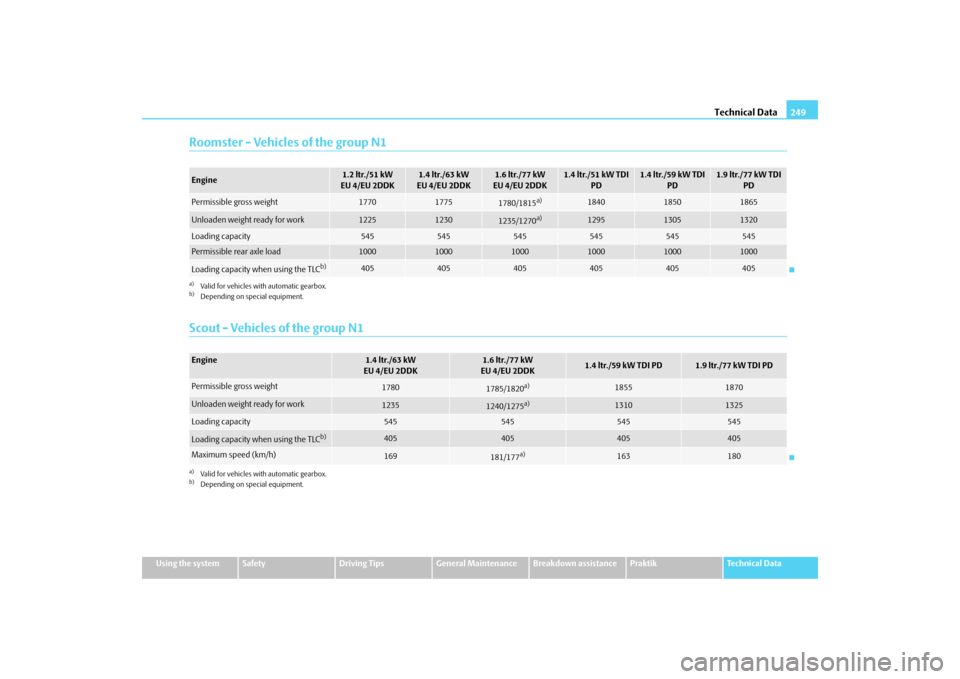

Roomster - Vehicles of the group N1Scout - Vehicles of the group N1Engine
1.2 ltr./51 kW
EU 4/EU 2DDK
1.4 ltr./63 kW
EU 4/EU 2DDK
1.6 ltr./77 kW
EU 4/EU 2DDK
1.4 ltr./51 kW TDI
PD
1.4 ltr./59 kW TDI
PD
1.9 ltr./77 kW TDI
PD
Permissible gross weight
1770
1775
1780/1815
a)
a)Valid for vehicles with automatic gearbox.
1840
1850
1865
Unloaden weight ready for work
1225
1230
1235/1270
a)
1295
1305
1320
Loading capacity
545
545
545
545
545
545
Permissible rear axle load
1000
1000
1000
1000
1000
1000
Loading capacity when using the TLC
b)
b)Depending on special equipment.
405
405
405
405
405
405
Engine
1.4 ltr./63 kW
EU 4/EU 2DDK
1.6 ltr./77 kW
EU 4/EU 2DDK
1.4 ltr./59 kW TDI PD
1.9 ltr./77 kW TDI PD
Permissible gross weight
1780
1785/1820
a)
a)Valid for vehicles with automatic gearbox.
1855
1870
Unloaden weight ready for work
1235
1240/1275
a)
1310
1325
Loading capacity
545
545
545
545
Loading capacity when using the TLC
b)
b)Depending on special equipment.
405
405
405
405
Maximum speed (km/h)
169
181/177
a)
163
180
s29g.4.book Page 249 Wednesday, June 17, 2009 9:54 AM
