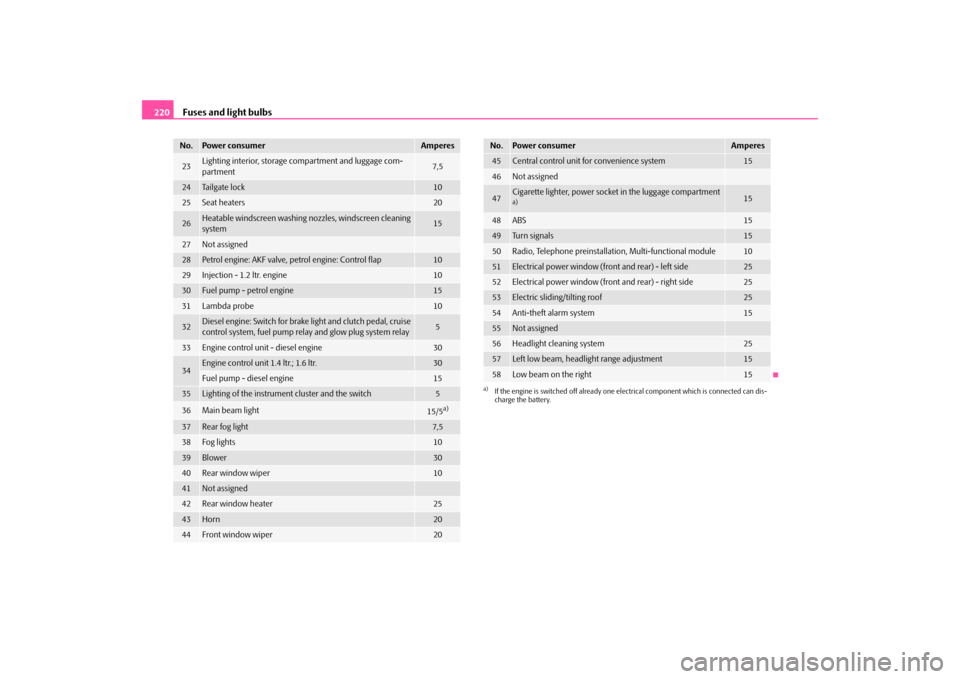

Fuses and light bulbs 22023
Lighting interior, storage compartment and luggage com-
partment
7,5
24
Tailgate lock
10
25
Seat heaters
20
26
Heatable windscreen washing nozzles, windscreen cleaning
system
15
27
Not assigned
28
Petrol engine: AKF valve, petrol engine: Control flap
10
29
Injection - 1.2 ltr. engine
10
30
Fuel pump - petrol engine
15
31
Lambda probe
10
32
Diesel engine: Switch for brake light and clutch pedal, cruise
control system, fuel pump relay and glow plug system relay
5
33
Engine control unit - diesel engine
30
34
Engine control unit 1.4 ltr.; 1.6 ltr.
30
Fuel pump - diesel engine
15
35
Lighting of the instrument cluster and the switch
5
36
Main beam light
15/5
a)
37
Rear fog light
7,5
38
Fog lights
10
39
Blower
30
40
Rear window wiper
10
41
Not assigned
42
Rear window heater
25
43
Horn
20
44
Front window wiper
20
No.
Power consumer
Amperes
45
Central control unit for convenience system
15
46
Not assigned
47
Cigarette lighter, power socket in the luggage compartment a)
15
48
ABS
15
49
Tu r n s i g n a l s
15
50
Radio, Telephone preinstallation, Multi-functional module
10
51
Electrical power window (front and rear) - left side
25
52
Electrical power window (front and rear) - right side
25
53
Electric sliding/tilting roof
25
54
Anti-theft alarm system
15
55
Not assigned
56
Headlight cleaning system
25
57
Left low beam, headlight range adjustment
15
58
Low beam on the right
15
a)If the engine is switched off already one electrical component which is connected can dis-
charge the battery.No.
Power consumer
Amperes
s29g.4.book Page 220 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs221
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

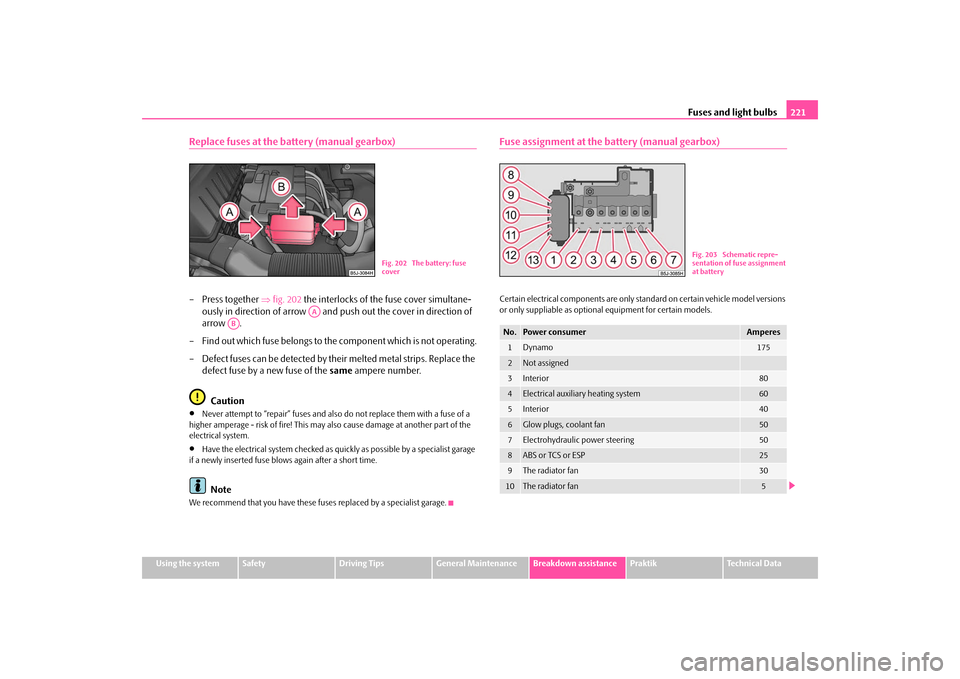

Replace fuses at the battery (manual gearbox)– Press together ⇒fig. 202 the interlocks of the fuse cover simultane-
ously in direction of arrow and push out the cover in direction of
arrow .
– Find out which fuse belongs to the component which is not operating.
– Defect fuses can be detected by their melted metal strips. Replace the
defect fuse by a new fuse of the same ampere number.
Caution•
Never attempt to “repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
•
Have the electrical system checked as quickly as possible by a specialist garage
if a newly inserted fuse blows again after a short time.Note
We recommend that you have these fuses replaced by a specialist garage.
Fuse assignment at the battery (manual gearbox)Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
Fig. 202 The battery: fuse
cover
AA
AB
No.
Power consumer
Amperes
1
Dynamo
175
2
Not assigned
3
Interior
80
4
Electrical auxiliary heating system
60
5
Interior
40
6
Glow plugs, coolant fan
50
7
Electrohydraulic power steering
50
8
ABS or TCS or ESP
25
9
The radiator fan
30
10
The radiator fan
5
Fig. 203 Schematic repre-
sentation of fuse assignment
at battery
s29g.4.book Page 221 Wednesday, June 17, 2009 9:54 AM

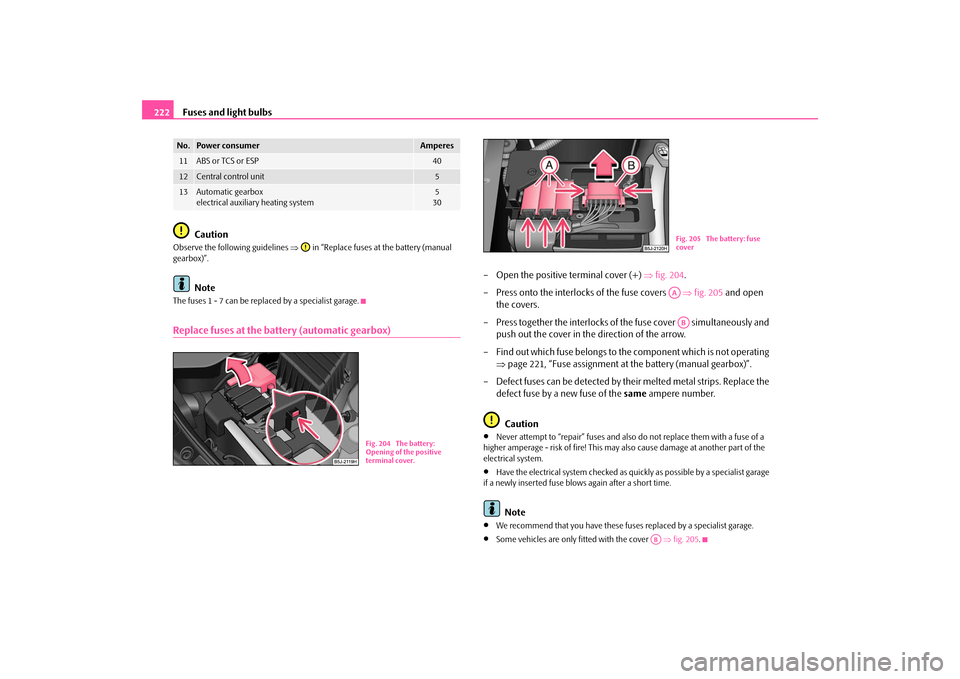

Fuses and light bulbs 222
CautionObserve the following guidelines ⇒ in “Replace fuses at the battery (manual
gearbox)”.
Note
The fuses 1 - 7 can be replaced by a specialist garage.Replace fuses at the battery (automatic gearbox)
– Open the positive terminal cover (+) ⇒fig. 204.
– Press onto the interlocks of the fuse covers ⇒fig. 205 and open
the covers.
– Press together the interlocks of the fuse cover simultaneously and
push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating
⇒page 221, “Fuse assignment at the battery (manual gearbox)”.
– Defect fuses can be detected by their melted metal strips. Replace the
defect fuse by a new fuse of the same ampere number.
Caution•
Never attempt to “repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
•
Have the electrical system checked as quickly as possible by a specialist garage
if a newly inserted fuse blows again after a short time.Note
•
We recommend that you have these fuses replaced by a specialist garage.
•
Some vehicles are only fitted with the cover ⇒fig. 205.
11
ABS or TCS or ESP
40
12
Central control unit
5
13
Automatic gearbox
electrical auxiliary heating system
5
30
No.
Power consumer
Amperes
Fig. 204 The battery:
Opening of the positive
terminal cover.
Fig. 205 The battery: fuse
coverAAAB
AB
s29g.4.book Page 222 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs223
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

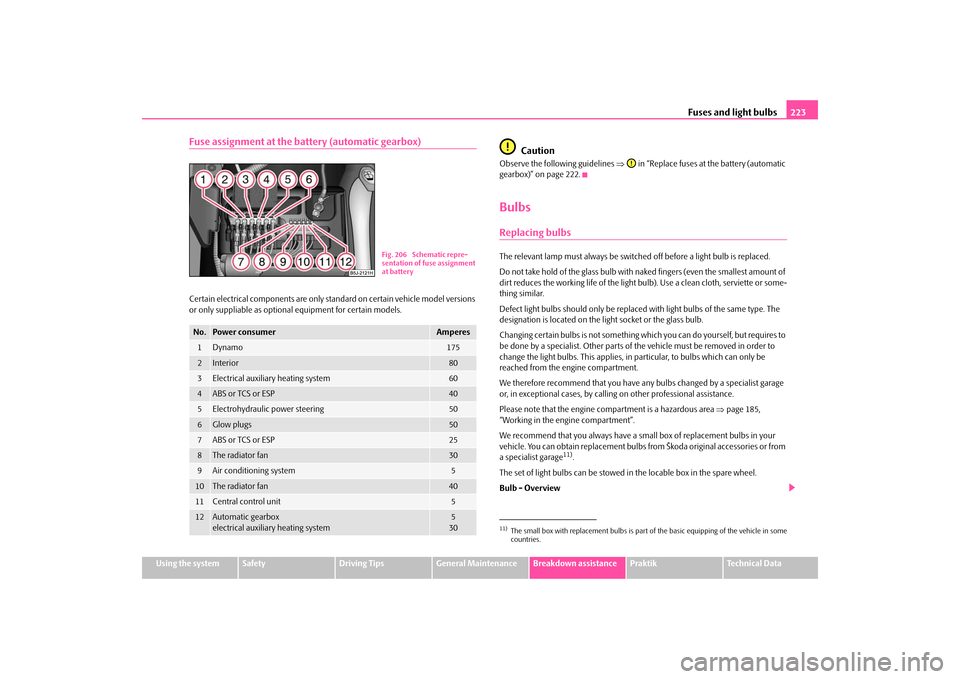

Fuse assignment at the battery (automatic gearbox)Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
Caution
Observe the following guidelines ⇒ in “Replace fuses at the battery (automatic
gearbox)” on page 222.BulbsReplacing bulbsThe relevant lamp must always be switched off before a light bulb is replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest amount of
dirt reduces the working life of the light bulb). Use a clean cloth, serviette or some-
thing similar.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a specialist garage
or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area ⇒page 185,
“Working in the engine compartment”.
We recommend that you always have a small box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from
a specialist garage
11).
The set of light bulbs can be stowed in the locable box in the spare wheel.
Bulb - Overview
No.
Power consumer
Amperes
1
Dynamo
175
2
Interior
80
3
Electrical auxiliary heating system
60
4
ABS or TCS or ESP
40
5
Electrohydraulic power steering
50
6
Glow plugs
50
7
ABS or TCS or ESP
25
8
The radiator fan
30
9
Air conditioning system
5
10
The radiator fan
40
11
Central control unit
5
12
Automatic gearbox
electrical auxiliary heating system
5
30
Fig. 206 Schematic repre-
sentation of fuse assignment
at battery
11)The small box with replacement bulbs is part of the basic equipping of the vehicle in some
countries.
s29g.4.book Page 223 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs 224
WARNING
•
Bulbs H7 and H4 are pressurised and may burst when changing the bulb
- risk of injury!
•
It is recommended to wear gloves and eye protection when changing a
light bulb.Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be replaced by your

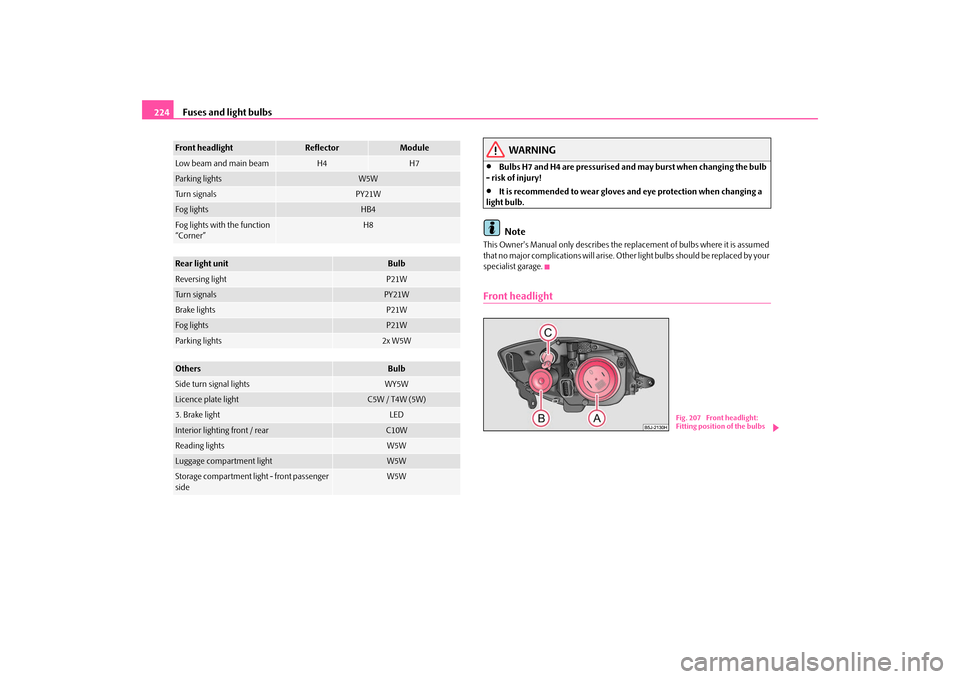

specialist garage.Front headlight
Front headlight
Reflector
Module
Low beam and main beam
H4
H7
Parking lights
W5W
Turn signals
PY21W
Fog lights
HB4
Fog lights with the function
“Corner”
H8
Rear light unit
Bulb
Reversing light
P21W
Turn signals
PY21W
Brake lights
P21W
Fog lights
P21W
Parking lights
2x W5W
Others
Bulb
Side turn signal lights
WY5W
Licence plate light
C5W / T4W (5W)
3. Brake light
LED
Interior lighting front / rear
C10W
Reading lights
W5W
Luggage compartment light
W5W
Storage compartment light - front passenger
side
W5W
Fig. 207 Front headlight:
Fitting position of the bulbs
s29g.4.book Page 224 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs225
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

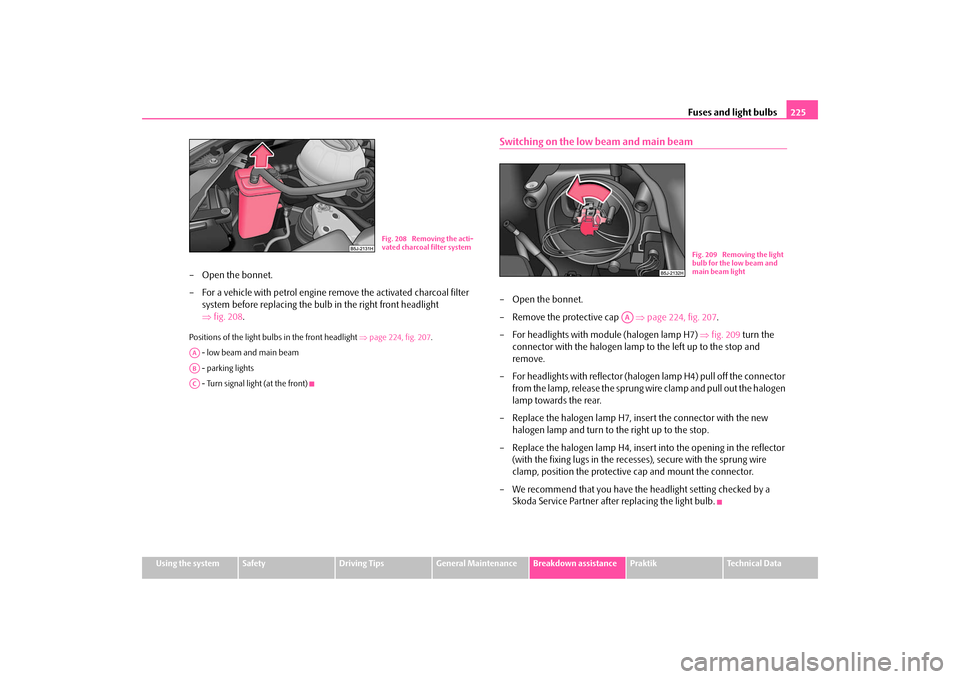

– Open the bonnet.
– For a vehicle with petrol engine remove the activated charcoal filter
system before replacing the bulb in the right front headlight
⇒fig. 208.Positions of the light bulbs in the front headlight ⇒page 224, fig. 207.
- low beam and main beam
- parking lights
- Turn signal light (at the front)
Switching on the low beam and main beam– Open the bonnet.
– Remove the protective cap ⇒page 224, fig. 207.
– For headlights with module (halogen lamp H7) ⇒fig. 209 turn the
connector with the halogen lamp to the left up to the stop and
remove.
– For headlights with reflector (halogen lamp H4) pull off the connector
from the lamp, release the sprung wire clamp and pull out the halogen
lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new
halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the reflector
(with the fixing lugs in the recesses), secure with the sprung wire
clamp, position the protective cap and mount the connector.
– We recommend that you have the headlight setting checked by a
Skoda Service Partner after replacing the light bulb.
Fig. 208 Removing the acti-
vated charcoal filter system
AAABAC
Fig. 209 Removing the light
bulb for the low beam and
main beam light
AA
s29g.4.book Page 225 Wednesday, June 17, 2009 9:54 AM

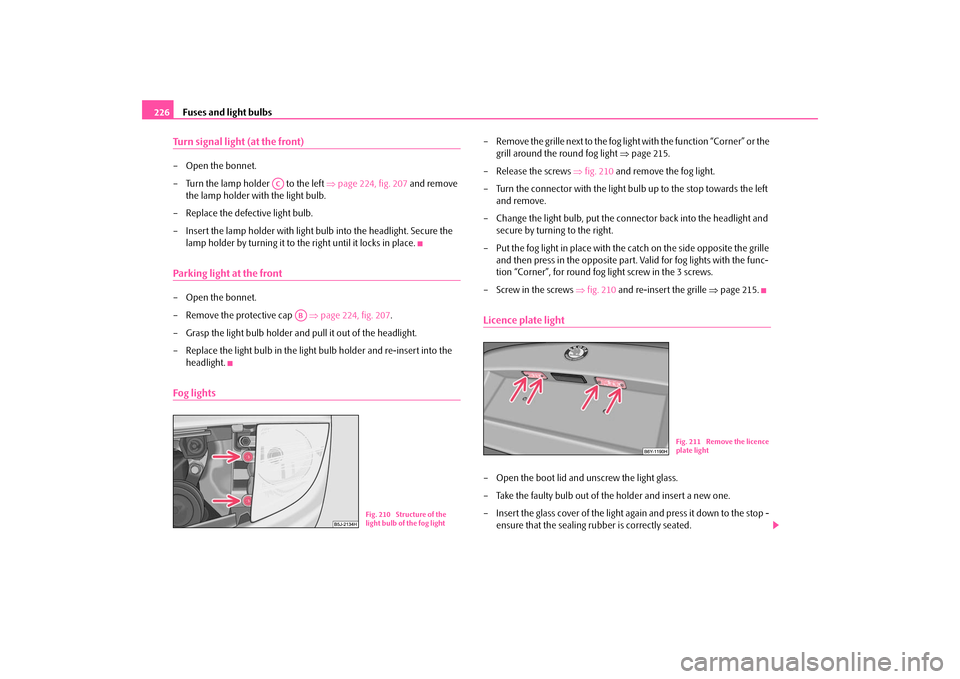

Fuses and light bulbs 226Turn signal light (at the front)– Open the bonnet.
– Turn the lamp holder to the left ⇒page 224, fig. 207 and remove
the lamp holder with the light bulb.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the
lamp holder by turning it to the right until it locks in place.Parking light at the front– Open the bonnet.
– Remove the protective cap ⇒page 224, fig. 207.
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the
headlight.Fog lights
– Remove the grille next to the fog light with the function “Corner” or the
grill around the round fog light ⇒page 215.
– Release the screws ⇒fig. 210 and remove the fog light.
– Turn the connector with the light bulb up to the stop towards the left
and remove.
– Change the light bulb, put the connector back into the headlight and
secure by turning to the right.
– Put the fog light in place with the catch on the side opposite the grille
and then press in the opposite part. Valid for fog lights with the func-
tion “Corner”, for round fog light screw in the 3 screws.
– Screw in the screws ⇒fig. 210 and re-insert the grille ⇒page 215.Licence plate light– Open the boot lid and unscrew the light glass.
– Take the faulty bulb out of the holder and insert a new one.
– Insert the glass cover of the light again and press it down to the stop -
ensure that the sealing rubber is correctly seated.
AC
AB
Fig. 210 Structure of the
light bulb of the fog light
Fig. 211 Remove the licence
plate light
s29g.4.book Page 226 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs227
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

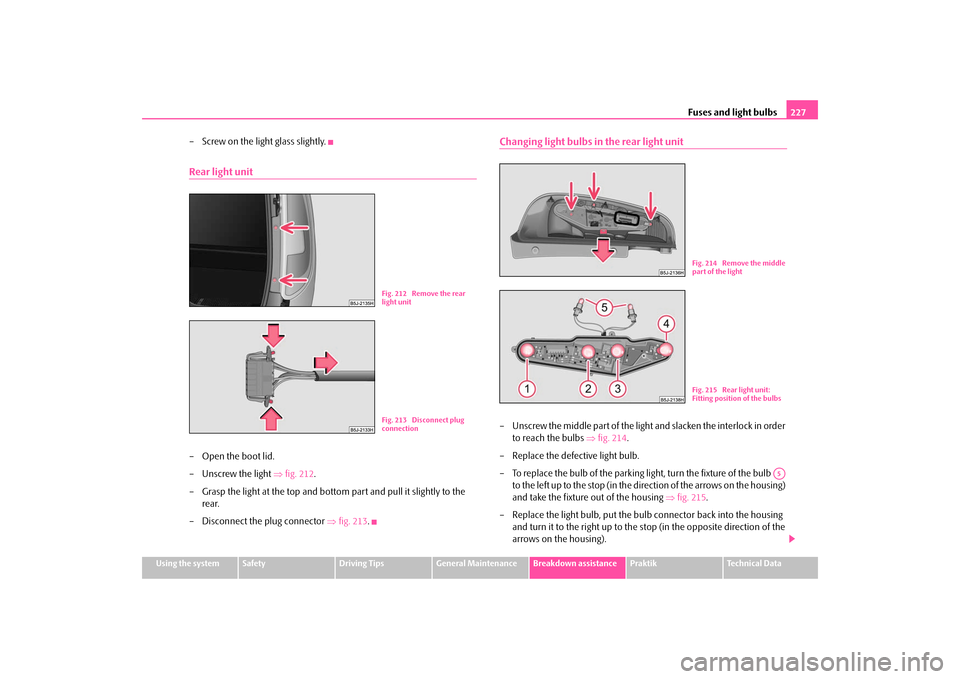

– Screw on the light glass slightly.Rear light unit– Open the boot lid.
– Unscrew the light ⇒fig. 212.
– Grasp the light at the top and bottom part and pull it slightly to the
rear.
– Disconnect the plug connector ⇒fig. 213.
Changing light bulbs in the rear light unit– Unscrew the middle part of the light and slacken the interlock in order
to reach the bulbs ⇒fig. 214.
– Replace the defective light bulb.
– To replace the bulb of the parking light, turn the fixture of the bulb
to the left up to the stop (in the direction of the arrows on the housing)
and take the fixture out of the housing ⇒fig. 215.
– Replace the light bulb, put the bulb connector back into the housing
and turn it to the right up to the stop (in the opposite direction of the
arrows on the housing).
Fig. 212 Remove the rear
light unitFig. 213 Disconnect plug
connection
Fig. 214 Remove the middle
part of the lightFig. 215 Rear light unit:
Fitting position of the bulbs
A5
s29g.4.book Page 227 Wednesday, June 17, 2009 9:54 AM

Fuses and light bulbs 228

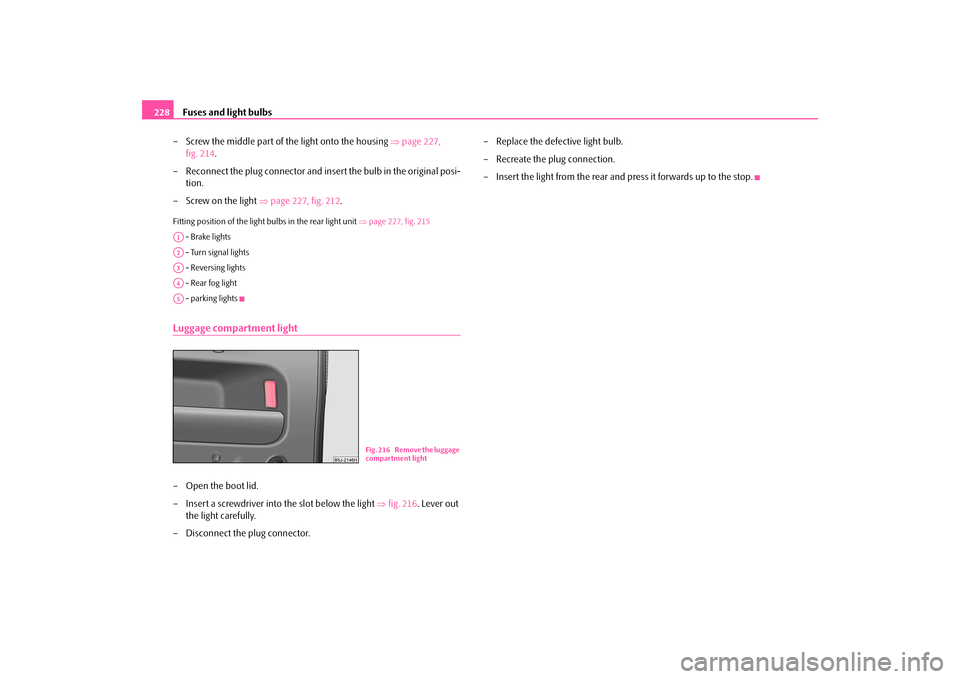

– Screw the middle part of the light onto the housing ⇒page 227,
fig. 214.
– Reconnect the plug connector and insert the bulb in the original posi-
tion.
– Screw on the light ⇒page 227, fig. 212.Fitting position of the light bulbs in the rear light unit ⇒page 227, fig. 215
- Brake lights
- Turn signal lights
- Reversing lights
- Rear fog light
- parking lightsLuggage compartment light– Open the boot lid.
– Insert a screwdriver into the slot below the light ⇒fig. 216. Lever out
the light carefully.
– Disconnect the plug connector.– Replace the defective light bulb.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.A1A2A3A4A5
Fig. 216 Remove the luggage
compartment light
s29g.4.book Page 228 Wednesday, June 17, 2009 9:54 AM

Praktik229
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

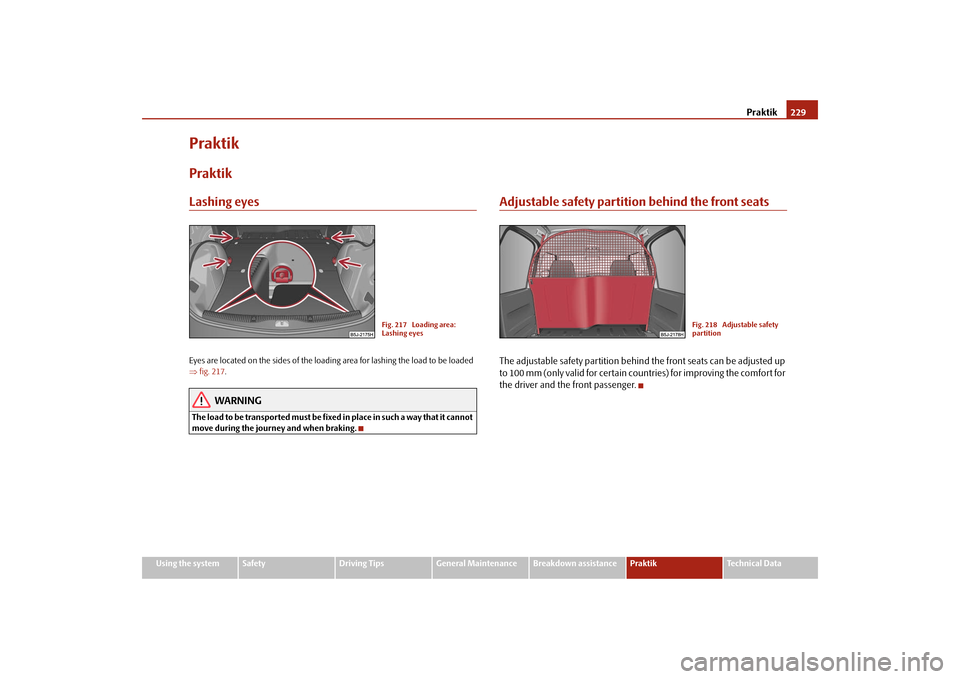

PraktikPraktikLashing eyesEyes are located on the sides of the loading area for lashing the load to be loaded
⇒fig. 217.
WARNING
The load to be transpor ted must be fixed in place in such a way that it cannot
move during the journey and when braking.
Adjustable safety partition behind the front seatsThe adjustable safety partition behind the front seats can be adjusted up
to 100 mm (only valid for certain countries) for improving the comfort for
the driver and the front passenger.
Fig. 217 Loading area:
Lashing eyes
Fig. 218 Adjustable safety
partition
s29g.4.book Page 229 Wednesday, June 17, 2009 9:54 AM
