Risk of collision in a speed range of 30-60 km/h
The system warns of a collision hazard first. If the
driver does not respond, the vehicle is automatically
braked.
Operating conditions
q Front Assist activated.
q Driving speed between 5-60 km/h.
Speed limiter Functionality
The speed limiter controls the maximum driving
speed according to the set speed limit.
If the limit is exceeded when driving downhill, brake
the vehicle with the brake pedal.
Status display in the instrument cluster display illuminated - the cruise control is activated.
When the control starts,
is highlighted and the
set limit is displayed.
illuminated - cruise control is active
flashing - the set limit is exceeded
Operating conditions
q The driving speed is higher than 30 km/h.
Operation
Variant without GRA
A Activate limiter (control inactive)
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limitVariant with GRAA Activate GRA (condition for the subsequent
activation of the limiter).
To activate the speed limiter , press button D
or
E
.
Deactivate limiter
Interrupt control (sprung position)
B Resume control1)
/Increase limitC Start control with current speed/Reduce
limitDDepending on the equipment:
Switch between GRA and speed limiter
Or:
Show menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
EShow menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
Adjusting the speed limit with the buttons
B
and
C
By pressing in steps of 1 km/h.
By holding in steps of 10 km/h.
1)
If no speed limit is set, the current speed is set as the speed limit.
129Driver assist systems

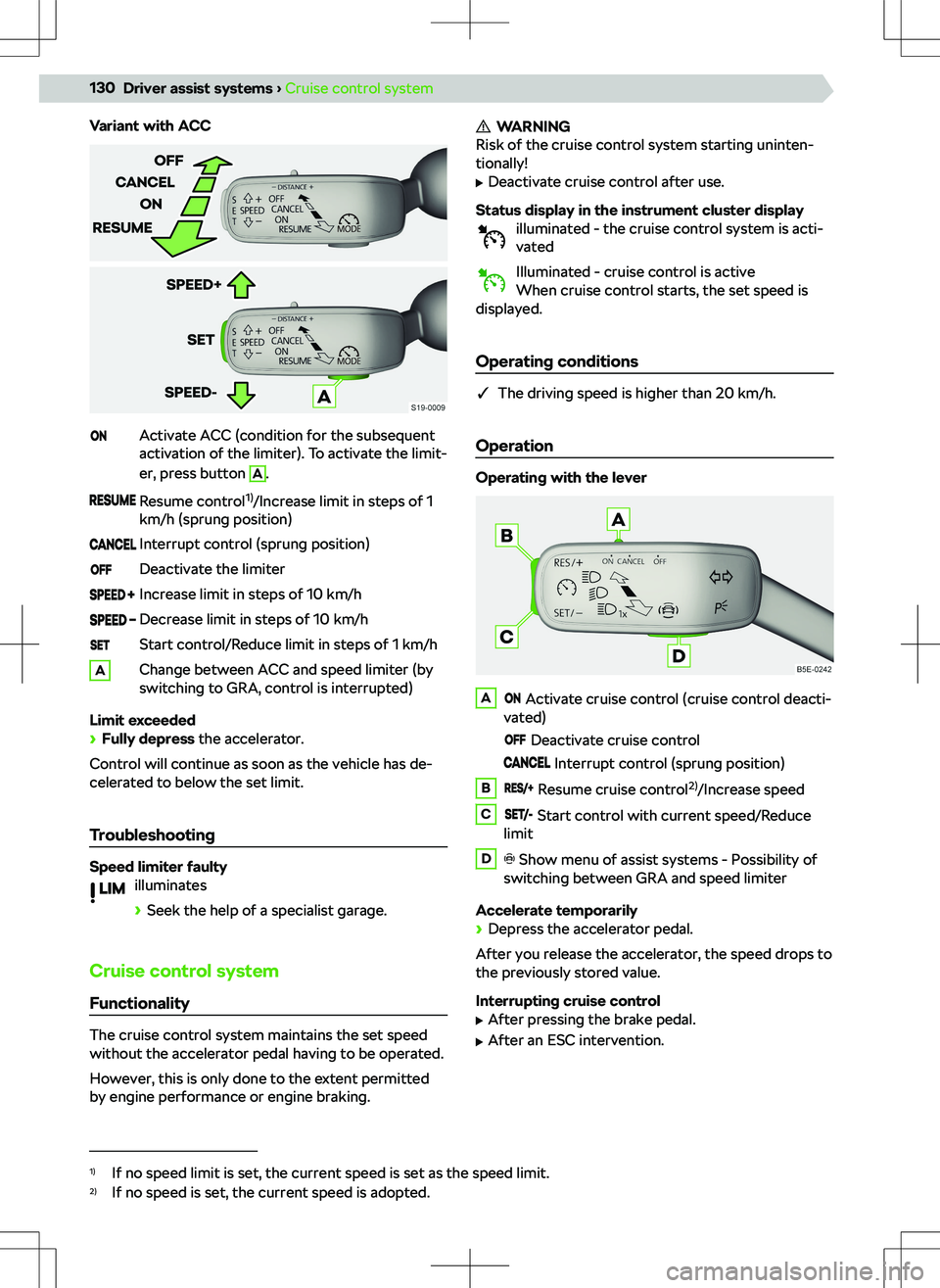

Variant with ACCActivate ACC (condition for the subsequent
activation of the limiter). To activate the limit-
er, press button A
.
Resume control 1)
/Increase limit in steps of 1
km/h (sprung position)Interrupt control (sprung position)Deactivate the limiterIncrease limit in steps of 10 km/hDecrease limit in steps of 10 km/hStart control/Reduce limit in steps of 1 km/hAChange between ACC and speed limiter (by
switching to GRA, control is interrupted)
Limit exceeded

Troubleshooting
Cruise control system faultyilluminates

Line A appears in the
display, indicating the
change in distance.

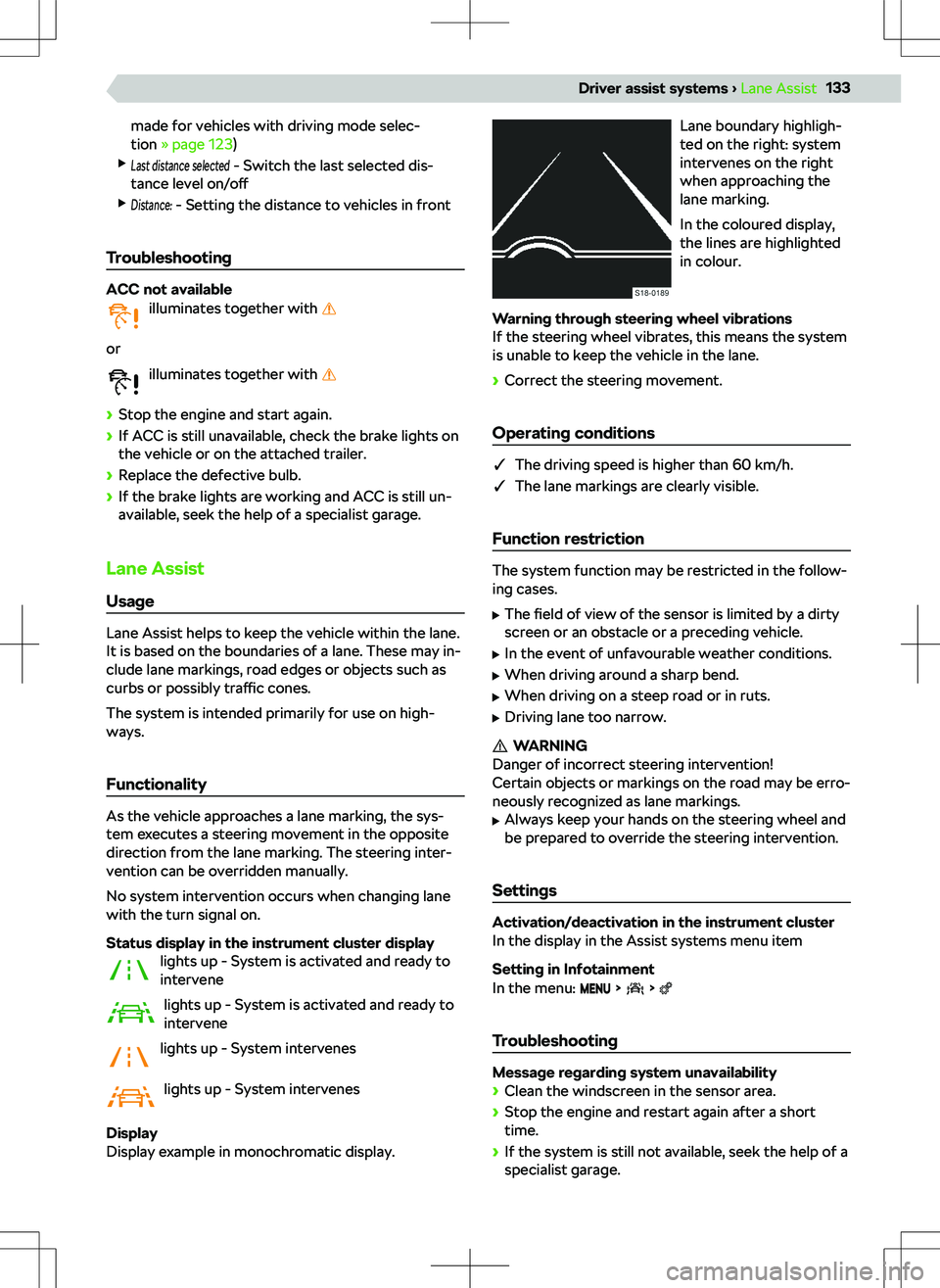

made for vehicles with driving mode selec-tion

Lane change assist system Side AssistUsage
Side Assist monitors the area both beside and behindthe vehicle.
The system uses optical signals in the exterior mirror
to alert the driver to vehicles that could be danger-
ous when changing lanes.
Functionality
The system warns of an approaching vehicle through
the illumination of the indicator light in the exteri-
or mirror cover on the vehicle side where the vehicle
is detected.
Driving situations in which a system warning oc-
curs
Your vehicle is overtaken by vehicle
A
. The faster
vehicle
A
approaches, the sooner the warning is giv-
en by the indicator light.
Vehicle
B
is overtaken by your vehicle at a speed
that is faster by max. 10 km/h. If the speed is higher
during the overtaking process, no warning will be
provided by the indicator light.
Indicator light
illuminated - There is another vehicle behind your
vehicle
flashing - There is another vehicle behind your ve-
hicle, and the turn signal on the same side is switch-
ed on
For vehicles with Lane Assist, the indicator light will
also flash if your vehicle crosses the lane markings in
the direction of the approaching vehicle. The system
will trigger a steering wheel vibration in this case.
For this, Lane Assist must be activated and the lane
marking between the vehicles must be detected.
Operating conditions
q The driving speed is higher than 15 km/h.
q No accessories are connected to the trailer sock-
et.
Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

Settings
Automatic activation
The system is automatically activated when the igni-
tion is switched on.
Deactivation of the

qThe ignition is switched on.
q The driving speed is lower than 15 km/h.
Operation
Switching on

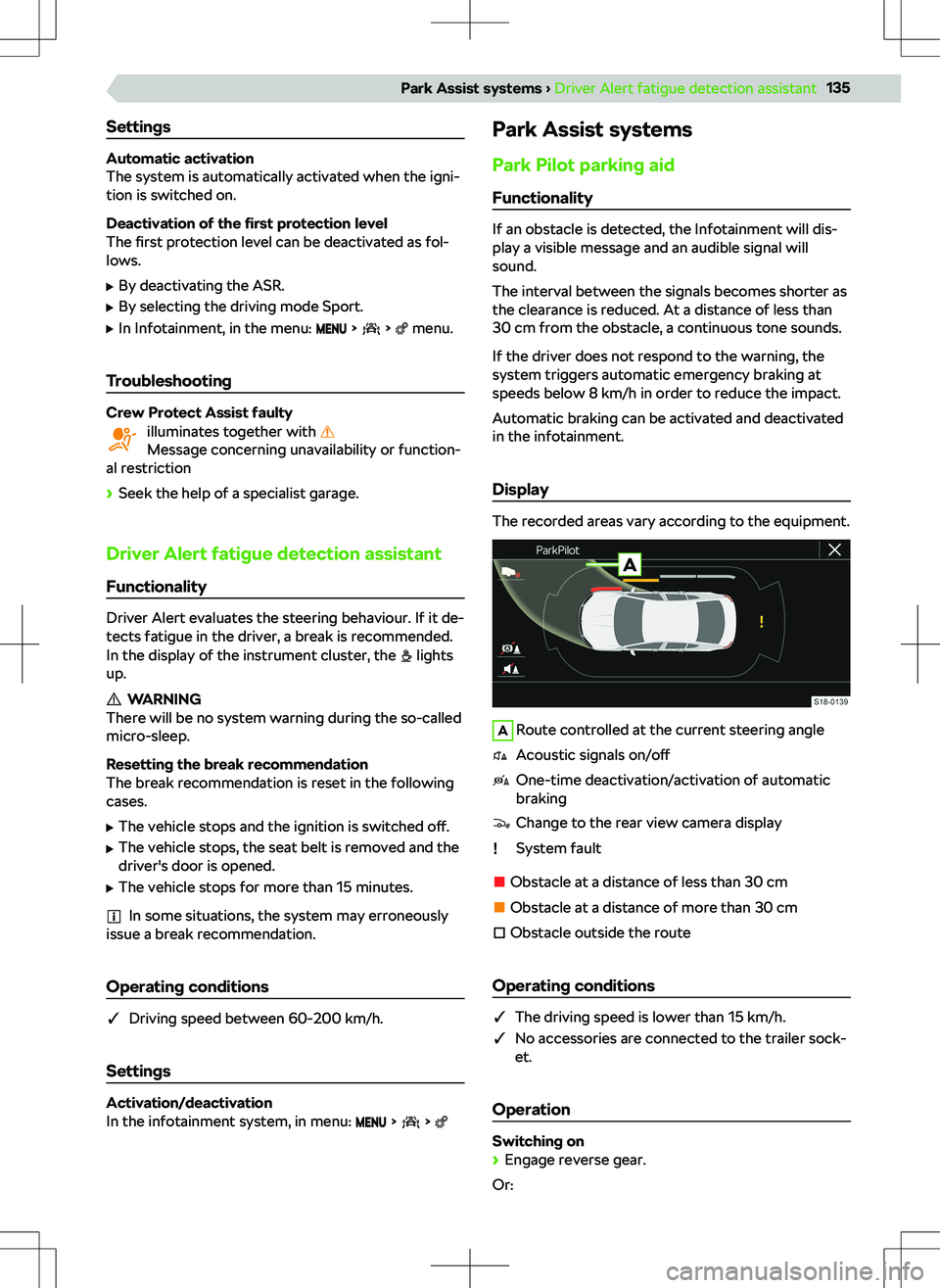

Functionality
The system looks for a parking space and only takes
over the steering during the parking procedure or
when leaving a parking place. The driver operates the
pedals and the shift lever/gear selector.
The system displays information and notes on the in-
strument cluster display.
If the system detects a risk of collision, automatic
emergency braking takes place to prevent a collision.
Operating conditions
q The driving speed is lower than 7 km/h.
q The ASR is activated and there is no intervention.
q There is no driver intervention in the automatic
steering operation.
q No accessories are connected to the trailer sock-
et.
Operation
Turn on/turn off
