SKODA SCALA 2020 Owner´s Manual

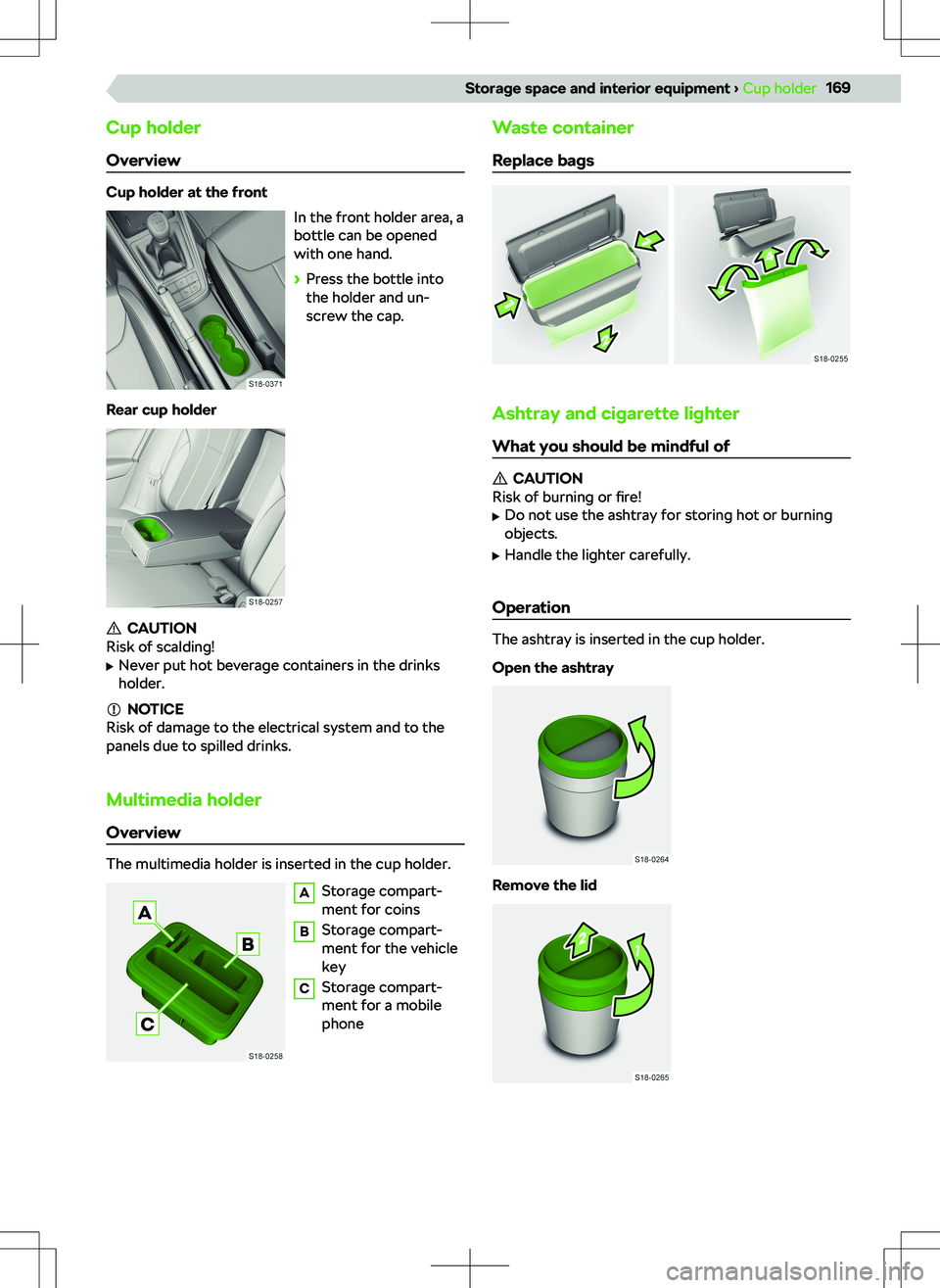

Cup holderOverview
Cup holder at the front In the front holder area, a
bottle can be opened
with one hand.

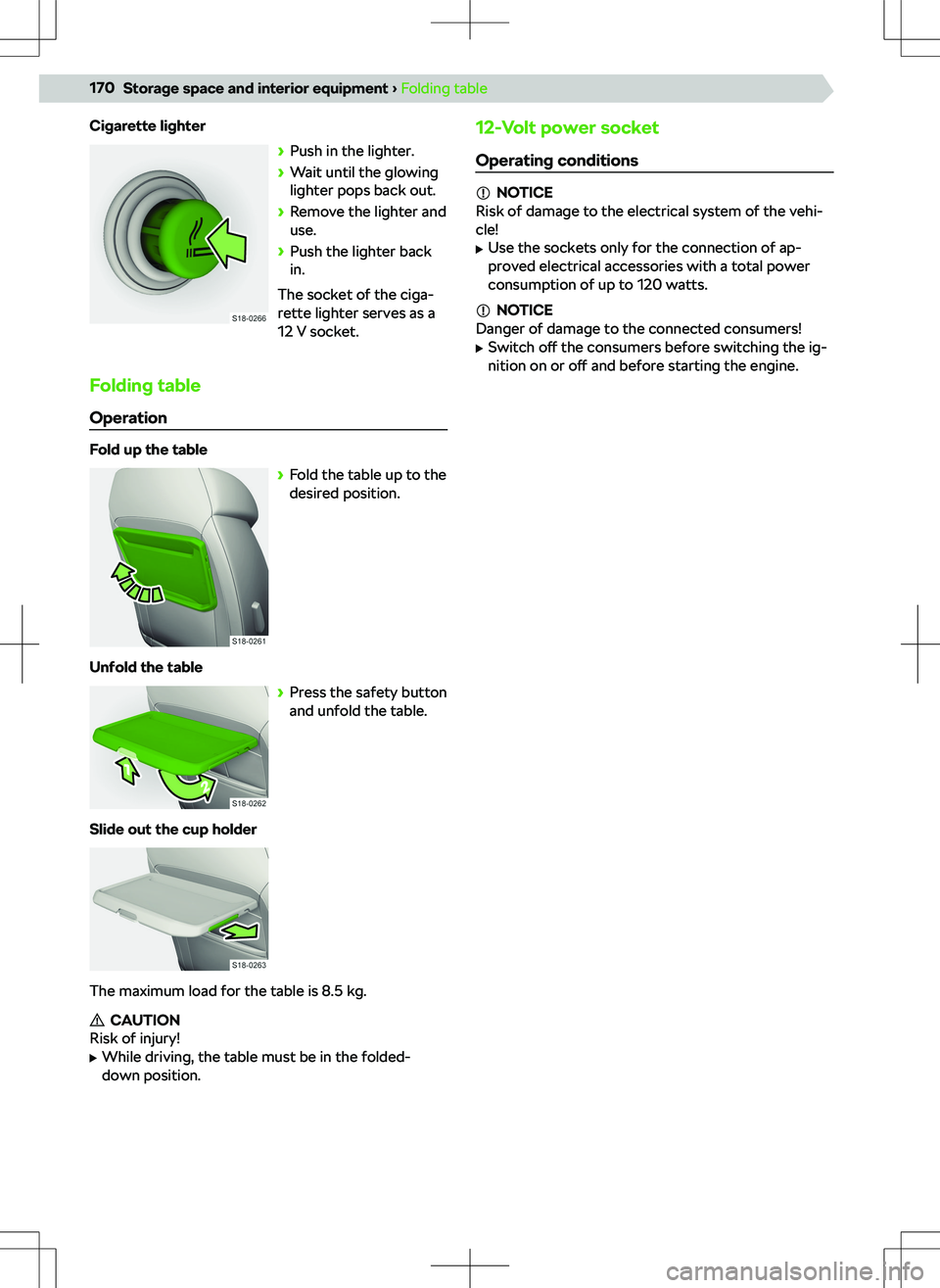

Cigarette lighter

Roof rack and hitchRoof rackOverview
The maximum weight of the load incl. roof rack is
75 kg.
Depending on the equipment, the roof bars can be
attached at the attachment points
A
and
B
.

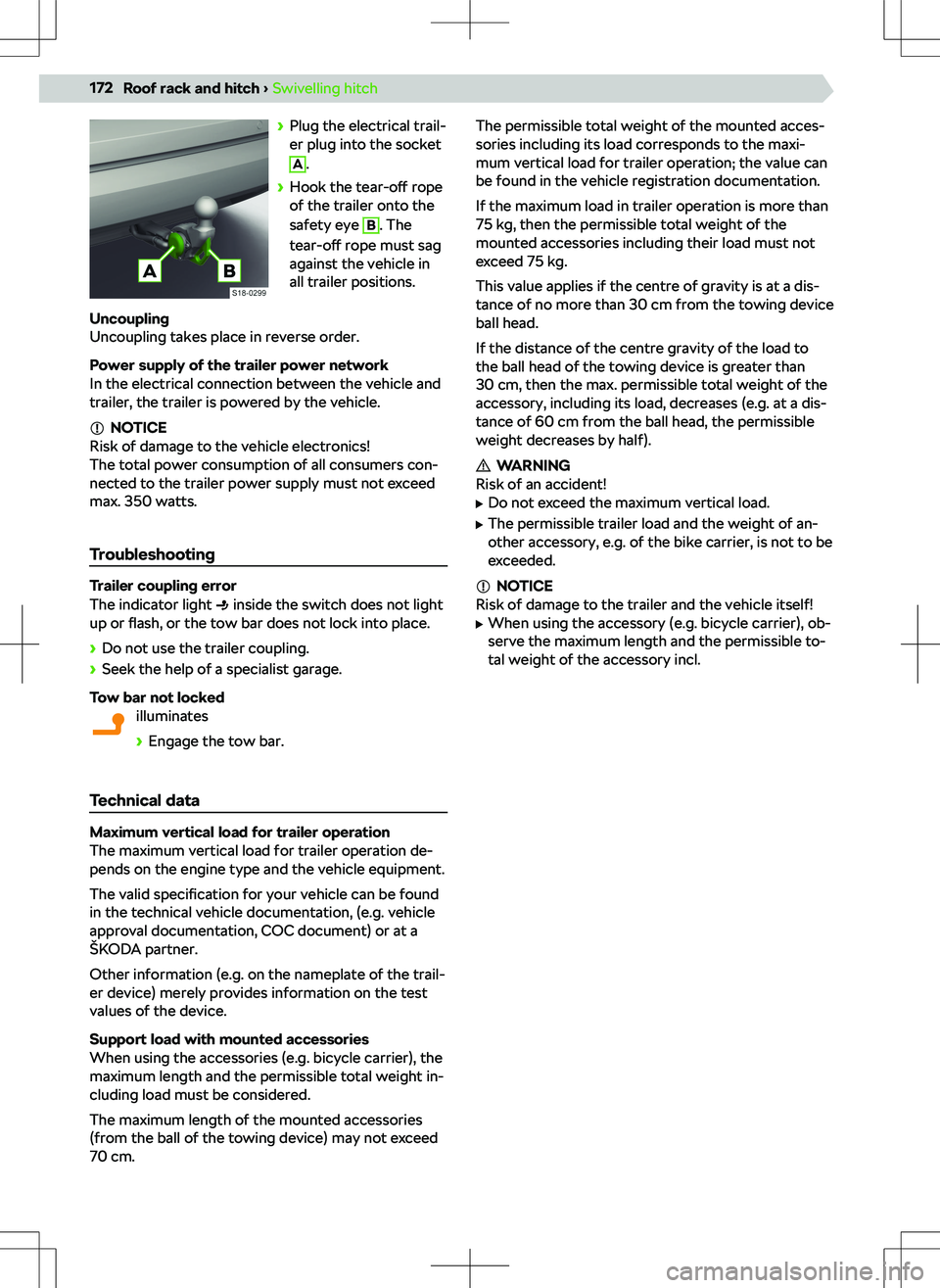

Swivelling hitch
What you should be mindful of
WARNING
Risk of an accident!

Maintaining and cleaningService events
Service intervals
Compliance with service intervals is crucial for the
life and value of the vehicle.
The service events symbol
and the corresponding
message on the instrument cluster display indicate
that a service appointment is due.
The specialist garage will inform you of the type of
service interval, the option of changing this and the
scope of service.
All services and the replacement or refilling of op-
erating fluids are chargeable to the customer, even
during the warranty period, unless the

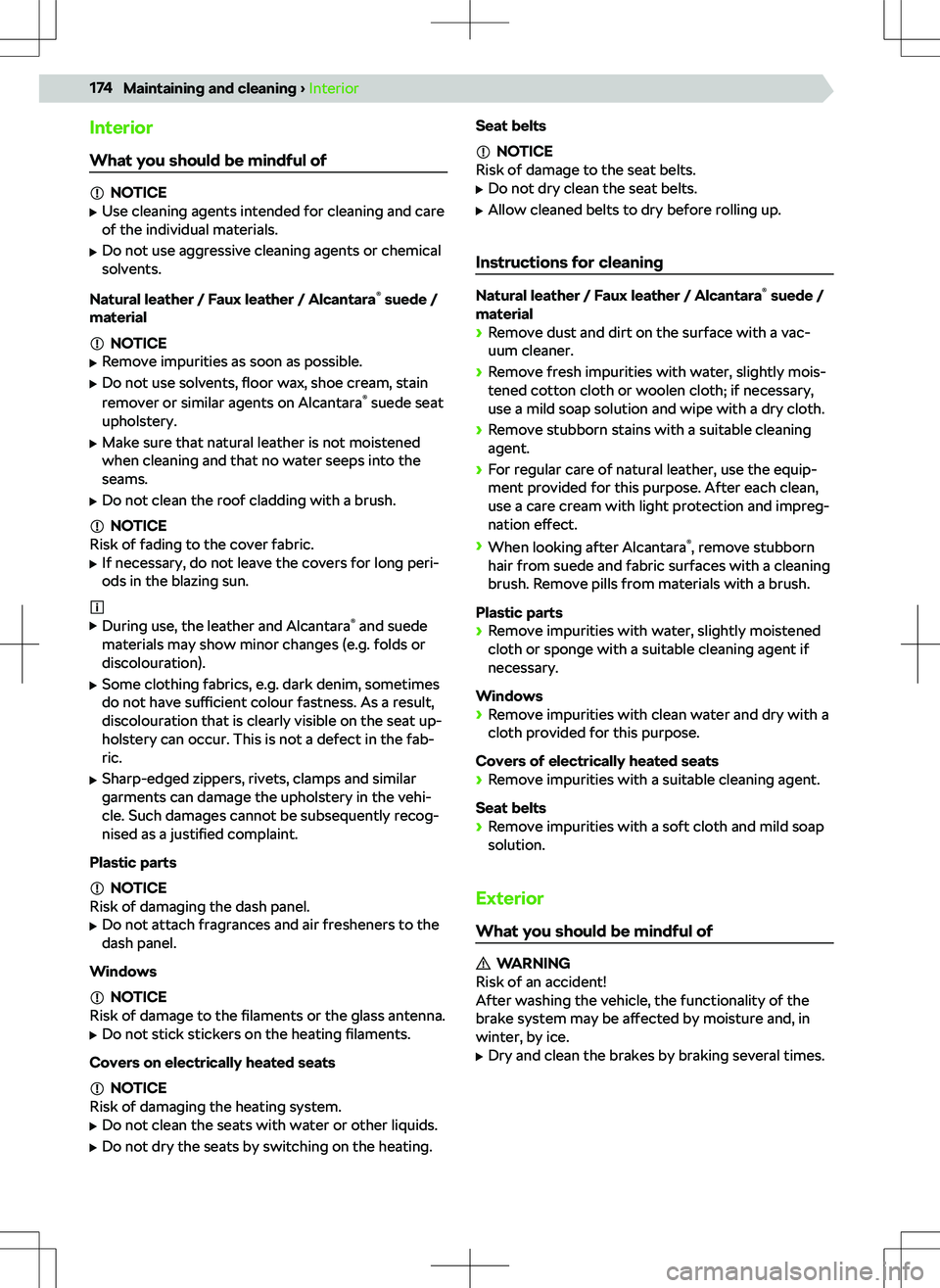

InteriorWhat you should be mindful of
NOTICE

NOTICE

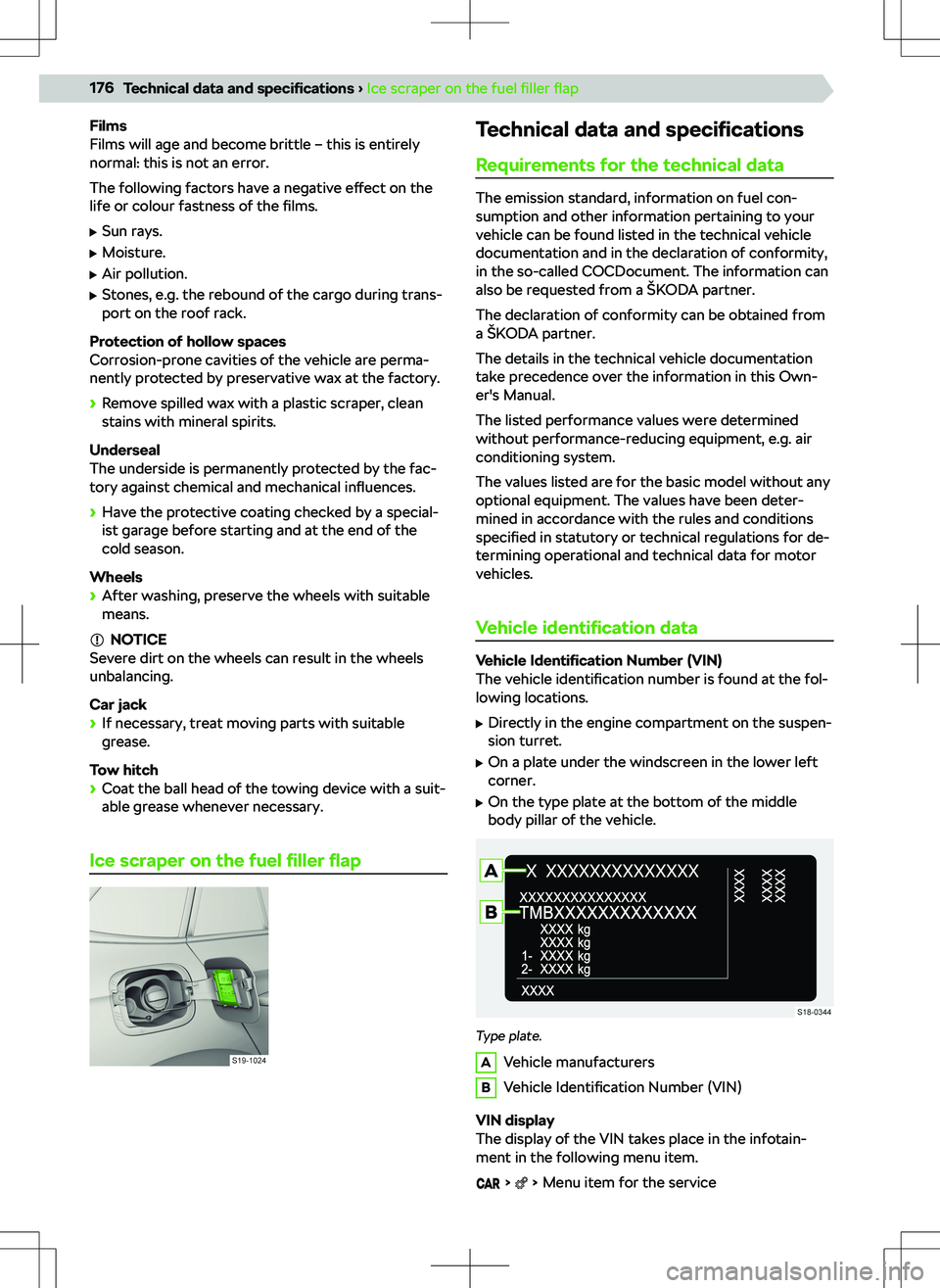

Films
Films will age and become brittle

Or:
Menu item for the service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1,000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di

Vehicle dimensionsDimensions
SpecificationValue (in mm)Vehicle height1469 a)
/1471Vehicle width with folded-in mirrors1793Vehicle width with folded-out mirrors1988Ground clearance of the vehicle149Vehicle length4362a)
Applies to vehicles with a 1.0l/66 kW TSI G-TEC engine.
Engine speci
