Seats and Stowage
100
The storage compartment is equipped with a removeable insert. – Open the storage compartment by pu
lling at the handle in direc-
tion of arrow
⇒
page 99, fig. 117
.
WARNING
The storage compartment is not a substitute for the ashtray and must also not be used for such purposes - risk of fire!Storage compartment for umbrella*
The umbrella supplied with the car is stowed in the compartment in the rear left door
⇒
fig. 118
.
Opening umbrella – Press button
⇒
fig. 119
.
Closing umbrella – Press the button . The umbrella closes partially in direction of arrow
.
– Press the umbrella in direction of arrow in order to fold it closed
completely.
Seat backrest with opening for skis
AA
Fig. 118 Left rear door: Storage compartmentFig. 119 Opening and closing umbrella
AAAA
AB
AC
Fig. 120 Rear seats: Handle of lid
s2dk.1.book Page 100 Wednesday, April 8, 2009 12:23 PM
Page 102 of 294
Seats and Stowage
101
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
After folding open the armrest and the lid, an opening in the seat backrest becomes visible through which you can
push long objects e.g. skis etc.
You can fold open the armrest and the lid from the passenger or luggage compartment. Opening from passenger compartment – Fold the rear armrest downwards
⇒
page 85, fig. 86
.
– Pull the handle up to the stop in upward direction and fold open the
lid downwards
⇒
page 100, fig. 120
.
Opening from luggage compartment – Push the unlock button downwards
⇒
fig. 121
and fold the lid
(with armrest) to the front.
Closing – Fold the lid and the armrest up to the stop in upward direction - the lid
must click into place audibly.
Ensure that the armrest is always locked
into place after closin
g. You can recognize
this on the fact that the red field above the unlocking button of the luggage compartment is not visible.
Through-loading bag (Unibag)*Loading – Open the boot lid/luggage compartment door. – Push the unlock button downwards
⇒
fig. 121
and fold the lid
(with armrest) to the front.
– Place the empty through-loading bag in such a way that the end of the
bag with the zip lies in the boot.
– Push the objects into the through-loading bag from the boot
⇒
.
Securing – Insert the securing belt of the through-loading bag into the middle
seat belt buckle
⇒
fig. 122
.
– Place the securing belt on ski sport articles in the middle between the
bindings
⇒
.
– Pull the securing belt tight at the free end of the belt .
Fig. 121 Luggage compart- ment: Unlock button
AA
AA
Fig. 122 Attaching through-loading bag to middle seat belt buckle of rear seats
AA
AA
AC
AB
s2dk.1.book Page 101 Wednesday, April 8, 2009 12:23 PM
Page 103 of 294
Seats and Stowage
102
Stowing – Fold the lid and the armrest up to the stop in upward direction - the lid
must click into place audibly. You can recognize this on the fact that the red field above the unlocking button of the luggage compart-ment is not visible
⇒
page 101, fig. 121
.
– Carefully fold the empty (dry) through-loading bag together, place it in
the luggage compartment and secure it to prevent it slipping.
WARNING
•
After placing items into the through-
loading bag, you must secure the
bag with the securing belt .•
The securing belt must hold the items tight.
•
Ensure that the securing belt on ski sport articles lies in the middle
between the bindings (see imprint on the through-loading bag).
Note
•
Place the skis with the tips facing the front, snowboards and ski sticks with the
tips facing the rear into the through-loading bag.•
If there are several pairs of skis in the through-loading bag, ensure that the bind-
ings are positioned at the same height.•
The through-loading bag must never be
folded together or stowed when
moist.
Side compartments*– You can open the compartment by turning the locks in the direction of
arrow
⇒
fig. 123
⇒
fig. 124
.
On some vehicles the battery is
located in the left compartment
⇒page 229. This
compartment is marked by the symbol
and can be opened by turning the locks
e.g with a coin or using a flat screwdriver. In the right compartment
⇒fig. 124
is located the CD changer*, the TV tuner* and
the first-aid box.
AA
AA
Fig. 123 Luggage compart- ment: Left side compartmentFig. 124 Luggage compart-ment: Right side compart-ment
s2dk.1.book Page 102 Wednesday, April 8, 2009 12:23 PM
Page 104 of 294
Seats and Stowage
103
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Clothes hooksThe clothes hooks are located on the middle
pillar and on the handle of the head-
liner above each of the rear doors.
WARNING
•
Ensure that any clothes hanging from the hooks do not impair your
vision to the rear.•
Use the hooks for hanging only light
items of clothing and ensure that
there are no heavy or sharp-
edged objects in the pockets.
•
The maximum permissable load of the hooks is 2 kg.
•
Do not use clothes hangers for hanging up items of clothing otherwise
this will interfere with the protection offered by the head airbag*.
s2dk.1.book Page 103 Wednesday, April 8, 2009 12:23 PM
Page 105 of 294
Air conditioning system
104
Air conditioning systemIntroductionDescription and informationIf the cooling system is switched on, the temperature and air humidity drops in the vehicle. The wellbeing of the occupants of
the car is enhanced as a result of this
particularly at high outside temperatures and a high air humidity. The system prevents the windows misting up during the cold season of the year. The heating effect is dependent upon th
e coolant temperature, thus full heat
output only occurs when the engine
has reached its operating temperature.
It is possible to briefly activate recirc
ulated air mode in order to enhance the
cooling effect - Climatic
⇒page 108, Climatronic
⇒page 111.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and cooling systems operate properly. After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle
below the vehicle. This is quite normal
and not an indication of a leak!
WARNING
•
For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mistin
g. Please familiarize yourself about
how to correctly operate th
e heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.•
You should not leave recirculated air mode on over a longer period of
time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•
The used air streams out through the air removal openings in the luggage
compartment.•
If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of
deposits. Switch the cooling system on
at least once a month for approximately 5 mi
nutes at the highest blower stage - also
during the cold season of the year - in order to avoid such odours. Also open a window for a short time.•
We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the inte-rior of the vehicle forms deposits in the
evaporator of the air conditioning system.
This produces a permanent odour when th
e air conditioning system is operating
which can only be eliminated through co
nsiderable effort and expense (replace-
ment of compressor).•
Please refer to the information regarding the recirculated air mode for Climatic
⇒ page 108 or for Climatronic
⇒page 111.
Using the air conditioning system economicallyThe compressor on the air co
nditioning system uses po
wer from the engine when
in cooling mode which will effect the fuel consumption. It recommended to open the windows or the doors of a vehicle for which the inte- rior has been strongly heated through the ef
fect of direct sunlight in order to allow
the heated air to escape. The cooling system should not be switched on while travelling when the window is open. The desired interior temperature can also be achieved without switching in the cooling system just by switching to fresh air mode.
s2dk.1.book Page 104 Wednesday, April 8, 2009 12:23 PM
Page 106 of 294
Air conditioning system
105
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
For the sake of the environment
When you economize on fuel, you
also reduce pollutant emissions.
Operational problemsIf the cooling system does not operate at outside temperatures higher than +5 °C, there is a problem in the system. The reasons for this may be:•
The fuse on the air conditioning system
has blown. Check the fuse, replace it if
necessary
⇒page 256.
•
The cooling system has switched off automatically for a short time because the
coolant temperature of the engine is too hot
⇒page 18.
If you are not able to rectify the operat
ional problem yourself, or if the cooling
capacity decreases, switch the cooling sy
stem off. Contact a specialist garage.
Air outlet ventsFig. 125 Air vents at the front
Fig. 126 Air vents at the rearOpen air outlet vents – Turn the rotary knob to position
.
Close air outlet vents – Turn the rotary knob to position
0.
Redirecting air flow – The horizontal as well as the vertical direction of the air flow is set with
the handle in the middle of the air outlet vents.
The air outlet vents
2, 3 ⇒fig. 125
and
5 ⇒fig. 126
can be closed and opened indi-
vidually. Unwarmed or cooled air will flow out of the opened air outlet vents according to the setting of control dial and the outside atmospheric conditions.
Note
The air outlet vents
1 ensure in the ventilation and cooling mode for a comfortable
(no-draught) ventilation of the interior of
the vehicle, also if the air outlet vents
3
are closed.
s2dk.1.book Page 105 Wednesday, April 8, 2009 12:23 PM
Page 107 of 294
Air conditioning system
106

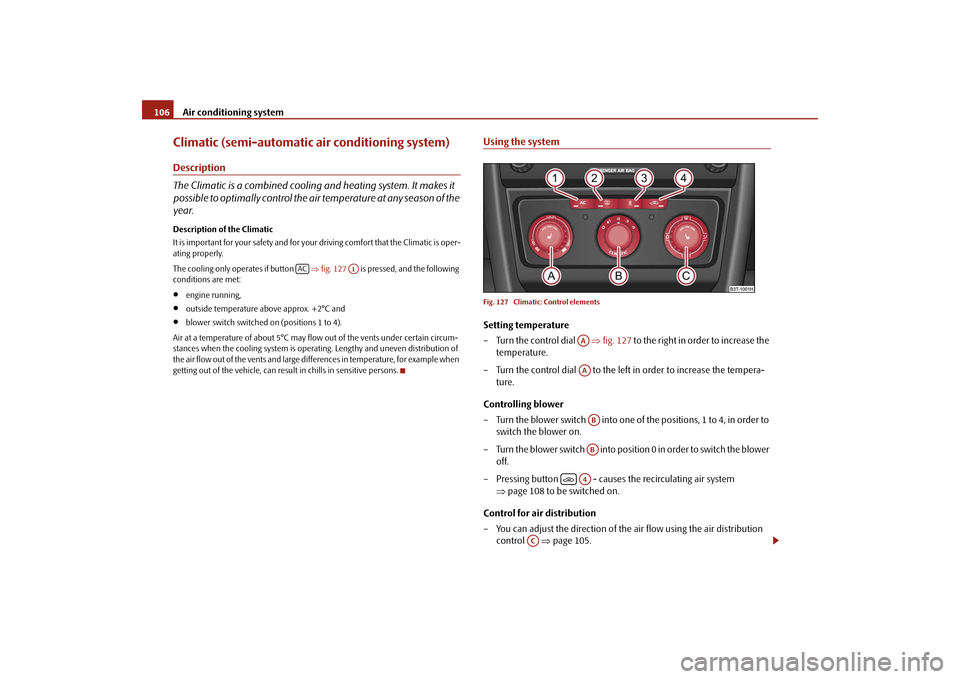

Climatic (semi-automatic air conditioning system)Description The Climatic is a combined cooling and heating system. It makes it possible to optimally control the air
temperature at any season of the
year.Description of the Climatic It is important for your safety and for your driving comfort that the Climatic is oper- ating properly. The cooling only operates if button
⇒fig. 127
is pressed, and the following
conditions are met:•
engine running,
•
outside temperature above approx. +2°C and
•
blower switch switched
on (positions 1 to 4).
Air at a temperature of about 5°C may flow
out of the vents under certain circum-
stances when the cooling system is operating. Lengthy and uneven distribution of the air flow out of the vents and large differences in temperature, for example when getting out of the vehicle, can resu
lt in chills in sensitive persons.
Using the systemFig. 127 Climatic: Control elementsSetting temperature – Turn the control dial
⇒
fig. 127
to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera-
ture.
Controlling blower – Turn the blower switch into one of
the positions, 1 to 4, in order to
switch the blower on.
– Turn the blower switch into positi
on 0 in order to switch the blower
off.
– Pressing button - causes
the recirculating air system
⇒
page 108 to be switched on.
Control for air distribution – You can adjust the direction of the air flow using the air distribution
control
⇒
page 105.
AC
A1
AAAAABAB
A4
AC
s2dk.1.book Page 106 Wednesday, April 8, 2009 12:23 PM
Page 108 of 294
Air conditioning system
107
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
switching cooling on and off – Press the button
⇒
page 106, fig. 127
. The warning light lights
up in the button.
– When you again press the switch , the cooling system is switched
off. The warning light in the button goes out.
Rear window heater – Press button . Further information
⇒
page 70.
Auxiliary heating (auxiliary heating) – Press the button in order to directly switch on/off the auxiliary
heating (auxiliary heating and ventilation. Further information ⇒
page 112.
The set temperature will be automatica
lly maintained other than when the
control dial is on the extreme
right or extreme left position:
•
Extreme right position - full heating,
•
Extreme left position - full cooling,
•
The blower should aways be on to prevent the windows from misting up.Note
The whole heat output will be needed to
unfrost the windscreen
and side windows.
No warm air will be fed to the footwell. Th
is can lead to restriction of the heating
comfort.

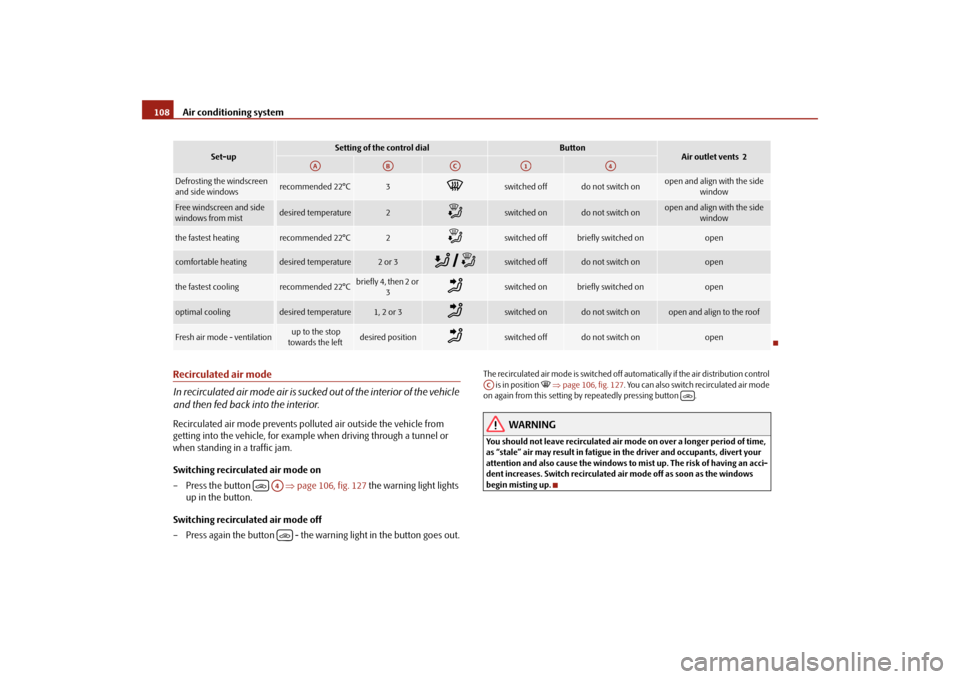

Set ClimaticRecommended settings of Climatic controls for the respective operating modes:
AC
A1
AC
A2A3
s2dk.1.book Page 107 Wednesday, April 8, 2009 12:23 PM
Page 109 of 294
Air conditioning system
108
Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the vehicle, for example when driving through a tunnel or when standing in a traffic jam. Switching recirculated air mode on – Press the button
⇒
page 106, fig. 127
the warning light lights
up in the button.
Switching recirculated air mode off – Press again the button - the warning light in the button goes out.
The recirculated air mode is switched off au
tomatically if the air
distribution control
is in position
⇒page 106, fig. 127
. You can also switch recirculated air mode
on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated air mode off as soon as the windows begin misting up.
Set-up
Setting of the control dial
Button
Air outlet vents 2
Defrosting the windscreen and side windows
recommended 22°C
3
switched off
do not switch on
open and align with the side
window
Free windscreen and side windows from mist
desired temperature
2
switched on
do not switch on
open and align with the side
window
the fastest heating
recommended 22°C
2
switched off
briefly switched on
open
comfortable heating
desired temperature
2 or 3
switched off
do not switch on
open
the fastest cooling
recommended 22°C
briefly4, then 2or
3
switched on
briefly switched on
open
optimal cooling
desired temperature
1, 2 or 3
switched on
do not switch on
open and align to the roof
Fresh air mode - ventilation
up to the stop towards the left
desired position
switched off
do not switch on
open
AA
AB
AC
A1
A4
A4
AC
s2dk.1.book Page 108 Wednesday, April 8, 2009 12:23 PM
Page 110 of 294
Air conditioning system
109
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Climatronic* (automatic air conditioning)Description The Climatronic system is a combin
ation of an automatic heating,
fresh air and cooling system which provides optimal comfort for the occupants of the car.The Climatronic maintains fully automatically a convenience temperature. This is achieved by automatically varying the temperature of the outflowing air, the blower stages and the air distribution. The system also takes into account sunlight which eliminates the need to alte
r the settings manually. The
automatic mode
⇒ page 110 ensures maximum wellbeing of th
e occupants at all times of the year.
Description of Climatronic system The cooling operates only if the following conditions are met:•
engine running,
•
outside temperature above approx. +2°C,
•
switched on.
The AC compressor is switched off at a hi
gh coolant temperature in order to provide
cooling at a high load of the engine. Recommended setting for al
l periods of the year:
•
Set the desired temperature, we recommend 22 °C.
•
Press the button
⇒fig. 128
.
•
Move the air outlet vents
2 and
3 so that the air flow is directed slightly upwards.
Aeration of the vehicle when ignition is switched off* On vehicles fitted with power sliding/tilting roof with solar cells* the fresh air blower is automatically switched over to “solar mode” if the sun rays are sufficient after switching off the ignition. The solar
cells on the sliding/tilting roof deliver
power for the fresh air blower
. This supplies the interior of the car with fresh air.
For an optimum ventilation, the air outlet vents
2 and
3 must be opened
⇒ page 105, fig. 125
.
The ventilation functions only when the sliding/tilting roof is closed.
Note
On vehicles equipped with a
factory-fitted radio* or navi
gation*, the information of
the Climatronic is also shown on the display. This function can be switched off, see operating instructions of the ra
dio* or the navigation system*.
Overview of the control elements The controls enable a separate setting of the temperature for the left and right side.Fig. 128 Climatroni
c: Control elements
The buttons
Defrost windscreen intensively Air flow to the windows Air flow to head Air flow in the footwell Recirculated air mode with air quality sensor Rear window
heater
Buttons / control dial
AC
AUTO
A1
A2
A3
A4
A5
A6
s2dk.1.book Page 109 Wednesday, April 8, 2009 12:23 PM
