technical data SKODA SUPERB 2009 2.G / (B6/3T) Owner's Manual

Fuses and light bulbs
259
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuse assignment in engine compartment - version 2Certain electrical components are only standard on certain vehicle model versions or only suppliable as optional equipment for certain models.No.
Power consumer
Amperes
F1
Not assigned
F2
Control unit for automatic gearbox DQ200
30
F3
Measuring circuit
5
F4
Va lve s for AB S
30/20
F5
Control unit for automatic gearbox DQ250
15
F6
Instrument cluster, windshield
wiper lever and turn sig-
nal light lever
5
F7
Power supply for terminal 15 (ignition on)
40
F8
Radio
15
F9
Phone
5
F10
Engine control unit, Main relay
5/10
Fig. 231 Schematic repre- sentation of fuse box in engine compartment - version 2
F11
Control unit for auxiliary heating
20
F12
Control unit for CAN databus
5
F13
Engine control unit
15/20/30
F14
Ignition
20
F15
Lambda probe (petrol engine) Glow plug system relay and
fuel pump (diesel engine)
10 5
F16
Front right main headlight, right rear light unit
30
F17
Horn
15
F18
Audio amplifier (sound system)
30
F19
Front window wiper
30
F20
Valve for fuel dosing water pump
2010
F21
Lambda probe
10/15
F22
Not assigned
F23
Relay ValvesHigh pressure pump
51015
F24
Fa n
10
F25
Pump for ABS
30/40
F26
Left main headlight
30
F27
Control unit for glow plug system
50
F28
Windscreen heater
50
F29
Accessory equipment
50
F30
Power supply relay - terminal X
a)
50
a)In order not to drain the battery unnecessarily
when starting the engine, the electrical com-
ponents of this terminal are automatically switched off.No.
Power consumer
Amperes
s2dk.1.book Page 259 Wednesday, April 8, 2009 12:23 PM

Fuses and light bulbs
261
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Electrically adjustable seats are protected by
automatic circuit breakers
, which
switch on again automatically after a few seconds after the overload has been eliminated.
BulbsChanging bulbsThe relevant lamp must always be switch
ed off before a light bulb is replaced.
Defect light bulbs should only be replaced
with light bulbs of the same type. The
designation is located on the light socket or the glass bulb. Changing certain bulbs is not something wh
ich you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to change the light bulbs. This applies, in
particular, to bulbs which can only be
reached from the engine compartment. We therefore recommend that you have an
y bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by
calling on other professional assistance.
Please note that the engine co
mpartment is a hazardous area
⇒page 223,
“Working in the engine compartment”. We recommend that you always have a sm
all box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from a specialist garage
18).
The set of light bulbs can be stowed in the locable box in the spare wheel.Fitted with a xenon headlightChange of light bulbs on Xenon lights (low beam lights, parking lights and main beam lights) should be undertaken by a specialist garage. Overview of bulbs
30
Not assigned
31
Not assigned
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Alarm, spare horn
5
35
front and rear lighter
25
36
Headlight cleaning system
20
37
Front seat heating
20
38
Heated rear seats
20
39
Not assigned
40
Fan air-conditioning system,
relay for auxiliary heating
and ventilation
40
41
Not assigned
42
Light switch
5
43
Control unit for trailer detection
15
44
Control unit for trailer detection
20
45
Control unit for trailer detection
15
46
Heatable washing nozzles, relay for auxiliary heating and ventilation, switch for seat heating
5
47
Not assigned
48
Not assigned
49
Not assigned
No.
Power consumer
Amperes
18)The small box with replacement bulbs is part of the basic equipping of the vehicle in some countries.
s2dk.1.book Page 261 Wednesday, April 8, 2009 12:23 PM

Fuses and light bulbs
263
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Positions of the light bulbs in the front headlight
⇒page 262, fig. 233
.
- parking lights and main beam lights - low beam lights - Turn signal light (at the front)Parking lights and main beam lightsRemoving the light bulb for the parking light – Switch the ignition and all lights off. – Open the bonnet. – Remove the protective cap
⇒
page 262, fig. 233
.
– Remove the socket
⇒
fig. 234
.
– Take the faulty bulb out of the fixture and insert a new one. Removing the light bulb for the main beam light – Switch the ignition and all lights off. – Open the bonnet.– Remove the protective cap
⇒
page 262, fig. 233
.
– Press the sprung wire clamps
⇒
fig. 234
together and hang them
to the side.
– Remove the socket
⇒
fig. 234
.
– Take the faulty bulb out of the fixture and insert a new one.Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a Skoda Service Partner after replacing the light bulb.Low beam light– Switch the ignition and all lights off. – Open the bonnet. – Remove the protective cap
⇒
page 262, fig. 233
.
– Turn the connector with the light bulb up to the stop towards the left
and remove
⇒
fig. 235
.
AAABAC
Fig. 234 Removing the bulbs for the parking and main beam light
AA
AA
AA
AB
AC
Fig. 235 Removing the light bulb for the low beam light
AB
s2dk.1.book Page 263 Wednesday, April 8, 2009 12:23 PM

Fuses and light bulbs
265
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Remove and install the outer part of the rear light unit – Switch the ignition and all lights off. – Open the boot lid/luggage compartment door. – Take out the plug
⇒
page 264, fig. 238
and unscrew the rear light unit
using a torx wrench
19).
– Carefully take out the light. Do not pull the grommet with the cables
out of the body.
– To re-insert the rear light unit, firs
t of all guide it with the support
⇒
fig. 240
towards the front onto a bolt on the bodywork.
– Carefully press the rear light unit into the bodywork.– Screw the rear light unit tight and press in the plugs
⇒
page 264,
fig. 238
.
Remove and install the inner part of the rear light unit – Switch the ignition and all lights off. – Open the boot lid/luggage compartment door.
– Take off the cover of the rear light unit on the inner side of the bonnet
lid
⇒
fig. 239
.
– Press the spring bolt
⇒
fig. 239
and take the lamp holder out of the
housing of the rear light unit.
– To re-insert the lamp holder, guide it into the housing of the rear light
unit.
–Press onto the spring bolt
until it is heard to lock.
– Guide the cover of the rear light uni
t into the inner side of the bonnet
lid. Caution
When removing and installing the rear
light unit make sure not to damage the
paintwork of the vehicle and the rear light unit.Changing light bulbs in the rear light unit
19)The torx wrench is located in a ve
hicle toolkit box on the spare wheel.
Fig. 239 Remove the inner part of the rear light unit
AA
Fig. 240 Outer part of the rear light unit: Lamps
s2dk.1.book Page 265 Wednesday, April 8, 2009 12:23 PM

Technical Data
267
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle
registration document
s always take prece-
dence over the details in th
e Owner's Manual. Please refe
r to the official vehicle
registration documents or consult an auth
orised Škoda Service Partner concerning
the engine with which yo
ur vehicle is equipped.
Used abbreviations
PerformancesThe listed performance values were de
termined without pe
rformance-reducing
equipment, e.g. air conditioning system.WeightThe loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fu
el tank topped up to 90%.
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
CO2 in g/km
discharged quantity of carbon dioxide in grams per driven kilom- eter
RON
Research octane number, measur
ing unit for the knocking resist-
ance of petrol
FSI
Petrol engine with a direct fuel injection system
TSI
Petrol engine with a turbocharger and a direct fuel injection sys- tem
TDI PD
Diesel engine with turbocharger
and injection system unit injec-
tor
TDI CR
Diesel engine with turbocharger
and injection system Common
Rail
DPF
Diesel particle filter
M5
5-speed manual gearbox
M6
6-speed manual gearbox
DQ6
6-speed automatic gearbox DSG
DQ7
7-speed automatic gearbox DSG
Abbreviation
Importance
s2dk.1.book Page 267 Wednesday, April 8, 2009 12:23 PM

Technical Data
268
Identification detailsVehicle data sticker The vehicle data sticker
⇒fig. 243
is located on the floor of the luggage compart-
ment and is also stated in the Service schedule. The vehicle data sticker co
ntains the following data:
Vehicle identification number (VIN). Vehicle type.Gearbox code, paint number, interior
equipment number, engine output,
engine code. Partial description of the vehicle.7GG, 7MB, 7MG - vehicles with DPF
⇒page 200.
Vehicle identification number (VIN) The vehicle identification num
ber - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shoc
k absorber dome. This number is also
located on a sign on the lower left hand
edge below the windscreen (together with
a VIN bar code).
Engine number The engine number is stam
ped into the engine block.
Type plate (production plate) It is located on the left
middle pillar of the body.
Homologation sign The homologation sign is located on the lock carrier. Vehicles for certain countries do not have an homologation sign. Sticker on inside of fuel filler flap The stickers are affixed to the inside of the fuel filler flap. They contain the following data:•
The prescribed types of fuel,
•
Tyre s iz e ,
•
Tyre pressure.
Fuel consumption according to the regulations (99/100/EU)Depending on the range of the special equipment, style of driving, traffic situation, weather influences and vehi
cle condition, the consumpt
ion values which in prac-
tice result when using the vehicle ca
n deviate from the indicated values.
Urban traffic The consumption measurement in urban traf
fic begins with starting of the cold
engine. Afterwards the normal
urban traffic is simulated.
Non-urban traffic For the consumption measurement in non-ur
ban traffic the vehicle, as in daily
motoring, is accelerated and braked several times in all gears. The vehicle speed changes within the range from 0 to 120 km/h.
Fig. 243 Vehicle data sticker
A1A2A3A4A5s2dk.1.book Page 268 Wednesday, April 8, 2009 12:23 PM

Technical Data
269
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Combined traffic The consumption value in the combined traf
fic consists of 37%
from the value for
the urban traffic and of 63% from
the value for the non-urban traffic.
Note
•
Please note that the information stated in the
official vehicle registration
documents
always takes priority.
DimensionsDimensions (mm)Length
4838/4849
a)
a)The value corresponds to the status
with visual appearance package.
Width
1817
Width including
exterior mirror
2009
Height
1462/1482
b)/1447
c)
b)The value corresponds to the status with rough road package.c)The value corresponds to the status with sport chassis.Clearance
139/158
b)/123
c)
Wheel base
2761
Tr a c k g a u g e f r o n t / r e a r
1545/1518 1537/1510
d)
1545/1517
e)
d)Valid for vehicles with 3.6°ltr./191°kW FSI engine.e)Superb GreenLine.
s2dk.1.book Page 269 Wednesday, April 8, 2009 12:23 PM

Technical Data
270
Engine oil specificationsThe engine of your vehicle has been fact
ory-filled with a high-grade oil which you
can use throughout the year - exce
pt in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does not, however, apply for models with
flexible service intervals (QG1).
Engine oils are, of course, undergoing co
ntinuous further deve
lopment. Thus the
information stated in this Owner's Manual is only correct at the time of publication. Authorised Škoda Service Partners are informed by Škoda Auto about current changes. This why you should always have
engine oil changed by an authorised
Škoda Service Partner. The specifications (VW standards) stated in the following must be indicated sepa- rately or together with other specifications on the bottle. Engine oil specifications for models with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2) If the oils specified above are not available,
oils according to ACEA A2 or ACEA A3
can be used once for refilling. If the oils specified above are not available,
oils according to ACEA B3 or ACEA B4
can be used once for refilling.
Caution
Only the above-mentioned oils may be used on vehicles with flexible service inter-vals (QG1). We recommend always refilling with oil of the same specification since this will maintain the properties of the oi
l. In exceptional cases, you must top up
only once engine oil complying with Specification VW 502 00 (only for petrol engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use other engine oi
ls - risk of engine damage!
Note
•
Before a long drive we recommend th
at you purchase and carry with you
engine oil which complies with the specif
ication for your vehi
cle. Consequently,
you will always have the corr
ect engine oil for refilling.
Petrol engines
Engine oil specifications
1.4 ltr./92 kW TSI - EU5
VW 503 00, VW 504 00
1.8 ltr./118 kW TSI - EU5
VW 504 00
3.6 ltr./191 kW FSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4
VW 506 01, VW 507 00
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./103 kW TDI PD - EU4
VW 506 01, VW 507 00
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
Petrol engines
Engine oil specifications
1.4 ltr./92 kW TSI - EU5
VW 501 01, VW 502 00
1.8 ltr./118 kW TSI - EU5
VW 502 00
3.6 ltr./191 kW FSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4
VW 505 01
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./103 kW TDI PD - EU4
VW 505 01
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
s2dk.1.book Page 270 Wednesday, April 8, 2009 12:23 PM

Technical Data
271
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•

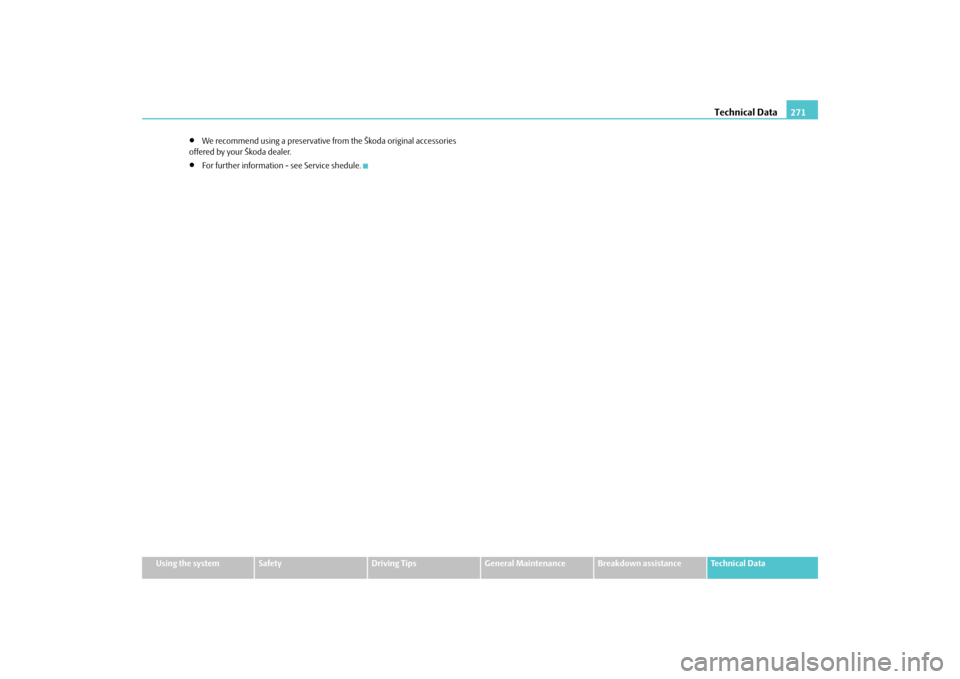

We recommend using a preservative fr
om the Škoda original accessories
offered by your Škoda dealer.•
For further information - see Service shedule.
s2dk.1.book Page 271 Wednesday, April 8, 2009 12:23 PM

Technical Data
272
1.4 ltr./92 kW TSI - EU5Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
92/5000
Maximum torque
Nm per rpm
200/1500-4000
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95M6
Maximum speed
km/h
201
Acceleration 0 - 100 km/h
s
10,5M6
Urban
9,0
Non-urban
5,4
Combination
6,8
CO2 emission - combination
157
s2dk.1.book Page 272 Wednesday, April 8, 2009 12:23 PM
