Fuses and light bulbs
258
F12
Lambda probe
10
F13
Control unit for automatic gearbox
15
F14
Not assigned
F15
Coolant pump
10
F16
Not assigned
F17
Instrument cluster, windshield
wiper lever and turn sig-
nal light lever
5
F18
Audio amplifier (sound system)
30
F19
Radio
15
F20
Phone
5
F21
Not assigned
F22
Not assigned
F23
Engine control unit
10
F24
Control unit for CAN databus
5
F25
Not assigned
F26
Not assigned
F27
Valve for fuel dosing
15
F28
Engine control unit
15/25
F29
Main relay
5
F30
Control unit for auxiliary heating
20
F31
Front window wiper
30
F32
Not assigned
F33
Not assigned
F34
Not assigned
F35
Not assigned
No.
Power consumer
Amperes
F36
Not assigned
F37
Not assigned
F38
Radiator fan, valves
10
F39
Not assigned
F40
Not assigned
F41
Not assigned
F42
Not assigned
F43
Ignition
30
F44
Not assigned
F45
Not assigned
F46
Not assigned
F47
Front left main headlight, left rear light unit
30
F48
Pump for ABS
40
F49
Power supply for terminal 15 (ignition on)
50
F50
Not assigned
F51
Not assigned
F52
Power supply relay - terminal X
a)
40
F53
Accessory equipment
50
F54
Not assigned
a)In order not to drain the battery unnecessarily when starting the engine, the electrical com- ponents of this terminal are automatically switched off.No.
Power consumer
Amperes
s2dk.1.book Page 258 Wednesday, April 8, 2009 12:23 PM

Fuses and light bulbs
259
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuse assignment in engine compartment - version 2Certain electrical components are only standard on certain vehicle model versions or only suppliable as optional equipment for certain models.No.
Power consumer
Amperes
F1
Not assigned
F2
Control unit for automatic gearbox DQ200
30
F3
Measuring circuit
5
F4
Va lve s for AB S
30/20
F5
Control unit for automatic gearbox DQ250
15
F6
Instrument cluster, windshield
wiper lever and turn sig-
nal light lever
5
F7
Power supply for terminal 15 (ignition on)
40
F8
Radio
15
F9
Phone
5
F10
Engine control unit, Main relay
5/10
Fig. 231 Schematic repre- sentation of fuse box in engine compartment - version 2
F11
Control unit for auxiliary heating
20
F12
Control unit for CAN databus
5
F13
Engine control unit
15/20/30
F14
Ignition
20
F15
Lambda probe (petrol engine) Glow plug system relay and
fuel pump (diesel engine)
10 5
F16
Front right main headlight, right rear light unit
30
F17
Horn
15
F18
Audio amplifier (sound system)
30
F19
Front window wiper
30
F20
Valve for fuel dosing water pump
2010
F21
Lambda probe
10/15
F22
Not assigned
F23
Relay ValvesHigh pressure pump
51015
F24
Fa n
10
F25
Pump for ABS
30/40
F26
Left main headlight
30
F27
Control unit for glow plug system
50
F28
Windscreen heater
50
F29
Accessory equipment
50
F30
Power supply relay - terminal X
a)
50
a)In order not to drain the battery unnecessarily
when starting the engine, the electrical com-
ponents of this terminal are automatically switched off.No.
Power consumer
Amperes
s2dk.1.book Page 259 Wednesday, April 8, 2009 12:23 PM

Fuses and light bulbs
260
Fuse assignment in the dash panelCertain electrical components are only st
andard on certain vehicle model versions
or only suppliable as optional
equipment for certain models.
No.
Power consumer
Amperes
1
Diagnostic socket, engine control unit, fuel pump relay, fuel pump control unit
7,5
2
Control unit for ABS, ESP, switch for tyre air pressure control, brake sensor
5
3
Switch and control unit for airbag
5
4
WIV, parking light, dimming mirrors, pressure sensor, telephone preinstallation
5
5
Control unit for headlamp beam adjustment and head- light swivel, control unit for parking aid, control unit for park assist
5
6
Instrument cluster, control
unit for electromechanical
power steering, Haldex, selector lever lock, power sup- ply for data bus
5
Fig. 232 Schematic repre- sentation of the fuse carrier in the dash panel
7
Valve heating, air mass meter
10
8
Control unit for trailer detection
5
9
Relay for auxiliary heating
5
10
Adaptive left main headlight
10
11
Adaptive right main headlight
10
12
Central locking of the front doors
10
13
Diagnostic socket, light switch, rain sensor, clock
7,5
14
Central locking system and bonnet lid
15
15
Central control unit - interior lights
7,5
16
Air conditioning system
7,5
17
Central locking system of the rear doors
10
18
Not assigned
19
Not assigned
20
Not assigned
21
Not assigned
22
Air blower for Climatronic
40
23
Front power window
30
24
Selector lever lock
5
25
Rear wind
ow heater
relay for auxiliary heating and ventilation
2530
26
Power socket in the luggage compartment
25
27
Fuel pump relay, Fuel pump relay, control unit for fuel pump, injection valves
1520
28
Not assigned
29
Preparation for the aftermarket radio
5
No.
Power consumer
Amperes
s2dk.1.book Page 260 Wednesday, April 8, 2009 12:23 PM

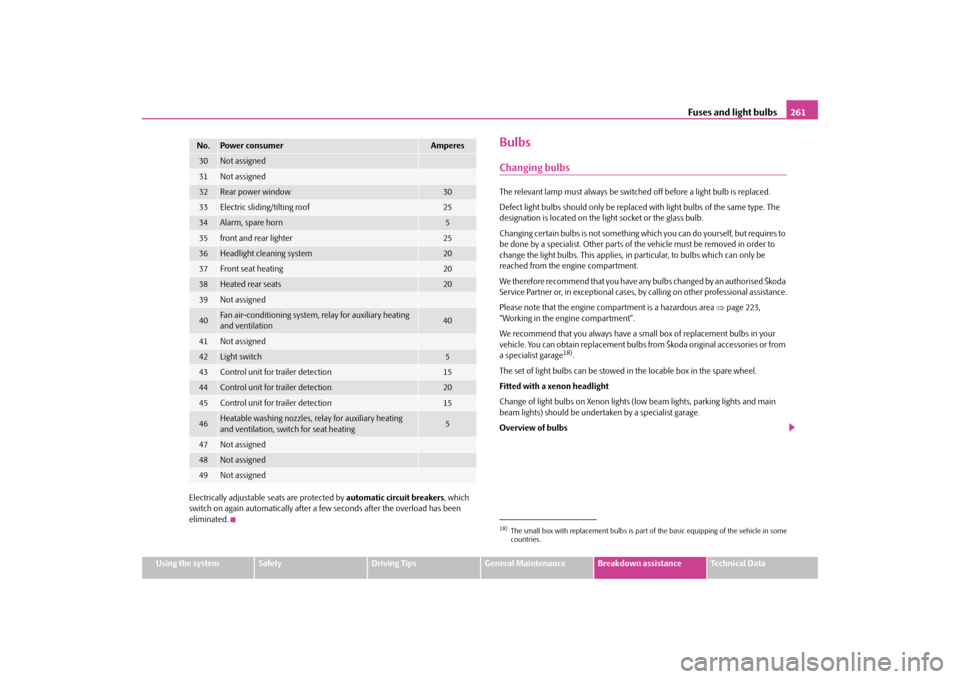

Fuses and light bulbs
261
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Electrically adjustable seats are protected by
automatic circuit breakers
, which
switch on again automatically after a few seconds after the overload has been eliminated.
BulbsChanging bulbsThe relevant lamp must always be switch
ed off before a light bulb is replaced.
Defect light bulbs should only be replaced
with light bulbs of the same type. The
designation is located on the light socket or the glass bulb. Changing certain bulbs is not something wh
ich you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to change the light bulbs. This applies, in
particular, to bulbs which can only be
reached from the engine compartment. We therefore recommend that you have an
y bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by
calling on other professional assistance.
Please note that the engine co
mpartment is a hazardous area
⇒page 223,
“Working in the engine compartment”. We recommend that you always have a sm
all box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from a specialist garage
18).
The set of light bulbs can be stowed in the locable box in the spare wheel.Fitted with a xenon headlightChange of light bulbs on Xenon lights (low beam lights, parking lights and main beam lights) should be undertaken by a specialist garage. Overview of bulbs
30
Not assigned
31
Not assigned
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Alarm, spare horn
5
35
front and rear lighter
25
36
Headlight cleaning system
20
37
Front seat heating
20
38
Heated rear seats
20
39
Not assigned
40
Fan air-conditioning system,
relay for auxiliary heating
and ventilation
40
41
Not assigned
42
Light switch
5
43
Control unit for trailer detection
15
44
Control unit for trailer detection
20
45
Control unit for trailer detection
15
46
Heatable washing nozzles, relay for auxiliary heating and ventilation, switch for seat heating
5
47
Not assigned
48
Not assigned
49
Not assigned
No.
Power consumer
Amperes
18)The small box with replacement bulbs is part of the basic equipping of the vehicle in some countries.
s2dk.1.book Page 261 Wednesday, April 8, 2009 12:23 PM

Technical Data
273
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224.
3,6
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
7,7M6
Permissible gross weight
2045
Unloaden weight ready for work
1482
Loading capacity
563
Loading capacity when using the TLC
488
Permissible front axle load
1200
Permissible rear axle load
1250
Permissible trailer loads, trailer braked
1400
a)
1500
b)
a)Uphills up to 12 %b)Uphills up to 8%Permissible trailer loads, trailer unbraked
650
s2dk.1.book Page 273 Wednesday, April 8, 2009 12:23 PM

Technical Data
275
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224.
4,6
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
8,6
M6
DQ7
M6 4x4
Permissible gross weight
2074
2091
2170
Unloaden weight ready for work
1511
1528
1607
Loading capacity
563
563
563
Loading capacity when using the TLC
488
488
488
Permissible front axle load
1200
1200
1200
Permissible rear axle load
1250
1250
1250
Permissible trailer loads, trailer braked
1500
a)
1700
b)
a)Uphills up to 12 %b)Uphills up to 8%
1500
a)
1700
b)
1600
a)
1800
b)
Permissible trailer loads, trailer unbraked
700
700
750
s2dk.1.book Page 275 Wednesday, April 8, 2009 12:23 PM

Technical Data
277
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224.
5,5
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
10,6DQ6 4x4
Permissible gross weight
2285
Unloaden weight ready for work
1724
Loading capacity
561
Loading capacity when using the TLC
486
Permissible front axle load
1200
Permissible rear axle load
1250
Permissible trailer loads, trailer braked
1800
Permissible trailer loads, trailer unbraked
750
s2dk.1.book Page 277 Wednesday, April 8, 2009 12:23 PM

Technical Data
279
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224, “Check engine oil level”.
3,8/4,3
b)
b)Ve hicles w ith DP F.Cooling system of the vehicle
c)
c)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
8,4
M5
M5 Green Line
Permissible gross weight
2076
2063
Unloaden weight ready for work
1513
1518
Loading capacity
563
545
Loading capacity when using the TLC
488
470
Permissible front axle load
1200
1200
Permissible rear axle load
1250
1230
Permissible trailer loads, trailer braked
1500
a)
1700
b)
a)Uphills up to 12 %b)Uphills up to 8%
1500
a)
1700
b)
Permissible trailer loads, trailer unbraked
650
650
s2dk.1.book Page 279 Wednesday, April 8, 2009 12:23 PM

Technical Data
281
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224, “Check engine oil level”.
3,8/4,0
b)
b)Ve hicles w ith DP F.Cooling system of the vehicle
c)
c)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
8,7
M6
DQ6
Permissible gross weight
2110
2122/2132
a)
a)Ve hicles w ith DP F.Unloaden weight ready for work
1547
1559/1569
a)
Loading capacity
563
563
Loading capacity when using the TLC
488
488
Permissible front axle load
1200
1200
Permissible rear axle load
1250
1250
Permissible trailer loads, trailer braked
1800
1800
Permissible trailer loads, trailer unbraked
700
700
s2dk.1.book Page 281 Wednesday, April 8, 2009 12:23 PM

Technical Data
283
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
60/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 224.
4,0
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
8,4
M6
DQ6
M6 4x4
Permissible gross weight
2118
2135
2210
Unloaden weight ready for work
1555
1572
1647
Loading capacity
563
563
563
Loading capacity when using the TLC
488
488
488
Permissible front axle load
1200
1200
1200
Permissible rear axle load
1250
1250
1250
Permissible trailer loads, trailer braked
1800
1800
1800
Permissible trailer loads, trailer unbraked
750
750
750
s2dk.1.book Page 283 Wednesday, April 8, 2009 12:23 PM
