Seats and Stowage
82

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!Note
If the movement of the seat is inadvertently interrupted during an adjustment, once
again press the switch in the appropriate di rection and continue with the adjustment
of the seat to the end.Storing settingStoring seat and exterior mirror settings for driving forward– Switch on the ignition.
– Adjust the seat page 81.
– Adjust both exterior mirrors page 77.
– Press button SET fig. 70 .
– Press one of the memory buttons within 10 seconds after pressing the button SET - an acknowledgement signal confirms that the seat setting is stored.Storing exterior mirror setting for reversing*– Switch on the ignition. – Turn the exterior mirror control to position

 page 77.
– Engage the reverse gear.
– Move the right exterior mirror into the desired position page 77.
– Take the vehicle out of gear. The set position of the exterior mirror is stored.
Memory buttons
Memory for the seat offers the possibility to store the individual driver seat and
external mirror position. An individual posi tion can be allocated to each of the three
memory buttons fig. 70 , that is three in total. Af ter pressing the corresponding
memory button , the seat and the exterior mirror are automatically moved into the
positions which have been allocated to this button page 83.
Emergency Off
You can interrupt the setting operation at any time, if you operate any button of the
driver seat.
Note

For safety reasons, it is not possible to store this position if the inclination angle of
the seat backrest is more than 102 ° in relation to the seat cushion.

When storing settings with the memory buttons, we recommend that you begin
with the front button and assign a memory button to each additional driver.

Each new setting stored with the same button erases the previous setting.

Each time you store the seat and exterior mirror settings for driving forward you
also have to re-store the individual setting of the exterior mirror on the passenger side
for reversing.
Assigning the remote contro l key to the memory buttonsAssigning the remote control key to the memory buttonsAfter storing the settings of the seat and exterior mirrors, you have 10 seconds in order
to assign the radio remote control to the appropriate memory button.
– Withdraw the ignition key.
WARNING (continued)
Fig. 70 Driver seat: Memory buttons
and SET button
AA
AB
ABAB
s3fg.2.book Page 82 Friday, April 30, 2010 12:17 PM

Seats and Stowage83
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Press the unlock button
page 49, after the successful assignment an audible
signal will sound. The setting is stored with the memory button which you have
selected.
Assigning the remote control key to the memory buttons on the KESSY*
systemOn vehicles which are equipped with the KESSY* system, the following procedure for
assigning the remote control key to the memory buttons exists for electrically adjust-
able front seats and mirrors*.
– Switch the ignition off within 10 seconds after storing the setting.
– Open the driver door.
– Press the unlock button on the remo te control key within 10 seconds.
If you wish to be able to retrieve the settings which are stored in the memory by also
using the radio remote control, you have to assign the radio remote control to a
memory button in each case.
If you wish, you can obtain an additional remote control key from an authorised Škoda
Service partner and then assign the remote control key to another memory button.
Note

If the radio remote control had previously been assigned to another memory
button, this setting is then erased by the new assignment.

If you assign the radio remote control to a memory button which has already been
assigned to a radio remote control, the ol d assignment is also replaced by a new
assignment in this case.

The assignment of the radio remote co ntrol to a memory button is retained,
however, after reassigning the seats and exterior mirrors.

After the successful assignment, the turn si gnal lights flash and an audible signal
will sound as a confirmation. The setting is stored with the memory button which you
have selected.
Retrieving settings of the seat and mirrors
You can retrieve the stored settings either with the memory buttons or
with the remote control*.Retrieving settings with memory buttons– In order to retrieve the stored setting, you have two possibilities:
– One-touch automatic memory: briefly press the desired memory button
 page 82, fig. 70 . The seat and exterior mirror are moved automatically into the
stored positions (this applies only if the ignition is switched on and the speed is less
than 5 km/h).
– Memory keying : Press and hold the desired memory button pressed long
enough until the seat and the exterior mi rror are moved into the stored positions.Retrieving settings with remote control– If the driver door is closed and the ignition is switched off, briefly press the unlock
button of the radio remote control page 49 and then open the driver door.
– The seat and exterior mirrors now move automatically into the stored positions.Retrieving setting of exterior mirror for reversing*– Turn the rotary knob for the exterior mirror setting into the position
  page 77
before engaging the reverse gear.
The mirror returns into its initial position, after the rotary knob is moved out of the
position
 and put into another position or if the speed is more than 15 km/h.
Emergency Off
You can interrupt the setting operation at any time, if you operate any button of the
driver seat.
AB
AB
s3fg.2.book Page 83 Friday, April 30, 2010 12:17 PM

Air conditioning system119
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The prerequisite for the correct switching on of the auxiliary heating (auxiliary heating
and ventilation) according to the programmed
pre-set time is the correct setting of the
current time and the weekday page 118.
If the system is running, a wa rning light in the button for direct switching on/off of the
auxiliary heating lights up.
The running system deactivate s after expiration of the operating period or is deacti-
vated earlier by pressing the button for dire ct switching on/off of the auxiliary heating
 page 118.
A random pre-set time can be deactivated by selecting the menu point Deactivate in
the menu Activate.
After selecting the menu Fa c t o r y s e t t i n g in the menu Aux. heating , it is possible to
return to the factory setting.
Radio remote control
The auxiliary heating (auxiliary heating and ventilation) can be
switched on or off with the remote control.– For switching on, press the button .
– For switching off, press the button .
The transmitter and the battery are housed in the housing of the remote control. The
receiver is located in the interior of the car.
If the battery is properly charged, the effective range is up to 600 m. For switching on
or off the auxiliary heating, hold the remo te control vertically with the antenna 
fig. 124 towards the top. You must not cover over the antenna with the fingers or the
palm of the hand. Obstacles between the ra dio remote control and the vehicle, bad
weather conditions and a weaker batt ery can clearly reduce the range.
The auxiliary heating can only be switched on or off with the radio remote control, if
the distance between the radio remote control and the vehicle is at least 2 m.
Warning light in the radio remote control
The warning light in the radio remote control fig. 124 indicates after a keystroke if
the remote control signal was received by the auxiliary heating and if the battery is
adequately charged.
Caution
There are electronic components in the radio remote control, protect the remote
control against water, severe shocks and direct sun rays.


Fig. 124 Auxiliary heating: Radio
remote control
ONOFF
AA
Display warning light
Importance
Lights up green for 2 seconds.
The auxiliary heating was switched on.
Lights up red for 2 seconds.
The auxiliary heating was switched off.
Slowly flashes green for 2 seconds.
The ignition signal was not received.
Quickly flashes green for 2 seconds.
The auxiliary heating is blocked, e. g
because the tank is nearly empty or there
is a fault in the auxiliary heating.
Flashes red for 2 seconds.
The switch off signal was not received.
Lights up orange for 2 seconds, then
green or red.
The battery is weak, however the switch-
ing on or off signal was received.
Lights up orange for 2 seconds, then
flashes green or red.
The battery is weak, however the switch-
ing on or off signal was not received.
Flashes orange for 5 seconds.
The battery is discharged, however the
switching on or off signal was not
received.
s3fg.2.book Page 119 Friday, April 30, 2010 12:17 PM

Air conditioning system
120

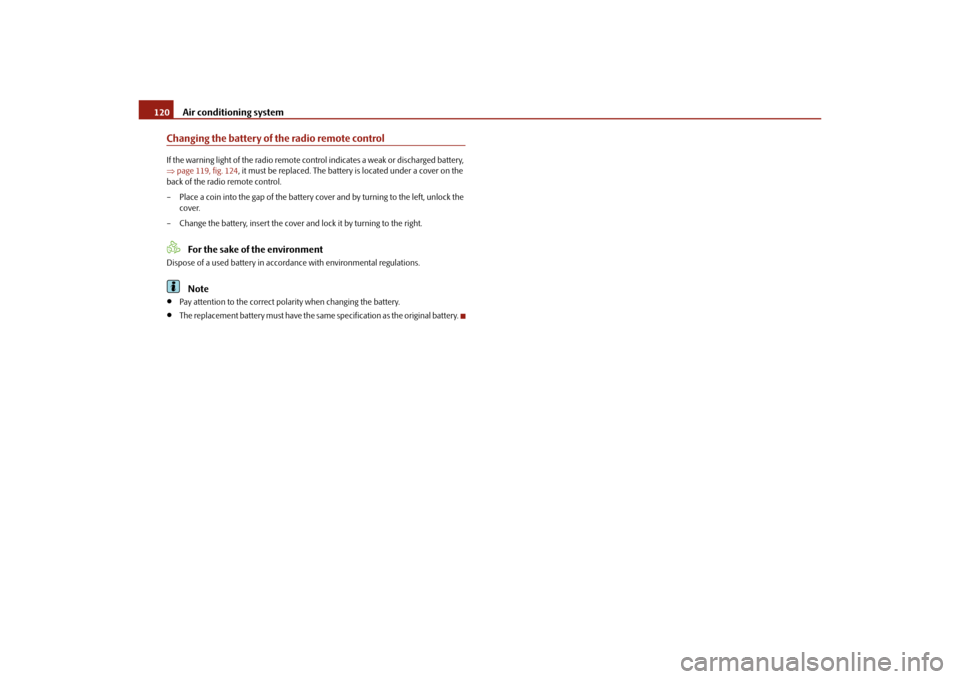

Changing the battery of the radio remote controlIf the warning light of the radio remote cont rol indicates a weak or discharged battery,
 page 119, fig. 124 , it must be replaced. The battery is located under a cover on the
back of the radio remote control.
– Place a coin into the gap of the battery cover and by turning to the left, unlock the
cover.
– Change the battery, insert the cover and lock it by turning to the right.
For the sake of the environment
Dispose of a used battery in accord ance with environmental regulations.
Note

Pay attention to the correct polarity when changing the battery.

The replacement battery must have the same specification as the original battery.
s3fg.2.book Page 120 Friday, April 30, 2010 12:17 PM

Communication
152Note
The device to be connected must support the Bluetooth
® profile A2DP, see Owner's
manual of the device to be connected.
Universal telephone preinstallation GSM IIl*IntroductionThe universal telephone preinstallation GSM IlI is a built-in “hands-free system”, it
provides a voice operated convenience mode via the multifunction steering wheel* or
the navigation system*.
All communication between a telephone and the hands-free system of your vehicle
can only be established with the help of the Bluetooth
®, when using HFP - Hands Free
Profile or rSAP - remote SIM Access Profile .
The following functions are included in th e universal telephone preinstallation GSM III:

Phone Phonebook page 152.

Convenience mode with the multifunction steering wheel* page 154 with
display in the information display page 156.

Voice control of the telephone, including the language selection of the telephone
contacts page 157.

Internet connection page 158.

Music playback from the telephone or other multimedia units page 158.

Display of SMS page 156.
The volume can be changed at any time with the control button of the radio* or with
the buttons on the multifunction steering wheel*.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully
responsible for road safety. Use the teleph one system only to such an extent, so
that you are in full control of your vehicle at any time.
Note

Please refer to the following guidelines page 145, “Mobile phones and two-way
radio systems”.

Should you have any questions, please contact an authorised Škoda Service
Par tner.
Phone PhonebookA phone phonebook is part of the mobile ph one preinstallation with voice control. In
the phone phonebook there are 2000 free me mory locations available. This phone
phonebook can be used in line with the mobile telephone.
After the first connection of the telephone, the system begins to load the phone book
from the phone and the SIM card into the memory of the control unit.
If the telephone book of the mobile phon e contains more than 2 000 entries, the
system announces Phone book not fully loaded .
Each time the telephone has establishe d a new connection with the hands-free
system, an update of the relevant phone b ook is performed. The updating can take a
few minutes. During this time the phone book, which was stored after the last update
was completed, is available. Newly stored telephone numbers are only shown after the
updating has ended.
If a telephone event (e.g. incoming or outg oing call, dialogue of the voice control)
occurs during the updating procedure, the updating is interrupted. After the telephone
event has ended, the updating starts anew.
Store voice recording of a contact
For each entry in the menu Phone book, you can store your own voice entry for the
voice control with Voice Tag - Record. You can also store your own voice entry using
voice control in the menu “further options”.Connection of the telephone with the hands-free system In order to connect a mobile phone with th e hands-free system, it is necessary to
connect the telephone to the hands-free sy stem. Detailed information on this is
s3fg.2.book Page 152 Friday, April 30, 2010 12:17 PM

Index277
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Active driver-steering recommendation . . . . . . . 189
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 162 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 121
AHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 111 Recirculated air mode . . . . . . . . . . . . . . . . . . . . 113
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 191
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . 50
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Assigning the remote control key to the memory buttons
82
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Automatic driving lamp control . . . . . . . . . . . . . . . . 61
Automatic gearbox Emergency programme . . . . . . . . . . . . . . . . . . . 140
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . 136 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Selector lever-emergency unlocking . . . . . . . 140
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Automatic rear window wiper (Combi) . . . . . . . . . . 75
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 82
Automatic vehicle wash systems . . . . . . . . . . . . . . 205
Automatic wiper/washer system . . . . . . . . . . . . . . . 73
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Avoiding damage to your vehicle . . . . . . . . . . . . . . 200
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 222 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Inspecting the electrolyte level . . . . . . . . . . . . . 225
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 225
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 215
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Button for the central locking system . . . . . . . . . . . 42
Button in the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
CCar state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 196
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s3fg.2.book Page 277 Friday, April 30, 2010 12:17 PM

Index
280
KKESSY system
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 125
Switching the engine off . . . . . . . . . . . . . . . . . . 125
Switching the ignition off . . . . . . . . . . . . . . . . . 125
Switching the ignition on . . . . . . . . . . . . . . . . . 125
Unlocking and locking the steering . . . . . . . . 125
Unlocking and locking the vehicle . . . . . . . . . . . 40
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236, 240
Light automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Lighting of the interior of the vehicle . . . . . . . . . . . . 67
Lights converting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 65
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 60
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Locking and unlocking from inside . . . . . . . . . . . . . . 42 Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Low beam light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 44, 87 Automatic foldable luggage compartment cover (Combi) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Fixing of the floor covering . . . . . . . . . . . . . . . . . 90
Foldable luggage compartment cover (Combi) 91
Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Removing the variable loading floor . . . . . . . . 92
variable loading floor (Combi) . . . . . . . . . . . . . 92
Luggage compartment light (Combi) Removeable lamp . . . . . . . . . . . . . . . . . . . . . . . . . 70
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 124
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Memory for the on-board computer . . . . . . . . . . . 19
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152 Connection to the hands-fr ee system . . . . . . 152
Connection with the hands-free system . . . . 146
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Multifunction steering wheel . . . . . . . . . . . . . . . . . 142
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . 19 Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
NNet partition (Combi) . . . . . . . . . . . . . . . . . . . . . . . . . 95
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99OOil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . 38
Opening for skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 207
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Overview of the engine compartment . . . . . . . . . 217PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Panoramic sliding roof (Combi) closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
opening and tilting . . . . . . . . . . . . . . . . . . . . . . . . 57
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
s3fg.2.book Page 280 Friday, April 30, 2010 12:17 PM

Index281
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Parking aid
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
parking aid Front and rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 123
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Power socket in the luggage compartment . . . . . 100
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Button in the driver's door . . . . . . . . . . . . . . . . . 52
Button in the front passenger door and in the rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 54
with central locking system . . . . . . . . . . . . . . . . . 54
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86, 104
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear light unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Rear light unit (Combi) . . . . . . . . . . . . . . . . . . . . . . . 255 Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Rear window
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Recommendation for changing gears . . . . . . . . . . . 19
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Synchronisation process . . . . . . . . . . . . . . . . . . . 50
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Replacing the wiper blade fo r rear window (Combi) 76
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 76
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Safety information Engine compartment . . . . . . . . . . . . . . . . . . . . . 216
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . . 196
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 167
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 167
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165, 168 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 167 Safety information . . . . . . . . . . . . . . . . . . . . . . . 166
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever lock Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever-emergency unl ocking (DSG) . . . . 140
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting the top position of the lid . . . . . . . . . . . . . . . 45
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . 122 after fuel tank has run empty . . . . . . . . . . . . . 123
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Steering active driver-steering recommendation . . . 189
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 192
Storage compartment Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Umbrella . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Storage compartments . . . . . . . . . . . . . . . . . . . . . . 100
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
s3fg.2.book Page 281 Friday, April 30, 2010 12:17 PM

Index
282
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 60
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 123TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 205
Taking out the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
TCS
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 195
The roof luggage rack system . . . . . . . . . . . . . . . . . . . 97
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Through-loading bag . . . . . . . . . . . . . . . . . . . . . . . . 106
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tiptronic automatic gearbox DSG . . . . . . . . . . . . . . . . . . 139
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Towing protection monitoring . . . . . . . . . . . . . . . . . . 51
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting and towing vehicle Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system . . . . . . . . . . . . . . . . . . . . . . 188 Traction control system (TCS)
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 General Maintenance . . . . . . . . . . . . . . . . . . . . 202
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . 180
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Twindoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . 145
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre inflation pressure Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tyre repair kit Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Tyres Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . 209
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192VVanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Ventilation Auxiliary ventilation . . . . . . . . . . . . . . . . . . . . . . 117
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
WWarning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 with a high-pressure cleaner . . . . . . . . . . . . . . 206
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 205
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . . 206
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228, 238
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Windscreen Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . . 73
Windshield washer fluid reservoir . . . . . . . . . . . . . 226 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Windshield washer system . . . . . . . . . . . . . . . . . . . 226
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . . 76XXenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s3fg.2.book Page 282 Friday, April 30, 2010 12:17 PM
